VAUXHALL ZAFIRA TOURER 2015 Repair Manual

Seats, restraints59
Permissible options for fitting an ISOFIX child restraint system
Weight classSize
classFixture
On front
passenger
seatOn outboard
seats in the
second rowOn centre
seat in the
second rowOn the
seats in
the third
rowGroup 0: up to 10 kg
or approx. 10 monthsEISO/R1XILXXGroup 0+: up to 13 kg
or approx. 2 yearsEISO/R1XILXXDISO/R2XILXXCISO/R3XILXXGroup I: 9 to 18 kg
or approx. 8 months to 4 yearsDISO/R2XILXXCISO/R3XILXXBISO/F2XIL, IUFXXB1ISO/F2XXIL, IUFXXAISO/F3XIL, IUFXXGroup II: 15 to 25 kg or approx. 3 to 7 yearsXILXXGroup III: 22 to 36 kg or approx. 6 to 12 yearsXILXX

60Seats, restraints
IL=Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
ISOFIX restraint system must be approved for the specific vehicle type.IUF=Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.X=No ISOFIX child restraint system approved in this weight class.
ISOFIX size class and seat device
A – ISO/F3=Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B – ISO/F2=Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 – ISO/F2X=Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C – ISO/R3=Rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D – ISO/R2=Rear-facing child restraint system for smaller children in the weight class up to 18 kg.E – ISO/R1=Rear-facing child restraint system for young children in the weight class up to 13 kg.

Seats, restraints61ISOFIX child restraint
systems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.
ISOFIX mounting brackets are
indicated by a label on the backrest.
Before fastening a child seat adjust
the head restraint to use position
3 35.
When using ISOFIX fastened child
restraint systems on the second seat
row, we recommend to adjust the
accordant outer seat in third notch
from rear end position, regarding to
base seats. Lounge seat, if equipped, must be in normal position 3 43.
Top-tether fastening eyes
Top-Tether fastening eyes are
marked with the symbol : for a child
seat.Depending on country-specific
equipment, the vehicle may have two or three fastening eyes.
In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes. The strap
must run between the two guide rods
of the head restraint.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

62StorageStorageStorage compartments................62
Load compartment .......................75
Roof rack system .........................90
Loading information .....................91Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Instrument panel storage
In the instrument panel in front of the
Info-Display is a storage
compartment. Push to open the lid.
Glovebox
There are two gloveboxes on the front
passenger side.
To open the upper glovebox, press
button on the left side in the open
storage.
To open the lower glovebox, pull the handle.
The glovebox features an adapter for the locking wheel nuts.

Storage63
Both gloveboxes should be closed
whilst driving.

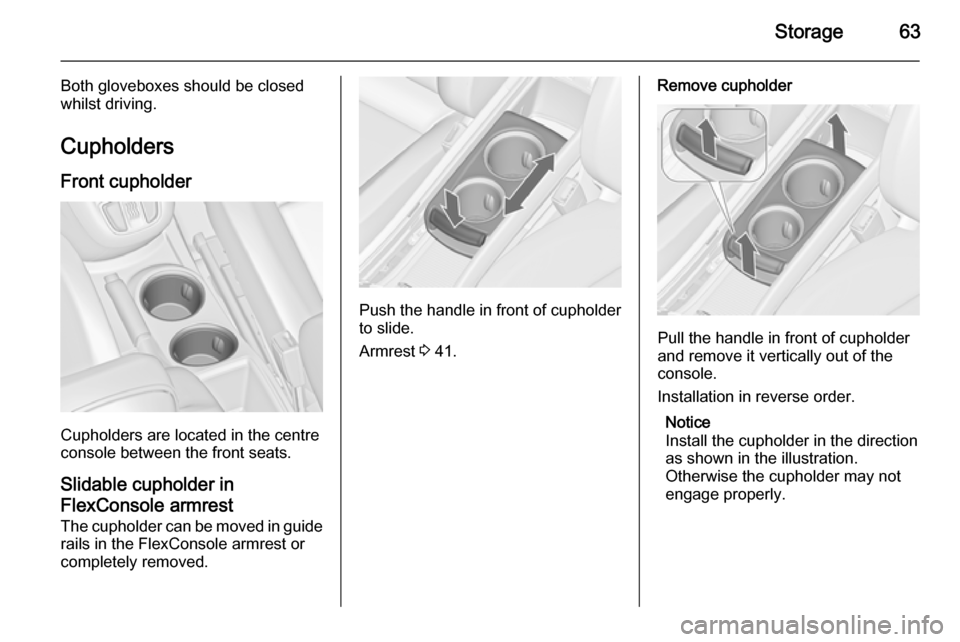

Cupholders
Front cupholder
Cupholders are located in the centre
console between the front seats.
Slidable cupholder in
FlexConsole armrest
The cupholder can be moved in guide rails in the FlexConsole armrest or
completely removed.
Push the handle in front of cupholder
to slide.
Armrest 3 41.
Remove cupholder
Pull the handle in front of cupholder
and remove it vertically out of the
console.
Installation in reverse order.
Notice
Install the cupholder in the direction as shown in the illustration.
Otherwise the cupholder may not engage properly.

64Storage
Rear cupholder
Additional cupholder are located
between the seats in the third row.
Bottleholder
The door pockets of front and rear
doors are designed to carry bottles.
Front storage
A storage compartment is located
next to the steering wheel.
Door panel storage On front door trim there are small
pockets for e. g. mobile phones.
Overhead console
Press button to open storage box.
The box may be loaded with max.
0.2 kg.

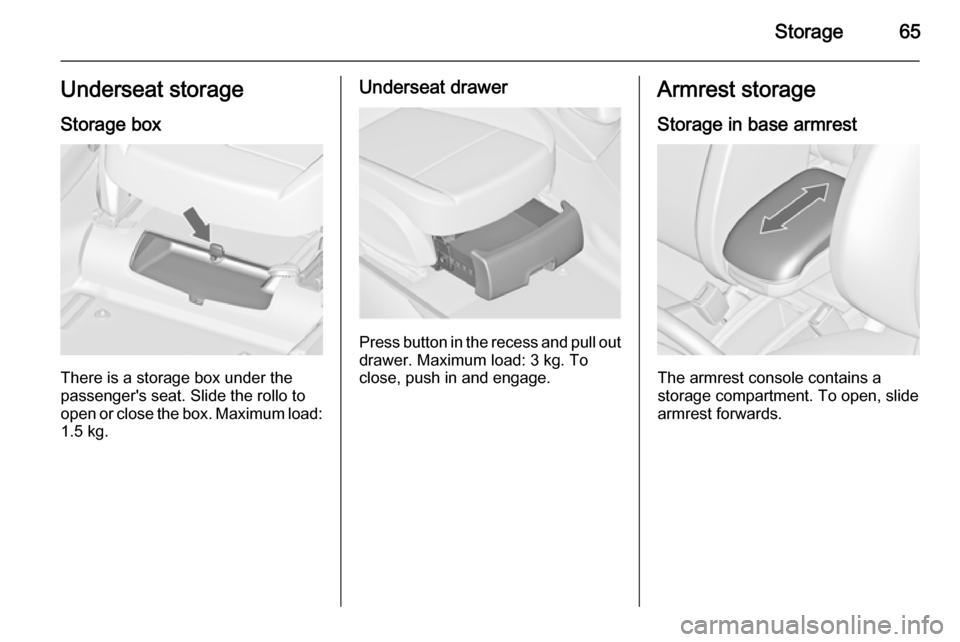

Storage65Underseat storage
Storage box
There is a storage box under the
passenger's seat. Slide the rollo to
open or close the box. Maximum load: 1.5 kg.
Underseat drawer
Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.
Armrest storage
Storage in base armrest
The armrest console contains a
storage compartment. To open, slide armrest forwards.

66Storage

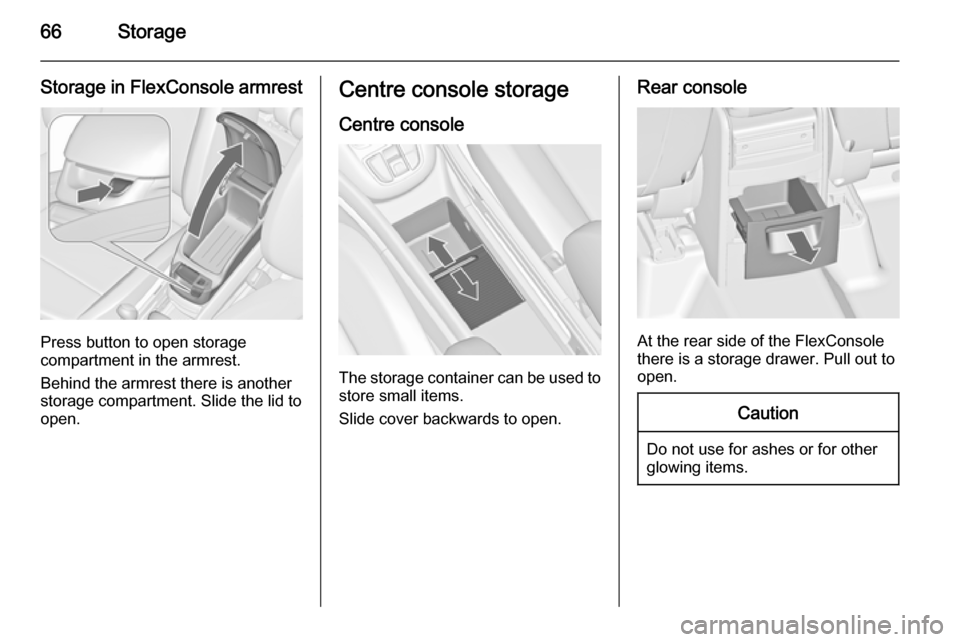

Storage in FlexConsole armrest
Press button to open storage
compartment in the armrest.
Behind the armrest there is another
storage compartment. Slide the lid to
open.
Centre console storage
Centre console
The storage container can be used to
store small items.
Slide cover backwards to open.
Rear console
At the rear side of the FlexConsole
there is a storage drawer. Pull out to
open.
Caution
Do not use for ashes or for other
glowing items.

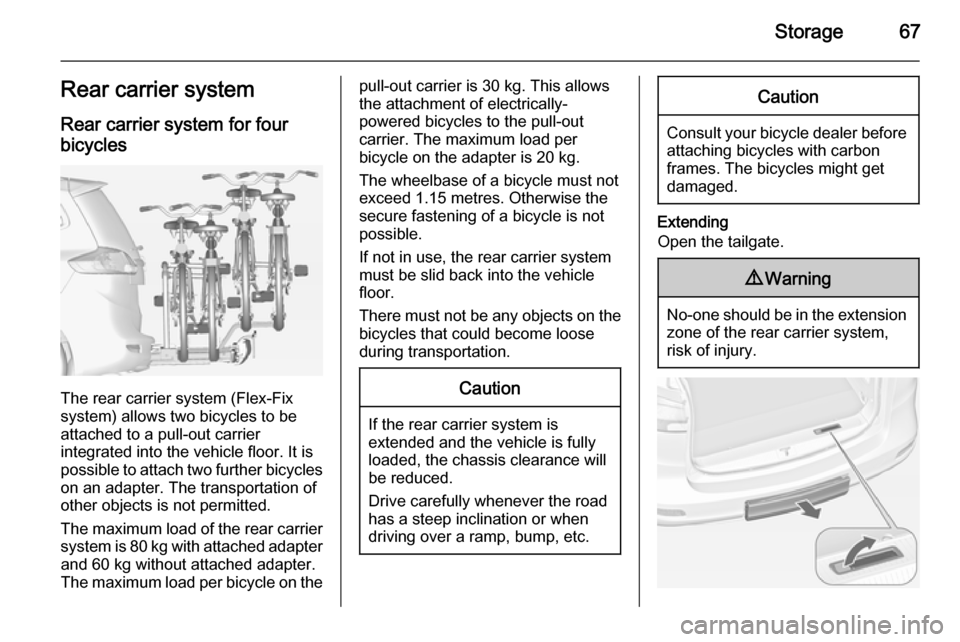

Storage67Rear carrier systemRear carrier system for four
bicycles
The rear carrier system (Flex-Fix
system) allows two bicycles to be
attached to a pull-out carrier
integrated into the vehicle floor. It is
possible to attach two further bicycles
on an adapter. The transportation of
other objects is not permitted.
The maximum load of the rear carrier
system is 80 kg with attached adapter and 60 kg without attached adapter.The maximum load per bicycle on the
pull-out carrier is 30 kg. This allows
the attachment of electrically-
powered bicycles to the pull-out
carrier. The maximum load per
bicycle on the adapter is 20 kg.
The wheelbase of a bicycle must not
exceed 1.15 metres. Otherwise the
secure fastening of a bicycle is not
possible.
If not in use, the rear carrier system
must be slid back into the vehicle
floor.
There must not be any objects on the bicycles that could become loose
during transportation.Caution
If the rear carrier system is
extended and the vehicle is fully loaded, the chassis clearance will
be reduced.
Drive carefully whenever the road has a steep inclination or when
driving over a ramp, bump, etc.
Caution
Consult your bicycle dealer before
attaching bicycles with carbon
frames. The bicycles might get
damaged.
Extending
Open the tailgate.
9 Warning
No-one should be in the extension
zone of the rear carrier system,
risk of injury.

68Storage

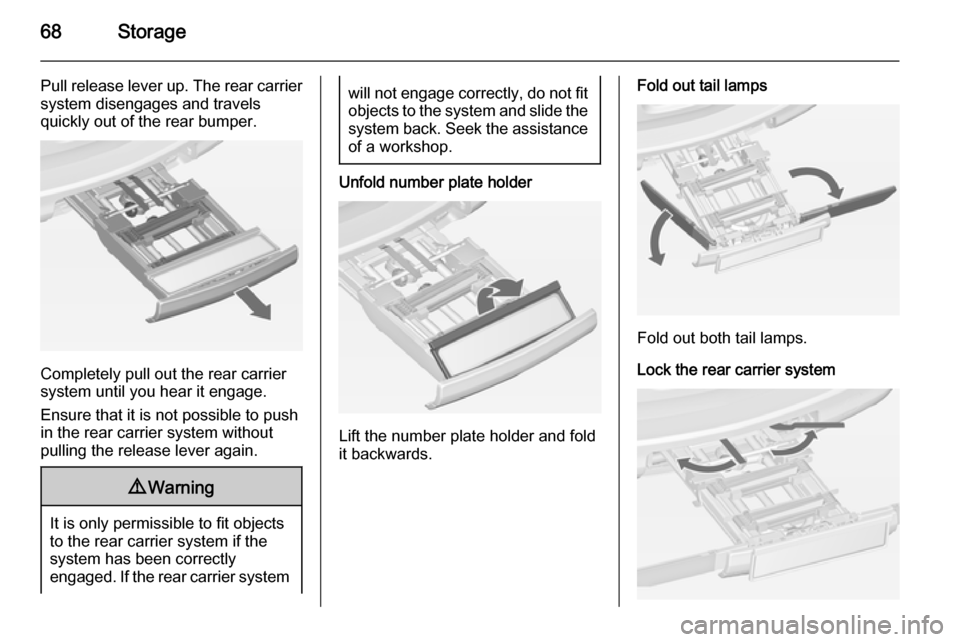

Pull release lever up. The rear carriersystem disengages and travels
quickly out of the rear bumper.
Completely pull out the rear carrier
system until you hear it engage.
Ensure that it is not possible to push in the rear carrier system without
pulling the release lever again.
9 Warning
It is only permissible to fit objects
to the rear carrier system if the
system has been correctly
engaged. If the rear carrier system
will not engage correctly, do not fit
objects to the system and slide the system back. Seek the assistance
of a workshop.
Unfold number plate holder
Lift the number plate holder and fold
it backwards.
Fold out tail lamps
Fold out both tail lamps.
Lock the rear carrier system
