VOLKSWAGEN BEETLE 2012 Owners Manual

Side view

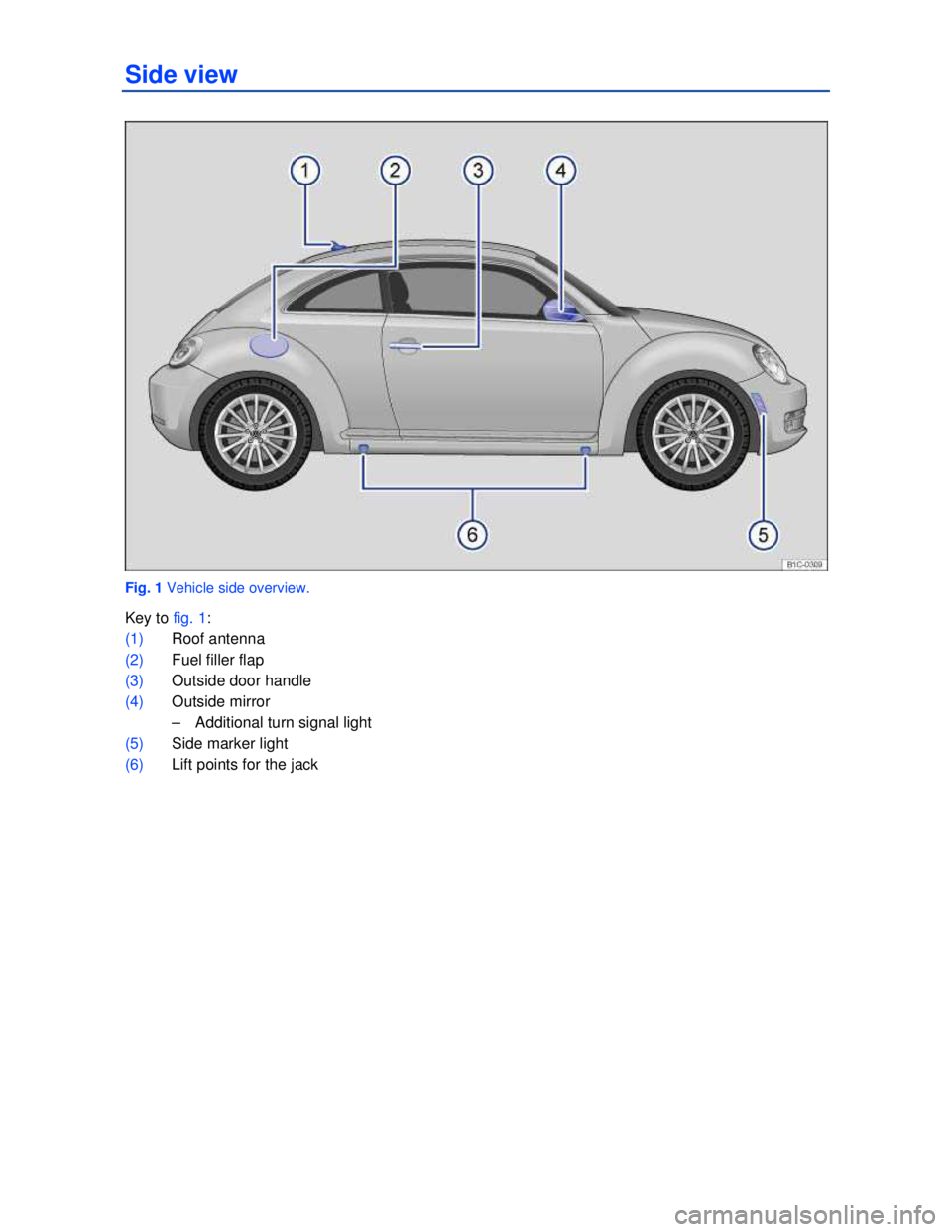

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Roof antenna
(2) Fuel filler flap
(3) Outside door handle
(4) Outside mirror
– Additional turn signal light
(5) Side marker light
(6) Lift points for the jack

Front view

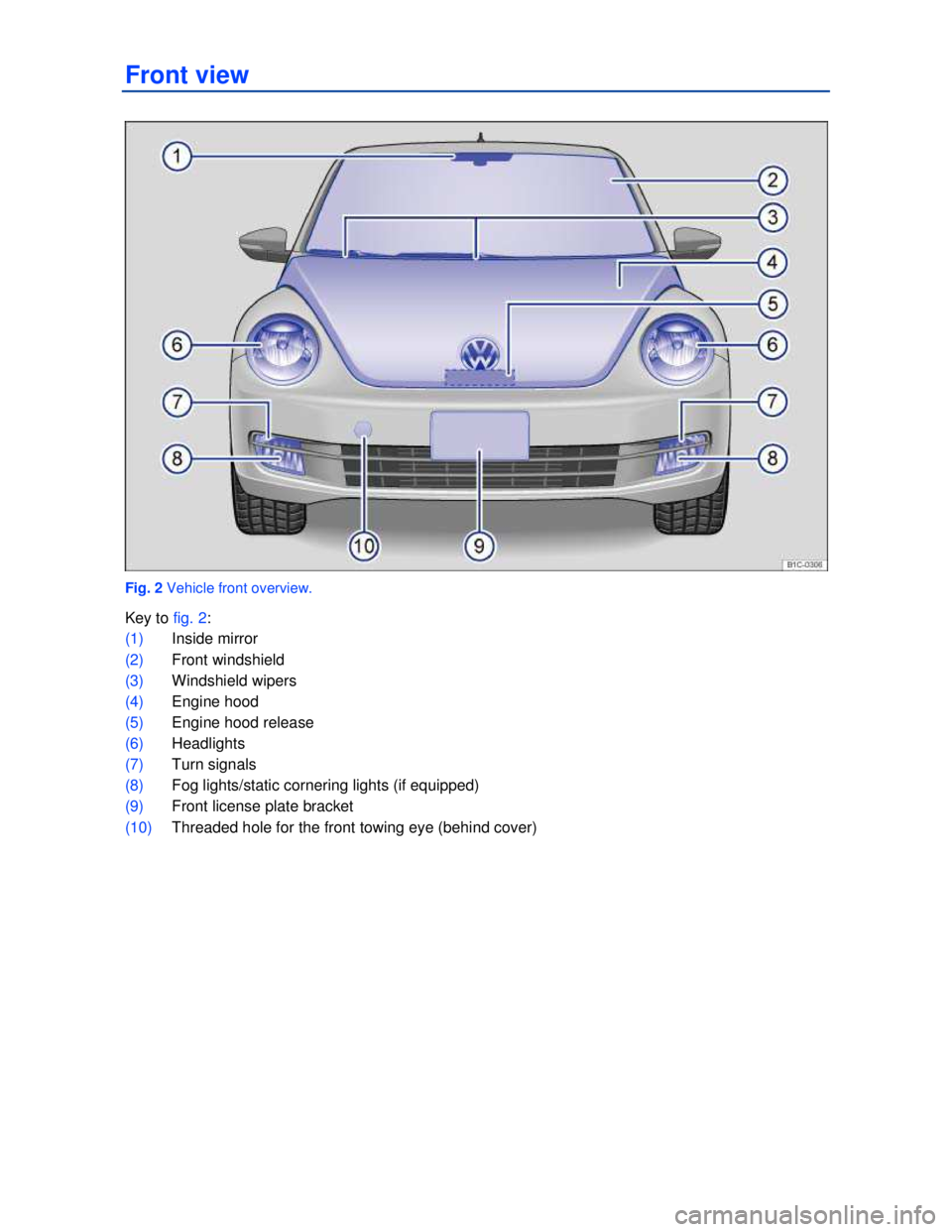

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror
(2) Front windshield
(3) Windshield wipers
(4) Engine hood
(5) Engine hood release
(6) Headlights
(7) Turn signals
(8) Fog lights/static cornering lights (if equipped)
(9) Front license plate bracket
(10) Threaded hole for the front towing eye (behind cover)

Rear view

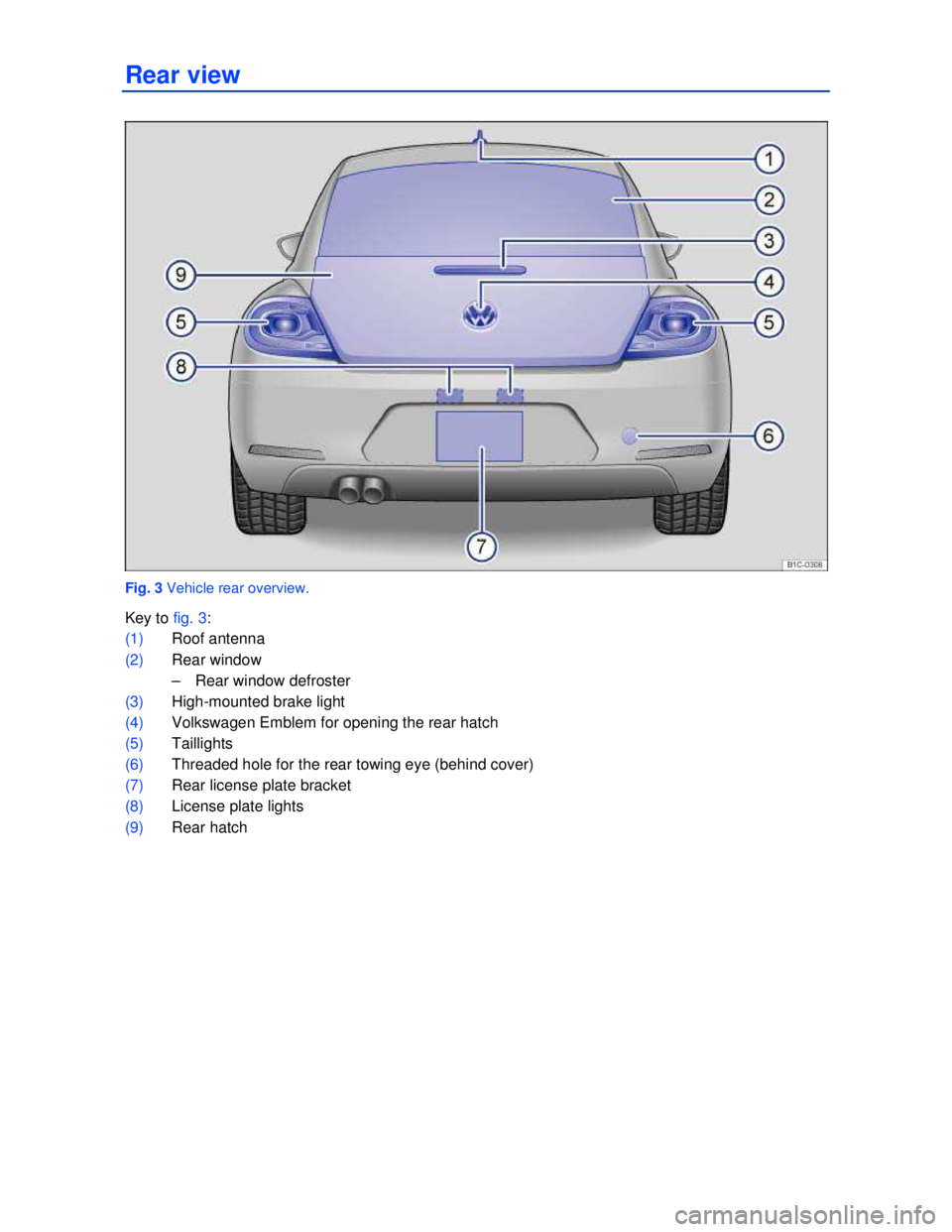

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Roof antenna
(2) Rear window
– Rear window defroster
(3) High-mounted brake light
(4) Volkswagen Emblem for opening the rear hatch
(5) Taillights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Rear license plate bracket
(8) License plate lights
(9) Rear hatch

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Indicator light for power locking system and anti-theft alarm system (if equipped)
(2) Buttons for operating the power windows
(3) Door handle
(4) Power locking button for locking and unlocking the vehicle 0

Driver side overview

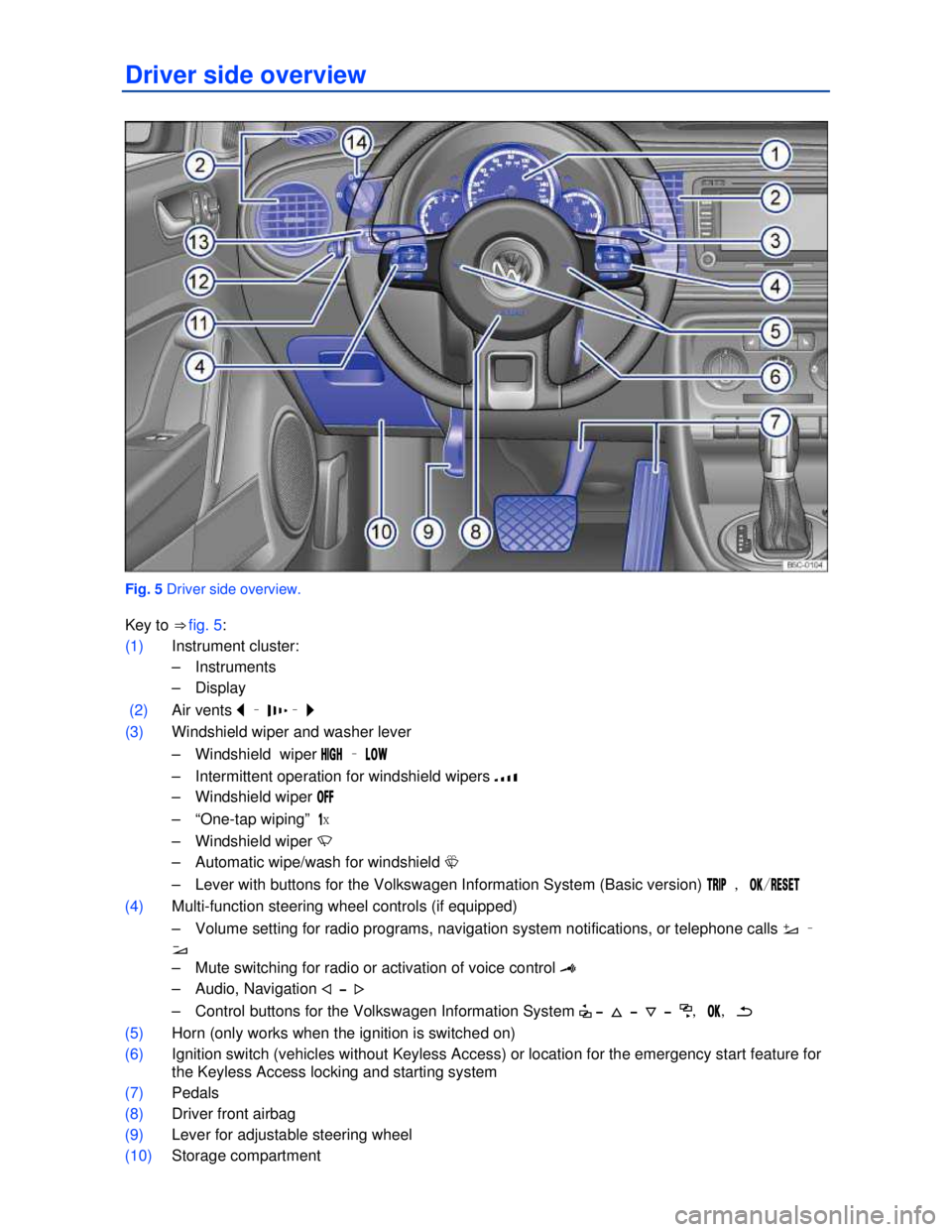

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Instrument cluster:
– Instruments
– Display
(2) Air vents  –

(11) Switch for background lighting (in the doors)

Upper center console

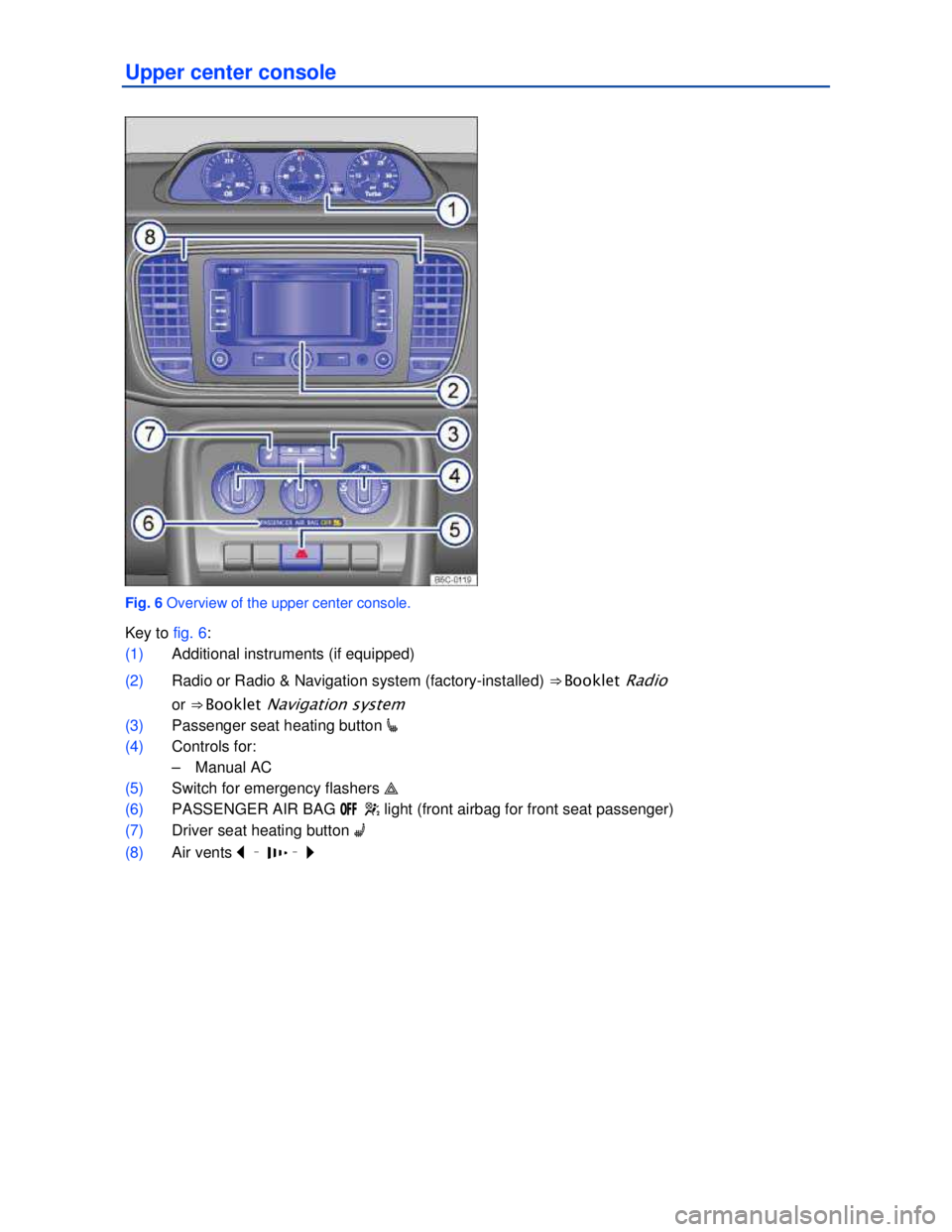

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Additional instruments (if equipped)
(2) Radio or Radio & Navigation system (factory-installed) ⇒ Booklet Radio
or ⇒ Booklet Navigation system
(3) Passenger seat heating button [
(4) Controls for:
– Manual AC
(5) Switch for emergency flashers
(6) PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
(7) Driver seat heating button A
(8) Air vents  –

Lower center console

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) 12 Volt socket
(3) Storage compartment with cup holder in the center console
(4) Center armrest with storage compartment (if equipped)
(5) Parking brake lever
(6) Starter button for the Keyless Access locking and starting system
(7) Storage compartment

Applicable only in the United States
Front passenger side overview

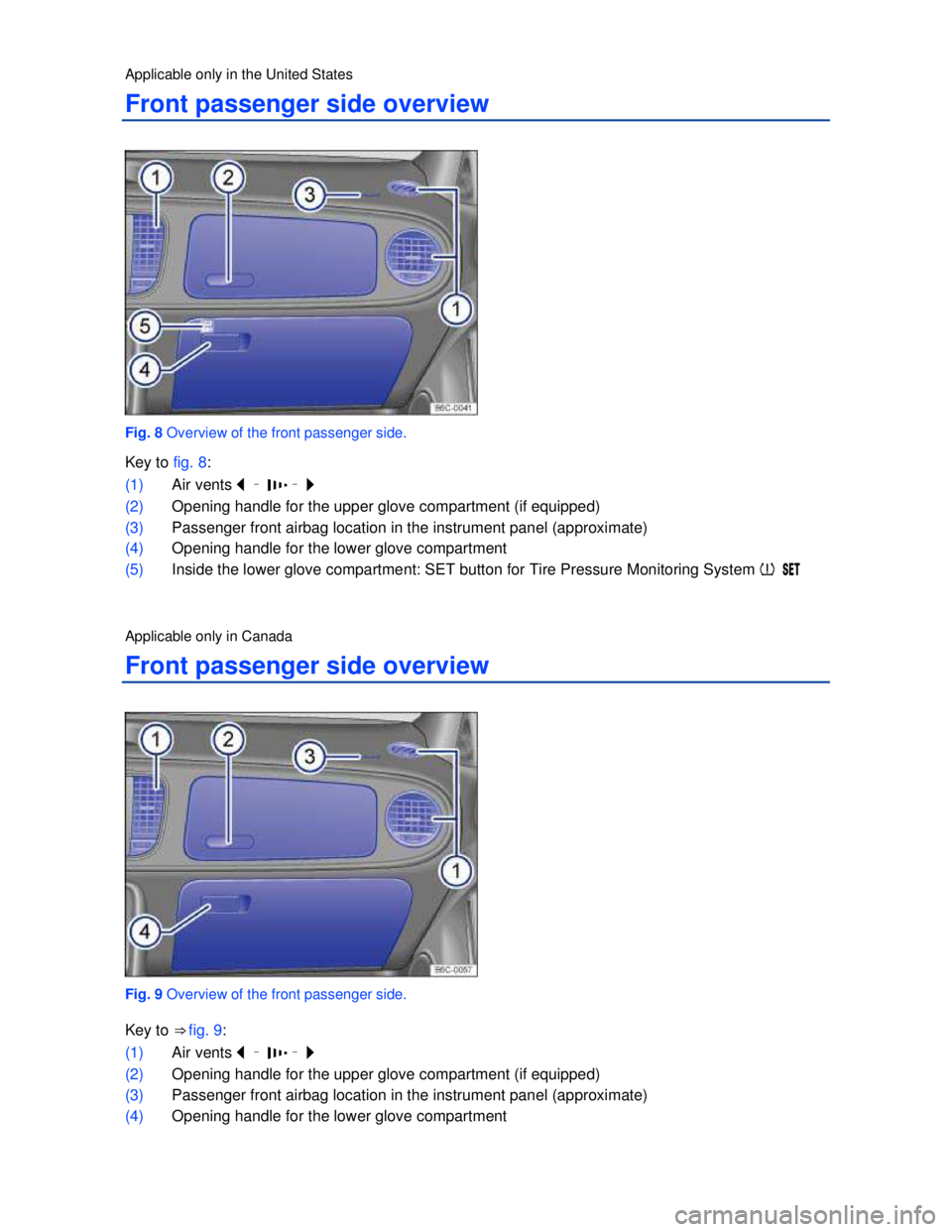

Fig. 8 Overview of the front passenger side.
Key to fig. 8:
(1) Air vents  –

Symbols on the roof console

Symbol Meaning
*  /  Interior and reading lights.
g c h Power sunroof.
a
/ Three-button module ⇒ Booklet Mobile Phone Package.
