Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handle
(4) Outside mirror
– Additional turn signal light
(5) Lift points for the jack
(6) Side marker light

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror with sensor on mirror base for:
– Rain sensor (if equipped)
– Low-light sensor (if equipped)
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on both left and right)
(5) Fog lights/static cornering lights (on both left and right, if equipped)
(6) Threaded hole for the front towing eye (behind cover)
(7) Turn signals (on both left and right)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on both left and right)
(4) Volkswagen emblem. Area for:
– Rear hatch release
– Rear Assist camera (if equipped)
(5) License plate lights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Roof antenna

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle 0

Driver side overview

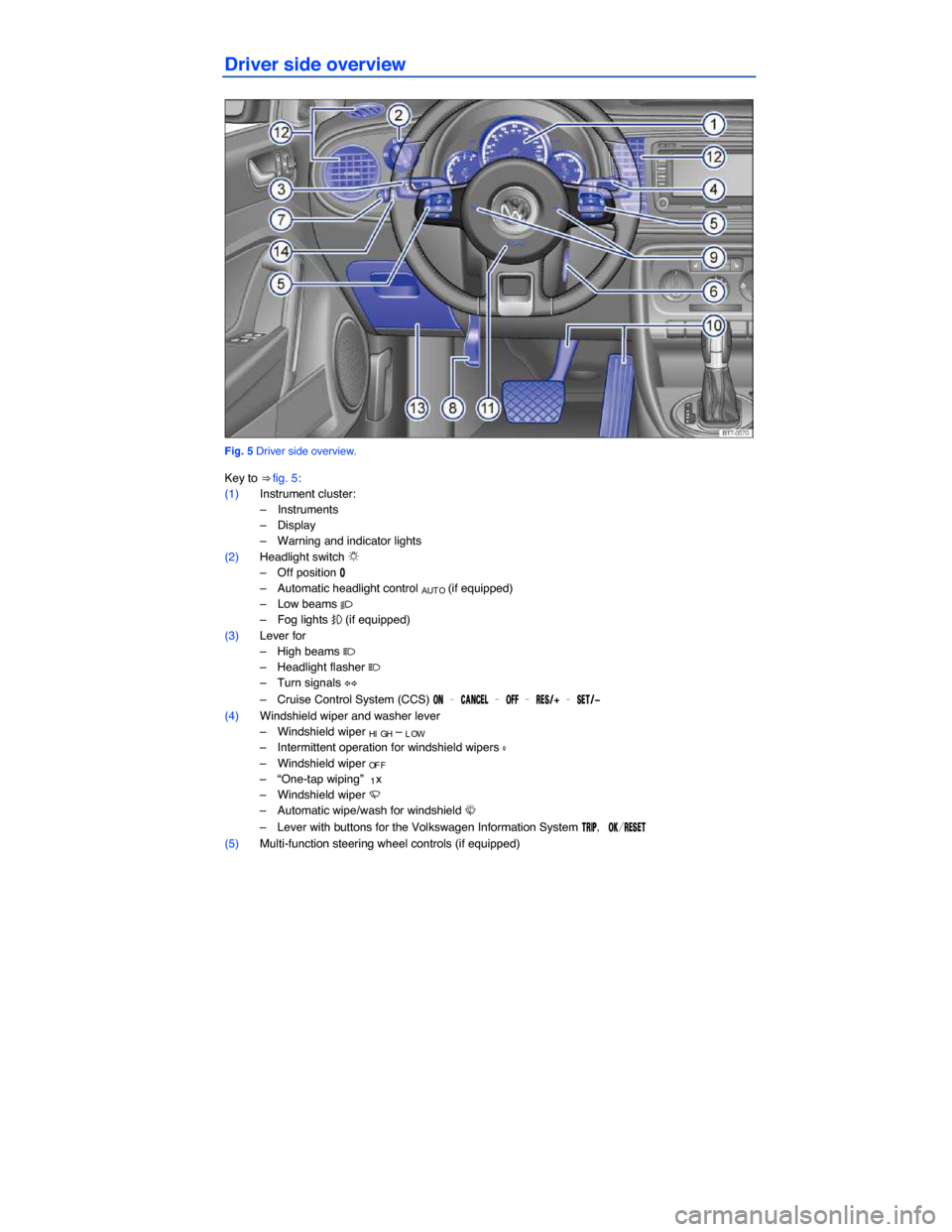

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Volume setting for radio, navigation system notifications, or telephone calls 42)0, /+/2%3%4
– Mute switching for radio or activation of voice control
– Audio, Navigation

Center console overview
Applicable only in the United States
Upper center console

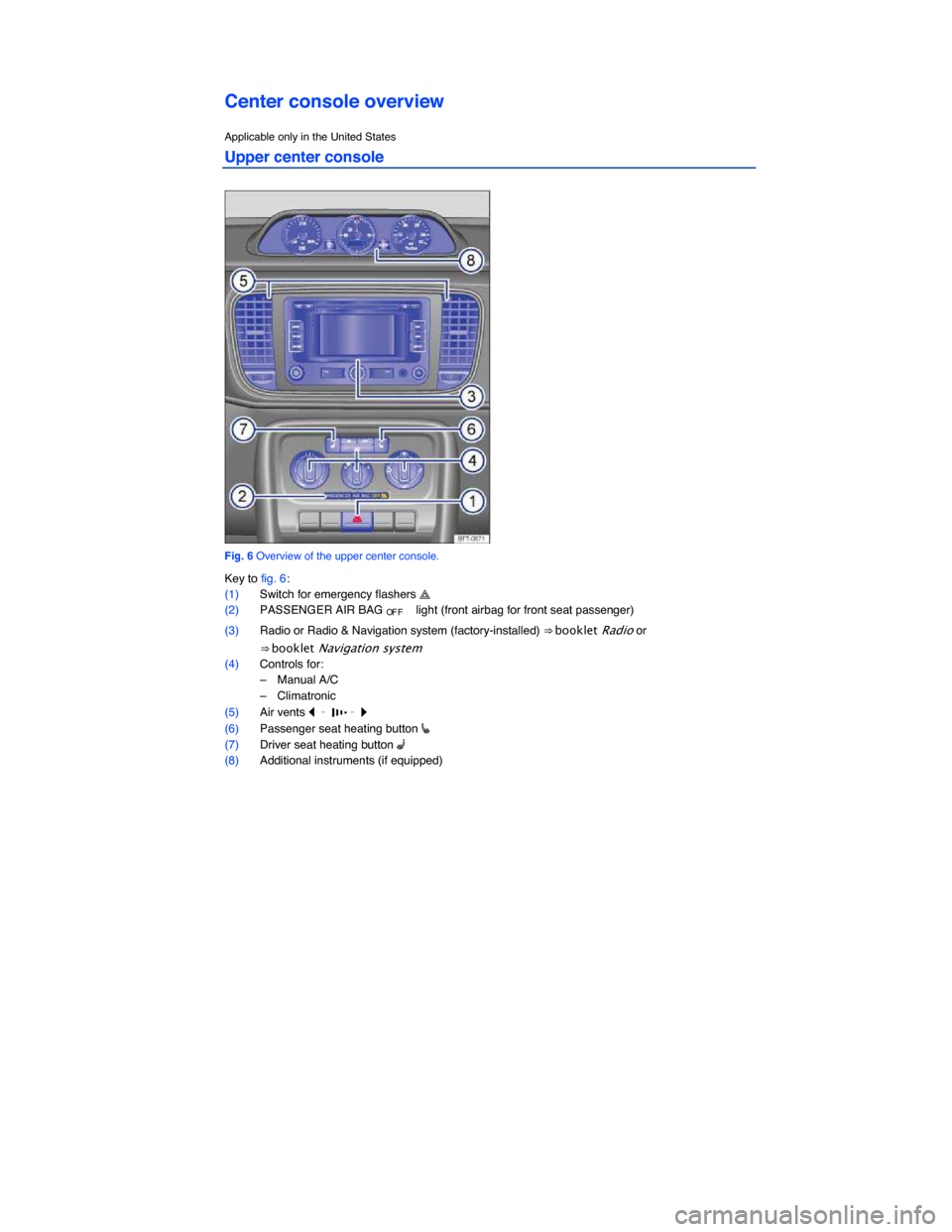

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Switch for emergency flashers
(2) PASSENGER AIR BAG OF F light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ booklet Radio or
⇒ booklet Navigation system
(4) Controls for:
– Manual A/C
– Climatronic
(5) Air vents  –

Applicable only in Canada
Upper center console

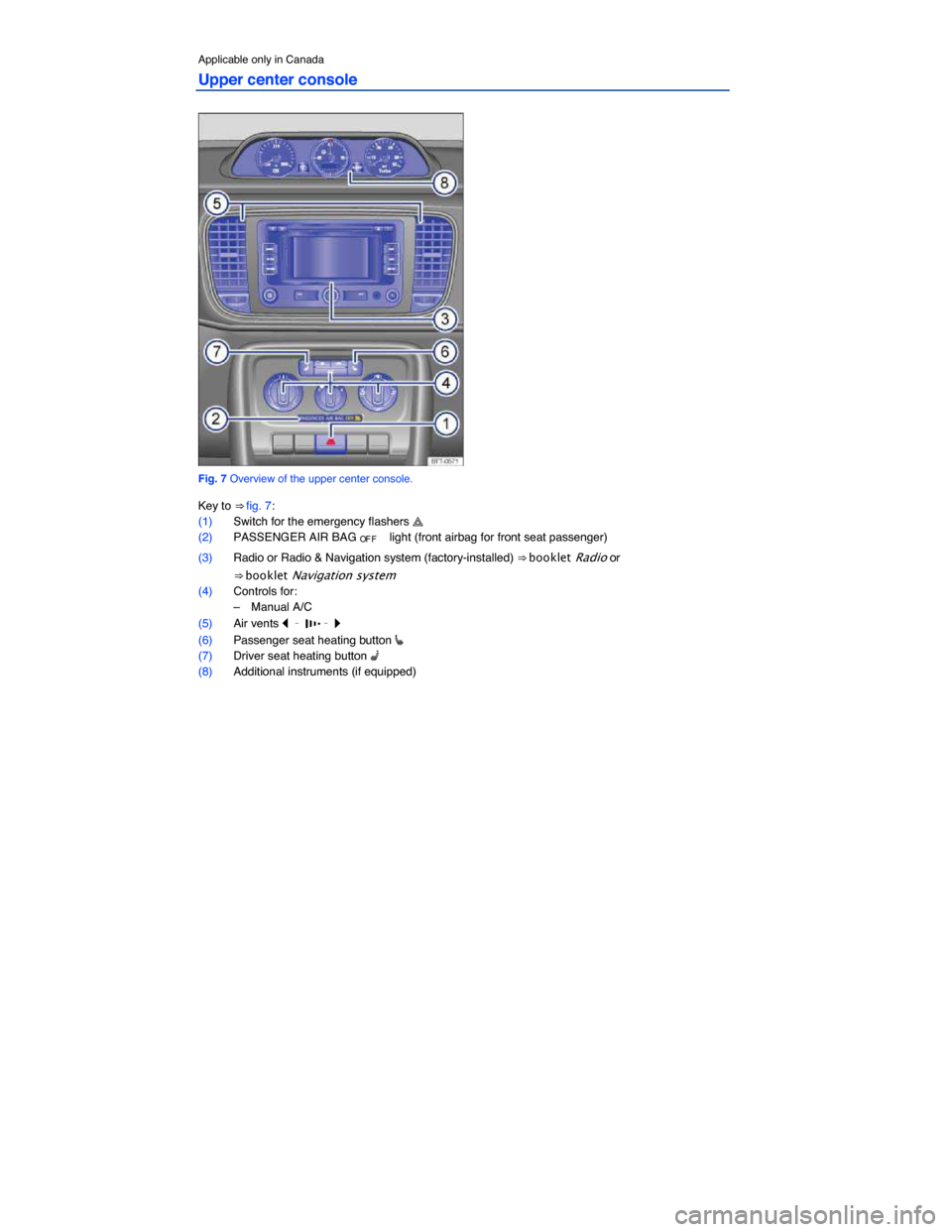

Fig. 7 Overview of the upper center console.
Key to ⇒ fig. 7:
(1) Switch for the emergency flashers
(2) PASSENGER AIR BAG OF F light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ booklet Radio or
⇒ booklet Navigation system
(4) Controls for:
– Manual A/C
(5) Air vents  –

Lower center console

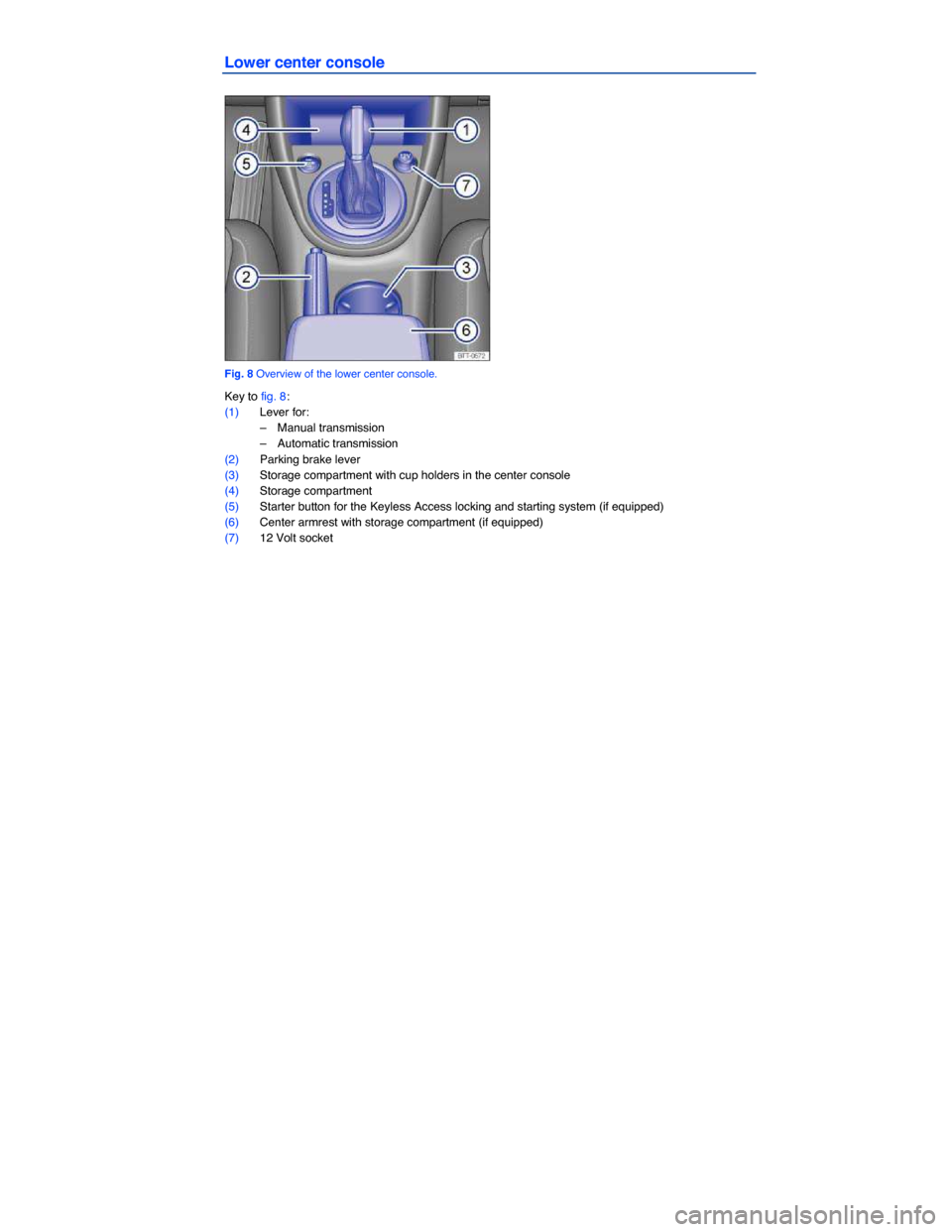

Fig. 8 Overview of the lower center console.
Key to fig. 8:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment
(5) Starter button for the Keyless Access locking and starting system (if equipped)
(6) Center armrest with storage compartment (if equipped)
(7) 12 Volt socket

Applicable only in the United States
Front passenger side overview

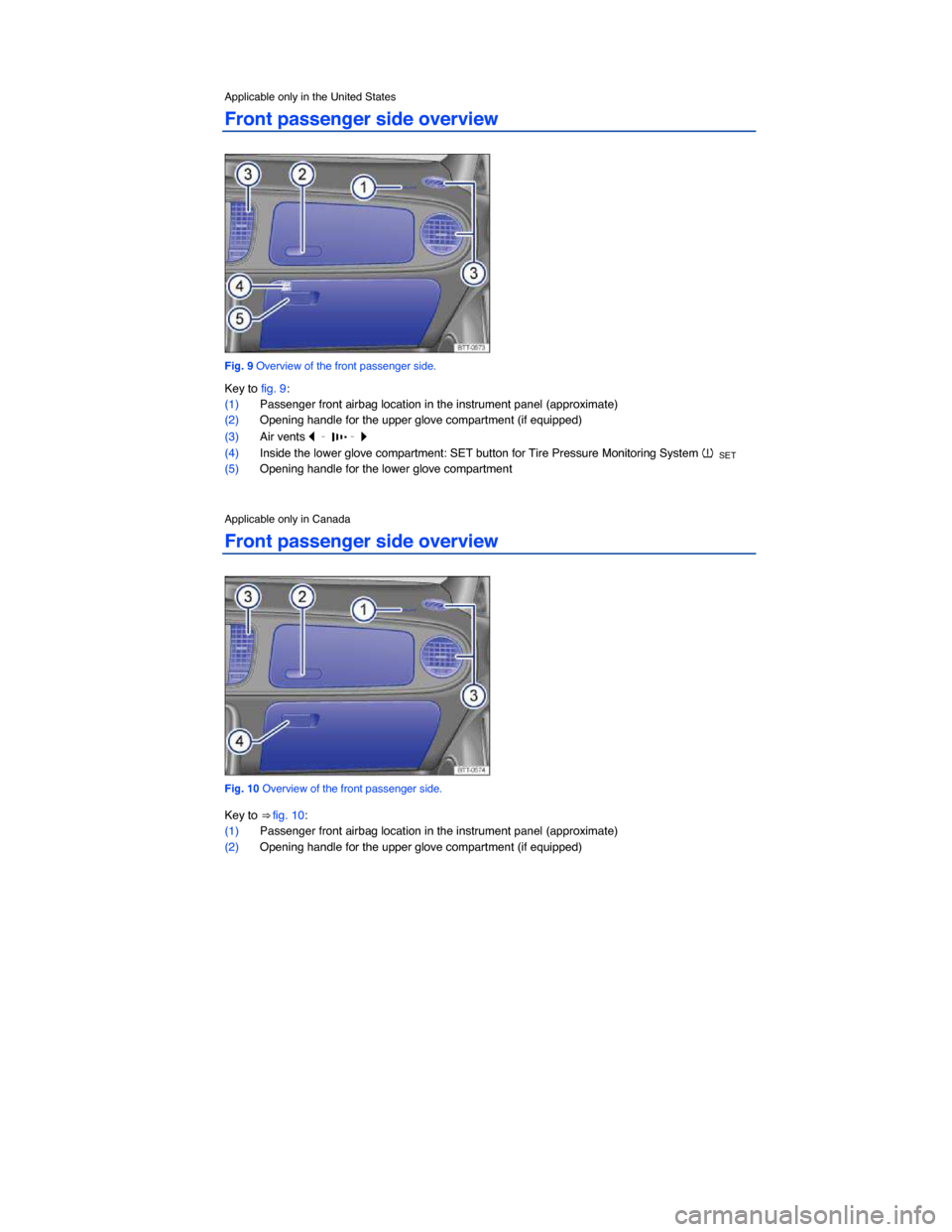

Fig. 9 Overview of the front passenger side.
Key to fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the upper glove compartment (if equipped)
(3) Air vents  –
