Displays

Fig. 13 In the instrument cluster display: A: Open engine hood, B: Open luggage compartment lid, C: Open
driver door.

When is the alarm triggered?
The anti-theft alarm system sounds for about 30 seconds and the turn signals flash for up to 5 minutes
if the following occurs with respect to the locked vehicle:
x Opening a door that has been mechanically unlocked.
x Forcibly opening a door.
x Forcibly opening the engine hood.
x Forcibly opening the luggage compartment lid.
x Switching on the ignition with an invalid key.
x Disconnecting the vehicle battery.
Deactivating the alarm
Unlock the vehicle with the unlock button on the remote control vehicle key or switch on the ignition
with a valid vehicle key.
For vehicles with Keyless Access, the alarm can be deactivated by holding the remote control vehicle
key to the right of the steering column trim and pressing the starter button .
After the alarm has stopped and the vehicle is opened again in the same or a different area that
is protected by the alarm, the alarm is triggered again. For example, the alarm will sound again if the
luggage compartment lid is opened after one of the doors has been opened.
The anti-theft alarm system is not activated when the vehicle is locked with the power lock
switch 1on the inside of the driver or front passenger doors.
If the driver door is mechanically unlocked using the vehicle key bit, only the driver door is un-
locked, not the entire vehicle. Switching on the ignition deactivates the anti-theft alarm system and
activates the central locking button. To unlock the doors, use the central locking button or remote
control vehicle key.
If the vehicle battery is dead or weak, the anti-theft alarm system will not work properly.

WARNING
The engine compartment of any motor vehicle is a potentially dangerous area and can cause
serious personal injury.
x Always use extreme caution when doing any work in the engine compartment. Always
follow commonly accepted safety practices and use common sense. Never risk personal
injury.
x Never perform any work in the engine compartment unless you know exactly how to carry
out the job and have the correct technical information and the correct tools.
x If you are uncertain about what to do, have the work performed by an authorized
Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified
workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID – High Intensity Discharge (Xenon)
headlights and HB2 (H4) bulbs replaced by a qualified technician. Serious personal injury
may result from improperly performed work.
x Never open or close the engine hood if steam or coolant is escaping. Hot steam or coolant
can cause serious burns. Always wait until you no longer see or hear steam or coolant
escaping from the engine.
x Always let the engine cool down completely before carefully opening the hood.
x Hot parts of the engine and the exhaust system will burn skin on contact.
x When the engine has cooled down and you are ready to open the hood:
– Firmly apply the parking brake and shift the transmission into Park (P) (automatic) or
Neutral (manual only).
– Take the vehicle key out of the ignition.
– On vehicles with Keyless Access, make sure that the remote control vehicle key is out
of range of the vehicle and that the vehicle cannot be started by depressing the starter
button 159.
– Always keep children and others away from the engine compartment and never leave
them unsupervised.
x The engine coolant system is under pressure when the engine is hot. Never unscrew the
coolant expansion tank cap when the engine is hot. Hot coolant can spray out and cause
severe burns and other serious injuries.
– Turn the cap slowly and very carefully in a counterclockwise direction while applying
light downward pressure on the top of the cap.
– Always protect your face, hands, and arms from hot escaping coolant or steam by
covering the cap with a large, thick rag.
x Never spill fluids on the engine or exhaust system when refilling. Spilling fluids onto hot
parts of the engine or exhaust system can cause a fire.

Checklist
Before any work in the engine compartment, carry out the following steps in the order in which they
are listed ⇒ :
1. Park the vehicle in a safe place on a firm, level surface.
2. Hold the brake pedal down until the engine is switched off.
3. Apply the parking brake to help prevent the vehicle from moving
4. Shift the transmission into Park (P) (automatic) or Neutral (manual only)
5. Stop the engine and remove the key from the ignition switch
6. Let the engine cool down sufficiently.
7. Keep children and others away from the vehicle.
8. Make sure the vehicle cannot move unexpectedly.
WARNING
Disregarding the safety-related checklist may result in serious injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common
sense.
Opening and closing the engine compartment

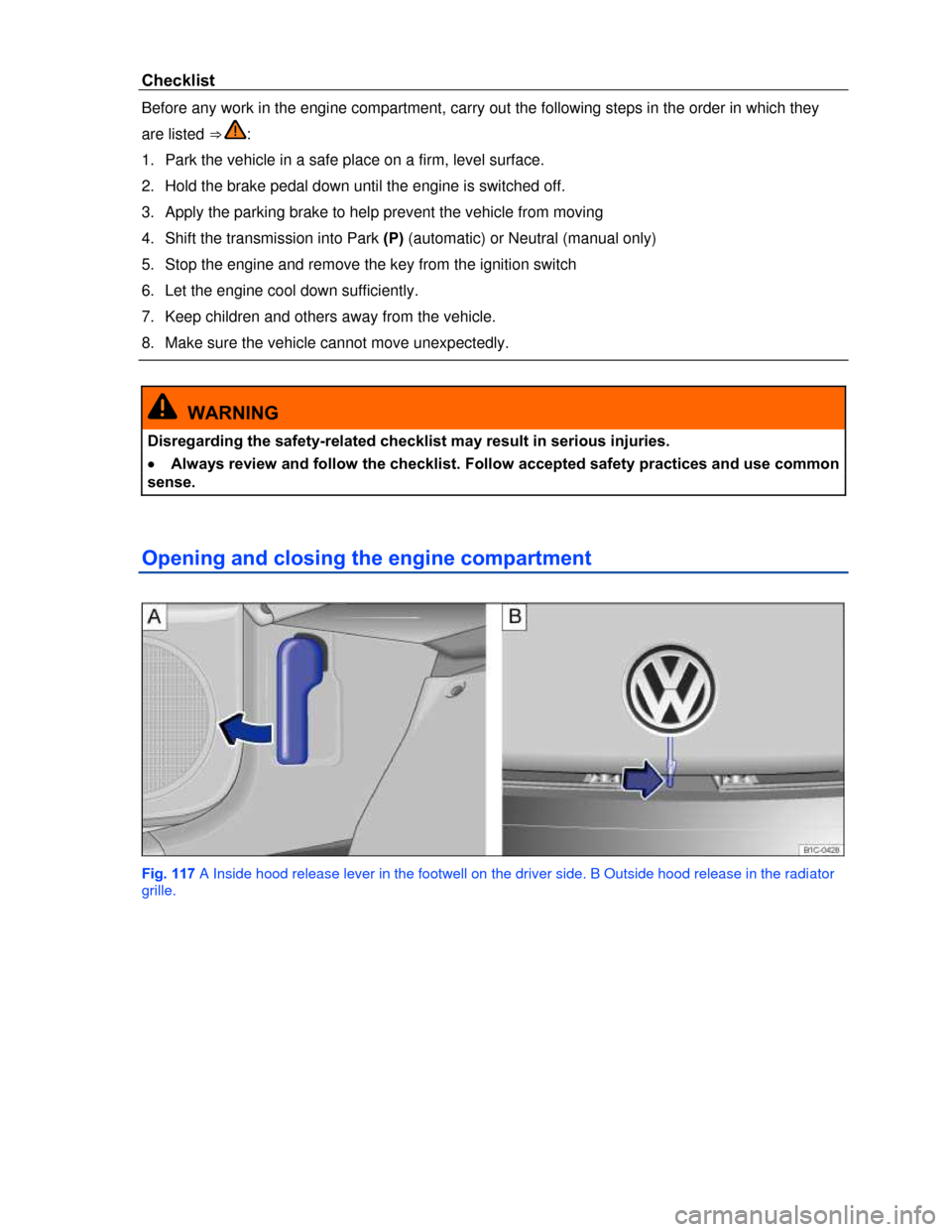

Fig. 117 A Inside hood release lever in the footwell on the driver side. B Outside hood release in the radiator
grille.

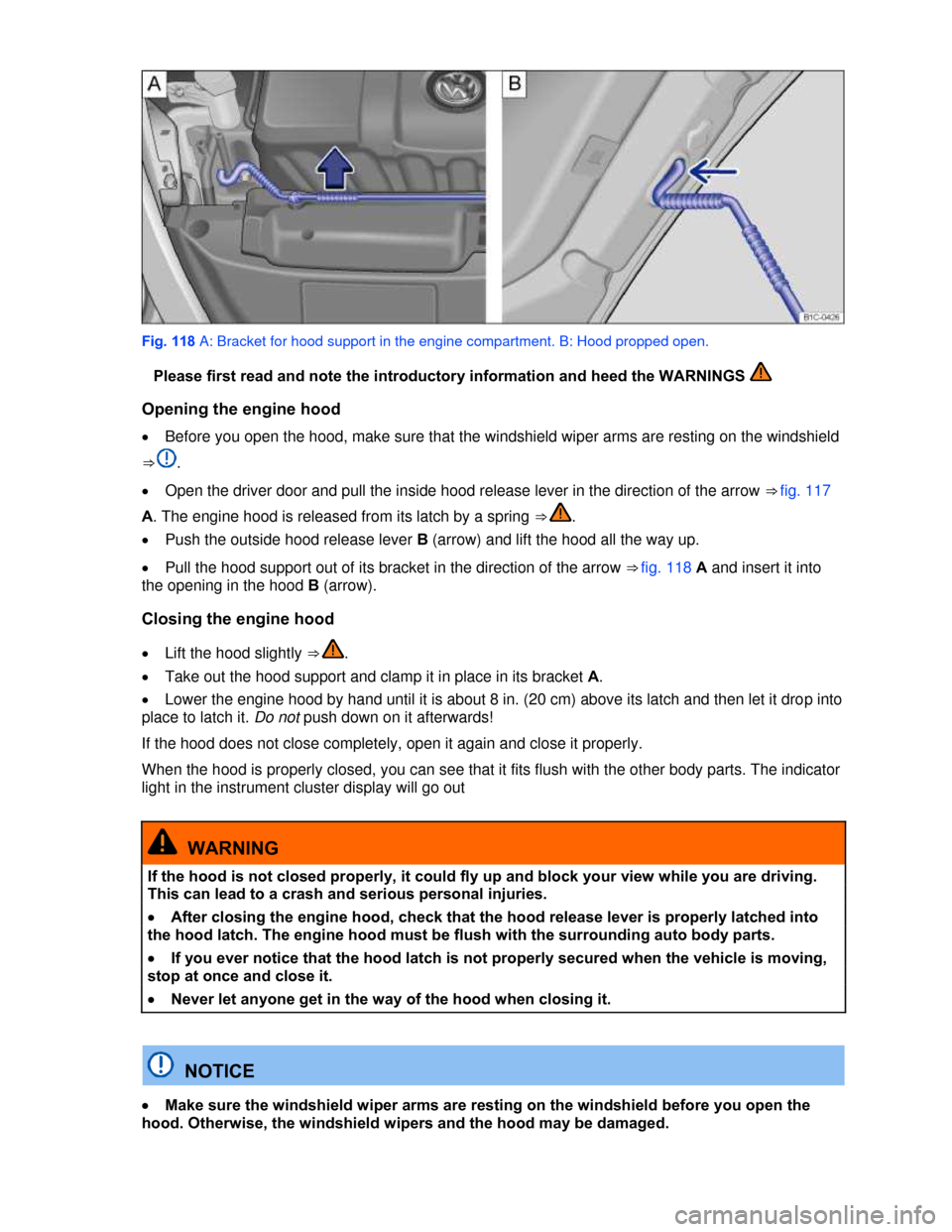

Fig. 118 A: Bracket for hood support in the engine compartment. B: Hood propped open.
Please first read and note the introductory information and heed the WARNINGS
Opening the engine hood
x Before you open the hood, make sure that the windshield wiper arms are resting on the windshield
⇒ .
x Open the driver door and pull the inside hood release lever in the direction of the arrow ⇒ fig. 117
A. The engine hood is released from its latch by a spring ⇒ .
x Push the outside hood release lever B (arrow) and lift the hood all the way up.
x Pull the hood support out of its bracket in the direction of the arrow ⇒ fig. 118 A and insert it into
the opening in the hood B (arrow).
Closing the engine hood
x Lift the hood slightly ⇒ .
x Take out the hood support and clamp it in place in its bracket A.
x Lower the engine hood by hand until it is about 8 in. (20 cm) above its latch and then let it drop into
place to latch it. Do not push down on it afterwards!
If the hood does not close completely, open it again and close it properly.
When the hood is properly closed, you can see that it fits flush with the other body parts. The indicator
light in the instrument cluster display will go out
WARNING
If the hood is not closed properly, it could fly up and block your view while you are driving.
This can lead to a crash and serious personal injuries.
x After closing the engine hood, check that the hood release lever is properly latched into
the hood latch. The engine hood must be flush with the surrounding auto body parts.
x If you ever notice that the hood latch is not properly secured when the vehicle is moving,
stop at once and close it.
x Never let anyone get in the way of the hood when closing it.
NOTICE
x Make sure the windshield wiper arms are resting on the windshield before you open the
hood. Otherwise, the windshield wipers and the hood may be damaged.

x Always put the windshield wiper arms down against the windshield before driving the
vehicle.
NOTICE
Before opening or closing the engine hood, make sure there is enough room to do so, for
example when the vehicle is in a garage.

NOTICE
x Water temperature should not be more than +140 °F (+60 °C).
x To help prevent damage to the paint, do not wash the vehicle in direct sunlight.
x Do not clean icy or snow-covered windows with a power washer.
x When washing or rinsing the vehicle in cold weather, do not let water get into the lock
cylinders or point the hose at gaps around the doors, hood, or luggage compartment lid. The
water could freeze on the locks and seals and make it difficult to open the vehicle!
NOTICE
Never wash the convertible top with a power washer. The convertible top could be damaged.
Undercoating

Color Current strength in amps
(ATO/MINI)
Current strength in amps
(JCASE)
Brown 7.5 —
Red 10 50
Blue 15 20
Yellow 20 60
White or
clear
25 —
Green 30 40
Orange 40 —
Pink 30 30

Opening the fuse box in the instrument panel
x Open the storage compartment ⇒ fig. 155, 142.
x On the back of the cover there are plastic tweezers for removing and inserting fuses.
x Press the sides of the storage compartment in slightly ((A) arrows) while pulling back firmly ((B)
arrow).
x To install, guide the cover from the bottom into the instrument panel by pushing in the direction
opposite to the arrows (A), then push forward until you can hear it latch into place.
Opening the fuse box in the engine compartment
x Open the engine hood
