Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Convertible top
(3) Outside door handle
(4) Outside mirror
–  Additional turn signal light
(5) Side m

Page 2 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror
(2) Front windshield
 Windshield antenna
(3) Windshield wipers
(4) Engine hood
(5) Engine hood release
(6)

Page 3 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Rear view

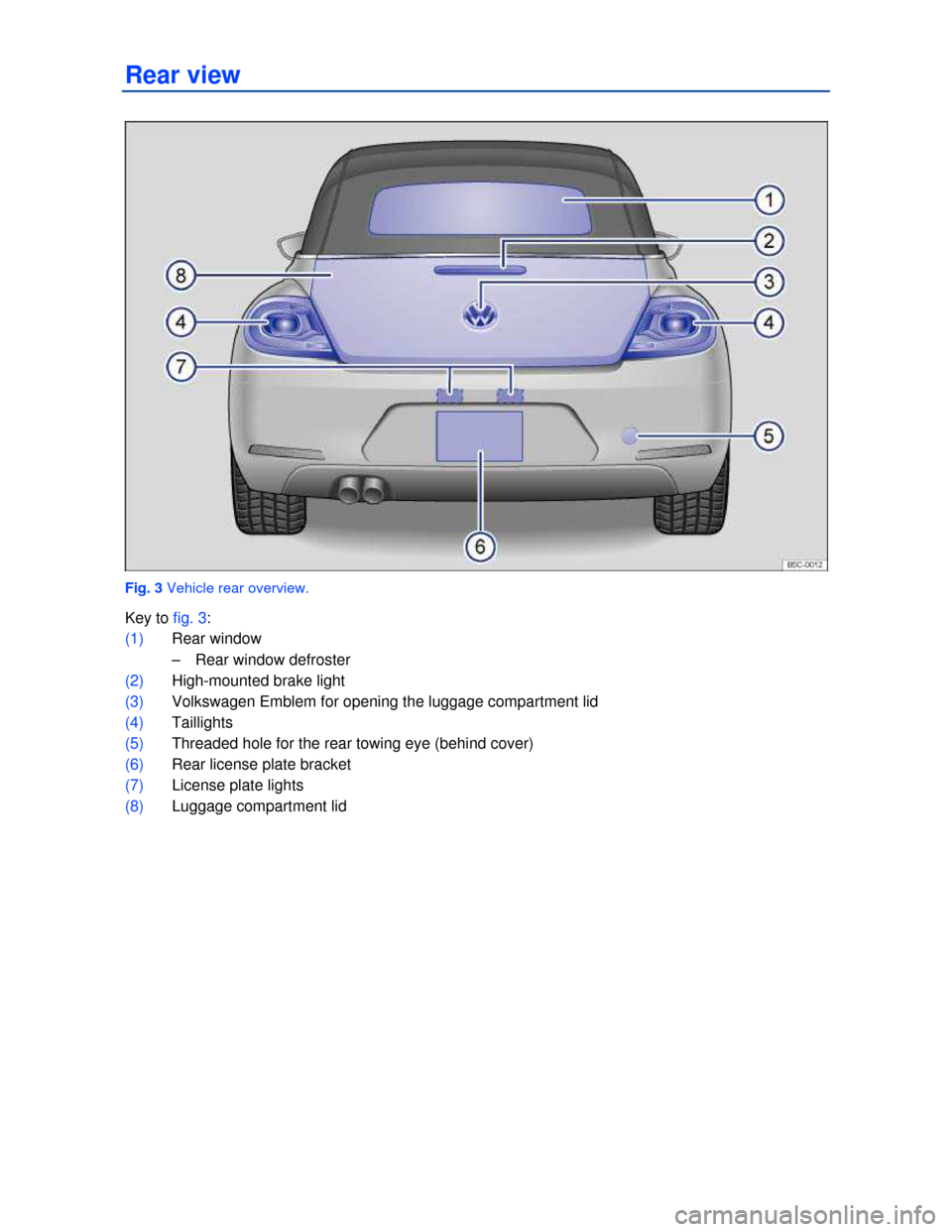

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
–  Rear window defroster
(2) High-mounted brake light
(3) Volkswagen Emblem for opening the luggage compartment lid

Page 4 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Driver door overview

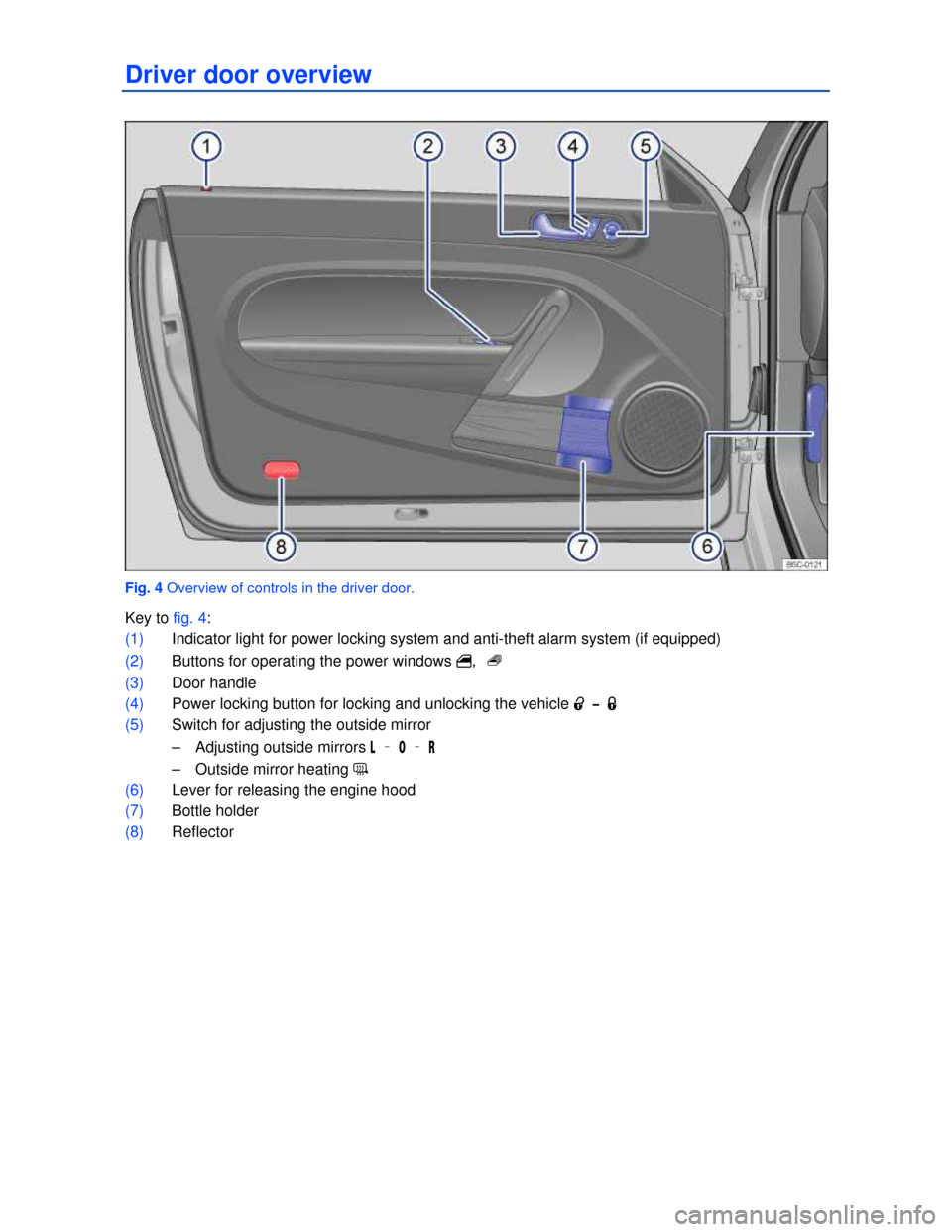

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Indicator light for power locking system and anti-theft alarm system (if equipped)
(2) Buttons for oper

Page 5 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Driver side overview

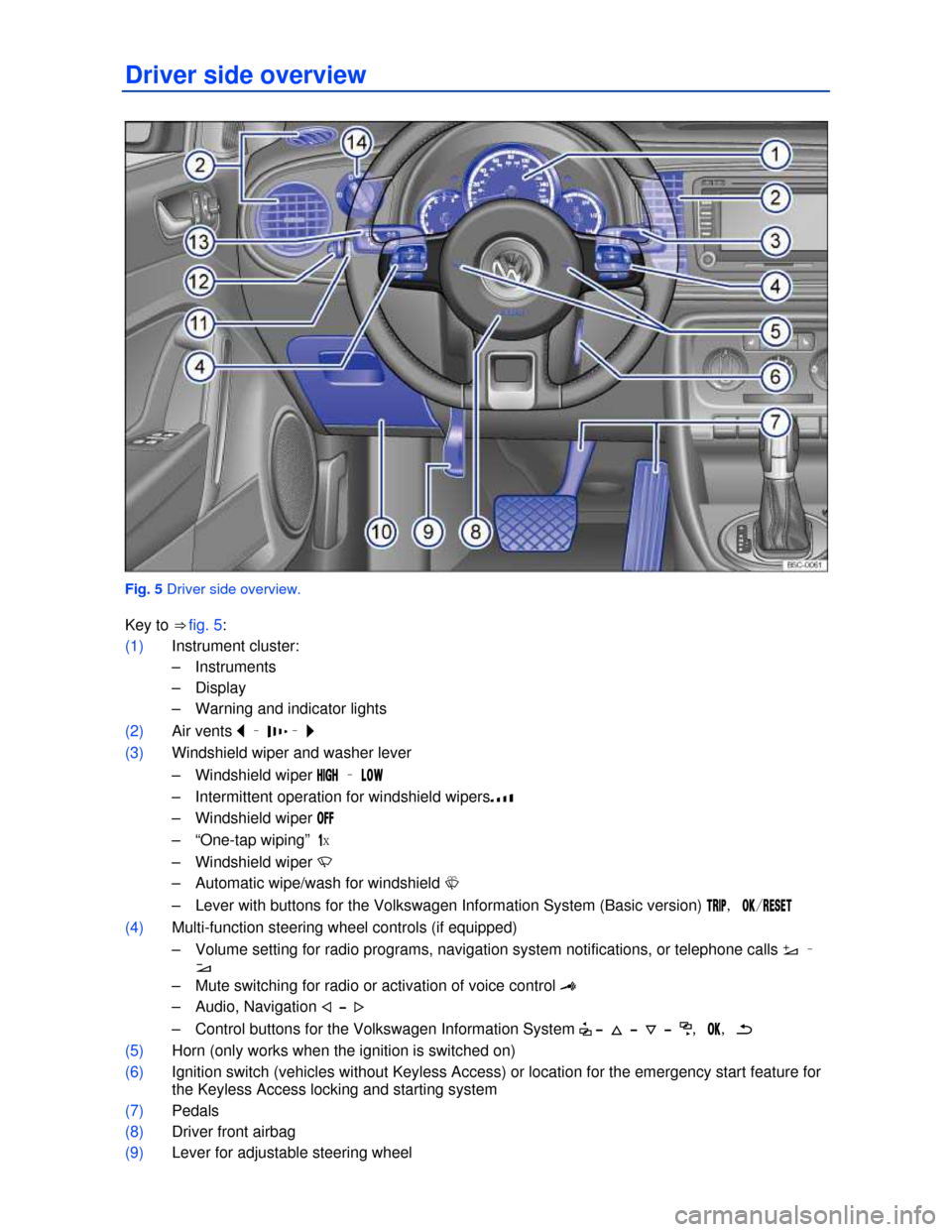

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Instrument cluster:
–  Instruments
–  Display
–  Warning and indicator lights
(2) Air vents � – �

Page 6 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
(10) Storage compartment
(11) Switch for background lighting (in the doors) �

Page 7 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Upper center console

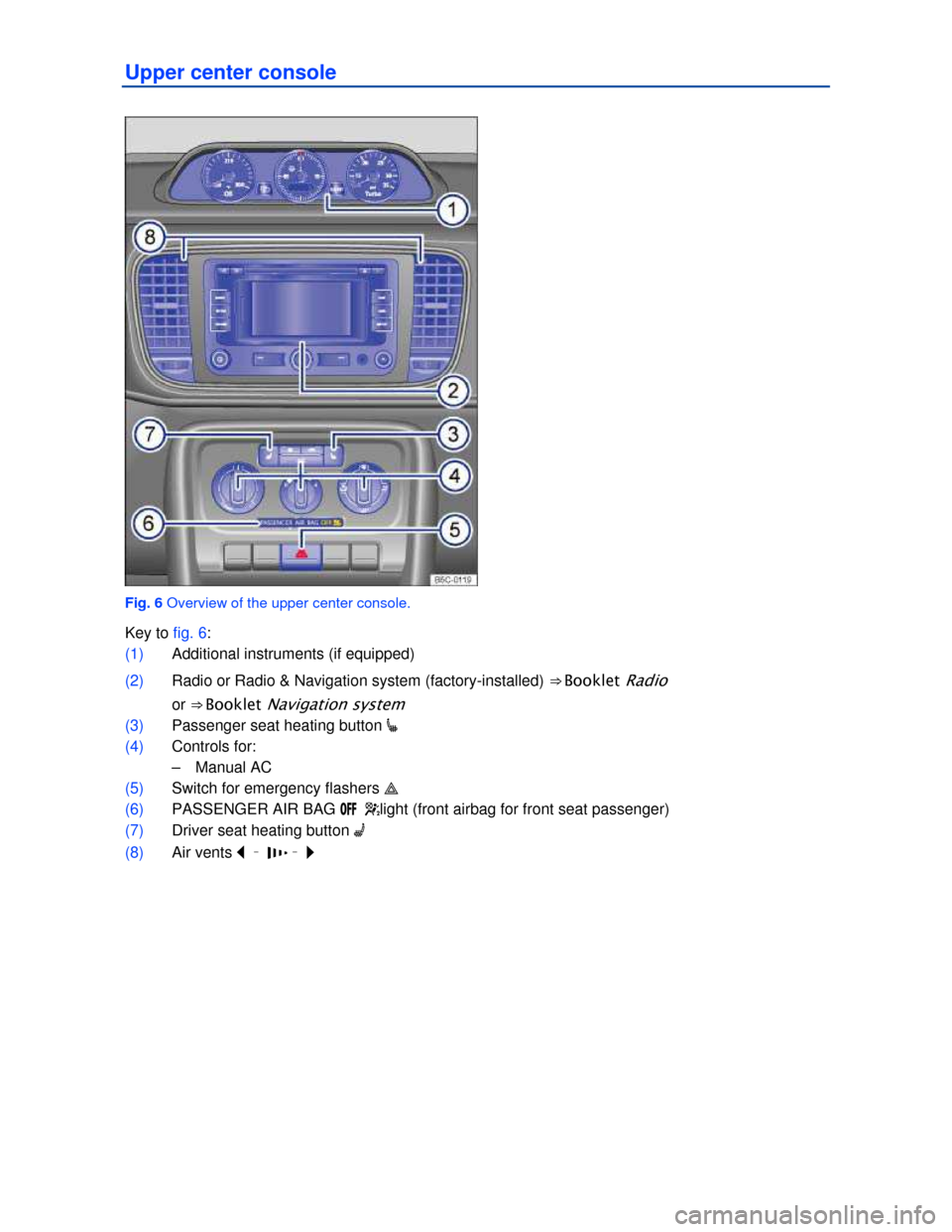

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Additional instruments (if equipped)
(2) Radio or Radio & Navigation system (factory-installed) ⇒ Book

Page 8 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Lower center console

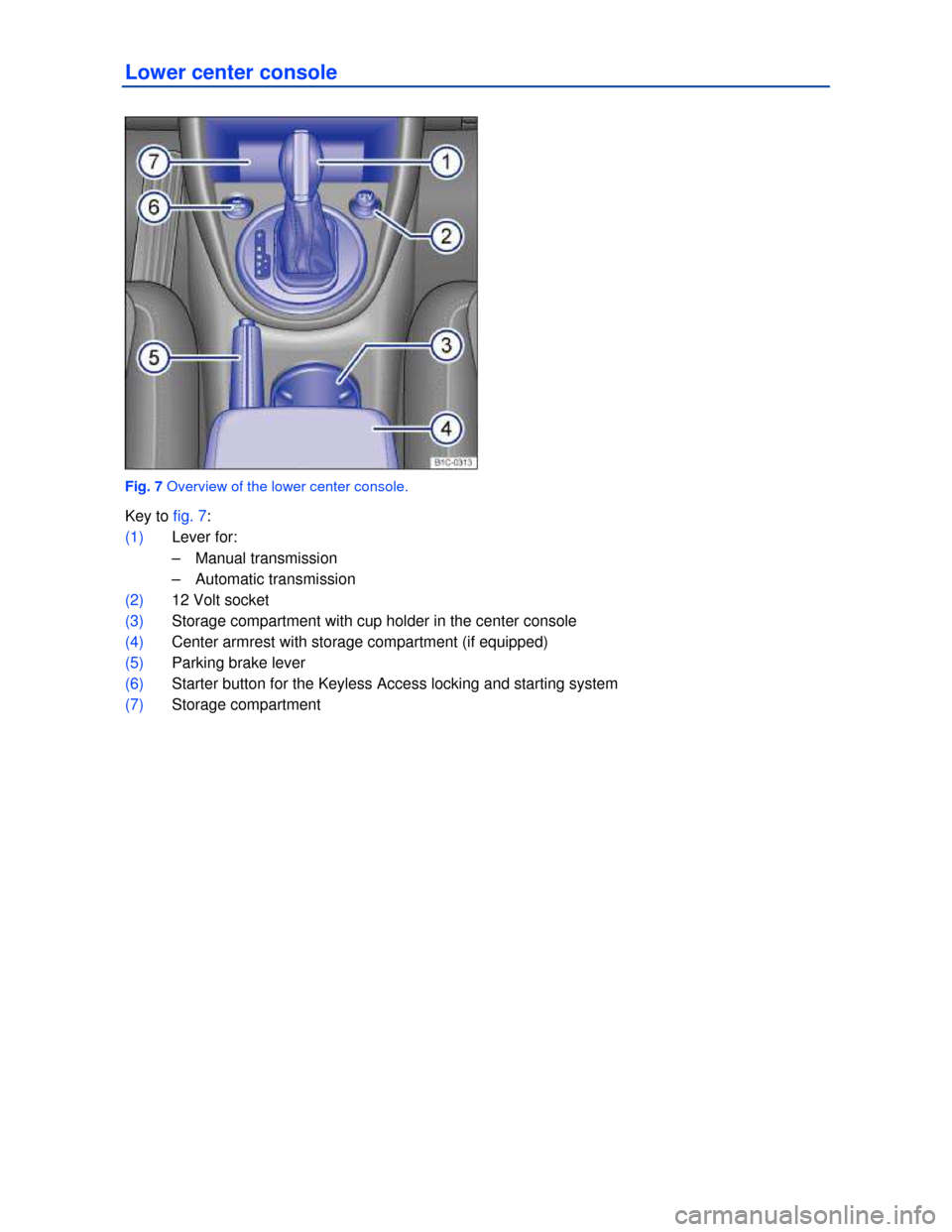

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Lever for:
–  Manual transmission
–  Automatic transmission
(2) 12 Volt socket
(3) Storage compar

Page 9 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Applicable only in the United States

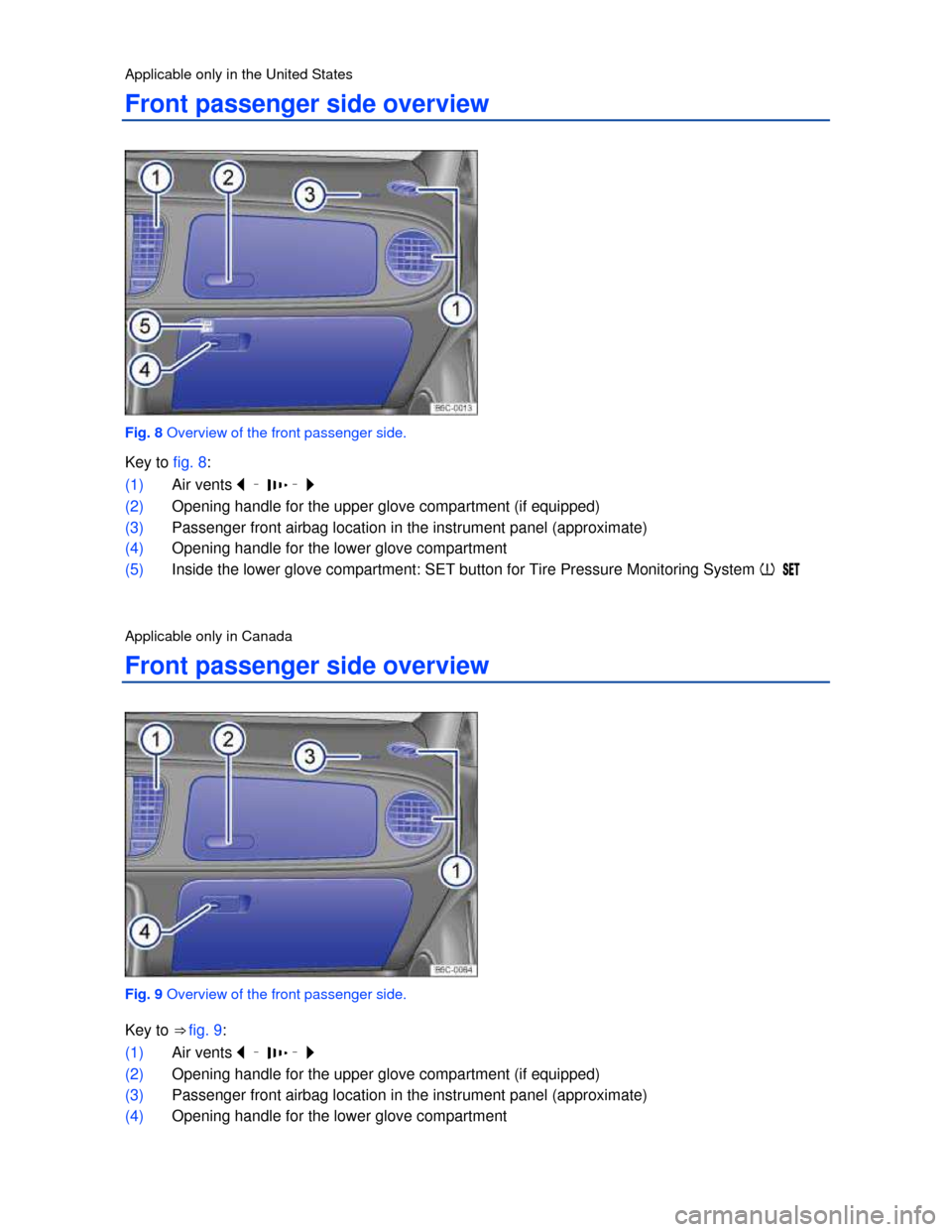

Front passenger side overview

Fig. 8 Overview of the front passenger side.
Key to fig. 8:
(1) Air vents � – �

Page 10 of 281

VOLKSWAGEN BEETLE CONVERTIBLE 2013 3.G Owners Manual
Symbols on the roof console

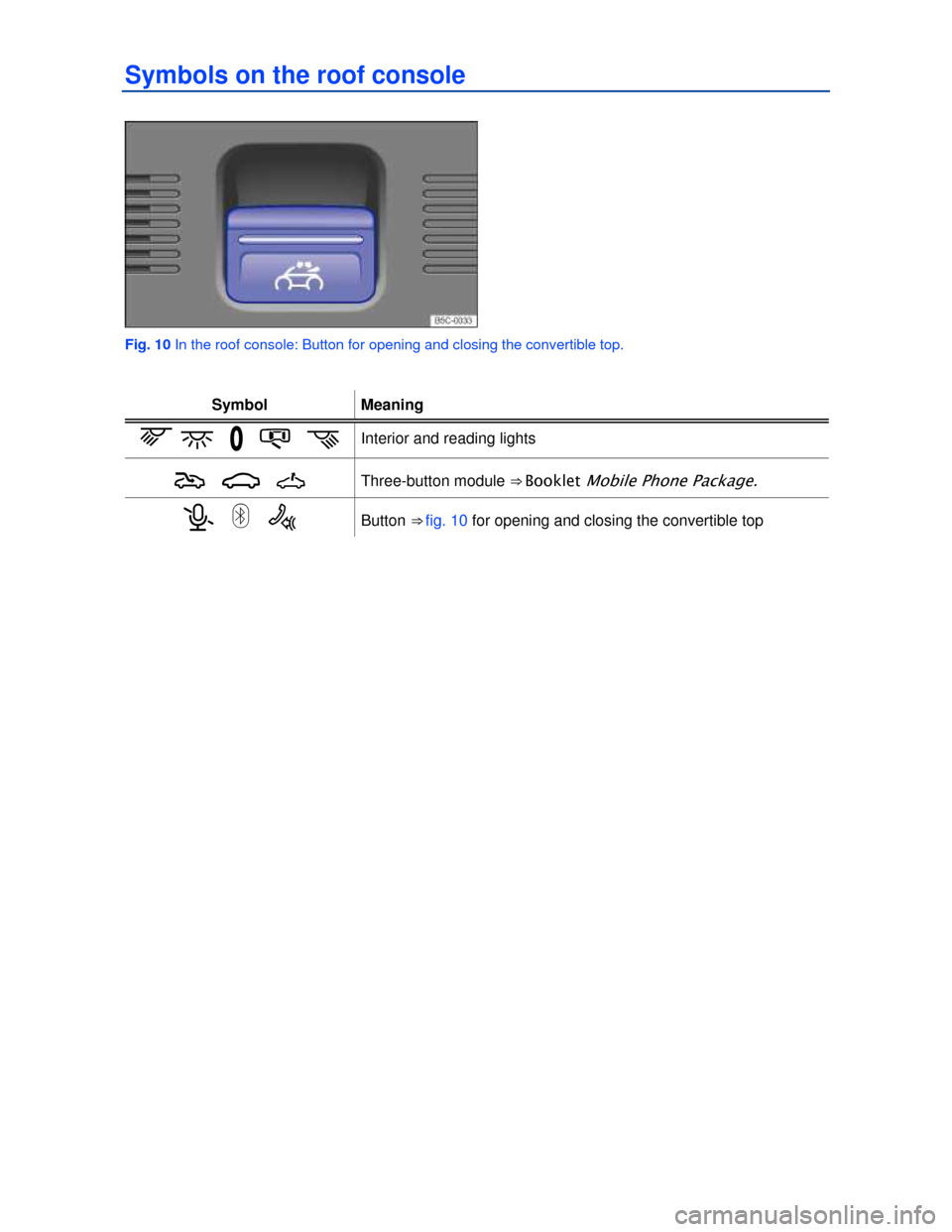

Fig. 10 In the roof console: Button for opening and closing the convertible top.

Symbol  Meaning
�* � �/ �s � Interior and reading lights
�g �c �h Three-button
