VOLKSWAGEN CC 2010 Owners Manual

WARNING
Disregarding the safety-related checklist may lead to accidents
and serious personal injuries.
Always review and follow the checklist. Follow accepted safe-
ty practices and use common sense.
Lifting the vehicle with the vehicle jack (CC R-Line)

Fig. 193 Vehicle jack lift point in the side sill: Fold the cover up.

Fig. 194 Jack in position at the left rear lift point.

The vehicle may only be lifted by a jack positioned at one of the four
jack lift points ⇒ .
Checklist
For your own safety and that of your passengers, carry out the follow-
ing steps in the order listed ⇒ .
1. Find a level spot on firm ground for lifting the vehicle.
2. Switch off the engine. Automatic transmission: shift the transmis-
sion into Park (P)) ⇒  Automatic transmission: Selector lever. Man-
ual transmission: shift into a gear ⇒  Manual transmission: Gear-
shift lever. Then set the electronic parking brake ⇒  Braking and
parking to help prevent the vehicle from moving.
3. If towing a trailer: Unhitch the trailer from the vehicle and park the
trailer properly.
4. Straighten the steering wheel so that the front wheels point straight
forward.
5. Block the diagonally opposite wheel with chocks or other suitable
things.
6. Loosen the wheel bolts of the wheel to be changed ⇒ Wheel bolts.
7. Find the jack lift point on the vehicle frame that is closest to the
wheel to be changed.
8. Remove the cover panel in the side sill. To do so, pull forcefully but
carefully in the direction of the arrow ⇒ fig. 193. Secure the cover
panel with the retaining strap.
9. Crank up the vehicle jack so that it still just fits underneath the lift
point.
10. Position the jack so that its base is directly underneath the lift
point ⇒ fig. 194, making sure that the entire base of the jack rests
securely on the ground.
11. Align the jack and wind up the jack claw at the same time, until
the claw cradles the vertical rib underneath the vehicle ⇒ fig. 194.
12. Continue raising the vehicle jack until the wheel is lifted off the
ground.

WARNING
Improper use of your vehicle jack can cause the vehicle to fall
off the jack leading to serious personal injury. To help reduce
the risk of serious personal injury:
Use only jacks approved by Volkswagen for the vehicle. Oth-
er jacks might slip, even those approved for other Volkswagen
models, but not for your vehicle.
Always set up the jack on firm and level ground. The vehicle
may slip off the jack if the jack is resting on soft or sloping
ground. If necessary, place a sturdy board under the jack.
On a hard, slippery surface (such as a tiled floor), use an anti-
skid rubber mat or something similar to help prevent the jack
from slipping.
Position the jack only at the described vehicle lift points. Be-
fore you raise your vehicle, always make sure the jack claw
properly grips the vertical rib under the sill so that the jack
does not slip off when you are raising the vehicle ⇒ fig. 194.
Never have any part of your body (such as your arm or leg)
under the vehicle when it is supported by the jack. Never let
other persons have any part of their body under the vehicle,
either!
If you must work under a vehicle raised on a floor jack, al-
ways make sure that the vehicle is safely supported on safety
stands intended for that purpose that are strong enough to
support the weight of the vehicle.
Never lift the vehicle when it is tilted or inclined to one side
or the engine is running.
Never lift the vehicle when more than 1 tire is flat or dam-
aged.
Do not start the engine while the vehicle is supported by a
jack. Engine vibrations may cause the vehicle to slip off the
jack.

WARNING
Disregarding the safety-related checklist may lead to accidents
and serious personal injuries.
Always review and follow the checklist. Follow accepted safe-
ty practices and use common sense.
Changing a wheel

Fig. 195 Changing a wheel: Remove previously loosened wheel bolts
using the screwdriver handle.

Screw in the wheel bolts clockwise and tighten them slightly using
the hexagonal socket in the screwdriver handle.
Lower the vehicle with the jack.
Use the lug wrench to firmly tighten all wheel bolts (turn clockwise)
⇒ . Do not tighten them in sequence! Tighten any wheel bolt to
begin, then tighten the wheel bolt diagonally opposite the first bolt,
and so forth.
Install the wheel bolt caps, center wheel hubcap, or wheel cover, if
any ⇒  Wheel trim.
WARNING
Wheel bolts that are tightened or installed improperly can come
loose, causing loss of vehicle control, a crash, and serious per-
sonal injury.
Always keep wheel bolts and threads in the wheel hub clean
and free of oil and grease. The wheel bolts must turn easily and
must be tightened with the right torque.
Use the hexagonal socket in the screwdriver handle only to
turn the wheel bolts when they are loose, never to loosen them
or tighten them firmly.
WARNING
Improper use of a compact spare wheel can cause loss of vehi-
cle control, a crash or other accident, and serious personal in-
jury.
Never use a compact spare wheel if it is damaged or worn
down to the wear indicators.
Never drive faster than 50 mph (80 km/h) with a compact
spare wheel. Avoid full-throttle acceleration, heavy braking, and
fast cornering!
Never drive more than 125 miles (200 km) with a compact
spare wheel that is installed on the front axle (drive axle).
Replace the compact spare with a normal wheel and tire as
soon as possible. Compact spare tires are designed for brief
use only.

After changing a wheel

Fuses

WARNING
Using the wrong fuse, using a blown fuse that has been re-
paired, and using metal objects in place of fuses to complete
the electrical connection in the circuit can cause fires and seri-
ous personal injury.
Never replace a fuse with one that has a higher amp rating.
Replace a blown fuse only with a fuse of the same amperage
(same color and same imprint) and same overall size.
Never repair fuses.
Never replace fuses with a metal strip, a paper clip, or a simi-
lar object.
NOTICE
To help prevent damage to the electrical system, switch off all
lights and accessories, switch off the ignition, and remove the
key from the ignition switch before replacing a fuse.
If a fuse is replaced with a fuse with higher amperage, this can
also cause damage at different locations in the electrical system.
Open fuse boxes must be protected from dirt and moisture.
Dirt and moisture in fuse boxes can cause damage to the electri-
cal system.
Fuses in the vehicle

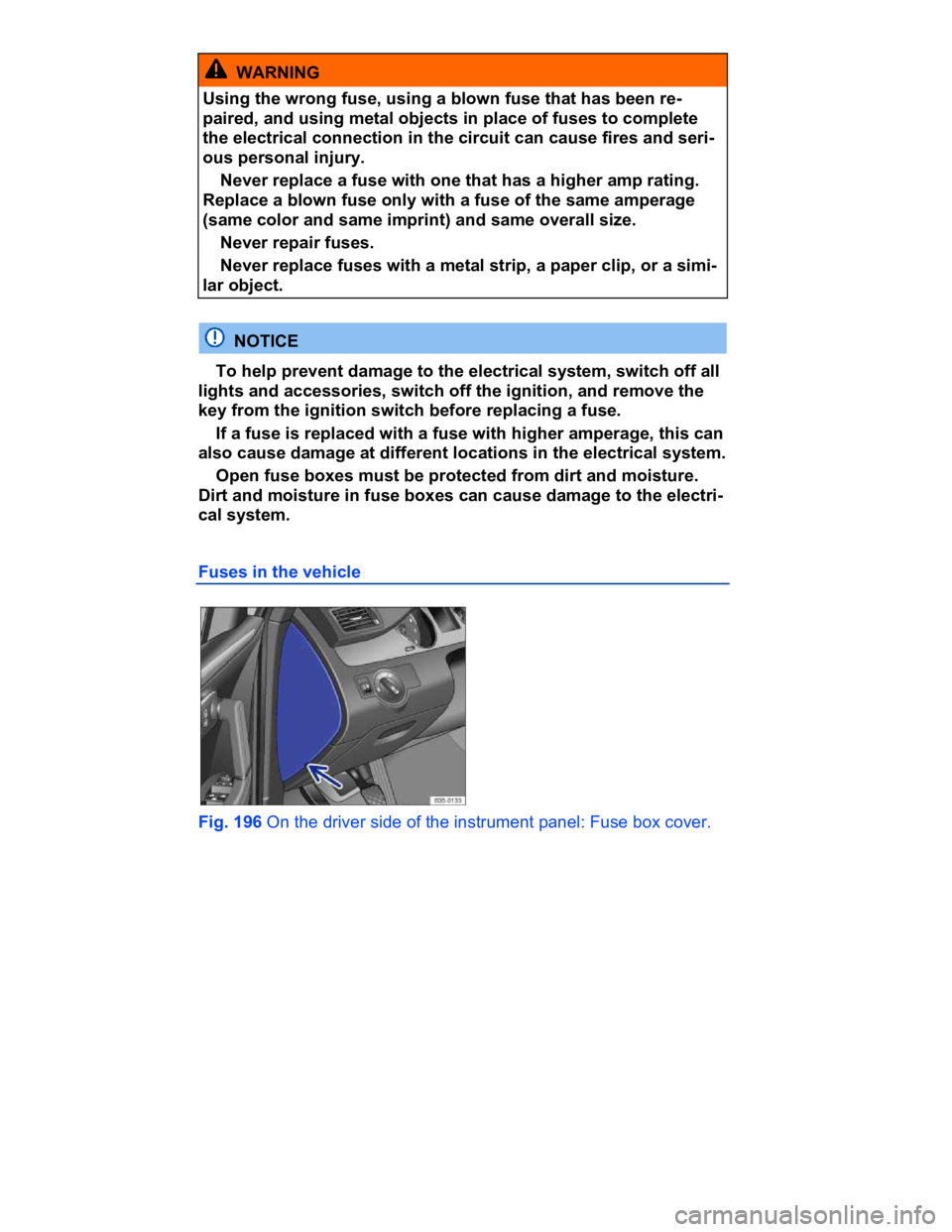

Fig. 196 On the driver side of the instrument panel: Fuse box cover.

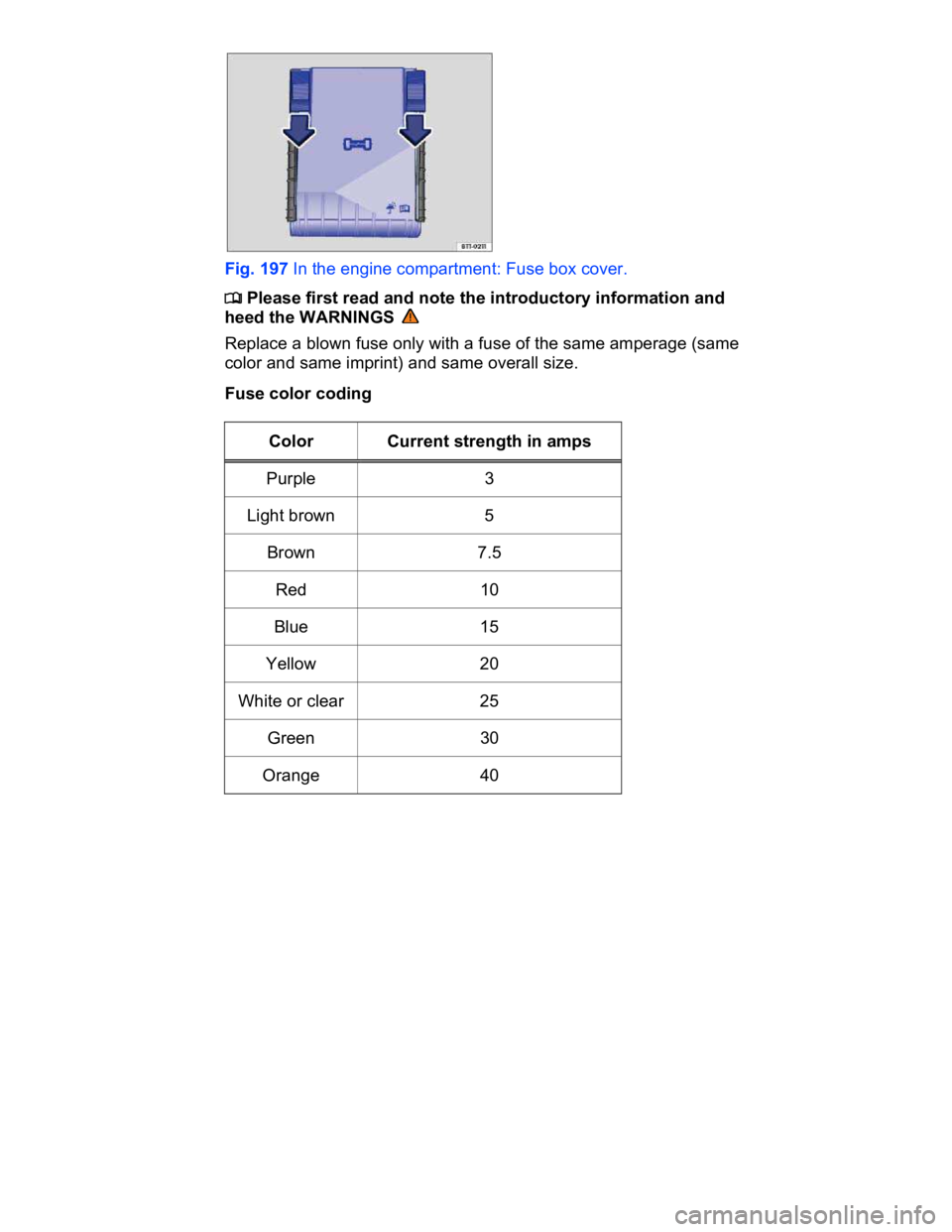

Fig. 197 In the engine compartment: Fuse box cover.

Opening the fuse box in the instrument panel
Insert a flat object, such as a screwdriver from the vehicle tool kit,
into the opening ⇒ fig. 196 (arrow) and carefully lift off the cover.
On the inside of the cover there are plastic tweezers for removing
and inserting fuses.
To install, guide the cover from the bottom into the instrument
panel and push until you can hear it latch into place.
Opening the fuse box in the engine compartment
Open the engine hood
