VOLKSWAGEN E-GOLF 2019 Owners Manual

Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Roof antenna
(2) Battery charge port cover
(3) Outside door handles
(4) Outside mirror:
– Additional turn signal light
(5) Area for e-Golf emblem
(6) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Windshield area:
– Windshield wipers
– Rain sensor (if equipped)
– Low-light sensor (if equipped)
(2) Electric motor hood release
(3) Area for e-Golf emblem
(4) Headlights (on both left and right)
(5) Park Distance Control (PDC) sensors (if equipped)
(6) static cornering lights (on left and right)
(7) Threaded hole for the front towing eye (behind cover)

Rear view

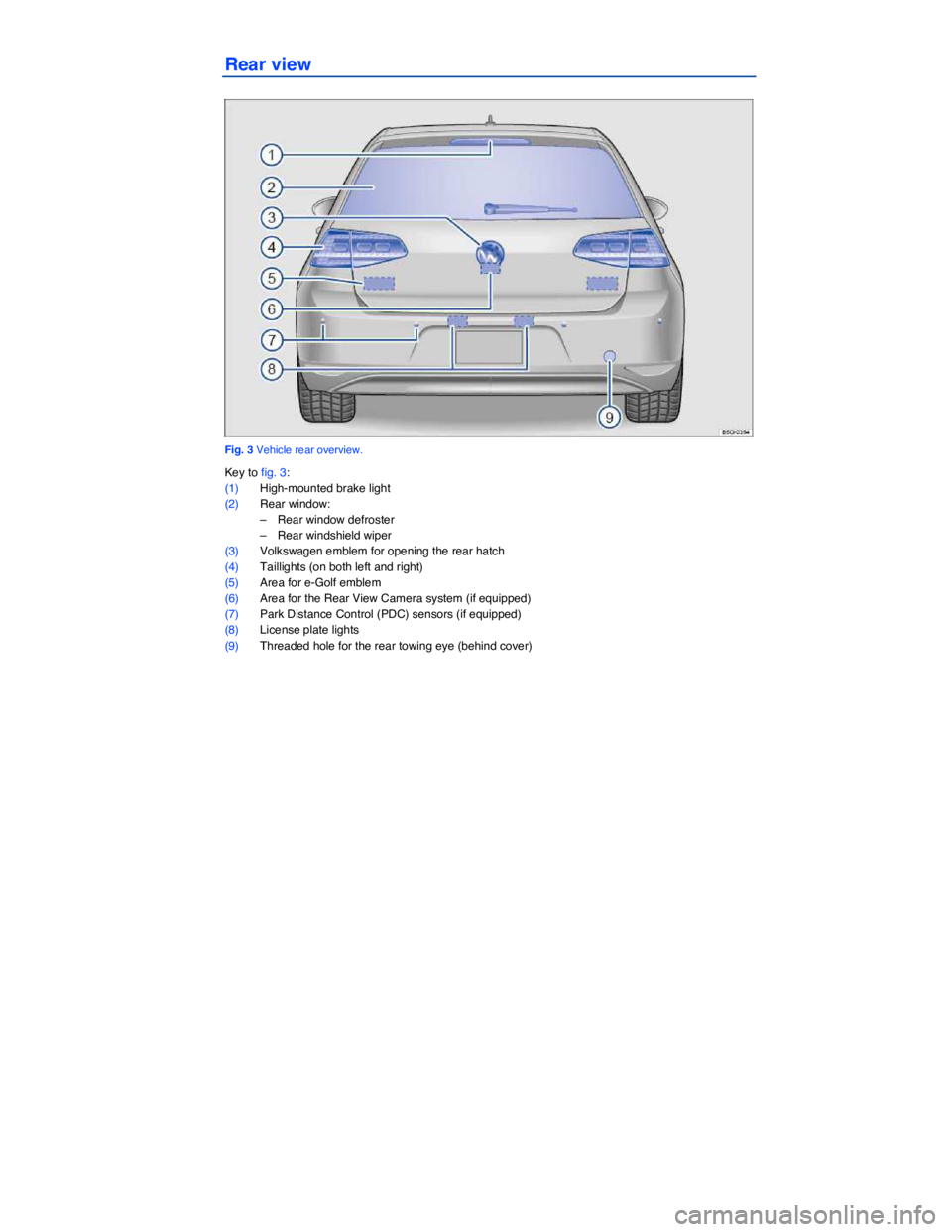

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) High-mounted brake light
(2) Rear window:
– Rear window defroster
– Rear windshield wiper
(3) Volkswagen emblem for opening the rear hatch
(4) Taillights (on both left and right)
(5) Area for e-Golf emblem
(6) Area for the Rear View Camera system (if equipped)
(7) Park Distance Control (PDC) sensors (if equipped)
(8) License plate lights
(9) Threaded hole for the rear towing eye (behind cover)

Driver door overview

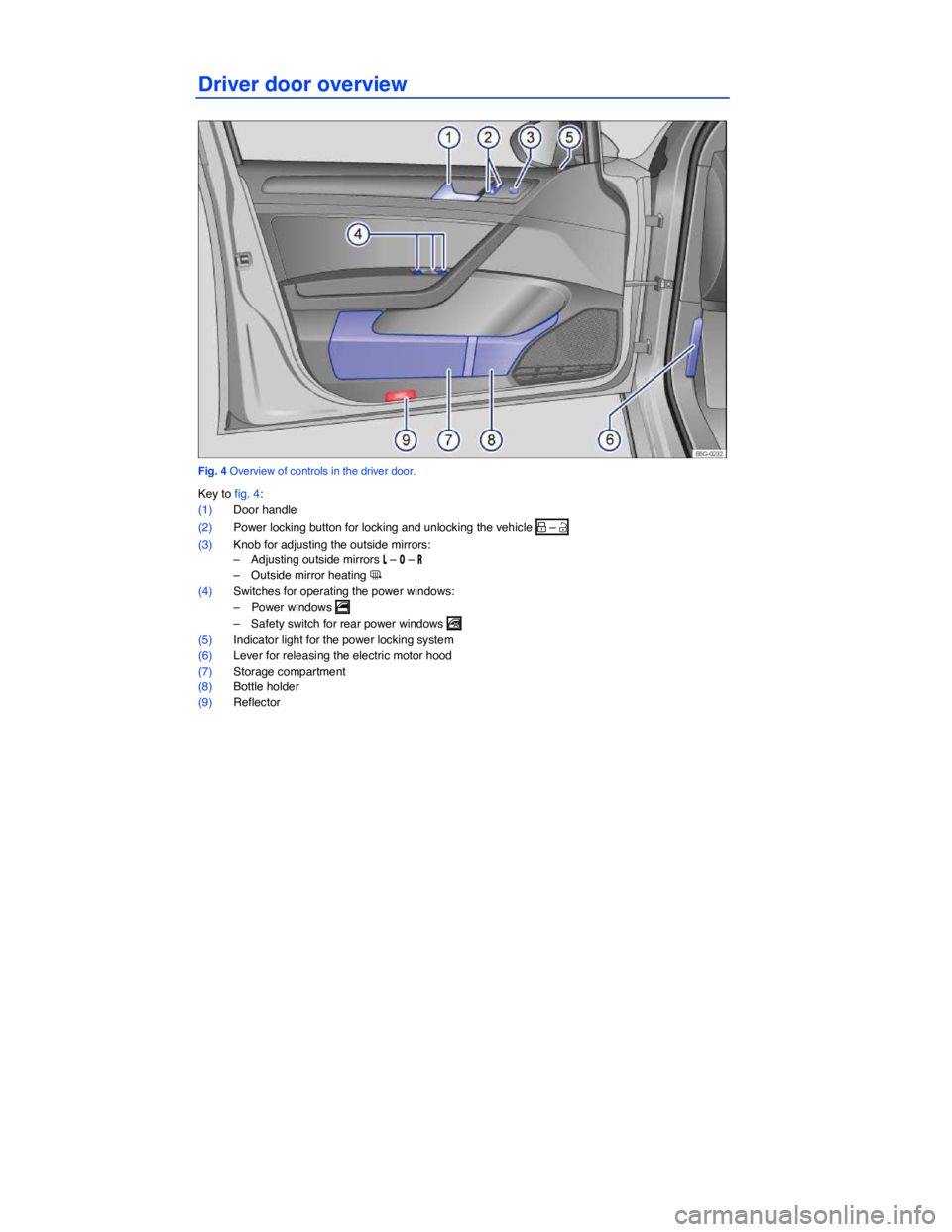

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle

Driver side overview

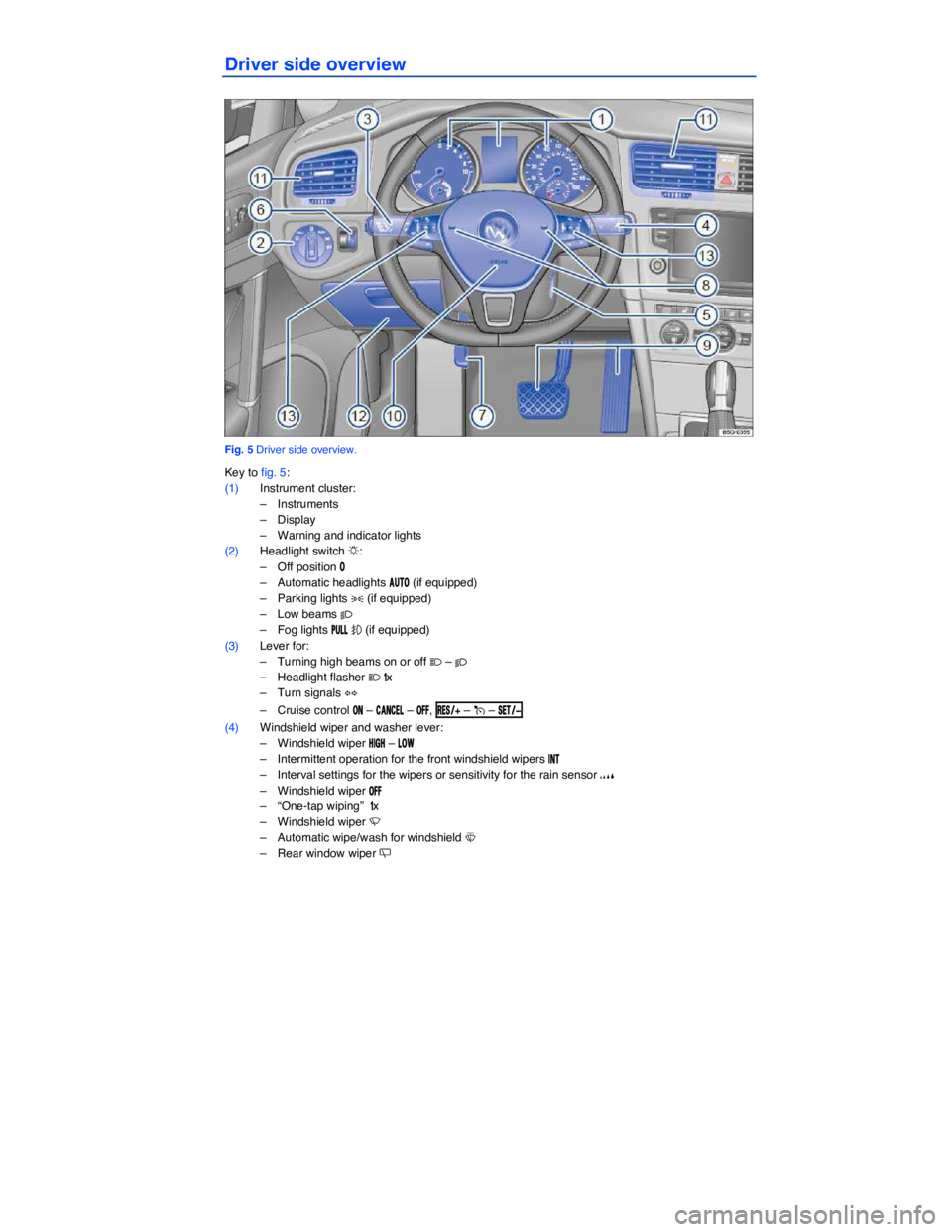

Fig. 5 Driver side overview.
Key to fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Rear window automatic wipe/wash \
– Lever with buttons for the Volkswagen Information System (Basic version) 42)0, /+

Upper center console

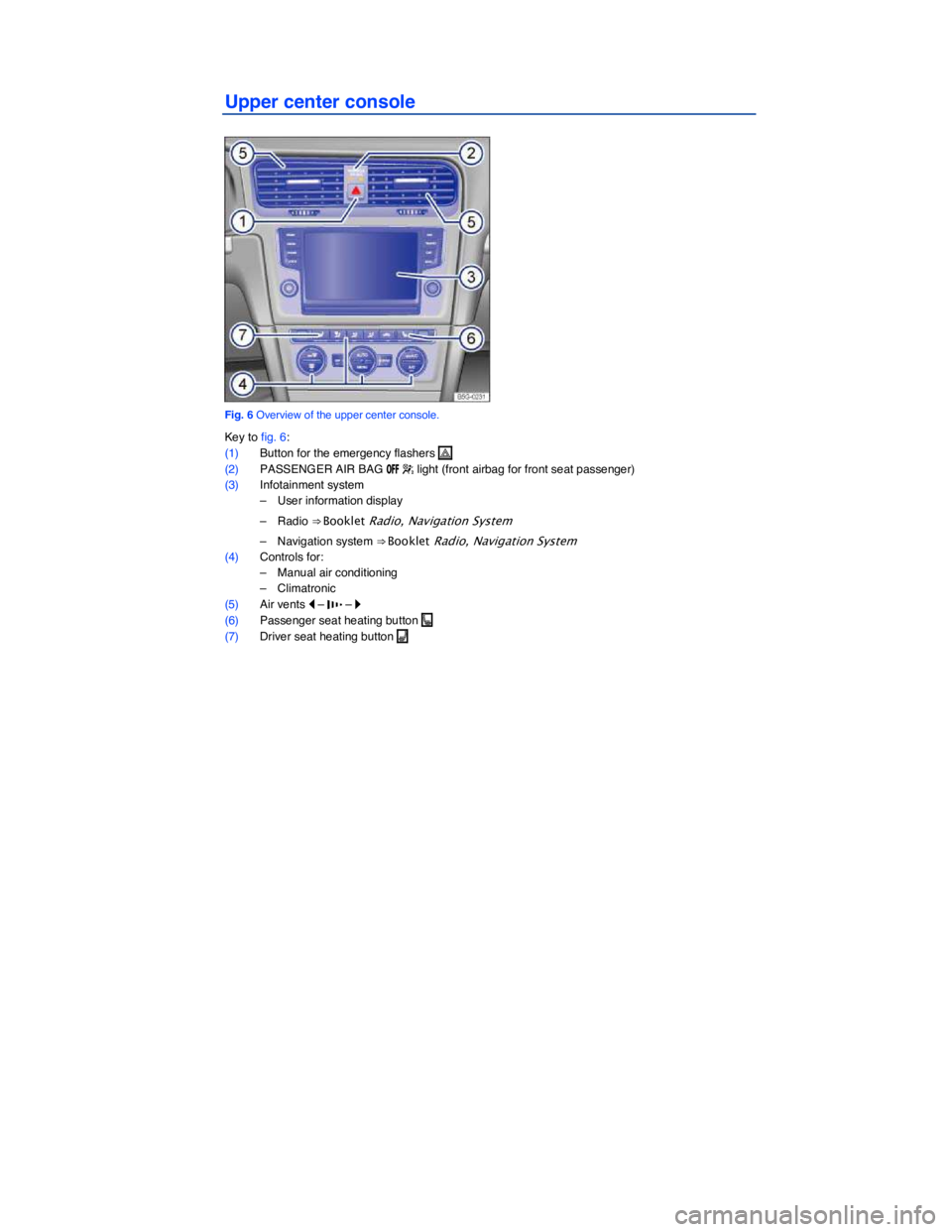

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Button for the emergency flashers
(2) PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
(3) Infotainment system
– User information display
– Radio ⇒ Booklet Radio, Navigation System
– Navigation system ⇒ Booklet Radio, Navigation System
(4) Controls for:
– Manual air conditioning
– Climatronic
(5) Air vents  –

Lower center console

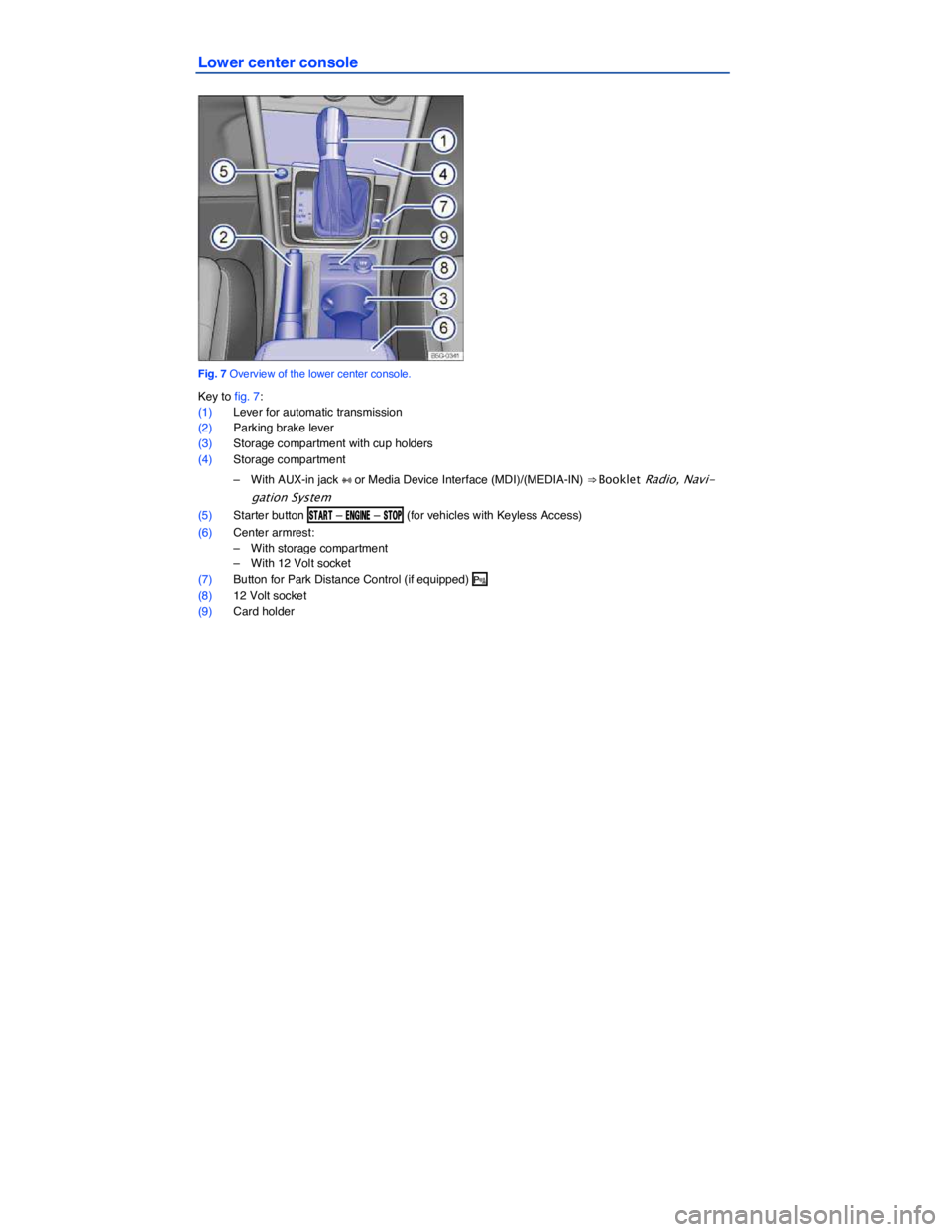

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Lever for automatic transmission
(2) Parking brake lever
(3) Storage compartment with cup holders
(4) Storage compartment
– With AUX-in jack

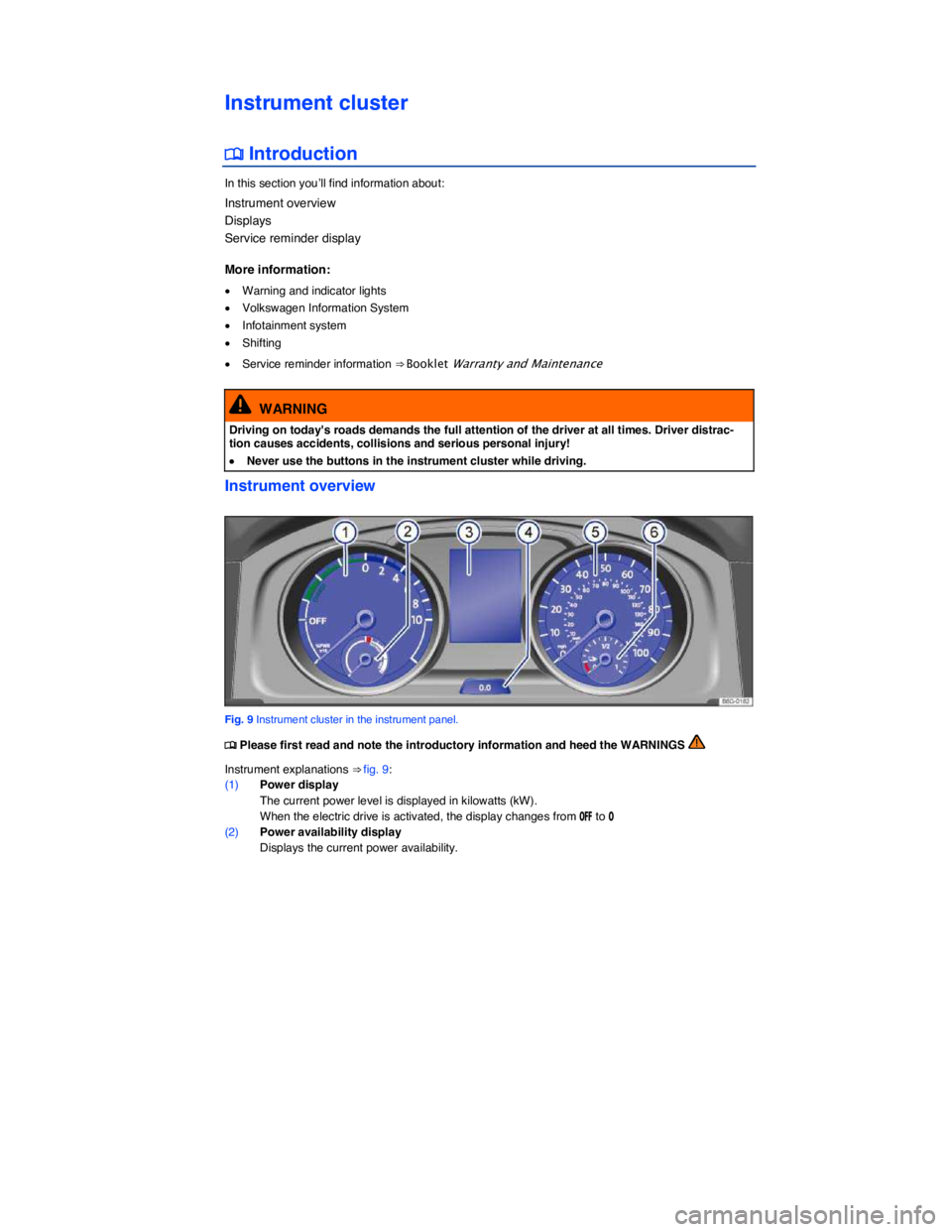

Instrument cluster

(3) Displays
(4) Reset, set, and display button
(5) Speedometer
(6) Charge level display
Displays the charge level of the high-voltage battery
Displays

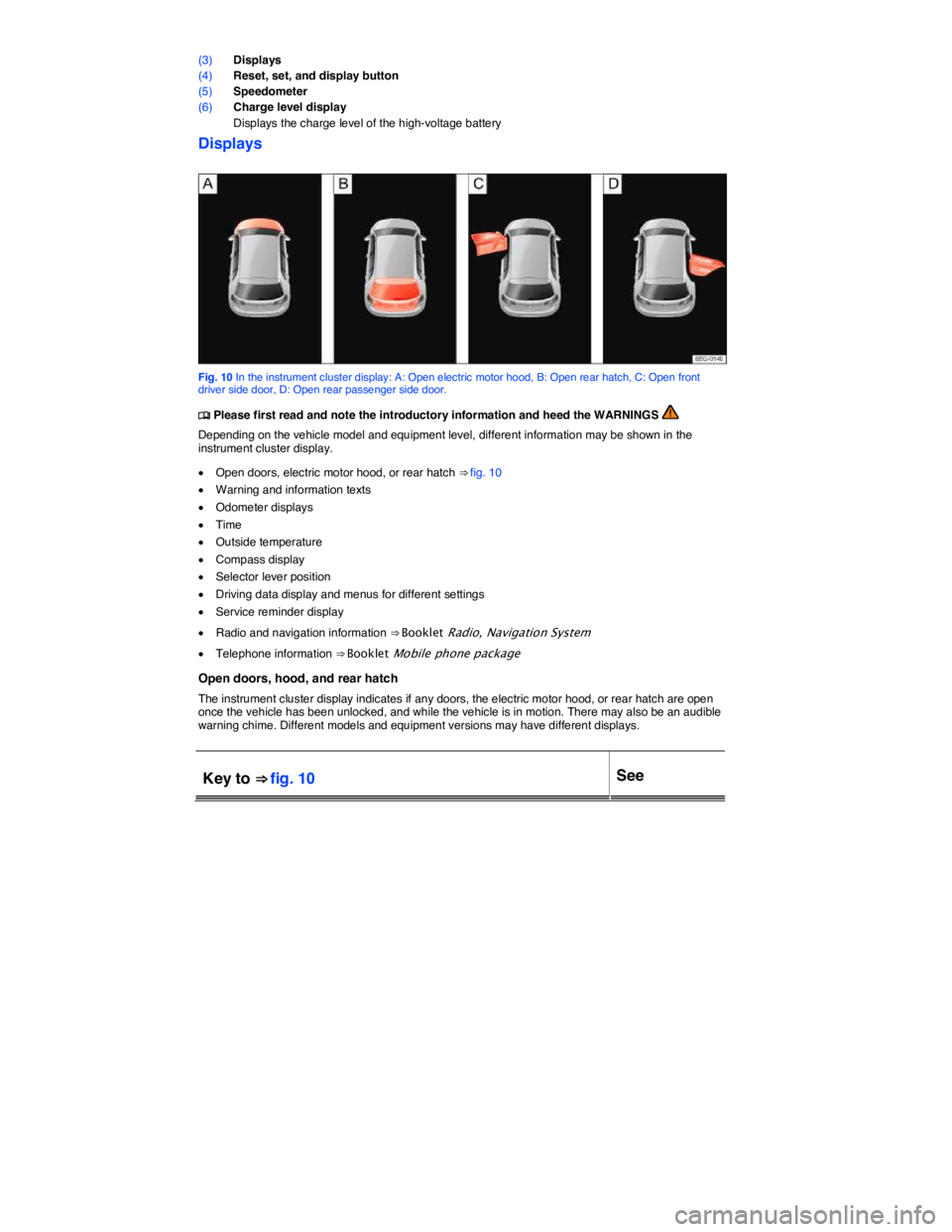

Fig. 10 In the instrument cluster display: A: Open electric motor hood, B: Open rear hatch, C: Open front driver side door, D: Open rear passenger side door.
