Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) CSC roof
(3) Outside door handle
(4) Outside mirror
– Additional turn signal light
– Background lighting
(5) Side marker light
(6) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror with sensor on mirror base for:
– Rain sensor
– Low-light sensor
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on both left and right)
(5) Fog lights/static cornering lights (on both left and right)
(6) Threaded hole for the front towing eye (behind cover)
(7) Headlight washers (on both left and right)
(8) Side marker lights (on both left and right)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on both left and right)
(4) Volkswagen emblem. Area for:
– Luggage compartment release
– Rear Assist camera (if equipped)
(5) License plate lights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Park Distance Control sensors (on both left and right, if equipped)
(8) Luggage compartment lid
– Antenna in the luggage compartment lid

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle 0

Driver side overview

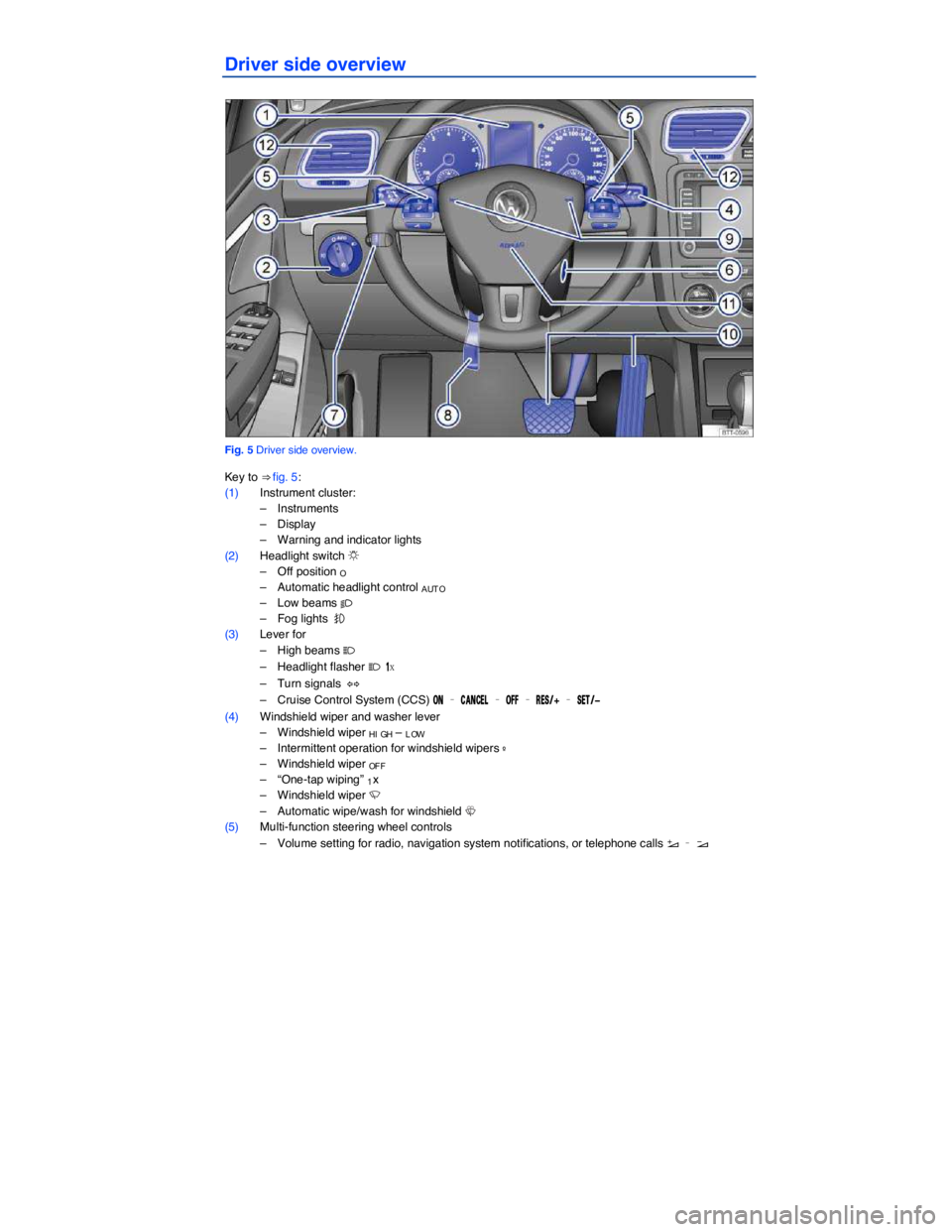

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Mute switching for radio or activation of voice control \f
– Display Phone main menu or accept telephone calls -
– Audio, Navigation

Center console overview
Upper center console

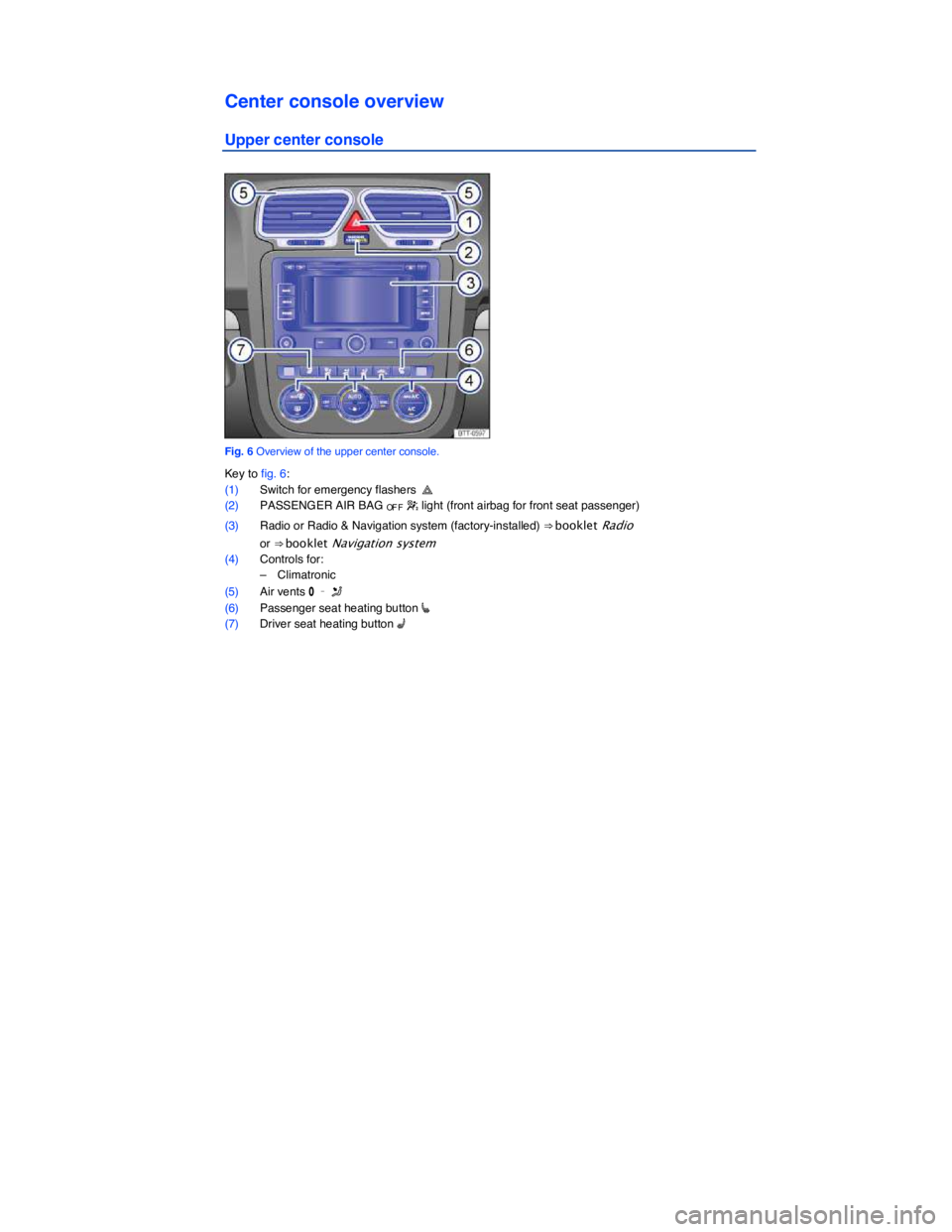

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Switch for emergency flashers
(2) PASSENGER AIR BAG OF F  light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ booklet Radio
or ⇒ booklet Navigation system
(4) Controls for:
– Climatronic
(5) Air vents / – J
(6) Passenger seat heating button [
(7) Driver seat heating button A

Lower center console

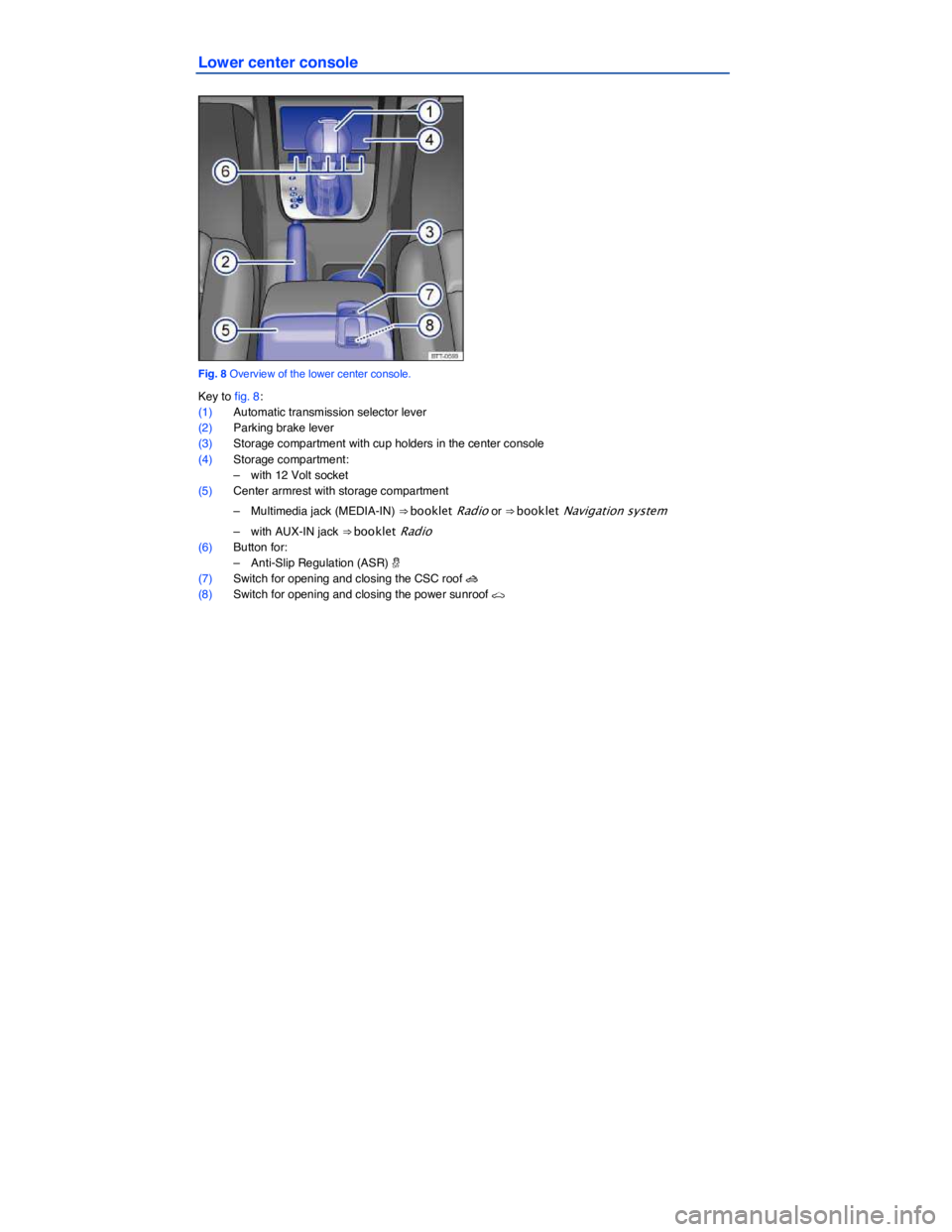

Fig. 8 Overview of the lower center console.
Key to fig. 8:
(1) Automatic transmission selector lever
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment:
– with 12 Volt socket
(5) Center armrest with storage compartment
– Multimedia jack (MEDIA-IN) ⇒ booklet Radio or ⇒ booklet Navigation system
– with AUX-IN jack ⇒ booklet Radio
(6) Button for:
– Anti-Slip Regulation (ASR) m
(7) Switch for opening and closing the CSC roof &
(8) Switch for opening and closing the power sunroof

Front passenger side overview

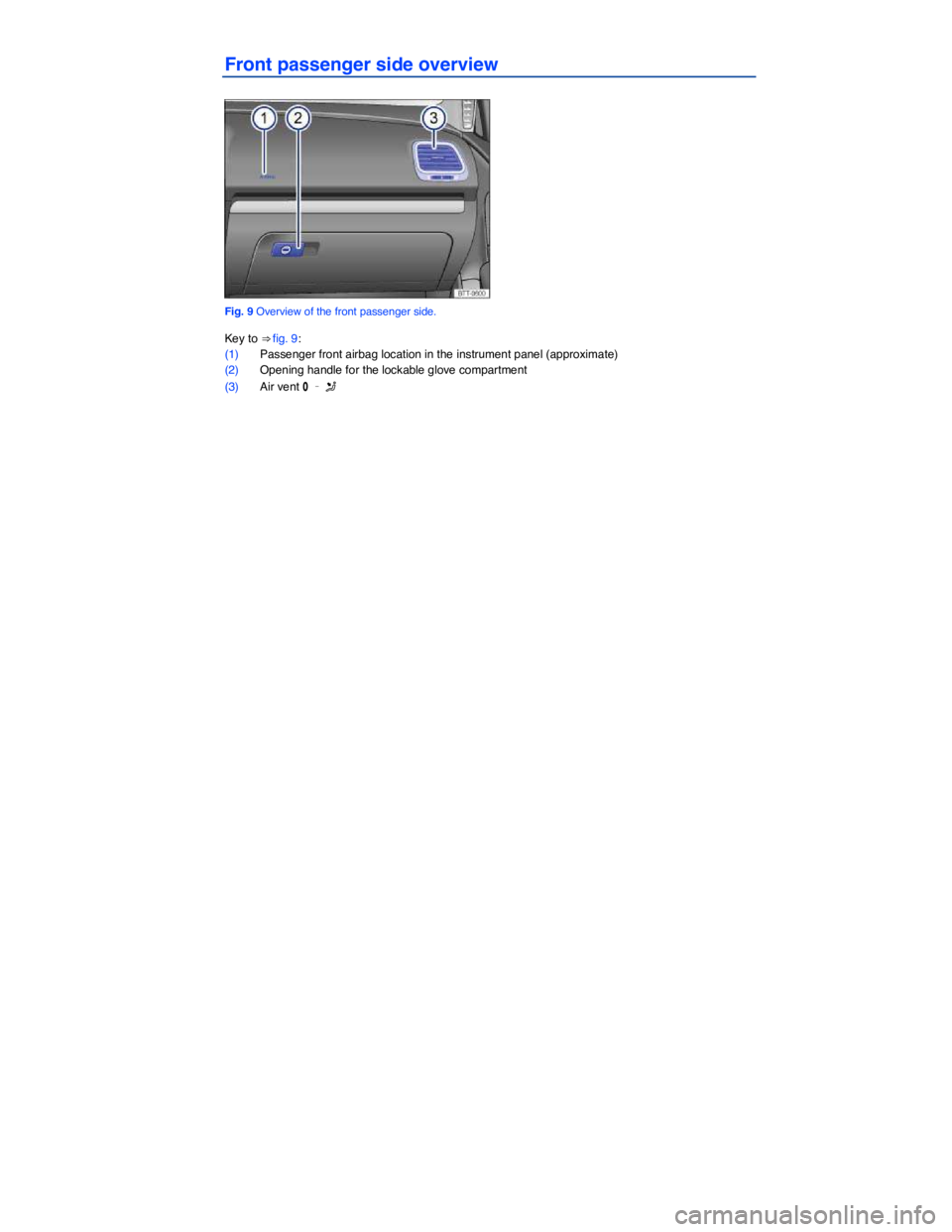

Fig. 9 Overview of the front passenger side.
Key to ⇒ fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the lockable glove compartment
(3) Air vent / – J

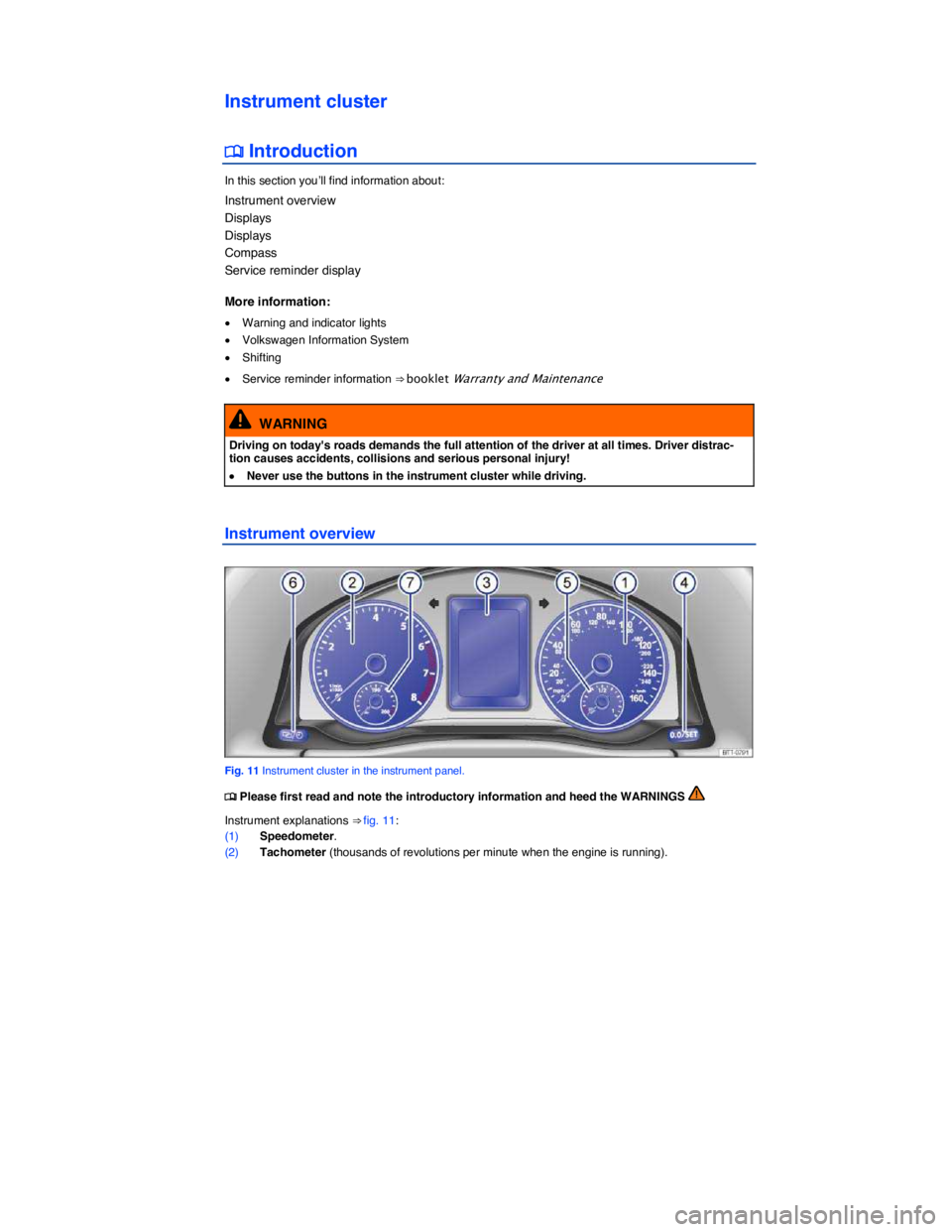

Instrument cluster
