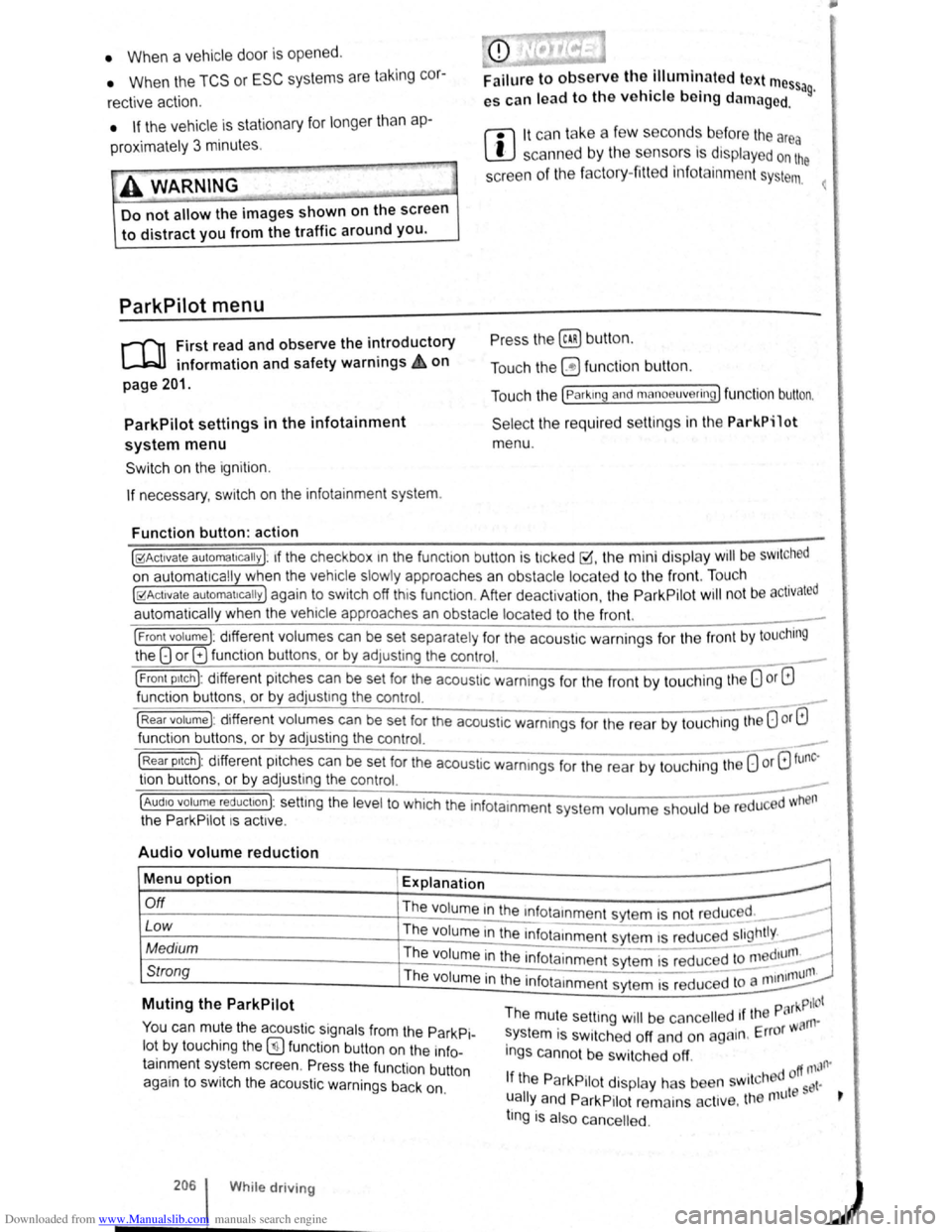

ParkPilot menu
r-('n First read and observe the i~troductory
l.-.l.:JJ information and safety warnmgs on
page 201.
ParkPilot settings in the infotainment
system menu
Switch on the ignition .
If necessary , switch on the infota inment system .
Function button: action
CD
Failure to observe thhe.ill
1
umbi~ated text messag.
es can lead to the ve tc e emg damaged .
1:1 lt can take a fe w seconds be for e the area
L!J scanned by the sensors ls displayed on the
screen
of the factory- fitted infot ainm ent system .
Press the@) button .
Touch the
G fu n ction button .
Touch the
(Parkmg and mAnoeuverin g) fun ction button.
Select the required settings in the ParkPilot
menu .
[10Act1vate automatically ): 1f the checkbox 1n the functio n button is t1cked ~.the mini display will be SWitched
on automat ically when the vehicle slowly approaches an obstacle located to the front. Touc h .
[10Act1vate automat1ca lly) again to switch off this function . After deactiva tion, the ParkPilot will no t be activated
automatically when the veh1cle approa ches an obstacle located to the front.
(Front volume): d1fferent volumes can be set separately fo r the acoustic warnings for the fron t by touching
the 8 or 8 funct ion butt ons , or by adJusting the control. ___
(Front p1tch): different pit ches can be set for the acoustic warnings for the front by touching the 0 or G
fun ction buttons , o r by adjust1ng the control.
(Rear volume) : different volumes can be set for the acoustic warnings for the rear by touchtng the 0 or G
function buttons. o r by adjusting the control. _
(Rear p1tc h ): different pitches can be set for the acoust ic warmngs for the rear by tou ch ing the 0 or 8 tunc·
tio n buttons . o r by adjusting the control. _
~~==~==~~~~-=~~--~~~-----------------------------~---­(AudiO volume reduct1on): settmg the level to which the infota inment system volume should be reduced when
the ParkPilot 1s act1ve.
Audio volume reduction
Menu option Explanation
r.O:-ff ___________________ -+-=T~he::.._ . ..:.v.:..ol:.:u::.m.:..:e~i~n:,:th~e~~n~fotamment sytem is not reduced. __ ----
Low Th e volume in the infota1nmen t sytem IS red~c;;d ~~~~tly. _..
Medium The volume in the infota inment syt e m is red uced to ~~~d1unl. -
Strong Th e 1 . - -11111un1. vo ume m the infota1nmen t sytem is reduced to a 11111
Muting the ParkPilot
You can mute the acoustic signals from the ParkPi­
lot by touching the (!) fun ction button on the info­
tainment system screen. Pr ess the functio n button
again to switch the acoustic warnings back on.
206 While driving
park Pilot The mute setting will be ca ncelled 1f the rn·
system is switched off and on again . Error w a
ings canno t be swi tc h ed off.
. d off ntJfl'
If the ParkPilot display has been sw1tcl'~9 et·
ually
and ParkP1Iot remains act1ve. the nnlt s t
tlng is also cance lled .

Downloaded from www.Manualslib.com manuals search engine ...
h parkPil ot is au tomatica lly muted whe n the
!le~tronic parking brake is switc he d on.

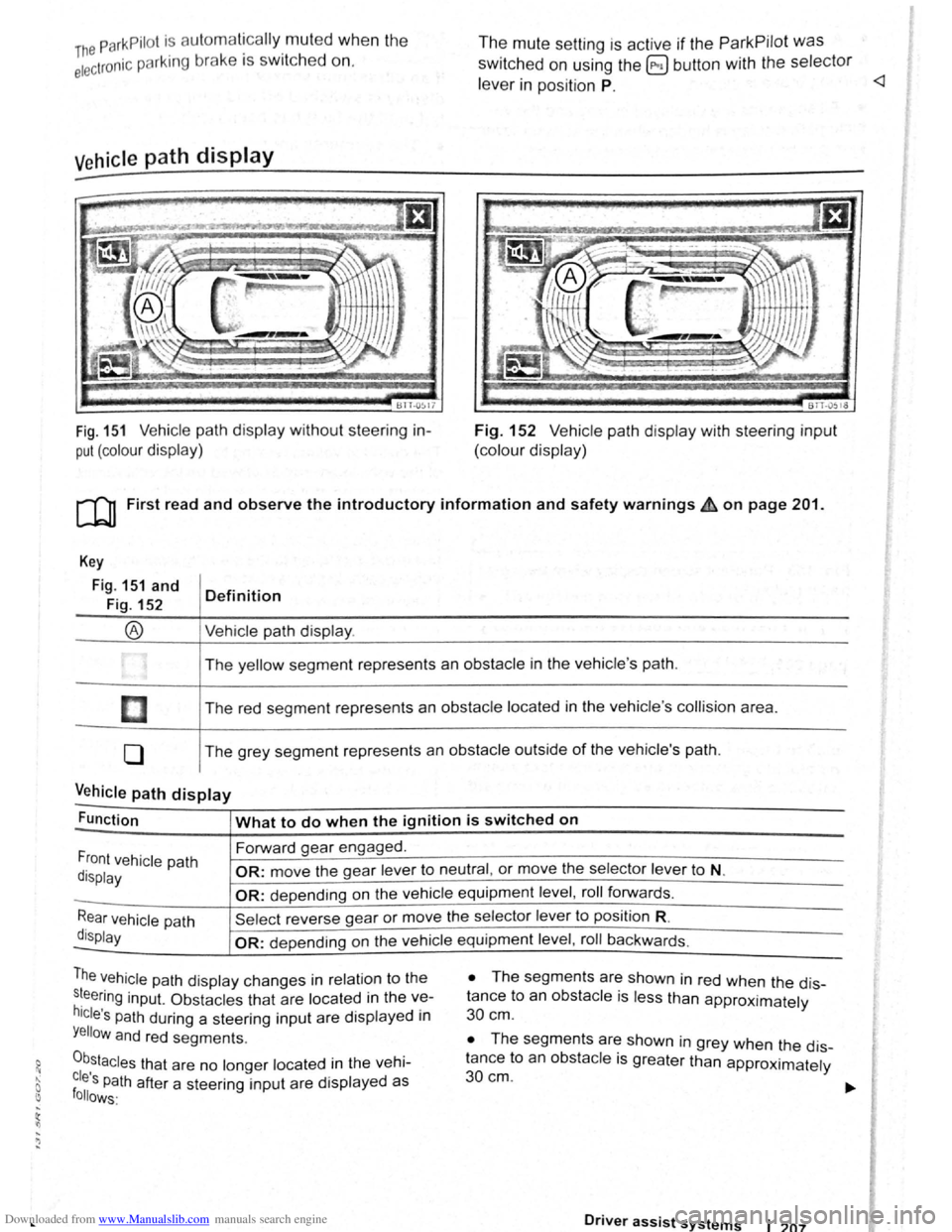

Vehicle path display
611-0~17
Fig. 151 Vehicle path display w ithout steering in­
put (colour display)
The mute setting is active if the ParkPilot was
switched on using the @ button with the selector
le ve r in position P. El
BTT -051o
Fig. 152 V ehi cle path display with steering input
(colour display)
[Q) First read and observe the introductory information and safety warnings £ on page 201.
Key
Fig. 151 and
Fig. 152
®
I
[]
0
Definition
Vehi cle path display .
The yellow segment represents an obstacle in the vehicle 's path .
The red seg ment represents an
obstacle located in the vehicle 's collision area .
The grey segment represents an
obstacle outside of the vehicle's path.
Vehicle path display -
Function What to do when the ignition is switched on
Forward gear engaged .
Front vehicle path
display OR: move the gear lever to neutral , or move the selector lever to N.
-OR: depending on the vehicle equipment level , roll forwards .
Rear vehicle path
display
Sel ect reverse gea r or move the selector lever to position R.
-OR: depen ding on the vehi cle equipment level , roll ba ckw ards.
The vehicle path dis play changes in relation to the
s~eering inp ut. Ob stacles that are located in the ve­
hicle's path during a steering input are disp layed in
Yellow and red segments.
0b,stacles that are no longer located in the vehi­
cles Path after a steering input are displayed as follows·
• The segm ents are shown in red when the dis­
tance to an
obstacle is less than approximately
30 cm .
• The segments are shown in grey when the dis­
tance to an
obsta cle is greater than approximately
30cm.
Driver assist systems 1 207

Downloaded from www.Manualslib.com manuals search engine l
• All s m nts r di ... plny d m gr y and the ve­
hicl p Hll dtspl y 1 h1dd n wh n th e electron re
< rk1n bruke 1 clos d.
• All s m nts are dtsplayed tn grey and the ve­
hi cle path d1sploy
IS htdden when the selector lever
IS in po 1t10n P (: nd the ParkPrlot ts activated

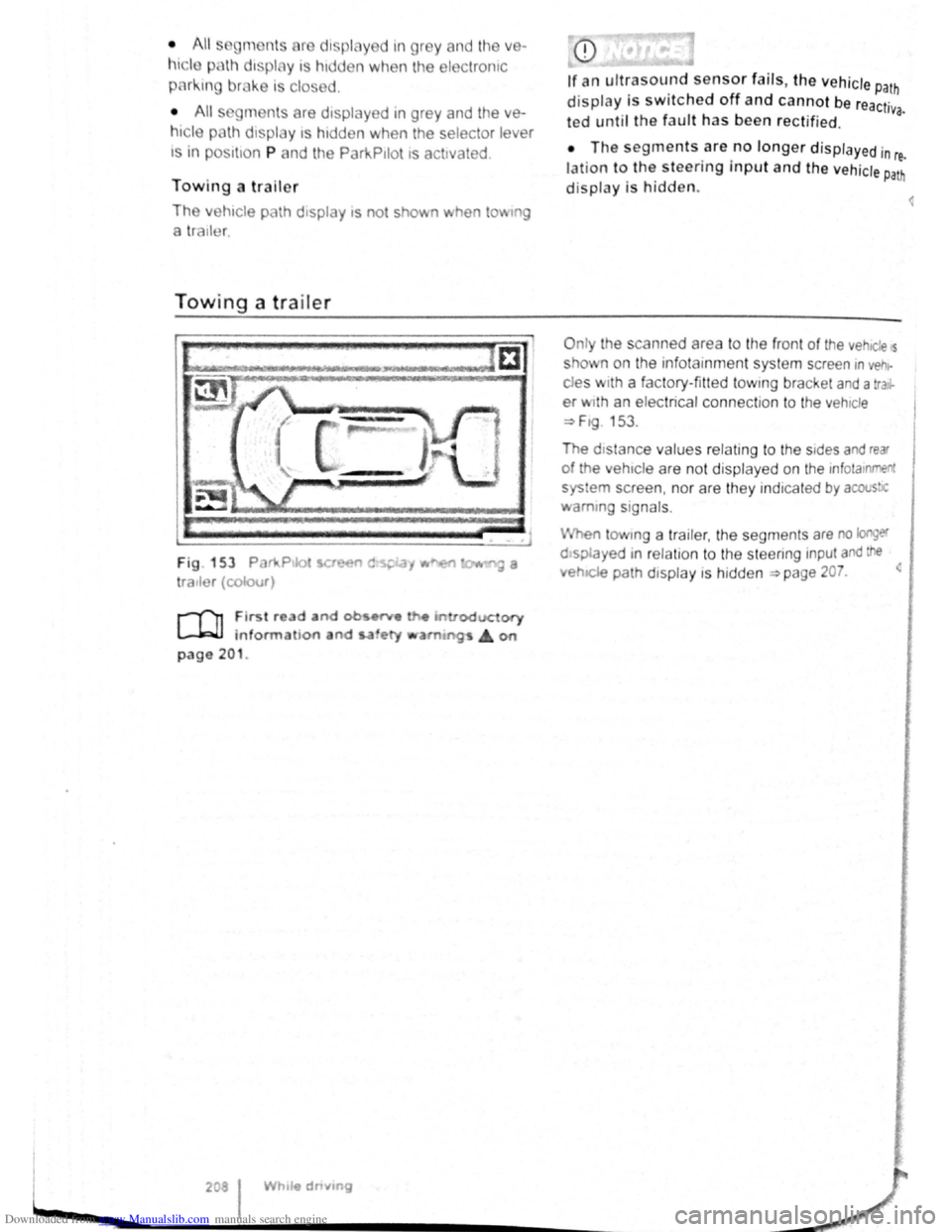

Towing a trailer
The vehtcle path drsplay IS not sho\\'n v.hen toy, tng
a trarler .
Towing a trailer
Fig . 153 Par111.Ptlot !et
tratler (colour)
r-('n First re d and ob •~
L-.l.:JJ information and s.a ety
page 201 .
208 I While dnvmg
If an ultrasound sensor fails, the vehi cle path
display is switched off and cannot be reactr· va. ted until the fault has been rectified.
• The segments are no longer d isplayed in re.
lation to the steering input and the vehicle Path
display is hidden.
O nly the scan ned area to the front of the vehtcle s
s o' n on the infotain ment system screen rn vehr
des w rth a factory-fitted towtng bracket and a tra.r
er w1th an electrical connection to the vehtcle
~F1g 153 .
The dtstance values relating to the stdes and rear
of the ehtcle are not displ ayed on the infotamment
sys em screen , nor are they ind rcated by acous!JC
amm g signals .
en tow1ng a tra iler, the segments are no longer
o splayed 1n r elatron to the steenng input and the
.. e~IC!e path drsplay is hidden ~page 207. <
<

Downloaded from www.Manualslib.com manuals search engine ~ ; ) J

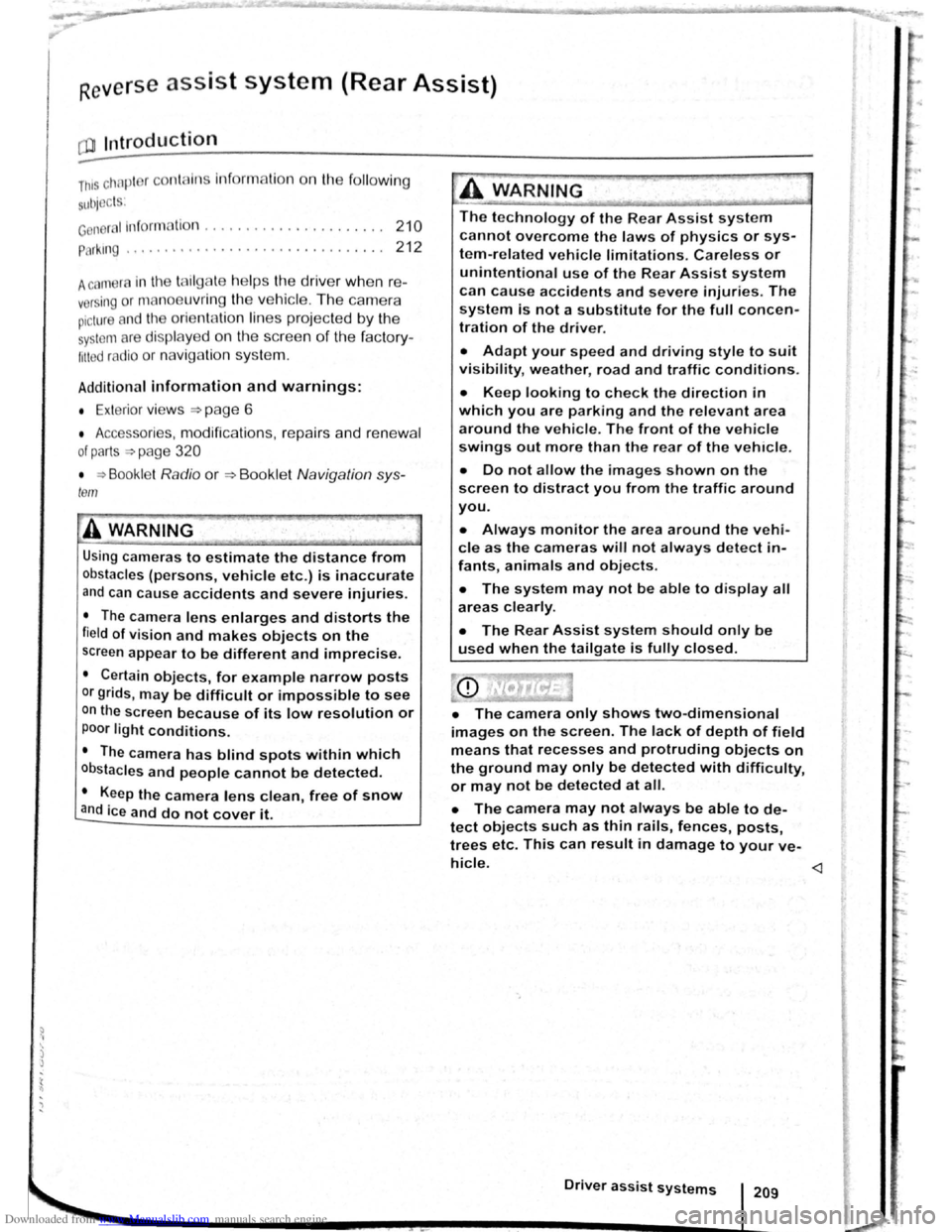

Reverse assist system (Rear Assist)
eo Introduction
ThiS c hflp t r co nlc:tln s Informa tio n on th e fo llowing
subjor.ts :
G 11 rat Infor m ation . . . . . . . . . . . . . . . . . . . . . . 210
Parking ....... ········· ....... . ........ 2 12
A cam era in th e ta il g a te he lp s th e driver when re ­
ve rsing o r m an o e uv ring the ve hi cle . The came ra
picture and th e o rienta tio n lin e s projecte d by the
syste m are di sp la ye d o n the s creen of th e facto ry ­
littcd ra d io or n avi gatio n sy ste m .
Additional information and warnings:
• Exte rio r v ie ws ~p age 6
• Accessories, modifica tio ns , re pai rs a nd re ne w al
of parts ::>p ag e 32 0
•
=>Bookle t R ad io o r ~Booklet N av iga tio n sy s­
te m
A WARNING
Using cameras to estimate the distance from
obstacles (persons, vehicle etc. ) is inaccurate
and can cause accidents and severe injuries.
• The camera lens enlarges and distorts the
field of vision and makes objects on the
screen appear to be different and imprecise.
• Certain objects, for example narrow posts
or grids , may be difficult or impossible to see
on the screen because of its low resolution or
poor light conditions.
• The camera has blind spots within which
obstacles and people cannot be detected.
• Keep the camera lens clean, free of snow
and ice and do not cover it.
A WARNING
~------------~--------~~~------~ The technology of the Rear Assist system
cannot overcome the laws of physics or sys­
tem-related vehicle limitations. Careless or
unintentional use of the Rear Assist system
can cause accidents and severe injuries. The
system is not a substitute for the full concen­
tration of the driver.
• Adapt your speed and driving style to suit
visibility, weather, road and traffic conditions.
• Keep looking to check the direction in
which you are parking and the relevant area
around the vehicle. The front of the vehicle
swings out more than the rear of the vehicle.
•
Do not allow the images shown on the
screen to distract you from the traffic around
you.
• Always monitor the area around the vehi­
cle as the cameras will not always detect in­
fants, animals and objects.
• The system may not be able to d isplay all
areas clearly.
• The Rear Assist system should only be
used when the tailgate is fully closed.
• The camera only shows two-dimensional
images on the screen. The lack of depth of field
means that recesses and protruding objects on
the ground may only be detected with difficulty,
or may not be detected at all.
• The camera may not always be able to de­
tect objects such as thin rails, fences, posts,
trees etc. This can result in damage to your ve­
hicle.
Driver assist systems 209

Downloaded from www.Manualslib.com manuals search engine .__ _____________ : ____ ' . \,
Fi . t th~ ta vctt .
the re er ... e ass$
ro Fir t rea a ~' l h ''
Fun t
Sw1tch1 t e · s ,a
off ma !all
Screen
F 1nct1on b tt '
CD l'iitc h
2 Set I ~ ' .... s •
@ Switc h
@ Sh
5
Things t n t
-\f the re r 1 .
-tf the s a e
2
I
· ,,,, , '" ~hh \P \! lth the ""'~I'll t
' p t \':\' dl ~'\:\
'' In~ 1 \11\1\ll
l ,,h ,,
1*'h~t \1 :--~n ~~ f '' '"":\t<~!
, ,

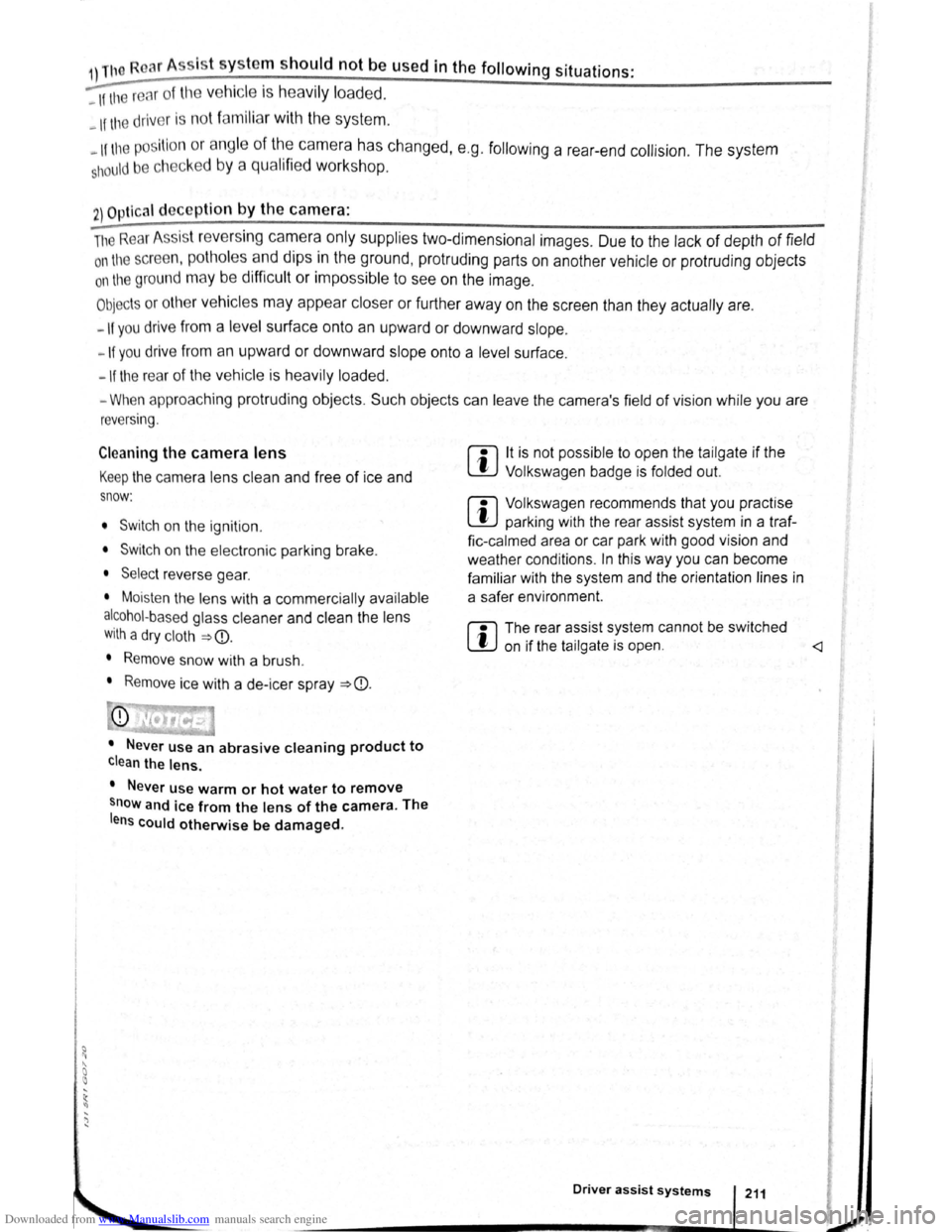

Downloaded from www.Manualslib.com manuals search engine 1) The Roar A
ss is t s y ste m should not be used in the following situations:
-If the rear of the ve hi cle is heavily loaded.
-If tl'e driv er is no t famili a r with the sy s tem .
-If the pos ition or angl e of the cam era has changed, e.g . following a rear-end collision. The system
sh ould be checked by a qualifi ed workshop.
2) Optica l deception by the camera :
The Rear Ass is t r eve rs ing camera only supplies two-dimen sional image s. Due to the lack of depth of field
on the sc ree n, potho les and dips in the ground , protruding parts on another ve hicle or protruding objects
on the gro und may be difficult or impossible to see on the image .
Objects or other ve hicles m ay appear closer or further away on the screen than they actually are.
-If you d rive from a le ve l surface onto an upward or downward slope.
-If you drive from an upward or downward slope onto a level surface .
-If the rear of th e ve hi cle is hea vily loaded .
-
Whe n app roac hing protruding objects. Su ch obje cts can leave the camera 's field of vision while you are
r e ve rs
ing.
Cleaning the camera lens
Keep the cam era le ns clean and free of ice and
s n o w :
• Switch o n the ignition .
• Switch on the electronic parking brake.
• Selec t re ve rse gea r.
• Moisten the le ns with a commercially available
alcohol- b ase d glass clea ner and clean the le ns
with a dry clot h ~CD.
• Remove snow with a brush .
• Remove ice with a de -ice r spray ~CD.
• Never use an abrasive cleaning product to
clean the lens.
•
Never use warm or hot water to remove
snow and ice from the lens of the camera . The
lens could otherwise be damaged.
m lt is not possible to open the tailgate if the
W V olkswagen badge is folded out.
m Volkswagen reco mmends that you practise
W parking with the rear assist system in a traf­
fic-calmed area or car park with good vision and
we ather conditions .
In this way you can become
familiar with the system and the orientation lines in
a safer environment.
m The rear assist system cannot be switched
W on if the tailgate is open . <1
Driver assist systems

Downloaded from www.Manualslib.com manuals search engine Parking
Fig. 156 On the screen : static orientation lines for
the parking space behind the vehicle
r-T'n First read and observe the . ---._
L..-J.=JJ information and safety wa '~trodue 1
page 209. rntngs 4
Overview of the orientation aid
The displayed green area ends on the road
2 metres behind the vehicle. a ~·:
Meaning of the orientation lines on the screen 1
) ~Fig. 156
G) Safe distance : area up to approximately 40 cm on the road behind the vehicle.
® Projection of the vehicle (widened somewhat) toward the rear . The middle markers are approximately
one metre behind the vehicle on the pavement.
Parking
• Position the vehicle in front of a parking space
and engage reverse gear.
• Reverse slowly and steer the vehicle so that
the green orientation lines lead into the parking
space®.
•
Position the vehicle in the parking space so that
the green orientation lines are
parallel to the park-
Ing space . 1
) All distances of the orient ation lines refer to a vehicle on a hor · t 1 rf 1zon a su a cP..

Downloaded from www.Manualslib.com manuals search engine park Assist system
WJl Introduction
is c ha pt er contain s information on th e following
5 bJects :
par in g using the Park Assist system . . . . . . . 214
Driv in g out of a parkin g space with the Park
Assist s y stem (only parking spaces paralle l to
s id e of
road) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
A
toma ti c brak e intervention . . . . . . . . . . . . . . 216
; e Park As sist s y stem helps the driver in findi ng
su·table park in g spaces, when parking in suitable
p a ra
lle l or perpend icu lar parking spaces and whe n
get ·n g o ut of para lle l parking spaces.
T
e Park Ass ist system has certa in system-rela ted
limitations and th e driver should be particularly
carefully when using the Park Assist system => 4::,..
One element of the Park Assi st system is the Park­
Pilo~ which is des igned to provide assist an ce
when parkin g.
In vehicles w ith ParkP ilot optical display the scan ­
ned area to the front , rear and to the sides of the
vehicle will be shown on the screen of the radio or
the navigat ion sys tem. W ith in the scope permitted
by the sys tem , the pos it ion of obstacles w ill be
s
hown in rel at ion to the vehicle .
T he
Park Ass is t system cannot be sw itched on if
the factory -fitted towing bracket is e lectrically co n­
n e
cted to the trailer.
Additional information and warnings:
• Exterior views =>page 6
• Braking , stopp ing and parking =>page 179
• ParkPilo t =>page 201
•
C leaning and caring for the vehicle exterior
~page 294
• Accessor ies, mod ificatio ns, repairs and renew al
of Parts =>page 320
..._A W ARN ING
D o not le t the extra convenience afforded by
the Park Assist system tempt you into taking
any risks when driving-this can cause acci­
dents. The system is not a substitute for the
full concentration of the driver.
• Un intentional vehicle movements can
cause serious injury.
A WARNING (Continuec;f) -
• Always adapt your speed and driving style
to suit visibility, weather, road and traffic con­
ditions.
• The surface of certain objects, including
clothing, as well as external noise sources do
not reflect the signals from the Park Assist
system or the parking distance warning sen­
sors or can cause the system to fail to detect
objects or persons.
• Sensors have blind spots in which obsta­
cles and people cannot be detected.
• Always monitor the area around the vehi­
cle as the sensors will not always detect in­
fants, animals and objects.
..
A WARNING .. p k
When driving into or out of a parking space
using the Park Assist system, the steering
wheel will automatically make quick turning
movements. You could be injured if you at­
tempt to touch the steering wheel spokes.
• The Park Assist system uses parked vehi­
cles, the kerb and other objects as guidance.
Please ensure that the wheels and tyres are not
damaged when parking the vehicle. If necessa­
ry, stop the parking procedure in good time to
prevent damage to the vehicle.
• The sensors may not always be able to de­
tect objects such as trailer drawbars, thin rails,
fences, posts, trees and open or opening tail ­
gates. This can result in damage to your vehi­
cle.
•
If the ParkPilot has detected an obstacle
and issued a warning, the obstacle may move
out of the detection range of the sensors as the
vehicle approaches it, particularly if the object
is very high or very low. These objects are no
longer registered. The vehicle can sustain con­
siderable damage if the warning given by the
ParkPilot is ignored. The same applies to the
Park Assist system, for example when parking
behind a lorry o r a motorbike. Therefore, al­
ways check the space in front of and behind
the vehicle and stop the vehicle in good time if
necessary.
I D•ive• assist systems 12t3
~~------------------~-~! ----------------~~@~-~· ~---J~-

Downloaded from www.Manualslib.com manuals search engine • Th sy t n1 ensors in the bumpers must
ept clean and free of ice and snow and not
c er d up by stickers or other items. as
the e n1ay prevent the sy tem from working
property.
• The sen ors in the bumper can be shifted or
damaged through impacts, e .g . hen parking .
• The sensors should only be sprayed briefly
hen cleaning ith pressure hoses and steam
cleaners. A distance of more than 10 cm be-
een the sensors and the s eam ose nozzle
must be observed.
• Sources of sound can lead to erro n he
Pa Ass 1st system or th e Pa P i to e .g . roug
aspha lt , cobblestones, and inte erence r om
other vehic les.
A
Fig .. 5 Pa
F ig . 158 n re la: rar sect
a· .._ ~on fOf s ·= ... ,ng o
•e man a
of • _ ce tie cc.r­
ne Pa . ss' sys...
r-f'n First read and observe the introductory
L-..lcJJ informa ton and safety wa rnJngs on
page 213.
2 I
If an ultrasound sensor fails, the corrro POnd ..
ing area of the ultrasound sensor clu tor 1
switched off and cannot be reactivated until th
fault has been rectified. Consult a qualifi d
workshop in the event of a sy tcm f urt. Volk •
wagen recommends using a Volk swagen dea,.
ership for thi purpose.
m Vof S\ agen recommends that you practise
W usrng the Park Ass 1st system tn a traffrc.
ea, ed area or car par" Thts wtll allo w you to ra.
ffill a'" se ~urs nff tl h the sys tem nd its function
a a sa'er en 1r nn1 nt ~
8
r in
• Press e (S1 u on a
e ar Jng mod~ , n :.c
m CS)mut
WICfl

Downloaded from www.Manualslib.com manuals search engine ' '' '
-
,li ~lP lllP lUll' slynr~l for tl1e s.ide o f th e s tree t
11 1, ,,u v ;:~r1l t
o l P lP ·t a pllrk111g space . Th e ,,, ,, 11 ' ' ~1,, ruli11\.l ~ide f the lr ells sl1own o n the tn-
'''"P , ~\111111P11 l itlq{(ll displlly
I p8d,ir1\-J ~pc:n·e i s t gmdod as suit ab le i f it is
:IIPR~l o a 11, lo11u o r lllall llle ve hi cle.
1'~1 "'" • WIIPil 1 AI kin g prtrall el to the road: driv e pas t
thE~ pe~'"'''~ Rp;:~ce Rl a SI ee d of no m ore than
~~ ~rll'h ( r. rnpll) and at a d is ta n ce betw een ap ­
pr\.l\llllRlr l Q .r. Ill cmd 2 rn from the parking sp ace .
, Wlum p~r kin perpendicular to the road:
dn\ e pns tllle p;:1rl~i11 space a t a sp ee d of n o mor e
lhan :£0 ""'11' (1 2 111~h) and a t a dista nce be tw ee n
ili'P' \ltmle ly 0.5 m a nd 2 m from the parking
~I'R '9 .
• Yuu \1 ill R ·lli eve b st parkin g result s if yo u stop
, ur el11 ·le a para lle l as possib le to the parke d
veh1 ·I o r tll o edge of til e road.
• If a ullal>l e par king space is indi cated in the in-
l1lll11e llt ·lust r disp la y, s lop the ve hicle and , after
a brief pause, se lect rev erse gear.
• F 11 w til e Ins tructions in the instrum ent cluster
dtSIJI~y
• Rei :la e til e steeri ng wheel wh en th e following
me· age Is sh ow n ~ in Introduc tio n on
Page21 teering intervent. active!
Monitor the area around vehicle.
• Clle k the area aro und the ve hi cle and careful-
1 depress til e acce lerator p e dal - do not exceed
7 hm/11 (4 nliJh).
• The Park Ass is t sys te m will only operate the
steenng wheel duri ng the parki ng pro ced ure. The
driver operates the accelerator, clutch, gear
hift and bra ke .
• r=ollow the vis ual in stru ctions and the acoustic
Wan~ing to nes of the Park As sis t system until the
Palkll1g procedur e has bee n completed .
• lhe Park Assis t sys te m will guide the vehicle
\Vhen d rivin g fo rw ards and re ve rsing until the vehi­
cle Is parked straig ht in the parking space.
t Wait until the stee ring has completed the steer­
ng P1~C dure at the e nd of eve ry parking move­
nlent In orde r to ac hieve an optimal p arking result.
; )
A n1es age is display ed on the instrument clus­
Ger one the parking procedure is completed and
n ~cou tic s ignal tone may b e he ard .
... .__ -.. -r ---.J'-
Interrupting or automatically stopping the
parking procedure
The Park Ass is t system will stop the parking proce­
dure if th e following happens :
• The 8 button is pressed.
• The ve hi cle spee d when parking is higher than
app roxim ate ly
7 km /h (4 mph).
• The driver operates the steering wheel.
• The parking procedure was not completed with­
in approximately 6 minutes of activating the auto­
matic stee ring intervention .
• There is a system fault (system is temporarily
un ava ilable) .
•
The TCS is switched off or the TCS or ESP
starts to regulate .
r::l The Park Assist system has system-related
l!J limitations . For example, the Park Assist sys­
t e m cannot help you to park the
vehicle on tight
b e nd s.
r::l Wh en parking parallel to the road , a warning
L!J signal can be heard to tell the driver to switch
between driving forwards and reversing because
the change
of direct ion should not take place in the
permanent tone area
of the ParkPilot.
r::l The progress bar in the instrument cluster
l!J display will symbolically indicate the relative
distance remaining .
W If the Park Assist system turns the steering
l!J wheel when the vehicle is stationary , the 6l
symbol appears as well. Depress the brake pedal
so that the steering movement takes place with the
vehicle stationary, keeping the required number of
parking movements to a minimum.
r::l If the parking result worsens after a wheel is
~ changed, the system will first have to syn­
chronise
itself with the new wheel. The synchroni­
sation procedure is carried out
automatically while
the vehicle is in motion. You can support this proc­
ess by driving slowly (less than 20 km/h (12 mph))
through a bend, e.g. in an empty car park. Driver assist systems 215
