VOLKSWAGEN GOLF PLUS 2013 Owners Manual

Color Current strength in amps(ATO®/MINI®) Current strength in amps(JCASE®)
Brown 7.5 —
Red 10 50
Blue 15 20
Yellow 20 60
White or clear 25 —
Green 30 40
Orange 40 —
Pink 30 30

Opening the fuse box in the instrument panel
x Pull the lower part of the cover toward the steering wheel (in the direction of the arrow ⇒ fig. 184) and remove the cover from the bottom. This action may require moderate force.
x To install, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow until you can hear it latch into place.
Opening the fuse box in the engine compartment
x Open the engine hood

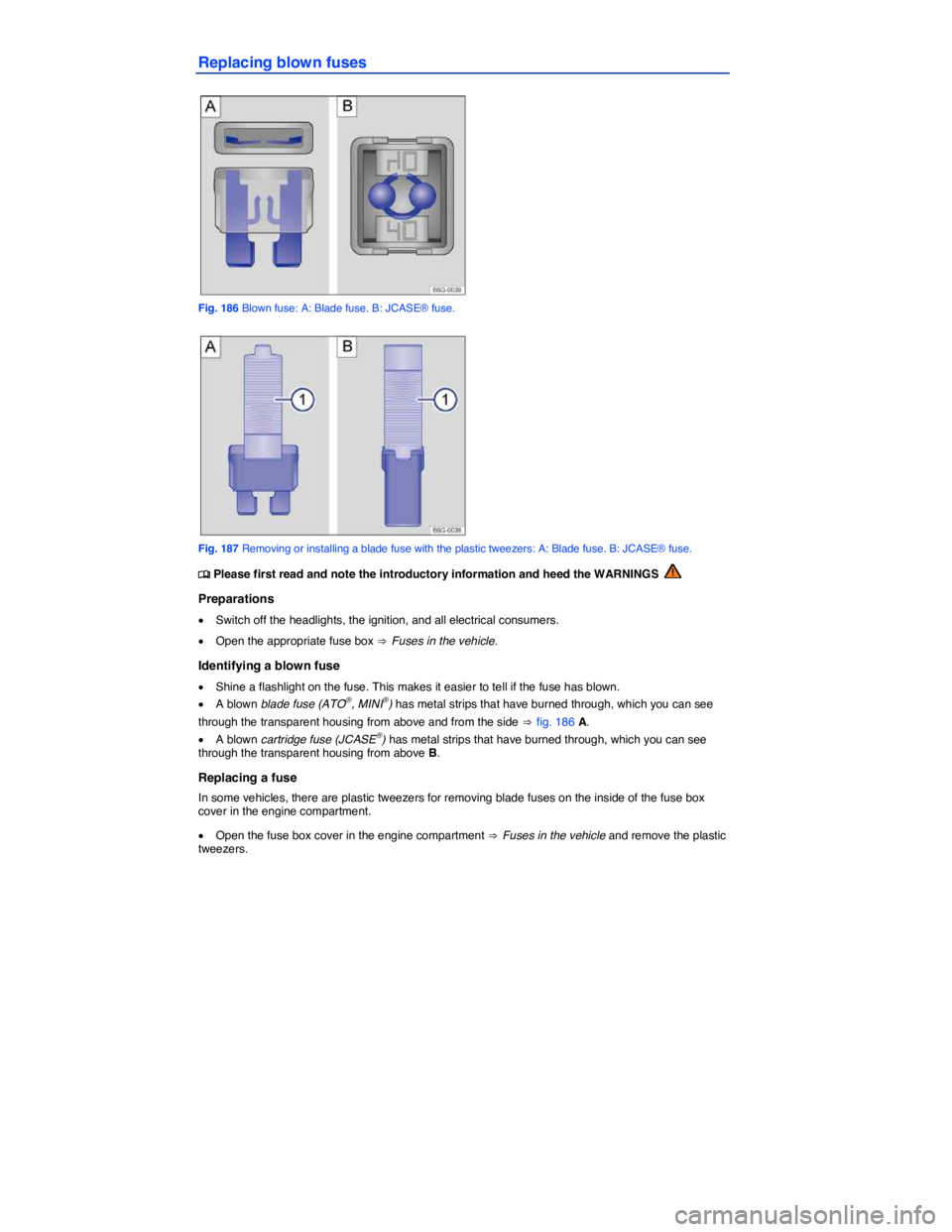

Replacing blown fuses

Fig. 186 Blown fuse: A: Blade fuse. B: JCASE® fuse.

Fig. 187 Removing or installing a blade fuse with the plastic tweezers: A: Blade fuse. B: JCASE® fuse.

x Depending on the type of fuse, slide the tweezers ⇒ fig. 187 A (1) or B (1) onto the fuse from the side.
x Pull out the fuse.
x If the fuse is blown, replace the fuse with a new fuse of the same amperage (same color and same
imprint) and same size ⇒ .
x Clip the plastic tweezers back into the holder inside the fuse box cover.
x Replace the fuse box cover.
NOTICE
If a fuse is replaced with a fuse with higher amperage, then damage can occur at various places in the electrical system.

Replacing light bulbs

WARNING
Improper replacement of burned out headlights and other light bulbs can cause serious personal injury.
x Stop! Always read and heed the WARNINGS before doing any work in the engine
compartment ⇒ Working in the engine compartment. The engine compartment of any motor vehicle is a potentially dangerous area, and work in this area can lead to serious personal injury.
x HID – High Intensity Discharge (Xenon) headlights get power from a high voltage source that can cause severe personal injury and even death if handled improperly.
x H7 bulbs and HID – High Intensity Discharge (Xenon) headlights are under high pressure and can explode if handled improperly.
x Always let a burned out light bulb cool down before replacing it.
x Never replace a light bulb unless you are familiar with all of the necessary procedures. In particular, never remove a headlight unless you know exactly how to carry out the job and have the correct tools and light bulbs.
x If you are uncertain about what to do, have the work performed by an authorized Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID – High Intensity Discharge (Xenon) headlights and H7 bulbs replaced by a qualified technician.
x Do not touch the glass of light bulbs with your bare hands. Fingerprints left on the bulb evaporate due to the heat when the bulb is switched on and cause the reflector to “cloud.”
x There are sharp edges on and around the headlight housing in the engine compartment and the rear light housing. Wear hand protection if you replace bulbs.
NOTICE
After replacing a headlight bulb or other light bulb, always make sure that the rubber covers or plastic caps have been properly and securely reinstalled to help prevent water from getting into the electrical connections and the headlight housing and damaging the electrical system.
LEDs cannot be replaced. Contact your authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance.
Indicator light

When the ignition is switched on, several warning and indicator lights come on briefly for a function check. They go out after a few seconds.
WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
Failure of a single LED within a taillight is not indicated. However, the  indicator light will light up if all LEDs fail.

Jump-starting

WARNING
Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause the battery to explode, leading to serious personal injury. To help reduce the risk of battery explosion:
x All work on the batteries or the electrical system in your vehicle can cause serious acid burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety
precautions before working on the batteries or the electrical system ⇒ Vehicle battery.
x Always make sure that the battery providing starting assistance (the booster battery) has the same voltage as the dead battery (12 V) and about the same amperage capacity (see battery label).
x Never jump-start a vehicle with a thawed or frozen vehicle battery. The battery can explode. A dead battery can freeze at temperatures around +32 °F (0 °C).
x A battery that is frozen or was frozen, but has since thawed, must be replaced.
x When the vehicle battery is jump-started, it gives off hydrogen gas, which is highly explosive! Always keep fire, sparks, open flame, and smoking materials far away from vehicle batteries. Never use a mobile telephone while connecting or disconnecting jumper cables.
x Jump-start batteries only in well-ventilated areas. Batteries give off highly explosive hydrogen gas during jump-starting.
x Always route the jumper cables so that they cannot get caught in any moving parts in the engine compartment.
x Never short out the battery terminals by connecting the positive (+) and negative (-) terminals with each other.
x Never connect the negative cable from the other vehicle directly to the negative terminal of the dead battery, as this may cause the hydrogen gas given off by the dead battery to explode.
x Never attach the negative cable from the vehicle providing starting assistance to any part of the fuel system or to the brake hoses or brake lines.
x Never allow the non-insulated parts of the battery clamps to touch.
x Never allow the jumper cable attached to the positive battery terminal to contact metal parts of the vehicle.
x Always follow the instructions of the jumper cable manufacturer.
NOTICE
To help prevent extensive damage to the vehicle electrical system, read and heed the following:
x Connecting jumper cables improperly can cause a short circuit and do expensive damage to the vehicle's electrical system.
x Do not let the vehicles touch each other while the jumper cables are connected. If they do, electrical current may flow between the vehicles when the positive (+) terminals are connected, causing electrical system damage.

Jump-start terminal

Fig. 188 In the engine compartment: Negative jump-start terminal -

The procedure for attaching and for removing the jumper cables is described below. Perform each of the following steps only in the order described, which follow the letters shown in the illustration
⇒ fig. 189 A – B – C – D.
Attaching jumper cables
1. Switch off the ignition in both vehicles ⇒ Starting and stopping the engine.
2. Open the battery cover in the engine compartment if the battery has a cover ⇒ Vehicle battery.
3. Attach one end of the red jumper cable to the positive terminal (+) of the dead battery: (1) ⇒ .
4. Attach the other end of the red jumper cable to the positive terminal (+) of the good battery (booster battery): (2).
5. Attach one end of the black jumper cable to the negative jump-start terminal ⇒ Jump-start terminal, or if that is not available, to the negative terminal (-) of the battery in the vehicle providing assistance (2) .
6. Attach the other end of the black jumper cable (3) to the negative jump-start terminal ⇒ Jump-start terminal, or if that is not available, a bare metal part of the vehicle with the dead battery. This part should be connected directly to the engine block. You may also attach the cable to the engine
block itself or to the towing eye installed on the front of the vehicle ⇒ Towing. Attach the clamp to a
point that is as far away as possible from the dead battery (1) ⇒ .
7. Route the jumper cables so that they cannot get caught in any moving parts in the engine compartment of either vehicle.
Starting the engine
x Start the engine of the vehicle with the good battery that is providing help and let it run at idle speed.
x Turn on the ignition of the vehicle with the dead battery. If the engine starts, wait 2 to 3 minutes
until it “runs smoothly” before removing the jumper cables as described below ⇒ . If the engine does not start within about 10 seconds, turn off the ignition and wait at least 1 minute; then try again.
Before removing the jumper cables
x Switch off the headlights (if they are on).
x In the vehicle with the dead battery, switch on the heater fan and the rear window defroster. This helps to minimize voltage spikes when the cables are disconnected.
Removing jumper cables
With the engine running, remove the jumper cables in reverse order to the way they were connected.
1. Disconnect the black (-) cable from the vehicle with the dead battery.
2. Disconnect the black (-) cable from the other vehicle (vehicle with the good battery).
3. Disconnect the red (+) cable from the other vehicle (vehicle with the good battery).
4. Disconnect the red (+) cable from the vehicle with the dead battery.
5. Close the battery cover.
6. If necessary, unscrew the towing eye on the front of the vehicle ⇒ Installing the front towing eye.
