Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
(5) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror with sensor on mirror base for:
– Rain sensor (if equipped)
– Low-light sensor (if equipped)
– Light Assist (if equipped)
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on left and right)
(5) Fog lights/static cornering lights (on left and right)
(6) Threaded hole for the front towing eye (behind cover)
(7) Side marker/parking lights (on left and right)
(8) Park Distance Control (PDC) sensors (if equipped)

Rear view

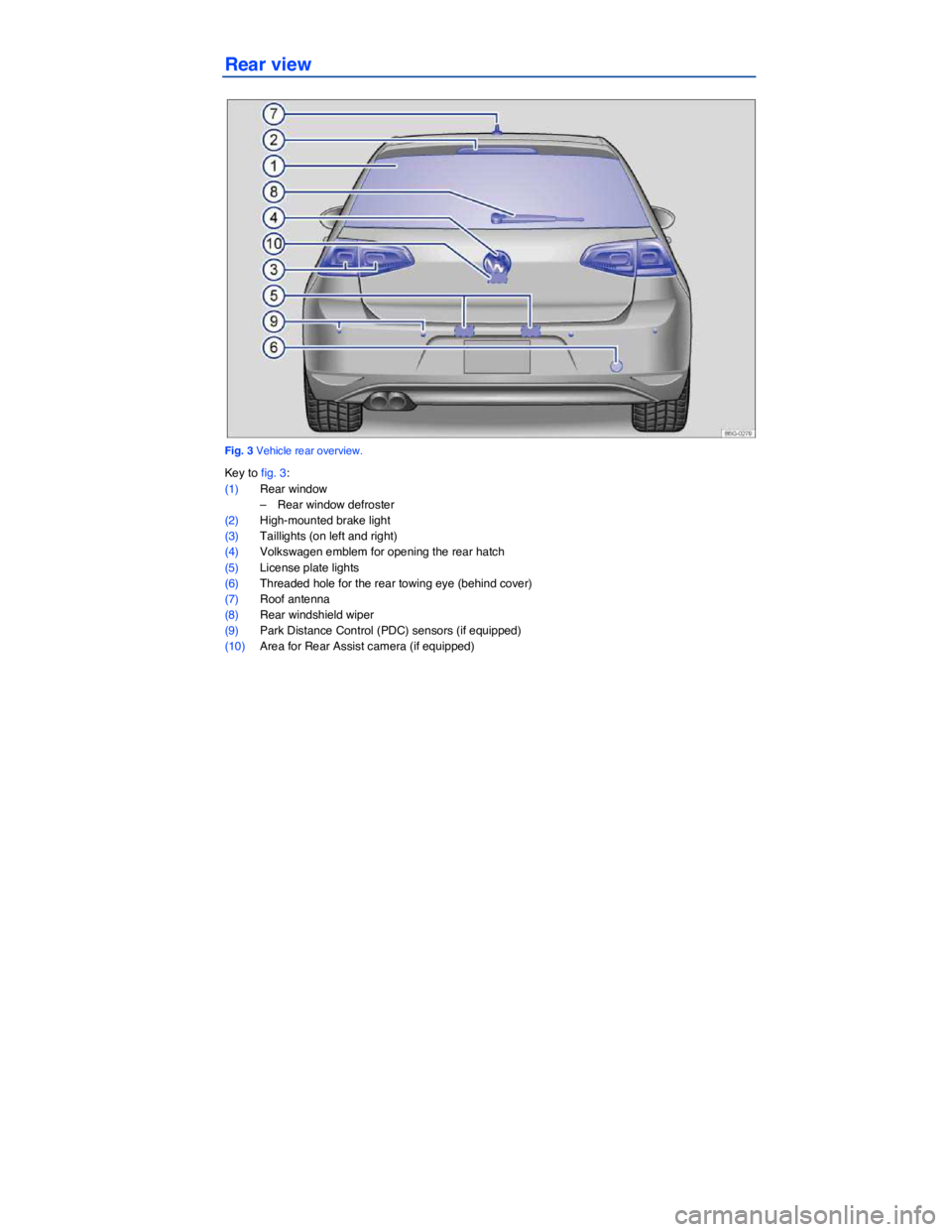

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on left and right)
(4) Volkswagen emblem for opening the rear hatch
(5) License plate lights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Roof antenna
(8) Rear windshield wiper
(9) Park Distance Control (PDC) sensors (if equipped)
(10) Area for Rear Assist camera (if equipped)

Driver door overview

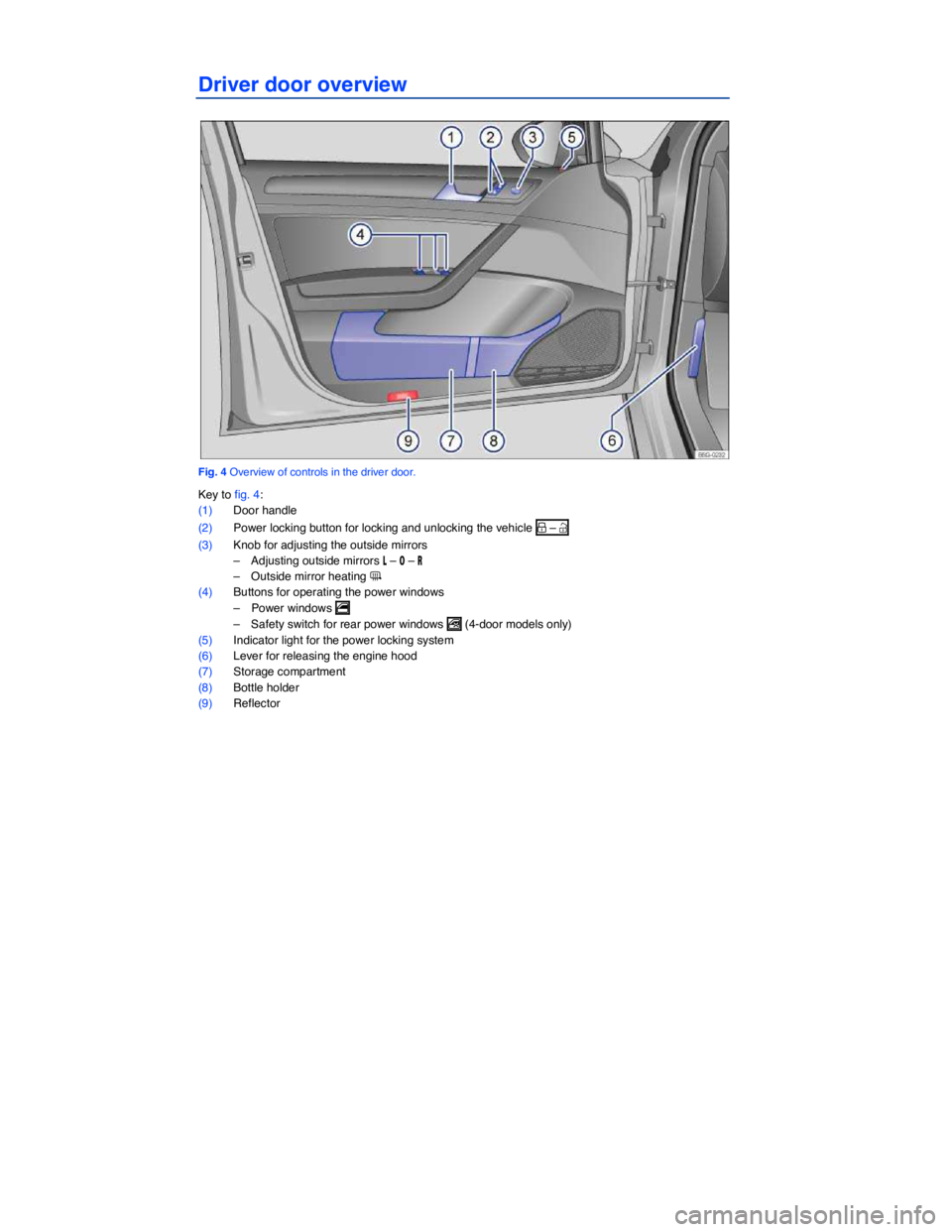

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle

Driver side overview

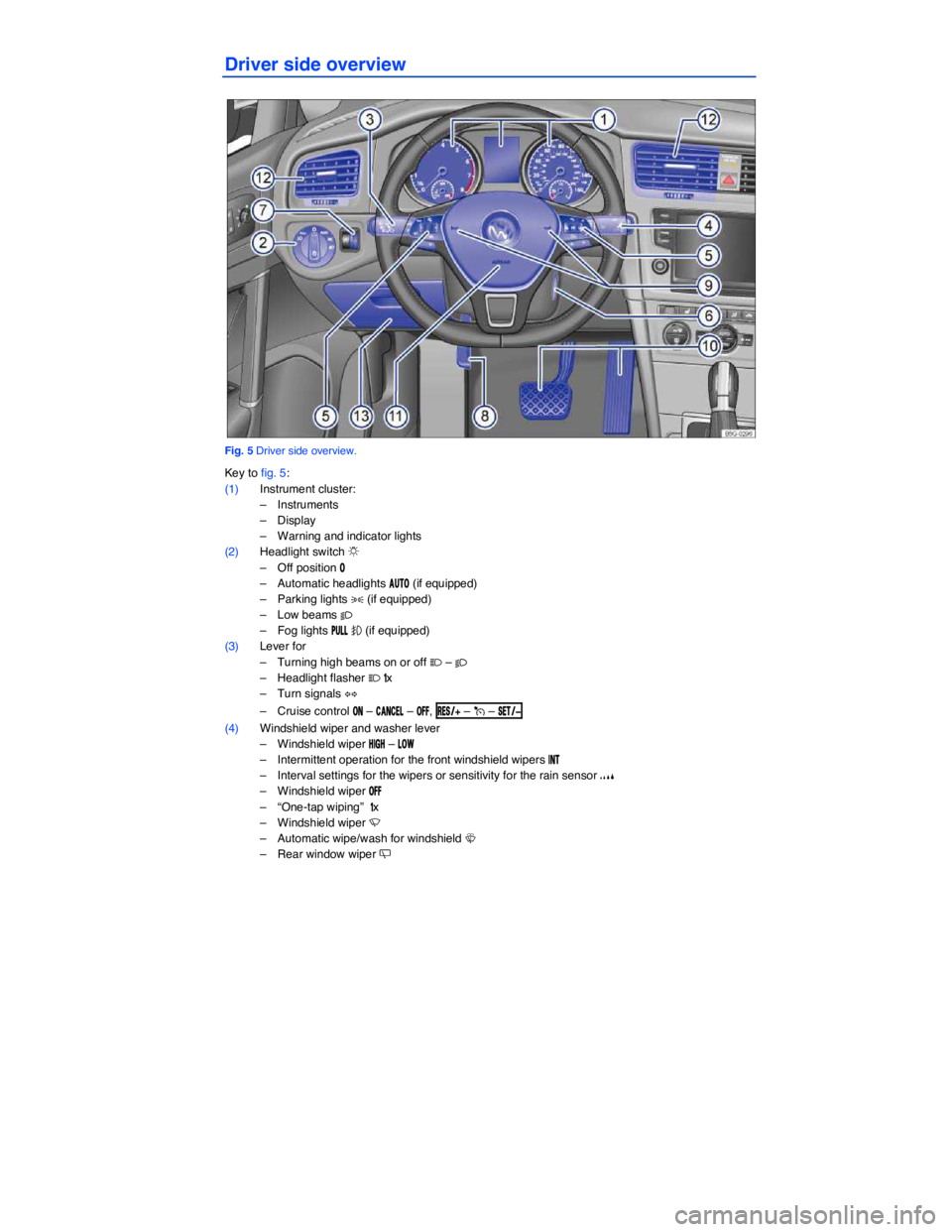

Fig. 5 Driver side overview.
Key to fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Rear window automatic wipe/wash \
– Lever with buttons for the Volkswagen Information System (Basic version) 42)0, /+

Upper center console

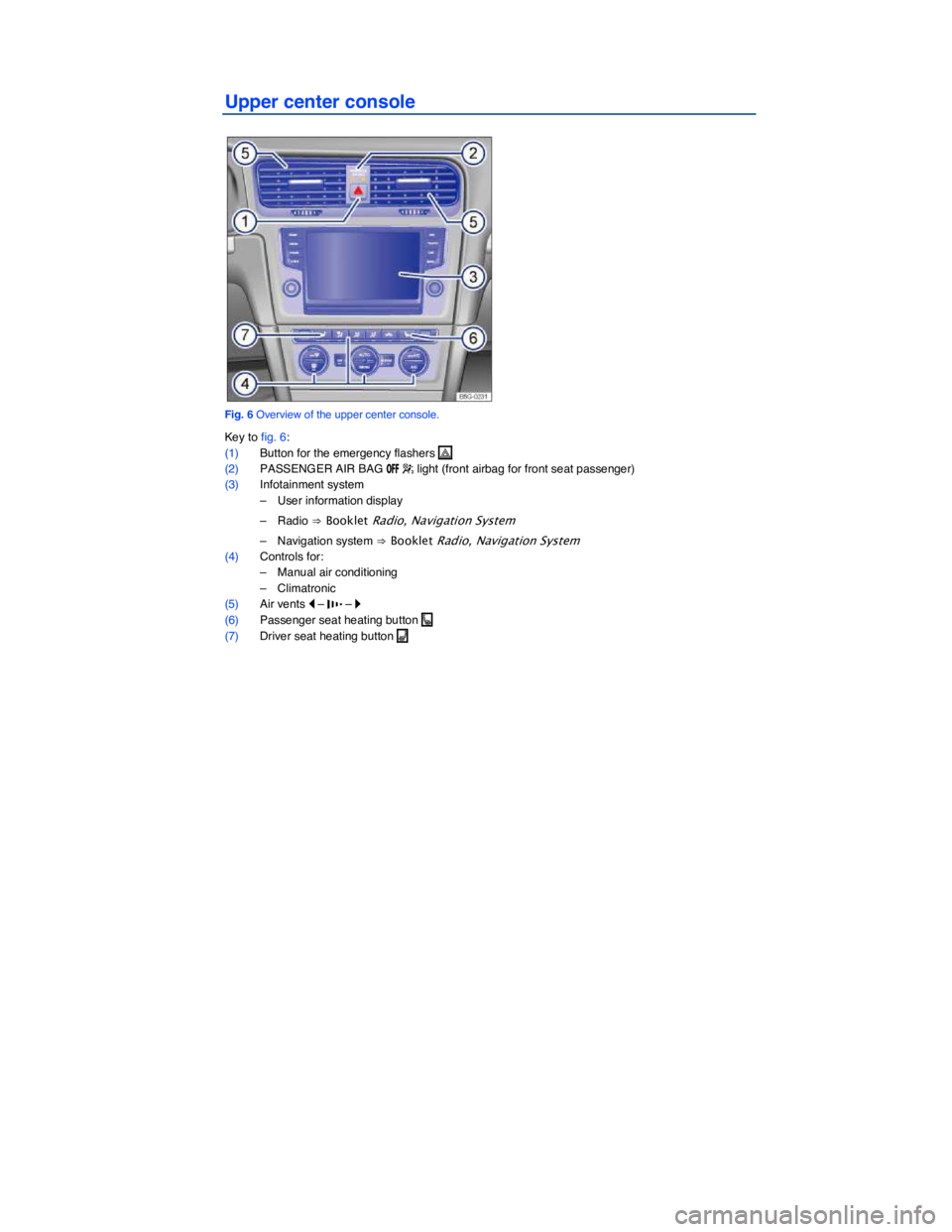

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Button for the emergency flashers
(2) PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
(3) Infotainment system
– User information display
– Radio ⇒ Booklet Radio, Navigation System
– Navigation system ⇒ Booklet Radio, Navigation System
(4) Controls for:
– Manual air conditioning
– Climatronic
(5) Air vents  –

Lower center console

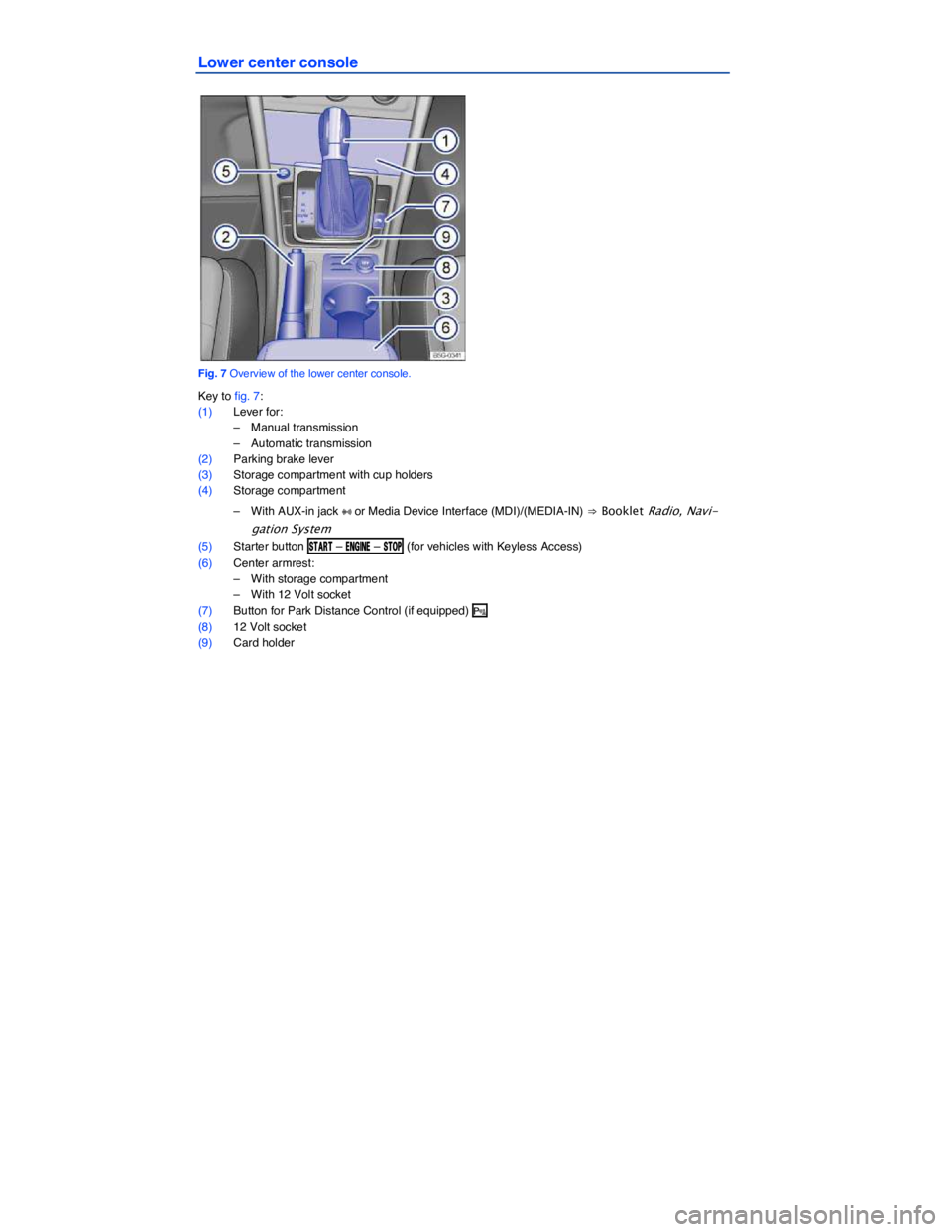

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) Parking brake lever
(3) Storage compartment with cup holders
(4) Storage compartment
– With AUX-in jack

Front passenger side overview

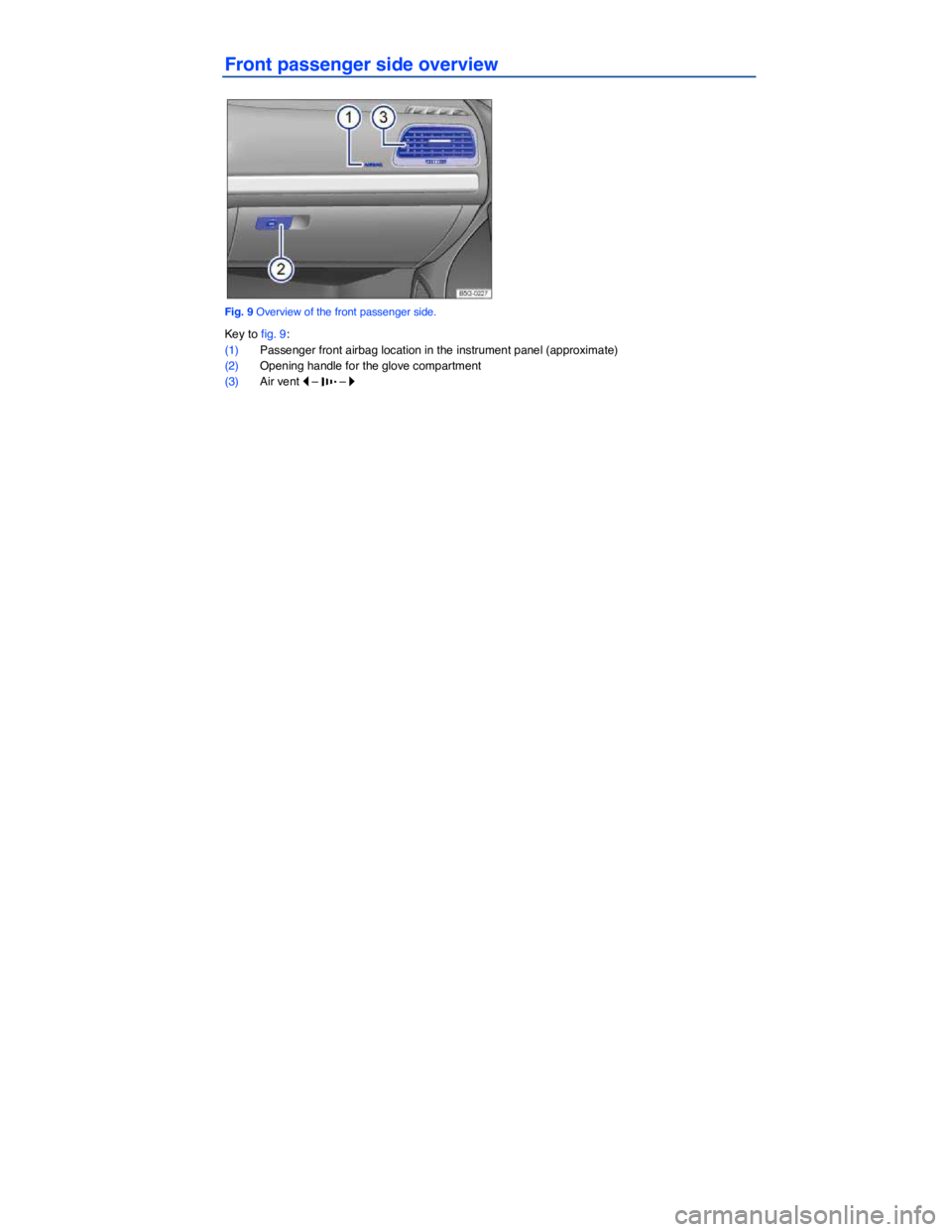

Fig. 9 Overview of the front passenger side.
Key to fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the glove compartment
(3) Air vent  –

Symbols on the roof console

Symbol Meaning
 s
