VOLKSWAGEN ID.4 2020 Owner´s Manual

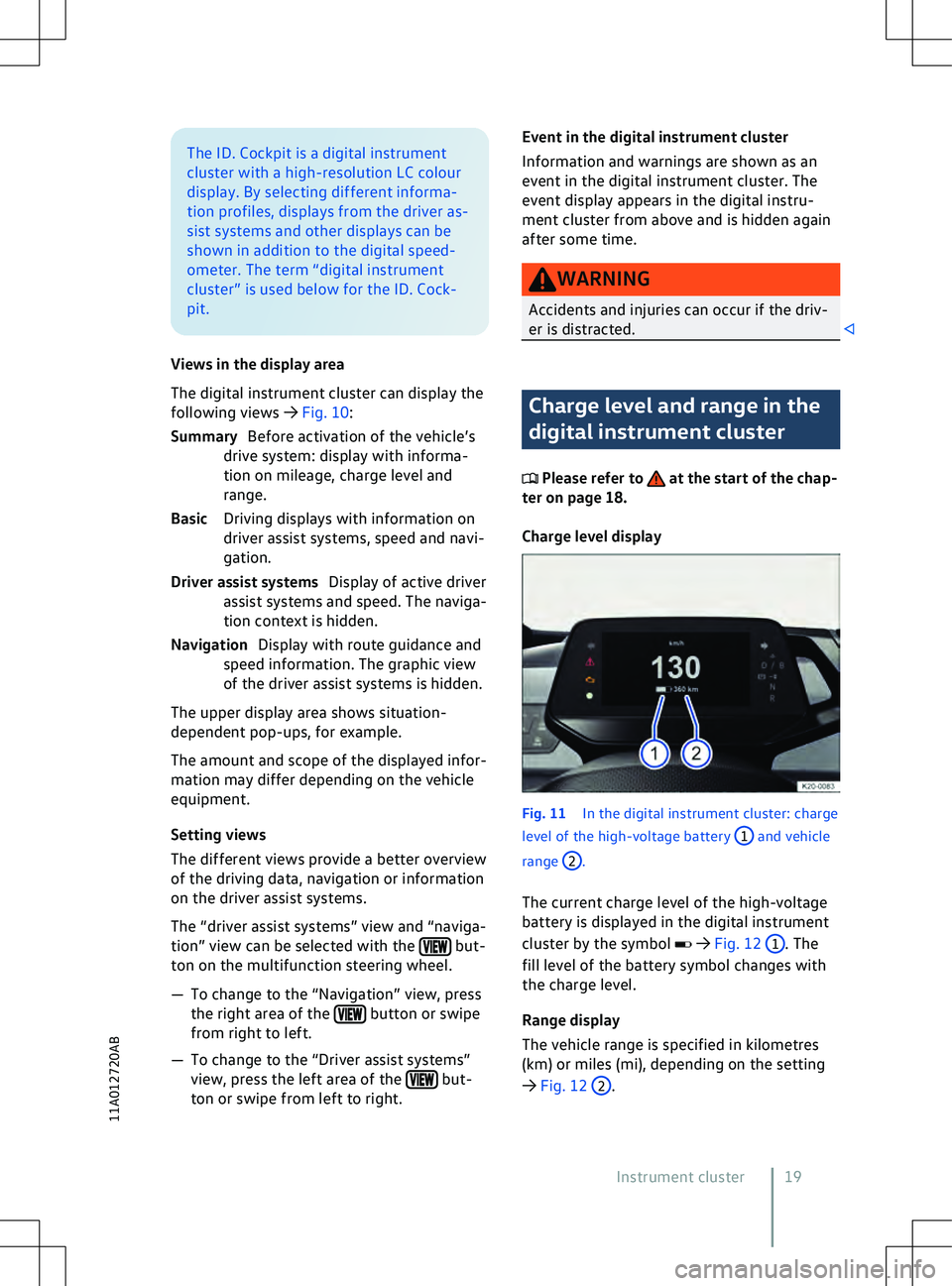

The ID. Cockpit is a digital instrument
cluster with a high-resolution LC colour
display. By selecting diff
erent informa-
tion profiles, displays from the driver as-
sist systems and other displays can be
shown in addition to the digital speed-
ometer. The term “digital instrument
cluster” is used below for the ID. Cock-
pit.
Views in the display area
The digital instrument cluster can display the
following views

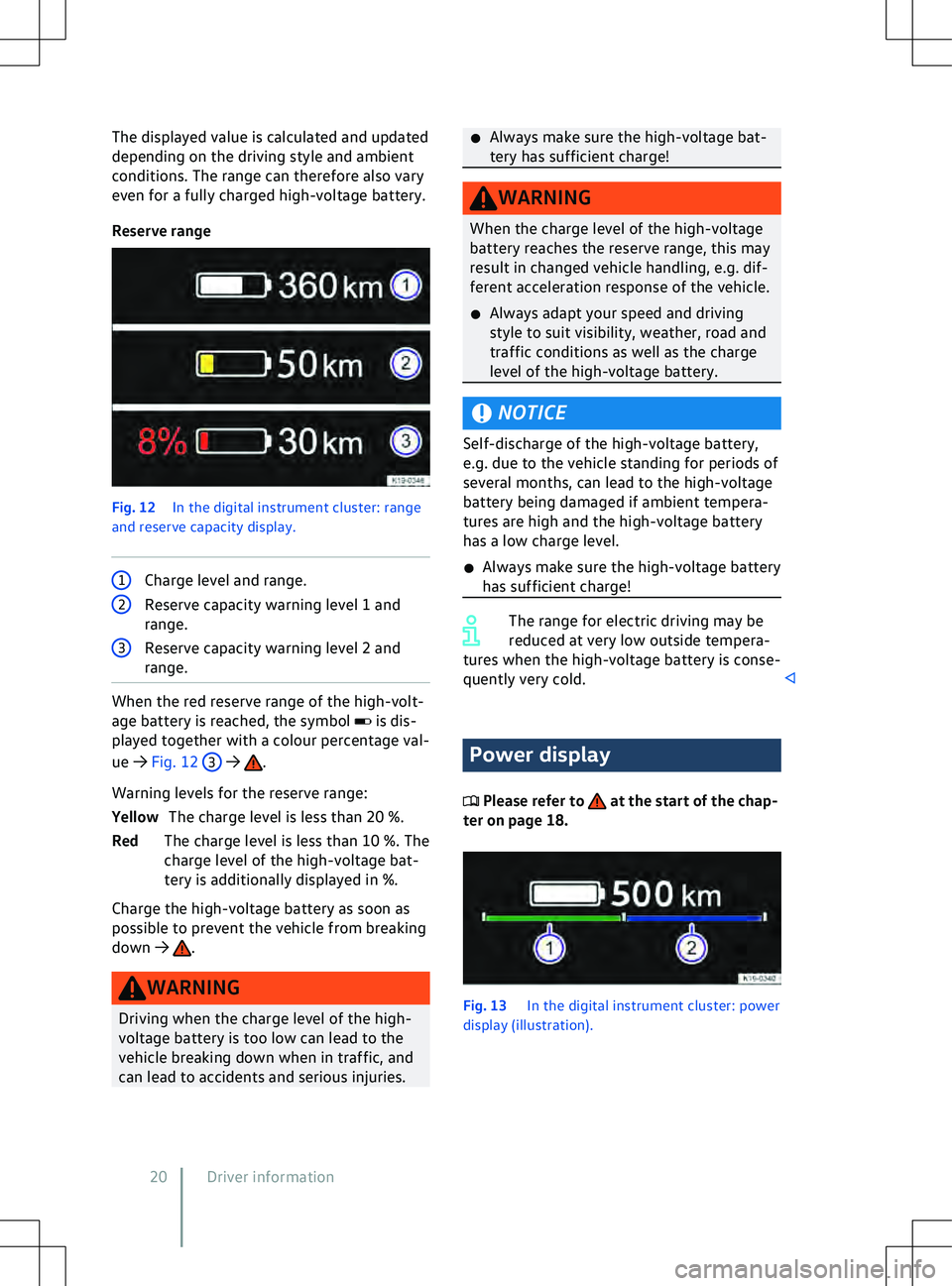

The displayed value is calculated and updated
depending on the driving style and ambient
conditions. The range can theref
ore also vary
even for a fully charged high-voltage battery.
Reserve range Fig. 12
In the digital instrument cluster: range
and reserv
e capacity display.1
Charge level and range. 2
Reserve capacity warning level 1 and
range. 3
Reserve capacity warning level 2 and
range. When the red reserve range of the high-volt-
age battery is reached, the symbol
is dis-
played together with a colour percentage v
al-
ue

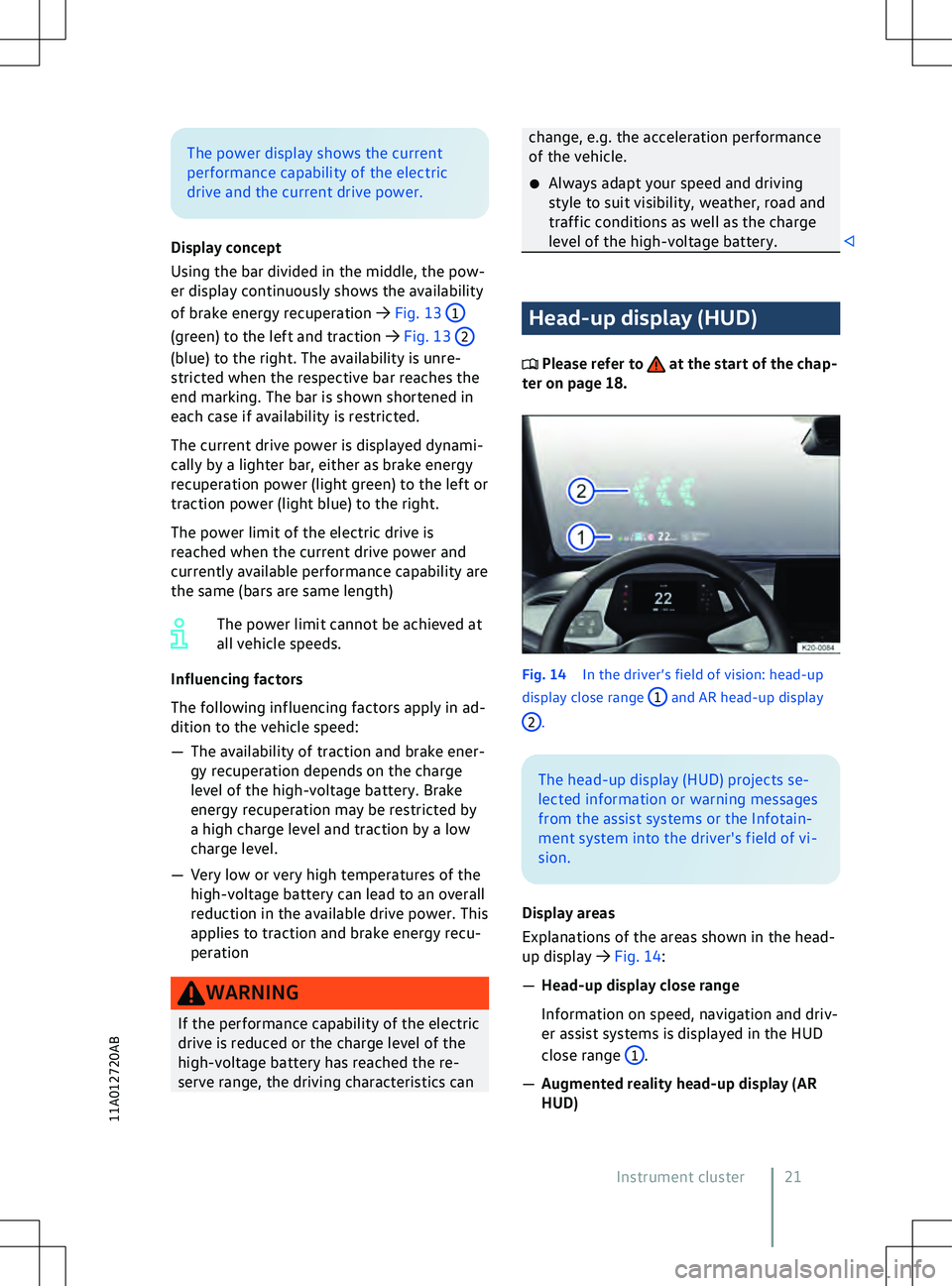

The power display shows the current
perf
ormance capability of the electric
drive and the current drive power.
Display concept
Using the bar divided in the middle, the pow-
er display continuously shows the availability
of brake energy recuperation

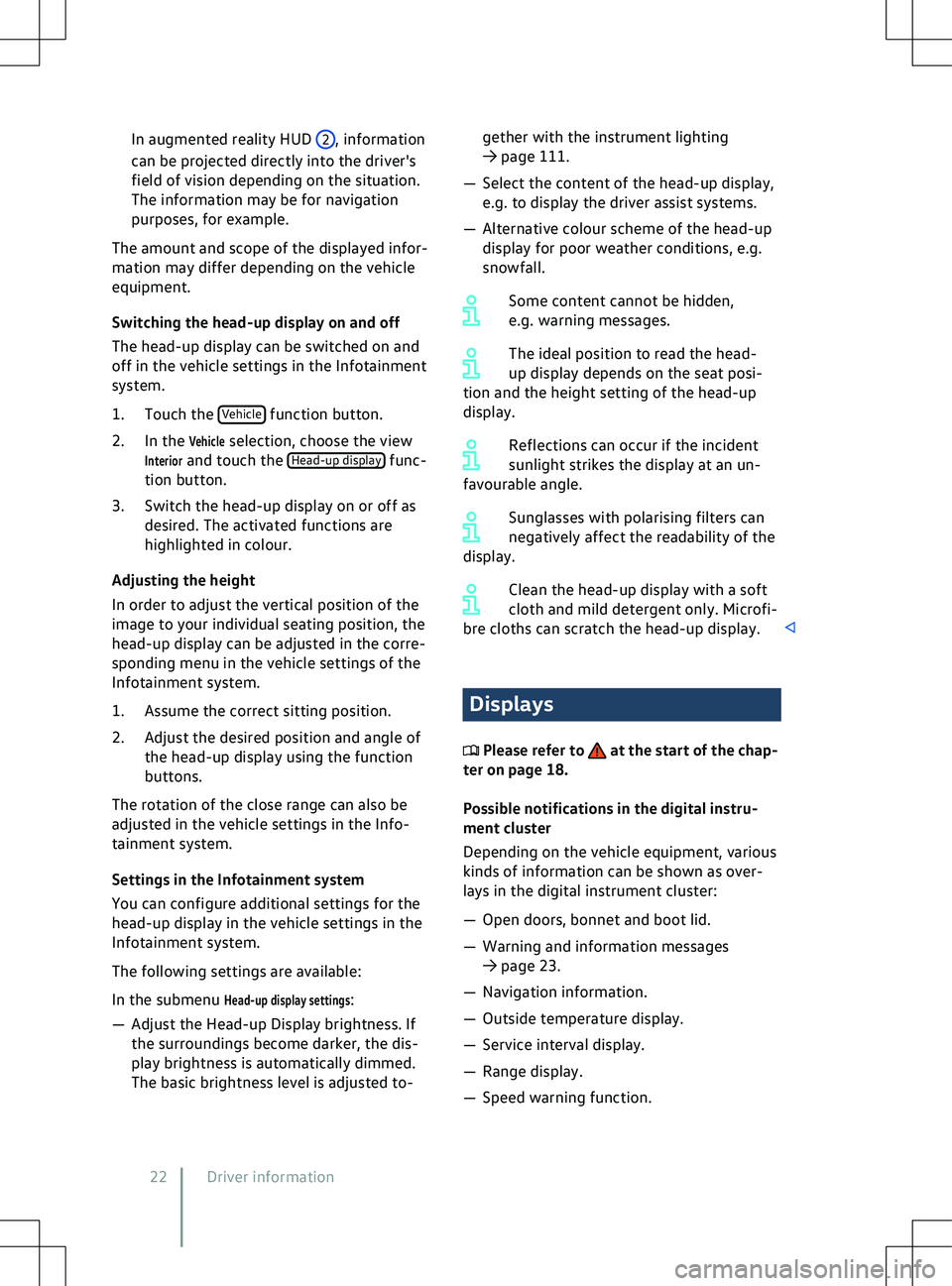

In augmented reality HUD 2
, information
can be projected directly into the driv er

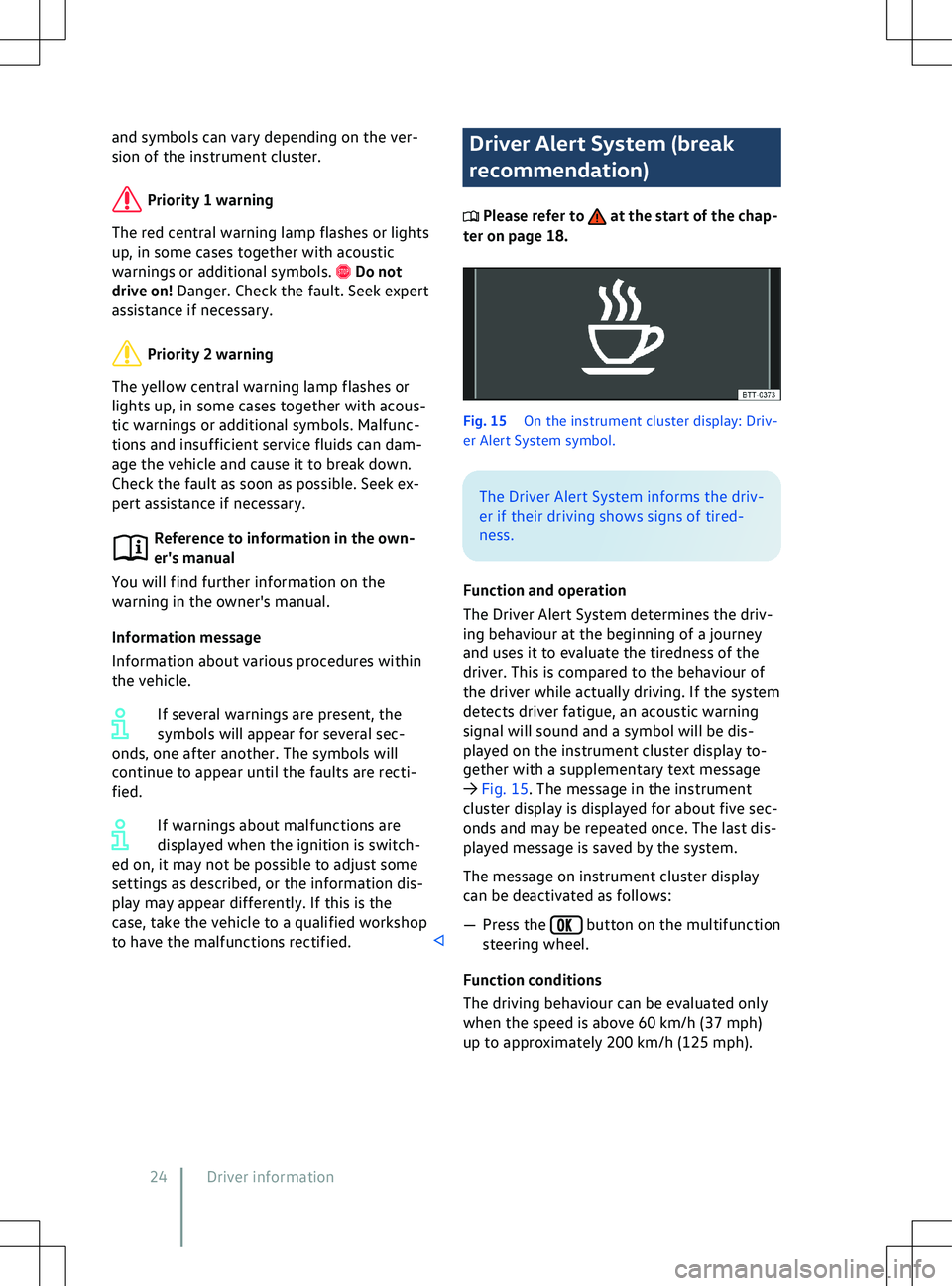

and symbols can vary depending on the ver-
sion of the instrument cluster.
Priority 1 warning
The red central warning lamp flashes or lights
up, in some cases together with acoustic
warnings or additional symbols. Do not
driv
e on! Danger. Check the fault. Seek expert
assistance if necessary. Priority 2 warning
The yellow central warning lamp flashes or
lights up, in some cases together with acous-
tic warnings or additional symbols. Malfunc-
tions and insufficient service fluids can dam-
age the v

ehicle and cause it to break down.
Check the fault as soon as possible. Seek ex-
pert assistance if necessary. Reference to information in the own-
er

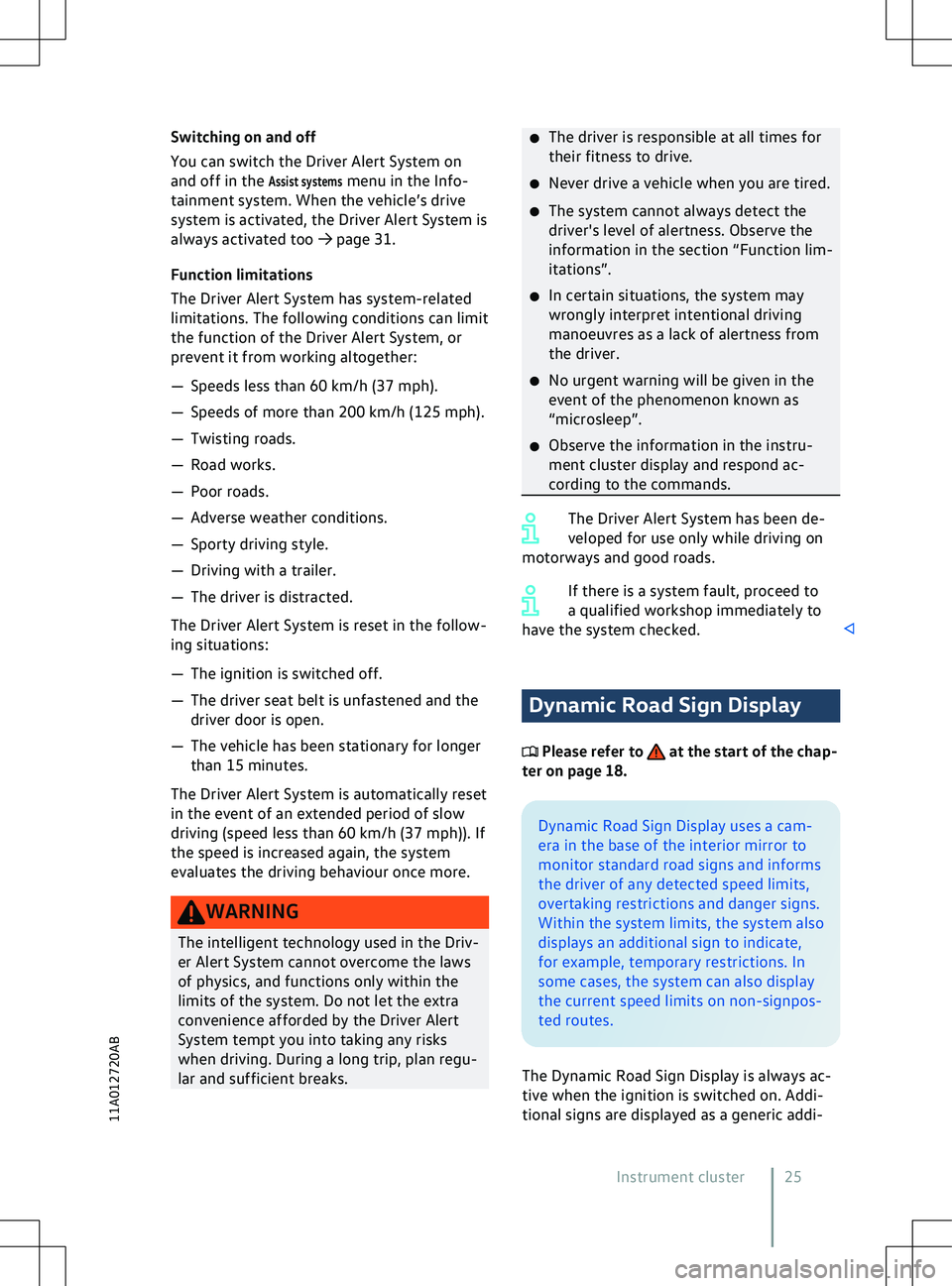

Switching on and off
You can switch the Driv
er Alert System on
and off in the
Assist systems menu in the Info-
tainment system. When the vehicle

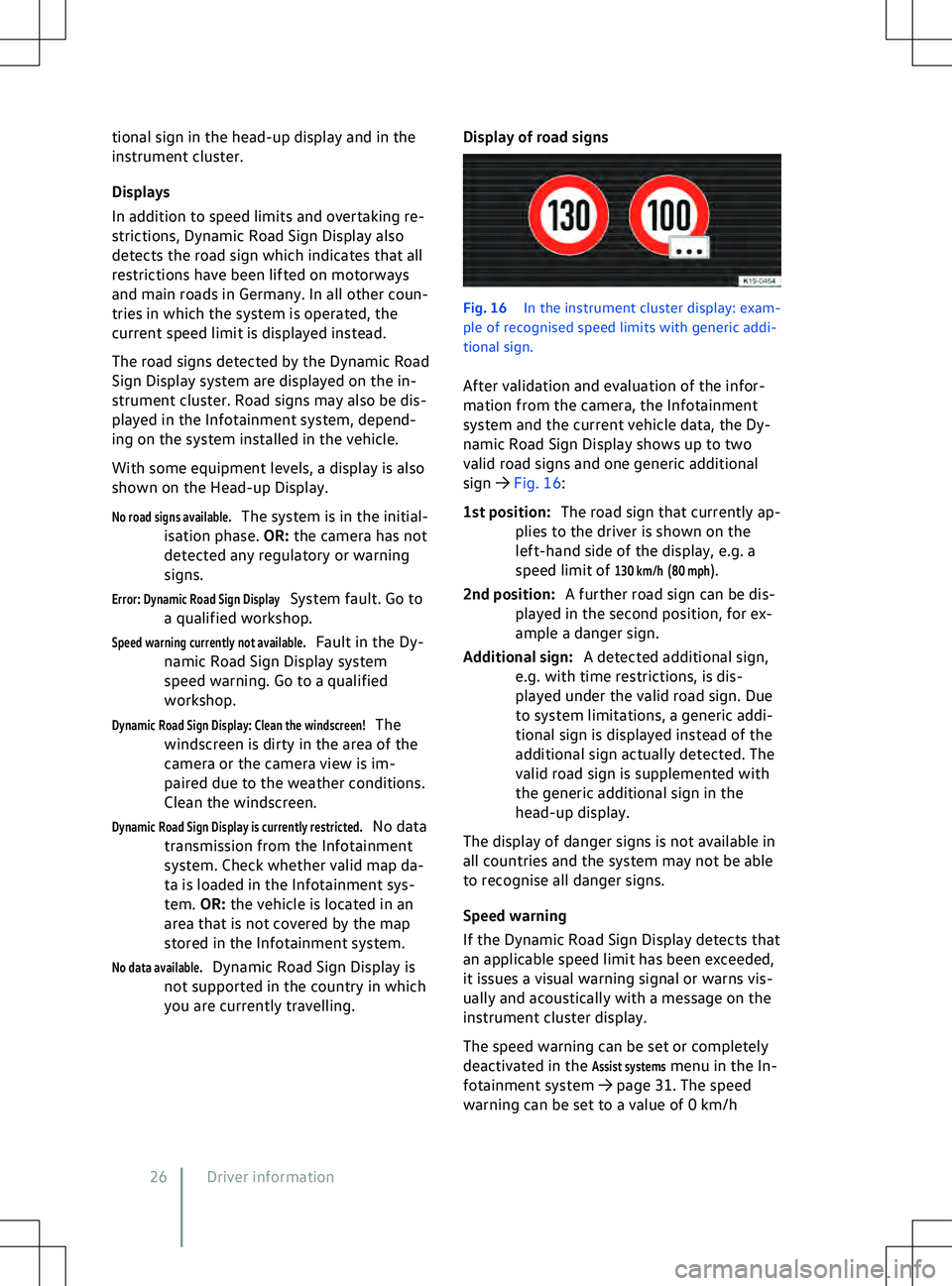

tional sign in the head-up display and in the
instrument cluster.
Displays
In addition to speed limits and o
vertaking re-
strictions, Dynamic Road Sign Display also
detects the road sign which indicates that all
restrictions have been lifted on motorways
and main roads in Germany. In all other coun-
tries in which the system is operated, the
current speed limit is displayed instead.
The road signs detected by the Dynamic Road
Sign Display system are displayed on the in-
strument cluster. Road signs may also be dis-
played in the Infotainment system, depend-
ing on the system installed in the vehicle.
With some equipment levels, a display is also
shown on the Head-up Display.
The system is in the initial-
isation phase. OR: the camera has not
detected any regulatory or warning
signs.
System fault. Go to
a qualified workshop.
Fault in the Dy-
namic Road Sign Display system
speed warning. Go to a qualified
workshop.
The
windscreen is dirty in the area of the
camera or the camera view is im-
paired due to the weather conditions.
Clean the windscreen.
No data
transmission from the Infotainment
system. Check whether valid map da-
ta is loaded in the Infotainment sys-
tem. OR: the vehicle is located in an
area that is not covered by the map
stored in the Infotainment system.
Dynamic Road Sign Display is
not supported in the country in which
you are currently travelling.
No road signs available.
Error: Dynamic Road Sign Display
Speed warning currently not available.
Dynamic Road Sign Display: Clean the windscreen!
Dynamic Road Sign Display is currently restricted.
No data available.
Display of road signs Fig. 16
In the instrument cluster display: e
xam-
ple of recognised speed limits with generic addi-
tional sign.
After validation and evaluation of the infor-
mation from the camera, the Infotainment
system and the current vehicle data, the Dy-
namic Road Sign Display shows up to two
valid road signs and one generic additional
sign

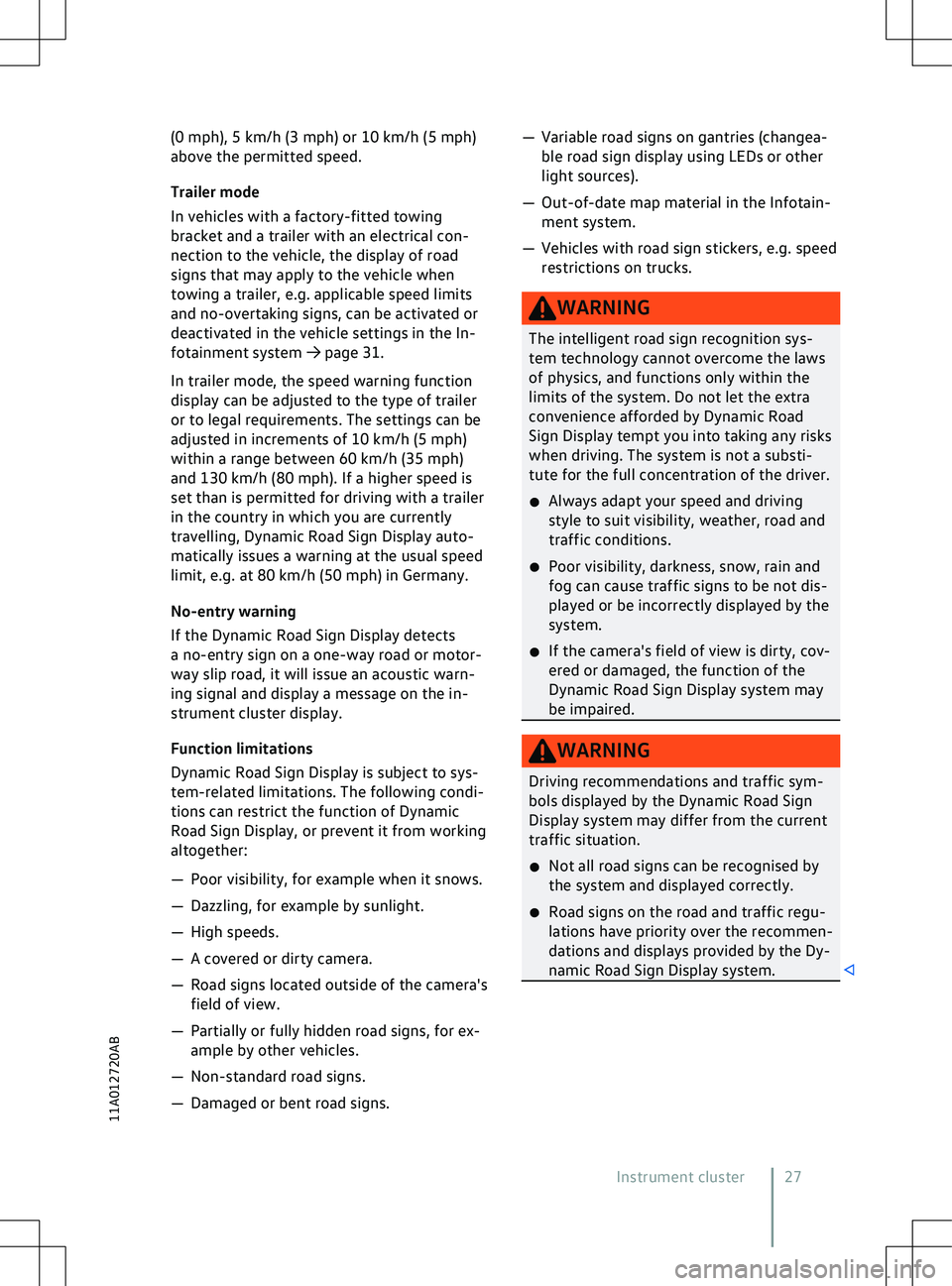

(0 mph), 5 km/h (3 mph) or 10 km/h (5 mph)
abo
ve the permitted speed.
Trailer mode
In vehicles with a factory-fitted towing
bracket and a trailer with an electrical con-
nection to the vehicle, the display of road
signs that may apply to the vehicle when
towing a trailer, e.g. applicable speed limits
and no-overtaking signs, can be activated or
deactivated in the vehicle settings in the In-
fotainment system

Eco assistance
Please refer to at the start of the chap-
ter on page 18. Fig. 17
Eco Assistance display (illustration).
The Eco Assistance function supports you
during def
ensive and energy-saving driving
with notifications in the digital instrument
cluster that appear according to the situation
