Page 341 of 417

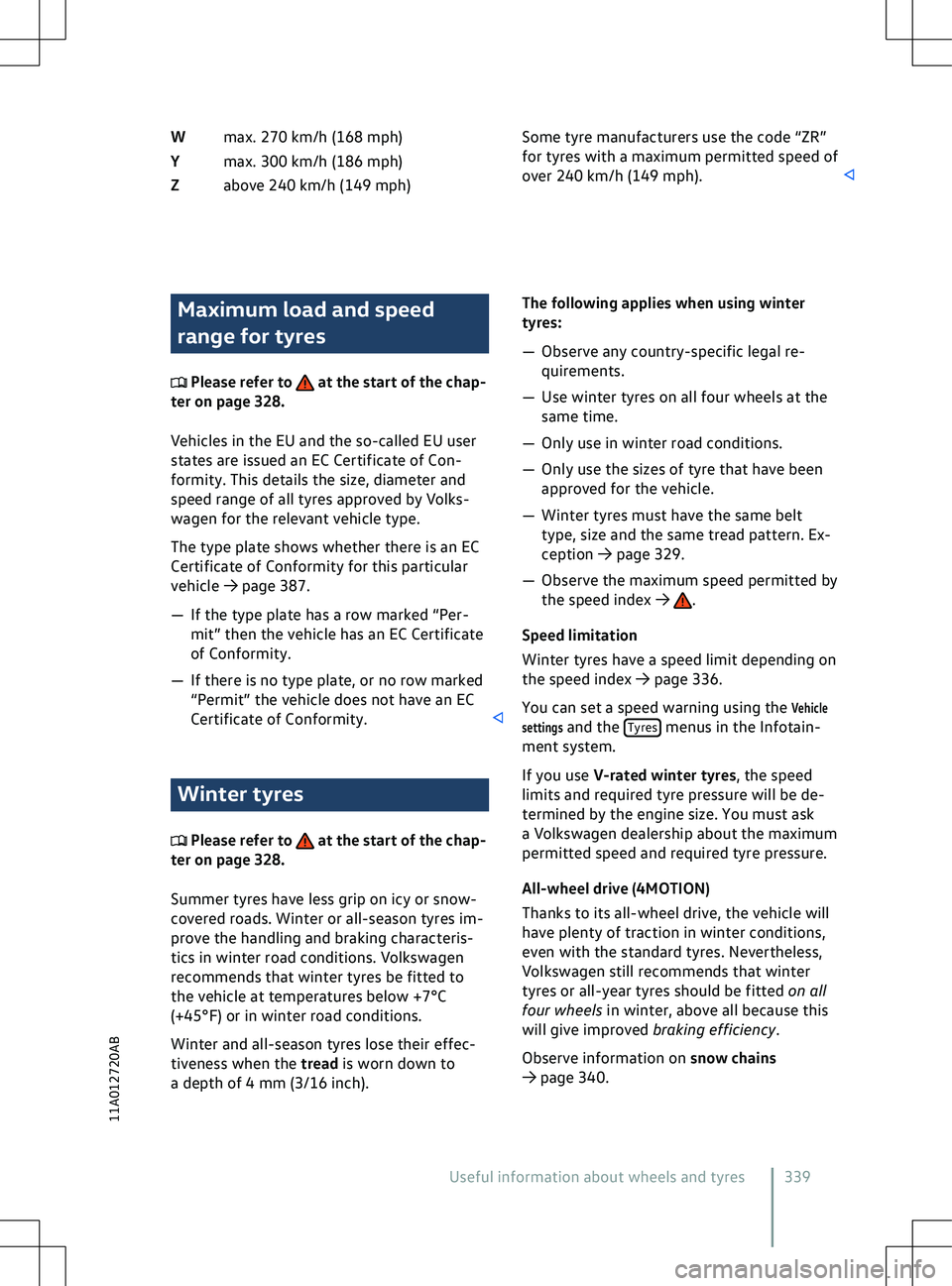

VOLKSWAGEN ID.4 2020  Owner´s Manual max. 270 km/h (168 mph)
max. 300 km/h (186 mph)
abo
ve 240 km/h (149 mph)
W
Y
Z Some tyre manufacturers use the code “ZR”
f or tyres with a maximum permitted speed of
over 240 km/h (149 mph). Maxi

Page 342 of 417

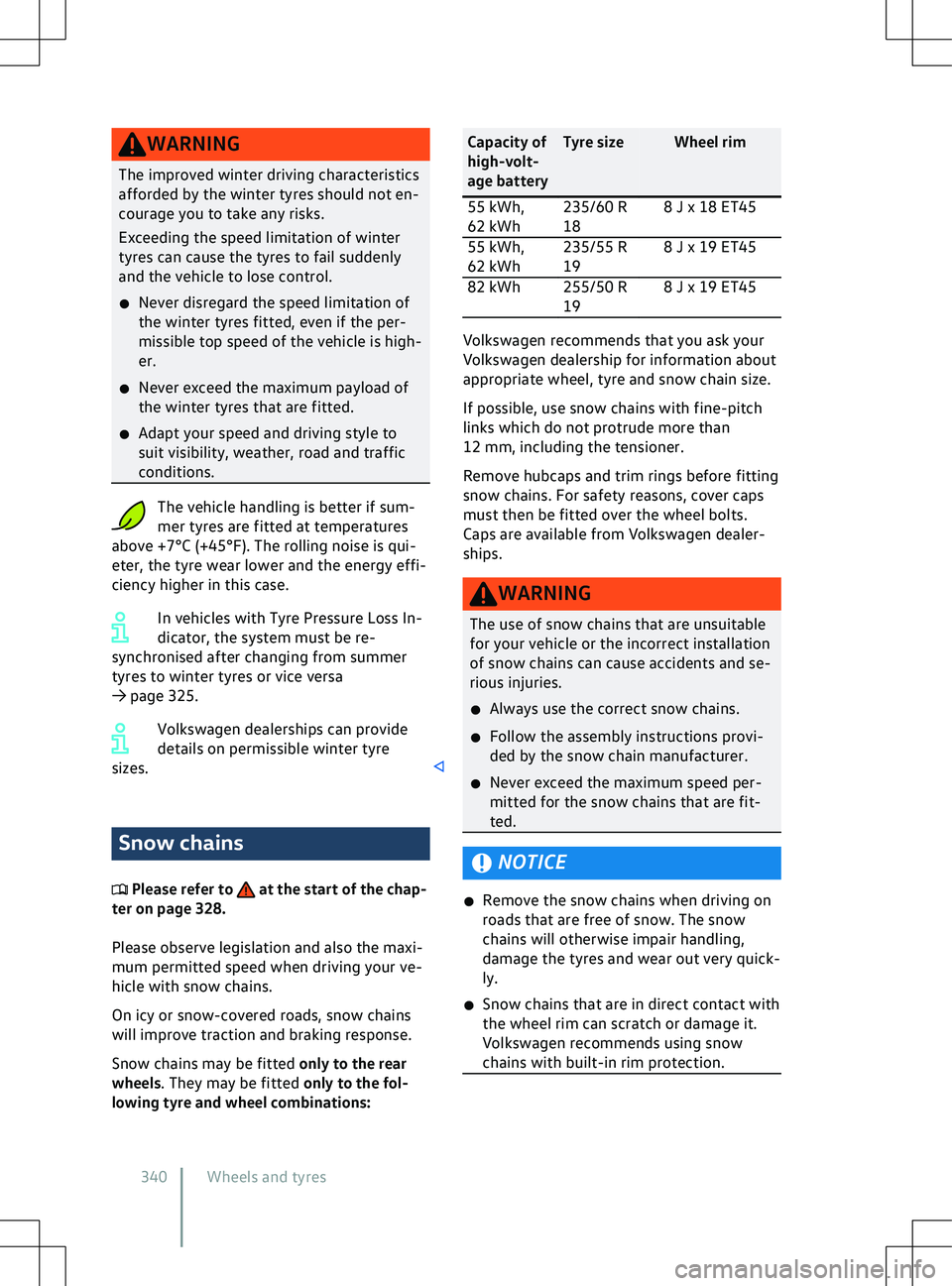

VOLKSWAGEN ID.4 2020  Owner´s Manual WARNING
The improved winter driving characteristics
aff orded by the winter tyres should not en-
courage you to take any risks.
Exceeding the speed limitation of winter
tyres can cause the tyres to fa

Page 343 of 417

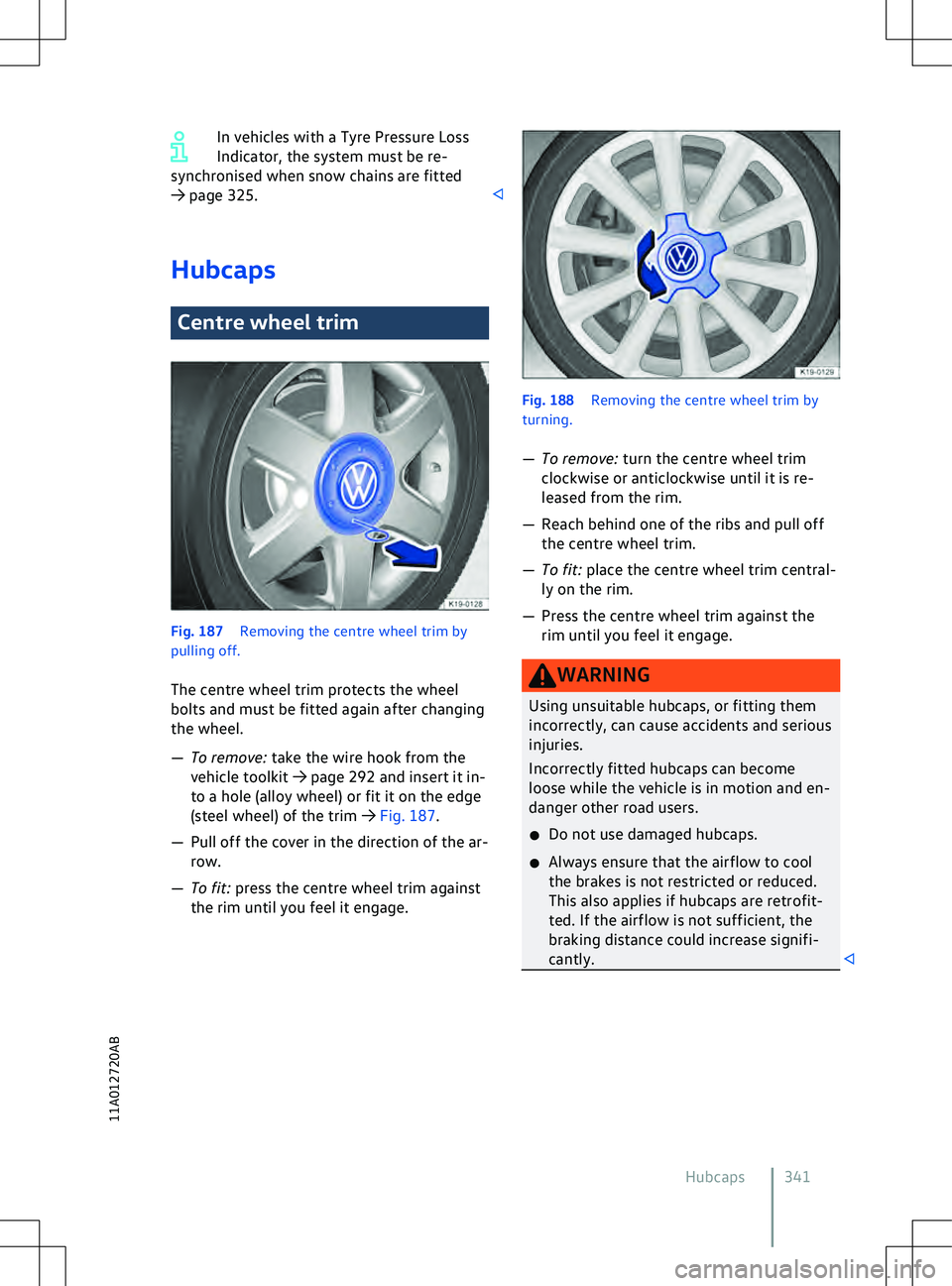

VOLKSWAGEN ID.4 2020  Owner´s Manual In vehicles with a Tyre Pressure Loss
Indicator, the system must be re-
synchronised when snow chains are fitted

Page 344 of 417

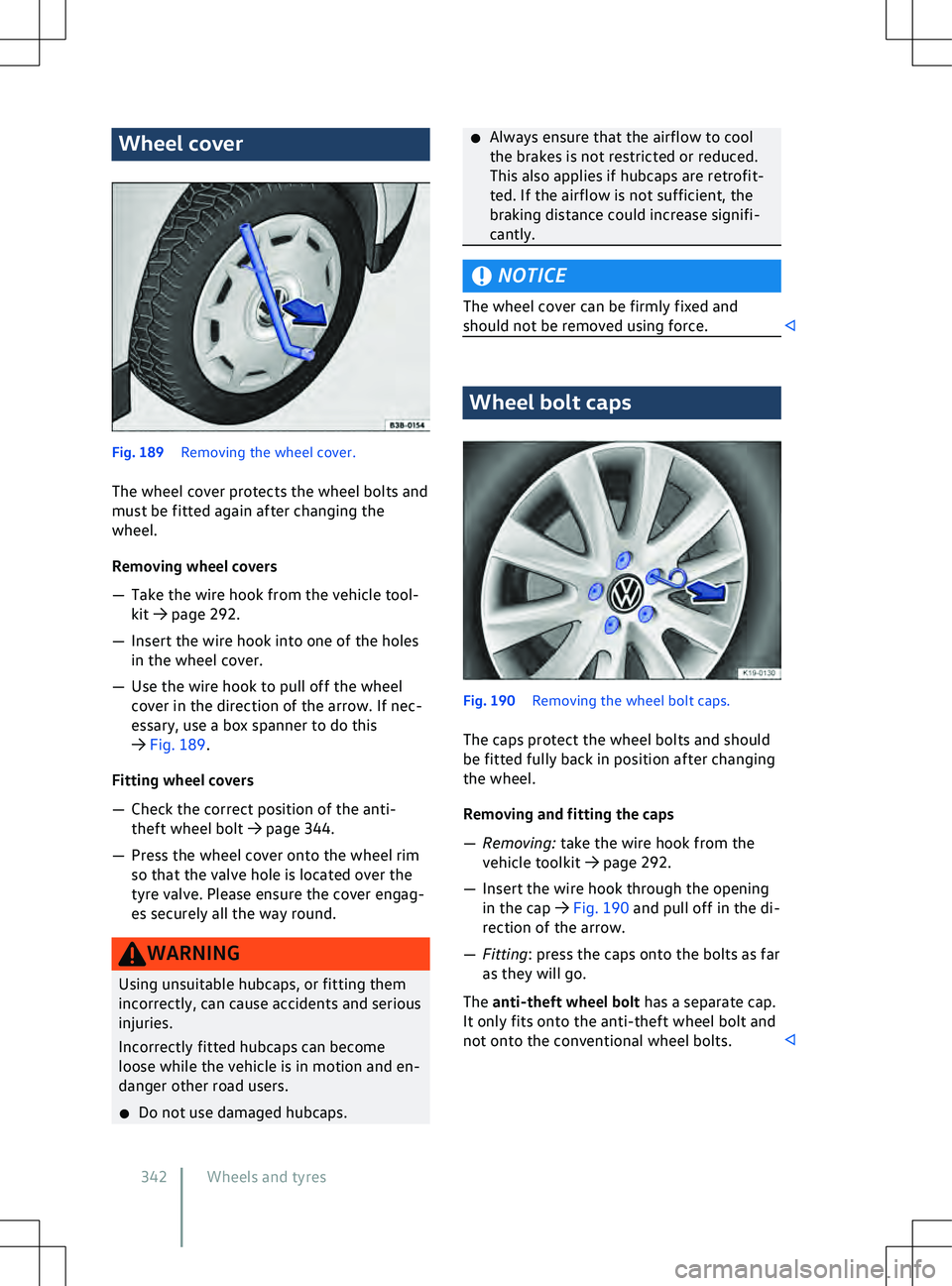

VOLKSWAGEN ID.4 2020  Owner´s Manual Wheel cover
Fig. 189
Remo ving the wheel cover.
The wheel cover protects the wheel bolts and
must be fitted again after changing the
wheel.
Removing wheel covers

Page 345 of 417

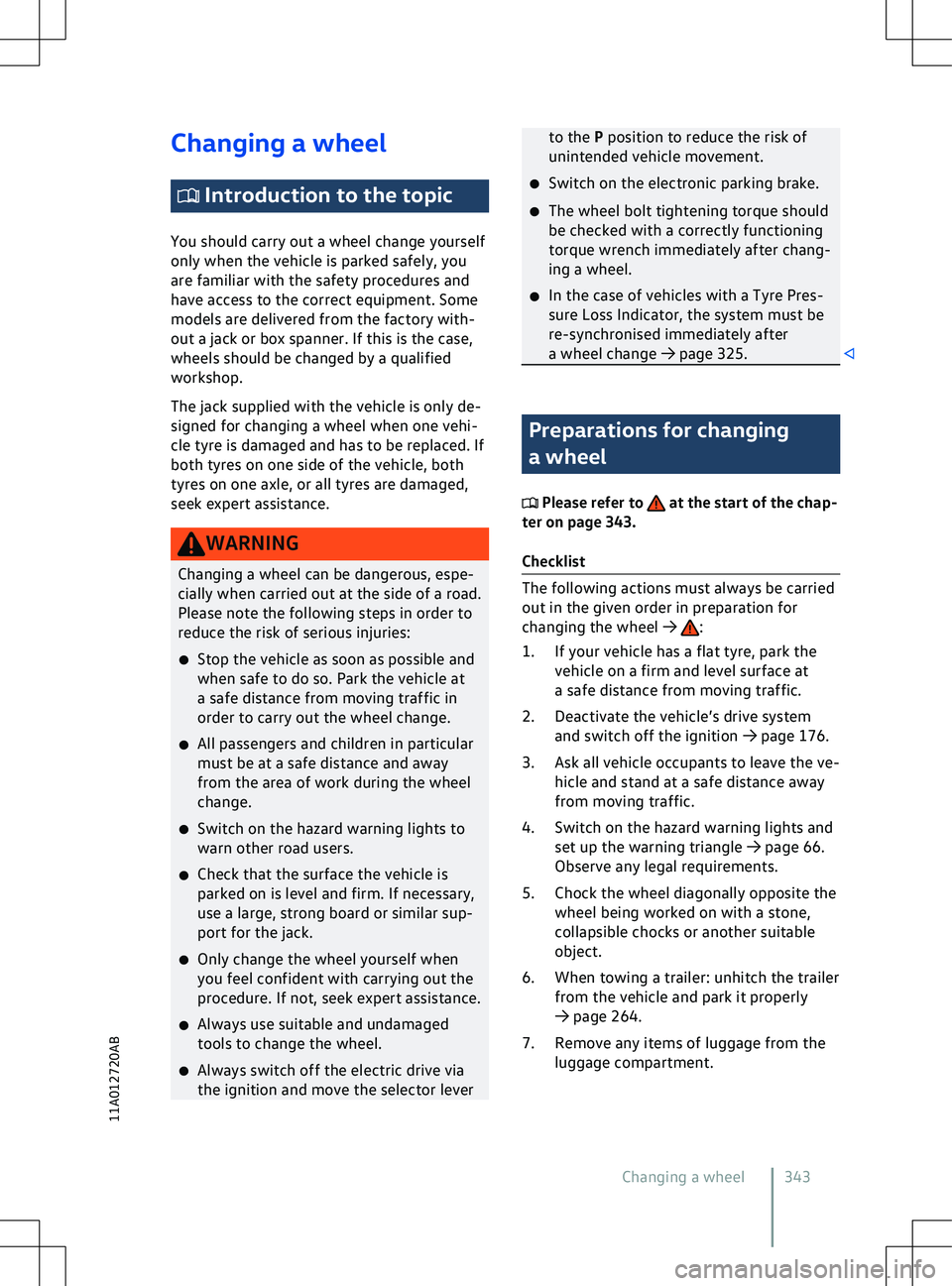

VOLKSWAGEN ID.4 2020  Owner´s Manual Changing a wheel
 Introduction to the topic
You should carry out a wheel change yourself
only when the v
ehicle is parked safely, you
are familiar with the safety procedures and
have access to the cor

Page 346 of 417

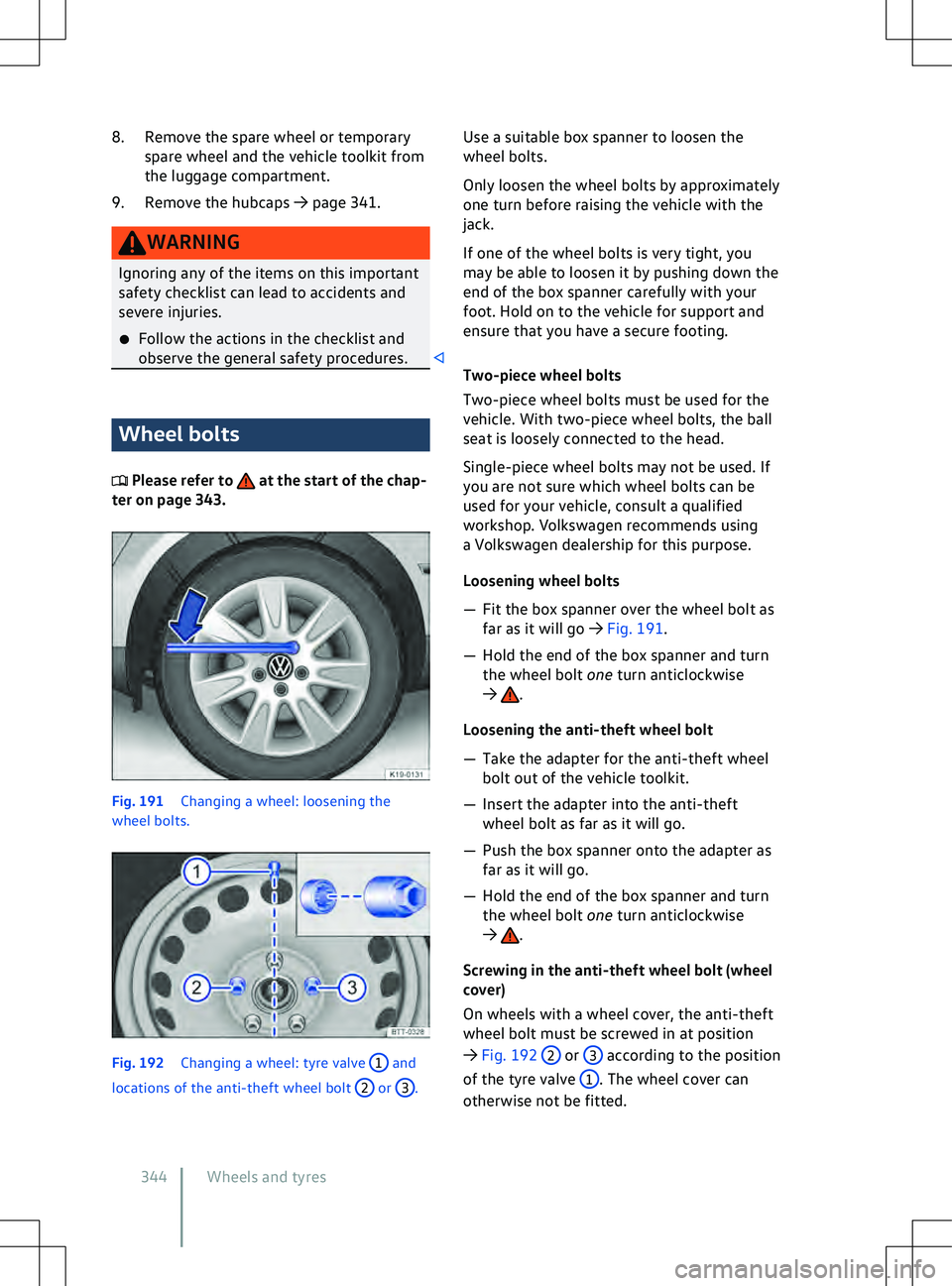

VOLKSWAGEN ID.4 2020  Owner´s Manual 8. Remove the spare wheel or temporary
spare wheel and the v ehicle toolkit from
the luggage compartment.
9. Remove the hubcaps

Page 347 of 417

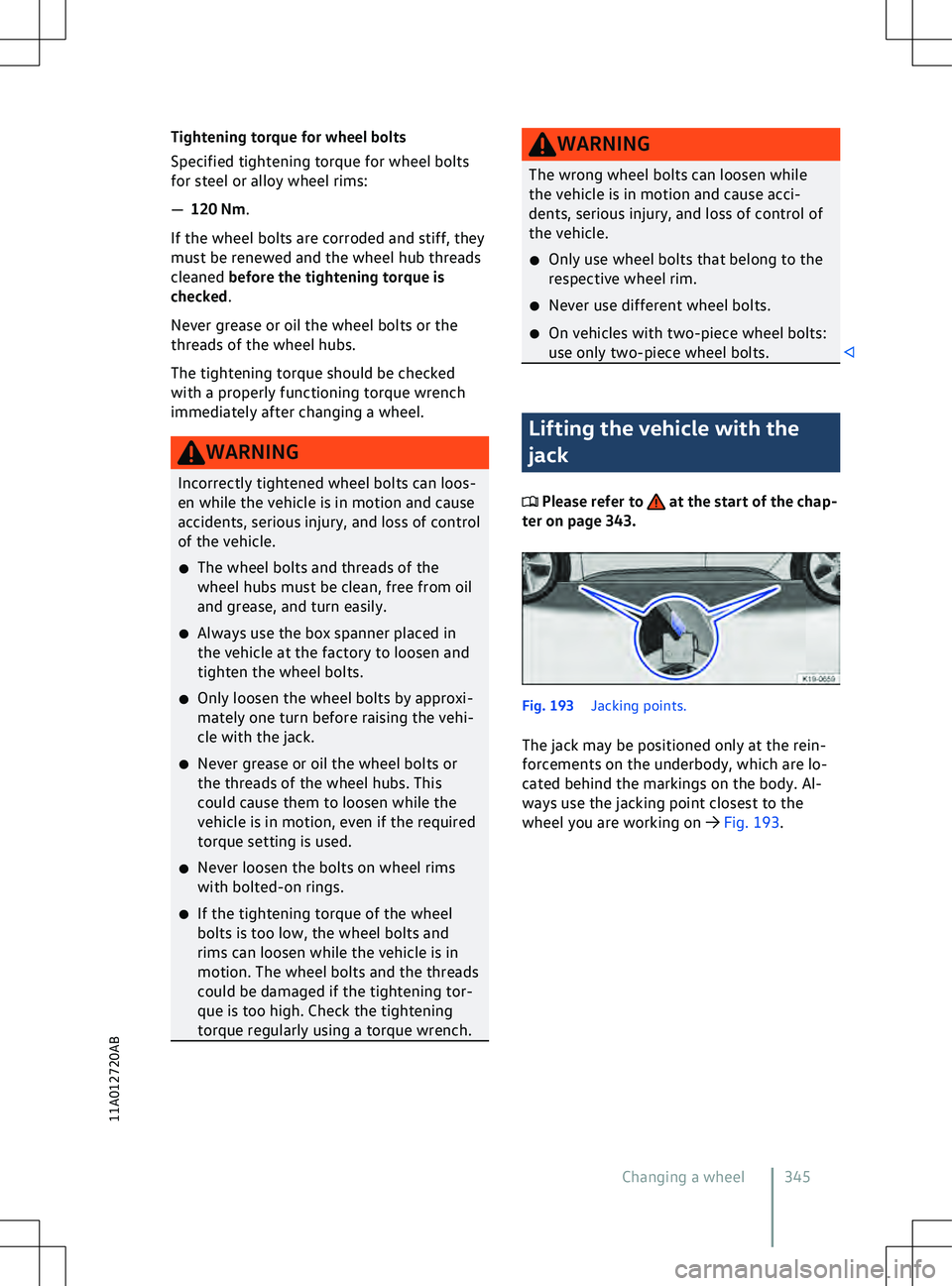

VOLKSWAGEN ID.4 2020  Owner´s Manual Tightening torque for wheel bolts
Specified tightening torque f
or wheel bolts
for steel or alloy wheel rims:

Page 348 of 417

VOLKSWAGEN ID.4 2020  Owner´s Manual Fig. 194
Jack applied at the rear left-hand side
of the v ehicle.Fig. 195
Correct alignment of the jack.
Checklist For your own safety, carry out the following
points in the specified order

Page 349 of 417

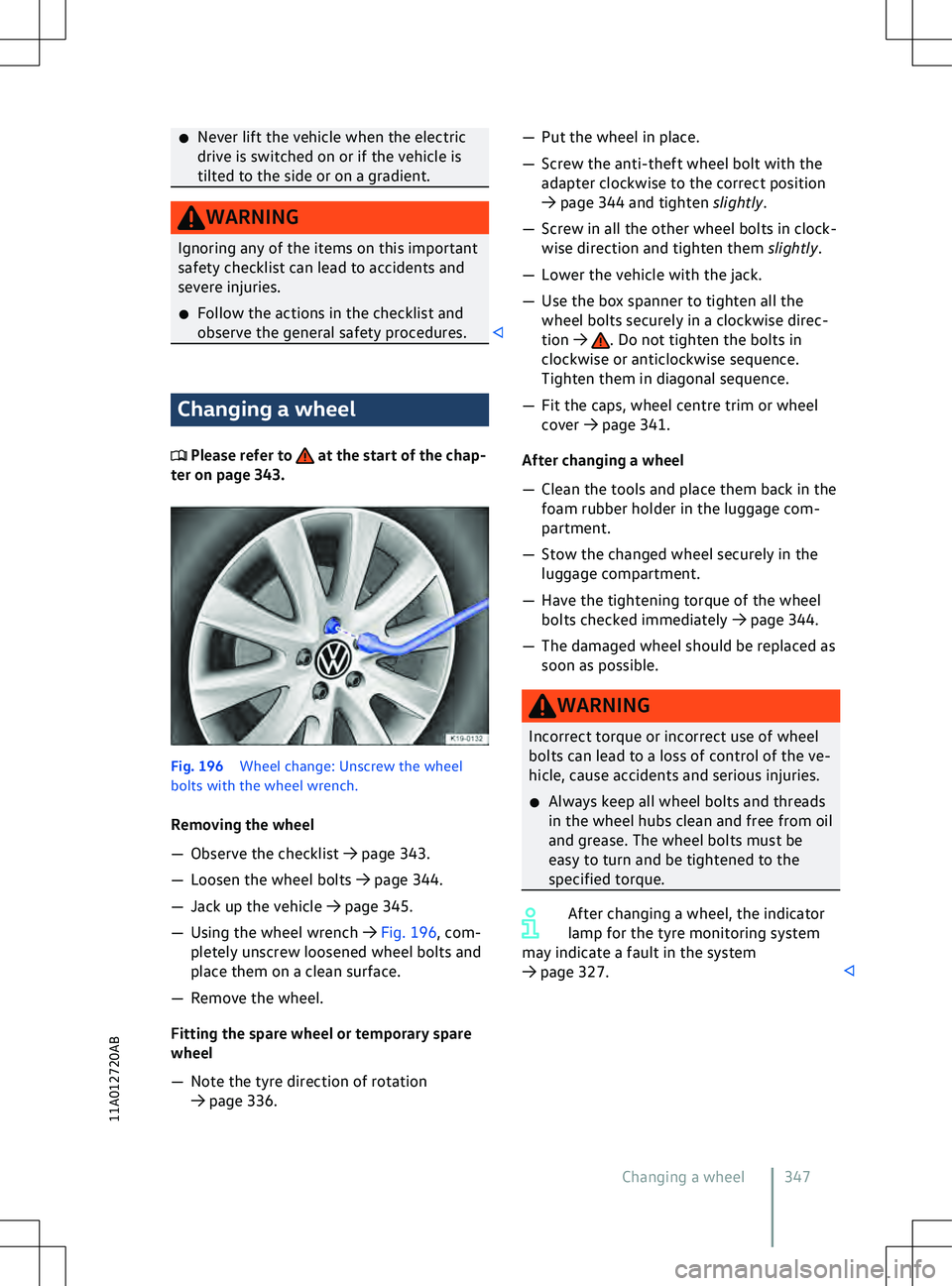

VOLKSWAGEN ID.4 2020  Owner´s Manual �x
Ne ver lift the vehicle when the electric
drive is switched on or if the vehicle is
tilted to the side or on a gradient. WARNING
Ignoring any of the items on this important
saf
 ety checklist can l

Page 350 of 417

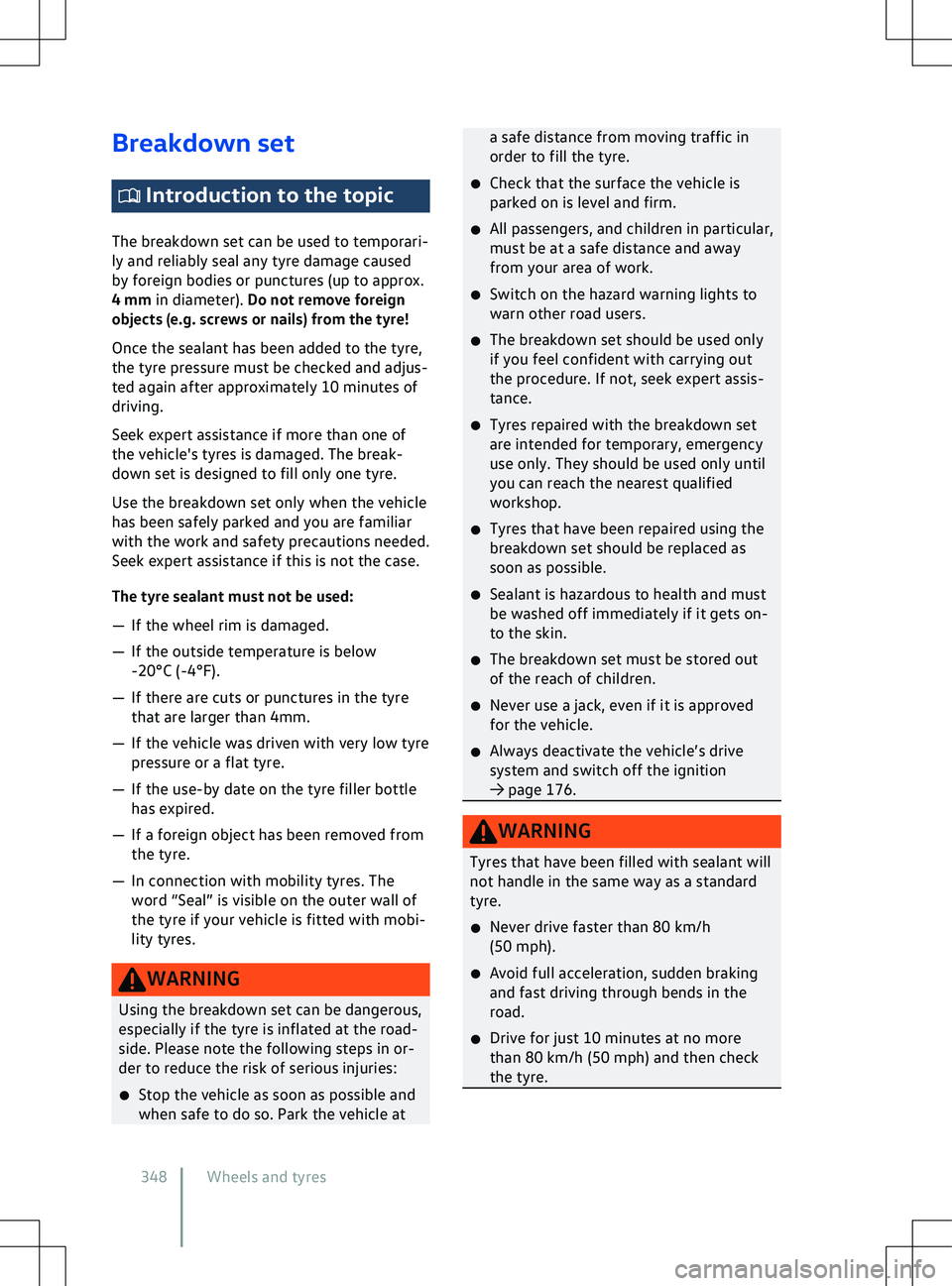

VOLKSWAGEN ID.4 2020  Owner´s Manual Breakdown set
 Introduction to the topic
The breakdown set can be used to temporari-
ly and reliably seal any tyre damage caused
by f
oreign bodies or punctures (up to approx.
4 mm in diameter). Do no
