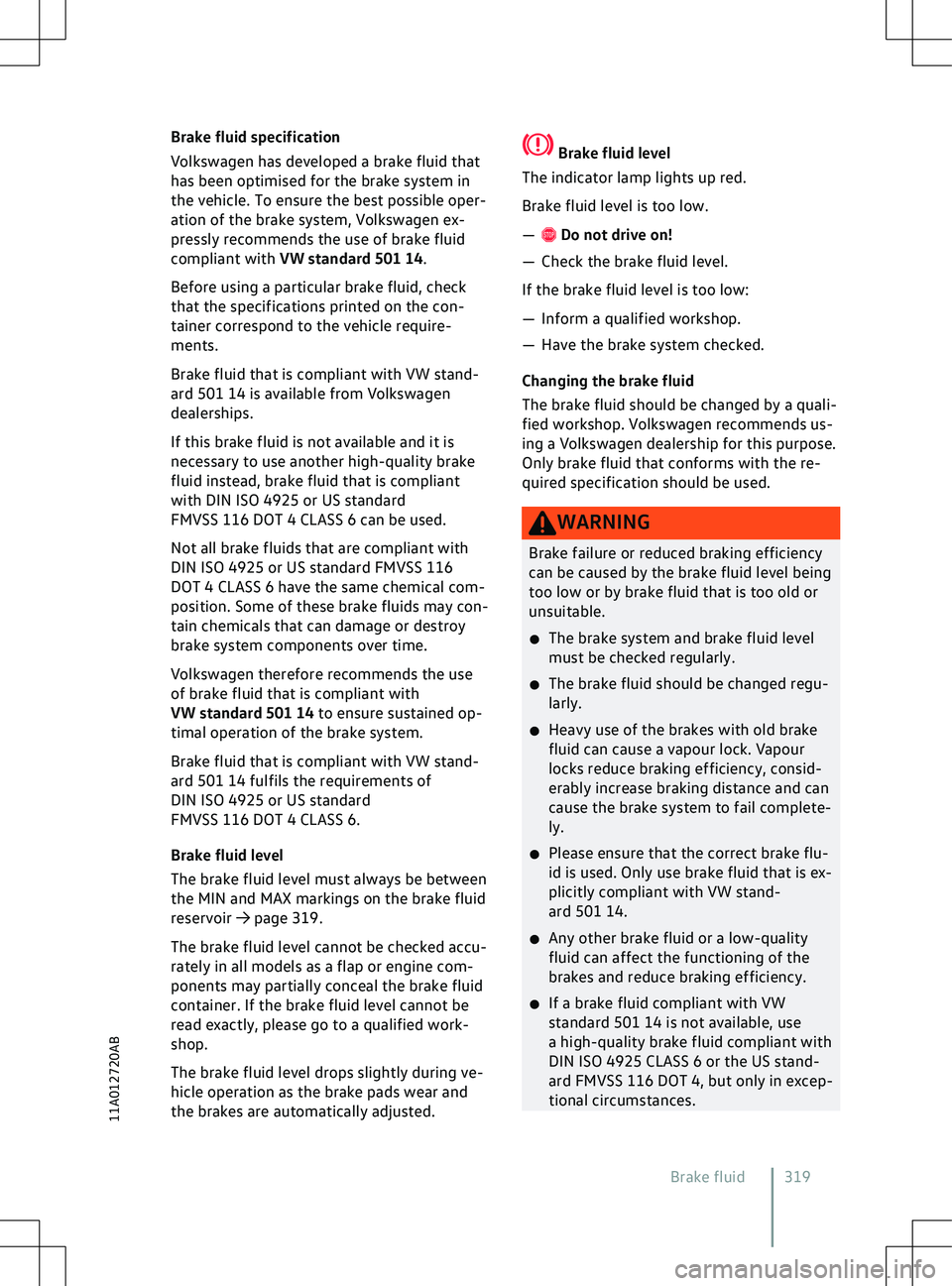

Brake fluid specification
V
olkswagen has developed a brake fluid that
has been optimised for the brake system in
the vehicle. To ensure the best possible oper-
ation of the brake system, Volkswagen ex-
pressly recommends the use of brake fluid
compliant with VW standard 501 14.
Before using a particular brake fluid, check
that the specifications printed on the con-
tainer correspond to the vehicle require-
ments.
Brake fluid that is compliant with VW stand-
ard 501 14 is available from Volkswagen
dealerships.
If this brake fluid is not available and it is
necessary to use another high-quality brake
fluid instead, brake fluid that is compliant
with DIN ISO 4925 or US standard
FMVSS 116 DOT 4 CLASS 6 can be used.
Not all brake fluids that are compliant with
DIN ISO 4925 or US standard FMVSS 116
DOT 4 CLASS 6 have the same chemical com-
position. Some of these brake fluids may con-
tain chemicals that can damage or destroy
brake system components over time.
Volkswagen therefore recommends the use
of brake fluid that is compliant with
VW standard 501 14 to ensure sustained op-
timal operation of the brake system.
Brake fluid that is compliant with VW stand-
ard 501 14 fulfils the requirements of
DIN ISO 4925 or US standard
FMVSS 116 DOT 4 CLASS 6.
Brake fluid level
The brake fluid level must always be between
the MIN and MAX markings on the brake fluid
reservoir
