V.A.G 1551 print-
out Possible cause
Repair
00290
Left rear ABS
wheel speed
sensor -G46-
Mechanical
malfunction
1)
Excessive air gap
between left rear ABS
wheel speed sensor -
G46- and rotor (signal
not OK.) Repair Manual, Brake System, Repair
Group 45; Removing and installing parts of
ABS system on front and rear axles - Check installation of left rear ABS wheel
speed sensor -G46- and rotor
- Read measured value block Page 01-
61 Display group number 002
- Perform output Diagnostic Test Mode
(DTM) Page 01
-74
If the malfunction occurs again:

Outlet valve in ABS
hydraulic unit -N55-
faulty Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit - Replace ABS hydraulic unit -N55-
1) Type of DTC; this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 28из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-49


V.A.G 1551 print-
out Possible cause
Repair

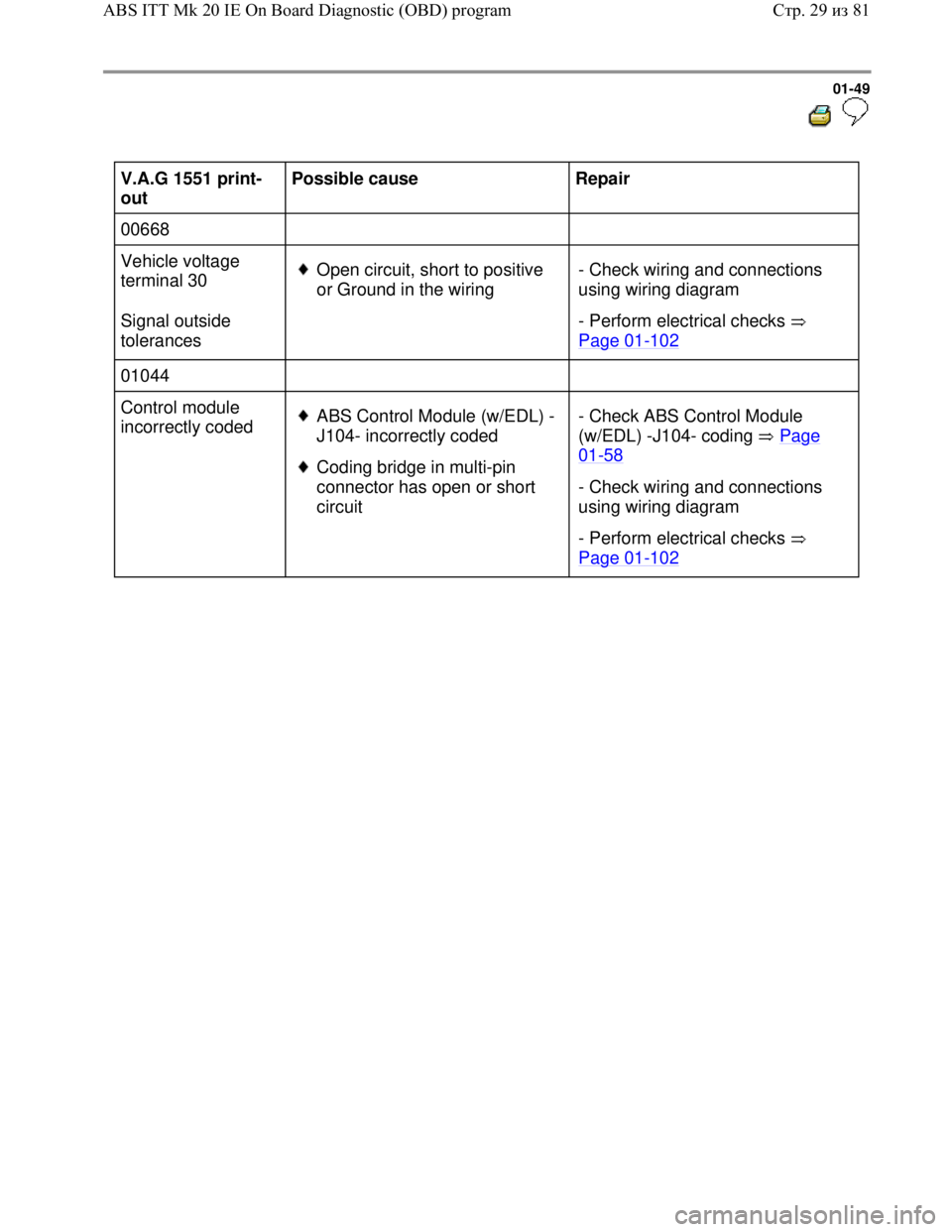

00668
Vehicle voltage
terminal 30
Signal outside
tolerances
Open circuit, short to positive
or Ground in the wiring - Check wiring and connections
using wiring diagram
- Perform electrical checks
Page 01
-102
01044
Control module
incorrectly coded
ABS Control Module (w/EDL) -
J104- incorrectly coded

Coding bridge in multi-pin
connector has open or short
circuit - Check ABS Control Module
(w/EDL) -J104- coding Page 01-58
- Check wiring and connections
using wiring diagram
- Perform electrical checks
Page 01
-102
Стр. 29из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-50


V.A.G 1551
print-out Possible cause
Repair

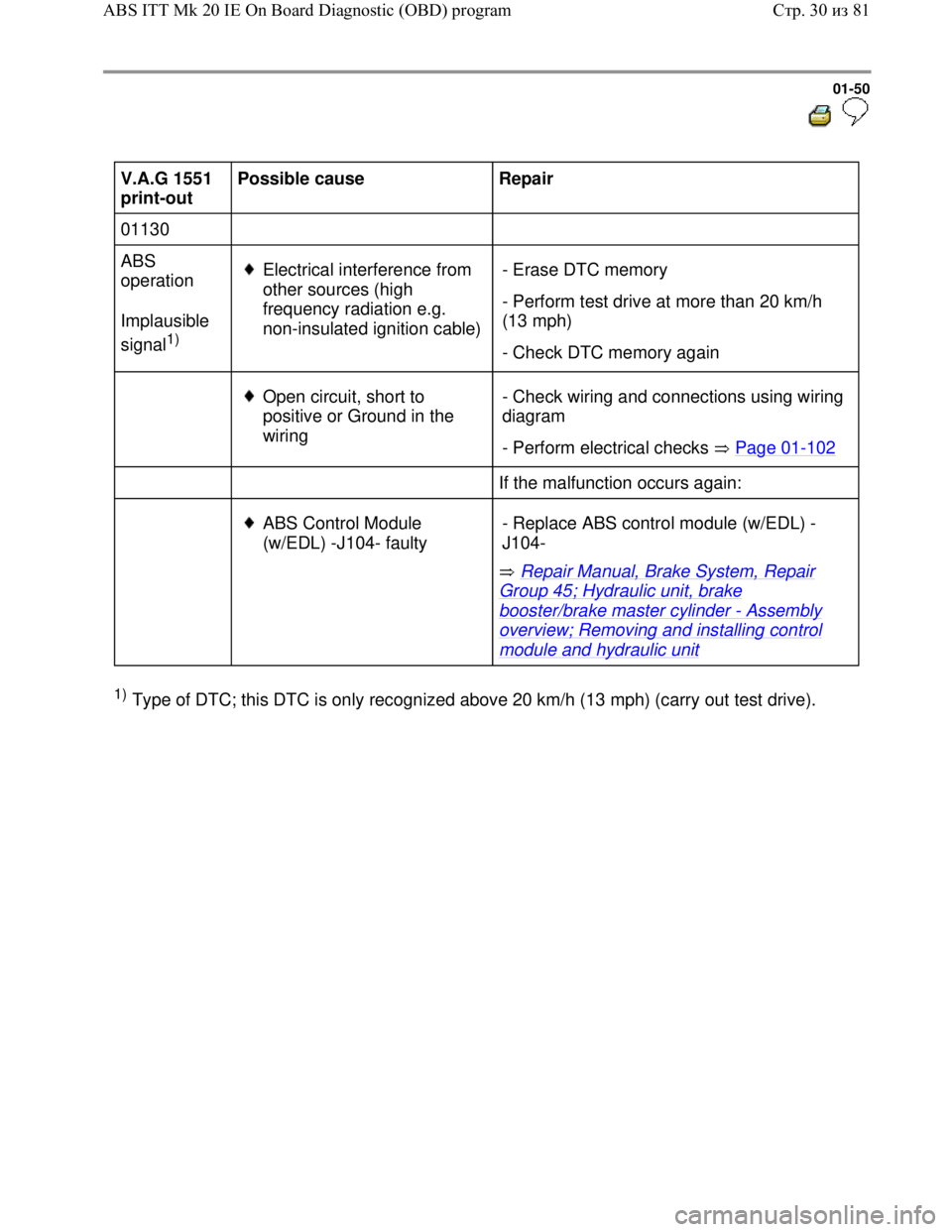

01130
ABS
operation
Implausible
signal
1)
Electrical interference from
other sources (high
frequency radiation e.g.
non-insulated ignition cable)- Erase DTC memory
- Perform test drive at more than 20 km/h
(13 mph)
- Check DTC memory again


Open circuit, short to
positive or Ground in the
wiring - Check wiring and connections using wiring
diagram
- Perform electrical checks Page 01
-102
If the malfunction occurs again:


ABS Control Module
(w/EDL) -J104- faulty
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit - Replace ABS control module (w/EDL) -
J104-
1) Type of DTC; this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 30из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-51


V.A.G 1551
print-out Possible cause
Repair

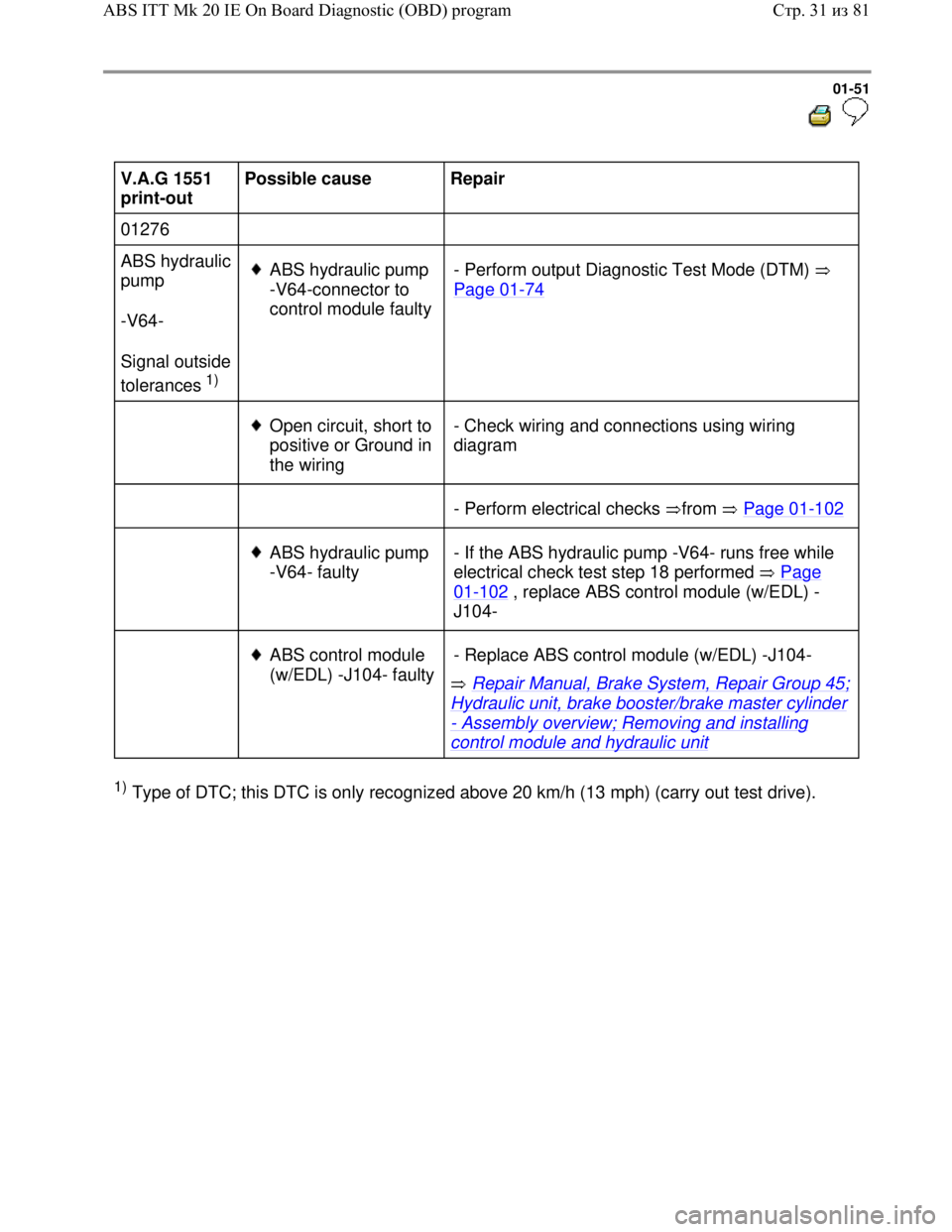

01276
ABS hydraulic
pump
-V64-
Signal outside
tolerances
1)
ABS hydraulic pump
-V64-connector to
control module faulty- Perform output Diagnostic Test Mode (DTM)
Page 01
-74

Open circuit, short to
positive or Ground in
the wiring - Check wiring and connections using wiring
diagram

- Perform electrical checks from Page 01
-102

ABS hydraulic pump
-V64- faulty - If the ABS hydraulic pump -V64- runs free while
electrical check test step 18 performed Page
01-102 , replace ABS control module (w/EDL) -
J104-

ABS control module
(w/EDL) -J104- faulty
Repair Manual, Brake System, Repair Group 45;
Hydraulic unit, brake booster/brake master cylinder
- Assembly overview; Removing and installing
control module and hydraulic unit - Replace ABS control module (w/EDL) -J104-
1) Type of DTC; this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 31из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-52


V.A.G 1551
print-out Possible cause
Repair

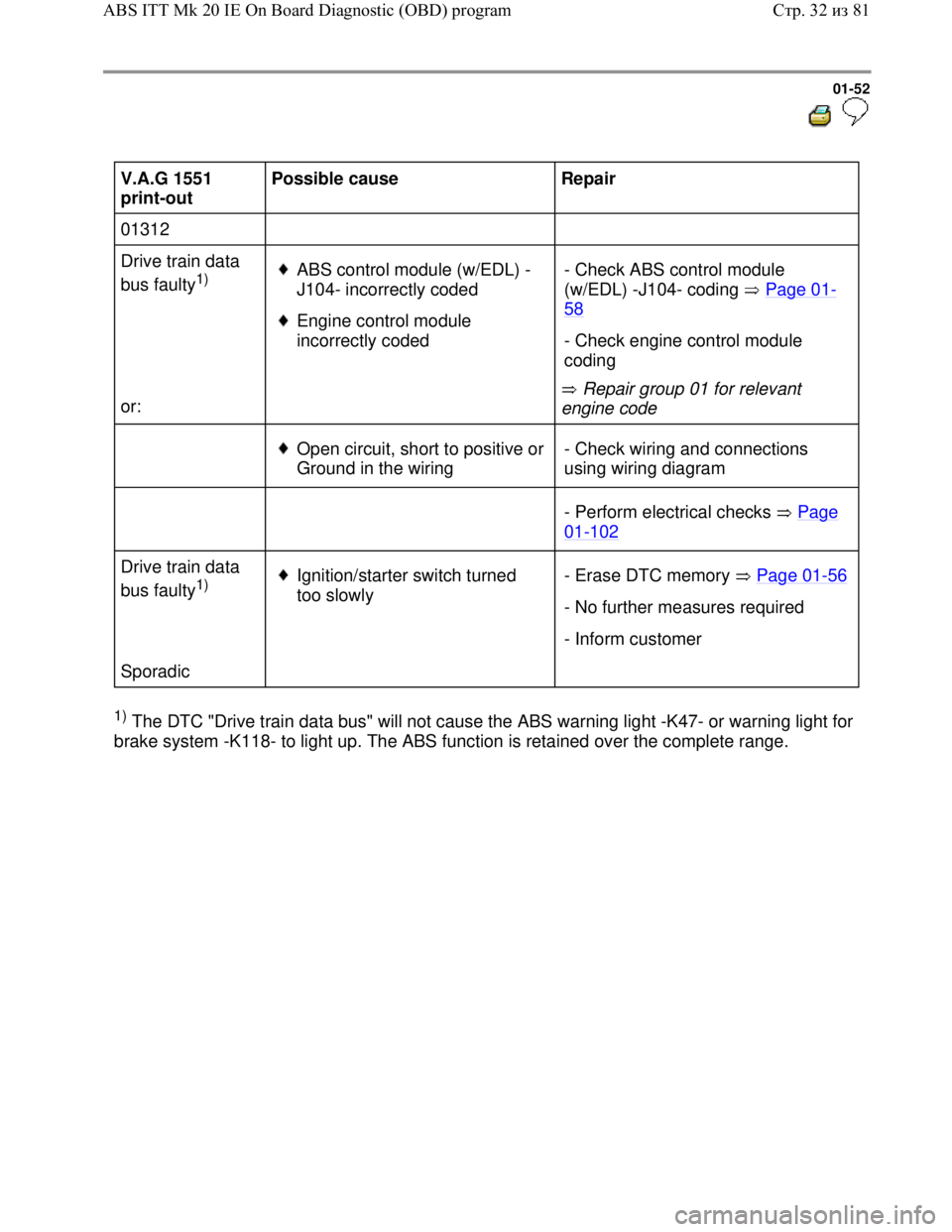

01312
Drive train data
bus faulty
1)


or:
ABS control module (w/EDL) -
J104- incorrectly coded

Engine control module
incorrectly coded
Repair group 01 for relevant
engine code - Check ABS control module
(w/EDL) -J104- coding Page 01
-
58
- Check engine control module
coding

Open circuit, short to positive or
Ground in the wiring - Check wiring and connections
using wiring diagram

- Perform electrical checks Page
01-102
Drive train data
bus faulty
1)

Sporadic
Ignition/starter switch turned
too slowly - Erase DTC memory Page 01-56
- No further measures required
- Inform customer
1) The DTC "Drive train data bus" will not cause the ABS warning light -K47- or warning light for
brake system -K118- to light up. The ABS function is retained over the complete range.
Стр. 32из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-53


V.A.G 1551 print-out
Possible cause
Repair

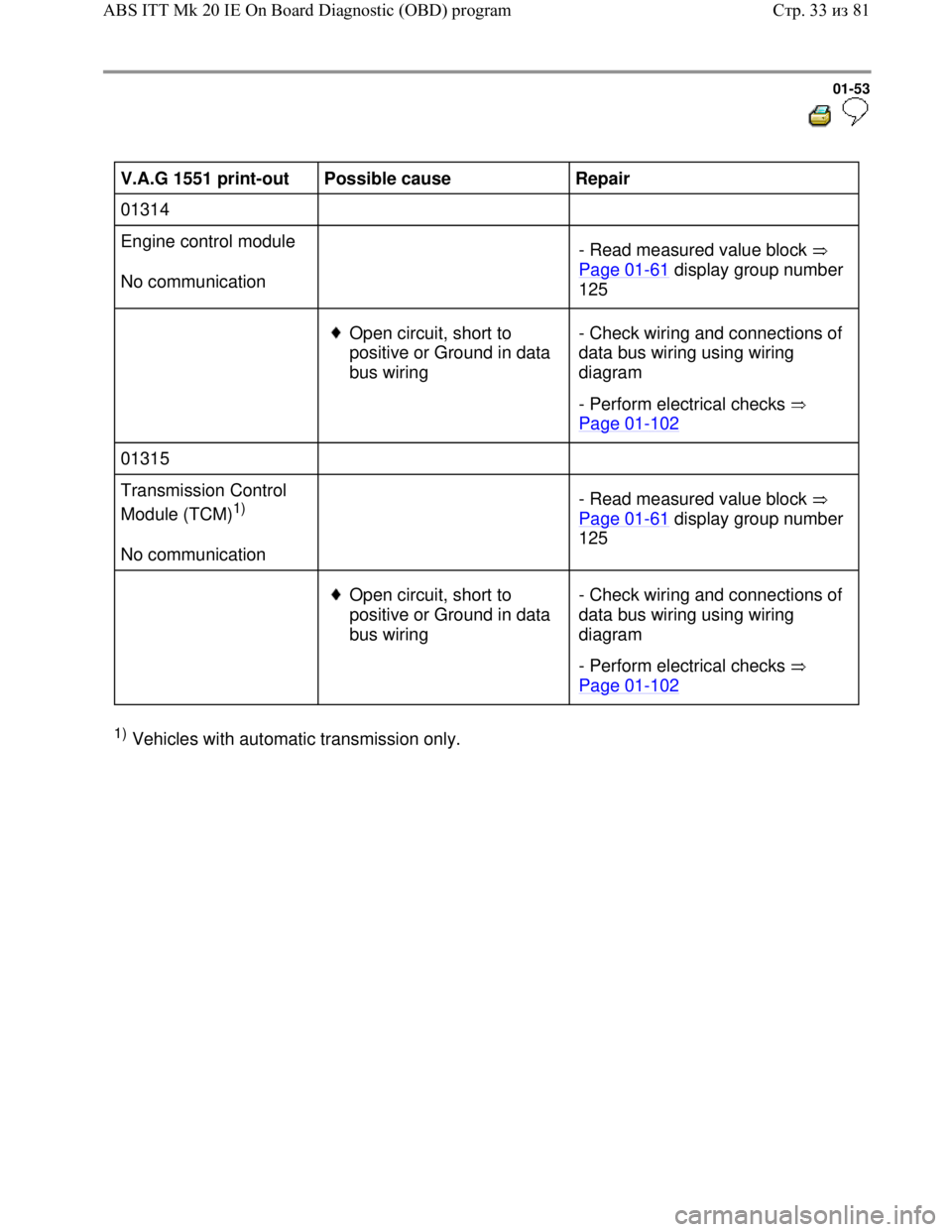

01314
Engine control module
No communication
- Read measured value block
Page 01
-61 display group number
125

Open circuit, short to
positive or Ground in data
bus wiring - Check wiring and connections of
data bus wiring using wiring
diagram
- Perform electrical checks
Page 01
-102
01315
Transmission Control
Module (TCM)
1)
No communication
- Read measured value block
Page 01-61 display group number
125

Open circuit, short to
positive or Ground in data
bus wiring - Check wiring and connections of
data bus wiring using wiring
diagram
- Perform electrical checks
Page 01
-102
1) Vehicles with automatic transmission only.
Стр. 33из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-54


V.A.G 1551 print-
out Possible cause
Repair

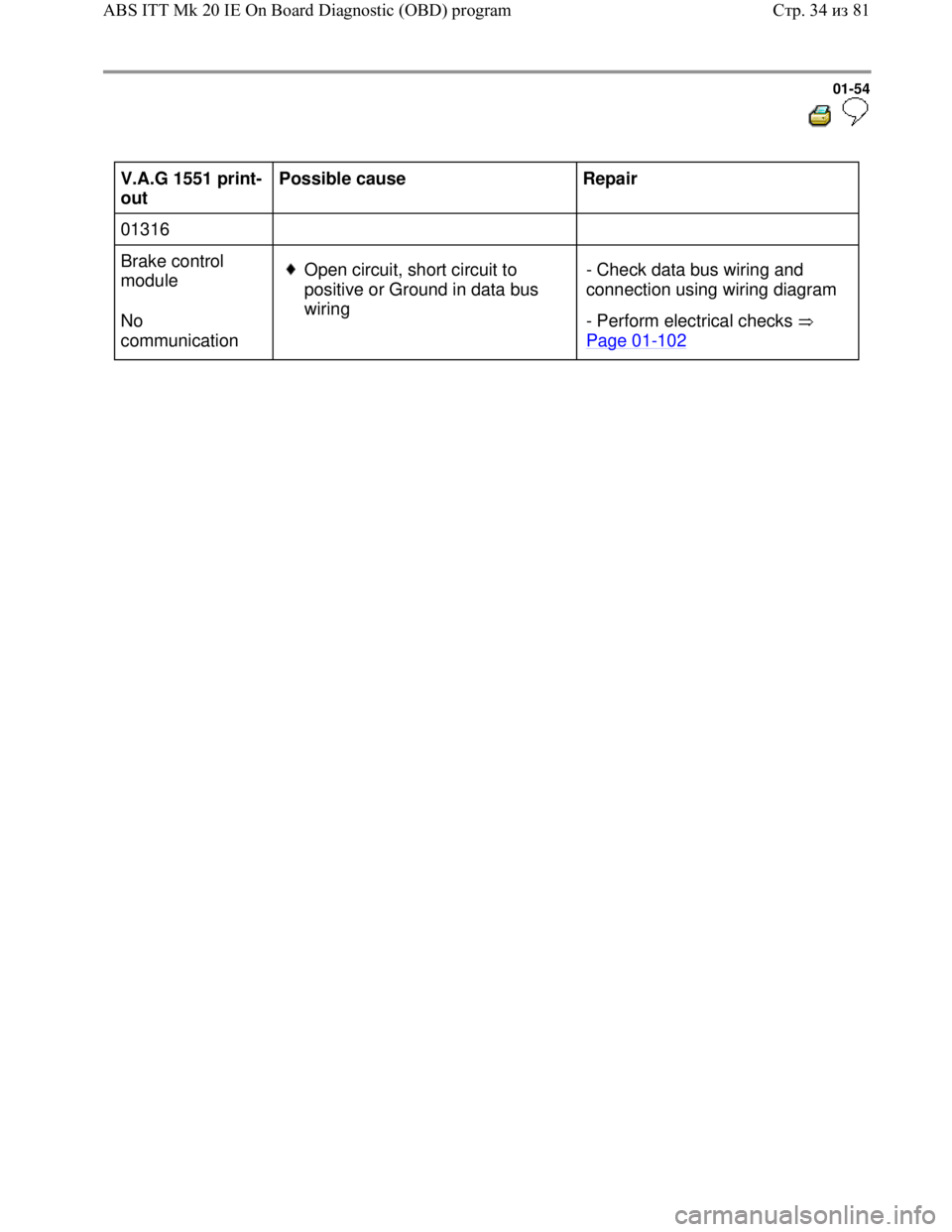

01316
Brake control
module
No
communication
Open circuit, short circuit to
positive or Ground in data bus
wiring - Check data bus wiring and
connection using wiring diagram
- Perform electrical checks
Page 01
-102
Стр. 34из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-55


V.A.G 1551
print-out Possible cause
Repair

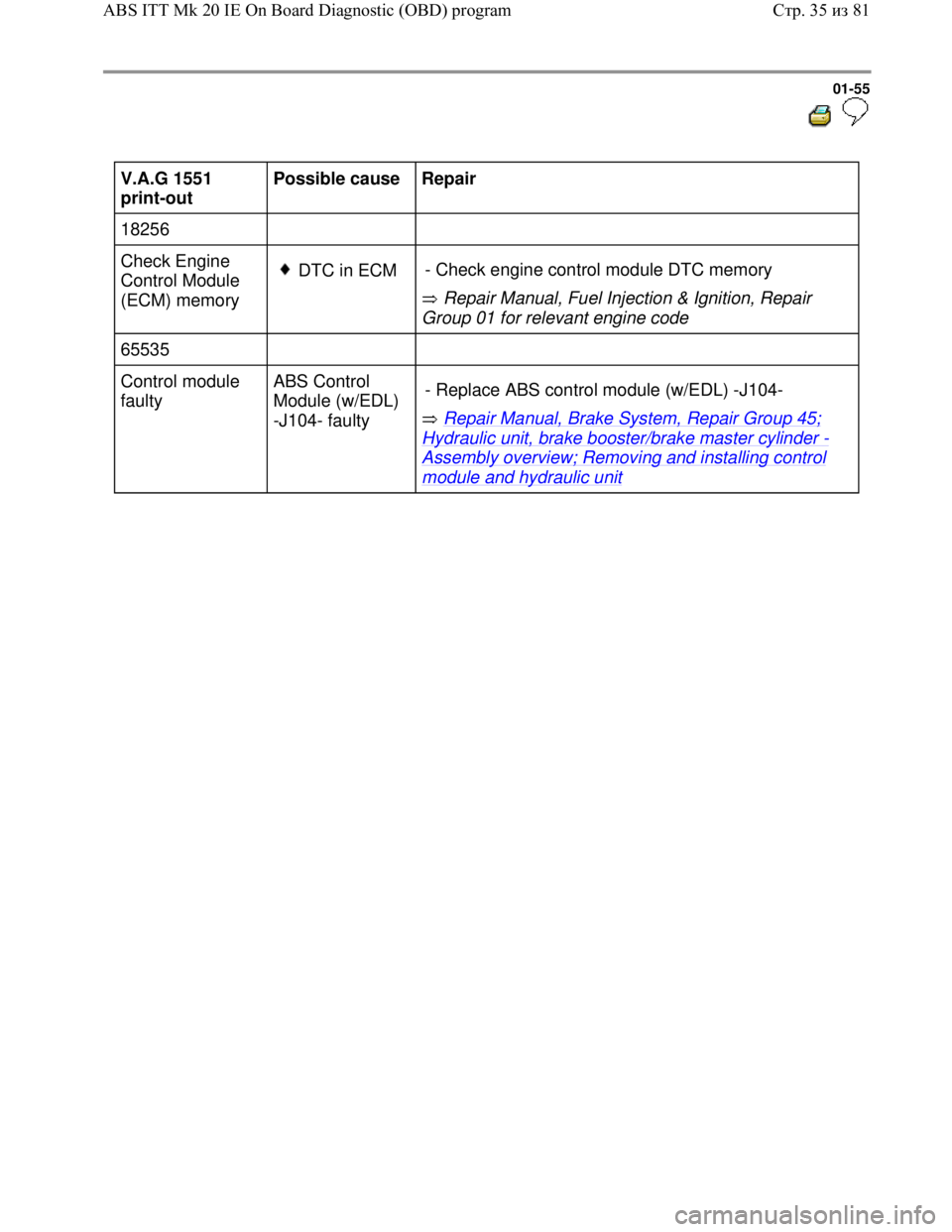

18256
Check Engine
Control Module
(ECM) memory
DTC in ECM
Repair Manual, Fuel Injection & Ignition, Repair
Group 01 for relevant engine code - Check engine control module DTC memory
65535
Control module
faulty ABS Control
Module (w/EDL)
-J104- faulty Repair Manual, Brake System, Repair Group 45;
Hydraulic unit, brake booster/brake master cylinder -
Assembly overview; Removing and installing control
module and hydraulic unit - Replace ABS control module (w/EDL) -J104-
Стр. 35из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-56


Diagnostic Trouble Code (DTC)
memory, erasing and ending output


Note:
All functions which could previously be
performed with V.A.G 1551 can also be
performed with the tester VAS 5051.

Test requirements:

DTC memory checked Page 01-28 .

1. Erasing DTC memory

-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display
- Press keys -0- and -5-; 05 enters "Erase
DTC memory" function.
Rapid data transfer Q
05 - Erase DTC memor
y
Indicated on display
- Confirm entry with Q key
Rapid data transfer
DTC memory is erased!
Indicated on display
-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display
