01 - On Board Diagnostic (OBD)
ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Function

Identifying characteristics

Technical data

Safety precautions

On Board Diagnostic (OBD) with V.A.G 1551 Scan Tool or Tester VAS 5051 (flow chart)


Electrical/electronic co mponents and locations

Diagnostic Trouble Codes (DTC) displayed by warning lights
-K14-, -K47- and -K118-

ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

V.A.G 1551 Scan Tool, connecting and selecting function

Diagnostic Trouble Code (DTC), memory

Automatic test sequence

Vehicle Diagnosis, Testing and Information Sy stem VAS 5051, connecting and selecting ABS
control module
Diagnostic Trouble Code (DTC) table

Diagnostic Trouble Code (DTC) memory, erasing and ending output

ABS control module, coding

Measured value block, reading

Safety precautions

Output Diagnostic Test Mode (DTM)

Basic setting, initiating


ABS, ABS/EDL and ABS/EDL/ASR IT T Mark 20 IE, electrical check

Multi
-pin connector with contact assignment
Test table

Brake light switch, adjusting


ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Function

Arrangement of ABS MARK 60

Technical data

Safety precautions and fundamental points regarding troubleshooting

Troubleshooting with V.A.G 1551 scan tool or tester VAS 5051 on ABS Mark 60 (flow chart)


Electrical/electronic compon ents and installing locations


Diagnostic Trouble Codes (DTCs) displayed by warning lights
-K47-, -K118- and -K155-

On Board Diagnostic (OBD), performing

Test prerequisites for OBD

Safety precautions

Scan tool, connecting

V.A.G 1551 scan tool, connecting and selecting function

List of selectable functions

Automatic test sequence

Diagnostic Trouble Code (DTC) memory, checking

Output Diagnosic Test Mode (DTM)

Diagnostic Trouble Code (DTC) table

Diagnostic Trouble Code (DTC) memory, erasing and ending output

ABS control module, coding

Vehicle data label

Measured value block, reading

Output Diagnosic Test Mode (DTM)

Basic setting, initiating

Login procedure


Electrical check of Mark 60

Multi
-pin connector with contact assignments
Test table (test steps 1
- 16)
Test table (test steps 17
- 23)

Definitions


Volkswagen Golf 4 / Bora (1998-2005), GTI / Jetta (1998-2005), R32
(A4)

Downloaded from www.Manualslib.com manuals search engine 01-2


Sporadic (isolated) malfunctions will also be
recognized and stored. But if these malfunctions
do not occur again within the next 50 vehicle
starts and driving off sequences then, with the
exception of "control module inoperative", the
DTC memory will be erased.
After switching on the ignition and/or starting the
engine the ABS warning light -K47- and the
warning light for brake system -K118- light up for
approx. 2 seconds.
During this period a test sequence (self-check) is
run in the control module for the following
functions:

To check if the supply voltage is at least 10.0
Volt

To check control module including the valve
windings

To check the coding of the control module

A static check of the speed sensor (no speed
signal)

If after driving off and exceeding a speed of
approx. 20 km/h (approx. 13 mph) the speed
signal is not OK. The ABS warning light -K47-
will light up again.
Стр. 2из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-6


Safety precautions

The ABS is a vehicle safety system; the
appropriate knowledge is necessary to work on
the system.

In order to check complaints and to be able to
carry out pin-pointed troubleshooting, the
Diagnostic Trouble Code (DTC) memory must
be checked before beginning work on the ABS
system.

Only separate connectors when the ignition is
switched off.

Observe the appropriate instructions regarding
the handling of brake fluid.
Repair Manual, Brake System, Repair Group
47
ABS malfunctions are indicated by the ABS
warning light illuminating. Certain malfunctions
will only be recognized at speeds above 20
km/h (approx. 13 mph) (carry out road test).

If the ABS Warning Light -K47- and the warning
light for brake system -K118- do not light up,
but the brake system is not functioning correctly
then the malfunction must be sought in the
conventional braking system.
Repair Manual, Brake System; Repair Group
45
Стр. 6из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-13



5 -
Brake light
switch -F-

The brake
light switch is
open in the
rest position;

Adjusting
Page 01
-131
Can be
checked via
read
measured
value block
Page 01
-
61
6 -
Data Link
Connector
(DLC)

Installation
position: in
center
console
below
heating/air
conditioning
controls
7 -
Longitudinal
acceleration
sensor -G251-

All-wheel
drive
vehicles with
Haldex
coupling only
Стр. 5из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-14

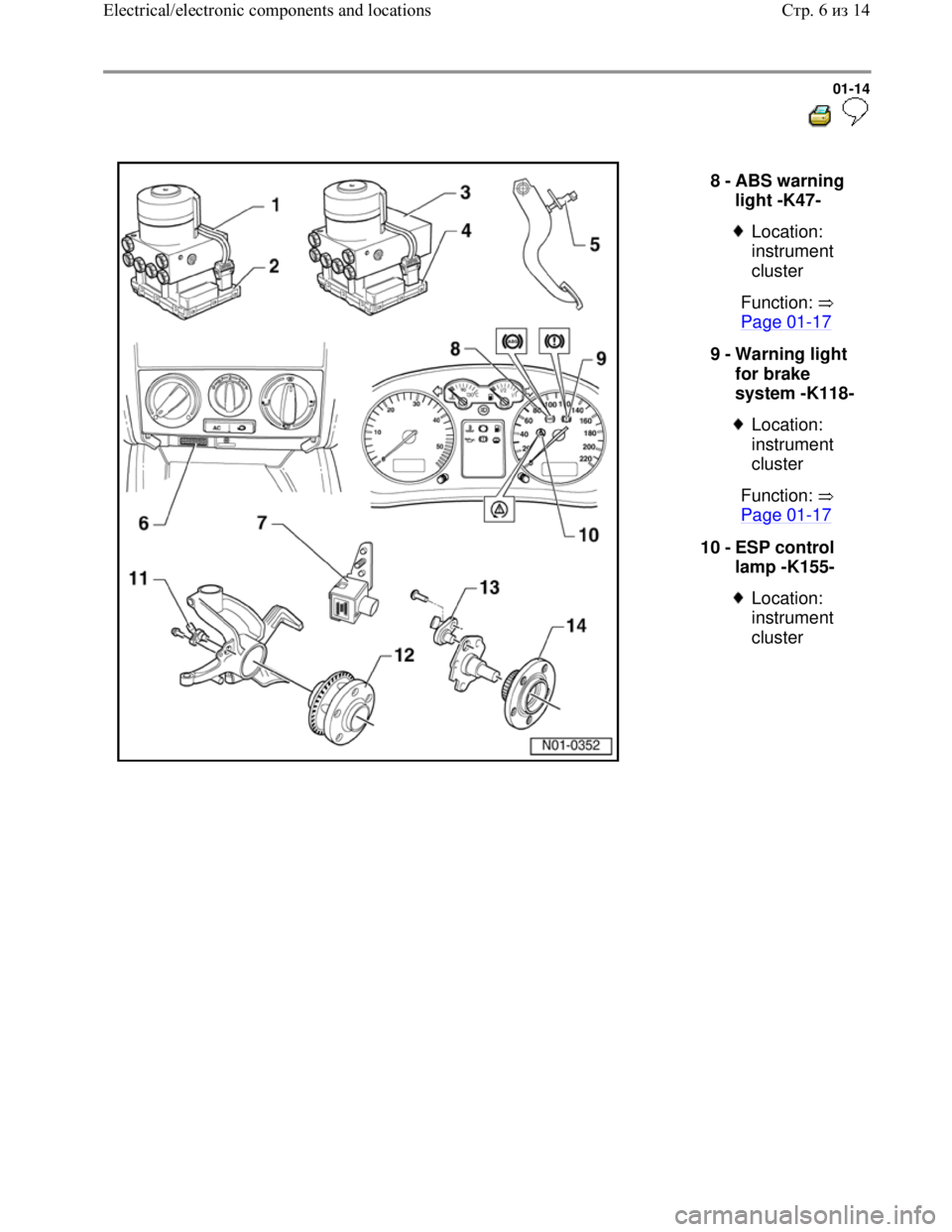

8 -
