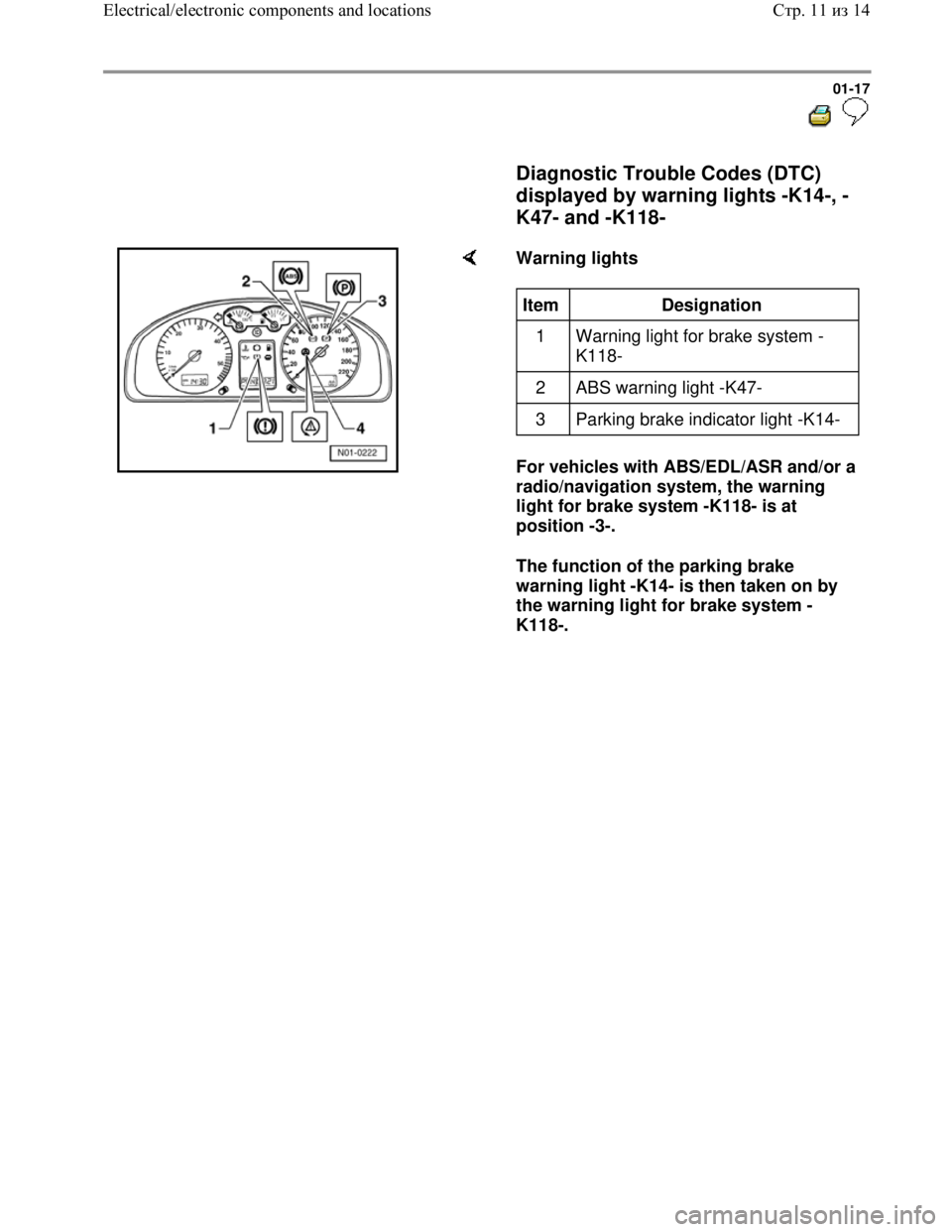

Diagnostic Trouble Codes (DTC)
displayed by warning lights -K14-, -
K47- and -K118-

Warning lights
For vehicles with ABS/EDL/ASR and/or a
radio/navigation system, the warning
light for brake system -K118- is at
position -3-.
The function of the parking brake
warning light -K14- is then taken on by
the warning light for brake system -
K118-.
Item
Designation
1 Warning light for brake system -
K118-
2 ABS warning light -K47-
3 Parking brake indicator light -K14-
Стр. 11из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-108


Contact
Wiring connection to component ...
13
Longitudinal acceleration sensor -G251-(all-wheel drive vehicles with Haldex
coupling only)
14
Coding bridge to contact 3
15
Longitudinal acceleration sensor -G251-(four-wheel drive vehicles with Haldex
coupling only)
15
ESP Control lamp -K155- activation (vehicles with ABS/EDL/ASR only)
16
ABS warning light -K47- activation
17
Longitudinal acceleration sensor -G251-(four-wheel drive vehicles with Haldex
coupling only)
18
Brake light switch -F-
19
Right front ABS wheel speed sensor -G45-
20
Right front ABS wheel speed sensor -G45-
21
Vehicles with navigation system only
22
Right rear ABS wheel speed sensor -G44-
23
Right rear ABS wheel speed sensor -G44-
24
Ground point left in engine compartment and Ground connection in engine
compartment wiring harness
25
Voltage supply from battery +
