torque VOLKSWAGEN JETTA 1998 Service Manual

Downloaded from www.Manualslib.com manuals search engine 01-15

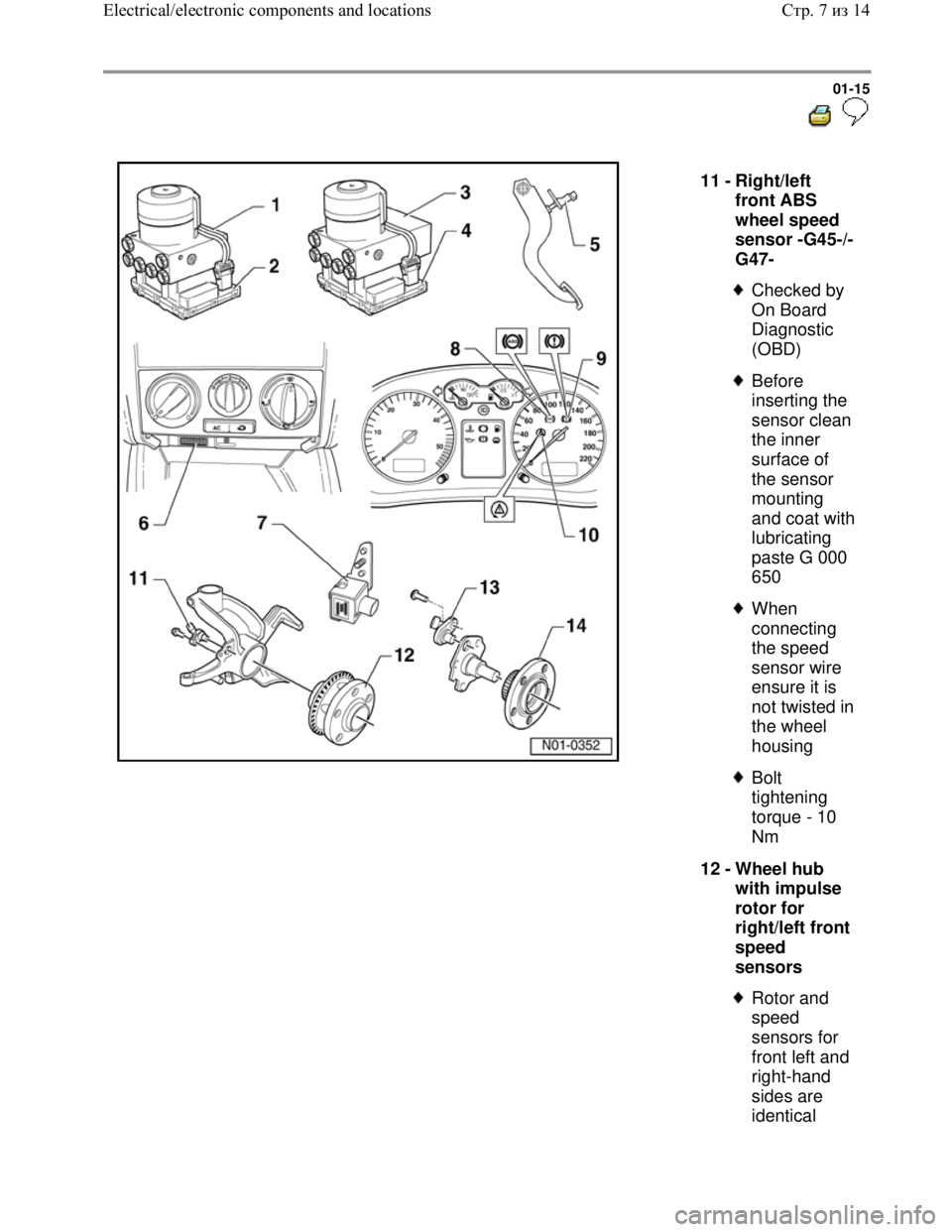

11 -
Right/left
front ABS
wheel speed
sensor -G45-/-
G47-

Checked by
On Board
Diagnostic
(OBD)

Before
inserting the
sensor clean
the inner
surface of
the sensor
mounting
and coat with
lubricating
paste G 000
650

When
connecting
the speed
sensor wire
ensure it is
not twisted in
the wheel
housing

Bolt
tightening
torque - 10
Nm
12 -
Wheel hub
with impulse
rotor for
right/left front
speed
sensors

Rotor and
speed
sensors for
front left and
right-hand
sides are
identical
Стр. 7из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-16

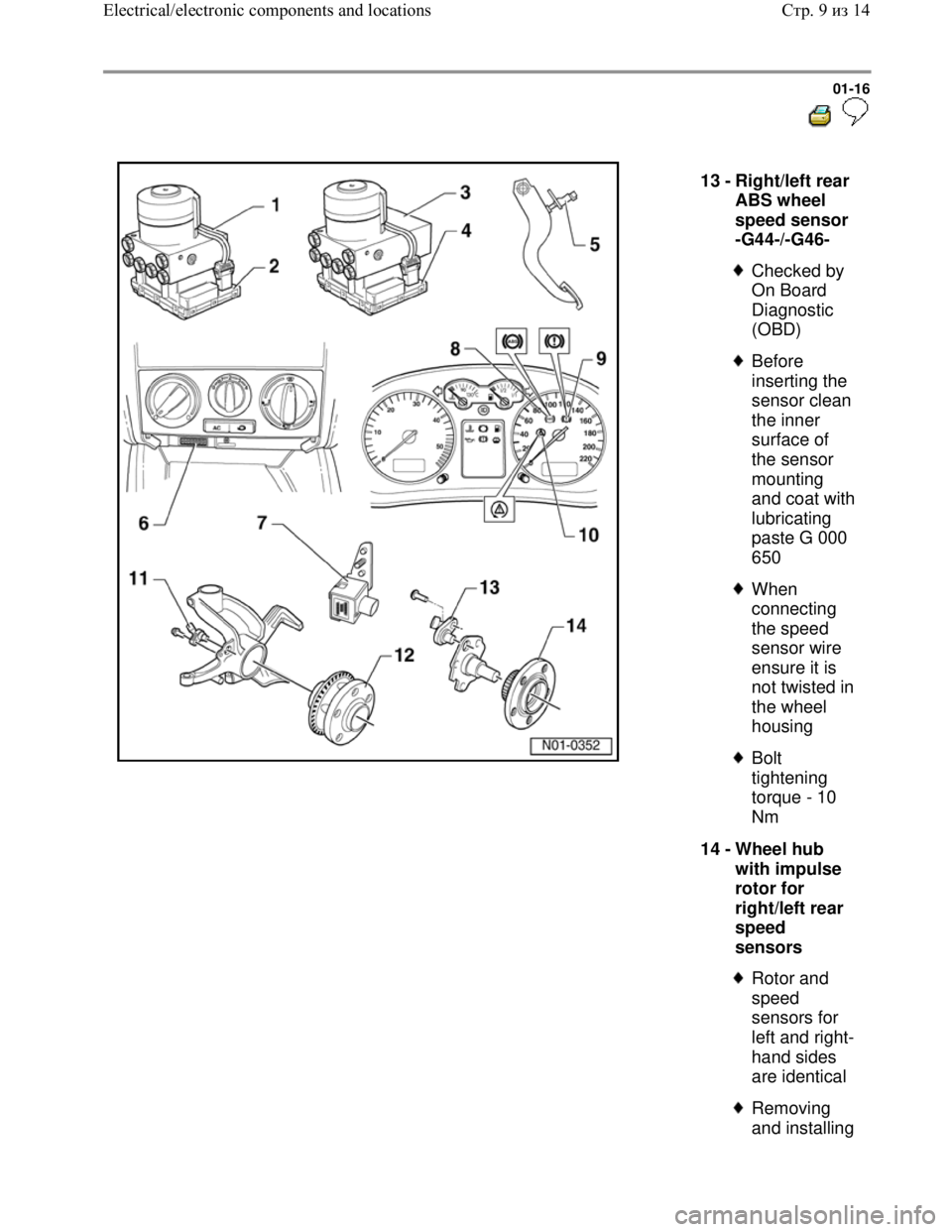

13 -
Right/left rear
ABS wheel
speed sensor
-G44-/-G46-

Checked by
On Board
Diagnostic
(OBD)

Before
inserting the
sensor clean
the inner
surface of
the sensor
mounting
and coat with
lubricating
paste G 000
650

When
connecting
the speed
sensor wire
ensure it is
not twisted in
the wheel
housing

Bolt
tightening
torque - 10
Nm
14 -
Wheel hub
with impulse
rotor for
right/left rear
speed
sensors

Rotor and
speed
sensors for
left and right-
hand sides
are identical

Removing
and installing
Стр. 9из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-153



Repair Manual,
Suspension, Wheels,

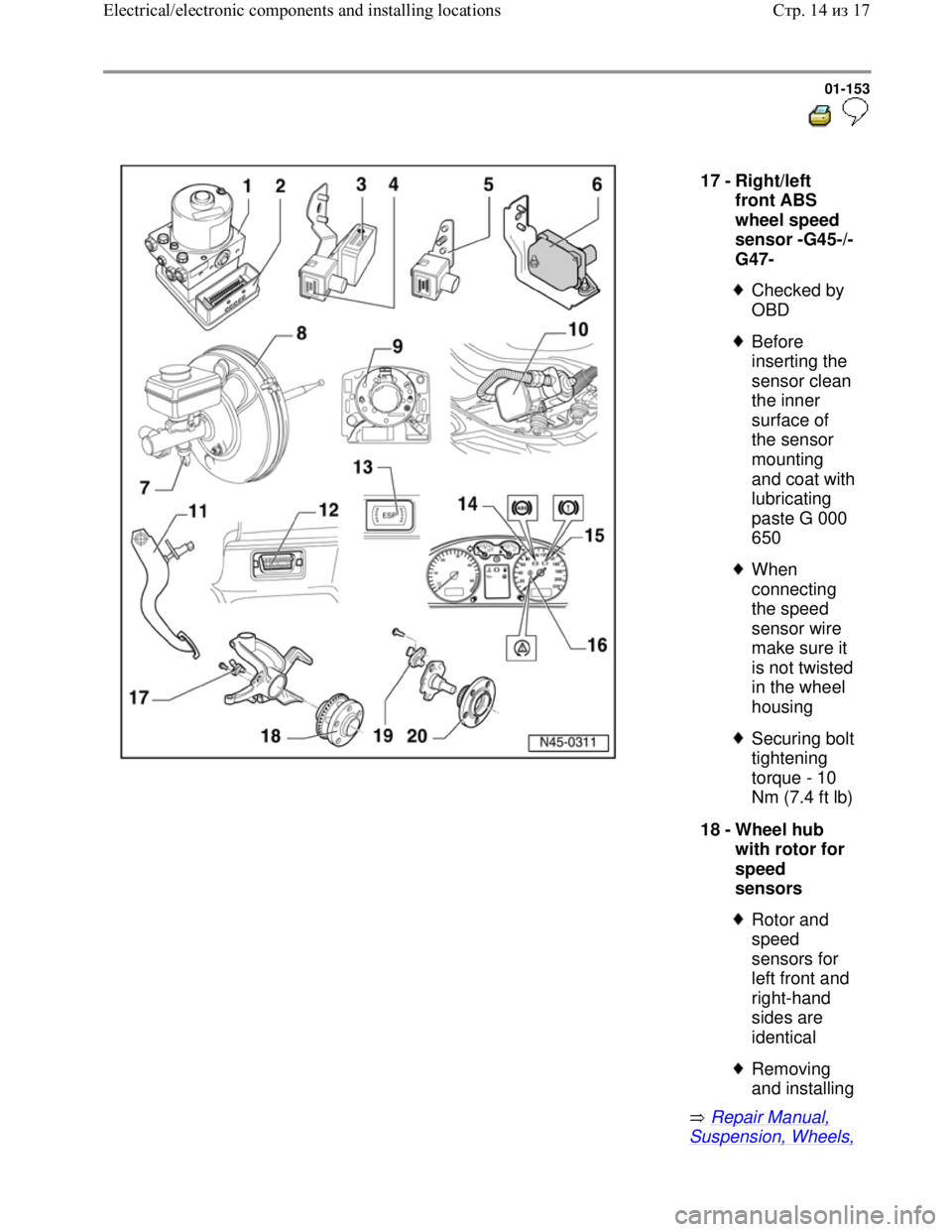

17 -
Right/left
front ABS
wheel speed
sensor -G45-/-
G47-

Checked by
OBD

Before
inserting the
sensor clean
the inner
surface of
the sensor
mounting
and coat with
lubricating
paste G 000
650

When
connecting
the speed
sensor wire
make sure it
is not twisted
in the wheel
housing

Securing bolt
tightening
torque - 10
Nm (7.4 ft lb)
18 -
Wheel hub
with rotor for
speed
sensors

Rotor and
speed
sensors for
left front and
right-hand
sides are
identical

Removing
and installing
Стр. 14из 17 Electrical/electronic components and installing locations

Downloaded from www.Manualslib.com manuals search engine 01-154



Repair Manual,
Suspension, Wheels,
Steering, Repair
Group 42; Servicing

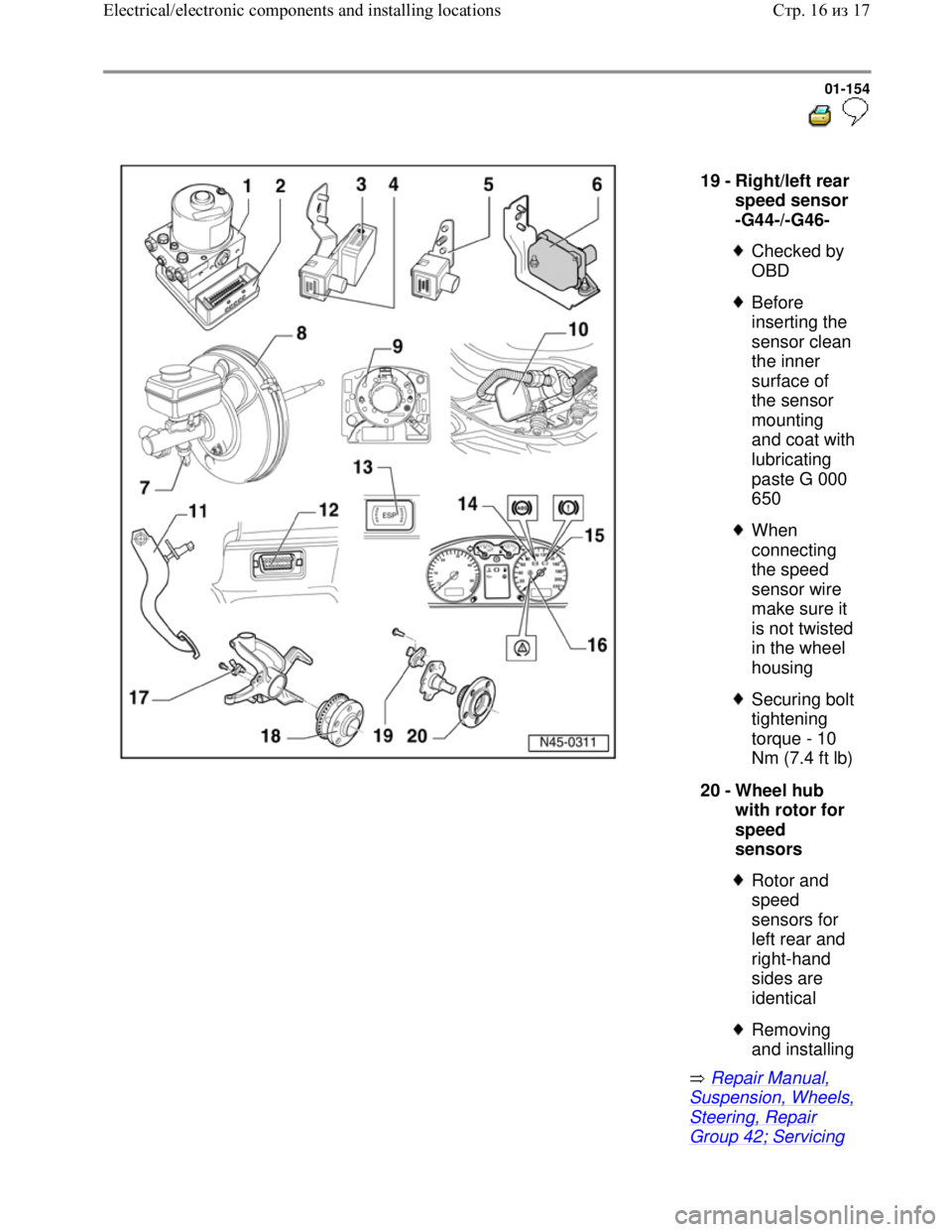

19 -
Right/left rear
speed sensor
-G44-/-G46-

Checked by
OBD

Before
inserting the
sensor clean
the inner
surface of
the sensor
mounting
and coat with
lubricating
paste G 000
650

When
connecting
the speed
sensor wire
make sure it
is not twisted
in the wheel
housing

Securing bolt
tightening
torque - 10
Nm (7.4 ft lb)
20 -
Wheel hub
with rotor for
speed
sensors

Rotor and
speed
sensors for
left rear and
right-hand
sides are
identical

Removing
and installing
Стр. 16из 17 Electrical/electronic components and installing locations
