Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna (if equipped)
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light (if equipped)
(5) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror with sensor on mirror base for:
– Rain sensor (if equipped)
– Low-light sensor (if equipped)
– Light Assist (if equipped)
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on left and right)
(5) Fog lights (on left and right, if equipped) ,
(6) Threaded hole for the front towing eye (behind cover)
(7) Side marker lights (on left and right)
(8) Sensor for the Forward Collision Warning system (behind the Volkswagen emblem)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window:
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on left and right)
(4) Area for:
– Luggage compartment release
– Rear View Camera system (if equipped)
(5) License plate lights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Roof antenna (if equipped)
(8) Sensors for the Blind Spot Monitor with Rear Traffic Alert (on left and right, if equipped)

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle

Driver side overview

Fig. 5 Driver side overview.
Key to fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Voice control activation Y
– Display Phone main menu or accept telephone calls -
– Audio, navigation

Upper center console

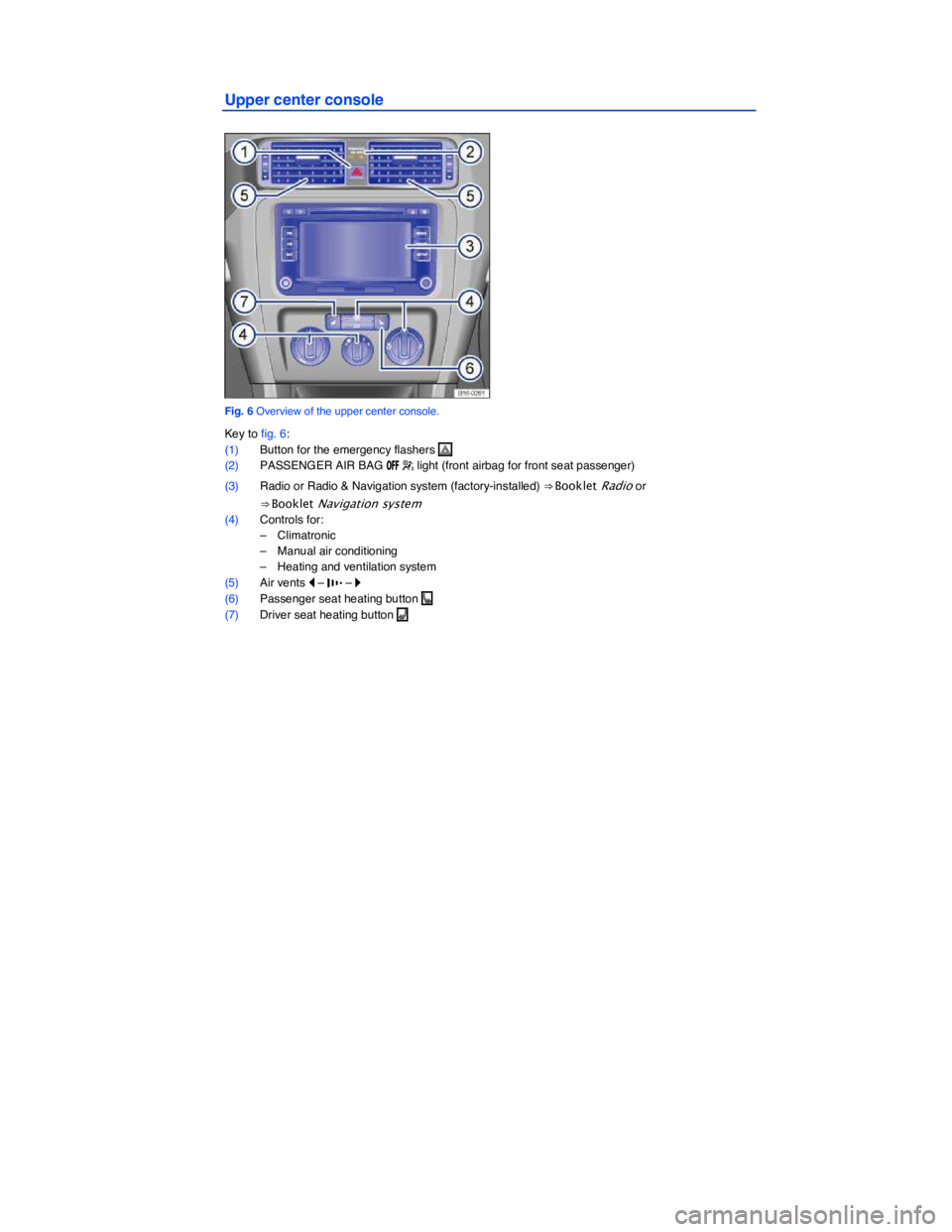

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Button for the emergency flashers
(2) PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ Booklet Radio or
⇒ Booklet Navigation system
(4) Controls for:
– Climatronic
– Manual air conditioning
– Heating and ventilation system
(5) Air vents  –

Lower center console

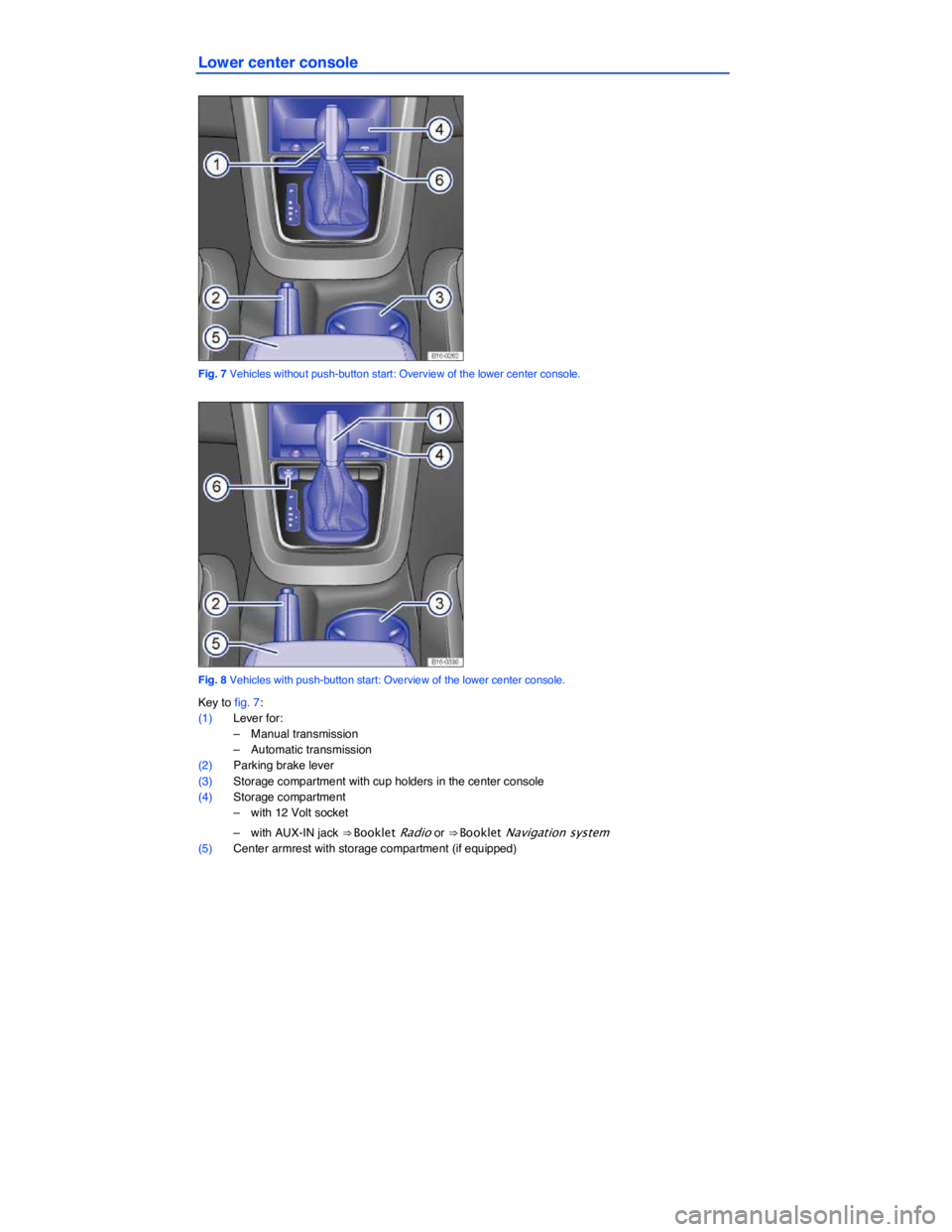

Fig. 7 Vehicles without push-button start: Overview of the lower center console.

Fig. 8 Vehicles with push-button start: Overview of the lower center console.
Key to fig. 7:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment
– with 12 Volt socket
– with AUX-IN jack ⇒ Booklet Radio or ⇒ Booklet Navigation system
(5) Center armrest with storage compartment (if equipped)

(6) Card holder
Key to fig. 8:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment
– with 12 Volt socket
– with AUX-IN jack ⇒ Booklet Radio or ⇒ Booklet Navigation system
(5) Center armrest with storage compartment (if equipped)
(6) Starter button (if equipped) 34!24 – %.').% – 34/0

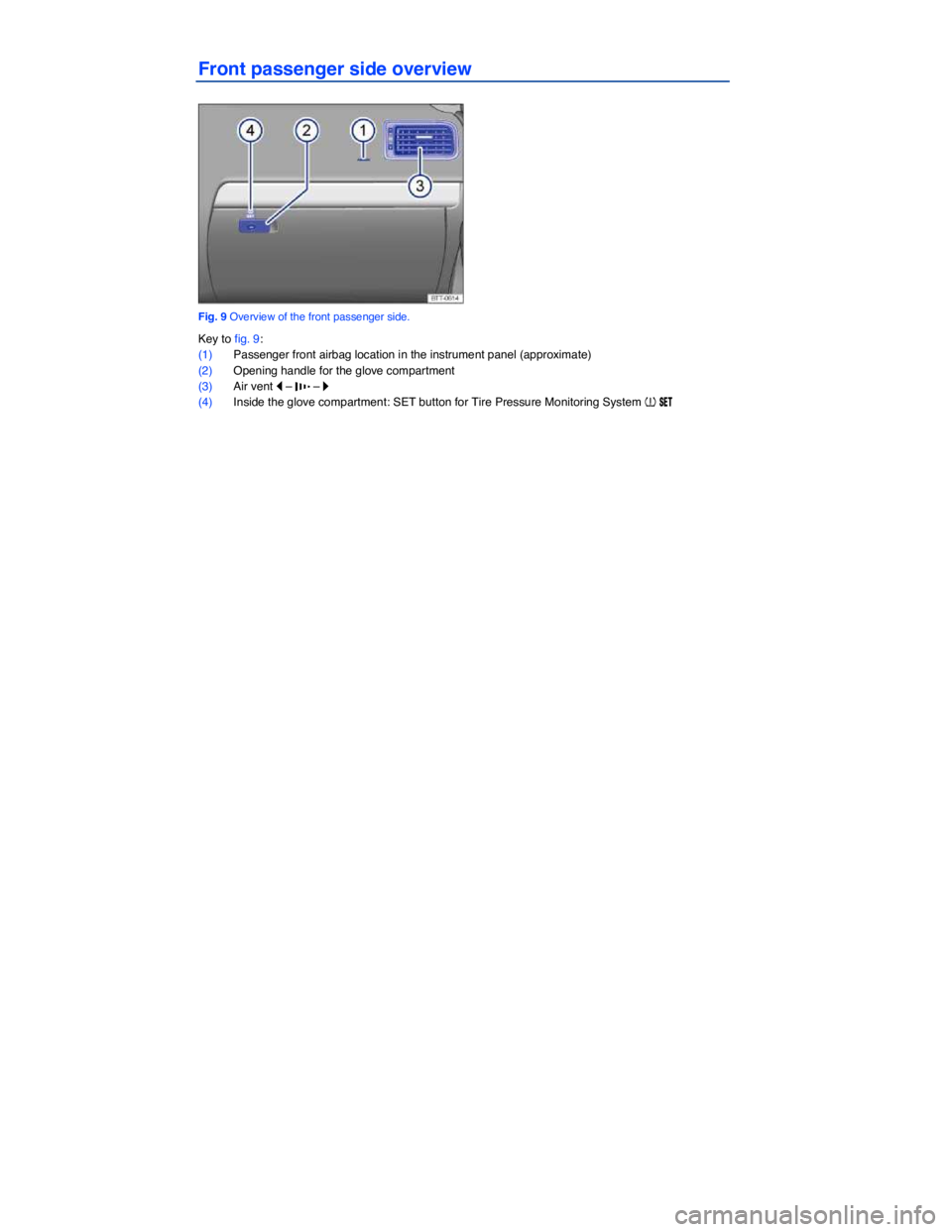

Front passenger side overview

Fig. 9 Overview of the front passenger side.
Key to fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the glove compartment
(3) Air vent  –
