Please carry out each step only in the order specified:
7. Attach the connector (2) to the bulb holder (1). The connector must latch audibly.
8. Replace the cover ⇒ fig. 178 in the wheel house liner.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
Replacing taillight bulbs in the luggage compartment lid (LED taillights)

Fig. 180 In the luggage compartment lid: A: removing the cover on the LED taillight, B: Removing the LED taillight.

Fig. 181 LED taillight: A: Removing the bulb holder, B: Removing the bulb.

Please carry out each step only in the order specified:
3. Using the screwdriver from the vehicle tool kit, carefully pry the cover off with the flat blade of the screwdriver inserted in the opening A (1).
4. Loosen the fasteners ⇒ fig. 180 B (2) and carefully remove the taillight with the connected wire from the luggage compartment lid.
5. Pull the red retainer ⇒ fig. 181 A (1) in the direction of the arrow to release the lock on the connector A (2).
6. Press the lock on the connector A (3) and disconnect the connector A (2).
7. Turn the bulb holder A (4) in the direction of the arrow until it stops and remove it with the bulb.
8. Pull the burned out bulb out of the bulb holder in the direction of the arrow and replace it with a new bulb of the same type B.
9. Insert the bulb holder A (4) in the taillight and turn it in the direction of the arrow until it stops.
10. Connect the connector A (2) and press the red retainer A (1) in the opposite direction of the arrow.
11. Hold the taillight in the installation position with one hand and tighten the bolts with the
other hand ⇒ fig. 180 B (2).
12. Check the taillight assembly for proper installation and secure fit.
13. Insert the cover. The cover must securely lock into place.
14. Close the luggage compartment lid
LEDs in the taillights
LEDs cannot be replaced. Contact your authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.

Replacing the taillight bulbs in the vehicle body (LED taillights)

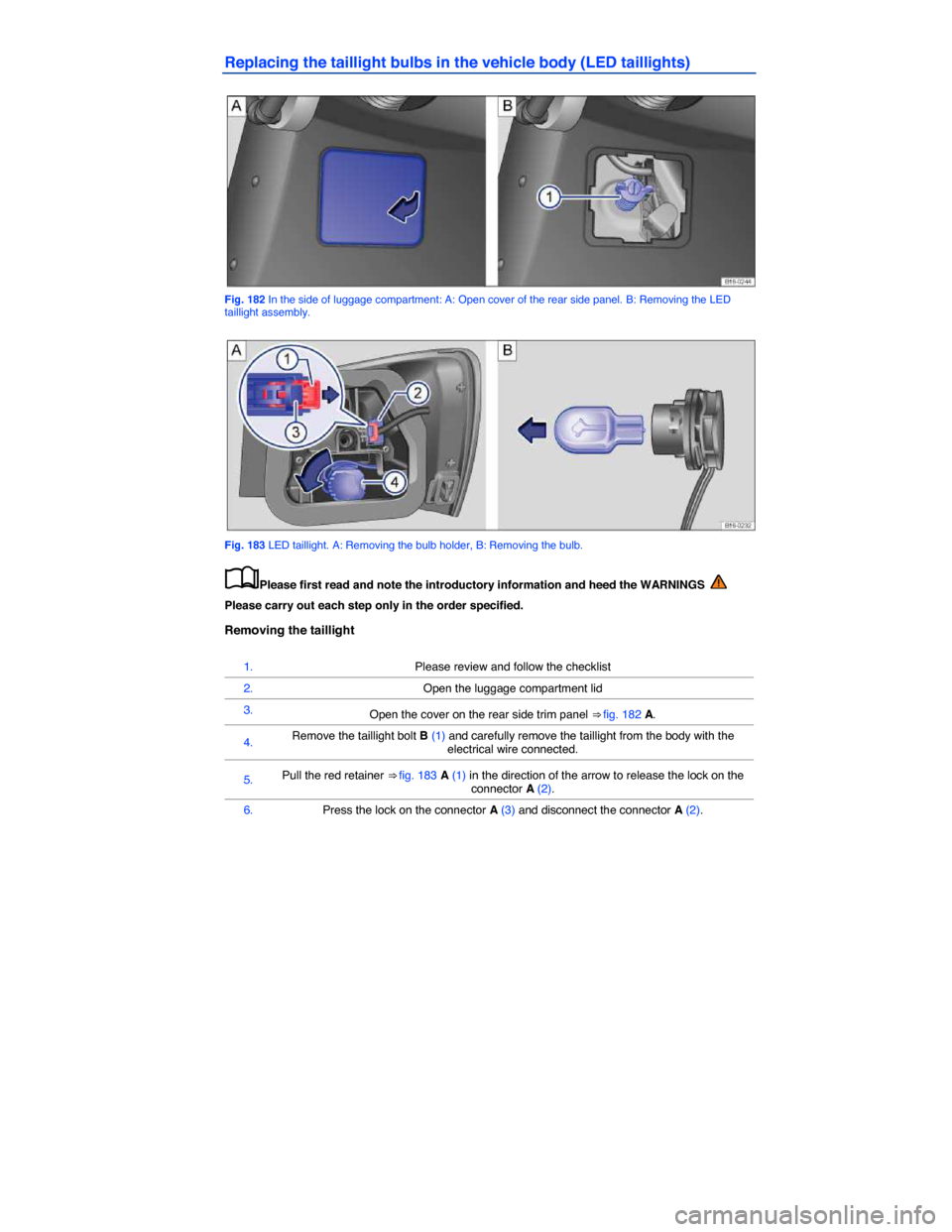

Fig. 182 In the side of luggage compartment: A: Open cover of the rear side panel. B: Removing the LED taillight assembly.

Fig. 183 LED taillight. A: Removing the bulb holder, B: Removing the bulb.

Replacing a bulb

7. Turn the bulb holder A (4) in the direction of the arrow until it stops and remove it with the bulb.
8. Pull the burned out bulb out of the bulb holder in the direction of the arrow and replace it
with a new bulb of the same type ⇒ fig. 181 B.
9. Insert the bulb holder A (4) in the taillight and turn it in the direction of the arrow until it stops.
Installing the taillight

10. Connect the connector A (2) and press the red retainer A (1) in the opposite direction of the arrow.
11. Hold the taillight in the installation position with one hand and tighten the bolt with the other
hand ⇒ fig. 182 B (1).
12. Check the taillight assembly for proper installation and secure fit.
13. Install the cover on the rear side trim panel.
14. Close the luggage compartment lid
LEDs in the taillights in the body
LEDs cannot be replaced. Contact your authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
Replacing license plate light bulbs

Jump-starting

WARNING
Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause the battery to explode, leading to serious personal injury. To help reduce the risk of battery explosion:
x All work on the batteries or the electrical system in your vehicle can cause serious acid burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety
precautions before working on the batteries or the electrical system ⇒ page 329, Vehicle battery.
x Always make sure that the battery providing starting assistance (the booster battery) has the same voltage as the dead battery (12 V) and about the same amperage capacity (see battery label).
x Never jump-start a vehicle with a thawed or frozen vehicle battery. The battery can explode. A dead battery can freeze at temperatures around +32 °F (0 °C).
x A battery that is frozen or was frozen, but has since thawed, must be replaced.
x When the vehicle battery is jump-started, it gives off hydrogen gas, which is highly explosive! Always keep fire, sparks, open flame, and smoking materials far away from vehicle batteries. Never use a mobile telephone while connecting or disconnecting jumper cables.
x Jump-start batteries only in well-ventilated areas. Batteries give off highly explosive hydrogen gas during jump-starting.
x Always route the jumper cables so that they cannot get caught in any moving parts in the engine compartment.
x Never short out the battery terminals by connecting the positive (+) and negative (-) terminals with each other.
x Never connect the negative cable from the other vehicle directly to the negative terminal of the dead battery, as this may cause the hydrogen gas given off by the dead battery to explode.
x Never attach the negative cable from the vehicle providing starting assistance to any part of the fuel system or to the brake hoses or brake lines.
x Never allow the non-insulated parts of the battery clamps to touch.
x Never allow the jumper cable attached to the positive battery terminal to contact metal parts of the vehicle.
x Always follow the instructions of the jumper cable manufacturer.
NOTICE
To help prevent extensive damage to the vehicle electrical system, read and heed the following:
x Connecting jumper cables improperly can cause a short circuit and do expensive damage to the vehicle's electrical system.
x Do not let the vehicles touch each other while the jumper cables are connected. If they do, electrical current may flow between the vehicles when the positive (+) terminals are connected, causing electrical system damage.

Using jumper cables

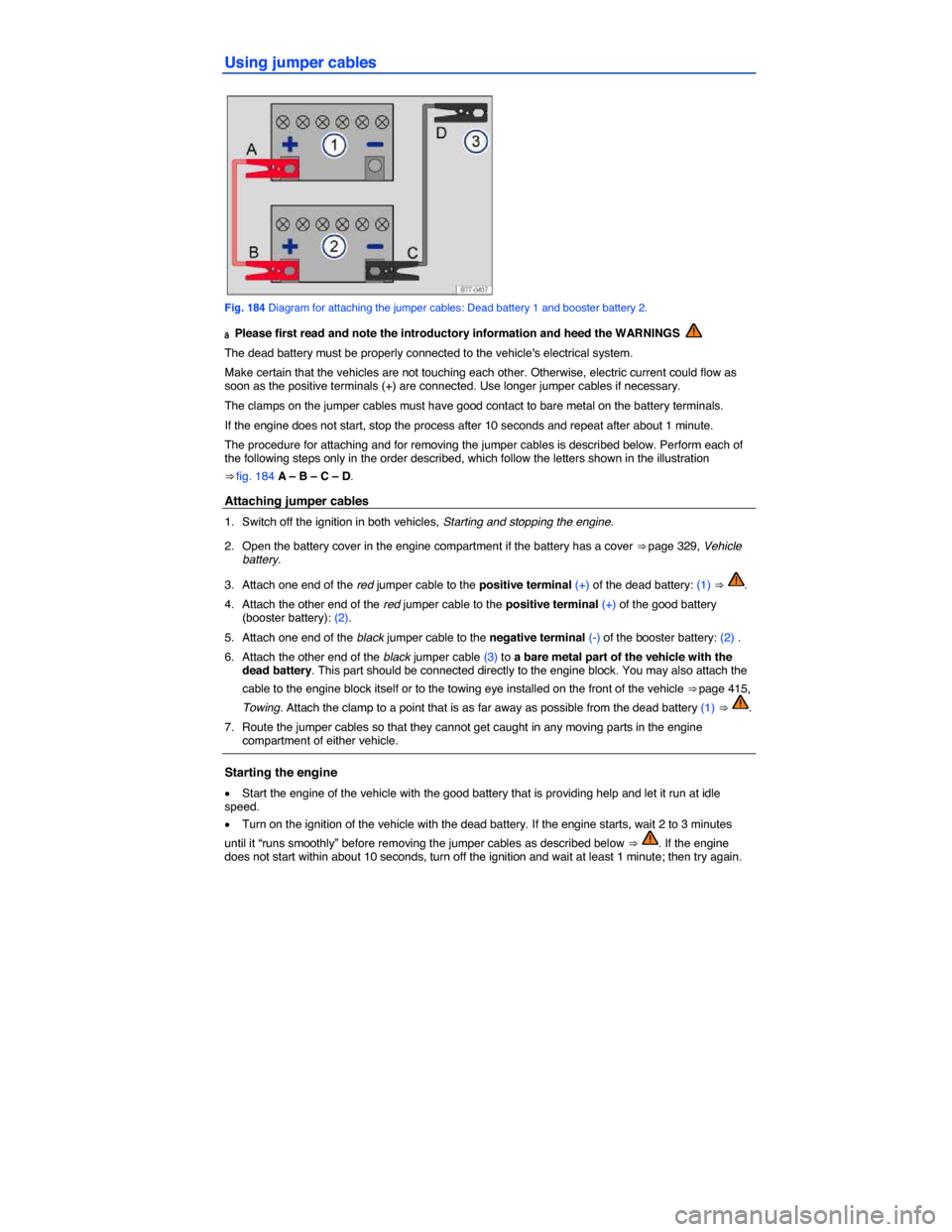

Fig. 184 Diagram for attaching the jumper cables: Dead battery 1 and booster battery 2.
ä Please first read and note the introductory information and heed the WARNINGS
The dead battery must be properly connected to the vehicle's electrical system.
Make certain that the vehicles are not touching each other. Otherwise, electric current could flow as soon as the positive terminals (+) are connected. Use longer jumper cables if necessary.
The clamps on the jumper cables must have good contact to bare metal on the battery terminals.
If the engine does not start, stop the process after 10 seconds and repeat after about 1 minute.
The procedure for attaching and for removing the jumper cables is described below. Perform each of the following steps only in the order described, which follow the letters shown in the illustration
⇒ fig. 184 A – B – C – D.
Attaching jumper cables
1. Switch off the ignition in both vehicles, Starting and stopping the engine.
2. Open the battery cover in the engine compartment if the battery has a cover ⇒ page 329, Vehicle battery.
3. Attach one end of the red jumper cable to the positive terminal (+) of the dead battery: (1) ⇒ .
4. Attach the other end of the red jumper cable to the positive terminal (+) of the good battery (booster battery): (2).
5. Attach one end of the black jumper cable to the negative terminal (-) of the booster battery: (2) .
6. Attach the other end of the black jumper cable (3) to a bare metal part of the vehicle with the dead battery. This part should be connected directly to the engine block. You may also attach the
cable to the engine block itself or to the towing eye installed on the front of the vehicle ⇒ page 415,
Towing. Attach the clamp to a point that is as far away as possible from the dead battery (1) ⇒ .
7. Route the jumper cables so that they cannot get caught in any moving parts in the engine compartment of either vehicle.
Starting the engine
x Start the engine of the vehicle with the good battery that is providing help and let it run at idle speed.
x Turn on the ignition of the vehicle with the dead battery. If the engine starts, wait 2 to 3 minutes
until it “runs smoothly” before removing the jumper cables as described below ⇒ . If the engine does not start within about 10 seconds, turn off the ignition and wait at least 1 minute; then try again.

Before removing the jumper cables
x Switch off the headlights (if they are on).
x In the vehicle with the dead battery, switch on the heater fan and the rear window defroster. This helps to minimize voltage spikes when the cables are disconnected.
Removing jumper cables
With the engine running, remove the jumper cables in reverse order to the way they were connected.
1. Disconnect the black (-) cable from the vehicle with the dead battery.
2. Disconnect the black (-) cable from the other vehicle (vehicle with the good battery).
3. Disconnect the red (+) cable from the other vehicle (vehicle with the good battery).
4. Disconnect the red (+) cable from the vehicle with the dead battery.
5. Close the battery cover.
6. If necessary, unscrew the towing eye on the front of the vehicle, Installing the front towing eye.
WARNING
Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause the battery to explode, leading to serious personal injury. To help reduce the risk of battery explosion:
x All work on the batteries or the electrical system in your vehicle can cause serious acid burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety precautions before working on the batteries or the electrical system, Vehicle battery.
x Always wear proper eye protection. Never lean over the vehicle battery.
x Attach the jumper cables in the correct order: first the positive cable, then the negative cable.
x Never connect the negative cable from the vehicle providing starting assistance to parts of the fuel system or to the brake hoses or brake lines.
x Never allow the non-insulated parts of the battery clamps to touch.
x Never allow the jumper cable attached to the positive battery terminal to contact metal parts of the vehicle.
x Check the battery acid level indicator window on the vehicle battery. Use a flashlight, never a match, cigarette lighter, or other open flame. If you cannot see the color of the window clearly, or if it is light yellow or colorless, do not jump-start the vehicle. Get expert assistance.
x Avoid electrostatic discharge in the vicinity of the vehicle battery. Sparks may cause the hydrogen gas escaping from the vehicle battery to ignite.
x Never jump-start a vehicle with a battery that is damaged or frozen or that was frozen and has thawed. The battery can explode. Replace the battery instead.
x Always follow the instructions of the jumper cable manufacturer.
x Always make sure that the battery providing starting assistance has the same voltage as the dead battery (12 V) and about the same capacity (see battery label).
x Batteries give off explosive hydrogen gas. Always keep fire, sparks, open flame and smoking materials away from batteries.
x Never connect the negative cable from the other vehicle directly to the negative terminal of the dead battery. The hydrogen gas from the battery is explosive.
x Never short out the battery terminals by connecting the positive (+) and negative (-) terminals with each other.

Towing

WARNING
Towing a vehicle changes the way it handles and brakes. To help reduce the risk of an accident and serious personal injury, note the following:
x The driver of the vehicle that is being towed:
– Since the brake booster also does not work when the engine is stopped, you will need to press harder on the brake pedal to slow down or stop. Always be alert so as not to rear-end the towing vehicle.
– Will have to use considerably more force to turn the steering wheel because the power steering is not working.
x The driver of the vehicle that is doing the towing:
– Must accelerate gradually and gently and avoid jerking movements.
– Must not brake hard or steer sharply.
– Must brake earlier and more gently than in normal driving.
NOTICE
x Be careful not to damage the paint when installing and removing the towing eye and the cover for the threaded hole behind the bumper.
x Unburned fuel can get into the catalytic converter during towing and damage it.
Towing on a commercial tow truck
ä Please first read and note the introductory information and heed the WARNINGS
To help avoid damaging the vehicle, have it towed only by a professional towing company. Read and heed the following information:
General information
Never let the vehicle be towed at speeds above 30 mph (50 km/h).
Never let the vehicle be towed for more than 30 miles (50 km).
Towing manual transmission vehicles
x Release the parking brake.
x Shift the transmission into Neutral (N).
x If possible, have the vehicle towed with the front wheels off the ground.
x If necessary, the vehicle can also be towed with the rear wheels off the ground ⇒ .
Towing automatic transmission vehicles
x Release the parking brake.
x Shift the transmission into Neutral (N).
x Tow the vehicle only with its front wheels off the ground ⇒ .
When not to tow your vehicle
If there is little or no oil in the transmission because of damage to your vehicle, it must be moved with the drive wheels off the ground. The vehicle can only be towed if its ignition is switched on and its electrical system is operating. In the following situations, the vehicle cannot be towed at all and must be transported on a flatbed truck or trailer:
