Side view

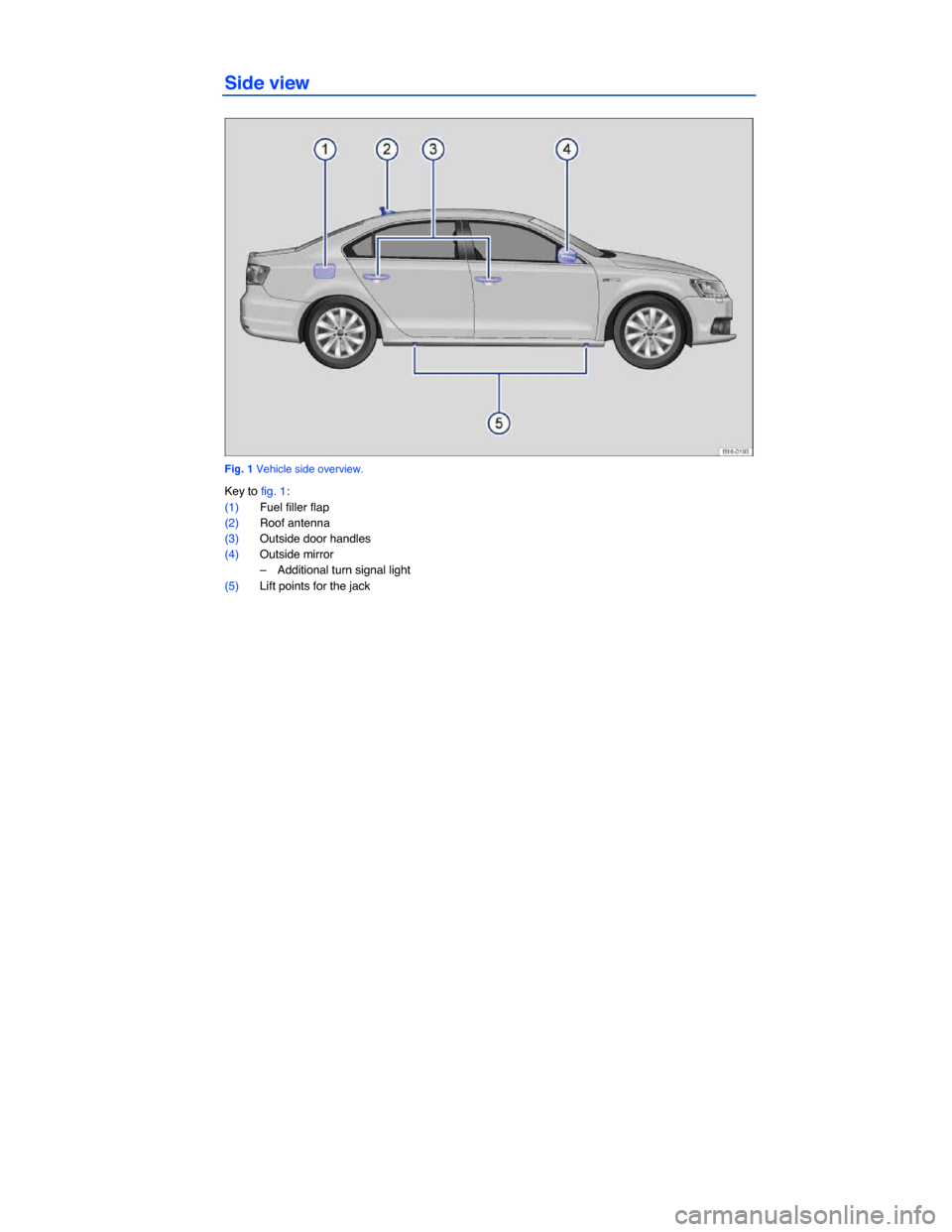

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
(5) Lift points for the jack

Front view

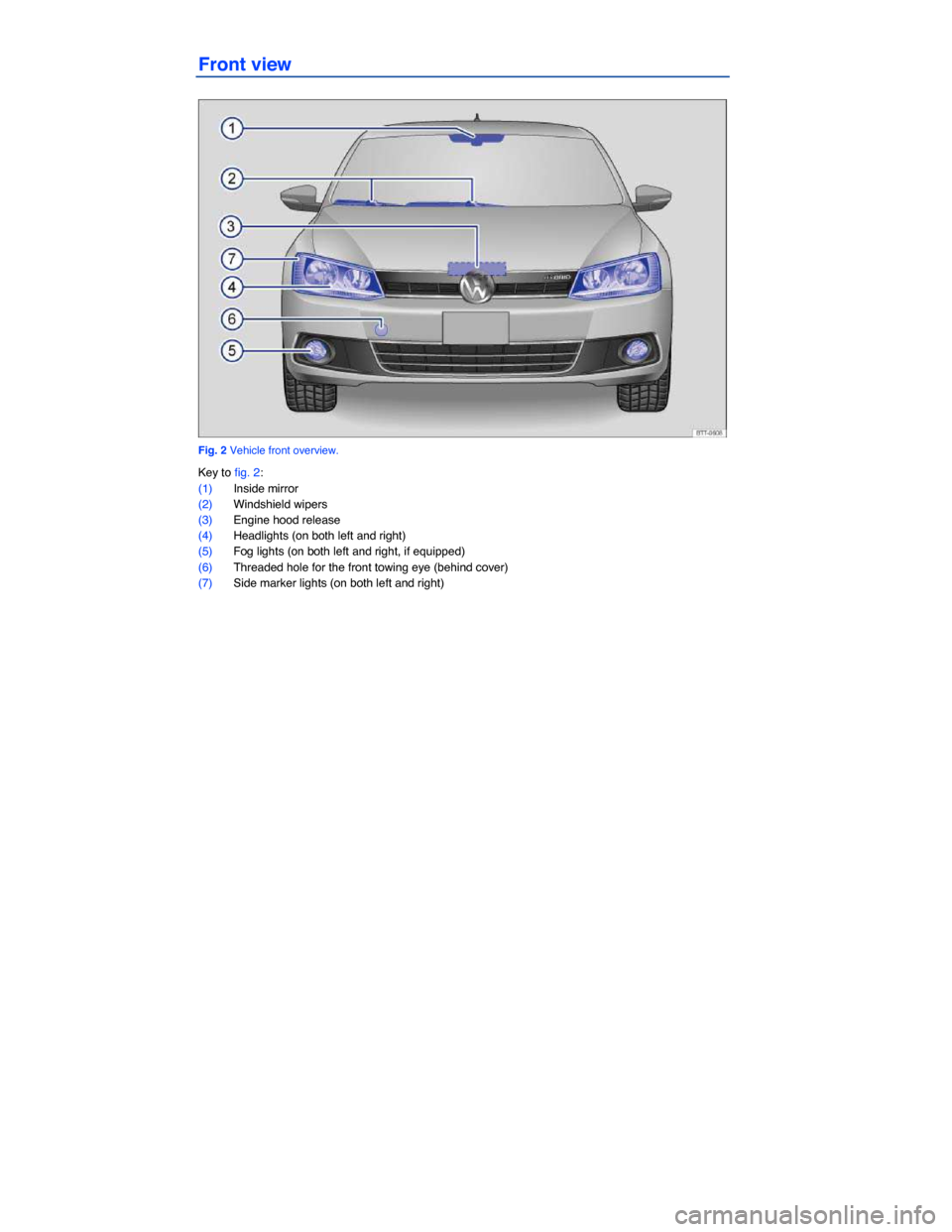

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on both left and right)
(5) Fog lights (on both left and right, if equipped)
(6) Threaded hole for the front towing eye (behind cover)
(7) Side marker lights (on both left and right)

Rear view

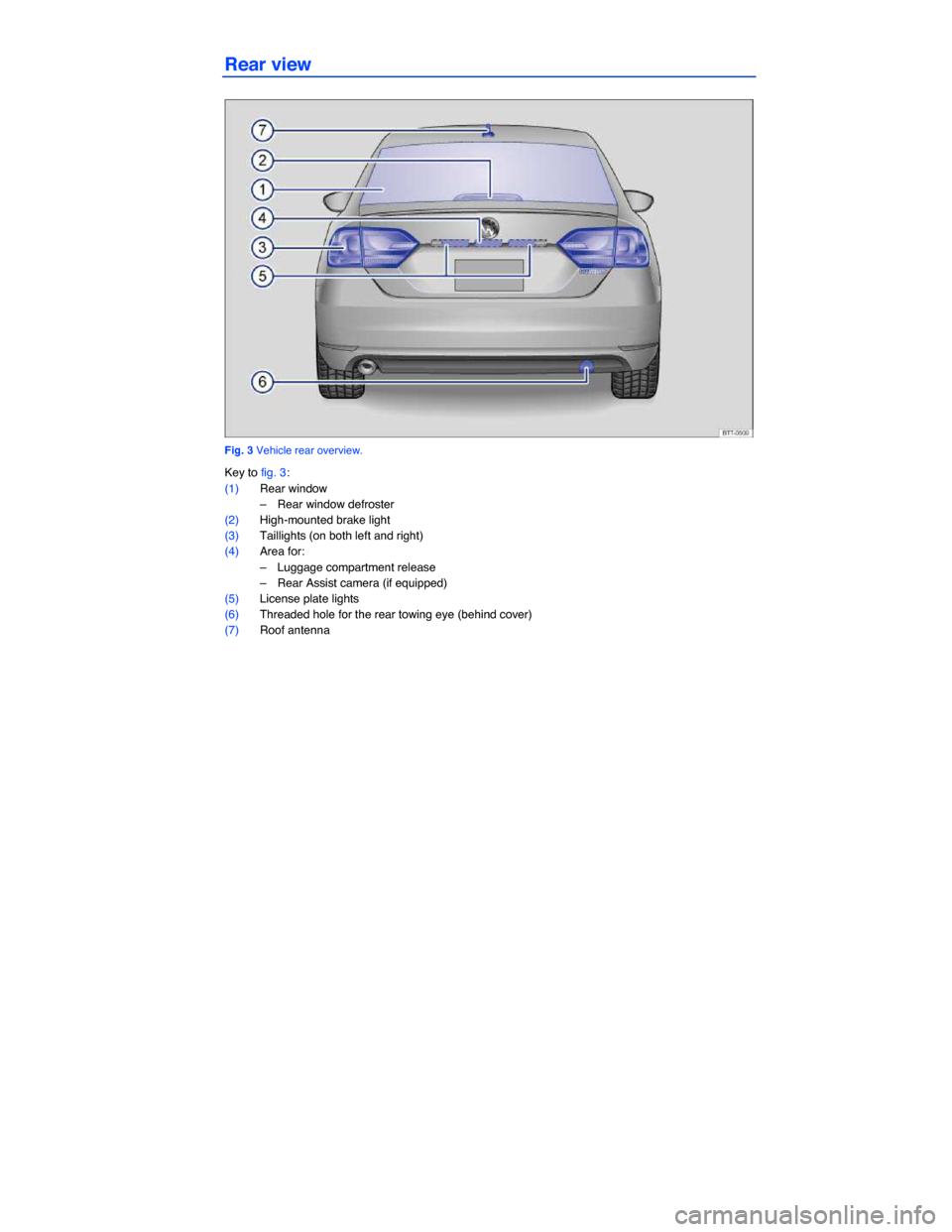

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on both left and right)
(4) Area for:
– Luggage compartment release
– Rear Assist camera (if equipped)
(5) License plate lights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Roof antenna

Driver door overview

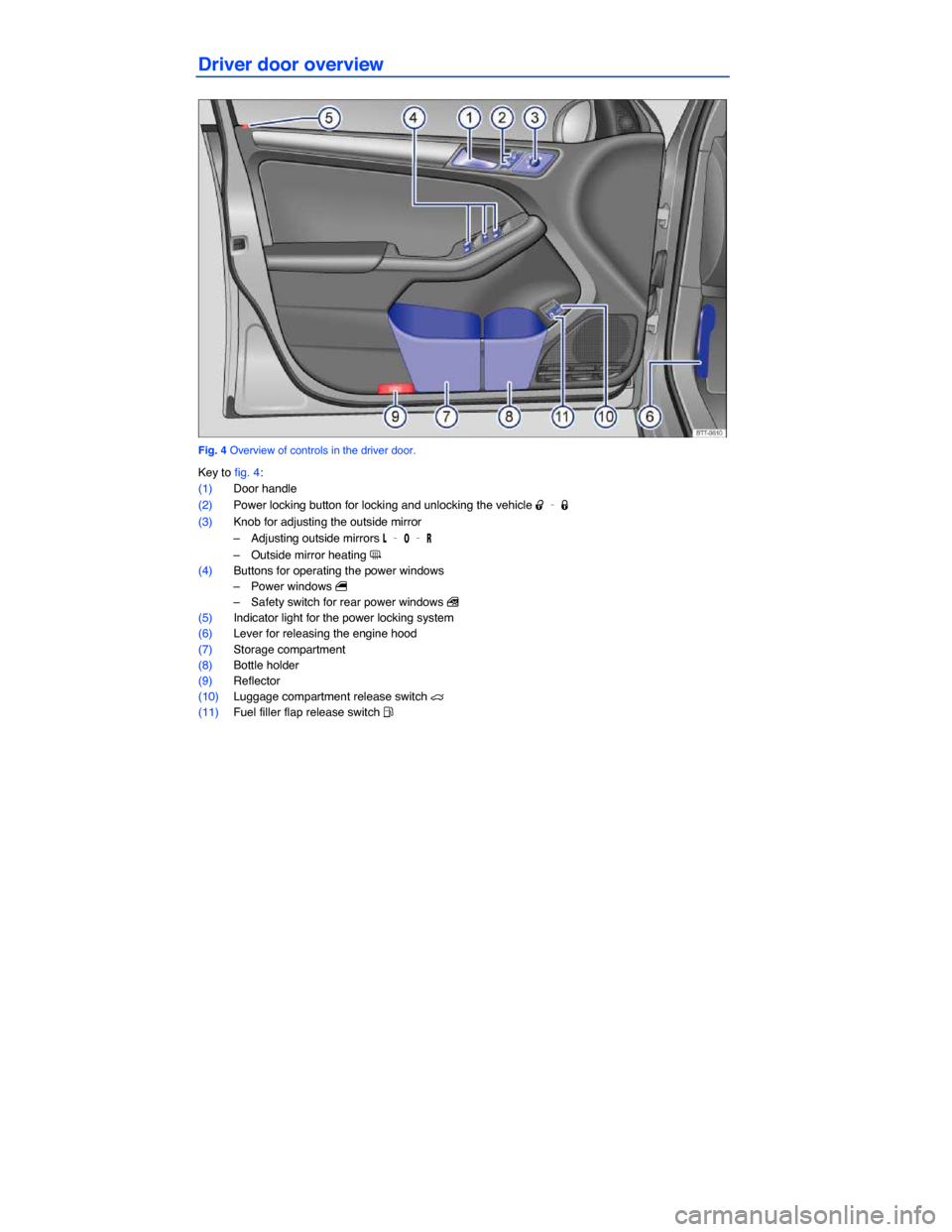

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle 0 – 1
(3) Knob for adjusting the outside mirror
– Adjusting outside mirrors , – / – 2
– Outside mirror heating ?
(4) Buttons for operating the power windows
– Power windows
– Safety switch for rear power windows _
(5) Indicator light for the power locking system
(6) Lever for releasing the engine hood
(7) Storage compartment
(8) Bottle holder
(9) Reflector
(10) Luggage compartment release switch q
(11) Fuel filler flap release switch

Driver side overview

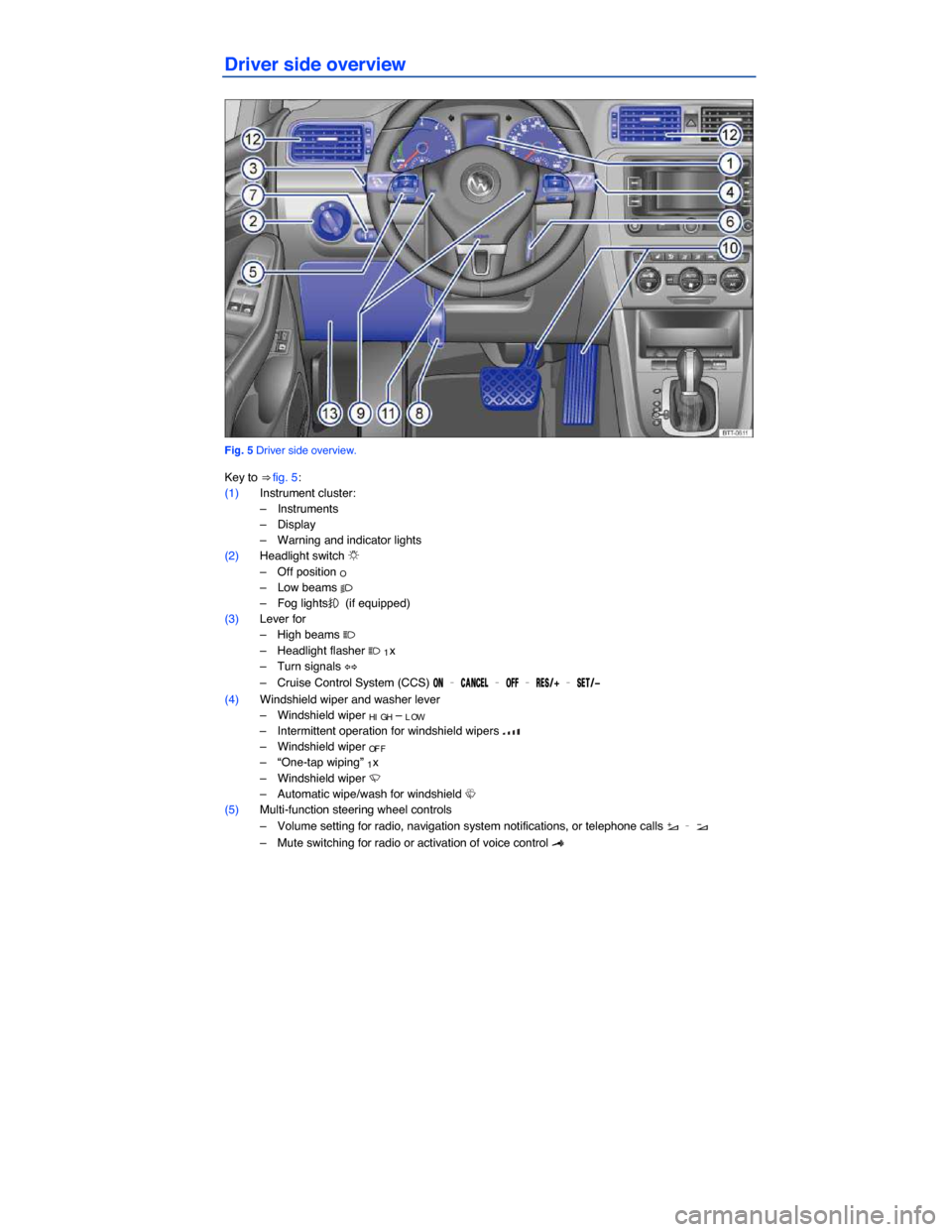

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Display Phone main menu or accept telephone calls -
– Audio, navigation

Center console overview
Upper center console

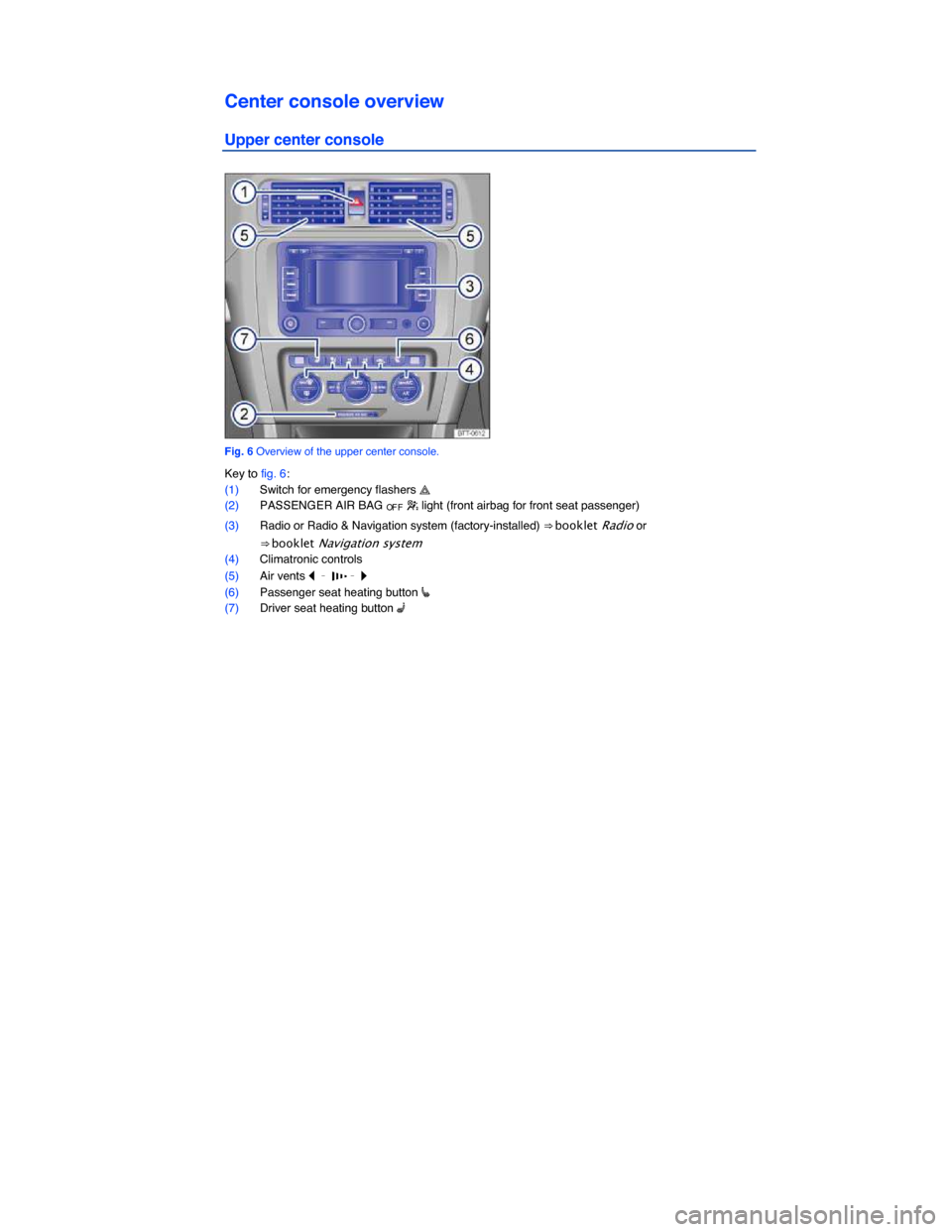

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Switch for emergency flashers
(2) PASSENGER AIR BAG OF F  light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ booklet Radio or
⇒ booklet Navigation system
(4) Climatronic controls
(5) Air vents  –

Lower center console

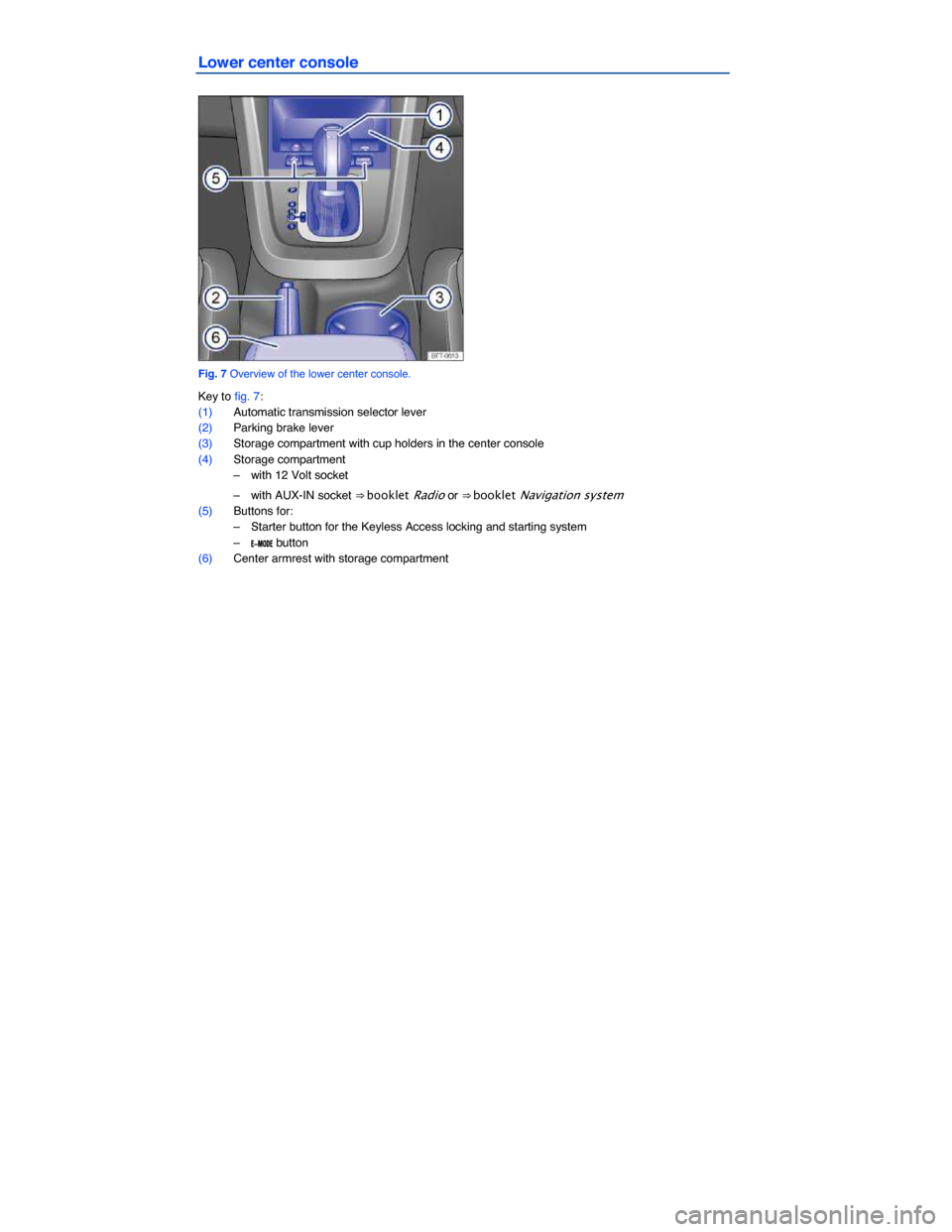

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Automatic transmission selector lever
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment
– with 12 Volt socket
– with AUX-IN socket ⇒ booklet Radio or ⇒ booklet Navigation system
(5) Buttons for:
– Starter button for the Keyless Access locking and starting system
– %

Front passenger side overview

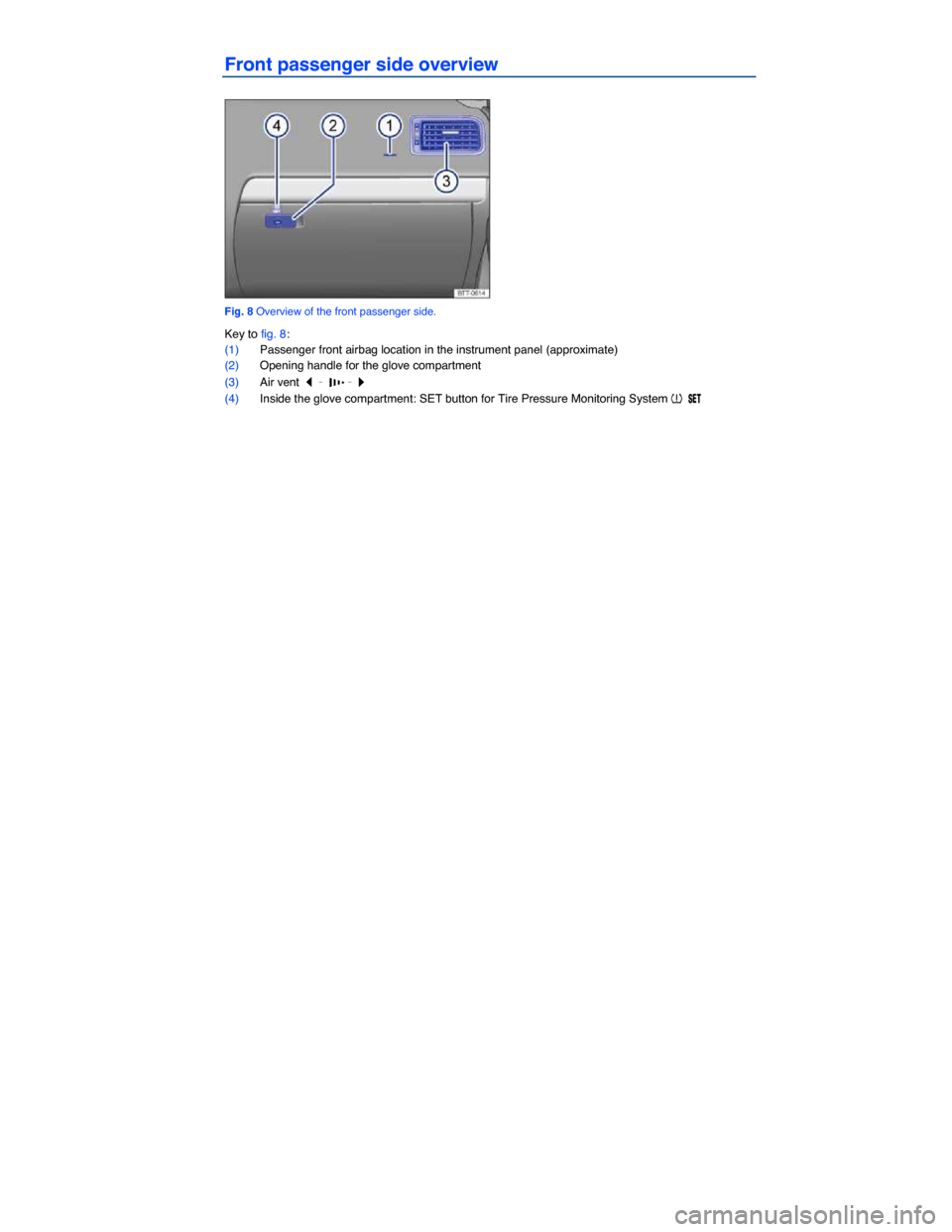

Fig. 8 Overview of the front passenger side.
Key to fig. 8:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the glove compartment
(3) Air vent  –

Symbols on the roof console

Symbol Meaning
* / s  Interior and reading lights
g c h Power sunroof

/ a 3-button module (if equipped) ⇒ booklet Mobile Phone Package.
