VOLKSWAGEN PASSAT 2014 B8 / 6.G Owners Manual

Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
(5) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Sensor on mirror base for:
– Low-light sensor
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on both left and right)
(5) Fog lights / static cornering lights (on both left and right)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on both left and right)
(4) Luggage compartment release
(5) License plate lights
(6) Roof antenna

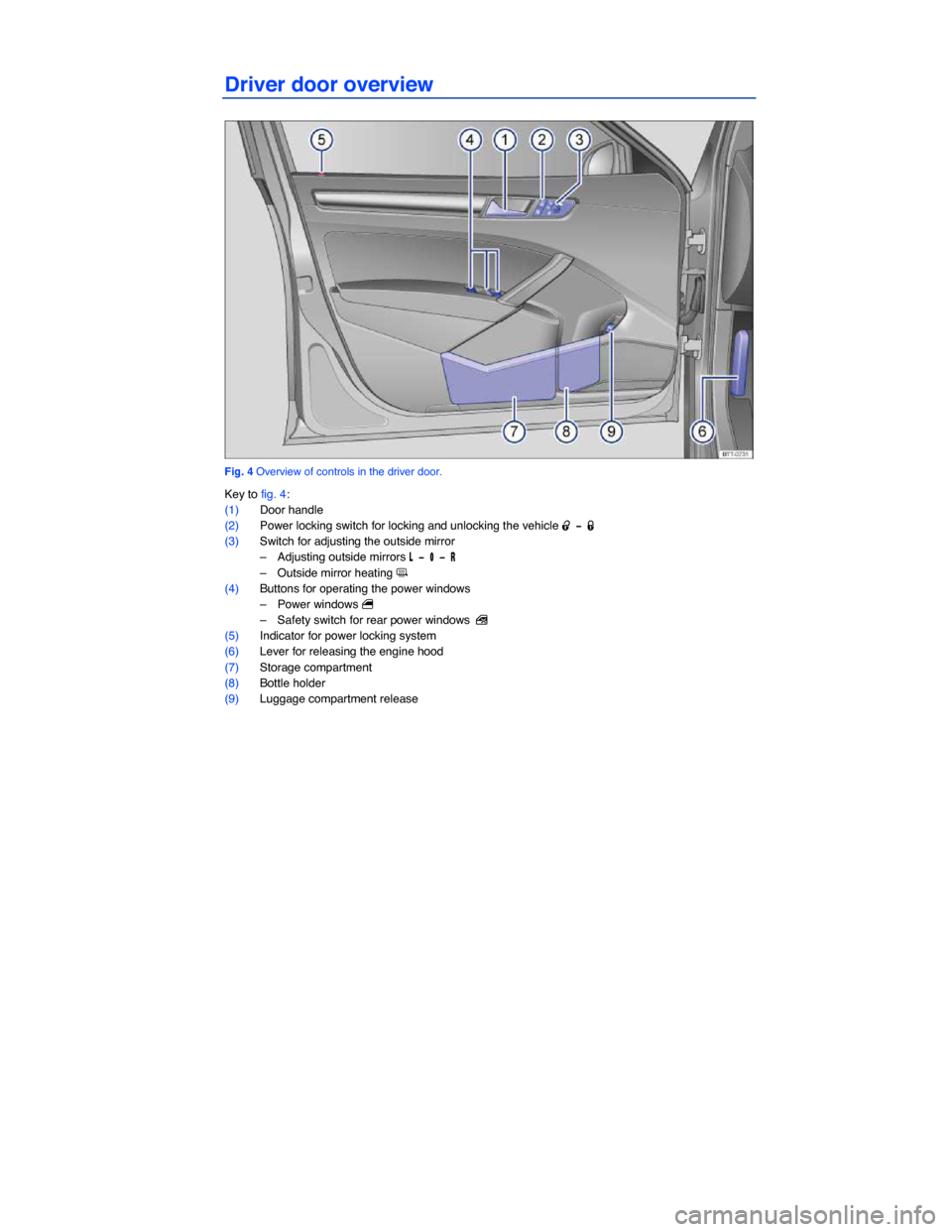

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking switch for locking and unlocking the vehicle 0

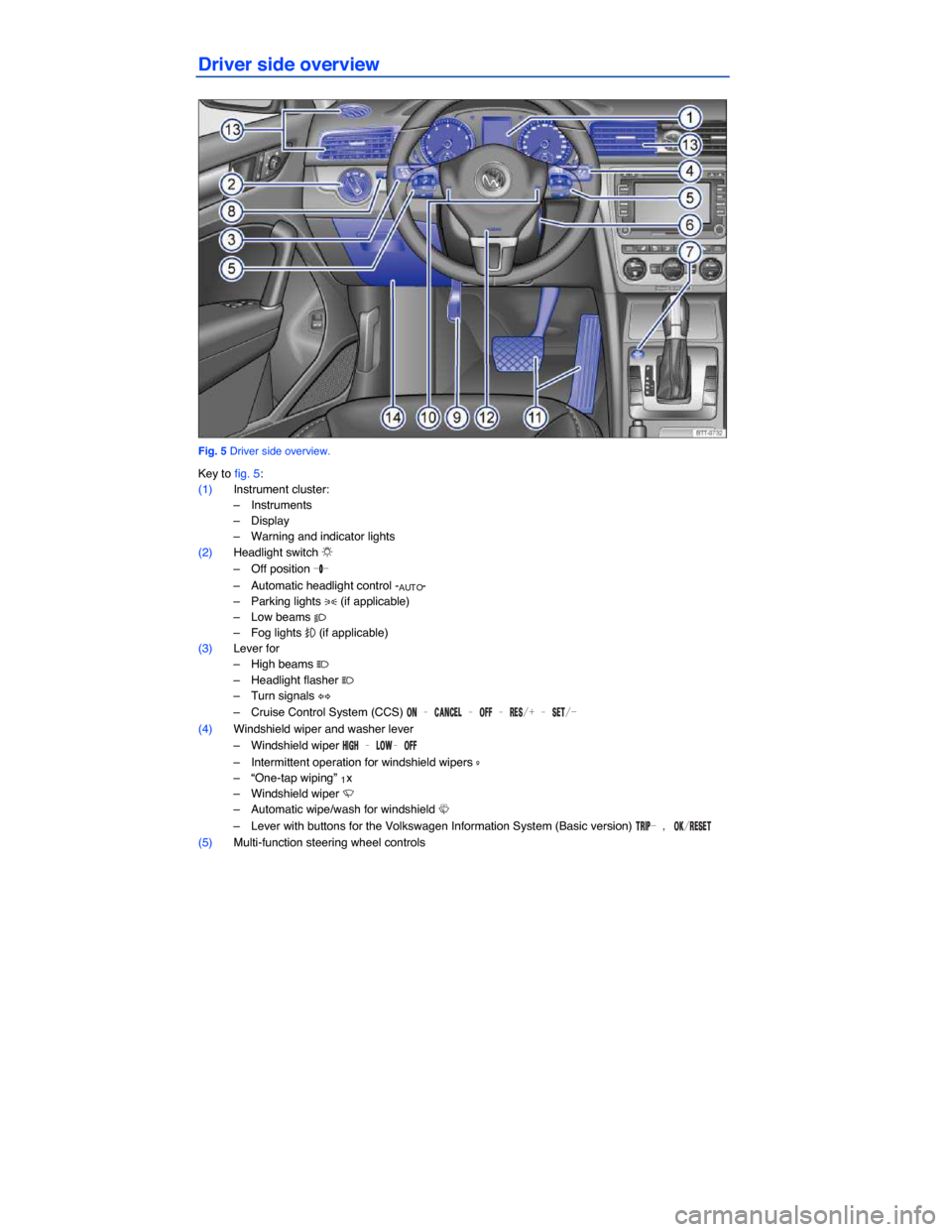

Driver side overview

Fig. 5 Driver side overview.
Key to fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Volume setting for radio, navigation system notifications, or telephone calls (if applicable) & – '
– Mute switching for radio or activation of voice control (if applicable)

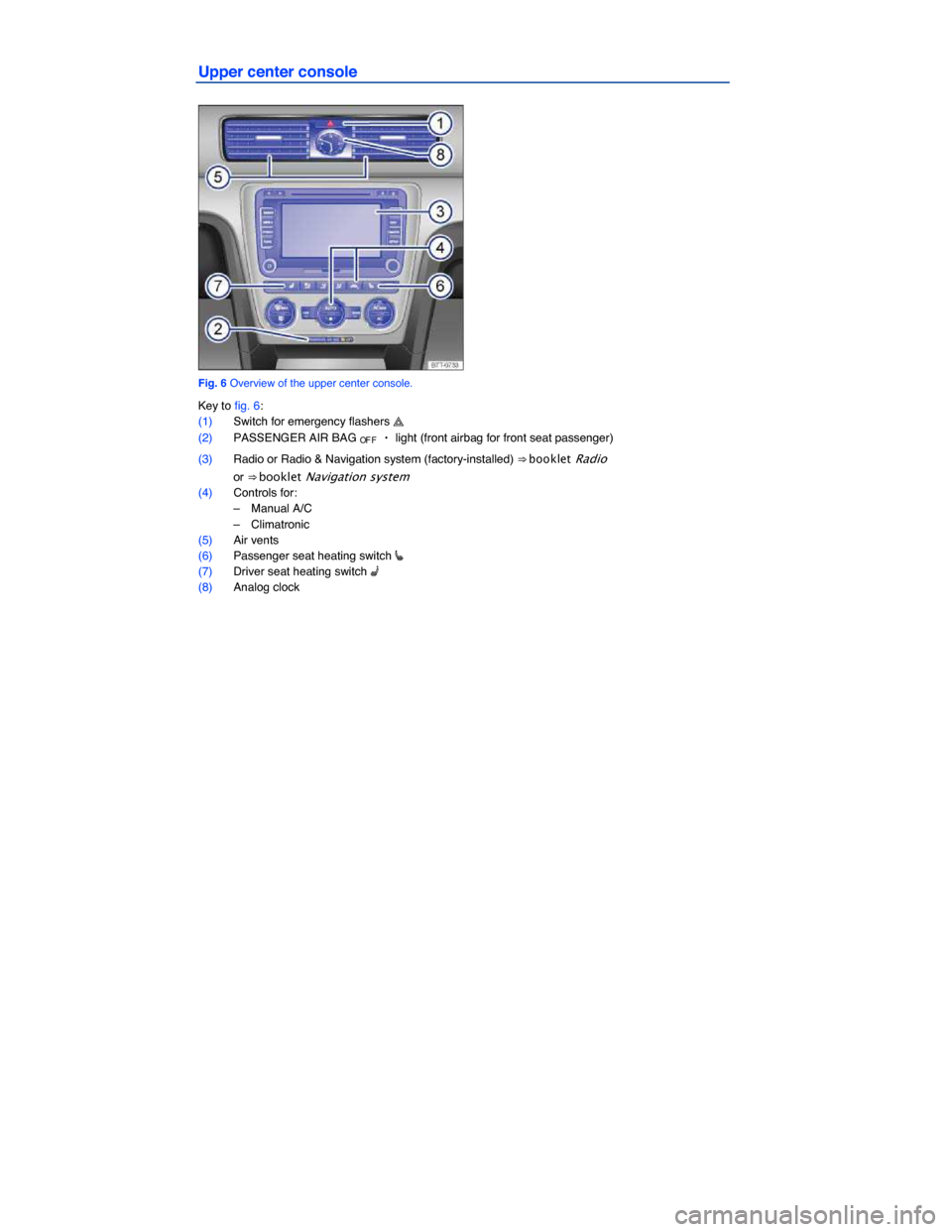

Upper center console

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Switch for emergency flashers
(2) PASSENGER AIR BAG OF F

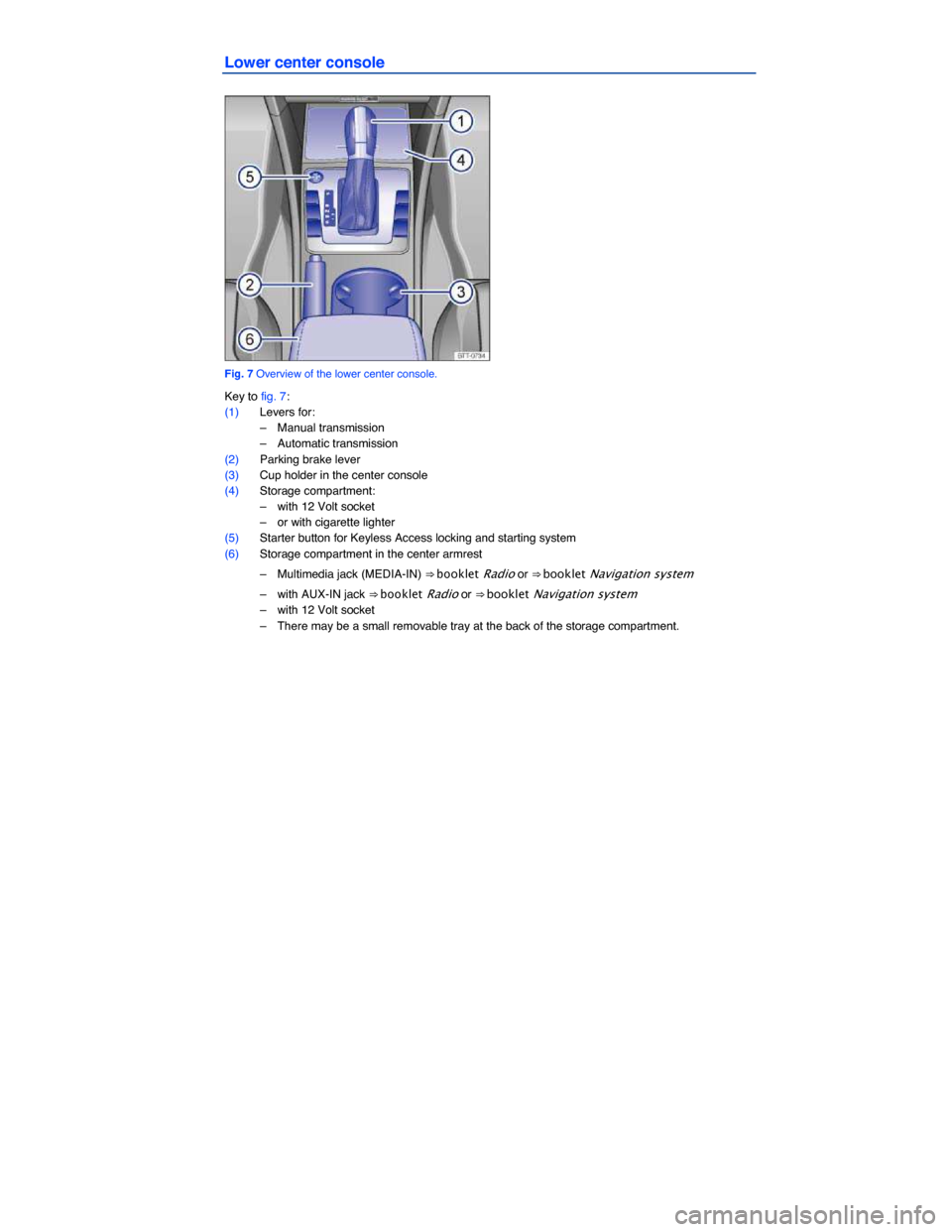

Lower center console

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Levers for:
– Manual transmission
– Automatic transmission
(2) Parking brake lever
(3) Cup holder in the center console
(4) Storage compartment:
– with 12 Volt socket
– or with cigarette lighter
(5) Starter button for Keyless Access locking and starting system
(6) Storage compartment in the center armrest
– Multimedia jack (MEDIA-IN) ⇒ booklet Radio or ⇒ booklet Navigation system
– with AUX-IN jack ⇒ booklet Radio or ⇒ booklet Navigation system
– with 12 Volt socket
– There may be a small removable tray at the back of the storage compartment.

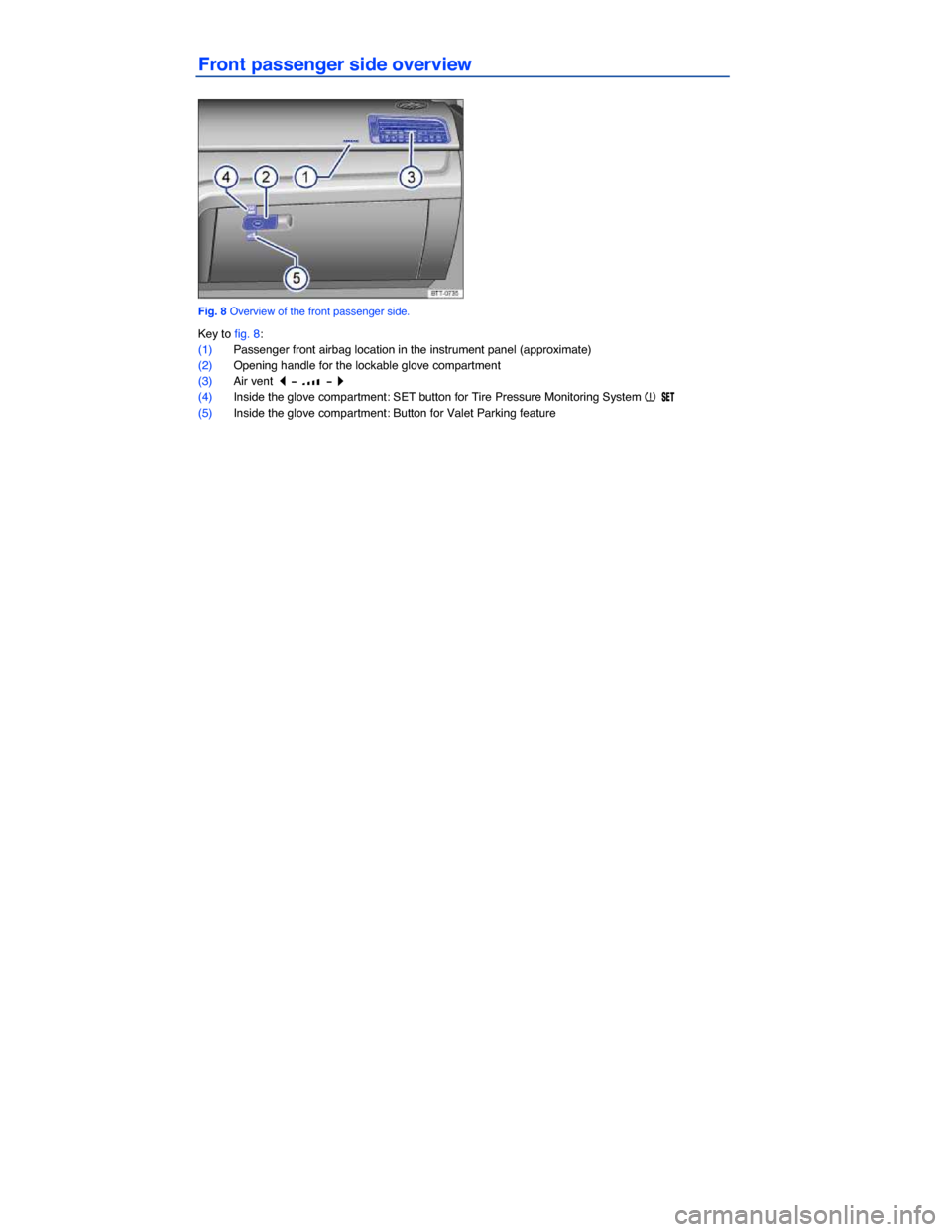

Front passenger side overview

Fig. 8 Overview of the front passenger side.
Key to fig. 8:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the lockable glove compartment
(3) Air vent

Symbols on the roof console and sun visor

Symbol Meaning
*   s  Interior and reading lights
 c h Power sunroof
1 2 3 HomeLink® Universal Transmitter
