VOLKSWAGEN PASSAT CC 2013 1.G Owners Manual

Side view

Fig. 1 Vehicle side overview.
Key to ⇒ fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
– Background lighting
(5) Park Distance Control (PDC) sensors (if applicable)
(6) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to ⇒ fig. 2:
(1) Windshield
(2) Windshield wipers
(3) Engine hood
(4) Engine hood release
(5) Headlights
(6) Headlight washers
(7) Fog lights/static cornering lights
(8) Park Distance Control (PDC) sensors (if applicable)
(9) Front license plate bracket
(10) Threaded hole for the front towing eye (behind cover)
(11) Sensor on mirror base for:
– Rain sensor
– Low-light sensor

Rear view

Fig. 3 Vehicle rear overview.
Key to ⇒ fig. 3:
(1) Roof antenna
(2) High-mounted brake light
(3) Rear window
– Rear window defroster
– Rear window antenna
(4) Taillights ,
(5) Volkswagen emblem. Area for:
– Luggage compartment release
– Rear Assist camera
(6) Threaded hole for the rear towing eye (behind cover)
(7) Park Distance Control (PDC) sensors (if applicable)
(8) Area for attaching a trailer hitch
(9) Rear license plate bracket
(10) Luggage compartment lid

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle 0 – 1
(3) Indicator light for anti-theft alarm system
(4) Fuel filler flap release
(5) Lever for releasing the engine hood
(6) Key switch for locking the luggage compartment lid .
(7) Luggage compartment release switch q
(8) Switch for adjusting the outside mirror
– Adjusting outside mirrors ,

Driver side overview

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Headlight switch

– Intermittent operation for windshield wipers z
– Windshield wiper /&&
– “One-tap wiping” x
– Windshield wiper U
– Automatic wipe/wash for windshield W
(7) Ignition switch
(8) Pedals
(9) Lever for adjustable steering wheel
(10) Driver front airbag
(11) Horn (only works when the ignition is switched on)
(12) Storage compartment
(13) Lever for:
– Cruise Control System (CCS) /. – #!.#%, – /&& – 2%3

Center console overview
Upper center console

Fig. 6 Overview of the upper center console.
Key to ⇒ fig. 6:
(1) Air vent for indirect ventilation .
(2) Air vents

Lower center console

Fig. 7 Overview of the lower center console.
Key to ⇒ fig. 7:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) Storage compartment
– with 12 Volt socket
(3) Storage compartment with cup holder in the center console
(4) Storage compartment in the center armrest
(5) Buttons for:
– Electronic parking brake G
– Anti-slip regulation (ASR) m
– Rear window sunshade j
– Park Distance Control (ParkPilot) '

Front passenger side overview

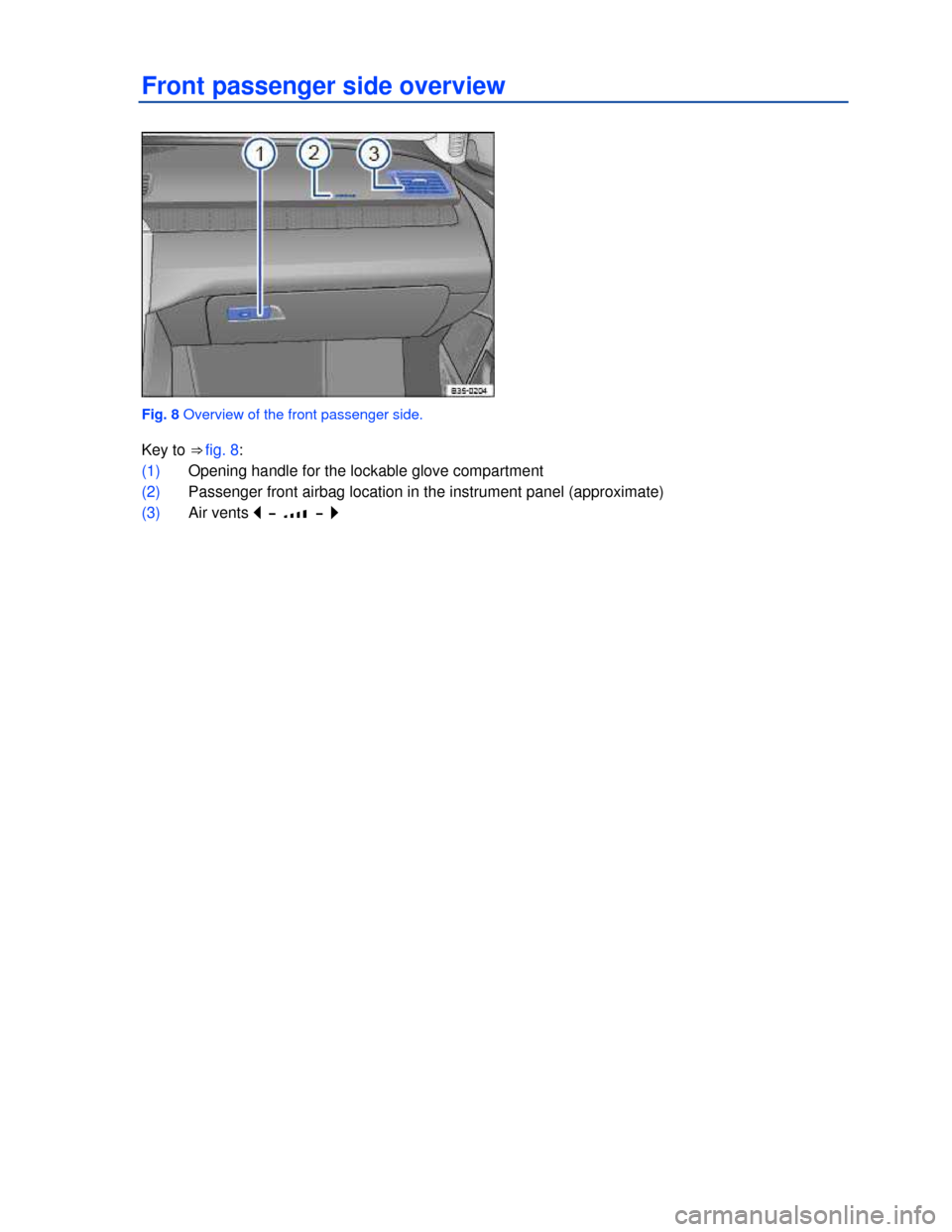

Fig. 8 Overview of the front passenger side.
Key to ⇒ fig. 8:
(1) Opening handle for the lockable glove compartment
(2) Passenger front airbag location in the instrument panel (approximate)
(3) Air vents

Symbols on the roof console and sun visor

Symbol Meaning
*  / s  Interior and reading lights
¯h Power sunroof.
a
/ Three-button module ⇒ Booklet Mobile Phone Package.
1 2 3 HomeLink® Universal Transmitter
