Side view

Fig. 1 Vehicle side overview.
Key to ⇒ fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
– Background lighting
(5) Lift points for the jack
(6) Park Distance Control (PDC) sensors (if equipped)

Front view

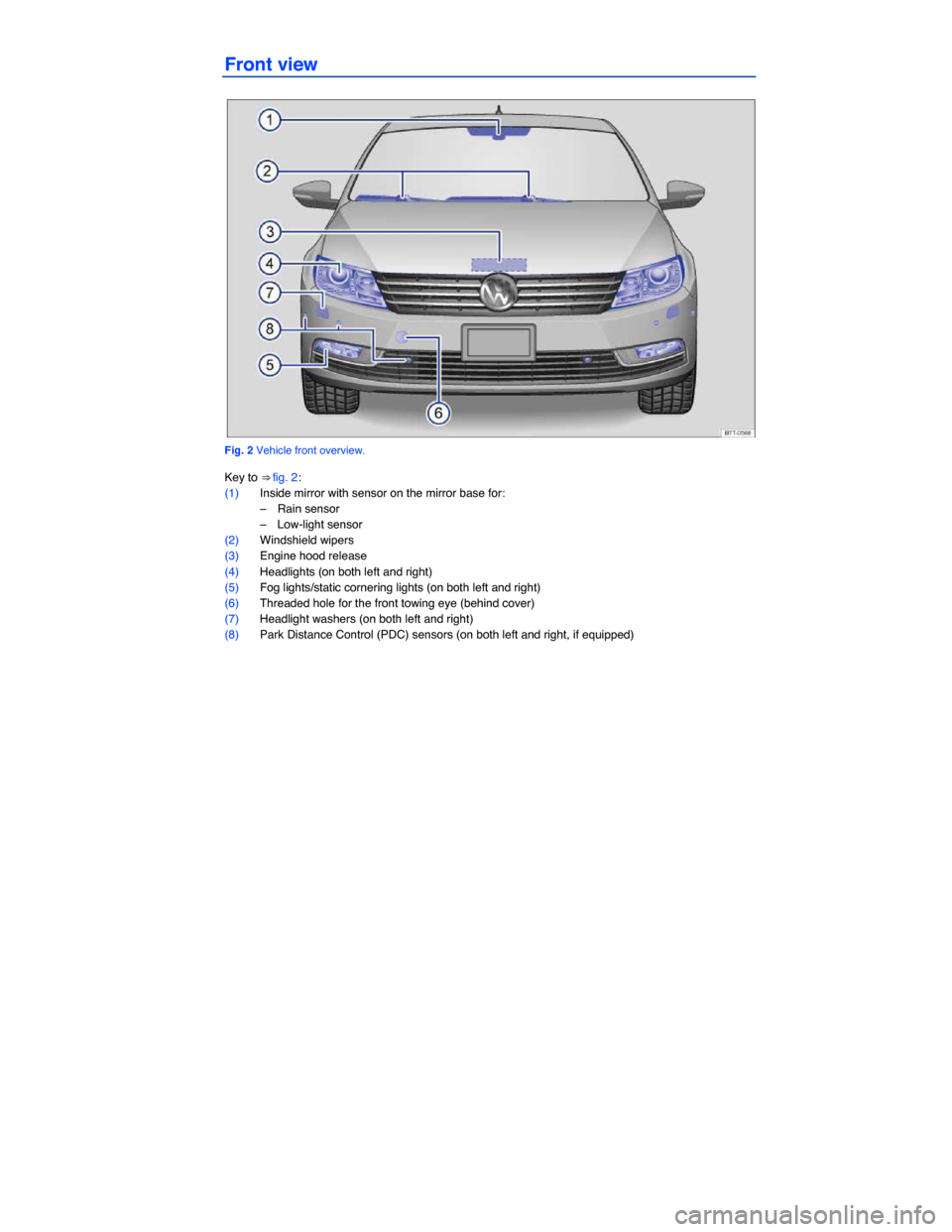

Fig. 2 Vehicle front overview.
Key to ⇒ fig. 2:
(1) Inside mirror with sensor on the mirror base for:
– Rain sensor
– Low-light sensor
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on both left and right)
(5) Fog lights/static cornering lights (on both left and right)
(6) Threaded hole for the front towing eye (behind cover)
(7) Headlight washers (on both left and right)
(8) Park Distance Control (PDC) sensors (on both left and right, if equipped)

Rear view

Fig. 3 Vehicle rear overview.
Key to ⇒ fig. 3:
(1) Rear window
– Rear window defroster
– Rear window antenna
(2) High-mounted brake light
(3) Taillights (on both left and right) ,
(4) Volkswagen emblem. Area for:
– Luggage compartment release
– Rear Assist camera (if equipped)
(5) Threaded hole for the rear towing eye (behind cover)
(6) Roof antenna
(7) Park Distance Control (PDC) sensors (on both left and right, if equipped)
(8) Area for attaching a trailer hitch

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle 0 – 1
(3) Knob for adjusting the outside mirrors
– Adjusting outside mirrors ,

Driver side overview

Fig. 5 Driver side overview.
Key to ⇒ fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Mute switching for radio or activation of voice control
– Display Phone main menu or accept telephone calls -
– Audio, Navigation

Center console overview
Upper center console

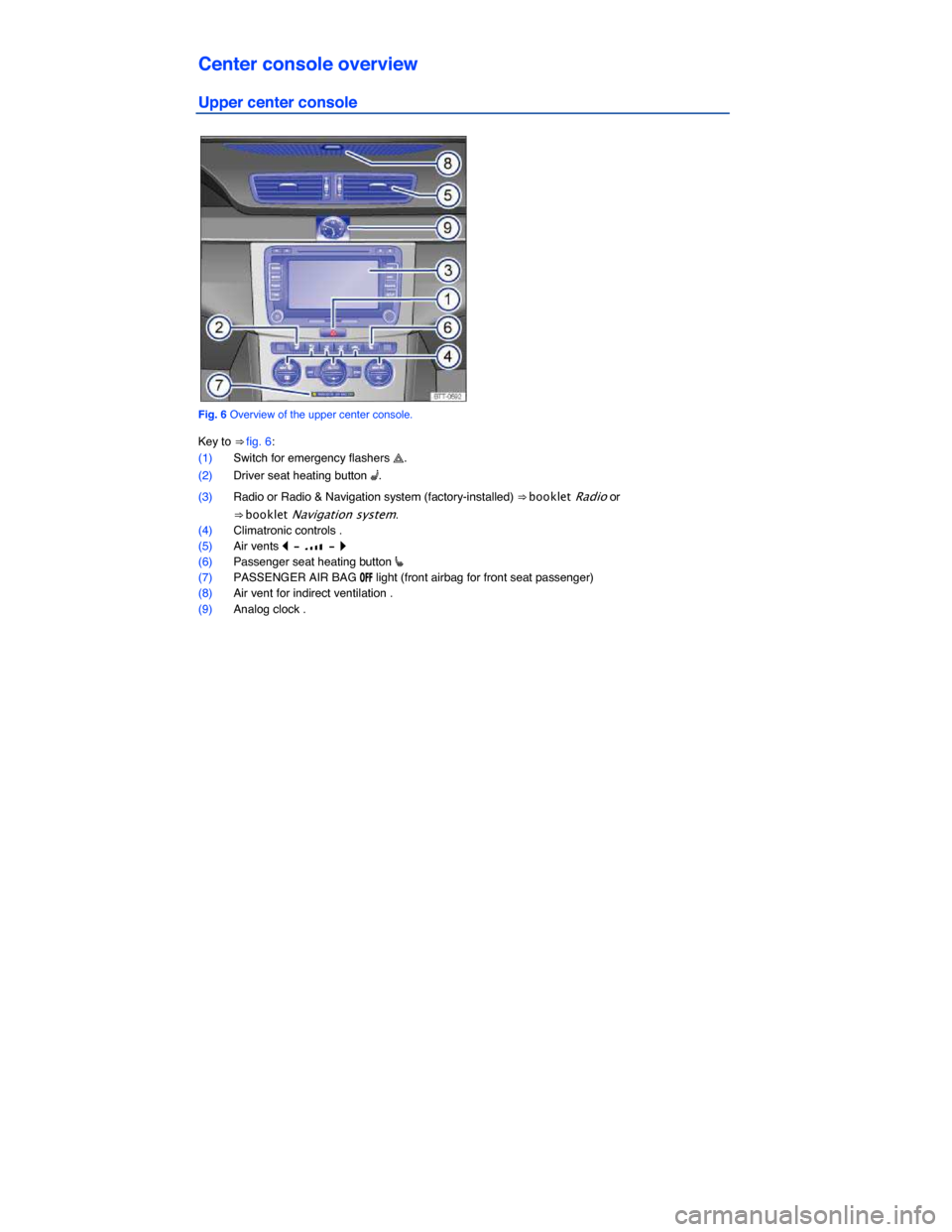

Fig. 6 Overview of the upper center console.
Key to ⇒ fig. 6:
(1) Switch for emergency flashers .
(2) Driver seat heating button A.
(3) Radio or Radio & Navigation system (factory-installed) ⇒ booklet Radio or
⇒ booklet Navigation system.
(4) Climatronic controls .
(5) Air vents

Lower center console

Fig. 7 Overview of the lower center console.
Key to ⇒ fig. 7:
(1) Lever for:
– Manual transmission
– Automatic transmission
(2) Storage compartment with cup holders in the center console
(3) Storage compartment in the center armrest
(4) Buttons for:
– Starter button (vehicles with Keyless Access locking and starting system)
– Electronic parking brake G
– Anti-slip regulation (ASR) m
– Rear window sunshade j
– Park Distance Control (ParkPilot) '
(5) Storage compartment
– with 12 Volt socket

Front passenger side overview

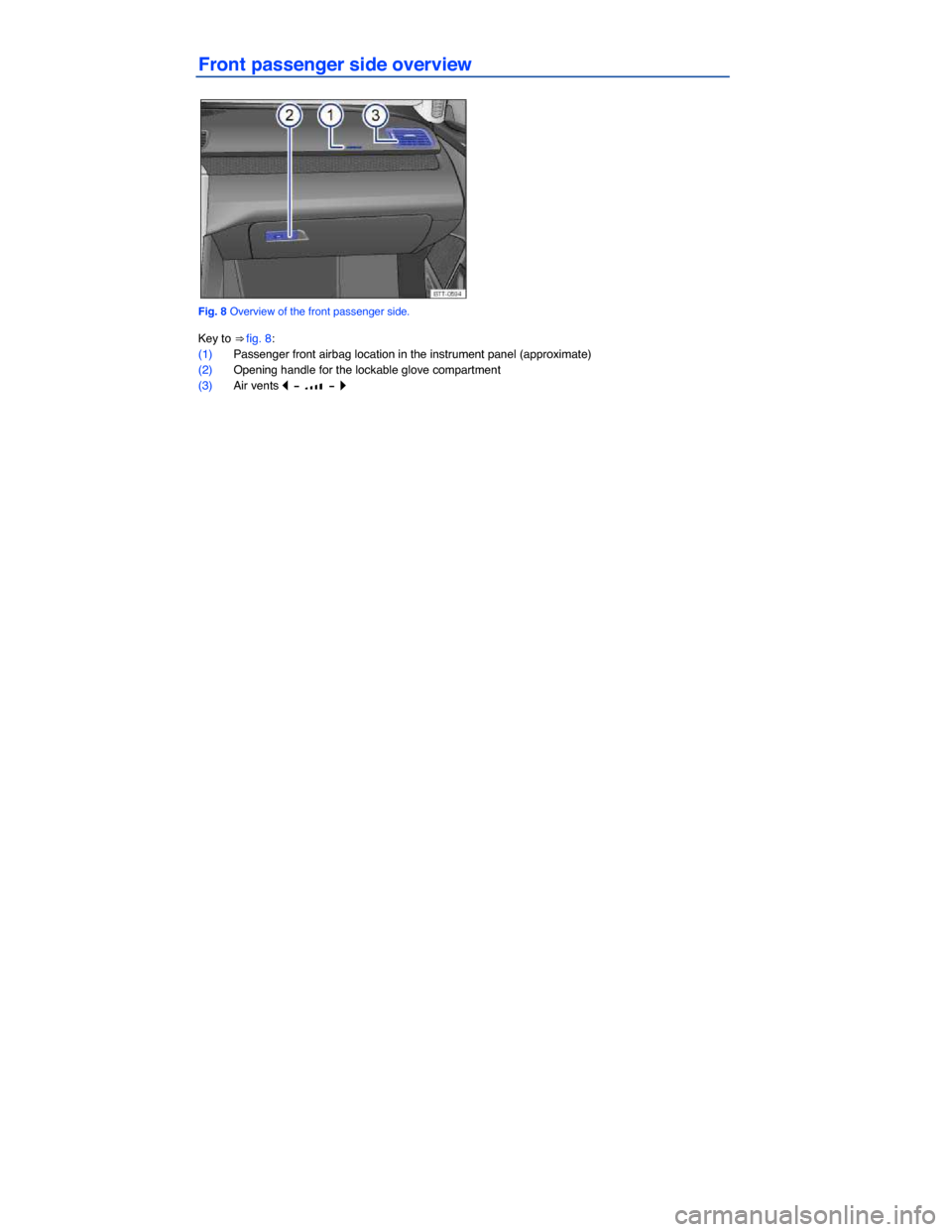

Fig. 8 Overview of the front passenger side.
Key to ⇒ fig. 8:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the lockable glove compartment
(3) Air vents

Symbols on the roof console and sun visor

Symbol Meaning
* / s  Interior and reading lights
h Power sunroof
