Lights up Possible cause Proper response

One or more driving lights not working or cornering light malfunction. Replace burned out bulb
Cornering light malfunction. If all light bulbs are OK, see an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Adaptive Front Lighting System (AFS) malfunction.
Fog lights switched on (indicator light on the headlight switch). Refer to 2014 owners manual



Left or right turn signal. The indicator light blinks twice as fast if a turn signal is not working on the vehicle or the trailer.
Check the turn signals on the vehicle and the trailer.
 Daytime running lights (DRL) on. Refer to 2014 owners manual
$2,
 High beams switched on or headlight flashers in use. Refer to 2014 owners manual

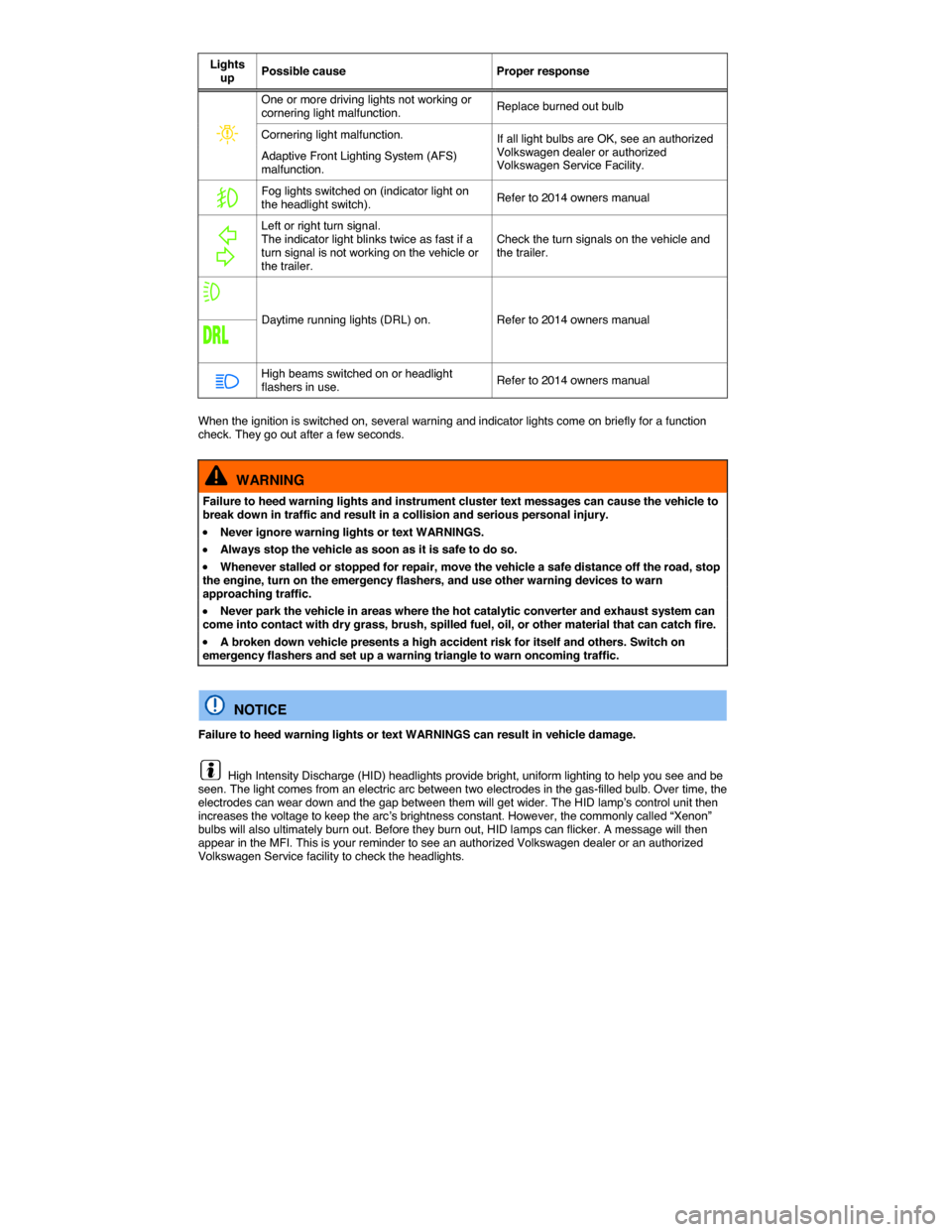

When the ignition is switched on, several warning and indicator lights come on briefly for a function check. They go out after a few seconds.
WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
x Whenever stalled or stopped for repair, move the vehicle a safe distance off the road, stop the engine, turn on the emergency flashers, and use other warning devices to warn approaching traffic.
x Never park the vehicle in areas where the hot catalytic converter and exhaust system can come into contact with dry grass, brush, spilled fuel, oil, or other material that can catch fire.
x A broken down vehicle presents a high accident risk for itself and others. Switch on emergency flashers and set up a warning triangle to warn oncoming traffic.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
High Intensity Discharge (HID) headlights provide bright, uniform lighting to help you see and be seen. The light comes from an electric arc between two electrodes in the gas-filled bulb. Over time, the electrodes can wear down and the gap between them will get wider. The HID lamp’s control unit then increases the voltage to keep the arc’s brightness constant. However, the commonly called “Xenon” bulbs will also ultimately burn out. Before they burn out, HID lamps can flicker. A message will then appear in the MFI. This is your reminder to see an authorized Volkswagen dealer or an authorized Volkswagen Service facility to check the headlights.

Turn signal lever and high beam switch

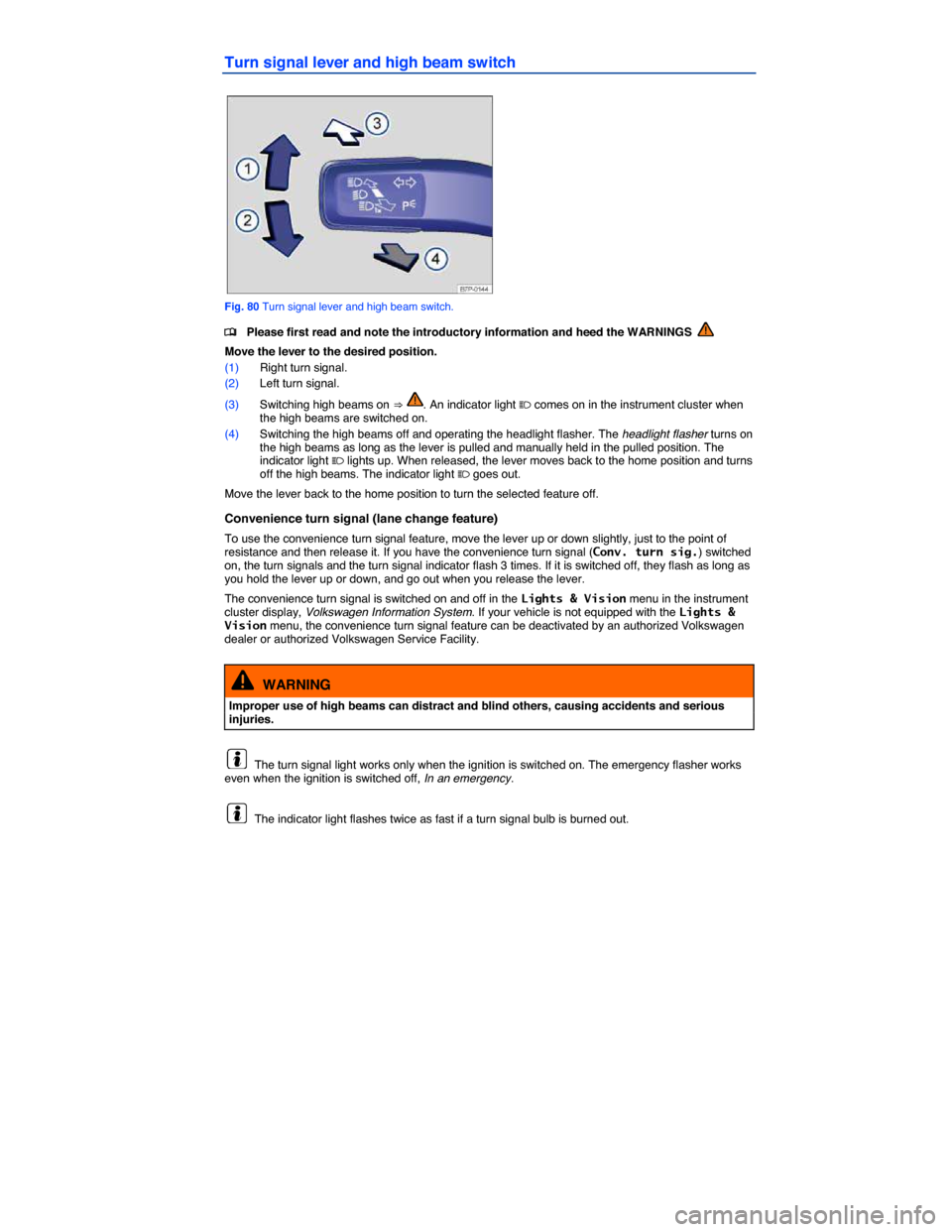

Fig. 80 Turn signal lever and high beam switch.

High beams can only be switched on when the low beams are on.
Switching lights on and off

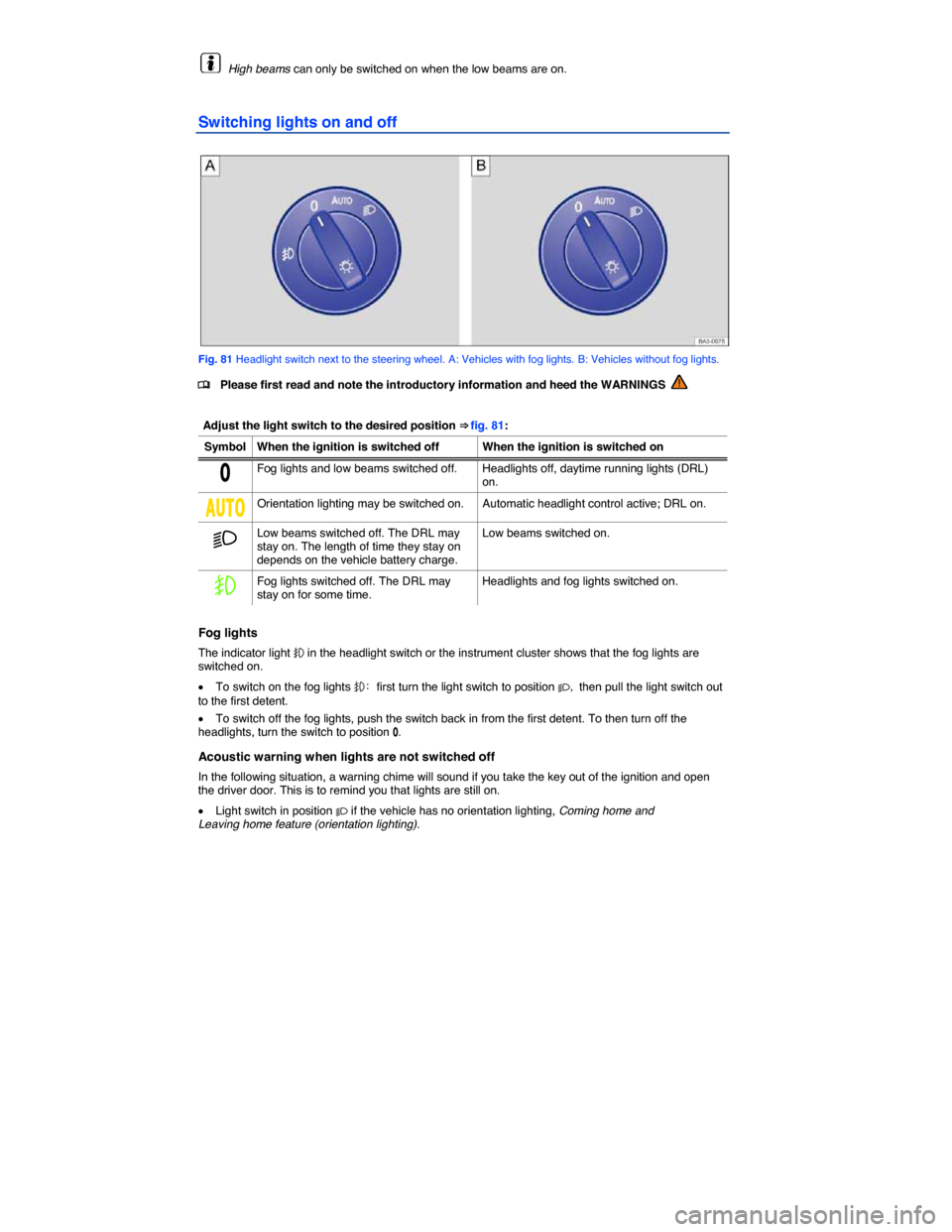

Fig. 81 Headlight switch next to the steering wheel. A: Vehicles with fog lights. B: Vehicles without fog lights.

WARNING
Daytime running lights are not bright enough to let you see ahead or be seen by others when it is dark.
x Always switch on the low-beam headlights at dusk or when it is dark and whenever the weather is bad or visibility is poor.
x Never use the daytime running lights to see where you are going. They are not bright enough and will not let you see far enough ahead for safety, especially at dusk or when it is dark. Always switch on the low-beam headlights at dusk or when it is dark.
x The taillights do not come on with the daytime running lights. Unless the taillights are on, a vehicle cannot be seen by others in bad weather, at dusk, or when it is dark.
x Even if automatic headlight control (AUTO) is switched on, the low-beam headlights may still not come on by themselves in fog or heavy rain. You have to switch on the low-beam headlights manually.
In cool or humid weather, the insides of the headlights, the rear lights, and turn signals can temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.
Applicable only in the United States
Lights and vision features

when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog light comes on. The light dims and goes out when the steering wheel is straightened out again.
When you move the selector lever to Reverse (R), the static cornering lights on both sides of the vehicle may come on so that you can see the area around the vehicle better when backing up.
The static cornering lights work only when the headlights are on. If you are using automatic headlight
control (headlight switch in the !54/ position ⇒ fig. 81), they work only when the headlights have been automatically switched on. The static cornering lights do not come on when the headlight switch is in the O position or when the fog lights themselves have been switched on, Switching lights on and off.
Automatic headlight control (AUTO)
Automatic headlight control is a convenience feature only and cannot always recognize all lighting and driving situations.
If the light switch is in the !54/ position, both vehicle lighting and instrument and switch lighting are
automatically switched on and off in the following situations ⇒ :

Automatic activation: Automatic deactivation:
If the low-light sensor registers darkness, for example when driving through a tunnel. If sufficient brightness is registered.
If the rain sensor recognizes rain and switches the windshield wipers on. If the windshield wipers have not moved for several minutes.
Adaptive Front Lighting System (AFS)
The Adaptive Front Lighting System works only with the low beams switched on and only at speeds above about 6 mph (10 km/h). The swivel-mounted lamps automatically improve road illumination during cornering.
On vehicles equipped with the Adaptive Front Lighting System, the feature is switched on and off via the Assistants menu in the instrument cluster display, Volkswagen Information System.
WARNING
Crashes and other accidents can happen when you cannot see the road ahead and when you cannot be seen by other motorists.
x Never use daytime running lights (DRL) to see where you are going. DRL are not bright enough to light up the roadway and be seen by other motorists. You will not be able to see far enough ahead for safety, especially at dusk or when it is dark. Always switch on the low-beam headlights at dusk or when it is dark.
x The taillights do not come on when the daytime running lights are switched on. A vehicle without taillights on cannot be seen by others in bad weather, at dusk, or when it is dark.
x If automatic headlight control (AUTO) is switched on, the low-beam headlights still may not be switched on in fog or heavy rain. You have to switch on the low-beam headlights yourself.
In cool or humid weather, the insides of the headlights, the rear lights, and turn signals can temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.
Applicable only in Canada
Lights and vision features

Daytime running lights (DRL)
Separate lamps are installed in the headlights or in the front bumper for the daytime running lights (DRL).
When the daytime running lights are switched on, only these separate lamps come on ⇒ .
The daytime running lights are switched on whenever the ignition is switched on and the light switch is in position / or !54/. The indicator light  or $2, may come on in the instrument cluster to indicate that the feature is active, Indicator lights.
If the light switch is in position !54/, a low-light sensor switches the low beams as well as the instrument and switch lighting on and off automatically.
Static cornering lights
Your vehicle may have fog lights under the front bumper, which on some models are also static cornering lights. On some models the static cornering lights may be integrated in the headlights. At speeds below about 25 mph (40 km/h), the light on one side of the vehicle will come on automatically when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog light comes on. The light dims and goes out when the steering wheel is straightened out again.
When you move the selector lever to Reverse (R), the static cornering lights on both sides of the vehicle may come on so that you can see the area around the vehicle better when backing up.
The static cornering lights work only when the headlights are on. If you are using automatic headlight
control (headlight switch in the !54/ position ⇒ fig. 81), they work only when the headlights have been automatically switched on. The static cornering lights do not come on when the headlight switch is in the / position or when the fog lights themselves have been switched on, Switching lights on and off.
Automatic headlight control (AUTO)
Automatic headlight control is a convenience feature only and cannot always recognize all lighting and driving situations.
If the light switch is in the !54/ position, both vehicle lighting and instrument and switch lighting are
automatically switched on and off in the following situations ⇒ :

Automatic activation: Automatic deactivation:
If the low-light sensor registers darkness, for example when driving through a tunnel. If sufficient brightness is registered.
If the rain sensor recognizes rain and switches the windshield wipers on. If the windshield wipers have not moved for several minutes.
Adaptive Front Lighting System (AFS)
The Adaptive Front Lighting System works only with the low beams switched on and only at speeds above about 6 mph (10 km/h). The swivel-mounted lamps automatically improve road illumination during cornering.
On vehicles equipped with the Adaptive Front Lighting System, the feature is switched on and off via the Assistants menu in the instrument cluster display, Volkswagen Information System.

WARNING
Crashes and other accidents can happen when you cannot see the road ahead and when you cannot be seen by other motorists.
x Never use daytime running lights (DRL) to see where you are going. DRL are not bright enough to light up the roadway and be seen by other motorists. You will not be able to see far enough ahead for safety, especially at dusk or when it is dark. Always switch on the low-beam headlights at dusk or when it is dark.
x The taillights do not come on when the daytime running lights are switched on. A vehicle without taillights on cannot be seen by others in bad weather, at dusk, or when it is dark.
x If automatic headlight control (AUTO) is switched on, the low-beam headlights still may not be switched on in fog or heavy rain. You have to switch on the low-beam headlights yourself.
In cool or humid weather, the insides of the headlights, the rear lights, and turn signals can temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.
“Coming home” and “Leaving home” feature (orientation lighting)

The delay period can be adjusted in 10 second intervals and the function can be switched on and off in the Lights & Vision menu, Volkswagen Information System.
If the “Coming home” feature is switched on and the driver door is opened, no warning chime will sound to alert you that the lights are still on.
Instrument panel lighting and headlight range adjustment

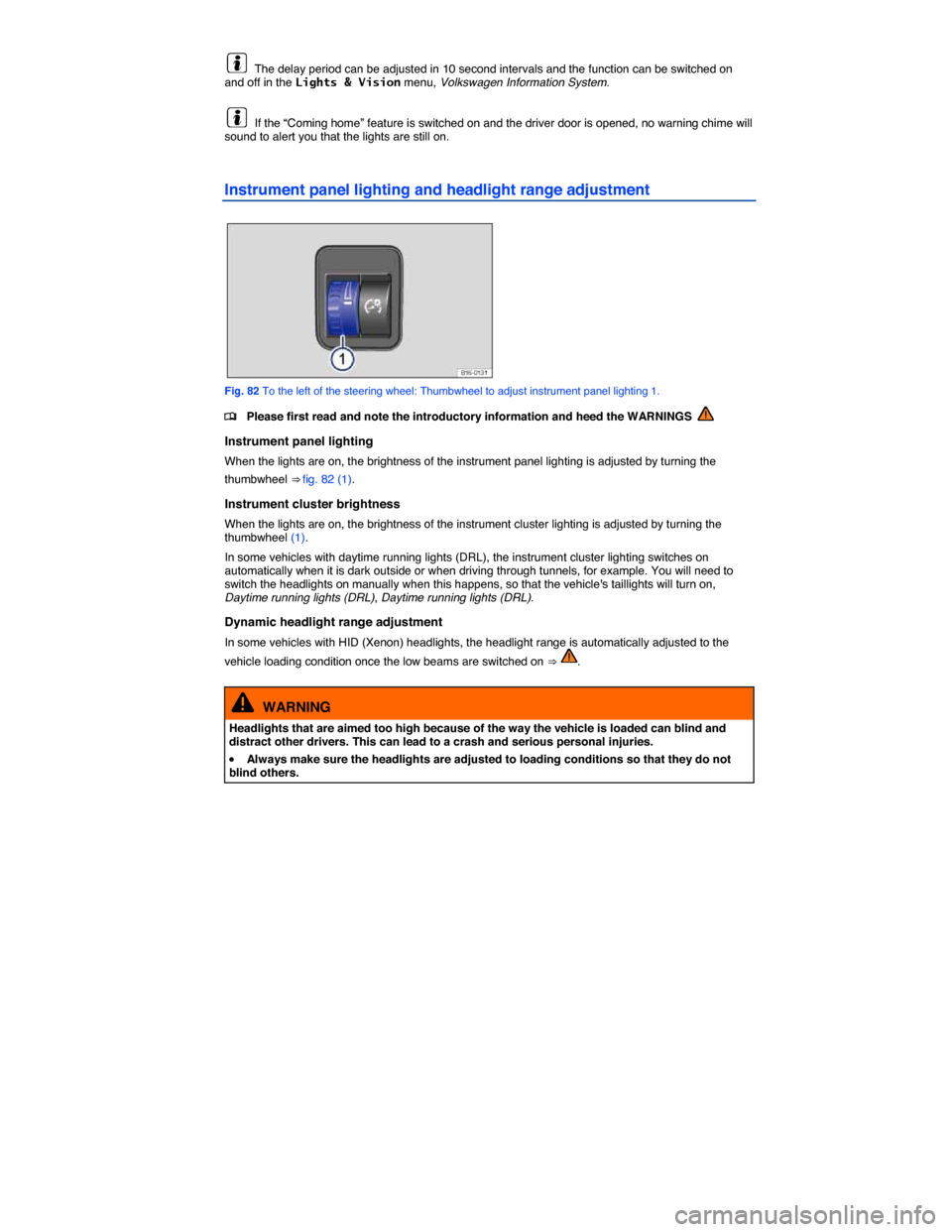

Fig. 82 To the left of the steering wheel: Thumbwheel to adjust instrument panel lighting 1.

WARNING
If dynamic headlight range adjustment does not work properly or at all, the headlights could blind and distract other drivers. This can lead to a crash and serious personal injuries.
x Have headlight range adjustment checked immediately by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Interior and reading lights

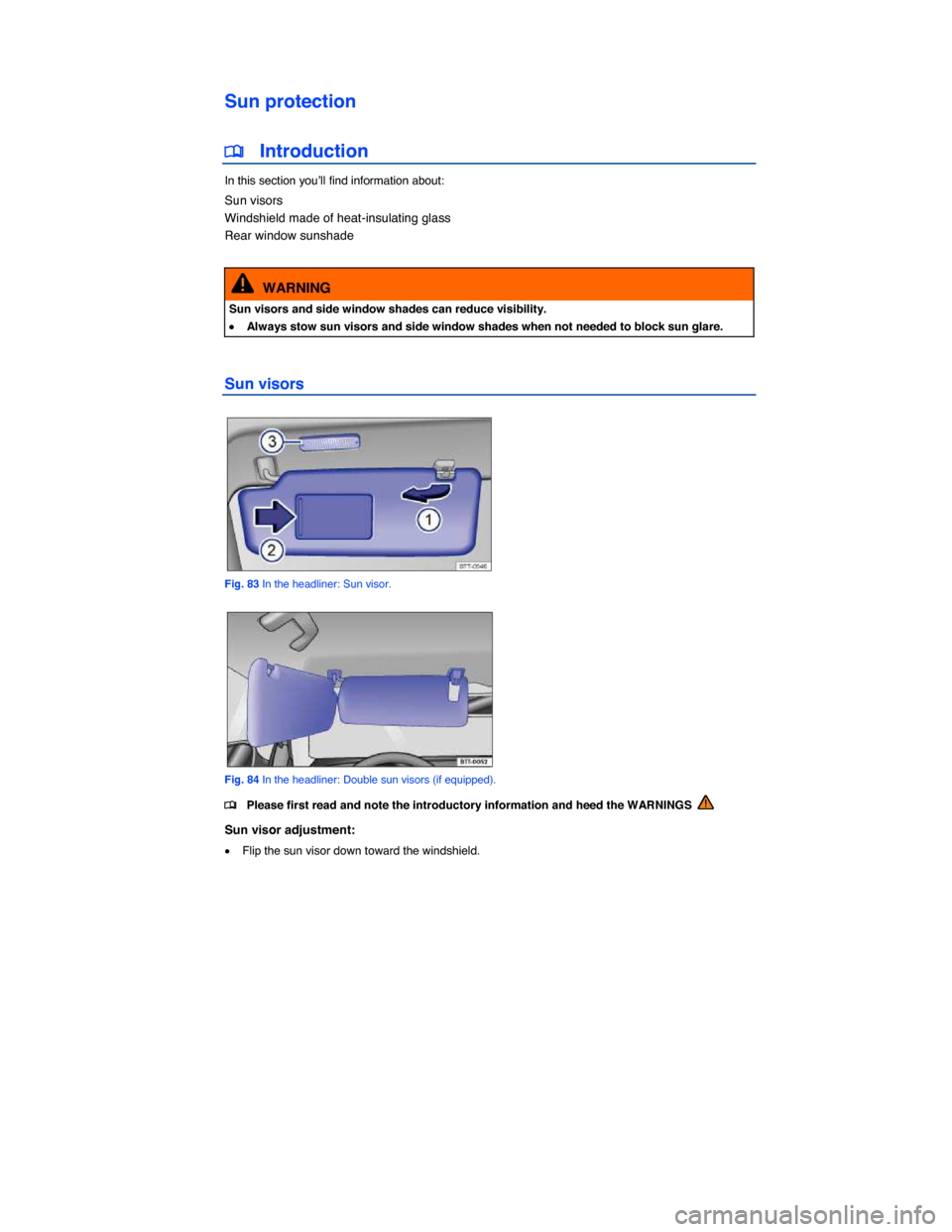

Sun protection
