4. Secure both seat rails of the rear seat in front and back with 2 hexagonal nuts each, tightening the nuts by hand - do not tighten them with the lug wrench yet.
5. Lift the right rear seat into the vehicle through the right rear door.
6. Set the seat rails of the rear seat first on the front anchoring studs and then on the rear studs.
7. Secure both seat rails of the rear seat in front and back with 2 hexagonal nuts each, tightening the nuts by hand - do not tighten them with the lug wrench yet.
8. To align the seat rails, press the left rear seat all the way to the left in the vehicle.
9. To align the seat rails, press the right rear seat all the way to the right in the vehicle.
10. Tighten the hexagonal nuts in the luggage compartment ⇒ fig. 101 (arrows) to 44 ft-lbs (60 Nm) using a torque wrench. If no torque wrench is available, tighten the hexagonal nuts using the lug wrench and have the torque checked at a qualified workshop as soon as possible.
11. Push the rear seats as far back as possible ⇒  Adjusting the rear seat.
12. Remove the hexagonal nuts in the rear of the footwell again, set the 3 plastic covers ⇒ fig. 100 on the studs and screw on with the hexagonal nuts.
13. Tighten the hexagonal nuts ⇒ fig. 100 (arrows) to 44 ft-lbs (60 Nm) using a torque wrench. If no torque wrench is available, tighten the hexagonal nuts using the lug wrench and have the torque checked at a qualified workshop as soon as possible.
14. Clip on the small covers (not pictured) on the hexagonal nuts ⇒ fig. 100 (arrows).
15. Install the foam insert and spare wheel in the vehicle ⇒  Compact spare wheel.
16. Install the luggage compartment floor ⇒  Variable luggage compartment floor.
17. Install the luggage compartment cover ⇒  Luggage compartment cover.
18. Install all rear head restraints ⇒  Adjusting the seating position.
WARNING
No one may ride in the back of the vehicle when the rear seat has been removed.
WARNING
An improperly installed rear seat can separate from its mountings during an accident.
x All securing bolts must be tightened to the specified torque after the rear seat has been installed.
CAUTION
Sharp-edged parts are located on the underside of the rear seat.
x Protect your hands when you lift the rear seat in or out.
NOTICE
x Have at least one person help to lift the rear seat in or out. One person should be in the vehicle and one outside.

x The lever ⇒ fig. 45 for the fore and aft adjustment of the rear seat must not be operated while the seat is removed. If the position of the fore and aft adjustment is changed, the rear seat can only be installed by a qualified workshop.
Luggage compartment cover

Fig. 102 Installing and removing the luggage compartment cover.

x Things on the luggage compartment cover can damage it.
x The defroster heating wires or antenna in the rear window can be damaged by objects that rub against them.
Do not cover the ventilation slots in the side consoles. Otherwise, stale air cannot escape from the vehicle.
Luggage compartment pass-through

Fig. 103 In the rear backrest: Opening the luggage compartment pass-through.

The pass-through can also be opened from the luggage compartment. Push down the release button (arrow) and push the center section of the rear seat backrest (pass-through) all the way forward.
Tie-downs

Fig. 104 In the luggage compartment: Tie-downs.

WARNING
Unsuitable, worn, or damaged tie-down straps (elastic or non-elastic) can snap or come loose during braking or other maneuvers or in a collision. Objects secured with these straps can then come loose and fly through the passenger compartment, causing severe personal injuries or death.
x To help prevent baggage or other items from coming loose and flying around, always use suitable undamaged tie-down straps.
x Securely fasten the tie-down straps to the tie-downs.
x Loose or improperly secured objects in the luggage compartment can slide about suddenly and change the vehicle's handling.
x Secure even small and light objects. Loose objects in the luggage or passenger compartment can fly about during sudden braking maneuvers or in the event of an accident and injure occupants.
x Never exceed the maximum allowable load on the tie-downs when securing objects.
x Never secure a child restraint to the tie-downs.
WARNING
Elastic straps have to be stretched when being attached to the tie-downs in the luggage compartment Hooks on elastic straps can cause serious personal injury if not handled properly and attached securely.
x Always protect eyes and face from injury from the hooks when attaching them to the vehicle and do not let them snap back and hit you.
x Always hold the hooks on elastic straps firmly when attaching to the vehicle and do not let them snap back and hit you.
x First attach hooks on the straps to the tie-downs at the rear seat backrest in the luggage compartment and then to the tie-downs near the loading edge of the luggage compartment. This way, if one of the hooks on the elastic straps snaps back, it will move away from you, decreasing the risk of personal injury.
The maximum load for the tie-downs is about 785 lbs. (356 kg).
For suitable ratchet straps and luggage stowage systems, please see an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Shopping bag hooks

Fig. 105 In the luggage compartment: Shopping bag hooks.

Luggage net

Fig. 106 In the luggage compartment: Luggage net hooked in place.

WARNING
The elastic luggage net has to be stretched when being attached to the tie-downs in the luggage compartment. The hooks can cause serious personal injury if not handled properly and attached securely.
x Always hold the hooks on the luggage net bag firmly when attaching to the vehicle and do not let them spring back and hit you.
x Always protect eyes and face from injury from the metal hooks when attaching them to the tie-downs in the luggage compartment.
x First attach the luggage net bag hooks to the tie-downs on the rear seat backrest or on the shopping bag hooks in the luggage compartment and then to the tie-downs near the loading edge of the luggage compartment. If one of the hooks on the luggage bag net snaps back, it will move away from you and not towards you, increasing the risk of injury.
Variable luggage compartment floor

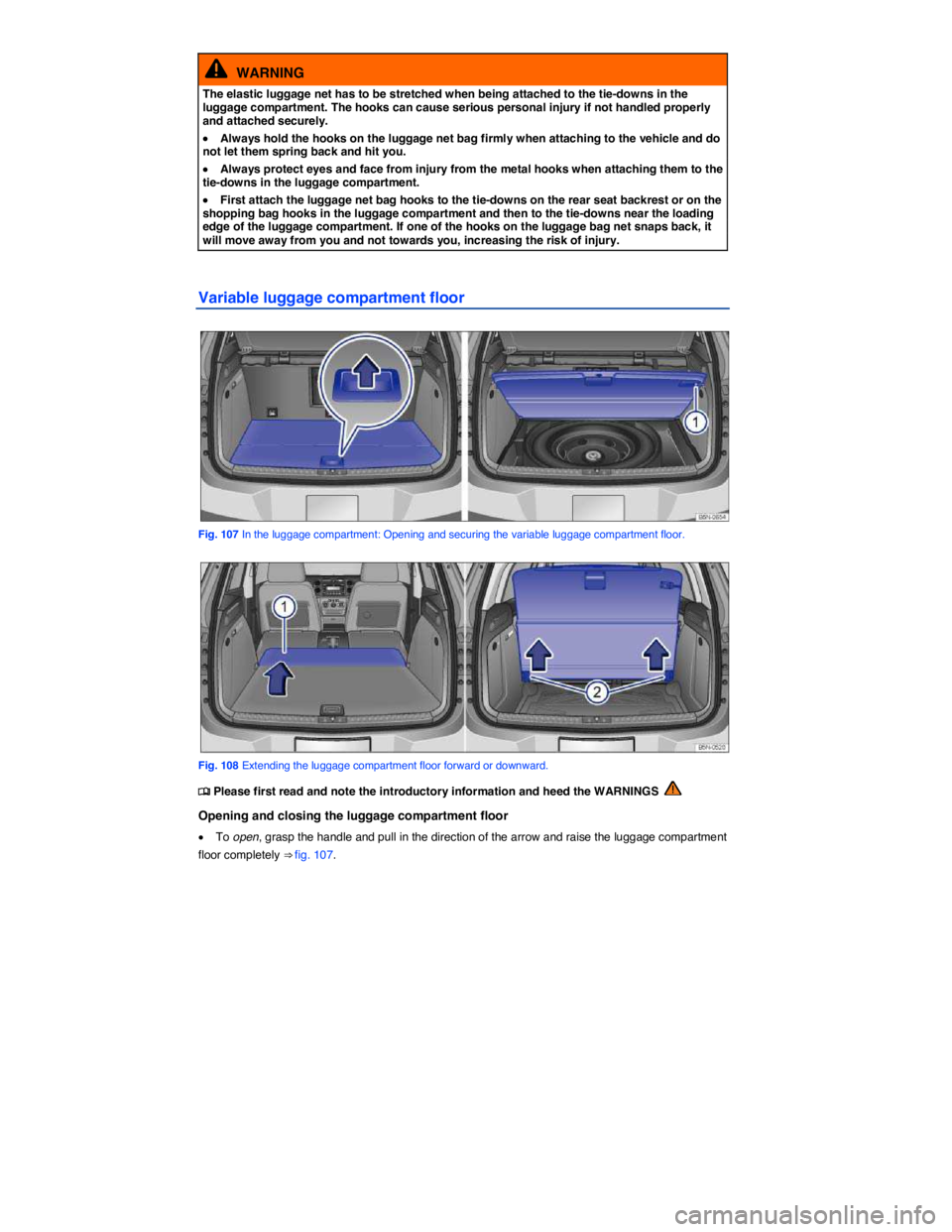

Fig. 107 In the luggage compartment: Opening and securing the variable luggage compartment floor.

Fig. 108 Extending the luggage compartment floor forward or downward.

x To secure, push the retaining pin ⇒ fig. 107 to the right.
x To close, push the retaining pin (1) to the left and guide the luggage compartment floor downwards.
Extending the luggage compartment floor forward
x Remove the luggage compartment cover ⇒  Luggage compartment cover.
x Remove the rear head restraints ⇒  Adjusting the seating position.
x Push both sections of the rear seat forward ⇒  Adjusting the seating position.
x Fold the rear backrests forward ⇒  Adjusting the seating position.
x Fold the cover forward ⇒ fig. 108 (1).
Extending the luggage compartment floor downward
x Remove the luggage compartment cover ⇒  Luggage compartment cover.
x Raise the luggage compartment floor, pull from the side pins (2) and remove it from the vehicle to the rear.
There may be a foam element with the spare wheel ⇒ fig. 107 located beneath the variable luggage
compartment floor. If a spare wheel is present, remove it ⇒  Compact spare wheel and remove the foam element from the luggage compartment.
WARNING
During hard braking or an accident, loose objects can fly through the passenger compartment and cause serious or even fatal injuries.
x Even if the luggage compartment floor panel is properly raised, it is still necessary to secure all objects.
x Objects stowed between the rear seat bench and the luggage compartment floor panel must never be more than 2/3 as high as the raised floor panel.
x Objects stowed between the rear seat bench and the raised luggage compartment floor panel must never weigh more than about 16.5 lbs. (7.5 kg).
NOTICE
Do not let the luggage compartment floor fall freely when closing it. Always guide it down into place. The trim or the luggage compartment floor could be damaged.
If you slide the rear seats forward, there is a gap between the luggage compartment floor and the rear seats. Make certain there are no objects in this space before sliding the rear seats back again.
