VOLKSWAGEN TIGUAN 2022 Owners Manual

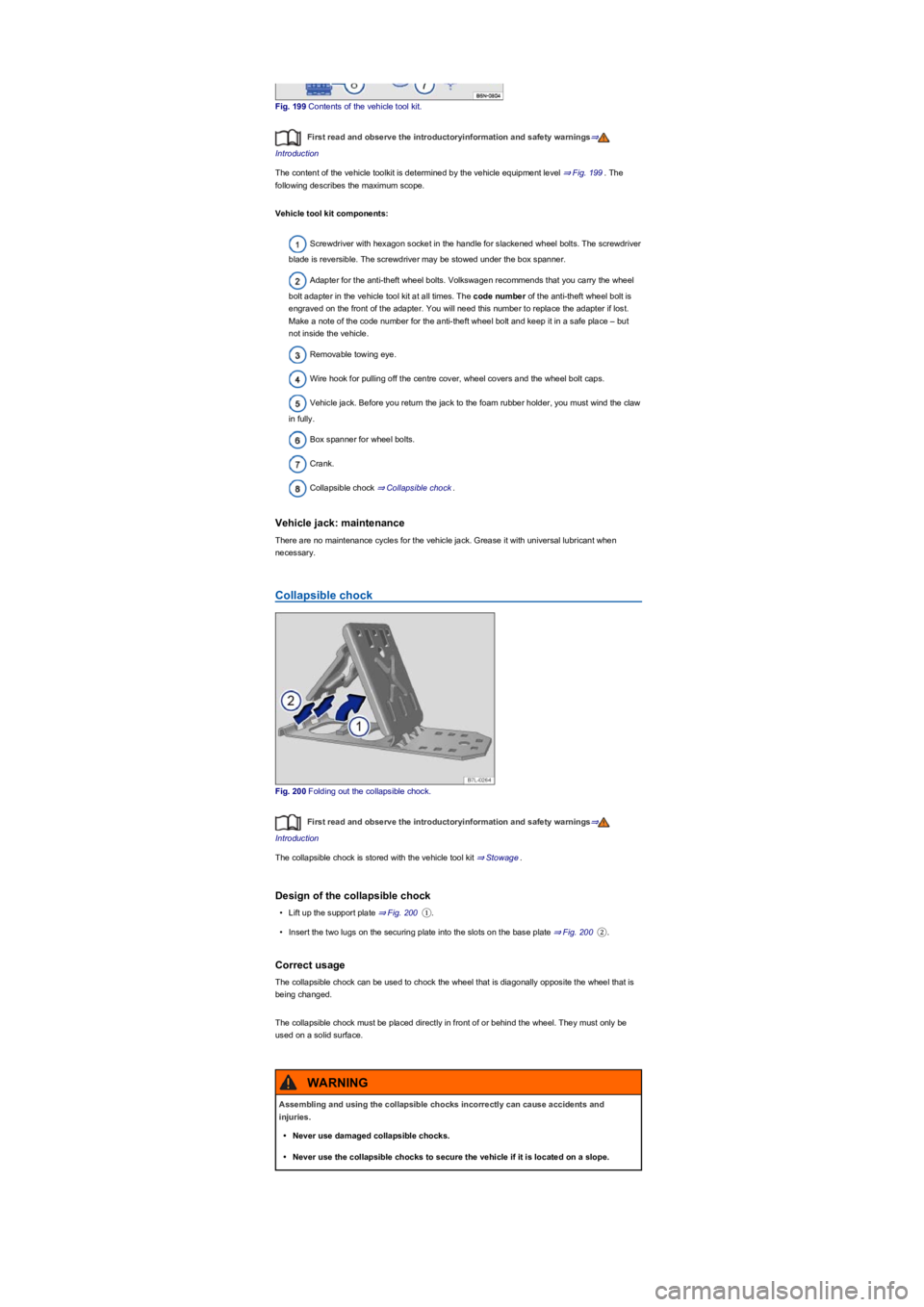

Fig. 199 Contents of the vehicle tool kit.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The content of the vehicle toolkit is determined by the vehicle equipment level ⇒ Fig. 199. The
following describes the maximum scope.
Vehicle tool kit components:
Screwdriver with hexagon socket in the handle for slackened wheel bolts. The screwdriver
blade is reversible. The screwdriver may be stowed under the box spanner.
Adapter for the anti-theft wheel bolts. Volkswagen recommends that you carry the wheel
bolt adapter in the vehicle tool kit at all times. The code number of the anti-theft wheel bolt is
engraved on the front of the adapter. You will need this number to replace the adapter if lost.
Make a note of the code number for the anti-theft wheel bolt and keep it in a safe place – but
not inside the vehicle.
Removable towing eye.
Wire hook for pulling off the centre cover, wheel covers and the wheel bolt caps.
Vehicle jack. Before you return the jack to the foam rubber holder, you must wind the claw
in fully.
Box spanner for wheel bolts.
Crank.
Collapsible chock ⇒ Collapsible chock.
Vehicle jack: maintenance
There are no maintenance cycles for the vehicle jack. Grease it with universal lubricant when
necessary.
Collapsible chock
Fig. 200 Folding out the collapsible chock.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The collapsible chock is stored with the vehicle tool kit ⇒ Stowage.
Design of the collapsible chock
•Lift up the support plate ⇒ Fig. 200①.
•Insert the two lugs on the securing plate into the slots on the base plate ⇒ Fig. 200②.
Correct usage
The collapsible chock can be used to chock the wheel that is diagonally opposite the wheel that is
being changed.
The collapsible chock must be placed directly in front of or behind the wheel. They must only be
used on a solid surface.
Assembling and using the collapsible chocks incorrectly can cause accidents and
injuries.
•Never use damaged collapsible chocks.
•Never use the collapsible chocks to secure the vehicle if it is located on a slope.
WARNING

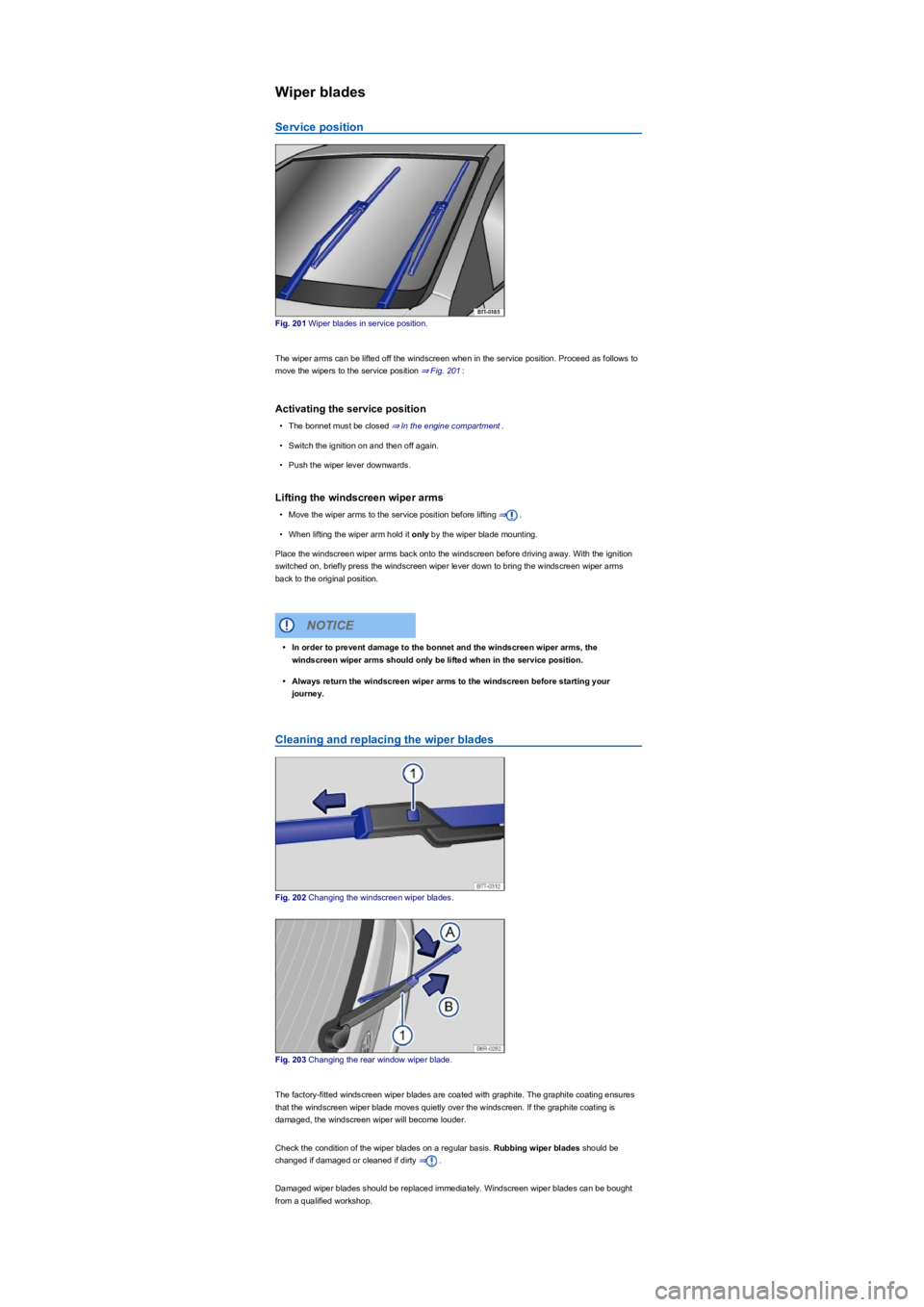

Wiper blades
Service position
Fig. 201 Wiper blades in service position.
The wiper arms can be lifted off the windscreen when in the service position. Proceed as follows to
move the wipers to the service position ⇒ Fig. 201:
Activating the service position
•The bonnet must be closed ⇒ In the engine compartment.
•Switch the ignition on and then off again.
•Push the wiper lever downwards.
Lifting the windscreen wiper arms
•Move the wiper arms to the service position before lifting ⇒.
•When lifting the wiper arm hold it only by the wiper blade mounting.
Place the windscreen wiper arms back onto the windscreen before driving away. With the ignition
switched on, briefly press the windscreen wiper lever down to bring the windscreen wiper arms
back to the original position.
Cleaning and replacing the wiper blades
Fig. 202 Changing the windscreen wiper blades.
Fig. 203 Changing the rear window wiper blade.
The factory-fitted windscreen wiper blades are coated with graphite. The graphite coating ensures
that the windscreen wiper blade moves quietly over the windscreen. If the graphite coating is
damaged, the windscreen wiper will become louder.
Check the condition of the wiper blades on a regular basis. Rubbing wiper blades should be
changed if damaged or cleaned if dirty ⇒.
Damaged wiper blades should be replaced immediately. Windscreen wiper blades can be bought
from a qualified workshop.
•In order to prevent damage to the bonnet and the windscreen wiper arms, the
windscreen wiper arms should only be lifted when in the service position.
•Always return the windscreen wiper arms to the windscreen before starting your
journey.
NOTICE

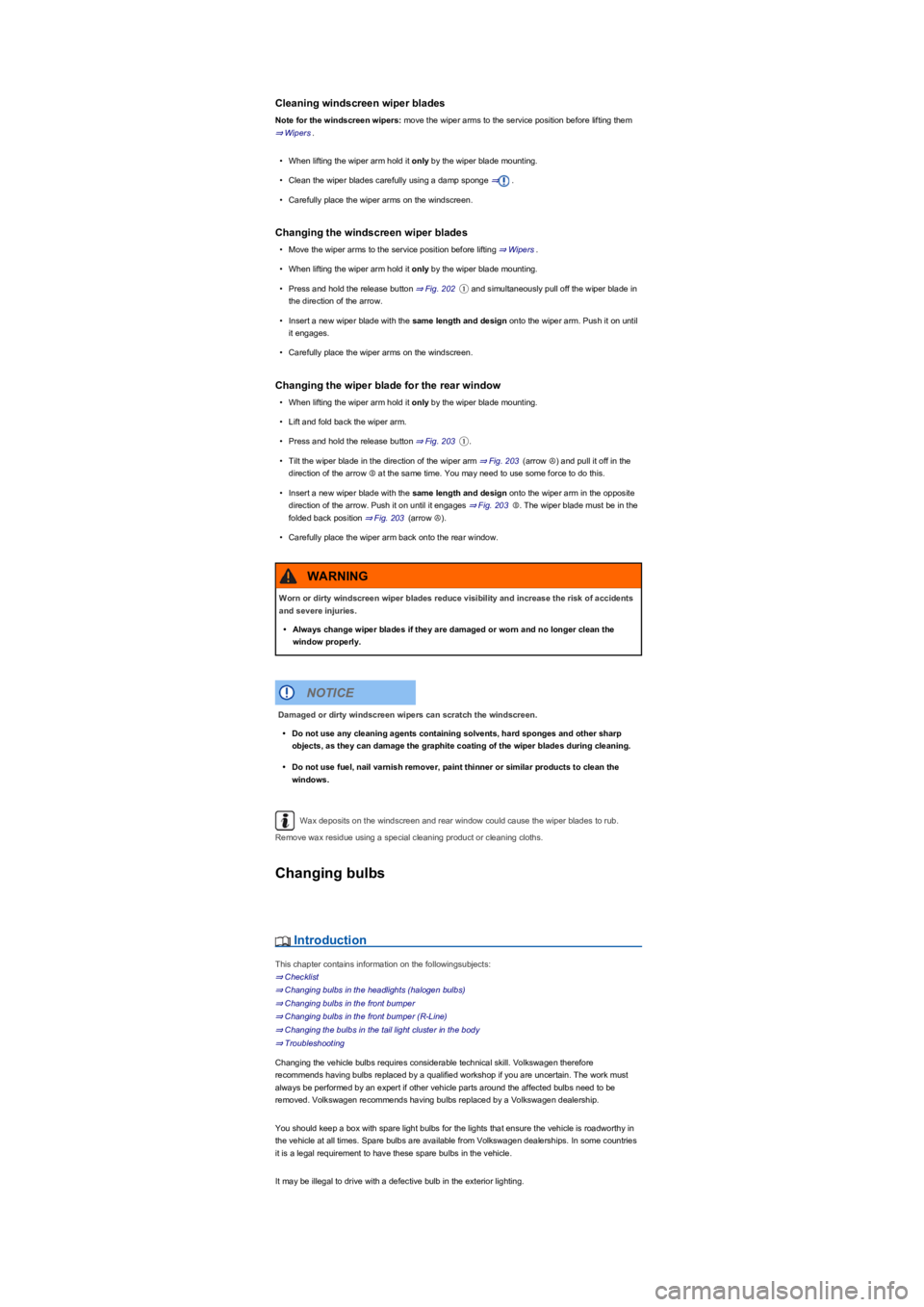

Cleaning windscreen wiper blades
Note for the windscreen wipers: move the wiper arms to the service position before lifting them
⇒ Wipers.
•When lifting the wiper arm hold it only by the wiper blade mounting.
•Clean the wiper blades carefully using a damp sponge ⇒.
•Carefully place the wiper arms on the windscreen.
Changing the windscreen wiper blades
•Move the wiper arms to the service position before lifting ⇒ Wipers.
•When lifting the wiper arm hold it only by the wiper blade mounting.
•Press and hold the release button ⇒ Fig. 202① and simultaneously pull off the wiper blade in
the direction of the arrow.
•Insert a new wiper blade with the same length and design onto the wiper arm. Push it on until
it engages.
•Carefully place the wiper arms on the windscreen.
Changing the wiper blade for the rear window
•When lifting the wiper arm hold it only by the wiper blade mounting.
•Lift and fold back the wiper arm.
•Press and hold the release button ⇒ Fig. 203①.
•Tilt the wiper blade in the direction of the wiper arm ⇒ Fig. 203 (arrow ⒶyfDQGSXOOLWRIILQWKH
direction of the arrow Ⓑ at the same time. You may need to use some force to do this.
•Insert a new wiper blade with the same length and design onto the wiper arm in the opposite
direction of the arrow. Push it on until it engages ⇒ Fig. 203Ⓑ. The wiper blade must be in the
folded back position ⇒ Fig. 203 (arrow Ⓐyf.
•Carefully place the wiper arm back onto the rear window.
Wax deposits on the windscreen and rear window could cause the wiper blades to rub.
Remove wax residue using a special cleaning product or cleaning cloths.
Changing bulbs
Introduction
This chapter contains information on the followingsubjects:
⇒ Checklist
⇒ Changing bulbs in the headlights (halogen bulbsyf
⇒ Changing bulbs in the front bumper
⇒ Changing bulbs in the front bumper (R-Lineyf
⇒ Changing the bulbs in the tail light cluster in the body
⇒ Troubleshooting
Changing the vehicle bulbs requires considerable technical skill. Volkswagen therefore
recommends having bulbs replaced by a qualified workshop if you are uncertain. The work must
always be performed by an expert if other vehicle parts around the affected bulbs need to be
removed. Volkswagen recommends having bulbs replaced by a Volkswagen dealership.
You should keep a box with spare light bulbs for the lights that ensure the vehicle is roadworthy in
the vehicle at all times. Spare bulbs are available from Volkswagen dealerships. In some countries
it is a legal requirement to have these spare bulbs in the vehicle.
It may be illegal to drive with a defective bulb in the exterior lighting.
Worn or dirty windscreen wiper blades reduce visibility and increase the risk of accidents
and severe injuries.
•Always change wiper blades if they are damaged or worn and no longer clean the
window properly.
WARNING
Damaged or dirty windscreen wipers can scratch the windscreen.
•Do not use any cleaning agents containing solvents, hard sponges and other sharp
objects, as they can damage the graphite coating of the wiper blades during cleaning.
•Do not use fuel, nail varnish remover, paint thinner or similar products to clean the
windows.
NOTICE

Park the vehicle on a firm and level surface at a safe distance from the flow of traffic.
Switch on the electronic parking brake Electronic parking brake.
Turn the light switch to position 0 Lights.
Move the turn signal lever to neutral position Lights.
Move the automatic gearbox selector lever to position P DSG® dual clutch gearbox.
Switch off the ignition and remove the vehicle key from the ignition lock Starting and
stopping the engine.
Manual gearbox: select a gear Manual gearbox: selecting a gear.
Switch off the orientation lighting Lights.
Leave the defective bulbs to cool down.

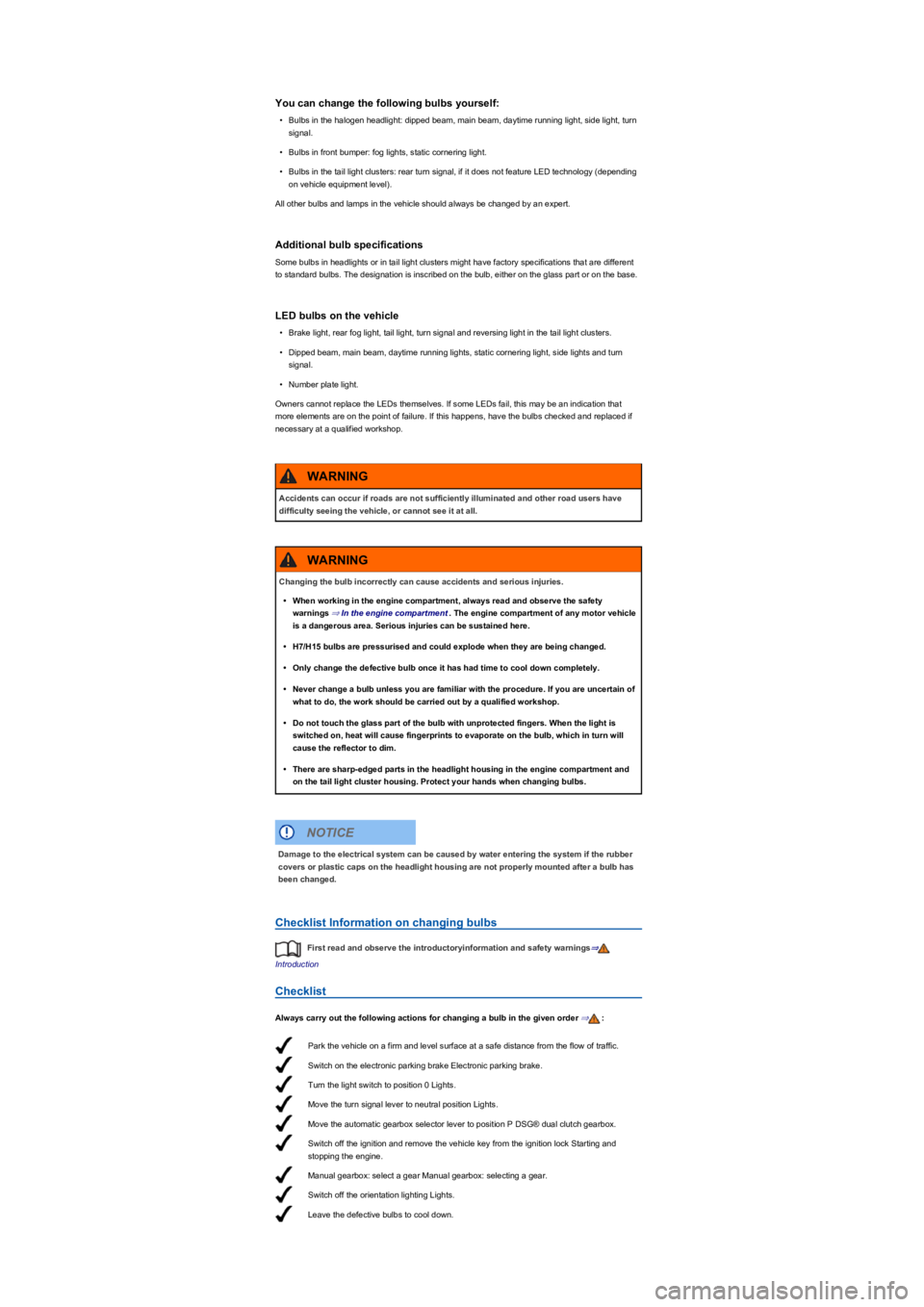

You can change the following bulbs yourself:
•Bulbs in the halogen headlight: dipped beam, main beam, daytime running light, side light, turn
signal.
•Bulbs in front bumper: fog lights, static cornering light.
•Bulbs in the tail light clusters: rear turn signal, if it does not feature LED technology (depending
on vehicle equipment levelyf.
All other bulbs and lamps in the vehicle should always be changed by an expert.
Additional bulb specifications
Some bulbs in headlights or in tail light clusters might have factory specifications that are different
to standard bulbs. The designation is inscribed on the bulb, either on the glass part or on the base.
LED bulbs on the vehicle
•Brake light, rear fog light, tail light, turn signal and reversing light in the tail light clusters.
•Dipped beam, main beam, daytime running lights, static cornering light, side lights and turn
signal.
•Number plate light.
Owners cannot replace the LEDs themselves. If some LEDs fail, this may be an indication that
more elements are on the point of failure. If this happens, have the bulbs checked and replaced if
necessary at a qualified workshop.
Checklist Information on changing bulbs
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Checklist
Always carry out the following actions for changing a bulb in the given order ⇒:
Accidents can occur if roads are not sufficiently illuminated and other road users have
difficulty seeing the vehicle, or cannot see it at all.
WARNING
Changing the bulb incorrectly can cause accidents and serious injuries.
•When working in the engine compartment, always read and observe the safety
warnings ⇒ In the engine compartment. The engine compartment of any motor vehicle
is a dangerous area. Serious injuries can be sustained here.
•H7/H15 bulbs are pressurised and could explode when they are being changed.
•Only change the defective bulb once it has had time to cool down completely.
•Never change a bulb unless you are familiar with the procedure. If you are uncertain of
what to do, the work should be carried out by a qualified workshop.
•Do not touch the glass part of the bulb with unprotected fingers. When the light is
switched on, heat will cause fingerprints to evaporate on the bulb, which in turn will
cause the reflector to dim.
•There are sharp-edged parts in the headlight housing in the engine compartment and
on the tail light cluster housing. Protect your hands when changing bulbs.
WARNING
Damage to the electrical system can be caused by water entering the system if the rubber
covers or plastic caps on the headlight housing are not properly mounted after a bulb has
been changed.
NOTICE

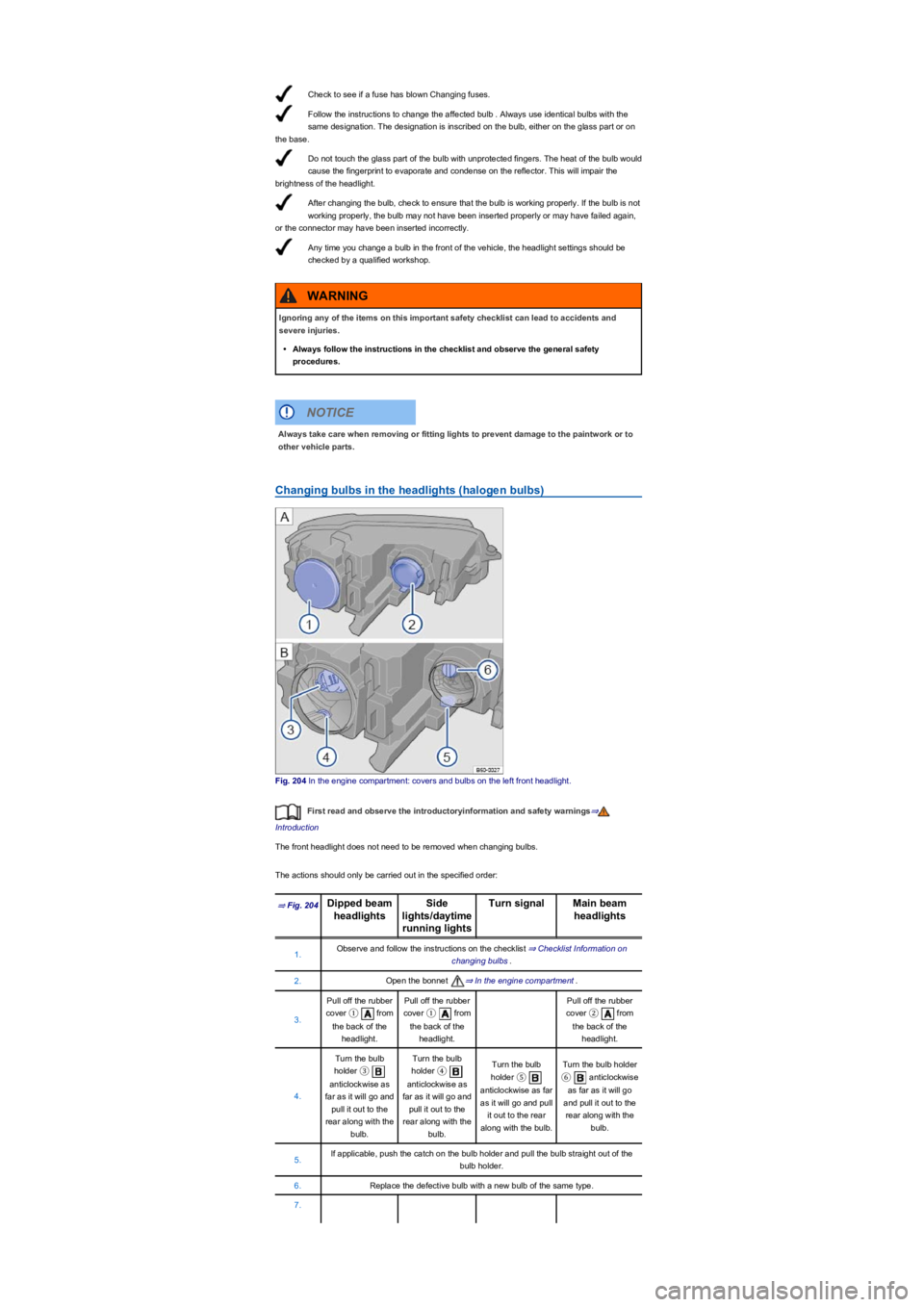

Check to see if a fuse has blown Changing fuses.
Follow the instructions to change the affected bulb . Always use identical bulbs with the
same designation. The designation is inscribed on the bulb, either on the glass part or on
the base.
Do not touch the glass part of the bulb with unprotected fingers. The heat of the bulb would
cause the fingerprint to evaporate and condense on the reflector. This will impair the
brightness of the headlight.
After changing the bulb, check to ensure that the bulb is working properly. If the bulb is not
working properly, the bulb may not have been inserted properly or may have failed again,
or the connector may have been inserted incorrectly.
Any time you change a bulb in the front of the vehicle, the headlight settings should be
checked by a qualified workshop.
Changing bulbs in the headlights (halogen bulbsyf
Fig. 204 In the engine compartment: covers and bulbs on the left front headlight.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The front headlight does not need to be removed when changing bulbs.
The actions should only be carried out in the specified order:
⇒ Fig. 204Dipped beam
headlights
Side
lights/daytime
running lights
Turn signalMain beam
headlights
1.Observe and follow the instructions on the checklist ⇒ Checklist Information on
changing bulbs.
2.Open the bonnet ⇒ In the engine compartment.
3.
Pull off the rubber
cover ① from
the back of the
headlight.
Pull off the rubber
cover ① from
the back of the
headlight.
Pull off the rubber
cover ② from
the back of the
headlight.
4.
Turn the bulb
holder ③
anticlockwise as
far as it will go and
pull it out to the
rear along with the
bulb.
Turn the bulb
holder \b
anticlockwise as
far as it will go and
pull it out to the
rear along with the
bulb.
Turn the bulb
holder ⑤
anticlockwise as far
as it will go and pull
it out to the rear
along with the bulb.
Turn the bulb holder
⑥ anticlockwise
as far as it will go
and pull it out to the
rear along with the
bulb.
5.If applicable, push the catch on the bulb holder and pull the bulb straight out of the
bulb holder.
6.Replace the defective bulb with a new bulb of the same type.
7.
Ignoring any of the items on this important safety checklist can lead to accidents and
severe injuries.
•Always follow the instructions in the checklist and observe the general safety
procedures.
WARNING
Always take care when removing or fitting lights to prevent damage to the paintwork or to
other vehicle parts.
NOTICE

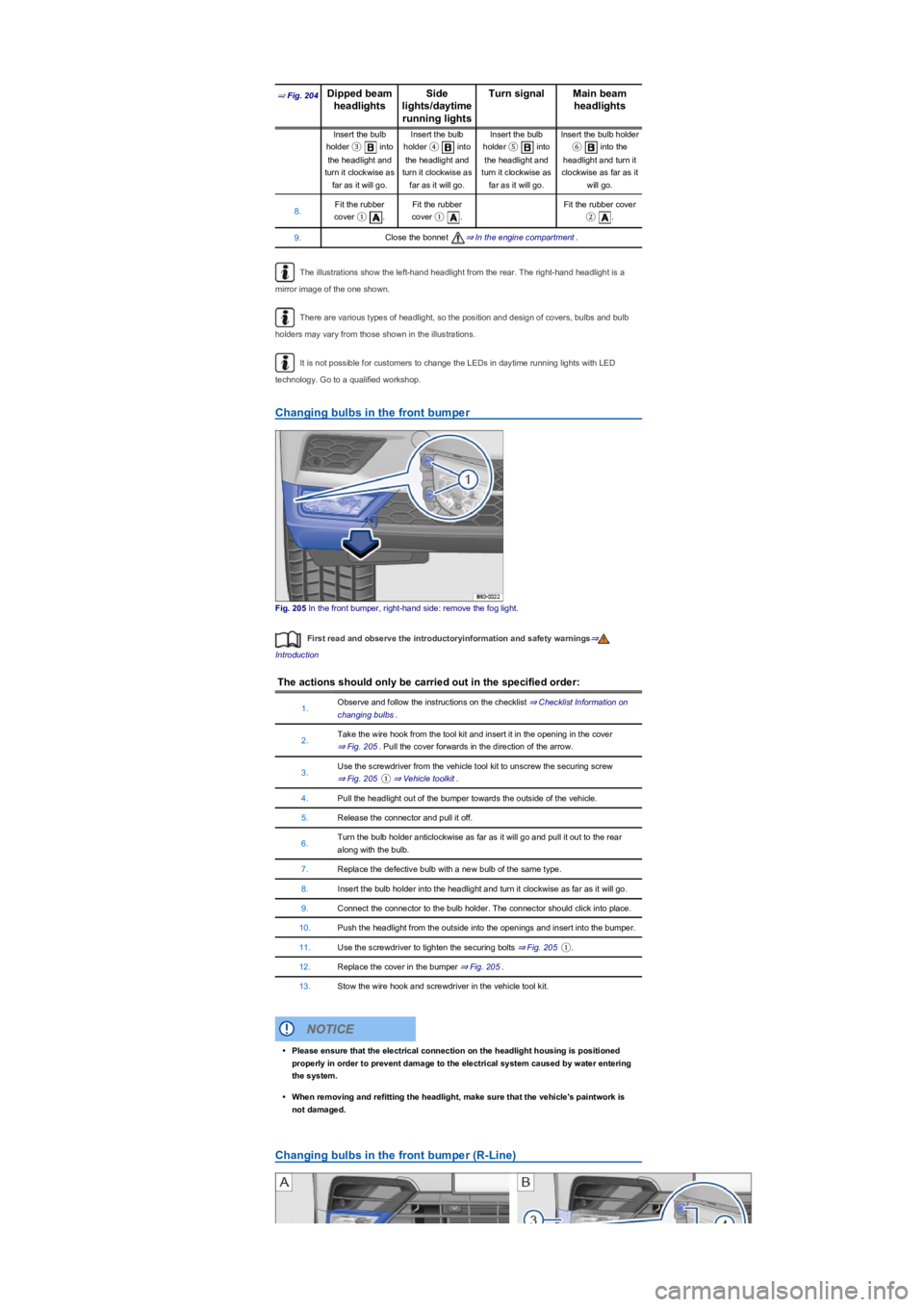

⇒ Fig. 204Dipped beam
headlights
Side
lights/daytime
running lights
Turn signalMain beam
headlights
Insert the bulb
holder ③ into
the headlight and
turn it clockwise as
far as it will go.
Insert the bulb
holder \b into
the headlight and
turn it clockwise as
far as it will go.
Insert the bulb
holder ⑤ into
the headlight and
turn it clockwise as
far as it will go.
Insert the bulb holder
⑥ into the
headlight and turn it
clockwise as far as it
will go.
8.Fit the rubber
cover ①.
Fit the rubber
cover ①.
Fit the rubber cover
②.
9.Close the bonnet ⇒ In the engine compartment.
The illustrations show the left-hand headlight from the rear. The right-hand headlight is a
mirror image of the one shown.
There are various types of headlight, so the position and design of covers, bulbs and bulb
holders may vary from those shown in the illustrations.
It is not possible for customers to change the LEDs in daytime running lights with LED
technology. Go to a qualified workshop.
Changing bulbs in the front bumper
Fig. 205 In the front bumper, right-hand side: remove the fog light.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The actions should only be carried out in the specified order:
1.Observe and follow the instructions on the checklist ⇒ Checklist Information on
changing bulbs.
2.Take the wire hook from the tool kit and insert it in the opening in the cover
⇒ Fig. 205. Pull the cover forwards in the direction of the arrow.
3.Use the screwdriver from the vehicle tool kit to unscrew the securing screw
⇒ Fig. 205①⇒ Vehicle toolkit.
4.Pull the headlight out of the bumper towards the outside of the vehicle.
5.Release the connector and pull it off.
6.Turn the bulb holder anticlockwise as far as it will go and pull it out to the rear
along with the bulb.
7.Replace the defective bulb with a new bulb of the same type.
8.Insert the bulb holder into the headlight and turn it clockwise as far as it will go.
9.Connect the connector to the bulb holder. The connector should click into place.
10.Push the headlight from the outside into the openings and insert into the bumper.
11.Use the screwdriver to tighten the securing bolts ⇒ Fig. 205①.
12.Replace the cover in the bumper ⇒ Fig. 205.
13.Stow the wire hook and screwdriver in the vehicle tool kit.
Changing bulbs in the front bumper (R-Lineyf
•Please ensure that the electrical connection on the headlight housing is positioned
properly in order to prevent damage to the electrical system caused by water entering
the system.
•When removing and refitting the headlight, make sure that the vehicle's paintwork is
not damaged.
NOTICE

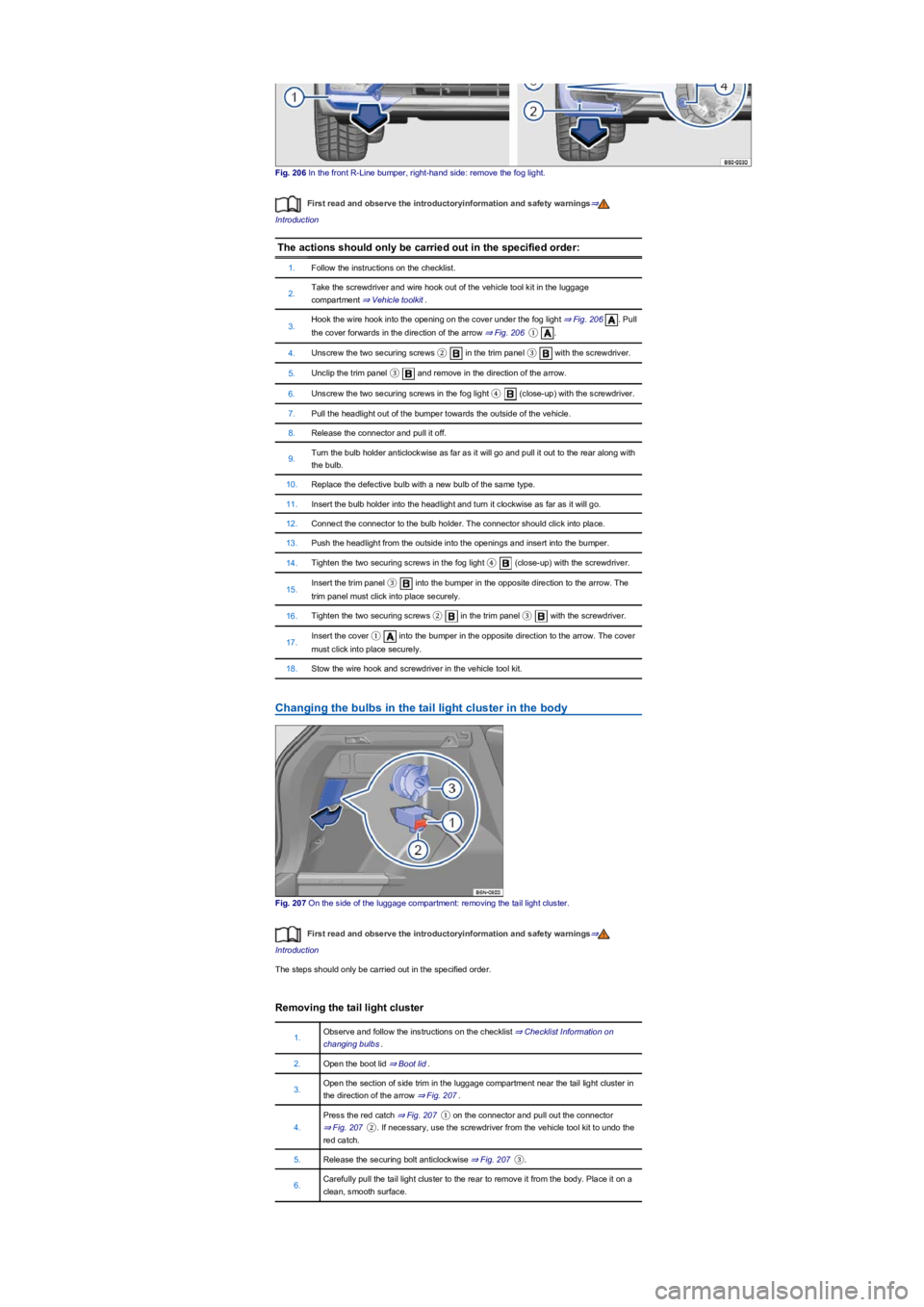

Fig. 206 In the front R-Line bumper, right-hand side: remove the fog light.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The actions should only be carried out in the specified order:
1.Follow the instructions on the checklist.
2.Take the screwdriver and wire hook out of the vehicle tool kit in the luggage
compartment ⇒ Vehicle toolkit.
3.Hook the wire hook into the opening on the cover under the fog light ⇒ Fig. 206. Pull
the cover forwards in the direction of the arrow ⇒ Fig. 206①.
4.Unscrew the two securing screws ② in the trim panel ③ with the screwdriver.
5.Unclip the trim panel ③ and remove in the direction of the arrow.
6.Unscrew the two securing screws in the fog light \b (close-upyfZLWKWKHVFUHZGULYHU.
7.Pull the headlight out of the bumper towards the outside of the vehicle.
8.Release the connector and pull it off.
9.Turn the bulb holder anticlockwise as far as it will go and pull it out to the rear along with
the bulb.
10.Replace the defective bulb with a new bulb of the same type.
11.Insert the bulb holder into the headlight and turn it clockwise as far as it will go.
12.Connect the connector to the bulb holder. The connector should click into place.
13.Push the headlight from the outside into the openings and insert into the bumper.
14.Tighten the two securing screws in the fog light \b (close-upyfZLWKWKHVFUHZGULYHU.
15.Insert the trim panel ③ into the bumper in the opposite direction to the arrow. The
trim panel must click into place securely.
16.Tighten the two securing screws ② in the trim panel ③ with the screwdriver.
17.Insert the cover ① into the bumper in the opposite direction to the arrow. The cover
must click into place securely.
18.Stow the wire hook and screwdriver in the vehicle tool kit.
Changing the bulbs in the tail light cluster in the body
Fig. 207 On the side of the luggage compartment: removing the tail light cluster.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The steps should only be carried out in the specified order.
Removing the tail light cluster
1.Observe and follow the instructions on the checklist ⇒ Checklist Information on
changing bulbs.
2.Open the boot lid ⇒ Boot lid.
3.Open the section of side trim in the luggage compartment near the tail light cluster in
the direction of the arrow ⇒ Fig. 207.
4.
Press the red catch ⇒ Fig. 207① on the connector and pull out the connector
⇒ Fig. 207②. If necessary, use the screwdriver from the vehicle tool kit to undo the
red catch.
5.Release the securing bolt anticlockwise ⇒ Fig. 207③.
6.Carefully pull the tail light cluster to the rear to remove it from the body. Place it on a
clean, smooth surface.

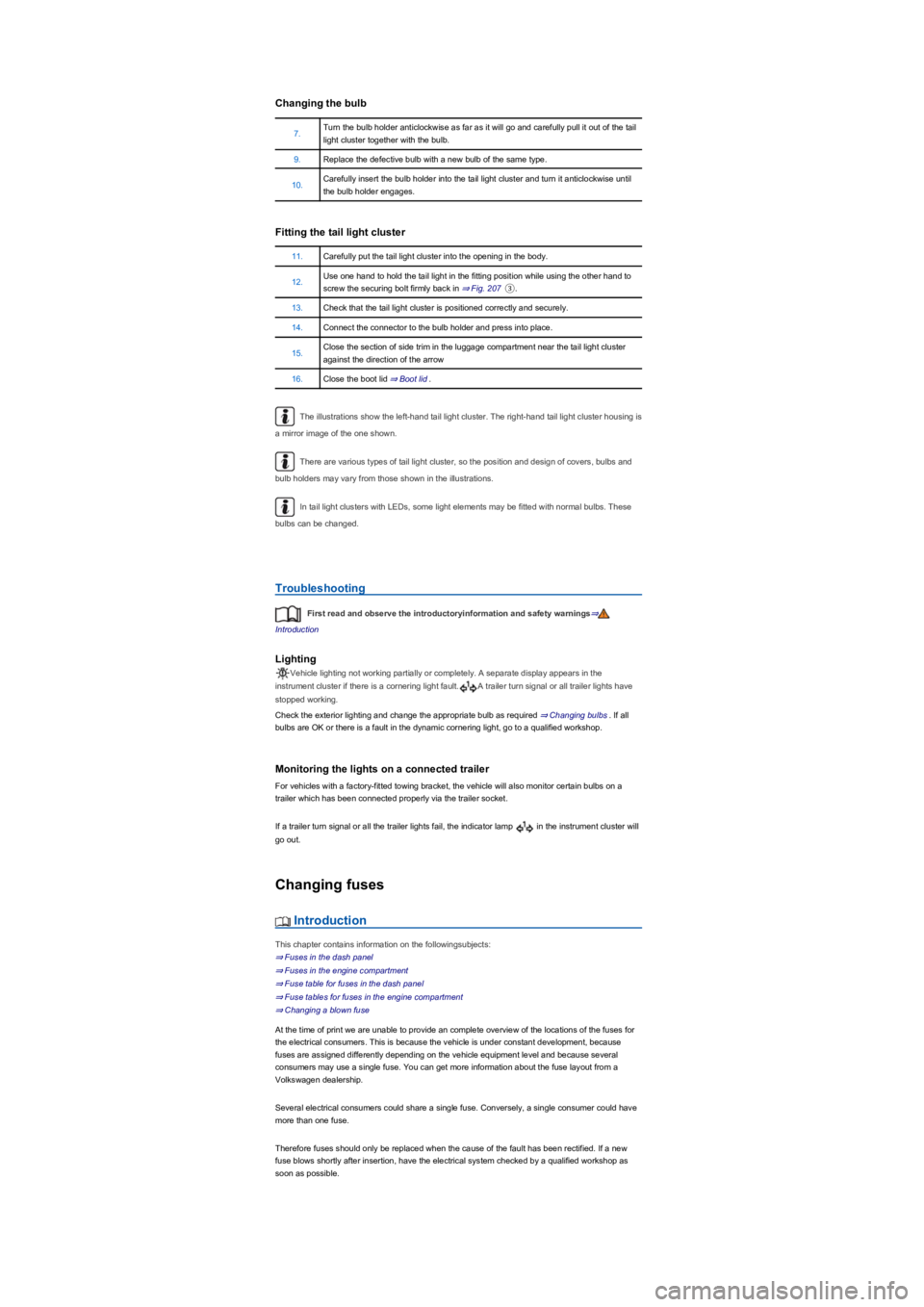

Changing the bulb
7.Turn the bulb holder anticlockwise as far as it will go and carefully pull it out of the tail
light cluster together with the bulb.
9.Replace the defective bulb with a new bulb of the same type.
10.Carefully insert the bulb holder into the tail light cluster and turn it anticlockwise until
the bulb holder engages.
Fitting the tail light cluster
11.Carefully put the tail light cluster into the opening in the body.
12.Use one hand to hold the tail light in the fitting position while using the other hand to
screw the securing bolt firmly back in ⇒ Fig. 207③.
13.Check that the tail light cluster is positioned correctly and securely.
14.Connect the connector to the bulb holder and press into place.
15.Close the section of side trim in the luggage compartment near the tail light cluster
against the direction of the arrow
16.Close the boot lid ⇒ Boot lid.
The illustrations show the left-hand tail light cluster. The right-hand tail light cluster housing is
a mirror image of the one shown.
There are various types of tail light cluster, so the position and design of covers, bulbs and
bulb holders may vary from those shown in the illustrations.
In tail light clusters with LEDs, some light elements may be fitted with normal bulbs. These
bulbs can be changed.
Troubleshooting
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Lighting
Vehicle lighting not working partially or completely. A separate display appears in the
instrument cluster if there is a cornering light fault.A trailer turn signal or all trailer lights have
stopped working.
Check the exterior lighting and change the appropriate bulb as required ⇒ Changing bulbs. If all
bulbs are OK or there is a fault in the dynamic cornering light, go to a qualified workshop.
Monitoring the lights on a connected trailer
For vehicles with a factory-fitted towing bracket, the vehicle will also monitor certain bulbs on a
trailer which has been connected properly via the trailer socket.
If a trailer turn signal or all the trailer lights fail, the indicator lamp in the instrument cluster will
go out.
Changing fuses
Introduction
This chapter contains information on the followingsubjects:
⇒ Fuses in the dash panel
⇒ Fuses in the engine compartment
⇒ Fuse table for fuses in the dash panel
⇒ Fuse tables for fuses in the engine compartment
⇒ Changing a blown fuse
At the time of print we are unable to provide an complete overview of the locations of the fuses for
the electrical consumers. This is because the vehicle is under constant development, because
fuses are assigned differently depending on the vehicle equipment level and because several
consumers may use a single fuse. You can get more information about the fuse layout from a
Volkswagen dealership.
Several electrical consumers could share a single fuse. Conversely, a single consumer could have
more than one fuse.
Therefore fuses should only be replaced when the cause of the fault has been rectified. If a new
fuse blows shortly after insertion, have the electrical system checked by a qualified workshop as
soon as possible.

This chapter does not refer to all the fuses in the vehicle. These should be changed only by
a qualified workshop.
Fuses in the dash panel

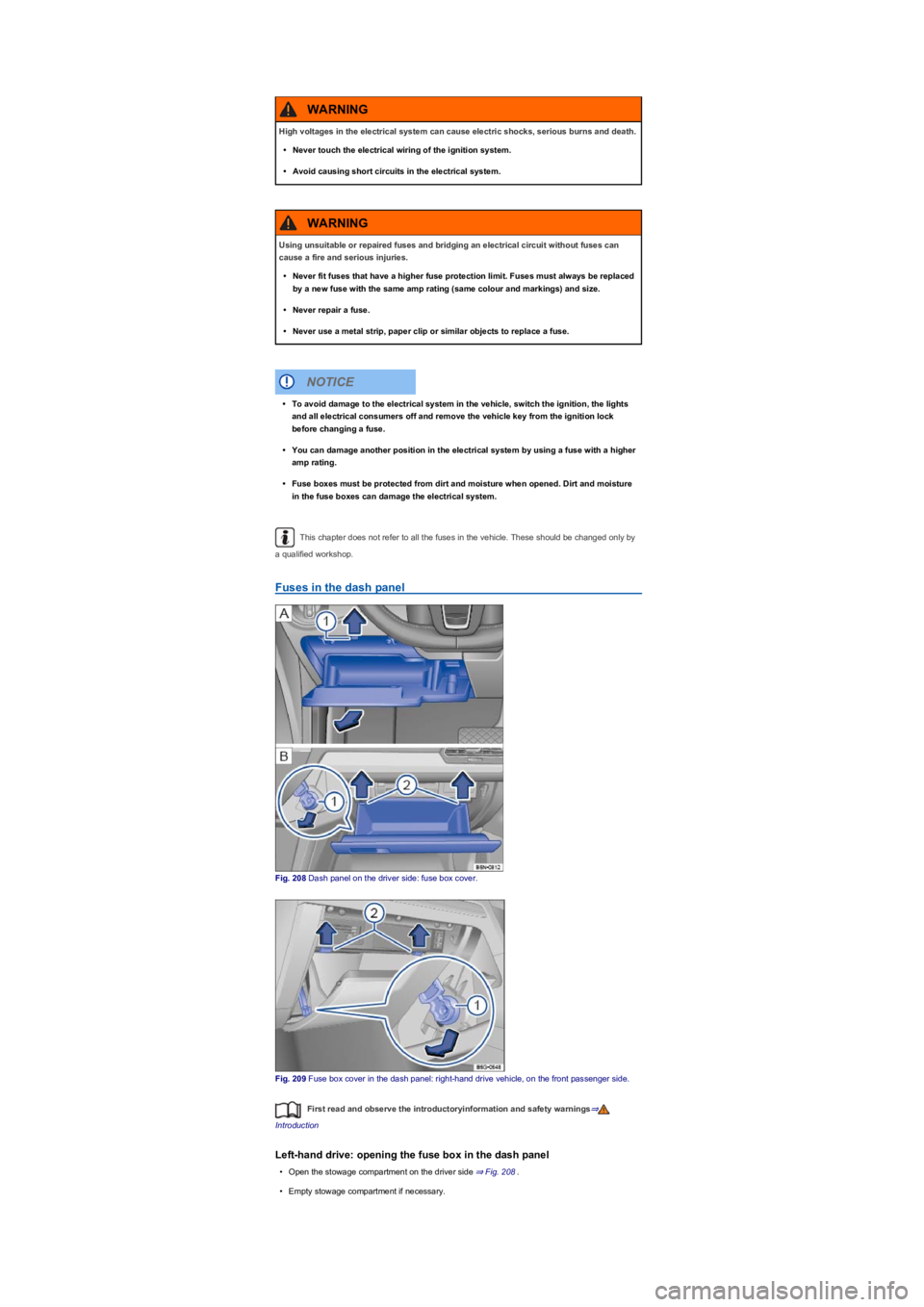

Fig. 208 Dash panel on the driver side: fuse box cover.
Fig. 209 Fuse box cover in the dash panel: right-hand drive vehicle, on the front passenger side.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Left-hand drive: opening the fuse box in the dash panel
•Open the stowage compartment on the driver side ⇒ Fig. 208.
•Empty stowage compartment if necessary.
High voltages in the electrical system can cause electric shocks, serious burns and death.
•Never touch the electrical wiring of the ignition system.
•Avoid causing short circuits in the electrical system.
WARNING
Using unsuitable or repaired fuses and bridging an electrical circuit without fuses can
cause a fire and serious injuries.
•Never fit fuses that have a higher fuse protection limit. Fuses must always be replaced
by a new fuse with the same amp rating (same colour and markingsyfDQGVL]H.
•Never repair a fuse.
•Never use a metal strip, paper clip or similar objects to replace a fuse.
WARNING
•To avoid damage to the electrical system in the vehicle, switch the ignition, the lights
and all electrical consumers off and remove the vehicle key from the ignition lock
before changing a fuse.
•You can damage another position in the electrical system by using a fuse with a higher
amp rating.
•Fuse boxes must be protected from dirt and moisture when opened. Dirt and moisture
in the fuse boxes can damage the electrical system.
NOTICE

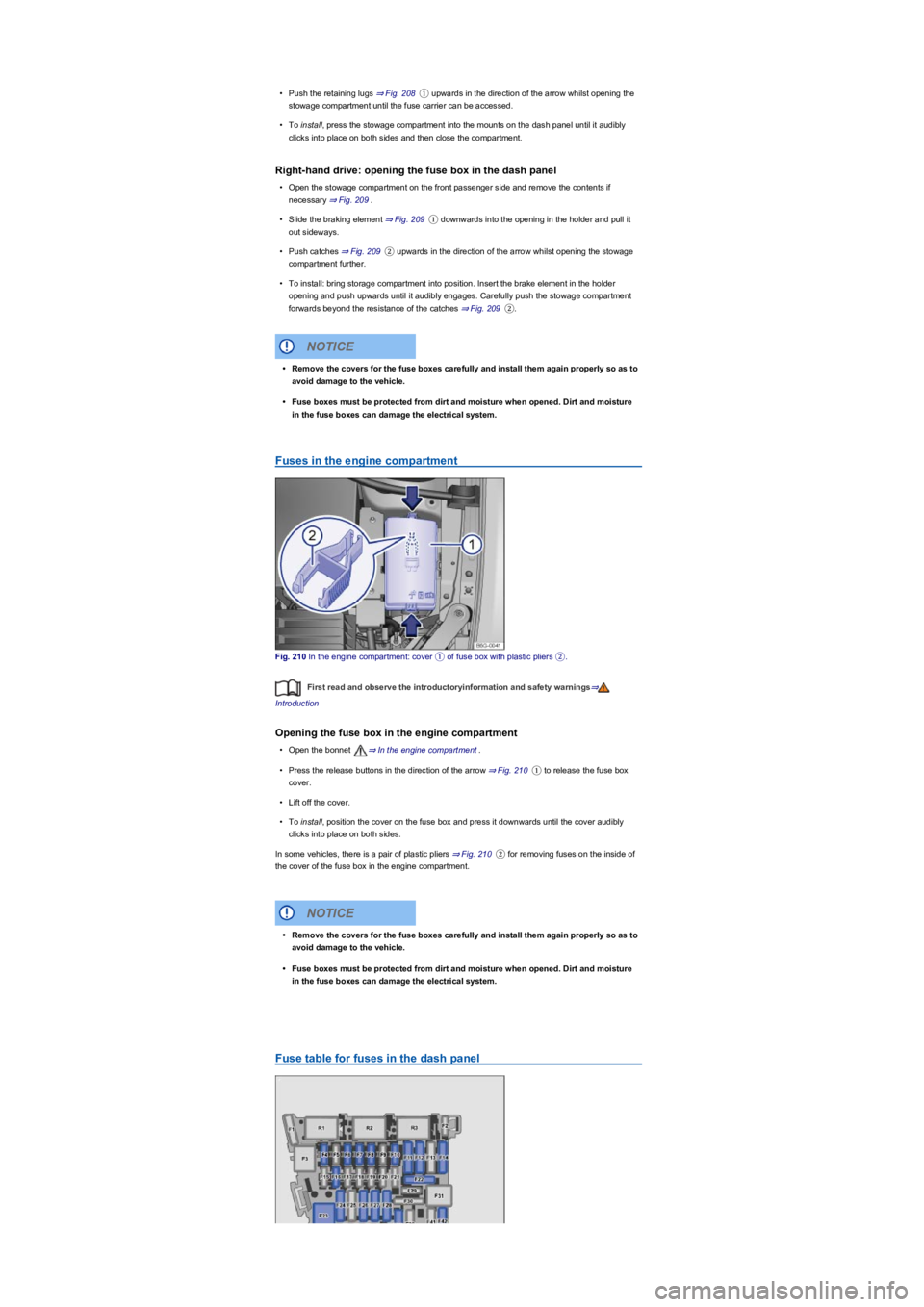

•Push the retaining lugs ⇒ Fig. 208① upwards in the direction of the arrow whilst opening the
stowage compartment until the fuse carrier can be accessed.
•To install, press the stowage compartment into the mounts on the dash panel until it audibly
clicks into place on both sides and then close the compartment.
Right-hand drive: opening the fuse box in the dash panel
•Open the stowage compartment on the front passenger side and remove the contents if
necessary ⇒ Fig. 209.
•Slide the braking element ⇒ Fig. 209① downwards into the opening in the holder and pull it
out sideways.
•Push catches ⇒ Fig. 209② upwards in the direction of the arrow whilst opening the stowage
compartment further.
•To install: bring storage compartment into position. Insert the brake element in the holder
opening and push upwards until it audibly engages. Carefully push the stowage compartment
forwards beyond the resistance of the catches ⇒ Fig. 209②.
Fuses in the engine compartment
Fig. 210 In the engine compartment: cover ① of fuse box with plastic pliers ②.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Opening the fuse box in the engine compartment
•Open the bonnet ⇒ In the engine compartment.
•Press the release buttons in the direction of the arrow ⇒ Fig. 210① to release the fuse box
cover.
•Lift off the cover.
•To install, position the cover on the fuse box and press it downwards until the cover audibly
clicks into place on both sides.
In some vehicles, there is a pair of plastic pliers ⇒ Fig. 210② for removing fuses on the inside of
the cover of the fuse box in the engine compartment.
Fuse table for fuses in the dash panel
•Remove the covers for the fuse boxes carefully and install them again properly so as to
avoid damage to the vehicle.
•Fuse boxes must be protected from dirt and moisture when opened. Dirt and moisture
in the fuse boxes can damage the electrical system.
NOTICE
•Remove the covers for the fuse boxes carefully and install them again properly so as to
avoid damage to the vehicle.
•Fuse boxes must be protected from dirt and moisture when opened. Dirt and moisture
in the fuse boxes can damage the electrical system.
NOTICE
