VOLKSWAGEN TIGUAN 2022 Owners Manual

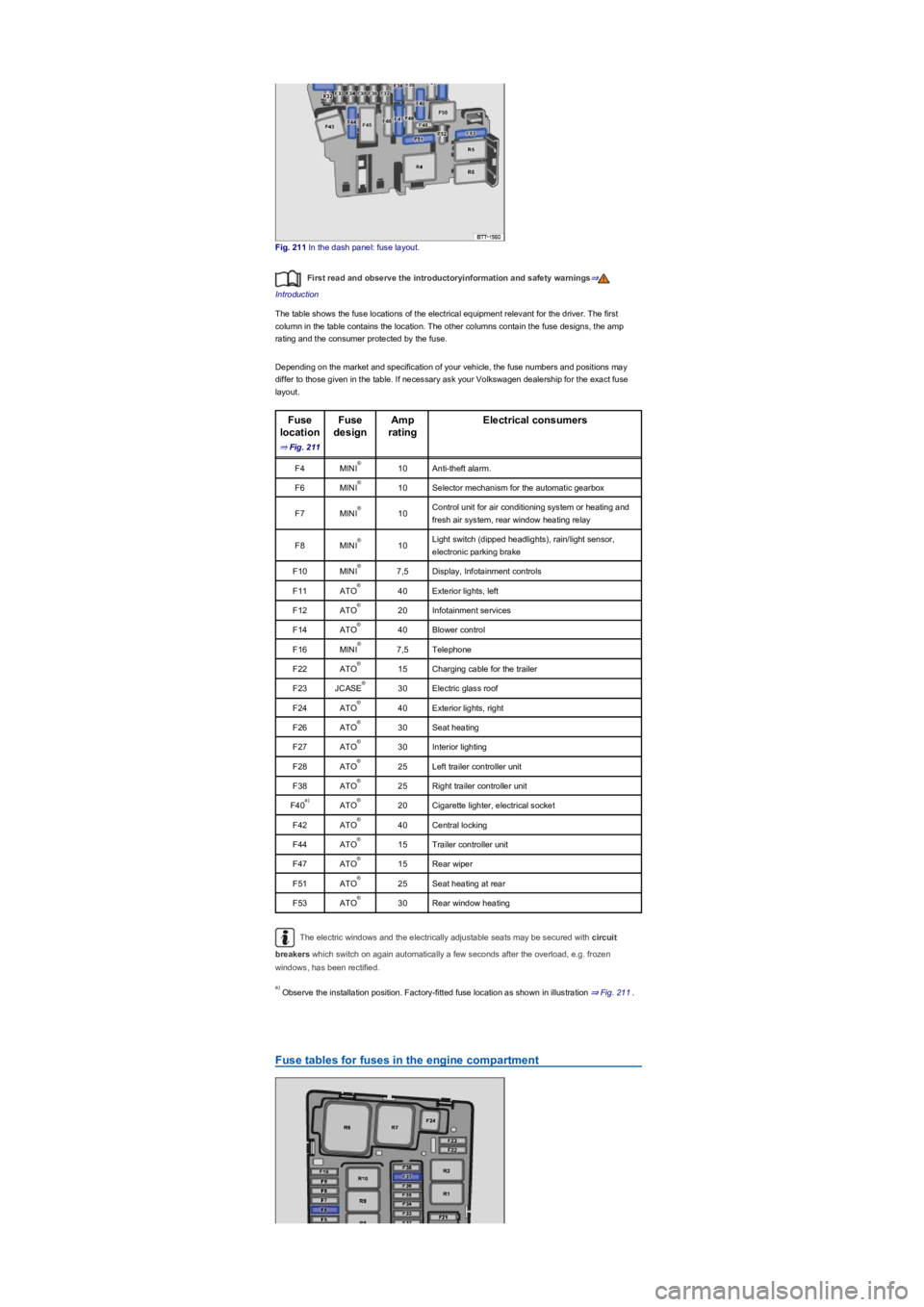

Fig. 211 In the dash panel: fuse layout.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The table shows the fuse locations of the electrical equipment relevant for the driver. The first
column in the table contains the location. The other columns contain the fuse designs, the amp
rating and the consumer protected by the fuse.
Depending on the market and specification of your vehicle, the fuse numbers and positions may
differ to those given in the table. If necessary ask your Volkswagen dealership for the exact fuse
layout.
Fuse
location
⇒ Fig. 211
Fuse
design
Amp
rating
Electrical consumers
F4MINI10Anti-theft alarm.
F6MINI10Selector mechanism for the automatic gearbox
F7MINI10Control unit for air conditioning system or heating and
fresh air system, rear window heating relay
F8MINI10Light switch (dipped headlightsyfUDLQOLJKWVHQVRU
electronic parking brake
F10MINI7,5Display, Infotainment controls
F11ATO40Exterior lights, left
F12ATO20Infotainment services
F14ATO40Blower control
F16MINI7,5Telephone
F22ATO15Charging cable for the trailer
F23JCASE30Electric glass roof
F24ATO40Exterior lights, right
F26ATO30Seat heating
F27ATO30Interior lighting
F28ATO25Left trailer controller unit
F38ATO25Right trailer controller unit
F40ATO20Cigarette lighter, electrical socket
F42ATO40Central locking
F44ATO15Trailer controller unit
F47ATO15Rear wiper
F51ATO25Seat heating at rear
F53ATO30Rear window heating
The electric windows and the electrically adjustable seats may be secured with circuit
breakers which switch on again automatically a few seconds after the overload, e.g. frozen
windows, has been rectified.
Observe the installation position. Factory-fitted fuse location as shown in illustration ⇒ Fig. 211.
Fuse tables for fuses in the engine compartment
®
®
®
®
®
®
®
®
®
®
®
®
®
®
®
®
ayf®
®
®
®
®
®
ayf

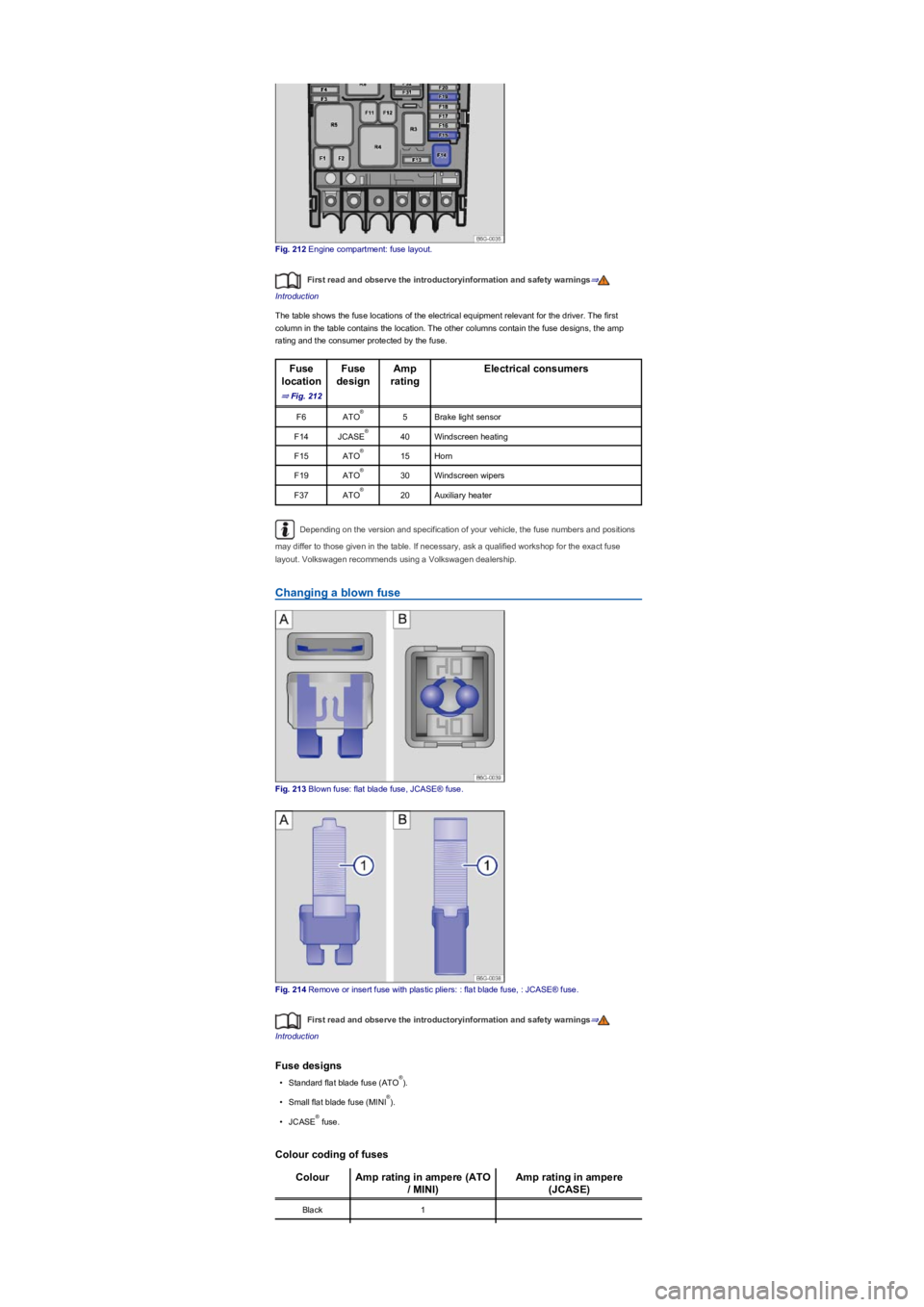

Fig. 212 Engine compartment: fuse layout.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The table shows the fuse locations of the electrical equipment relevant for the driver. The first
column in the table contains the location. The other columns contain the fuse designs, the amp
rating and the consumer protected by the fuse.
Fuse
location
⇒ Fig. 212
Fuse
design
Amp
rating
Electrical consumers
F6ATO5Brake light sensor
F14JCASE40Windscreen heating
F15ATO15Horn
F19ATO30Windscreen wipers
F37ATO20Auxiliary heater
Depending on the version and specification of your vehicle, the fuse numbers and positions
may differ to those given in the table. If necessary, ask a qualified workshop for the exact fuse
layout. Volkswagen recommends using a Volkswagen dealership.
Changing a blown fuse
Fig. 213 Blown fuse: flat blade fuse, JCASE® fuse.
Fig. 214 Remove or insert fuse with plastic pliers: : flat blade fuse, : JCASE® fuse.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Fuse designs
•Standard flat blade fuse (ATOyf.
•Small flat blade fuse (MINIyf.
•JCASE fuse.

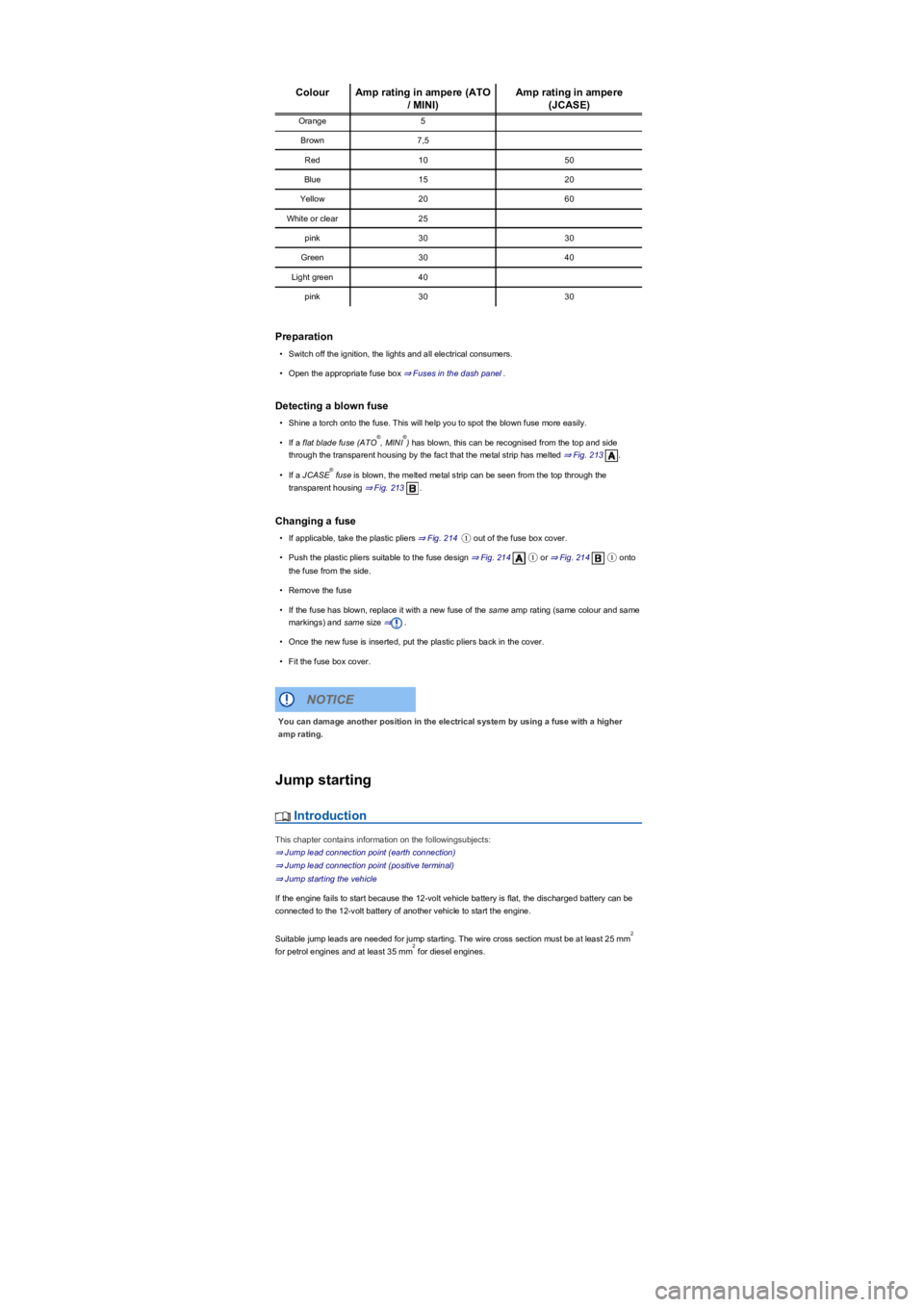

Colour coding of fuses
ColourAmp rating in ampere (ATO
/ MINIyf
Amp rating in ampere
(JCASEyf
Black1
®
®
®
®
®
®
®
®

ColourAmp rating in ampere (ATO
/ MINIyf
Amp rating in ampere
(JCASEyf
Orange5
Brown7,5
Red1050
Blue1520
Yellow2060
White or clear25
pink3030
Green3040
Light green40
pink3030
Preparation
•Switch off the ignition, the lights and all electrical consumers.
•Open the appropriate fuse box ⇒ Fuses in the dash panel.
Detecting a blown fuse
•Shine a torch onto the fuse. This will help you to spot the blown fuse more easily.
•If a flat blade fuse (ATO, MINIyf has blown, this can be recognised from the top and side
through the transparent housing by the fact that the metal strip has melted ⇒ Fig. 213.
•If a JCASE fuse is blown, the melted metal strip can be seen from the top through the
transparent housing ⇒ Fig. 213.
Changing a fuse
•If applicable, take the plastic pliers ⇒ Fig. 214① out of the fuse box cover.
•Push the plastic pliers suitable to the fuse design ⇒ Fig. 214① or ⇒ Fig. 214① onto
the fuse from the side.
•Remove the fuse
•If the fuse has blown, replace it with a new fuse of the same amp rating (same colour and same
markingsyfDQG same size ⇒.
•Once the new fuse is inserted, put the plastic pliers back in the cover.
•Fit the fuse box cover.
Jump starting
Introduction
This chapter contains information on the followingsubjects:
⇒ Jump lead connection point (earth connectionyf
⇒ Jump lead connection point (positive terminalyf
⇒ Jump starting the vehicle
If the engine fails to start because the 12-volt vehicle battery is flat, the discharged battery can be
connected to the 12-volt battery of another vehicle to start the engine.
Suitable jump leads are needed for jump starting. The wire cross section must be at least 25 mm
for petrol engines and at least 35 mm for diesel engines.
®®
®
You can damage another position in the electrical system by using a fuse with a higher
amp rating.
NOTICE
2
2

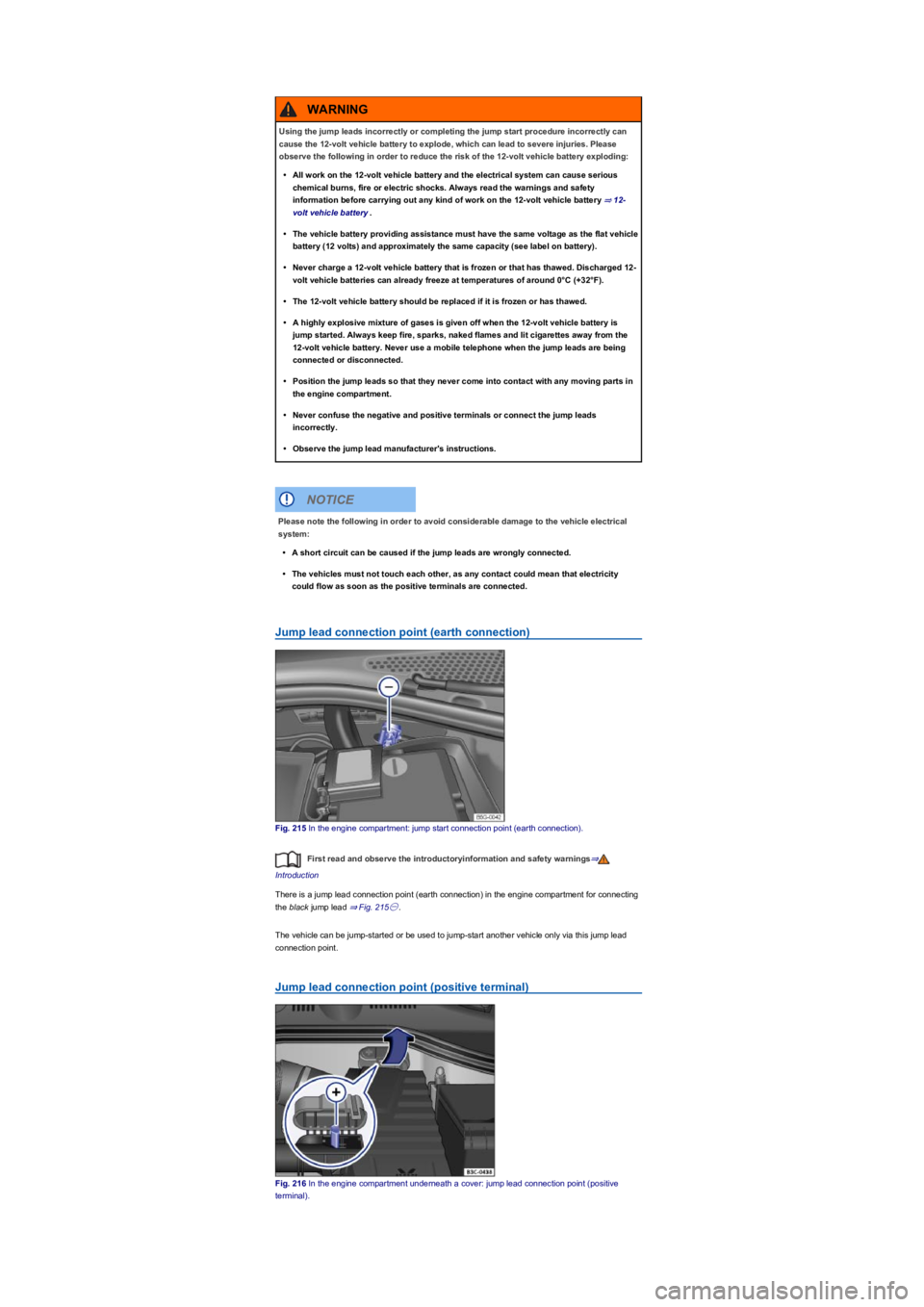

Jump lead connection point (earth connectionyf
Fig. 215 In the engine compartment: jump start connection point (earth connectionyf.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
There is a jump lead connection point (earth connectionyfLQWKHHQJLQHFRPSDUWPHQWIRUFRQQHFWLQJ
the black jump lead ⇒ Fig. 215㊀.
The vehicle can be jump-started or be used to jump-start another vehicle only via this jump lead
connection point.
Jump lead connection point (positive terminalyf
Fig. 216 In the engine compartment underneath a cover: jump lead connection point (positive
terminalyf.
Using the jump leads incorrectly or completing the jump start procedure incorrectly can
cause the 12-volt vehicle battery to explode, which can lead to severe injuries. Please
observe the following in order to reduce the risk of the 12-volt vehicle battery exploding:
•All work on the 12-volt vehicle battery and the electrical system can cause serious
chemical burns, fire or electric shocks. Always read the warnings and safety
information before carrying out any kind of work on the 12-volt vehicle battery ⇒ 12-
volt vehicle battery.
•The vehicle battery providing assistance must have the same voltage as the flat vehicle
battery (12 voltsyfDQGDSSUR[LPDWHO\WKHVDPHFDSDFLW\VHHODEHORQEDWWHU\\f.
•Never charge a 12-volt vehicle battery that is frozen or that has thawed. Discharged 12-
volt vehicle batteries can already freeze at temperatures of around 0°C (+32°Fyf.
•The 12-volt vehicle battery should be replaced if it is frozen or has thawed.
•A highly explosive mixture of gases is given off when the 12-volt vehicle battery is
jump started. Always keep fire, sparks, naked flames and lit cigarettes away from the
12-volt vehicle battery. Never use a mobile telephone when the jump leads are being
connected or disconnected.
•Position the jump leads so that they never come into contact with any moving parts in
the engine compartment.
•Never confuse the negative and positive terminals or connect the jump leads
incorrectly.
•Observe the jump lead manufacturer's instructions.
WARNING
Please note the following in order to avoid considerable damage to the vehicle electrical
system:
•A short circuit can be caused if the jump leads are wrongly connected.
•The vehicles must not touch each other, as any contact could mean that electricity
could flow as soon as the positive terminals are connected.
NOTICE

First read and observe the introductoryinformation and safety warnings⇒
Introduction
In vehicles with a 12-volt vehicle battery in the luggage compartment, there is a jump lead
connection point (positive terminalyf ⇒ Fig. 216⊕ under a cover in the engine compartment for
connecting the red jump lead.
The vehicle can be jump-started or be used to jump-start another vehicle only via this jump lead
connection point.

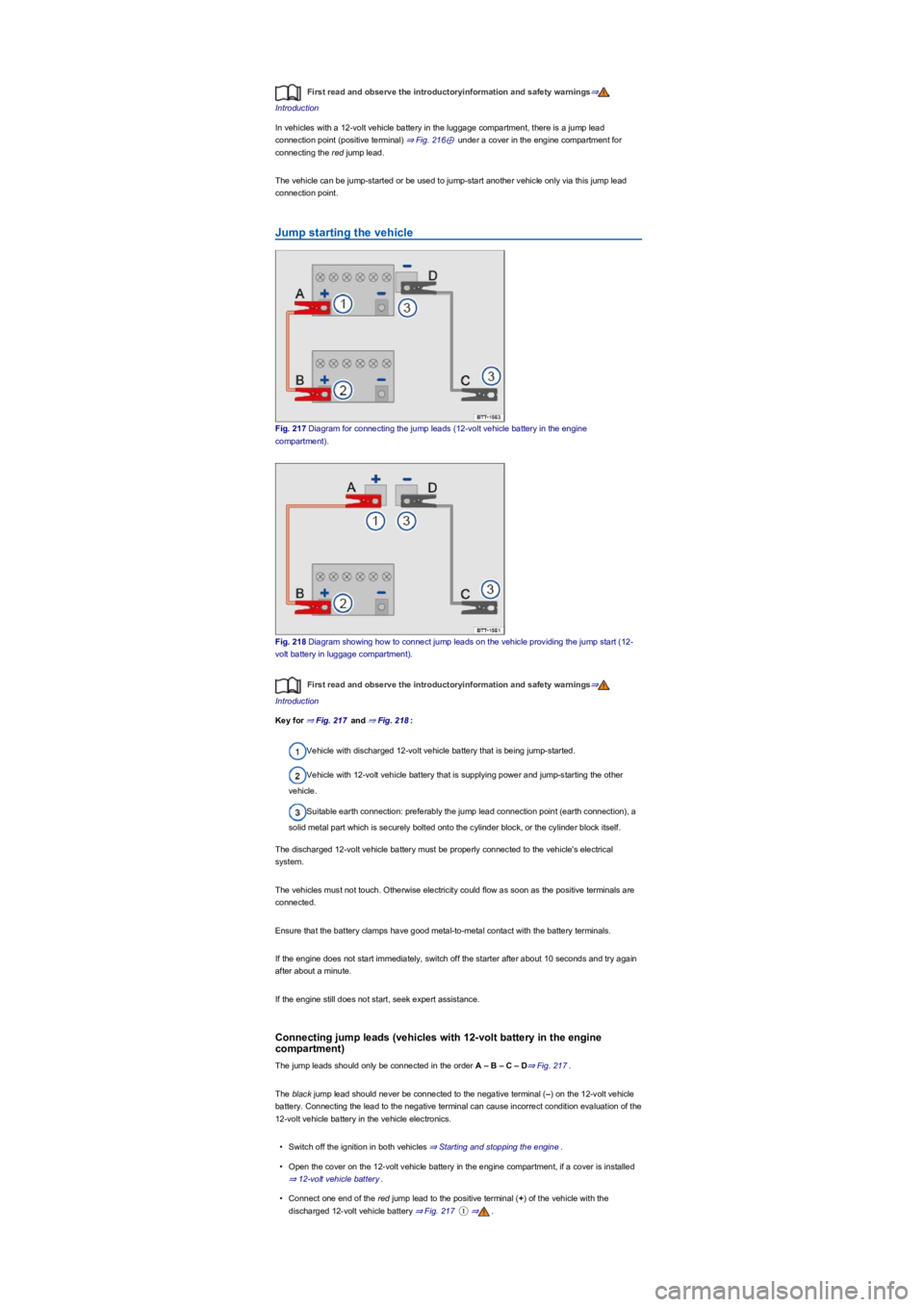

Jump starting the vehicle
Fig. 217 Diagram for connecting the jump leads (12-volt vehicle battery in the engine
compartmentyf.
Fig. 218 Diagram showing how to connect jump leads on the vehicle providing the jump start (12-
volt battery in luggage compartmentyf.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Key for ⇒ Fig. 217 and ⇒ Fig. 218:
Vehicle with discharged 12-volt vehicle battery that is being jump-started.
Vehicle with 12-volt vehicle battery that is supplying power and jump-starting the other
vehicle.
Suitable earth connection: preferably the jump lead connection point (earth connectionyfD
solid metal part which is securely bolted onto the cylinder block, or the cylinder block itself.
The discharged 12-volt vehicle battery must be properly connected to the vehicle's electrical
system.
The vehicles must not touch. Otherwise electricity could flow as soon as the positive terminals are
connected.
Ensure that the battery clamps have good metal-to-metal contact with the battery terminals.
If the engine does not start immediately, switch off the starter after about 10 seconds and try again
after about a minute.
If the engine still does not start, seek expert assistance.
Connecting jump leads (vehicles with 12-volt battery in the engine
compartmentyf
The jump leads should only be connected in the order A – B – C – D⇒ Fig. 217.
The black jump lead should never be connected to the negative terminal (–yfRQWKHYROWYHKLFOH
battery. Connecting the lead to the negative terminal can cause incorrect condition evaluation of the
12-volt vehicle battery in the vehicle electronics.
•Switch off the ignition in both vehicles ⇒ Starting and stopping the engine.
•Open the cover on the 12-volt vehicle battery in the engine compartment, if a cover is installed
⇒ 12-volt vehicle battery.
•Connect one end of the red jump lead to the positive terminal (+yfRIWKHYHKLFOHZLWKWKH
discharged 12-volt vehicle battery ⇒ Fig. 217①⇒.

•Connect the other end of the red jump lead to the positive terminal (+yfRIWKHYHKLFOHEDWWHU\
providing assistance ⇒ Fig. 217②.
•On the vehicle with the flat 12-volt battery, connect the other end of the black jump lead
⇒ Fig. 217③ preferably to the jump lead connection point (earth connectionyfRURWKHUZLVHWRD
solid metal part that is securely bolted onto the cylinder block, or to the cylinder block itself ⇒
.
•Position the leads in such a way that they cannot come into contact with any moving parts in the
engine compartment.

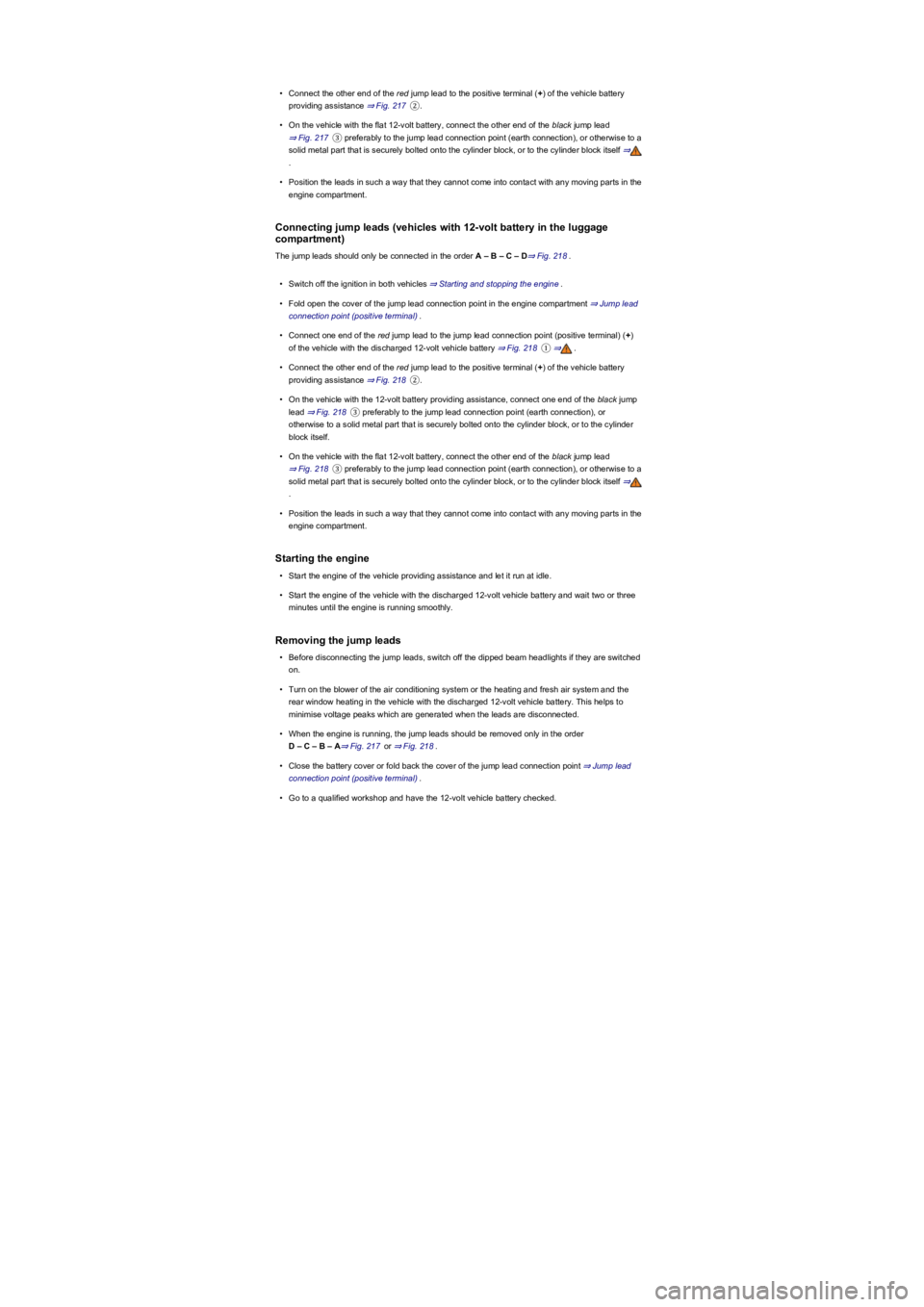

Connecting jump leads (vehicles with 12-volt battery in the luggage
compartmentyf
The jump leads should only be connected in the order A – B – C – D⇒ Fig. 218.
•Switch off the ignition in both vehicles ⇒ Starting and stopping the engine.
•Fold open the cover of the jump lead connection point in the engine compartment ⇒ Jump lead
connection point (positive terminalyf.
•Connect one end of the red jump lead to the jump lead connection point (positive terminalyf(+yf
of the vehicle with the discharged 12-volt vehicle battery ⇒ Fig. 218①⇒.
•Connect the other end of the red jump lead to the positive terminal (+yfRIWKHYHKLFOHEDWWHU\
providing assistance ⇒ Fig. 218②.
•On the vehicle with the 12-volt battery providing assistance, connect one end of the black jump
lead ⇒ Fig. 218③ preferably to the jump lead connection point (earth connectionyfRU
otherwise to a solid metal part that is securely bolted onto the cylinder block, or to the cylinder
block itself.
•On the vehicle with the flat 12-volt battery, connect the other end of the black jump lead
⇒ Fig. 218③ preferably to the jump lead connection point (earth connectionyfRURWKHUZLVHWRD
solid metal part that is securely bolted onto the cylinder block, or to the cylinder block itself ⇒
.
•Position the leads in such a way that they cannot come into contact with any moving parts in the
engine compartment.
Starting the engine
•Start the engine of the vehicle providing assistance and let it run at idle.
•Start the engine of the vehicle with the discharged 12-volt vehicle battery and wait two or three
minutes until the engine is running smoothly.
Removing the jump leads
•Before disconnecting the jump leads, switch off the dipped beam headlights if they are switched
on.
•Turn on the blower of the air conditioning system or the heating and fresh air system and the
rear window heating in the vehicle with the discharged 12-volt vehicle battery. This helps to
minimise voltage peaks which are generated when the leads are disconnected.
•When the engine is running, the jump leads should be removed only in the order
D – C – B – A⇒ Fig. 217 or ⇒ Fig. 218.
•Close the battery cover or fold back the cover of the jump lead connection point ⇒ Jump lead
connection point (positive terminalyf.
•Go to a qualified workshop and have the 12-volt vehicle battery checked.

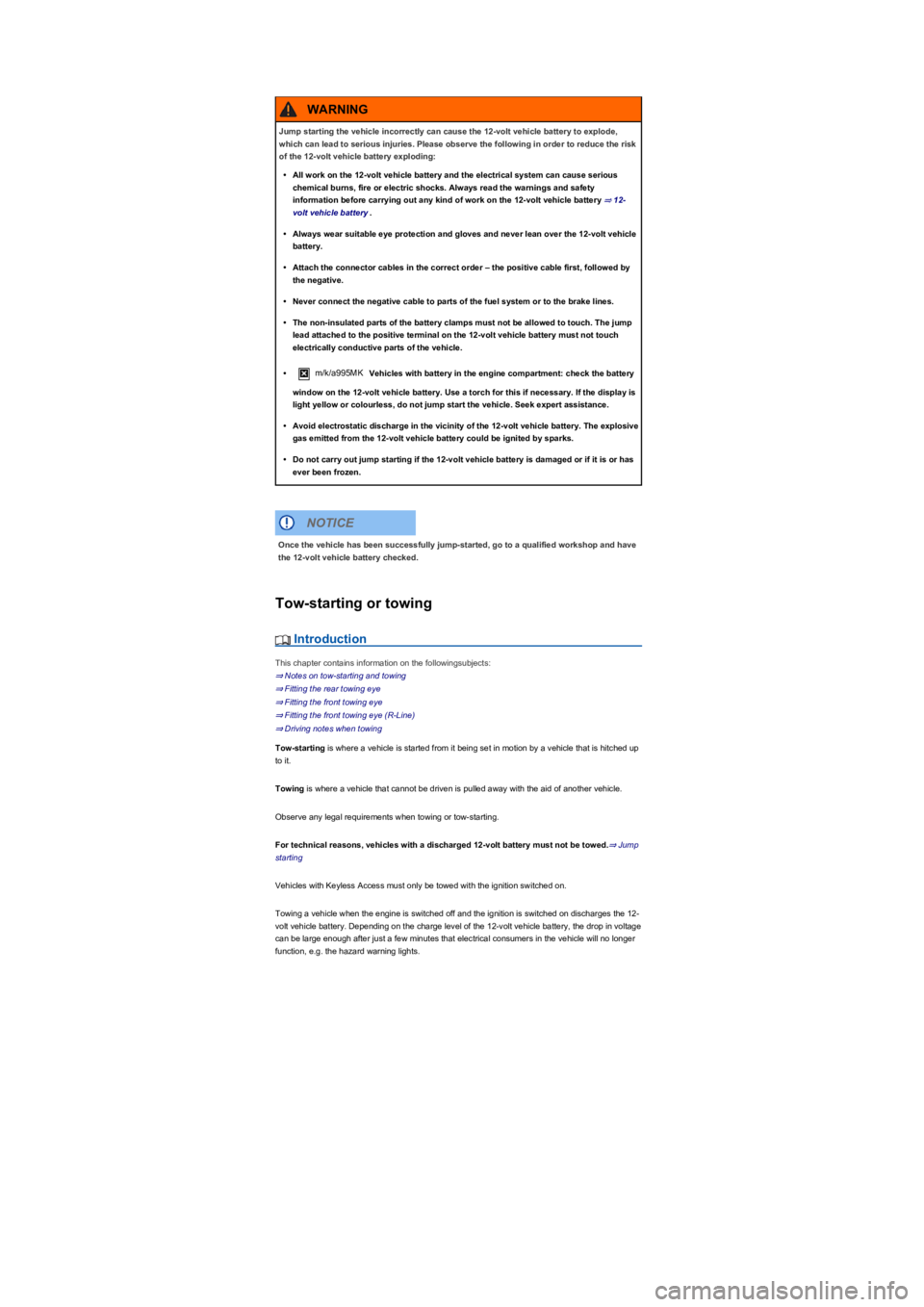

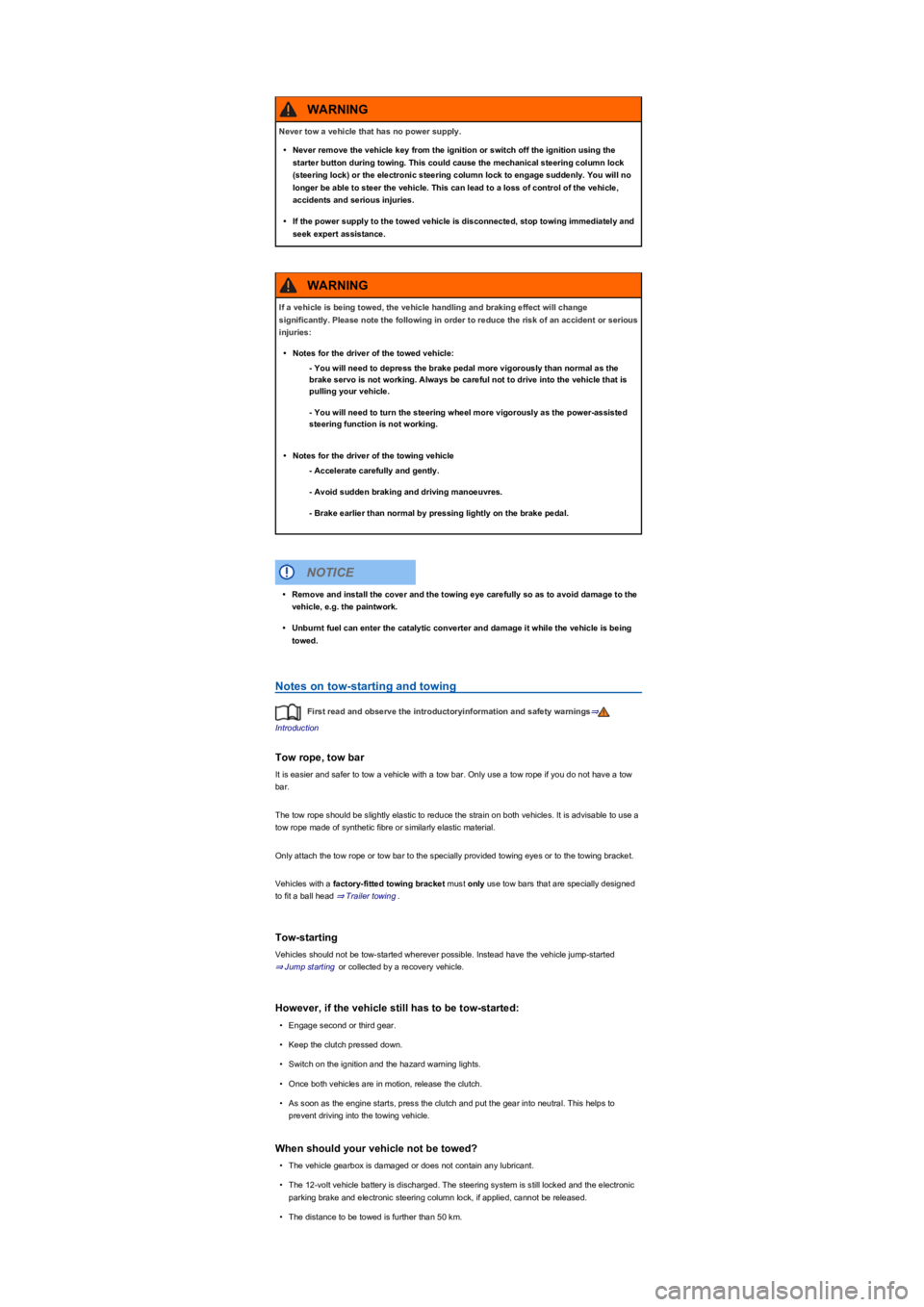

Tow-starting or towing
Introduction
This chapter contains information on the followingsubjects:
⇒ Notes on tow-starting and towing

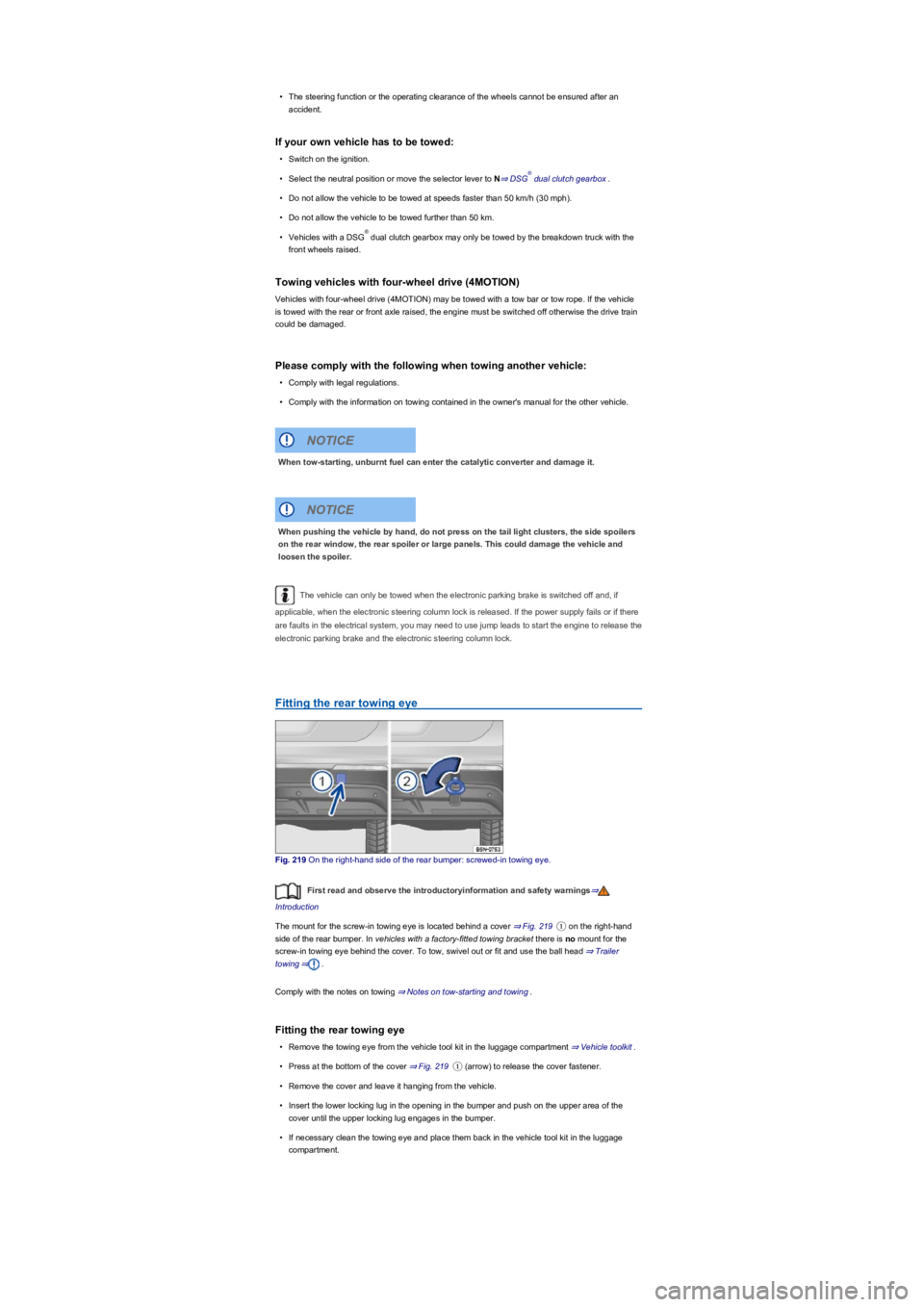

⇒ Fitting the rear towing eye

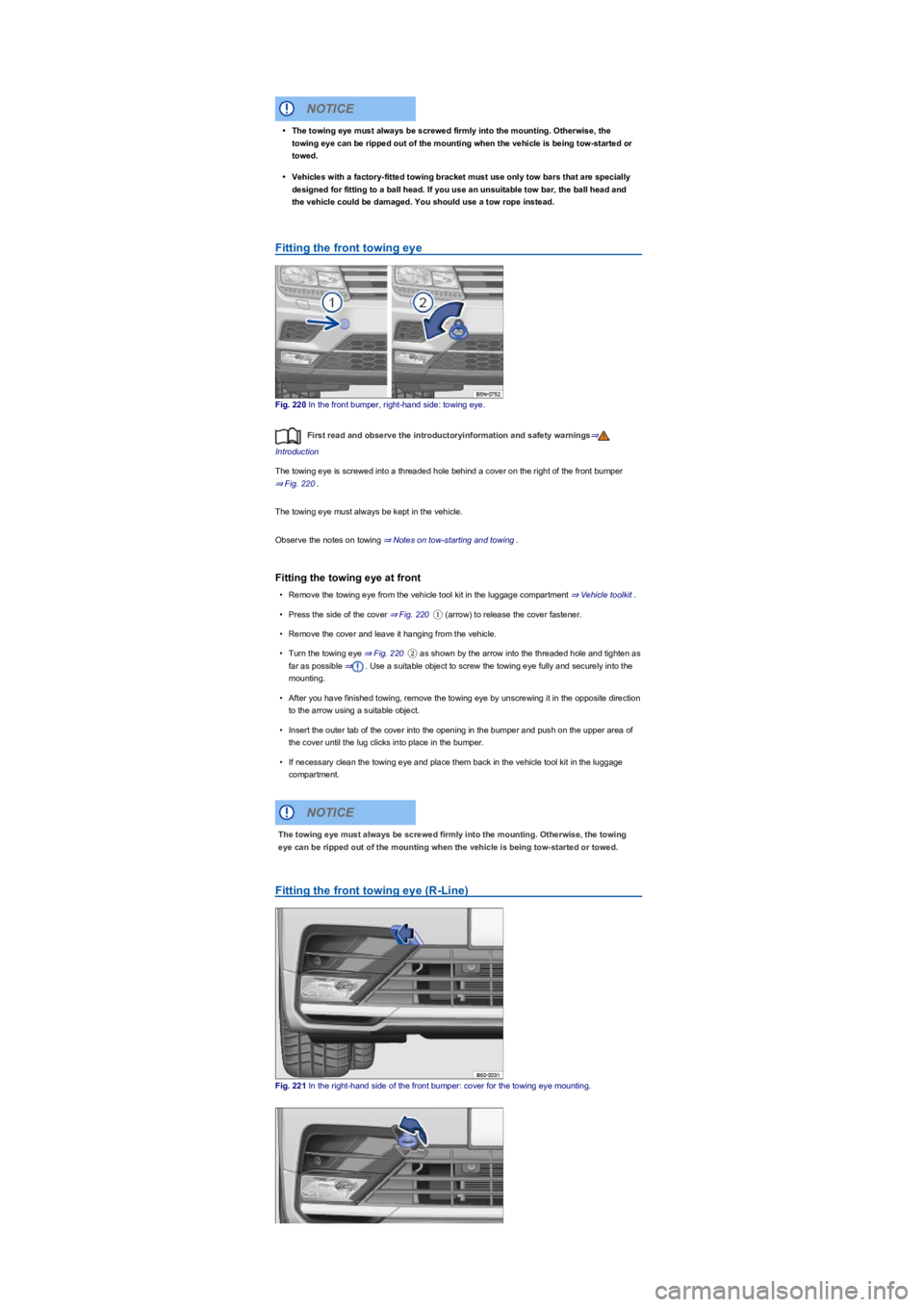

⇒ Fitting the front towing eye
⇒ Fitting the front towing eye (R-Lineyf
⇒ Driving notes when towing
Tow-starting is where a vehicle is started from it being set in motion by a vehicle that is hitched up
to it.
Towing is where a vehicle that cannot be driven is pulled away with the aid of another vehicle.
Observe any legal requirements when towing or tow-starting.
For technical reasons, vehicles with a discharged 12-volt battery must not be towed.⇒ Jump
starting
Vehicles with Keyless Access must only be towed with the ignition switched on.
Towing a vehicle when the engine is switched off and the ignition is switched on discharges the 12-
volt vehicle battery. Depending on the charge level of the 12-volt vehicle battery, the drop in voltage
can be large enough after just a few minutes that electrical consumers in the vehicle will no longer
function, e.g. the hazard warning lights.
Jump starting the vehicle incorrectly can cause the 12-volt vehicle battery to explode,
which can lead to serious injuries. Please observe the following in order to reduce the risk
of the 12-volt vehicle battery exploding:
•All work on the 12-volt vehicle battery and the electrical system can cause serious
chemical burns, fire or electric shocks. Always read the warnings and safety
information before carrying out any kind of work on the 12-volt vehicle battery ⇒ 12-
volt vehicle battery.
•Always wear suitable eye protection and gloves and never lean over the 12-volt vehicle
battery.
•Attach the connector cables in the correct order – the positive cable first, followed by
the negative.
•Never connect the negative cable to parts of the fuel system or to the brake lines.
•The non-insulated parts of the battery clamps must not be allowed to touch. The jump
lead attached to the positive terminal on the 12-volt vehicle battery must not touch
electrically conductive parts of the vehicle.
•m/k/a995MK Vehicles with battery in the engine compartment: check the battery
window on the 12-volt vehicle battery. Use a torch for this if necessary. If the display is
light yellow or colourless, do not jump start the vehicle. Seek expert assistance.
•Avoid electrostatic discharge in the vicinity of the 12-volt vehicle battery. The explosive
gas emitted from the 12-volt vehicle battery could be ignited by sparks.
•Do not carry out jump starting if the 12-volt vehicle battery is damaged or if it is or has
ever been frozen.
WARNING
Once the vehicle has been successfully jump-started, go to a qualified workshop and have
the 12-volt vehicle battery checked.
NOTICE

Notes on tow-starting and towing
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Tow rope, tow bar
It is easier and safer to tow a vehicle with a tow bar. Only use a tow rope if you do not have a tow
bar.
The tow rope should be slightly elastic to reduce the strain on both vehicles. It is advisable to use a
tow rope made of synthetic fibre or similarly elastic material.
Only attach the tow rope or tow bar to the specially provided towing eyes or to the towing bracket.
Vehicles with a factory-fitted towing bracket must only use tow bars that are specially designed
to fit a ball head ⇒ Trailer towing.
Tow-starting
Vehicles should not be tow-started wherever possible. Instead have the vehicle jump-started
⇒ Jump starting or collected by a recovery vehicle.
However, if the vehicle still has to be tow-started:
•Engage second or third gear.
•Keep the clutch pressed down.
•Switch on the ignition and the hazard warning lights.
•Once both vehicles are in motion, release the clutch.
•As soon as the engine starts, press the clutch and put the gear into neutral. This helps to
prevent driving into the towing vehicle.
When should your vehicle not be towed?
•The vehicle gearbox is damaged or does not contain any lubricant.
•The 12-volt vehicle battery is discharged. The steering system is still locked and the electronic
parking brake and electronic steering column lock, if applied, cannot be released.
•The distance to be towed is further than 50 km.
Never tow a vehicle that has no power supply.
•Never remove the vehicle key from the ignition or switch off the ignition using the
starter button during towing. This could cause the mechanical steering column lock
(steering lockyfRUWKHHOHFWURQLFVWHHULQJFROXPQORFNWRHQJDJHVXGGHQO\<RXZLOOQR
longer be able to steer the vehicle. This can lead to a loss of control of the vehicle,
accidents and serious injuries.
•If the power supply to the towed vehicle is disconnected, stop towing immediately and
seek expert assistance.
WARNING
If a vehicle is being towed, the vehicle handling and braking effect will change
significantly. Please note the following in order to reduce the risk of an accident or serious
injuries:
•Notes for the driver of the towed vehicle:
- You will need to depress the brake pedal more vigorously than normal as the
brake servo is not working. Always be careful not to drive into the vehicle that is
pulling your vehicle.
- You will need to turn the steering wheel more vigorously as the power-assisted
steering function is not working.
•Notes for the driver of the towing vehicle
- Accelerate carefully and gently.
- Avoid sudden braking and driving manoeuvres.
- Brake earlier than normal by pressing lightly on the brake pedal.
WARNING
•Remove and install the cover and the towing eye carefully so as to avoid damage to the
vehicle, e.g. the paintwork.
•Unburnt fuel can enter the catalytic converter and damage it while the vehicle is being
towed.
NOTICE

•The steering function or the operating clearance of the wheels cannot be ensured after an
accident.
If your own vehicle has to be towed:
•Switch on the ignition.
•Select the neutral position or move the selector lever to N⇒ DSG dual clutch gearbox.
•Do not allow the vehicle to be towed at speeds faster than 50 km/h (30 mphyf.
•Do not allow the vehicle to be towed further than 50 km.
•Vehicles with a DSG dual clutch gearbox may only be towed by the breakdown truck with the
front wheels raised.
Towing vehicles with four-wheel drive (4MOTIONyf
Vehicles with four-wheel drive (4MOTIONyfPD\EHWRZHGZLWKDWRZEDURUWRZURSH,IWKHYHKLFOH
is towed with the rear or front axle raised, the engine must be switched off otherwise the drive train
could be damaged.
Please comply with the following when towing another vehicle:
•Comply with legal regulations.
•Comply with the information on towing contained in the owner's manual for the other vehicle.
The vehicle can only be towed when the electronic parking brake is switched off and, if
applicable, when the electronic steering column lock is released. If the power supply fails or if there
are faults in the electrical system, you may need to use jump leads to start the engine to release the
electronic parking brake and the electronic steering column lock.
Fitting the rear towing eye
Fig. 219 On the right-hand side of the rear bumper: screwed-in towing eye.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The mount for the screw-in towing eye is located behind a cover ⇒ Fig. 219① on the right-hand
side of the rear bumper. In vehicles with a factory-fitted towing bracket there is no mount for the
screw-in towing eye behind the cover. To tow, swivel out or fit and use the ball head ⇒ Trailer
towing⇒.
Comply with the notes on towing ⇒ Notes on tow-starting and towing.
Fitting the rear towing eye
•Remove the towing eye from the vehicle tool kit in the luggage compartment ⇒ Vehicle toolkit.
•Press at the bottom of the cover ⇒ Fig. 219① (arrowyfWRUHOHDVHWKHFRYHUIDVWHQHU.
•Remove the cover and leave it hanging from the vehicle.
•Insert the lower locking lug in the opening in the bumper and push on the upper area of the
cover until the upper locking lug engages in the bumper.
•If necessary clean the towing eye and place them back in the vehicle tool kit in the luggage
compartment.
®
®
When tow-starting, unburnt fuel can enter the catalytic converter and damage it.
NOTICE
When pushing the vehicle by hand, do not press on the tail light clusters, the side spoilers
on the rear window, the rear spoiler or large panels. This could damage the vehicle and
loosen the spoiler.
NOTICE

Fitting the front towing eye
Fig. 220 In the front bumper, right-hand side: towing eye.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The towing eye is screwed into a threaded hole behind a cover on the right of the front bumper
⇒ Fig. 220.
The towing eye must always be kept in the vehicle.
Observe the notes on towing ⇒ Notes on tow-starting and towing.
Fitting the towing eye at front
•Remove the towing eye from the vehicle tool kit in the luggage compartment ⇒ Vehicle toolkit.
•Press the side of the cover ⇒ Fig. 220① (arrowyfWRUHOHDVHWKHFRYHUIDVWHQHU.
•Remove the cover and leave it hanging from the vehicle.
•Turn the towing eye ⇒ Fig. 220② as shown by the arrow into the threaded hole and tighten as
far as possible ⇒. Use a suitable object to screw the towing eye fully and securely into the
mounting.
•After you have finished towing, remove the towing eye by unscrewing it in the opposite direction
to the arrow using a suitable object.
•Insert the outer tab of the cover into the opening in the bumper and push on the upper area of
the cover until the lug clicks into place in the bumper.
•If necessary clean the towing eye and place them back in the vehicle tool kit in the luggage
compartment.
Fitting the front towing eye (R-Lineyf
Fig. 221 In the right-hand side of the front bumper: cover for the towing eye mounting.
•The towing eye must always be screwed firmly into the mounting. Otherwise, the
towing eye can be ripped out of the mounting when the vehicle is being tow-started or
towed.
•Vehicles with a factory-fitted towing bracket must use only tow bars that are specially
designed for fitting to a ball head. If you use an unsuitable tow bar, the ball head and
the vehicle could be damaged. You should use a tow rope instead.
NOTICE
The towing eye must always be screwed firmly into the mounting. Otherwise, the towing
eye can be ripped out of the mounting when the vehicle is being tow-started or towed.
NOTICE
