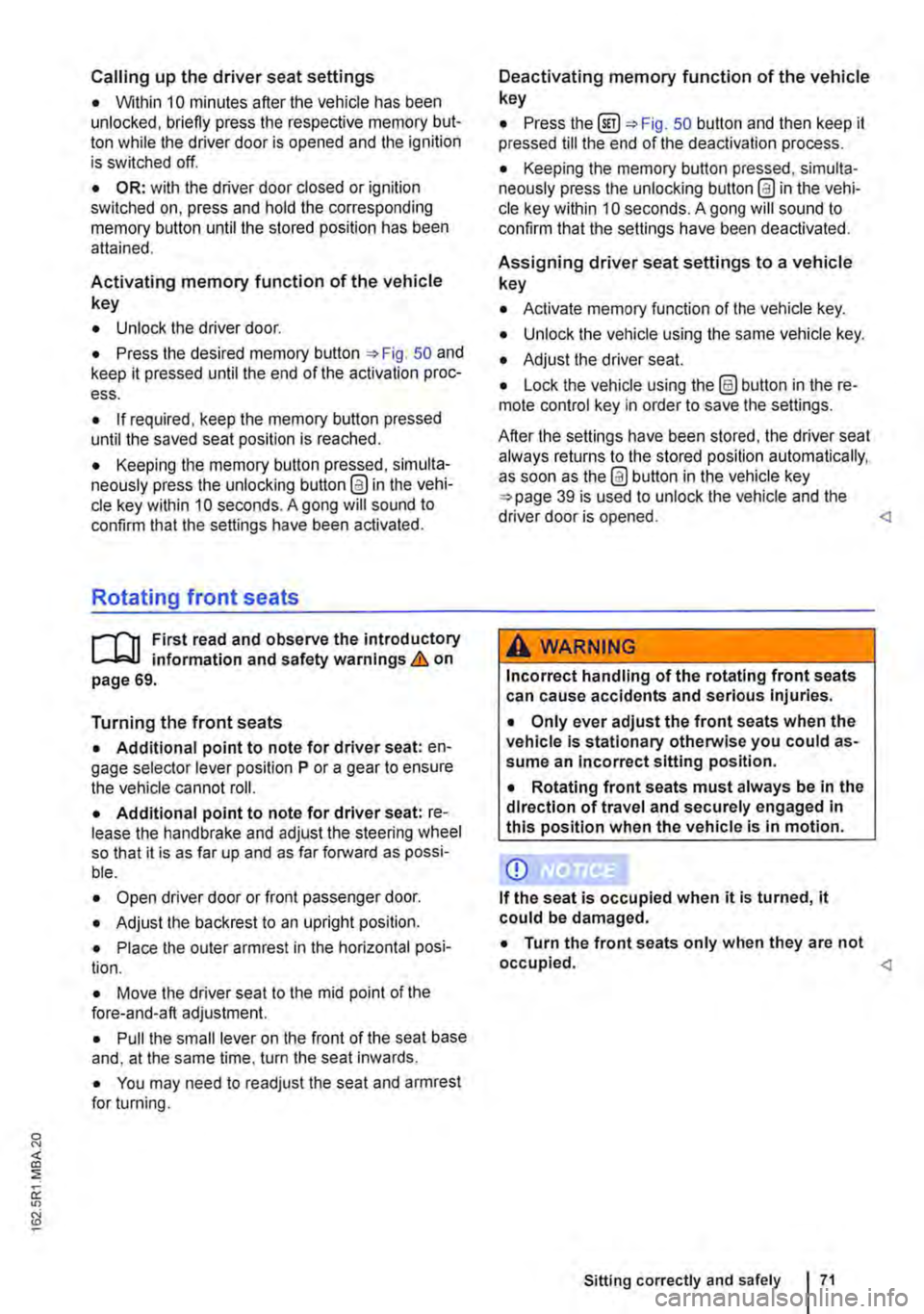

Page 71 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Calling up the driver seat settings
• Within 10 minutes after the vehicle has been unlocked, briefly press the respective memory but-ton while the driver door is opened and the ignition is switched

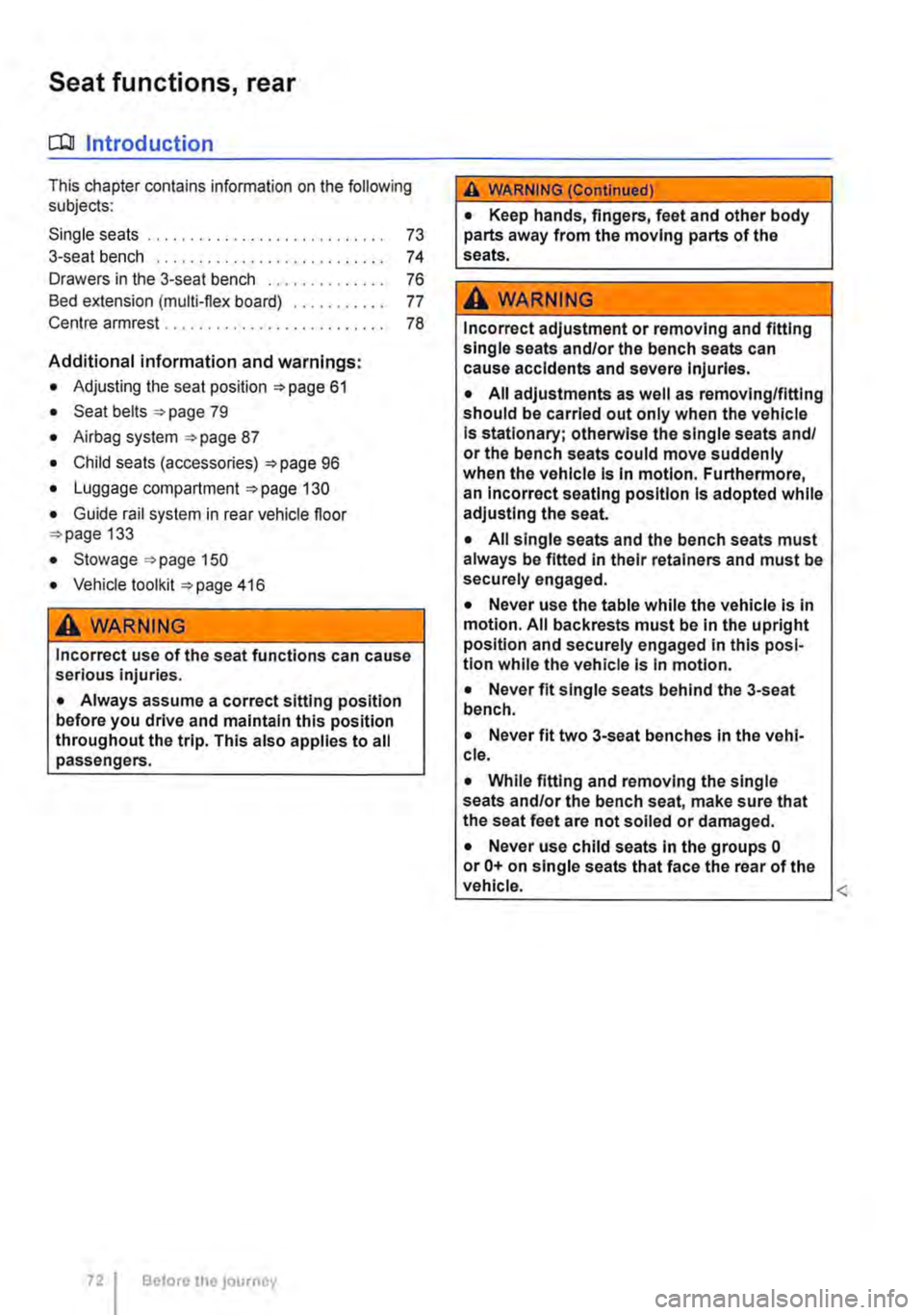

Page 72 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Seat functions, rear
Cl:lJ Introduction
This chapter contains information on the following subjects:
Single seats .
3-seat bench
Drawers in the 3-seat bench ......•.....
Bed extension (multi-f

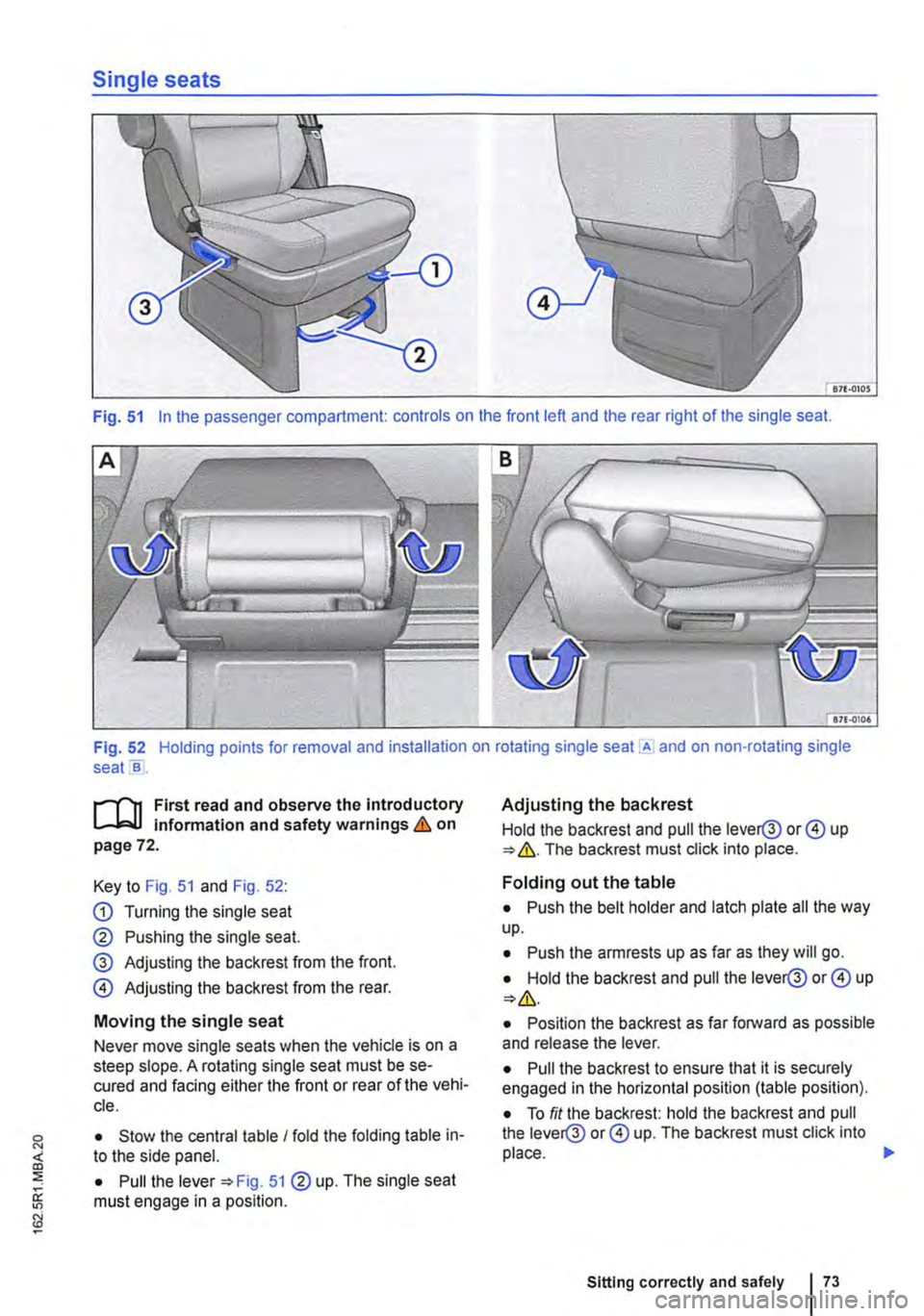

Page 73 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Single seats
Fig. 51 In the passenger compartment: controls on the front left and the rear right of the single seat.
Fig. 52 Holding points for removal and installation on rotating single seat .A an

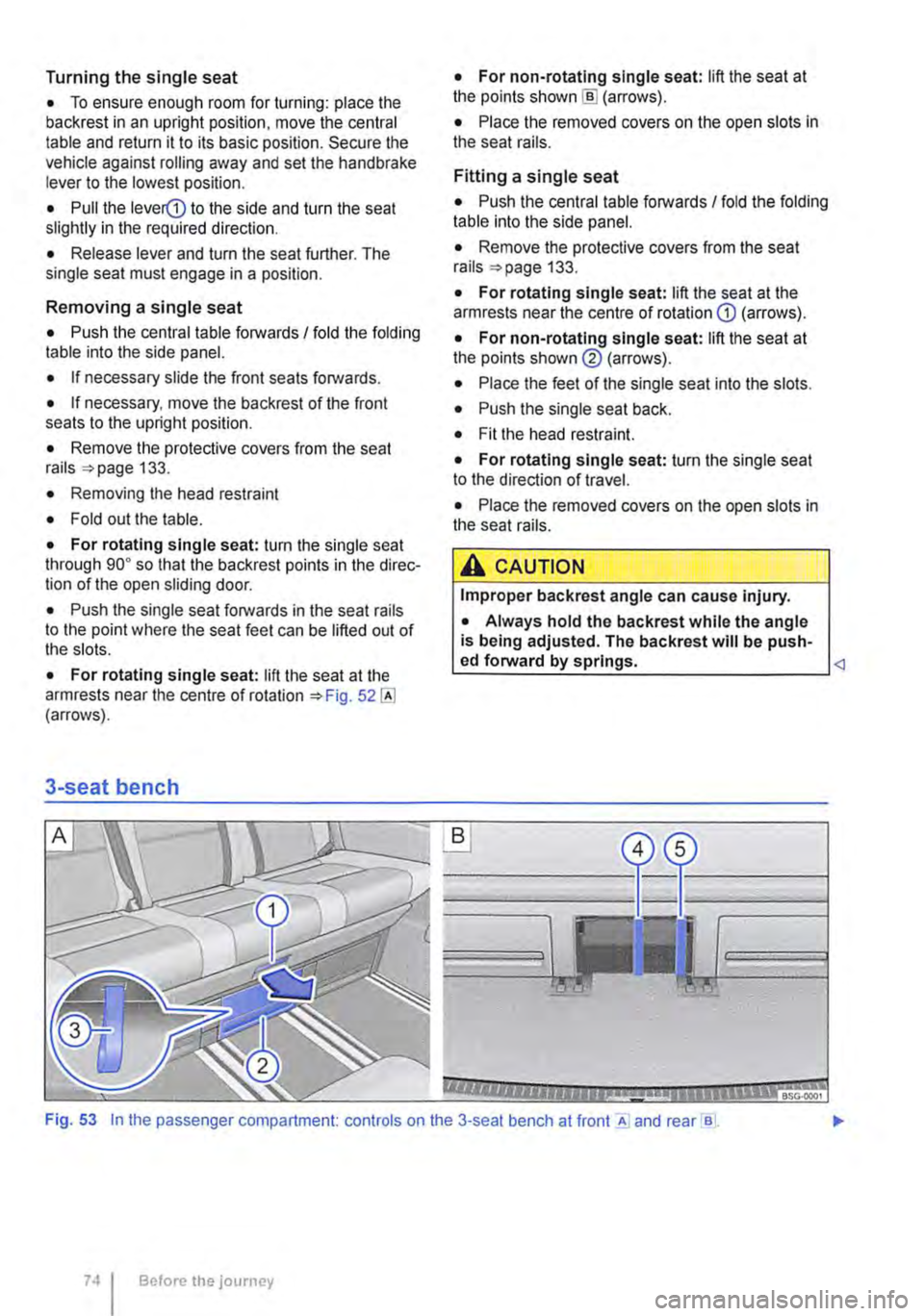

Page 74 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Turning the  single seat
• To ensure enough room for turning: place the backrest in an upright position. move the central table and return it to its basic position. Secure the vehicle against rolli

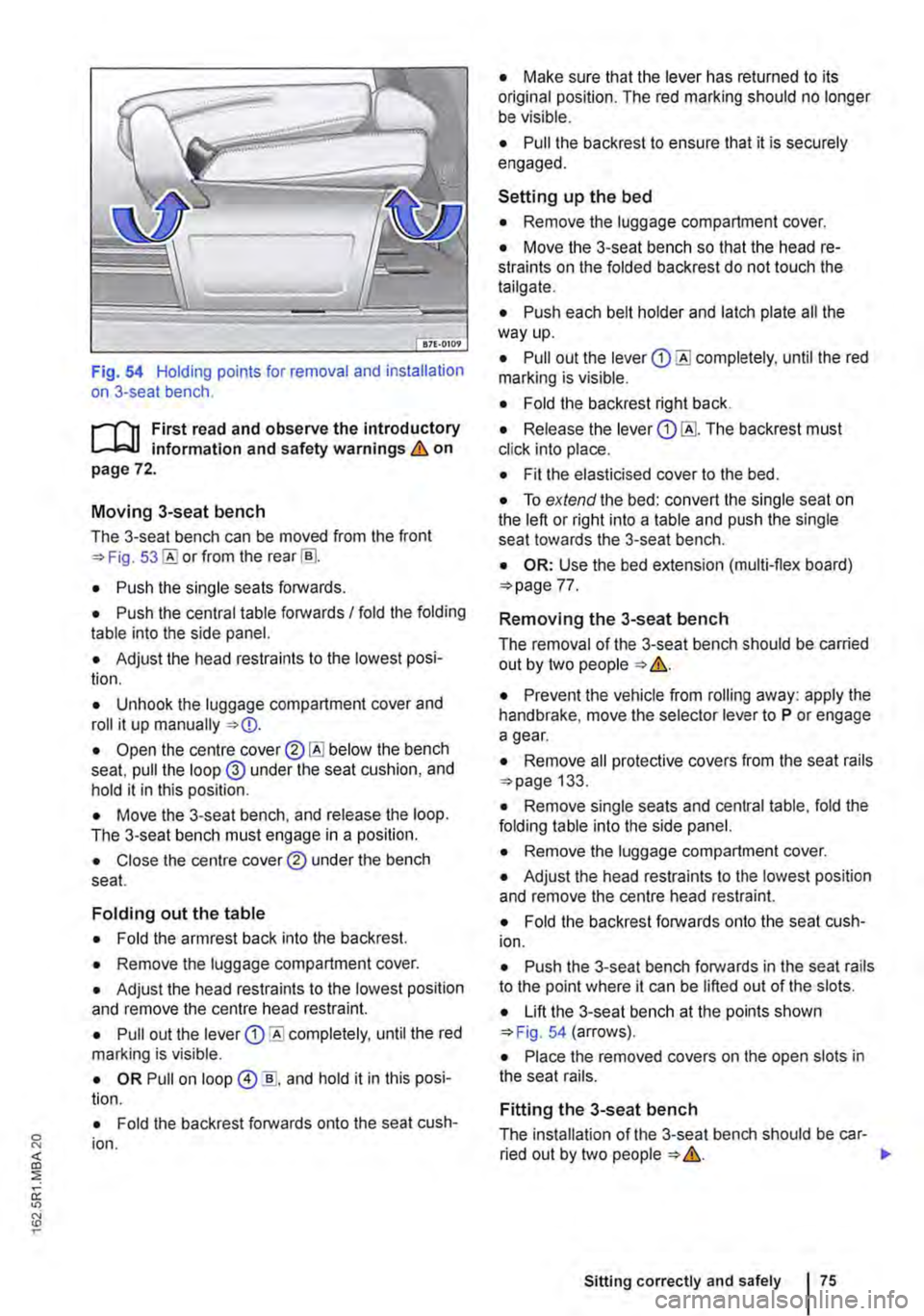

Page 75 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Fig. 54 Holding points for removal and installation on 3-seat bench.
,....-m First read and observe the introductory L-W.I information and safety warnings & on page 72.
Moving 3-seat bench
The 3-se

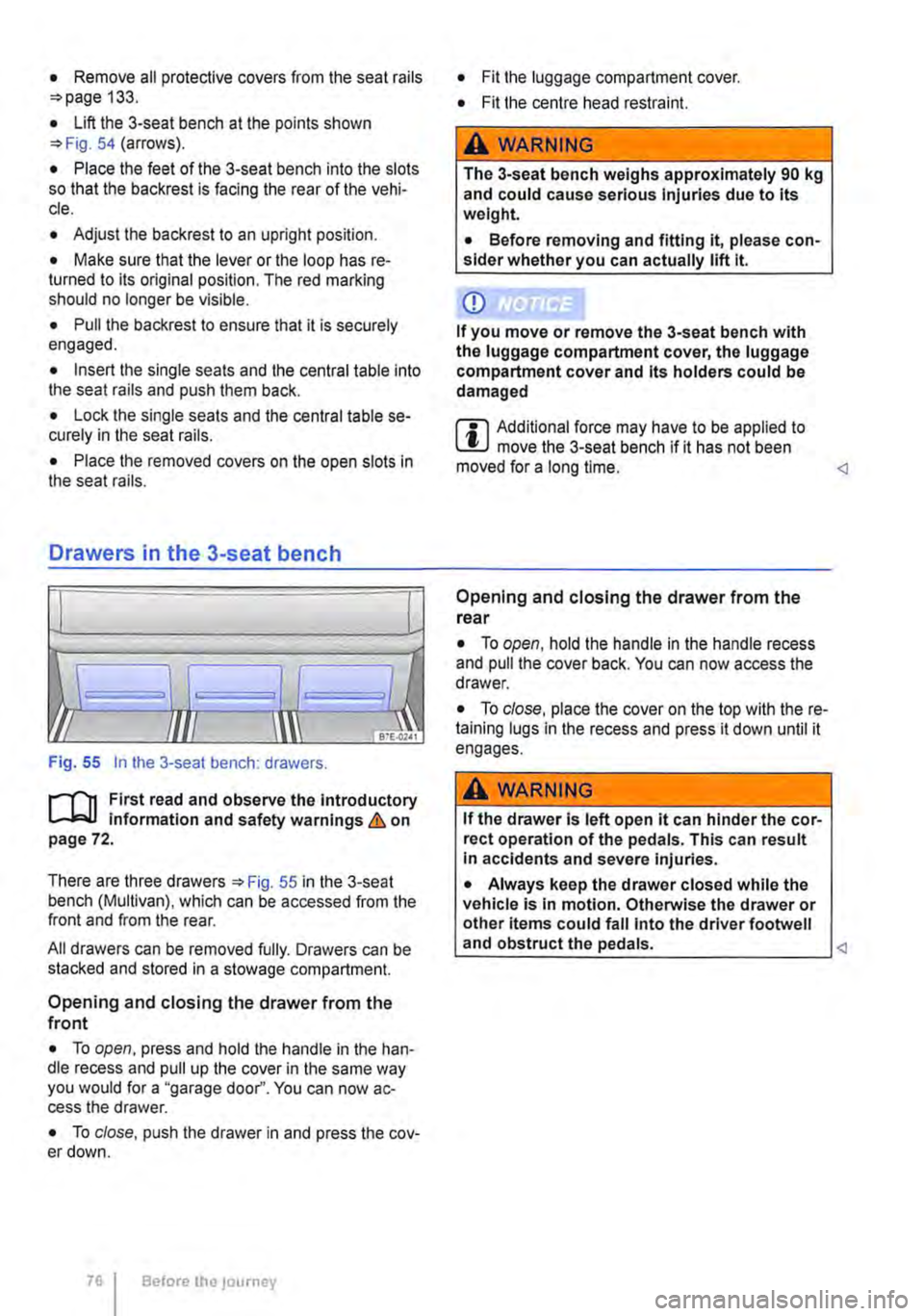

Page 76 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual • Remove all protective covers from the seat rails =-page 133.
• Lift the 3-seat bench at the points shown =>Fig. 54 (arrows).
• Place the feet of the 3-seat bench into the slots so that the b

Page 77 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Bed extension (multi-flex board)
Fig. 56 In the luggage compartment: multi-flex board.
.--m First read and observe the Introductory L-.J,..U lnfonmatlon and safety warnings & on page 72.
Key to Fig

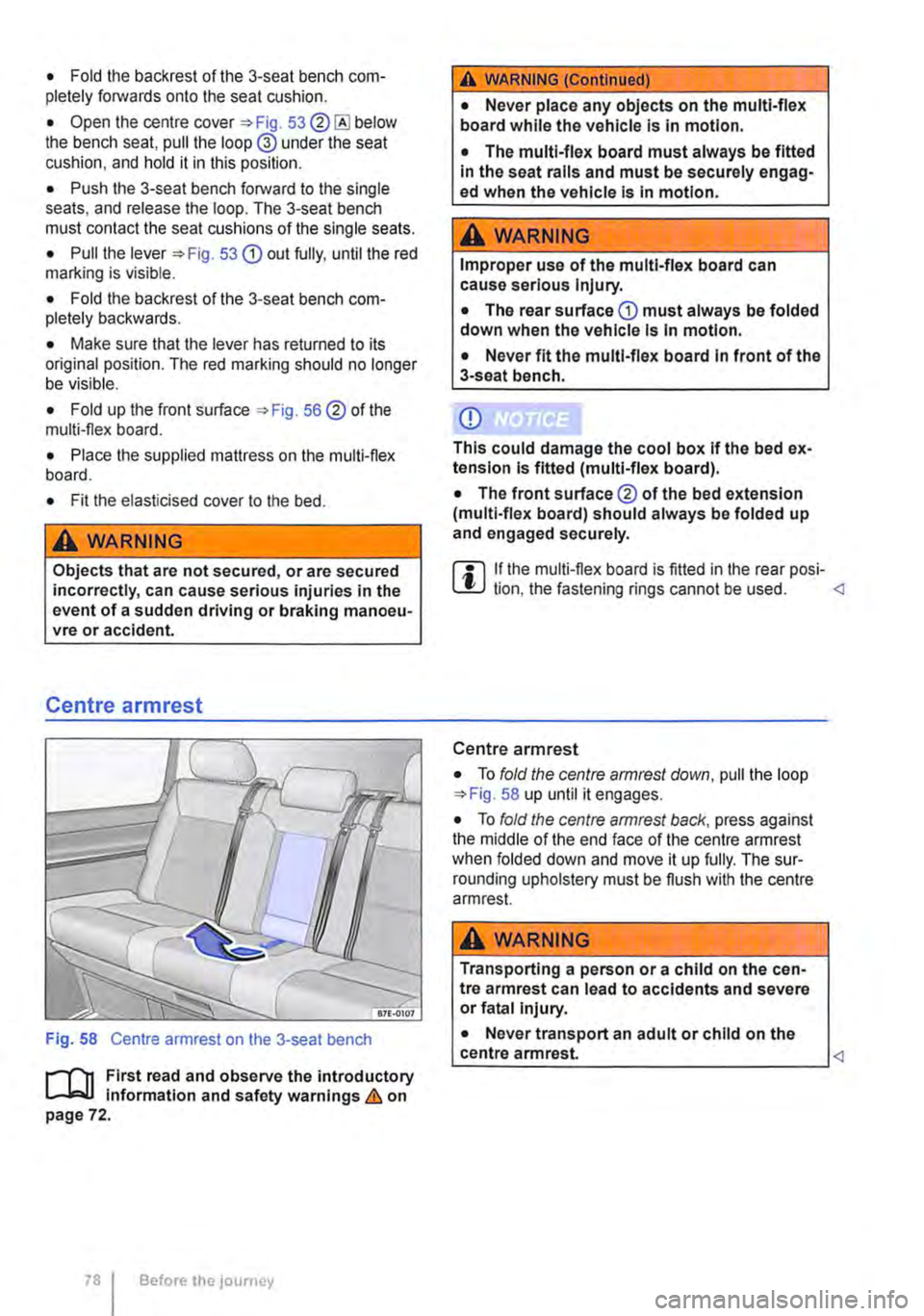

Page 78 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual • Fold the backrest of the 3-seat bench com-pletely forwards onto the seat cushion.
• Open the centre cover 53®@ below the bench seat, pull the loop @ under the seat cushion, and hold it in this

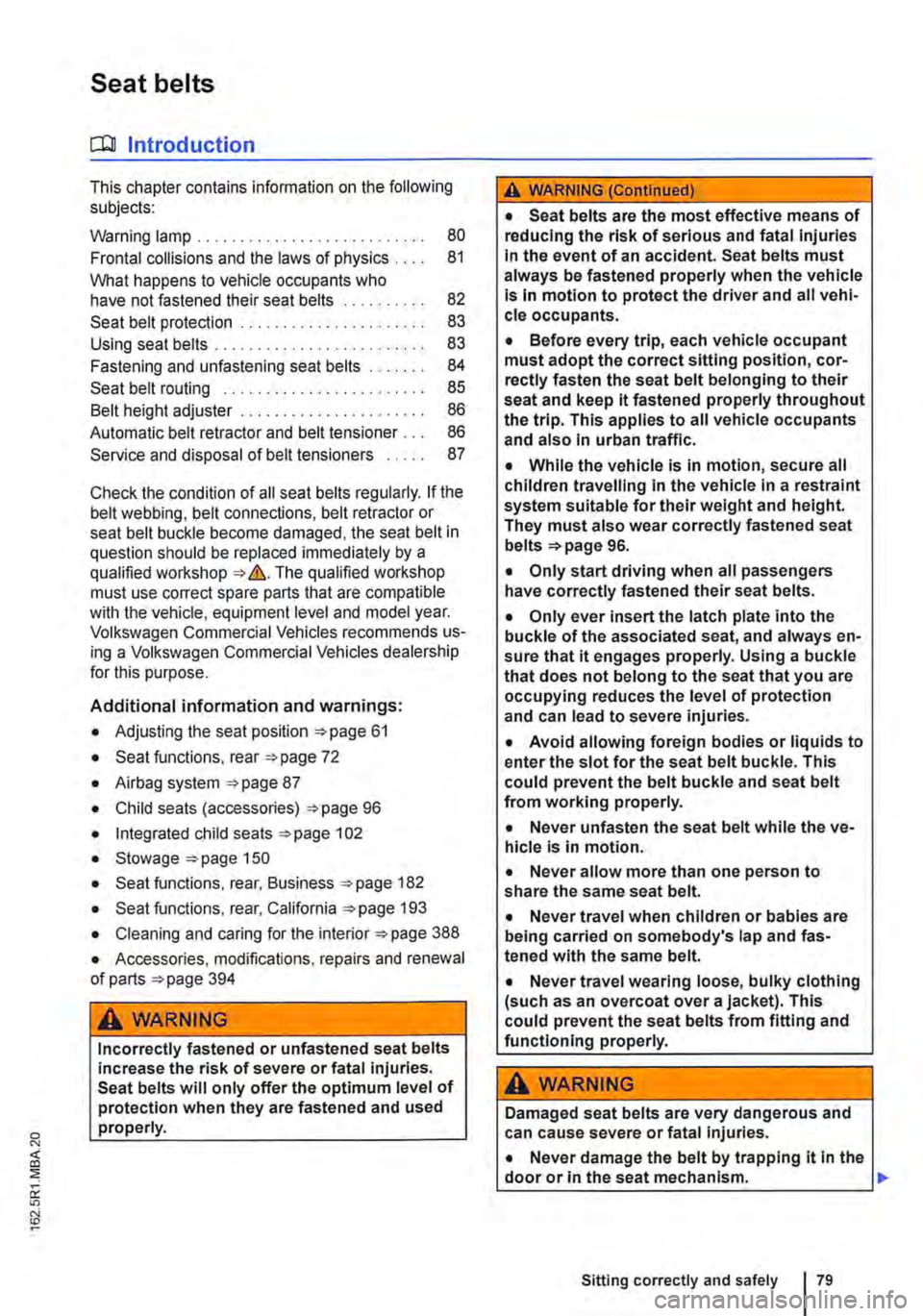

Page 79 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual Seat belts
o:n Introduction
This chapter contains information on the following subjects:
Warning lamp . . . . . . . . . . . 80
Frontal collisions and the laws of physics 81
What happens to vehicl

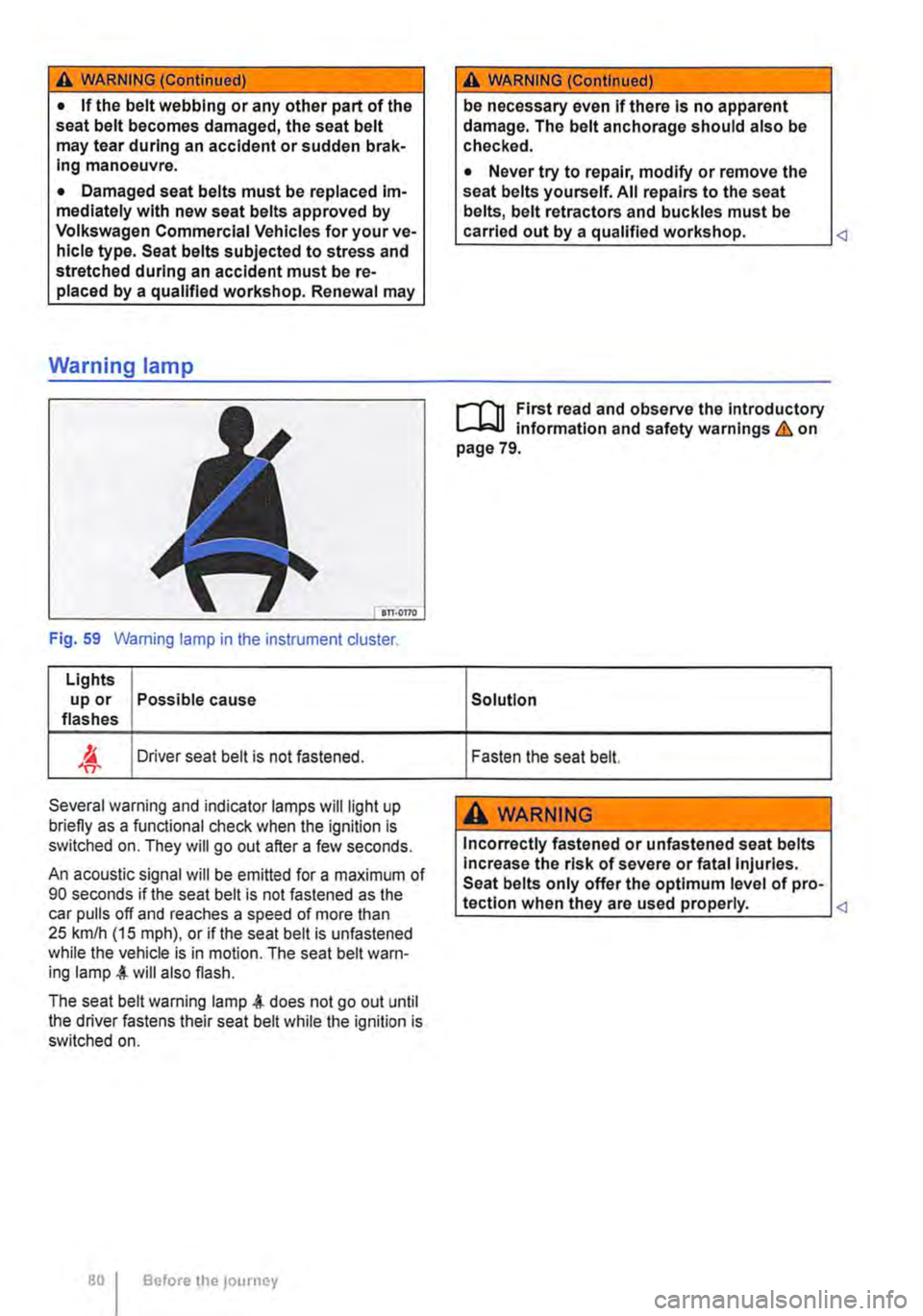

Page 80 of 486

VOLKSWAGEN TRANSPORTER 2015  Owner´s Manual A WARNING (Continued)
• If the belt webbing or any other part of the seat belt becomes damaged, the seat belt may tear during an accident or sudden brak-Ing manoeuvre.
• Damaged seat belts must
