VOLVO 240 1990 Service Manual

Volvo 1990 240 Model
pg. 32 Doors and locks, Child safety lock


Unlocking front doors

Both front doors can be unlocked by using the starting (ignition) key.\
Turning the key 1/4 turn counter-
clockwise (right door: clockwise) lifts the lock buttons on the window\
ledge and the door can be opened
by pulling the handle.
To open a door from inside, the lock button must first be pulled up.

Central lock

The vehicle is equipped with a central lock system. This means the lock \
on the driver's door
automatically controls the locks on the other doors (including the trun\
k on Sedan models and the tailgate
on the wagon model).
If the drivers door is locked or unlocked, the other doors will automati\
cally be locked or unlocked.

Locking doors

Both front doors can be locked by using the key. Turning the key 1/4 tur\
n clockwise (left door) or
counter-clockwise (right door) locks the door.

file:///K|/ownersdocs/1990/1990_240/90240_07.htm (1 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model
NOTE: The driver's door can only be locked using the
key.

The lock buttons should not be In the down (locked) position during dr\
iving. In case of an accident, this
may hinder rapid access to the occupants of the vehicle.



Child safety locks

The buttons are located on the rear door jambs.
A The lock functions normally.
B The door cannot be opened from the inside.
WARNING: In the event of an accident, the rear seat passengers cannot op\
en the doors from the inside
with the buttons in position B.

Wagon model contains child safety lock on tailgate. The lock differs fro\
m that shown above. See section
titled "Wagon, tailgate".
pg. 33 Trunk lid/light
file:///K|/ownersdocs/1990/1990_240/90240_07.htm (2 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model


Trunk lid

The trunk lock is incorporated in the central locking system. This means\
that you can either lock or
unlock the trunk by means of the drivers door lock.
You can also operate the trunk lock directly with the owner's key even i\
f the vehicle is centrally locked.


Unlocking Locking

Withdraw key in vertical position

The trunk lock can also be disconnected from the central locking system \
by turning the key
counterclockwise as shown below:

Withdraw key in horizontal position
The trunk is now always locked.
This option can be used if for example, you lend your car to somebody. I\
f you give only the service key
to the driver it will not be possible to open the trunk.
file:///K|/ownersdocs/1990/1990_240/90240_07.htm (3 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model
To reconnect the lock to the central locking system:

Withdraw key in vertical position



Trunk light

A Light always off.
B Light on when trunk lid is open.
pg. 34 Hood, Long load storage


To open the hood
file:///K|/ownersdocs/1990/1990_240/90240_07.htm (4 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

Pull the release handle (located under the left side of the dash).
Lift the hood slightly, insert a hand under the center line of the hood \
and depress the safety catch handle.
Open the hood.
Check that the hood locks properly when closing.



Long load storage (except wagon)

A flap in the rear seat makes it possible to carry "long loads" such as \
skis, etc.
WARNING!
When braking rapidly the load could be displaced and cause injury to occ\
upants. Sharp edges on the
load should be covered for protection. It is essential that the "load" b\
e secured safely. Use belts locked
around the folded down armrest (see illustration).
WARNING!
Do no place heavy objects on the rear window shelf. These objects can be\
come dangerous projectiles
in the event of sudden braking. Always secure large or heavy objects wit\
h the seat belts.

An optional, specially designed, storage bag should also be used to avoi\
d soiling or tearing the
upholstery. Please note that the flap in the rear seat is intended only \
for light loads such as skis, wood
etc.
file:///K|/ownersdocs/1990/1990_240/90240_07.htm (5 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

Max. length of load 6 1/2 ft = 2 m.
Max. weight of load 33 lbs. = 15 kg.

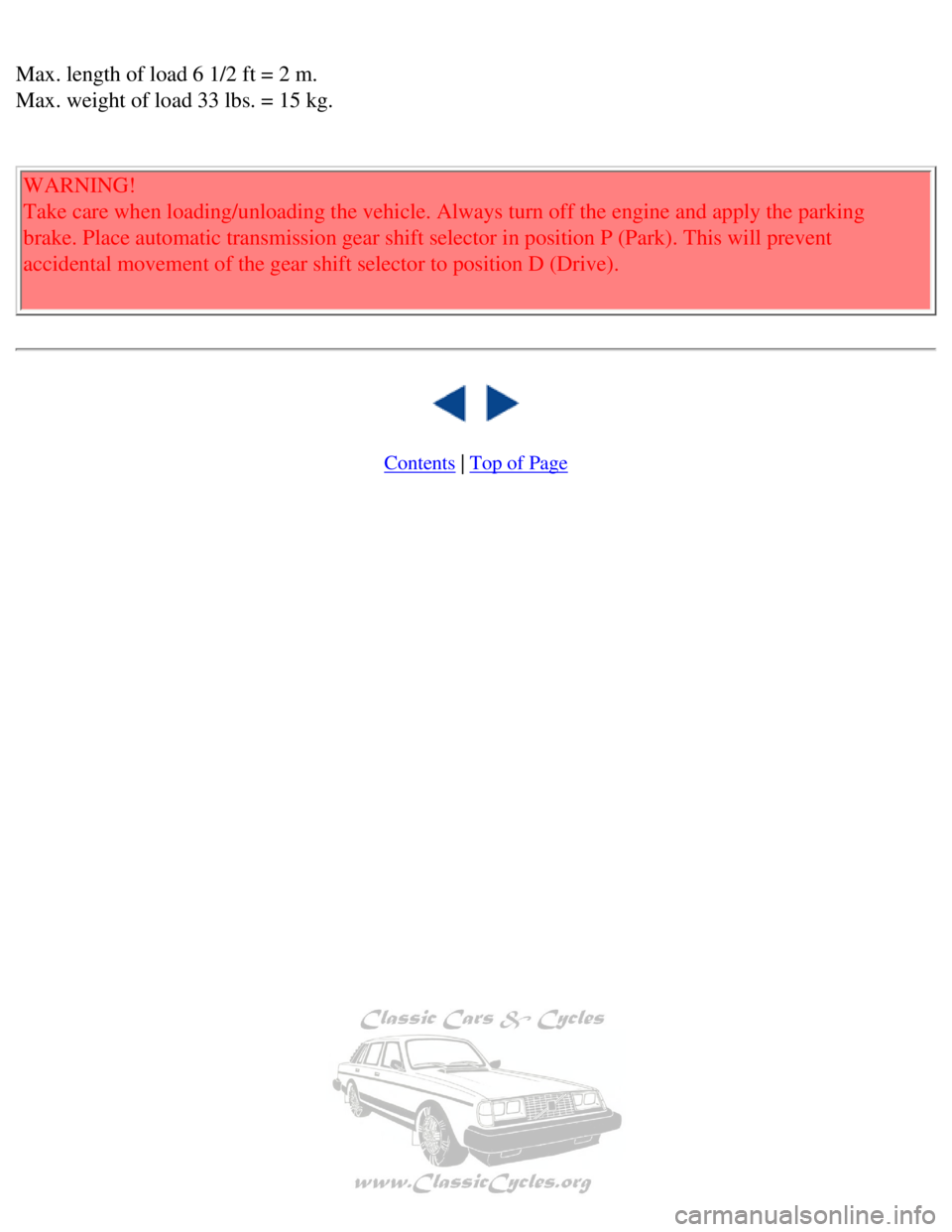

WARNING!
Take care when loading/unloading the vehicle. Always turn off the engine\
and apply the parking
brake. Place automatic transmission gear shift selector in position P (\
Park). This will prevent
accidental movement of the gear shift selector to position D (Drive). \




Contents | Top of Page
file:///K|/ownersdocs/1990/1990_240/90240_07.htm (6 of 6)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

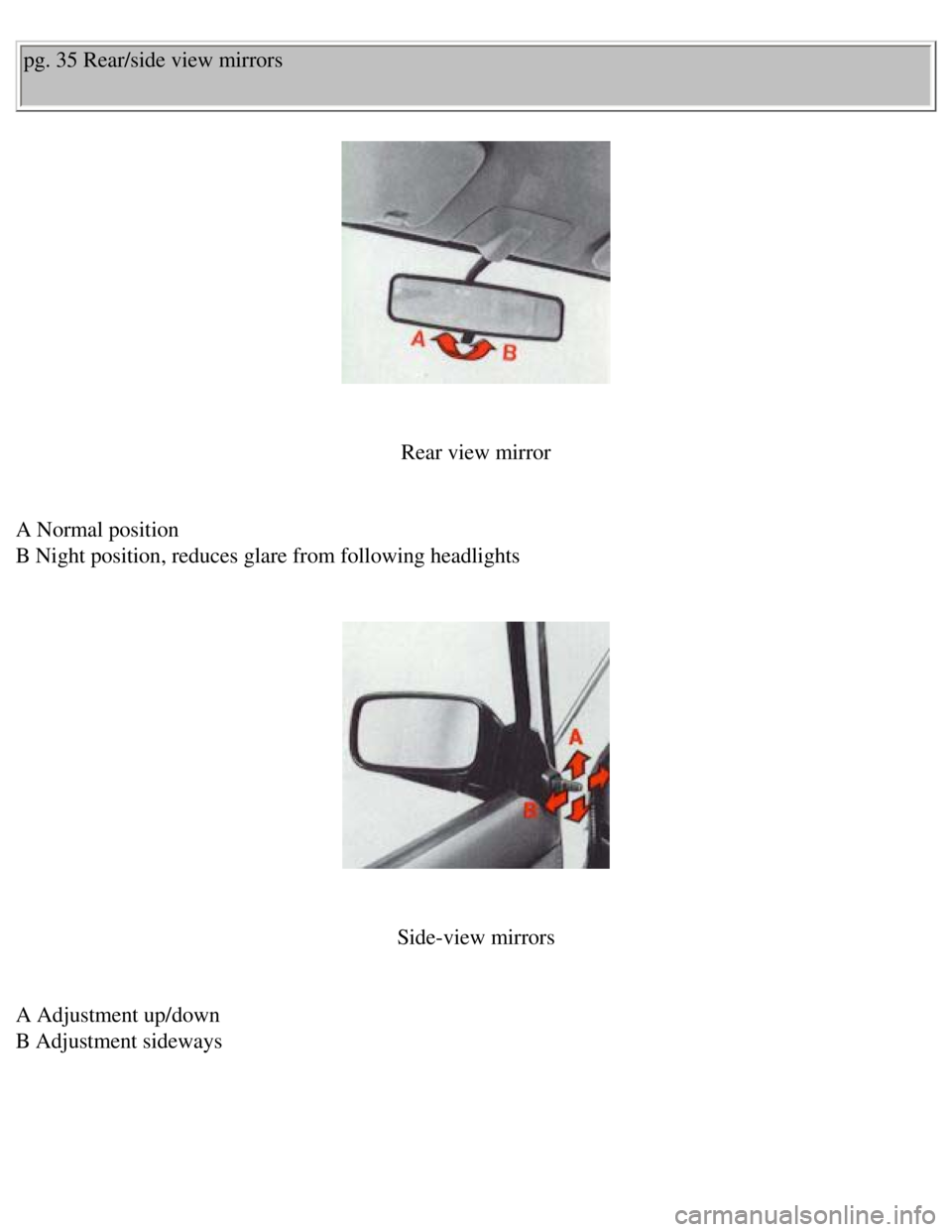

pg. 35 Rear/side view mirrors


Rear view mirror

A Normal position
B Night position, reduces glare from following headlights



Side-view mirrors

A Adjustment up/down
B Adjustment sideways

file:///K|/ownersdocs/1990/1990_240/90240_08.htm (1 of 4)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

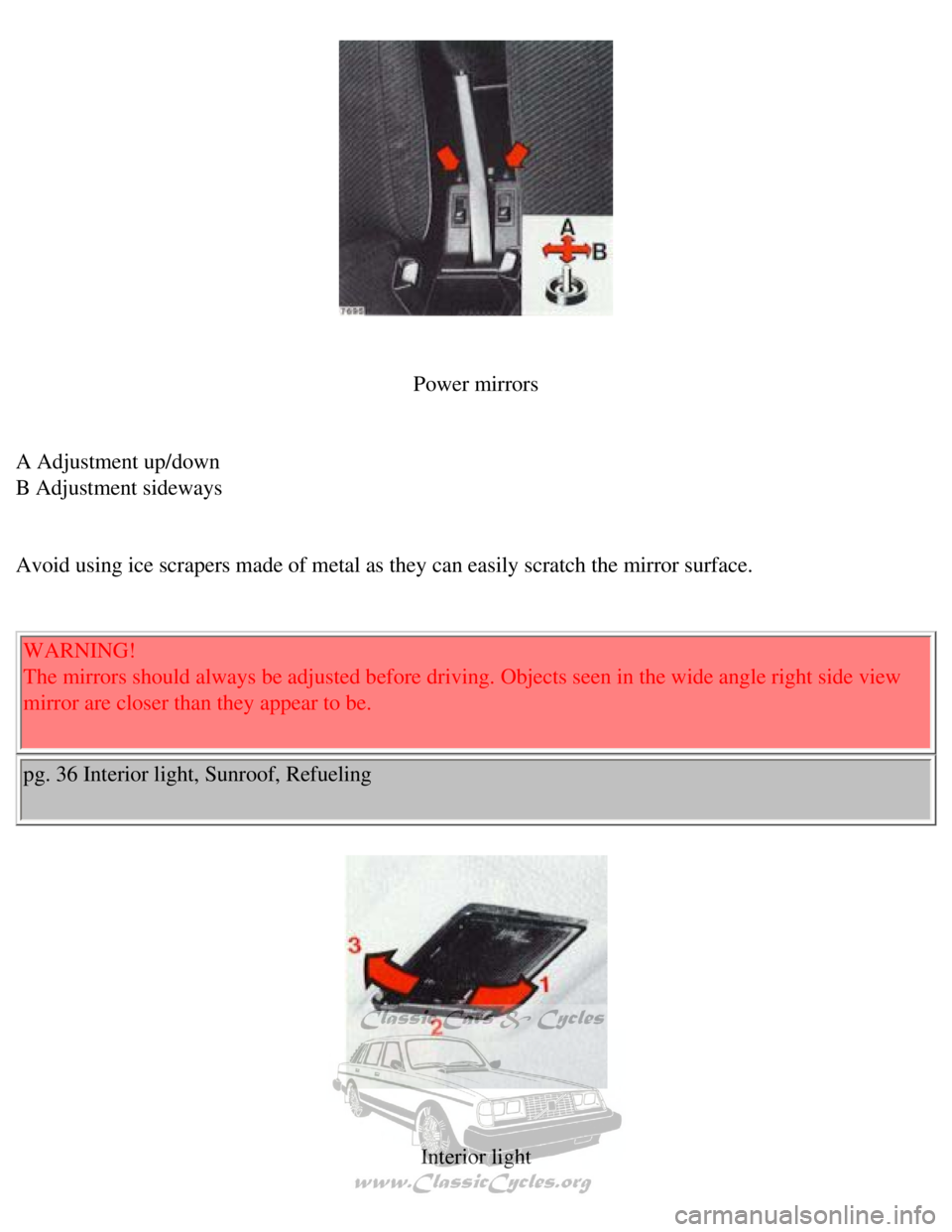

Power mirrors

A Adjustment up/down
B Adjustment sideways

Avoid using ice scrapers made of metal as they can easily scratch the mi\
rror surface.
WARNING!
The mirrors should always be adjusted before driving. Objects seen in th\
e wide angle right side view
mirror are closer than they appear to be.
pg. 36 Interior light, Sunroof, Refueling


Interior light
file:///K|/ownersdocs/1990/1990_240/90240_08.htm (2 of 4)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model

1 Light always on.
2 Light always off.
3 Light is on when either of the front or rear doors are opened.

The wagon model has a slightly different kind of interior lamp housing. \

On certain models a time delay device illuminates the interior light for\
approx. 15 seconds after closing
the driver's door. This facilitates finding starting (ignition) switch\
, etc., during darkness.

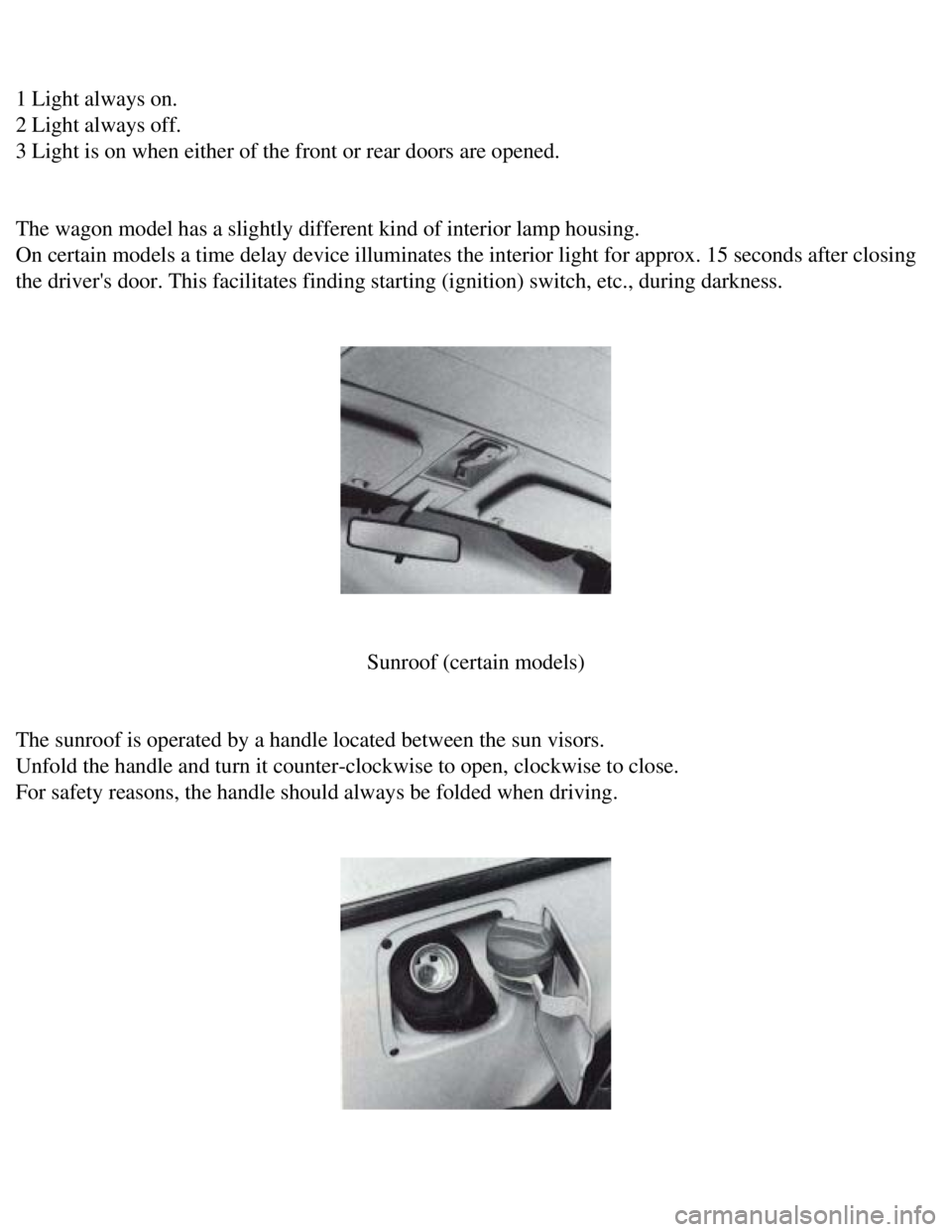

Sunroof (certain models)

The sunroof is operated by a handle located between the sun visors.
Unfold the handle and turn it counter-clockwise to open, clockwise to cl\
ose.
For safety reasons, the handle should always be folded when driving.



file:///K|/ownersdocs/1990/1990_240/90240_08.htm (3 of 4)12/30/2006 8:\
25:04 AM

Volvo 1990 240 Model
Refueling

The
