VOLVO 240 1990 Manual PDF

Volvo 1990 240 Model

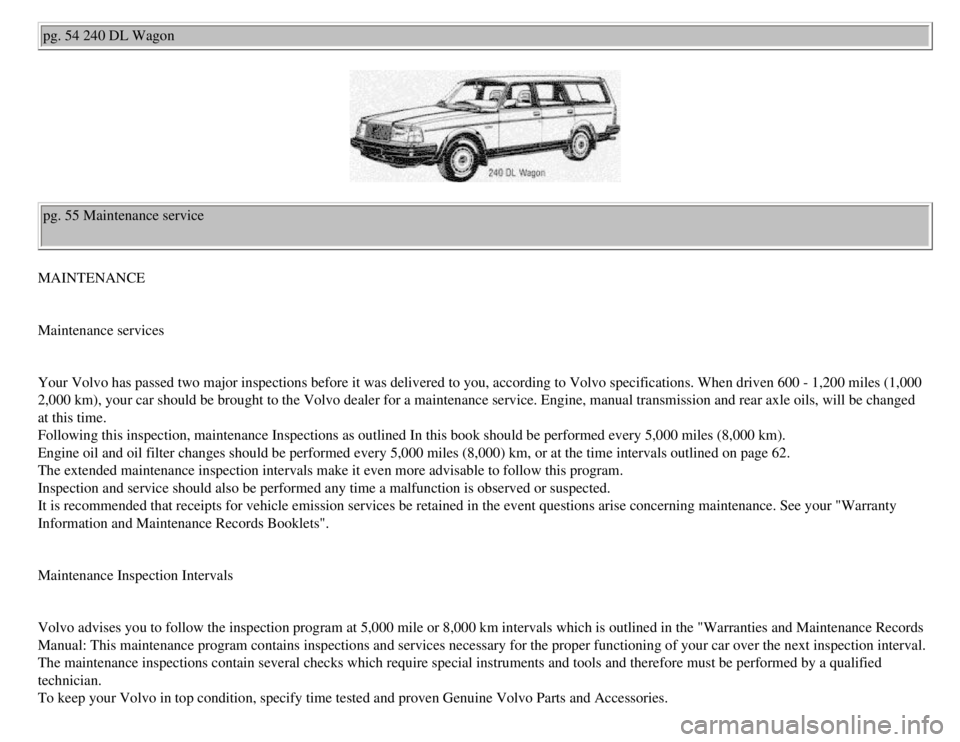

pg. 54 240 DL Wagon
pg. 55 Maintenance service
MAINTENANCE

Maintenance services

Your Volvo has passed two major inspections before it was delivered to y\
ou, according to Volvo specifications. When driven 600 - 1,200 miles (1,000
2,000 km), your car should be brought to the Volvo dealer for a mainten\
ance service. Engine, manual transmission and rear axle oils, will be changed
at this time.
Following this inspection, maintenance Inspections as outlined In this b\
ook should be performed every 5,000 miles (8,000 km).
Engine oil and oil filter changes should be performed every 5,000 miles \
(8,000) km, or at the time intervals outlined on page 62.
The extended maintenance inspection intervals make it even more advisabl\
e to follow this program.
Inspection and service should also be performed any time a malfunction i\
s observed or suspected.
It is recommended that receipts for vehicle emission services be retaine\
d in the event questions arise concerning maintenance. See your "Warranty
Information and Maintenance Records Booklets".

Maintenance Inspection Intervals

Volvo advises you to follow the inspection program at 5,000 mile or 8,00\
0 km intervals which is outlined in the "Warranties and Maintenance Records
Manual: This maintenance program contains inspections and services neces\
sary for the proper functioning of your car over the next inspection interval.
The maintenance inspections contain several checks which require special\
instruments and tools and therefore must be performed by a qualified
technician.
To keep your Volvo in top condition, specify time tested and proven Genu\
ine Volvo Parts and Accessories.
file:///K|/ownersdocs/1990/1990_240/90240_12.htm (2 of 7)12/30/2006 8:\
25:07 AM

Volvo 1990 240 Model

THE FEDERAL CLEAN AIR ACT (USA)

The Clean Air Act requires vehicle manufacturers to furnish written inst\
ructions to the ultimate purchaser to assure the proper functioning of those
components that control emissions.
The maintenance instructions listed in the "Servicing" section of this M\
anual represent the minimum maintenance required. These services are not
covered by the warranty. You will be required to pay for labor and mater\
ial used. Refer to your "Warranties and Maintenance Records Manual" for
further details.
In accordance with Federal Regulations, your Volvo is warranted to meet \
certain Emission Performance Standards. Refer to your Warranty Information
Manual for detailed information concerning:

l Emissions Performance Warranty (USA)
l Limited 5-Year/50,000-Mile Emission System Warranty (USA)
l 5-Year/80,000-Kilometer Emission System Warranty (Canada)
pg. 56 Servicing
MAINTENANCE SCHEDULE

A = Adjust (Correct if necessary)
R = Replace
I = Inspect (Correct or Replace if necessary)
L = Lubricate
Maintenance
operation Miles
(km) 600-
1,200
(1,000-
2,000)
5,000
(8,000)
10,000
(16,000) 15,000
(24,000) 20,000
(32,000) 25,000
(40,000) 30,000
(48,000) 35,000
(56,000) 40,000
(64,000) 45,000
(72,000) 50,000
(80,000) 55,000
(88,000) 60,000
(96,000)
file:///K|/ownersdocs/1990/1990_240/90240_12.htm (3 of 7)12/30/2006 8:\
25:07 AM

Volvo 1990 240 Model
EMISSIONS
SYSTEM
MAINTENANCE
Engine oil and oil
filter R
R R R R R R R R R R R R
Cooling system
hoses and
connections I
Engine drive belts A I I
Torque manifold
nuts A
Valve clearance I I
Timing belt A R (3)
Vacuum fittings,
hoses and
connections I
Air cleaner filter R R
Idle RPM I
Fuel system cap,
tank, lines and
connections I
file:///K|/ownersdocs/1990/1990_240/90240_12.htm (4 of 7)12/30/2006 8:\
25:07 AM

Volvo 1990 240 Model
Spark plugs R R
Catalytic converter
mounting bolts. A
Manual transmission
oil R
I I I I I I I I I I I I
Automatic
transmission oil I
I I I R I I I R I I I R
Rear axle oil R I I I I I I I I I I I I
Exhaust system I I I I I I I

1) See section "Engine Oil" for detailed information.
2) For services beyond 60,000 miles (96,000 km), consult your Mainten\
ance Service Chart.
3) Recommended, but not mandatory to maintain Volvo emission warranty. \

4) Does not pertain to B230F/EGR.
5) B230F/EGR inspect every 10,000 mile (16,000 km). pg. 57 Servicing
Maintenance
operation Miles
(km) 600-
1,200
(1,000-
2,000)
5,000
(8,000)
10,000
(16,000) 15,000
(24,000) 20,000
(32,000) 25,000
(40,000) 30,000
(48,000) 35,000
(56,000) 40,000
(64,000) 45,000
(72,000) 50,000
(80,000) 55,000
(88,000) 60,000
(96,000)
MISCELLANEOUS
MAINTENANCE
file:///K|/ownersdocs/1990/1990_240/90240_12.htm (5 of 7)12/30/2006 8:\
25:07 AM

Volvo 1990 240 Model
ENGINE
Engine coolant I I I R I I R
Fuel (line) filter R
PCV nipple (orifice) I
Ventilation hoses I
EGR valve A
Battery condition I I I I I I I I I I I I I
BRAKES
Inspect brakes,
replace components
as necessary I
I I I I I
Change brake fluid R R
STEERING
Tire wear (align front
end if needed) I
I I I I I I
Check power steering
fluid level I
I I I I I I I I I I I I
BODY
file:///K|/ownersdocs/1990/1990_240/90240_12.htm (6 of 7)12/30/2006 8:\
25:07 AM

Volvo 1990 240 Model
Trunk, hood hinges
and latches L
L L L L L L

1) For services beyond 60,000 miles (96,000 km), consult your "Mainte\
nance Service Chart".




Contents | Top of Page
file:///K|/ownersdocs/1990/1990_240/90240_12.htm (7 of 7)12/30/2006 8:\
25:07 AM

Volvo 1990 240 Model
pg. 58 Servicing Engine
The following items should be checked weekly Description
by the owner. (This only takes a few moments.) on page
Engine oil level 61
Brake fluid 72
Radiator coolant level 74
Tire pressures (including spare) 82, 103
Operation of all lights -
Horns -
Windshield wipers -
Level of windshield fluid -

The following should also be carried out at Description
regular intervals on page
Washing 87
Polishing 87
Cleaning 87
Rust protection inspection 87 pg. 59 Servicing Engine


Engine B230F
file:///K|/ownersdocs/1990/1990_240/90240_13.htm (1 of 9)12/30/2006 8:\
25:08 AM

Volvo 1990 240 Model

1 Data plate
2 Oil filler cap, engine
3 Oil dipstick, engine
4 Brake fluid reservoir
5 Washer fluid reservoir
6 Expansion tank, coolant
7 Battery
8 Oil reservoir, power steering
9 Fuse, engine control pg. 60 Fuel requirements
Unleaded Fuel

Each Volvo has a catalytic converter and must use only unleaded gasoline\
(as specified on the
instrument panel and by a label near the filter inlet). U.S. and Canadi\
an regulations require that pumps
delivering unleaded gasoline be labeled "UNLEADED". Only these pumps hav\
e nozzles which fit your
car's filler inlet. It is unlawful to dispense leaded fuel into a vehicl\
e labelled "unleaded gasoline only".

Leaded gasoline damages the catalytic converter and the oxygen sensor sy\
stem. Repeated use of leaded
gasoline will lessen the effectiveness of the emission control system an\
d could result in loss of emission
warranty coverage. State and local vehicle inspection programs will make\
detection of misfueling easier,
possibly resulting in emission test failure for misfueled vehicles.

Octane Rating

Volvo recommends the use of premium unleaded gasoline with an (R+M)/2 \
rating of 91. This is
generally equivalent to a Research Octane Number (RON) of 95 or higher\
.

Deposit Control Gasolines

Volvo recommends the use of gasolines that contain "Deposit Control" add\
itives. These additives are
specially formulated to prevent the build up of certain injector and int\
ake system deposits. Fuels
containing "Deposit Control" additives are usually advertised as contain\
ing them and may have
additional claims to "clean injectors and intake valves" or similar word\
ing.
file:///K|/ownersdocs/1990/1990_240/90240_13.htm (2 of 9)12/30/2006 8:\
25:08 AM

Volvo 1990 240 Model
If it is not clear whether the fuel contains such additives, ask the sta\
tion operator for further information
regarding the detergency of their gasolines.

Gasoline Containing Alcohol

Some fuel suppliers sell gasoline containing alcohol without advertising\
the presence of alcohol. If you
are not sure whether there is alcohol in the gasoline you buy, check wit\
h the service station operator.

Blends of unleaded gasoline and ethanol (ethyl alcohol, grain alcohol)\
, sometimes called "gasohol", are
available in some areas. Gasohol, if used, must contain no more than 10 \
percent ethanol and must have
an (R+M)/2 rating of 87 or higher. If you experience problems with sta\
rting, drive ability, or fuel
economy with gasohol, you should discontinue its use.
Take care not to spill gasoline during refueling. Gasolines containing a\
lcohol can cause damage to
painted surfaces, which may not be covered under the New Vehicle Limited\
Warranty.
Caution:
Do not use gasolines containing methanol (methyl alcohol, wood alcohol)\
. This practice can result in
vehicle performance deterioration and can damage critical parts in the f\
uel system. Such damage may
not be covered under the New Vehicle Warranty.

Fuel Tank

The fuel tank is designed to hold approx. 15.8 US gal. (60 liters), wi\
th sufficient volume left over to
accommodate possible expansion of the fuel in hot weather.
Be aware that the "usable" tank capacity will be somewhat less than the \
15.8-US gal. (60-liter)
maximum. When the fuel level is low, such factors as ambient temperature\
, the fuel's "vapor pressure"
characteristics, and terrain can affect the fuel pumps' ability to suppl\
y the engine with an adequate
supply of fuel. Therefore, it is advisable to refuel as soon as possible\
when the needle nears the red zone.
After the needle enters the red zone, you should be able to drive approx\
. 25 miles (40 km) depending on
driving style and conditions.
pg. 61 Engine fluids
file:///K|/ownersdocs/1990/1990_240/90240_13.htm (3 of 9)12/30/2006 8:\
25:08 AM

Volvo 1990 240 Model

Checking oil level

The oil level should be checked each time the fuel tank is refilled. Be \
sure the oil level is maintained
between the upper and lower marks on the dipstick. Low oil level can cau\
se internal damage to the
engine and overfilling can result in high oil consumption. The distance \
between the dipstick marks
represents approx. 1 quart (1 liter) of oil.

Changing oil filter

Replace the oil filter at every oil change. If the oil filter is changed\
separately, 1/2 US qt = 1/2 liter of oil
should be added.

To add oil or change oil

Add oil of the same kind as already used. See engine oil section.
Note: Allow engine to cool before changing
oil.

Coolant

Maintain fluid level between MAX and MIN marks on expansion tank. Mixtur\
e of 50 percent Volvo
antifreeze type C (blue-green) or similar and 50 percent water should \
be used. See "Coolant" section.
