VOLVO 850 1996 Owners Manual

1996 Volvo 850
pg. 2:2 Keys, Doors and Locks

Master key
This key operates all locks
The key number codes are stamped on a separate tag supplied with the key\
s. This tag should be
separated from the key ring and kept in a safe place.
As an added anti-theft measure, new keys have been developed which may t\
ake slightly longer to copy
or replace if the original keys are misplaced.


Service key
Front doors, starting (ignition) switch/steering wheel lock
In the vent the original keys are lost, duplicates may be ordered from y\
our Volvo retailer. The central
locking system is described in detail in the section "Doors and locks". \
pg. 2:3 Doors and locks
file:///K|/ownersdocs/1996/1996_850/96850_201.htm (2 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850

Doors and locks

Your car is equipped with a two door operated central locking system.
The key, used on either of the front doors, will lock/unlock all doors, \
trunk/tailgate and on certain
models also the fuel tank cover.

Turn the key once to unlock the door in which the key is inserted.
Turn the key again (within 10 seconds) to unlock all doors, trunk/tail\
gate and on certain models also the
fuel tank cover.

One turn with the key towards lock in one of the front doors locks all d\
oors, trunk/tailgate and fuel tank
filler cap.

Use the switch on the instrument panel to lock/unlock the car from the i\
nside. This button will only
function when the doors are closed.

Check the action of the buttons on the other doors to verify their corre\
ct function (lock/unlock). The
driver's door can be locked only by using the key when outside the vehic\
le. On vehicles equipped with
the optional remote control locking system, refer to the following page.\


file:///K|/ownersdocs/1996/1996_850/96850_201.htm (3 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
WARNING! The doors should not be locked while driving. In case of an acc\
ident, this may hinder
rapid access to the occupants of the vehicle. (Also see information on \
"child safety locks".


To avoid battery drain.

The courtesy lights and the warning lights in the rear of the doors come\
on when a door is opened.
To avoid battery drain when the doors are opened for prolonged periods, \
these lights can be switched off
by pressing the lock mechanism (A) located in the rear facing side of \
the driver's door. To return the
lights to their normal function, pull the door handle out before closing\
the door (B).
pg. 2:4 Remote keyless entry system (certain models)

file:///K|/ownersdocs/1996/1996_850/96850_201.htm (4 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
Remote keyless entry system

As an option, your car can be equipped with a remote control transmitter\
. This transmitter uses a radio
frequency which will allow "keyless" entry into the passenger compartmen\
t or the trunk. You will be
supplied with two coded key ring transmitters, which will enable you to \
lock/unlock all doors and the
trunk/tailgate from a distance of 10-15 feet (3-5 meters).

To lock :
Press button 1 once to lock all doors and trunk/tailgate.

To unlock :
Press button 2 once to unlock the driver's door only.
Press button 2 again (within 10 seconds) to unlock all doors and trunk\
/tailgate.


Aim the base of the remote control unit at the car to get the best range\
.

On vehicles equipped with an alarm, the alarm will also be activated/dea\
ctivated by this system.
As an extra security precaution in certain situations (valet parking, e\
tc.), Volvo recommends that the
transmitter not be included when the keys are given to anyone. The servi\
ce key can be used instead. If
one of the transmitters is misplaced, contact the nearest authorized Vol\
vo retailer for assistance.

Batteries

The remote transmitter is powered by 2 three-volt batteries, type CR 122\
0. If three short signals are
audible from the transmitter each time you lock/unlock the car, this ind\
icates that the batteries are weak.
Replacement: Remove the battery cover on the back of the transmitter wit\
h a coin. Replace the batteries.
Reinstall the cover, making sure it is secured tightly to help protect t\
he transmitter.
file:///K|/ownersdocs/1996/1996_850/96850_201.htm (5 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850

New transmitters

If you purchase additional transmitters, they must be programmed to func\
tion with your remote keyless
entry system. Please refer to
page 2:21 for instructions.
This device complies with the FCC rules Part 15. Operations is subject t\
o the following two
conditions: (1) This device may not cause harmful interference and (2\
) this device must accept any
interference that may be received, including interference that may cause\
undesired operation.
WARNING! Volvo does not recommend using the transmitter to lock the door\
s from inside the car.
On cars equipped with an alarm, the alarm would be activated and would s\
ound when one of the doors
is opened. The doors must not be locked using the remote transmitter whi\
le the vehicle is occupied. In
case of an accident, this may hinder rapid access to the occupants of th\
e vehicle. The alarm will also
sound on models equipped with this feature.
pg. 2:5 Alarm

Alarm (certain models)

To lock : Press the large button (number 1 in the illustration) once t\
o lock all doors and trunk/tailgate
and arm the security system. Lamps will flash to acknowledge that the ve\
hicle is locked and the security
file:///K|/ownersdocs/1996/1996_850/96850_201.htm (6 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
system is armed.
To unlock : Press the small button (number 2 in the illustration) once to unlock the driver's door only
and disarm the security system.
Press the button again (within 10 seconds) to unlock all doors and trunk/tailgate.

Emergency function

To activate the " panic alarm " function :
Press and hold button 1 for at least three seconds. The car's lights wil\
l flash and an alarm will sound for
approximately 30 seconds.
This function can be switched off at any time by pressing either of the \
buttons.

Programming a transmitter

New transmitters (max. 4) must be programmed to function with your ala\
rm system.
To do this:
l Make sure all doors, hood and trunk/tailgate are closed.
l Turn the ignition on and off 5 times within 10 seconds. On the fifth try\
, leave the ignition on.
l Press either button on the transmitter.
NOTE: The first transmitter must be programmed within 15 seconds, the ot\
hers within 10 second
intervals. When the alarm system accepts the codes from each transmitter\
, the LED on the dash will
glow steadily for several seconds.
l Switch the ignition off and test the transmitter(s).

file:///K|/ownersdocs/1996/1996_850/96850_201.htm (7 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850

Button 1: lock, Button 2: unlock

Batteries

The remote transmitter is powered by 2 three-volt batteries, type CR 122\
0. If three short signals are
audible from the transmitter each time you lock/unlock the car, this ind\
icates that the batteries are weak.
Replacement : Remove the battery cover on the back of the transmitter wi\
th a coin. Replace the
batteries. Reinstall the cover, making sure it is secured tightly to hel\
p protect the transmitter.

NOTE: If only the driver's door is unlocked, the lock will automatically\
reengage (re-lock) and the alarm
will reset after 30 seconds unless the door has been opened.
If all of the doors were unlocked (by pushing button 2 twice within 10 \
seconds) and no door/trunk/
tailgate was opened within two minutes, all locks will reengage and the \
alarm will reset. This is to
prevent the vehicle from being left unlocked if the unlock button is ina\
dvertently pressed.
The lock/unlock and alarm features can also be utilized by using the key\
s. See section: Keys, Doors and
Locks on
page 2:2-3.
If the alarm LED glows continuously for 5 seconds, this indicates a faul\
t in the system or that a door is
not properly closed.




Contents | Top of Page
file:///K|/ownersdocs/1996/1996_850/96850_201.htm (8 of 8)12/30/2006 9\
:59:21 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850

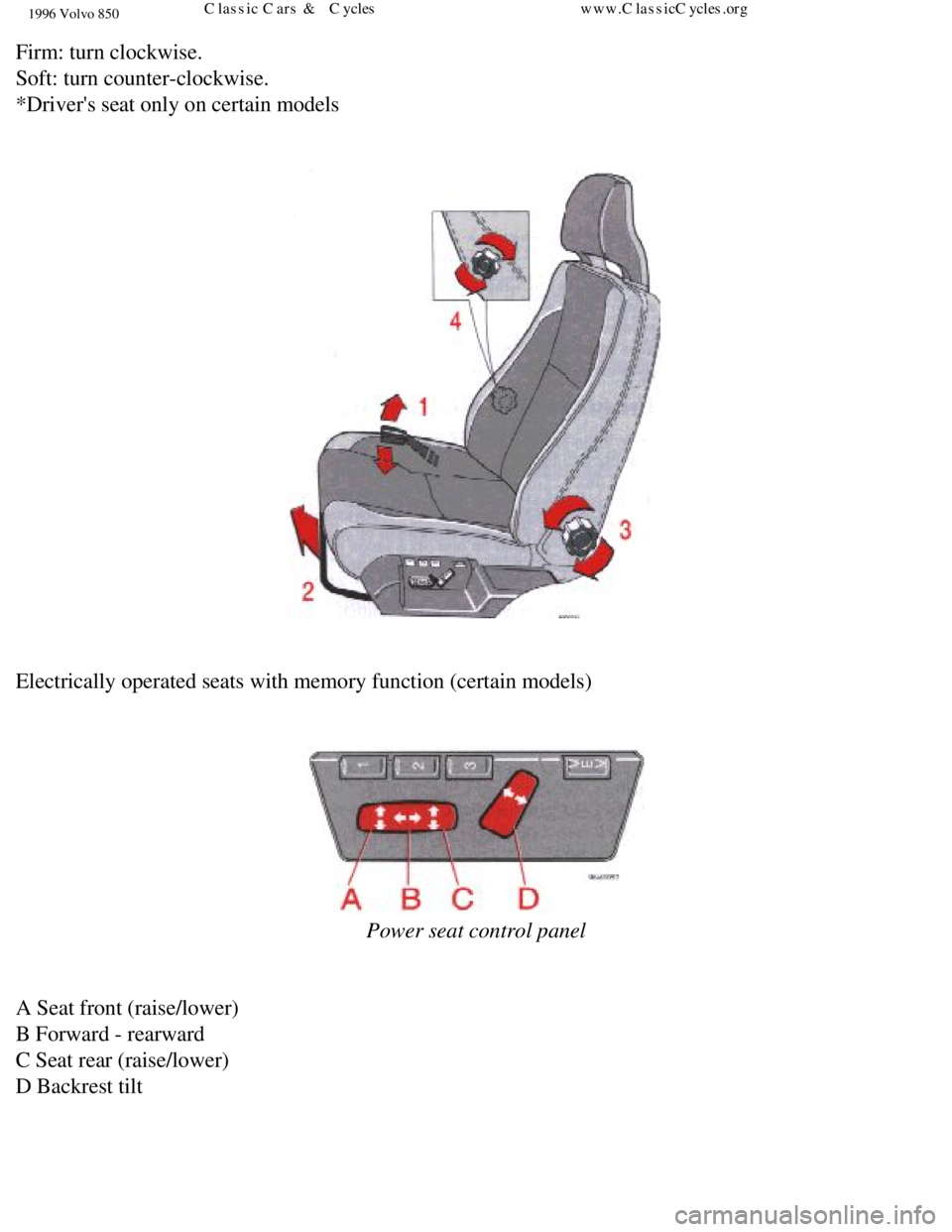

pg. 2:6 Front seats
1 Height adjustment (manual)

The front section of both front seats can be adjusted to eight different\
height settings and the rear section
of both seats can be adjusted to nine different height settings.

Lever forward = adjustment of front section
Lever rearward = adjustment of rear section
WARNING! Do not adjust the seat while driving. The seat should be adjust\
ed so that the brake pedal
can be depressed fully. In addition, position the seat as far rearward a\
s comfort and control allow. The
seat rails on the floor must not be obstructed in any way when the seat \
is moved.

2 Forward-rearward seat adjustment (manual)

Pull the control upward, then slide the seat forward or rearward to the \
desired position. Make sure that
the seat is properly secured when you release the control.

Folding front seat

The passenger's seat backrest has a quick forward release mechanism whic\
h can be used when long
loads are carried.
See page 2:22.

3 Backrest angle (manual)

Rotate the control mechanism counterclockwise to tilt the backrest rearw\
ard and clockwise to tilt the
backrest forward.

4 Lumbar support*

file:///K|/ownersdocs/1996/1996_850/96850_206.htm (1 of 11)12/30/2006 \
9:59:22 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
Firm: turn clockwise.
Soft: turn counter-clockwise.
*Driver's seat only on certain models


Electrically operated seats with memory function (certain models)


Power seat control panel

A Seat front (raise/lower)
B Forward - rearward
C Seat rear (raise/lower)
D Backrest tilt

file:///K|/ownersdocs/1996/1996_850/96850_206.htm (2 of 11)12/30/2006 \
9:59:22 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
WARNING! The driver's seat is operable with the ignition OFF. Therefore,\
children should never be
left unattended in the car.

Movement of the seat can be STOPPED at any time by pressing any button o\
n the power seat control
panel.
Refer to the following page for information on programming the memory fu\
nction.
pg. 2:7 Electrically operated driver's seat, Rear/side-view mirrors

Programming the memory

Three seat positions can be programmed. To program a seat position:
1. Adjust the seat to the desired position.
2. Depress the MEM button.
3. Press button 1 to program the current position of the seat.

Buttons 2 and 3 can be programmed in the same way for two additional sea\
t positions. To move the seat
to a programmed position, depress button 1, 2 or 3 until the seat stops.\
If the button is released before the
seat has the reached the programmed position, it will stop as a safety p\
recaution.

NOTE: The seat have an overload protector which engages if an object blo\
cks the movement of the seat.
If this happens remove the object and wait 20 seconds before operating t\
he seat again.
