CD player VOLVO C30 2010 Owner´s Manual

Contents
7
09
09 Maintenance and servicing
Volvo maintenance.................................. 206
Maintaining your car............................... 208
Hood.......................................................210
Engine compartment............................... 211
Engine oil................................................ 212
Fluids...................................................... 214
Wiper blades........................................... 216
Battery..................................................... 217
Replacing bulbs...................................... 219
Fuses...................................................... 227
10
10 Audio
Audio functions....................................... 236
Radio functions....................................... 241
CD player/CD changer............................ 249
Audio menu............................................. 253
Bluetooth
® hands-free connection......... 254
11
11 Specifications
Label information.................................... 262
Dimensions and weights......................... 264
Fuel, oils, and fluids................................ 267
Engine oil................................................ 269
Engine specifications.............................. 270
Electrical system..................................... 272
Three-way catalytic converter................. 274
Volvo programs....................................... 275

G020924
234
Audio functions..................................................................................... 236
Radio functions..................................................................................... 241
CD player/CD changer.......................................................................... 249
Audio menu........................................................................................... 253
Bluetooth
® hands-free connection....................................................... 254

10 Audio

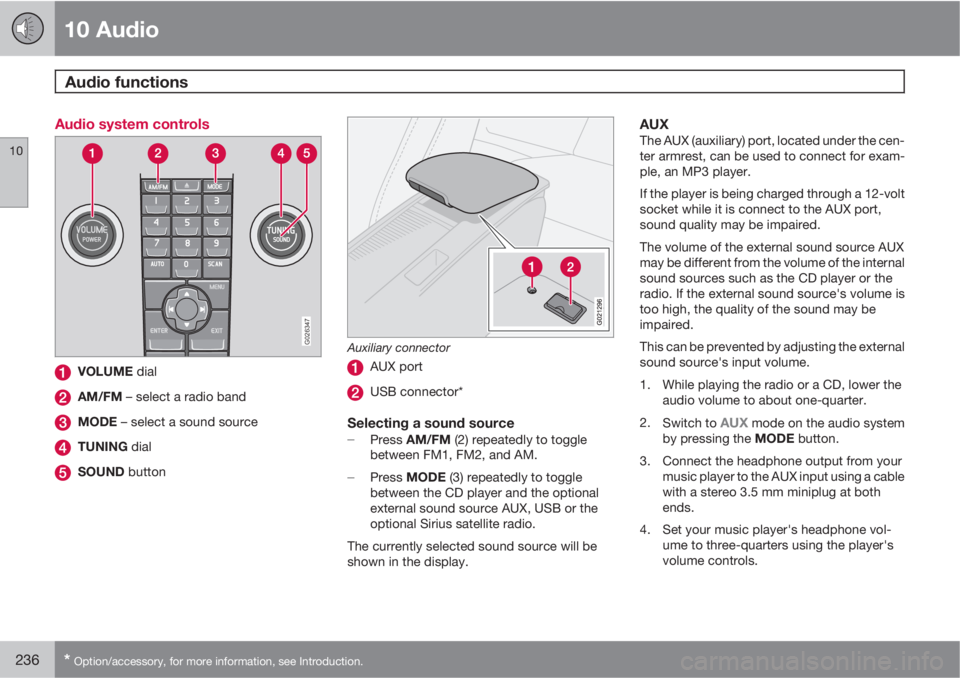

Audio functions
10
236* Option/accessory, for more information, see Introduction.
Audio system controls
G026347
VOLUME dial
AM/FM – select a radio band
MODE – select a sound source
TUNING dial
SOUND button
Auxiliary connector
AUX port
USB connector*
Selecting a sound source
Press AM/FM (2) repeatedly to toggle
between FM1, FM2, and AM.

Press MODE (3) repeatedly to toggle
between the CD player and the optional
external sound source AUX, USB or the
optional Sirius satellite radio.
The currently selected sound source will be
shown in the display.
AUXThe AUX (auxiliary) port, located under the cen-
ter armrest, can be used to connect for exam-
ple, an MP3 player.
If the player is being charged through a 12-volt
socket while it is connect to the AUX port,
sound quality may be impaired.
The volume of the external sound source AUX
may be different from the volume of the internal
sound sources such as the CD player or the
radio. If the external sound source's volume is
too high, the quality of the sound may be
impaired.
This can be prevented by adjusting the external
sound source's input volume.
1. While playing the radio or a CD, lower the
audio volume to about one-quarter.
2.
Switch to
AUX mode on the audio system
by pressing the MODE button.
3. Connect the headphone output from your
music player to the AUX input using a cable
with a stereo 3.5 mm miniplug at both
ends.
4. Set your music player's headphone vol-
ume to three-quarters using the player's
volume controls.

10 Audio
Audio functions
10

* Option/accessory, for more information, see Introduction.237
5.
Press MENU on the audio system, and
navigate to AUX Volume or AUX Input
Volume.
6. Turn the volume knob to raise or lower the
AUX Input Volume until you hear music at
a comfortable level.
7. If there is distortion, lower your music play-
er's headphone volume until the distortion
goes away.
8. Finally, exit the menu and adjust the audio
volume to a comfortable level.
VolumeUse the volume dial (1) or the buttons in the
steering wheel keypad to adjust the volume
level. The volume level is also adjusted auto-
matically according to the vehicle's speed, see
page 239 for more information on this func-
tion.
Steering wheel keypad
G026424
Steering wheel keypad
The four buttons on the steering wheel keypad
can be used to control the audio system. The
steering wheel keypad can be used to adjust
volume, shift between preset stations and
change CD tracks. Press one of the two left-
hand buttons briefly to change to the next/pre-
vious preset radio station, or to go to the next/
previous track on a CD. Press and hold down
these buttons to search within a track on a CD.
Daytime/twilight displayIn daylight the information is displayed against
a light background. In darkness it is displayed
against a dark background.
USB/iPodŸŸ connector*
An auxiliary device, such as an iPodŸ, MP3
player or a USB flash drive can be connected
to the audio system via the connector in the
center console storage compartment. A stand-
ard cable from an iPodŸ or MP3 player can be
routed under the cover to the AUX connector
in the storage compartment.
A sound source must be chosen, depending on
the device that has been connected:
1.
Use MODE to select
iPod or USB. The textCONNECT DEVICE will be displayed.
2. Connect the device to the connector in the
center console storage compartment (see
the illustration).

10 Audio
Audio functions
10
238
The text LOADING will be displayed while the
system loads the files (folder structure) on the
device. This may take a short time.
When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.
To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.
Tracks can be selected in two ways:

Turn the Tuning knob (no. 4 in the illustra-
tion on page 241) clockwise or counter-
clockwise.

Use the right or left arrow keys on the nav-
igation control (no. 5 in the illustration on
page 241) to select the desired track. The
arrow keys on the steering wheel keypad
can also be used in the same way.NOTE
The system supports playback of files in the
most common versions of formats such as
mp3, wma, and wav. However, there may be
versions of these formats that the system
does not support.
The system also supports a number of
iPodŸ models produced in 2005 or later.
iPodŸ Shuffle is not supported.
USB flash driveTo simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
The system supports removable media that
uses the USB 2.0 standard and the FAT32
file system and can index up to 500 folders
and a maximum of 64,000 files. The device
must have at least 256 Mb of memory.
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.
iPodŸ
An iPodŸ receives current and its battery is
charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPodŸ is connected to the audio system.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPodŸ. See
the iPod's manual for detailed information.
For further information, refer to the accessory
manual USB/iPodŸ Music Interface.
Sound settings
Optimal sound reproductionThe audio system is calibrated for optimal
sound reproduction through the use of digital
signal processing. This calibration takes into
account the speakers, amplifier, cabin acous-
tics, the seating position of the listener, etc., for
each combination of vehicle and audio system.
There is also dynamic calibration that takes
into account the setting of the volume control,
radio reception, and the vehicle's speed. The
sound settings described in this manual, such
as
BASS, TREBLE, and EQUALIZER are only

10 Audio
CD player/CD changer
10

* Option/accessory, for more information, see Introduction.249 CD function controls
G026367
MENU NAVIGATION CONTROL–press
the up or down arrow keys to scroll in a
menu, or the keys on the left/right sides of
the control to change CD tracks/fast for-
ward/back
Buttons for selecting a disc in the
optional CD changer
CD eject button
CD slot
MODE button
TUNING dial for selecting tracks
Playing a CD
Single CD playerStart the CD player by pressing the MODE but-
ton (5) and inserting a disc in the slot (4). If there
is already a disc inserted, it will begin to play.
NOTE
If a CD is in the slot when the audio system
is in CD mode, the CD will be played auto-
matically.
CD changer*
The CD changer can hold up to six discs.
1. Start the CD changer by pressing the
MODE button (5).
2. Select an empty position using the 1 – 6
buttons or the up/down keys on the MENU
NAVIGATION CONTROL. The display
shows which positions are empty.
3. Insert a disc into the slot (4).
NOTE
•Ensure that INSERT DISC is displayed
before inserting a disc.
•If a CD position in the changer contain-
ing a disc is selected, and the audio
system is in CD mode when it is
switched on, the CD will play automati-
cally.
CD eject
Eject from Single CD player

Press the eject button (3) to eject the disc.
Eject from CD changerThis function makes it possible to eject a single
disc, or to eject all of the discs in the changer.

Press the eject button (3) briefly to eject the
disc that is currently playing.

A longer press (more than two seconds)
starts the process of ejecting all of the
discs in the changer.

10 Audio
CD player/CD changer
10
250
NOTE
•The EJECT ALL function can only be
used while the vehicle is at a standstill
and will be cancelled if the vehicle
begins to move.
•For reasons of traffic safety, the ejected
CD must be removed within 12 seconds
or it will be automatically drawn back
into the slot and the CD player will enter
pause mode. Press the CD button to
restart the disc.
CD PauseWhen the audio system volume is turned off
completely, the CD player will pause and will
resume playing when the volume is turned up
again.
Audio filesIn addition to playing normal music CDs, the
CD player/changer can also play discs con-
taining files in mp3 or wma format.
NOTE
Certain discs that are copy protected can-
not be read by the player.
When a disc with audio files is inserted in the
player, the player scans the disc's folders
before it begins playing the files. The length oftime that this takes depends on the quality of
the disc.
Navigating the disc and playing tracksIf a disc with audio files is in the CD player,
press ENTER to display a list of folders on the
disc.
Use the up and down arrows in the navigation
control (see the illustration on page 249) to
move among the folders on the disc. Audio files
have the
symbol and folders containing
these files have the
symbol. Press
ENTER to play a selected folder or a file.
When the music file has been played, the
player will continue to play the rest of the files
in the current folder. When all of the files in the
folder have been played, the player will auto-
matically go to the next folder and play the files
in it.
Press the left or right arrow key on the naviga-
tion control if the entire name of the current
track does not fit in the display.
Changing tracksBriefly press the left or right arrow keys on the
MENU NAVIGATION CONTROL to skip to the
previous or next track/file.
NOTE
The TUNING dial (6) (turn clockwise to go to
the next track/file, or counterclockwise to
go to the previous track/file) or the steering
wheel keypad can also be used for this pur-
pose.
Fast forward/back
Press and hold down the left or right arrows
keys in the menu navigation control (or the
corresponding keys on the optional steer-
ing wheel keypad) to search within a track/
file or the whole disc. The search continues
for as long as the buttons are held down.
Random playThis function plays the tracks/files on a CD (or
on all of the CDs if the vehicle is equipped with
the optional CD changer) in random order
(shuffle).
Activating/deactivating the random
function-CD player
If a normal CD is being played:
1.
Press MENU followed by ENTER.
2.
Select Random and press ENTER.
If a CD with audio files is being played:1.
Press MENU followed by ENTER.
2.
Select
Random and press ENTER.

10 Audio
CD player/CD changer
10

251
3.
Select Disc or Folder and press ENTER.
Activating/deactivating the random
function-CD changer
If a normal CD is being played:
1.
Press MENU followed by ENTER.
2.
Select
Random and press ENTER.
3.
Select
Single disc or All discs and press
ENTER.
If a CD with audio files is being played:1.
Press MENU followed by ENTER.
2.
Select
Random and press ENTER.
3.
Select
Single disc or Folder and press
ENTER.
NOTE
CD changer only–you can only select the
next random track/file on the current disc.
Press the EXIT button to stop random play.
The random function is automatically deacti-
vated when another disc is selected.
Disc text (CD changer only)Certain CDs contain information about the
disc, such as the titles of the tracks, etc. This
information can be shown in the display by
activating the DISC TEXT function.1.
Press MENU. Select the menu for relevant
sound source and press ENTER.
2.
Select
Disc text in the menu and press
ENTER.
> If information is stored on the disc, it will
now appear in the display.
To deactivate this function, select
Disc text in
the menu and press ENTER.
ScanThis function plays the first 10 seconds of each
track/file on the CD.

Press SCAN.

Press EXIT or SCAN to stop the scan func-
tion and listen to an entire track/file.
CD eject
Single CD player
Press the eject button (3) to eject the disc.
CD changerThis function makes it possible to eject a single
disc, or to eject all of the discs in the changer.
•Press the eject button (3) briefly to eject the
disc that is currently playing.
•A longer press (more than two seconds)
starts the process of ejecting all of the
discs in the changer.
NOTE
•The Eject all function can only be used
while the vehicle is at a standstill and will
be cancelled if the vehicle begins to
move.
•For reasons of traffic safety, the ejected
CD must be removed within 12 seconds
or it will be automatically drawn back
into the slot and the CD player will enter
pause mode. Press the CD button to
restart the disc.
Compact disc care
Keep the following in mind when playing/han-
dling compact discs
•Do not put tape or labels on the disc itself.
They could become stuck in the player.
•CDR discs can cause listening problems
due to the quality of the disc or recording
equipment used.
•DualDisc: The audio side of a DualDisc
(combined CD/DVD) does not meet CD
specifications and may not play in your
audio system.
•Keep the discs clean. Wipe them with a
soft, clean, lint-free cloth, working from the
center outward. If necessary, dampen the
cloth with a neutral soap solution. Dry thor-
oughly before using.

10 Audio
CD player/CD changer
10
252
•Never use cleaning spray or antistatic liq-
uid. Use only cleaners specifically made for
CDs.
•Use discs of the correct size only
(3.5" discs should never be used).
•Volvo does not recommend the use of
plastic outer rings on the disc.
•Condensation may occur on discs/optical
components of the changer in cold winter
weather. The disc can be dried with a
clean, lint-free cloth. Optical components
in the CD changer may, however, take up
to one hour to dry off.
•Never attempt to play a damaged CD.
•When not in use, the discs should be
stored in their covers. Avoid storing discs
in excessive heat, direct sunlight or in
dusty locations.

12 Index
12
276
1, 2, 3 ...
12-volt sockets.......................................... 62
A
A/C (air conditioning)................................. 90
ABS (anti-lock brake system).................. 153
Airbags
front...................................................... 22
inflatable curtain................................... 30
side impact........................................... 29
Airbag system............................................ 22
Air conditioning.......................................... 90
Air distribution table................................... 99
Air vents..................................................... 92
Alarm system........................................... 132
turning off sensors.............................. 133
Anti-lock Brake System (ABS)................. 153
Approach lighting...................................... 83
Audio files................................................ 250
Audio system
audio functions................................... 236
automatic sound control..................... 239AUX port............................................. 236
CD changer......................................... 249
CD player/changer.............................. 249
compact disc care.............................. 251
Dolby Surround Pro Logic II............... 239
equalizer............................................. 239
HD digital radio................................... 243
menu settings..................................... 253
radio functions.................................... 241
selecting a sound source.................... 236
Sirius satellite radio............................245
sound settings.................................... 238
steering wheel keypad........................ 237
storing radio stations.......................... 241
USB/iPodŸ connector........................ 237
Auto-dim rearview mirror........................... 77
Autolock..................................................... 82
Automatic locking retractor....................... 36
Automatic sound control.........................239
Automatic transmission........................... 150
kickdown............................................ 151
oil........................................................ 267
shiftlock override................................ 152
Automatic transmission - Geartronic....... 151
AUX port.................................................. 236
Axle weight......................................180, 265
B
Backrest, rear seat, folding...................... 115
Bass......................................................... 238
Battery
maintenance....................................... 217
remote key, replacing......................... 123
specifications...................................... 272
warning symbols................................. 217
Battery – replacing................................... 218
Black Box (Vehicle Event Data)............... 206
Blind Spot Information System (BLIS)..... 161
Bluetooth cell phone connection............. 254
Booster cushion
accessory............................................. 43
Brake fluid........................................ 215, 267
Brake lights................................................ 63
Brake system
anti-lock brakes (ABS)........................ 153
emergency brake assistance.............. 154
fluid..................................................... 215
general information............................. 153
Bulbs
headlights........................................... 219
list of................................................... 272
