03 Climate
General information.................................. 90
Air vents.................................................... 92
Manual climate control.............................. 93
Electronic Climate Control (ECC)*............ 96
Air distribution........................................... 99
04
04 Interior
Front seats.............................................. 102
Interior lighting........................................ 110
Storage compartments........................... 111
Rear seat................................................. 115
Cargo area.............................................. 117
05
05 Locks and alarm
Remote key and key blade..................... 122
Keyless drive*.......................................... 127
Locking and unlocking............................ 131
Alarm*..................................................... 132

02 Instruments and controls
Instrument overview
02

* Option/accessory, for more information, see Introduction.51
Steering wheel adjustment
Hood opener
Controls in front doors
Left steering wheel lever
Lighting panel, fuel filler door opener
Door open handle and locking button
Climate system air vent
Side window air vent
Cruise control
Horn, airbag
Main instrument panel
Audio controls
Right steering wheel lever
Ignition switch
Moonroof control*
Not in use
Not is use
Courtesy lighting switch
Driver's side reading light
Passenger's side reading light
Seat belt reminder and Occupant
Weight Sensor indicator
Rear-view mirror
Display for climate control, personal
settings, and audio system
Audio system
Controls for personal settings and
audio system
Controls for climate system
Gear selector
Hazard warning flashers
Door open handle, and locking button
Glove compartment
Parking brake
12-volt socket
Position for optional equipment
Position for optional equipment

02 Instruments and controls
Personal settings
02
82
Control panel
A
D
B
C
E
G026307
Display
Menu button
Exit button
Enter button
Menu navigation controlsPersonal settings can be made for some of the
car's functions, such as the central locking
system, climate control, and the audio system.
Please refer to page 237 for more information
on the audio functions that can be adjusted.
The settings are presented in the display (A).
To access the menu and adjust settings1.
Press MENU (B).
2.
Scroll to
Car Settings using the menu nav-
igation control (E).
3.
Press ENTER (D).
4. Select an alternative using the menu navi-
gation control (E).
5. Confirm your selection by pressing
ENTER.
To exit the menu
Press EXIT (C).
Available settings
Clock adjustTo set the time:
1. Use the number keys or the up/down arrow
keys on the navigation control (E) to
change the hour or minute.2. Select hour(s) or minute(s) to be changed
with the left/right arrow keys.
3.
Press ENTER to start the clock.
NOTE
If you are currently using the 12-hour time
setting, use the up/down arrow keys to
select AM/PM after the minute-setting has
been adjusted.
Lock confirmation lightWhen the car is locked/unlocked with the
remote key, the direction indicators can be
selected to flash to confirm the action. The
alternatives On/Off are available for both lock-
ing and unlocking.
AutolockWhen the car starts to move, the doors and
liftgate can be locked automatically. The alter-
natives On/Off are available.
NOTE
Pulling the handle twice on a door unlocks
and opens that door.
UnlockThere are two alternatives for unlocking:

02 Instruments and controls
Personal settings
02

* Option/accessory, for more information, see Introduction.83
•Global (All doors) – unlocks all doors and
the liftgate with one press on the remote
key.
•Two Step (Two-stage unlocking) – This
alternative unlocks the driver's door with
one press on the remote key. A second
press unlocks the passenger's door and
the liftgate.
Automatically folding the door mirrorsThe setting makes it possible to automatically
fold the door mirrors in or out when the vehicle
is locked or unlocked. See page 78.
Operating side windowsThe following alternative can be selected for
opening the door windows at the same time by
pressing and holding the Unlock switch in
either of the front doors (see page 131 for
additional information)
1
NOTE
The ignition key must be in position I or
higher (see page 145) before the door win-
dows can be opened using the switches in
the doors.
•Auto open all windows On/Off
Temporarily turning off the alarm
sensor(s)
The alarm sensors can be temporarily turned
off (if, for example, a person or a pet remains
in the vehicle when the doors are locked from
outside with the remote key). There are two
alternatives:
Activate once and Ask on exit,
see page 122 and 132.
Approach lightingThis alternative determines the length of time
for which the car's lights will remain on when
the Approach light button on the central lock-
ing system's remote key is pressed. Intervals
of 30/60/90 seconds may be selected, see the
section "Remote key functions" for more infor-
mation.
Home safe lightingThis alternative determines the length of time
for which the car's lights will remain on when
the high beam lever on the steering column is
pulled toward the wheel with the ignition
switched off. Intervals of 30/60/90 seconds
may be selected, see page 65 for information
on using this function.
Information
•VIN number – The VIN (Vehicle Identifica-
tion Number) is the car's unique identity
number.
•Number of Keys – the number of keys reg-
istered for the car is displayed here.
Climate functions
•Blower speed in AUTO mode – the blower
speed can be set to AUTO mode in models
equipped with ECC. Choose between
"Low", "Normal" and "High".
•Timer for recirculation – when the timer is
active, the air recirculates in the car for
3–12 minutes depending on the ambient
temperature. Select On/Off depending on
whether the recirculation timer is to be
active or not.
Keyless locking and unlocking*The following alternatives can be selected for
locking and unlocking the doors and liftgate:
•All doors – all doors are locked or unlocked
at the same time.
•Doors on the same side – front and rear
doors on the same side are unlocked
together.
1This menu alternative also makes it possible to open both door windows by pressing and holding the Unlock button on the remote key for several seconds.

G020906
88* Option/accessory, for more information, see Introduction.
General information................................................................................. 90
Air vents.................................................................................................. 92
Manual climate control............................................................................ 93
Electronic Climate Control (ECC)*........................................................... 96
Air distribution......................................................................................... 99

03 Climate
General information
03
90

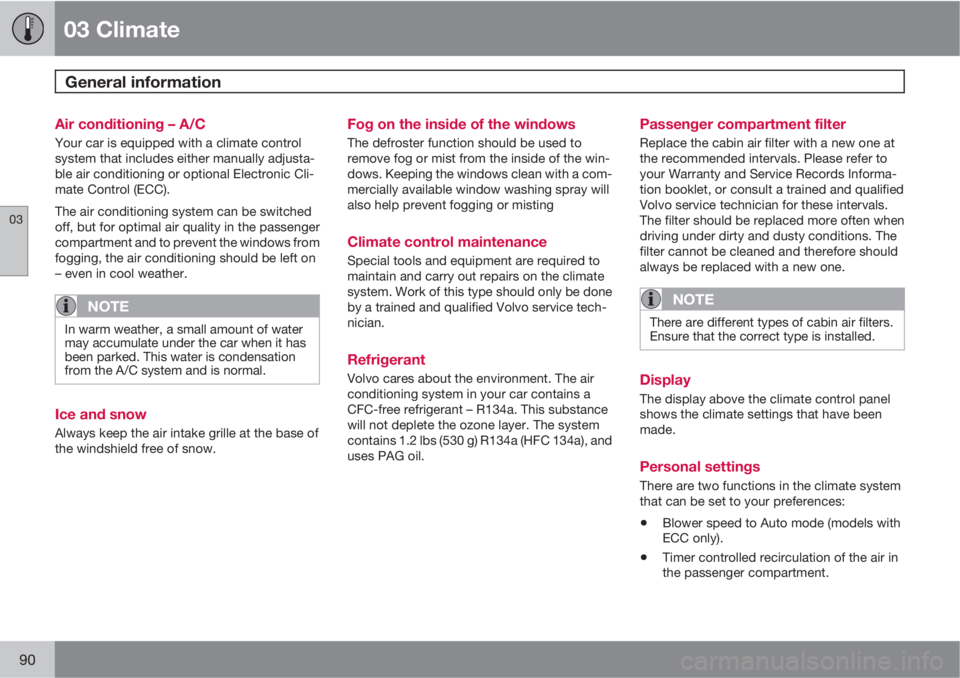

Air conditioning – A/C
Your car is equipped with a climate control
system that includes either manually adjusta-
ble air conditioning or optional Electronic Cli-
mate Control (ECC).
The air conditioning system can be switched
off, but for optimal air quality in the passenger
compartment and to prevent the windows from
fogging, the air conditioning should be left on
– even in cool weather.
NOTE
In warm weather, a small amount of water
may accumulate under the car when it has
been parked. This water is condensation
from the A/C system and is normal.
Ice and snow
Always keep the air intake grille at the base of
the windshield free of snow.
Fog on the inside of the windows
The defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-
mercially available window washing spray will
also help prevent fogging or misting
Climate control maintenance
Special tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.
Refrigerant
Volvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The system
contains 1.2 lbs (530 g) R134a (HFC 134a), and
uses PAG oil.
Passenger compartment filter
Replace the cabin air filter with a new one at
the recommended intervals. Please refer to
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.
NOTE
There are different types of cabin air filters.
Ensure that the correct type is installed.
Display
The display above the climate control panel
shows the climate settings that have been
made.
Personal settings
There are two functions in the climate system
that can be set to your preferences:
•Blower speed to Auto mode (models with
ECC only).
•Timer controlled recirculation of the air in
the passenger compartment.

03 Climate
General information
03
* Option/accessory, for more information, see Introduction.91
For information about how to make these set-
tings, see the Personal settings section on
page 82.

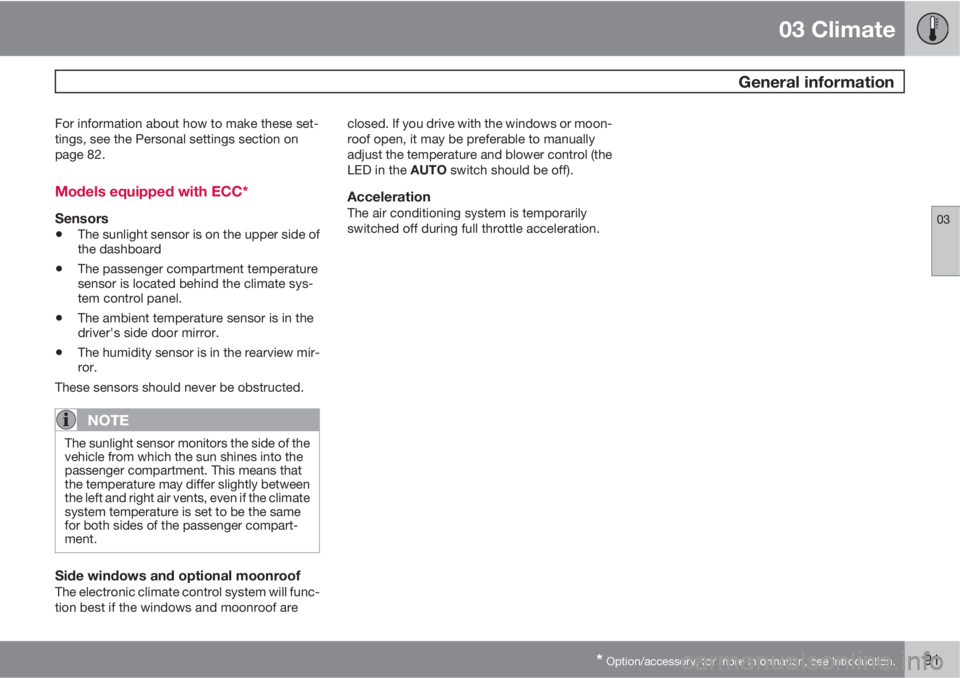

Models equipped with ECC*
Sensors
•The sunlight sensor is on the upper side of
the dashboard
•The passenger compartment temperature
sensor is located behind the climate sys-
tem control panel.
•The ambient temperature sensor is in the
driver's side door mirror.
•The humidity sensor is in the rearview mir-
ror.
These sensors should never be obstructed.
NOTE
The sunlight sensor monitors the side of the
vehicle from which the sun shines into the
passenger compartment. This means that
the temperature may differ slightly between
the left and right air vents, even if the climate
system temperature is set to be the same
for both sides of the passenger compart-
ment.
Side windows and optional moonroofThe electronic climate control system will func-
tion best if the windows and moonroof areclosed. If you drive with the windows or moon-
roof open, it may be preferable to manually
adjust the temperature and blower control (the
LED in the AUTO switch should be off).
AccelerationThe air conditioning system is temporarily
switched off during full throttle acceleration.

03 Climate
Manual climate control
03

93
G019515
Climate system control panel
Blower speed
Recirculation
Defroster
Airflow controls
A/C – ON/OFF
Heated driver's seat
Heated front passenger's seat
Rear window and door mirror defrosters
Temperature selector
Manual climate system functions
1. BlowerThe blower speed can be
increased or decreased by
turning the knob. If the knob is
turned counterclockwise and
the indicator light in the dis-
play goes out, the blower and
the air conditioning are
switched off. The display shows the blower
symbol and
OFF.
2. RecirculationThis function can be used to
shut out exhaust fumes,
smoke, etc from the passen-
ger compartment. The air in
the passenger compartment
is then recirculated, i.e. no air
from outside the car is taken
into the car when this function is activated.
Recirculation (together with the air condition-
ing system) cools the passenger compartment
more quickly in very warm weather. If the air in
the car recirculates for too long, there is a risk
of condensation forming on the insides of the
windows, especially in winter.

03 Climate
Manual climate control
03
94* Option/accessory, for more information, see Introduction.
TimerThe timer function minimizes the risk of mist-
ing, or stale air when the recirculation function
is selected, see page 82 for information on set-
ting the recirculation timer. Recirculation is
always disengaged when you select
Defroster (3).
3. DefrosterDirects airflow to the wind-
shield and side windows and
increases blower speed.
When the defroster is activated:
•Air flows to the windows at high blower
speed.
•The LED in the defroster button lights up
when this function is activated. The air con-
ditioning system is controlled to provide
maximum air dehumidification.
•The air conditioning is automatically
switched on (can be switched off by press-
ing button 5).
4. Airflow controlsPress one of the three buttons
in the illustration to activate
the selected airflow. A symbol
in the display above the cli-
mate control panel and a lit
LED in the selected button
indicate that the manual func-
tion has been selected. With manually selected
airflow both warm and cool air can be selected.
The desired temperature is selected using con-
trol 9.
5. A/C – On or OffON: The air conditioning sys-
tem is engaged when the ON
light is lit.
OFF: The system is disen-
gaged when the OFF lights
up.
If Defroster (3) is activated the air conditioning
is always engaged.
6/7. Heated front seats*Maximum heating:

Press the button once – both LEDs light up.
Reduced heating:

Press the button a second time – one LED
lights up.
Seat heating off:

Press the button a third time – no LEDs are
lit.
8. Heated rear window and door mirrorsPress to defrost the rear win-
dow and door mirrors.
The rear window and door
mirrors are defrosted simulta-
neously if the switch is
pressed once. The defrost
function is active if the LED in the switch is illu-
minated.
•The function can be switched off manually
by pressing the button,
•The defrost function switches off automat-
ically after 12–20 minutes, depending on
the outside temperature.
NOTE
On certain markets, the defrost function
may remain on longer than 20 minutes in
cold weather to help keep the rear window
free from ice or condensation.

03 Climate
Manual climate control
03
95
9. Temperature selectorThe knob with the thermome-
ter symbol is used to select
cooling or heating for both the
driver's and passenger's
sides of the car.
