cruise control VOLVO C30 2010 Owner´s Manual

Contents
4* Option/accessory, for more information, see Introduction.
00
00 Introduction
General information.................................. 10
Volvo and the environment....................... 12
Important warnings................................... 13
01
01 Safety
Occupant safety........................................ 16
Seat belts.................................................. 18
Supplemental Restraint System............... 21
Occupant Weight Sensor (OWS).............. 26
Side impact protection airbags................. 29
Volvo Inflatable Curtain (VIC).................... 30
Whiplash Protection System..................... 32
Crash mode.............................................. 34
Child safety............................................... 35
Child restraint systems............................. 37
Infant seats............................................... 39
Convertible seats...................................... 41
Booster cushions...................................... 43
ISOFIX lower anchors............................... 44
Top tether anchors.................................... 45
Child restraint registration and recalls...... 46
02
02 Instruments and controls
Instrument overview.................................. 50
Instrument panel....................................... 53
Indicator and warning symbols.................55
Symbols – instrument panel..................... 57
Information display................................... 60
12-volt sockets......................................... 62
Lighting panel........................................... 63
Left-side steering wheel lever................... 65
Trip computer........................................... 67
Cruise control*.......................................... 69
Right-side steering wheel lever................. 71
Steering wheel adjustment, Hazard warn-
ing flashers................................................ 74
Parking brake............................................ 75
Power windows......................................... 76
Mirrors....................................................... 77
Power moonroof*...................................... 80
Personal settings...................................... 82
HomeLink® Wireless Control System*..... 85

G020901
48* Option/accessory, for more information, see Introduction.
Instrument overview................................................................................ 50
Instrument panel..................................................................................... 53
Indicator and warning symbols............................................................... 55
Symbols – instrument panel.................................................................... 57
Information display.................................................................................. 60
12-volt sockets....................................................................................... 62
Lighting panel.......................................................................................... 63
Left-side steering wheel lever................................................................. 65
Trip computer.......................................................................................... 67
Cruise control*........................................................................................ 69
Right-side steering wheel lever............................................................... 71
Steering wheel adjustment, Hazard warning flashers............................. 74
Parking brake.......................................................................................... 75
Power windows....................................................................................... 76
Mirrors..................................................................................................... 77
Power moonroof*.................................................................................... 80
Personal settings.................................................................................... 82
HomeLink® Wireless Control System*................................................... 85

02 Instruments and controls
Instrument overview
02

* Option/accessory, for more information, see Introduction.51
Steering wheel adjustment
Hood opener
Controls in front doors
Left steering wheel lever
Lighting panel, fuel filler door opener
Door open handle and locking button
Climate system air vent
Side window air vent
Cruise control
Horn, airbag
Main instrument panel
Audio controls
Right steering wheel lever
Ignition switch
Moonroof control*
Not in use
Not is use
Courtesy lighting switch
Driver's side reading light
Passenger's side reading light
Seat belt reminder and Occupant
Weight Sensor indicator
Rear-view mirror
Display for climate control, personal
settings, and audio system
Audio system
Controls for personal settings and
audio system
Controls for climate system
Gear selector
Hazard warning flashers
Door open handle, and locking button
Glove compartment
Parking brake
12-volt socket
Position for optional equipment
Position for optional equipment

02 Instruments and controls
Instrument panel
02
54
odometer, trip odometers, optional rain
sensor, and cruise control.
Trip odometer reset button – The trip
odometers are used to measure short dis-
tances. Press the button briefly to switch
between the odometer for the car's total
mileage and the two trip odometers, T1
and T2. A long press (more than 2 seconds)
resets the currently selected trip odometer.
Temperature gauge – The gauge indicates
the temperature of the engine cooling sys-
tem. If the temperature is abnormally high
and the needle enters the red zone, a mes-
sage is shown in the display. Bear in mind
that auxiliary lamps in front of the air intake
reduce the cooling capacity at high outside
temperatures and high engine loads.
Indicator and warning symbols

02 Instruments and controls

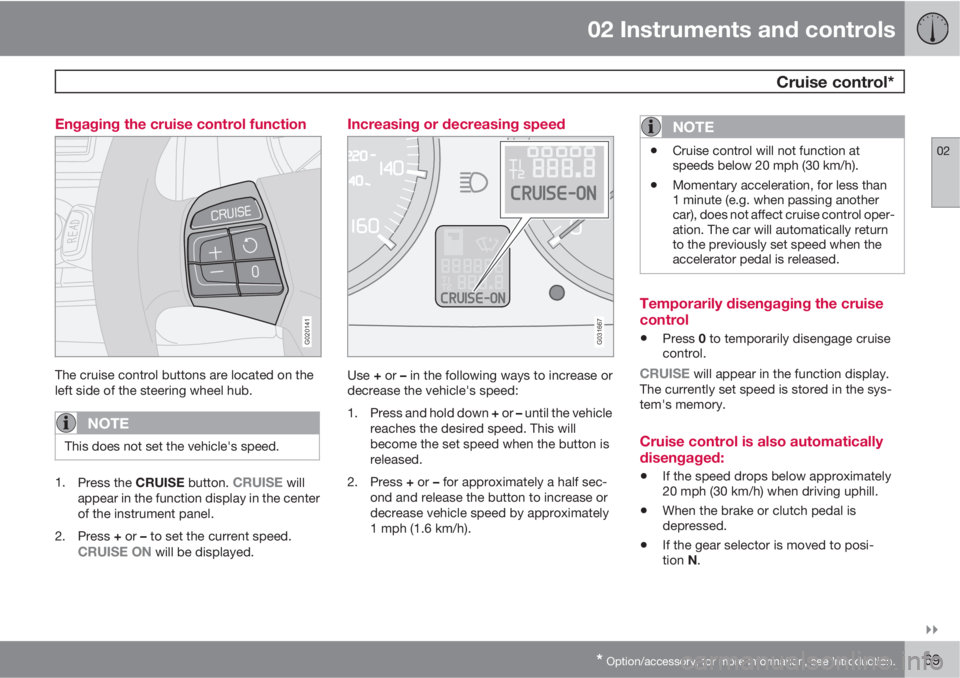

Cruise control*
02

* Option/accessory, for more information, see Introduction.69 Engaging the cruise control function
G020141
The cruise control buttons are located on the
left side of the steering wheel hub.
NOTE
This does not set the vehicle's speed.
1.
Press the CRUISE button. CRUISE will
appear in the function display in the center
of the instrument panel.
2.
Press + or – to set the current speed.
CRUISE ON will be displayed.
Increasing or decreasing speed
G031667
Use + or – in the following ways to increase or
decrease the vehicle's speed:
1.
Press and hold down + or – until the vehicle
reaches the desired speed. This will
become the set speed when the button is
released.
2.
Press + or – for approximately a half sec-
ond and release the button to increase or
decrease vehicle speed by approximately
1 mph (1.6 km/h).
NOTE
•Cruise control will not function at
speeds below 20 mph (30 km/h).
•Momentary acceleration, for less than
1 minute (e.g. when passing another
car), does not affect cruise control oper-
ation. The car will automatically return
to the previously set speed when the
accelerator pedal is released.
Temporarily disengaging the cruise
control
•Press 0 to temporarily disengage cruise
control.
CRUISE will appear in the function display.
The currently set speed is stored in the sys-
tem's memory.
Cruise control is also automatically
disengaged:
•If the speed drops below approximately
20 mph (30 km/h) when driving uphill.
•When the brake or clutch pedal is
depressed.
•If the gear selector is moved to posi-
tion N.

02 Instruments and controls

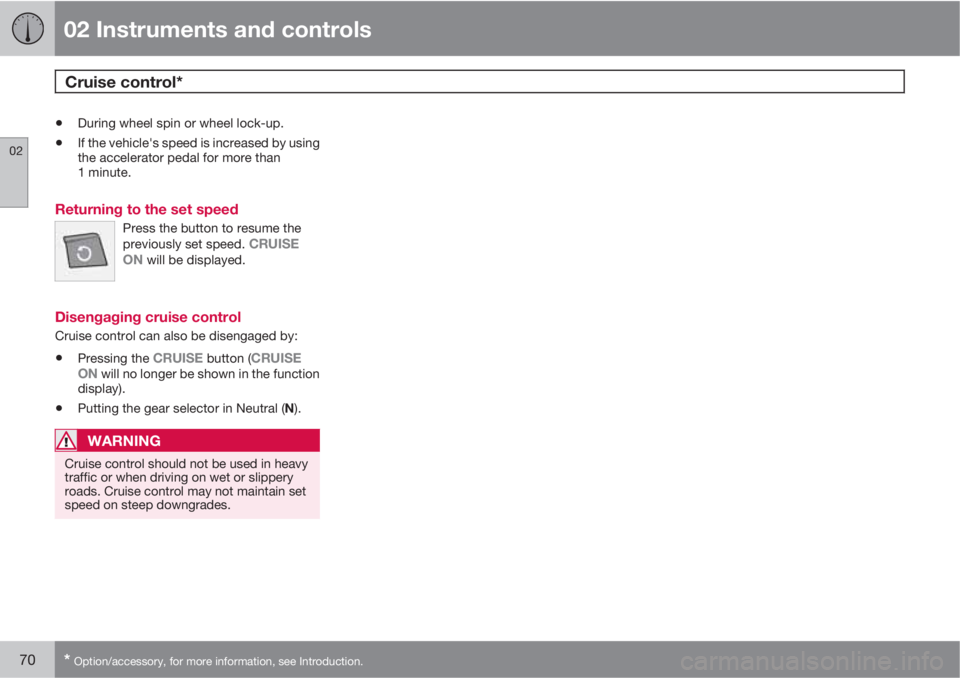

Cruise control*
02
70* Option/accessory, for more information, see Introduction.
•During wheel spin or wheel lock-up.
•If the vehicle's speed is increased by using
the accelerator pedal for more than
1 minute.
Returning to the set speed
Press the button to resume the
previously set speed. CRUISE
ON will be displayed.
Disengaging cruise control
Cruise control can also be disengaged by:
•Pressing the CRUISE button (CRUISE
ON will no longer be shown in the function
display).
•Putting the gear selector in Neutral (N).
WARNING
Cruise control should not be used in heavy
traffic or when driving on wet or slippery
roads. Cruise control may not maintain set
speed on steep downgrades.

09 Maintenance and servicing

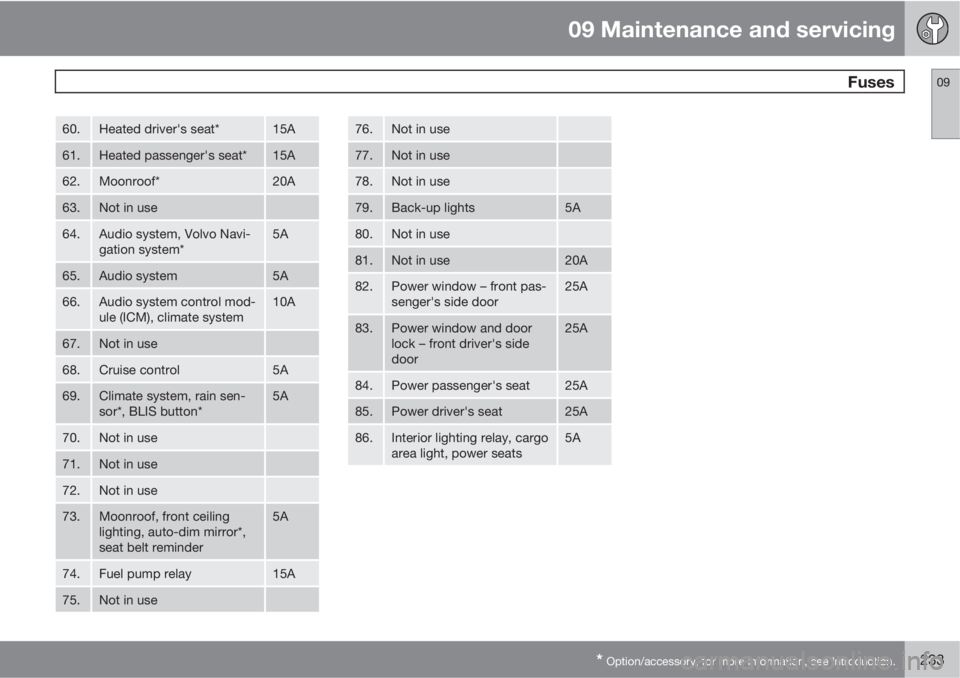

Fuses09
* Option/accessory, for more information, see Introduction.233
60.Heated driver's seat*15A
61.Heated passenger's seat*15A
62.Moonroof*20A
63.Not in use
64.Audio system, Volvo Navi-
gation system*5A
65.Audio system5A
66.Audio system control mod-
ule (ICM), climate system10A
67.Not in use
68.Cruise control5A
69.Climate system, rain sen-
sor*, BLIS button*5A
70.Not in use
71.Not in use
72.Not in use
73.Moonroof, front ceiling
lighting, auto-dim mirror*,
seat belt reminder5A
74.Fuel pump relay15A
75.Not in use
76.Not in use
77.Not in use
78.Not in use
79.Back-up lights5A
80.Not in use
81.Not in use20A
82.Power window – front pas-
senger's side door25A
83.Power window and door
lock – front driver's side
door25A
84.Power passenger's seat25A
85.Power driver's seat25A
86.Interior lighting relay, cargo
area light, power seats5A

12 Index
12
277
Bulbs, replacing....................................... 219
C
Capacities, fluids..................................... 267
Capacity weight............................... 180, 265
Cargo area
steel grid............................................. 117
Cargo area cover.............................117, 118
Cargo area net......................................... 119
Catalytic converter, three-way................. 274
CD changer.............................................. 249
CD player................................................. 249
Cell phone, hands-free connection......... 254
Central locking system - remote key....... 122
Chains...................................................... 182
Changing a wheel.................................... 185
Child restraints
recalls and registration......................... 46
Child restraint systems.............................. 37
booster cushions.................................. 43
ISOFIX/LATCH anchors........................ 44
top tether anchors................................ 45Child safety................................................ 35
booster cushions.................................. 43
child restraint systems.......................... 37
Climate system
air distribution....................................... 99
air vents................................................ 92
Electronic Climate Control.................... 96
manual climate control......................... 93
passenger compartment filter.............. 90
refrigerant.....................................90, 267
Climate system, general information......... 90
Clock
setting................................................... 82
Coat hanger............................................. 112
Cold weather precautions........................ 139
Compact disc care..................................251
Compass in rearview mirror....................... 77
Conserving electrical current................... 140
Coolant.................................................... 267
changing............................................. 214
checking level of................................. 214
Courtesy lighting...................................... 110
Crash mode............................................... 34
Cruise control............................................ 69
Cup holders.....................................111, 113Curb weight.....................................180, 265
D
Detachable key blade.............................. 124
Dimensions.............................................. 264
Disconnecting the front passenger’s air-
bag............................................................. 26
Display.......................................................60
Dolby Pro Logic II (DPL II)........................ 239
Door mirrors............................................... 78
Driving economically................................ 138
Driving through water..............................139
DSTC, stability system............................ 155
E
Economical driving.................................. 138
Electrical current – conserving................ 140
Electrically operated moonroof.................. 80
Electrical system...................................... 272
Electronic Brake Force Distribution
(EBD)........................................................ 154
