VOLVO C30 2013 Owner´s Manual

05 Locks and alarm
Remote key and key blade
05
129
While holding the catch, pull the key blade
out of the remote key.
Reinserting the key blade in the remote
key
1. Hold the remote key with the pointed end
down.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove
until it clicks into place.
Unlocking the doors with the detached
key blade
1. Insert the key blade as far as possible in the
driver's door lock.
2. Turn the key blade clockwise approxi-
mately one-quarter turn to unlock the driv-
er's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.
To disable the alarmPress the Unlock button on the remote key, or
insert the key in the ignition switch.
Locking the doors with the detached key
blade
1. Lock the other door(s) by pressing the lock
button on each door. Please note that this
does not arm the alarm or lock the liftgate.
2. Turn the key blade one-quarter turn coun-
ter-clockwise to lock the driver's door.
Locking points
By utilizing the remote key with the key blade
removed, you can block access to the glove
compartment for e.g. valet parking or when the
car is brought to the retailer for service.

05 Locks and alarm
Remote key and key blade
05
130
G019405

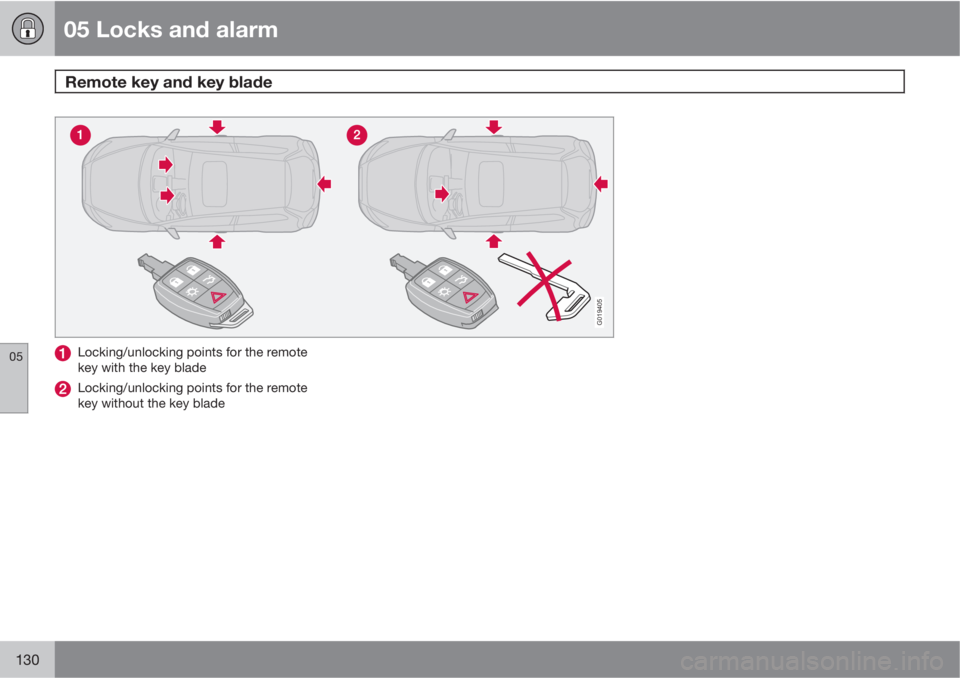

Locking/unlocking points for the remote
key with the key blade
Locking/unlocking points for the remote
key without the key blade

05 Locks and alarm
Keyless drive*
05
* Option/accessory, for more information, see Introduction.131 Keyless locking and unlocking
G007577
Range of the keyless drive remote key–5 ft
(1.5 meters)
This system makes it possible to unlock and
lock the vehicle without having to use the
remote key. It is only necessary to have a key-
less drive remote key in your possession to
operate the central locking system.
NOTE
The buttons on the keyless drive remote key
can also be used to lock and unlock the
vehicle, see page 127 for more information.
Both of the remote keys provided with the vehi-
cle have the keyless function, and additional
remotes can be ordered. The system can
accommodate up to six keyless drive remote
keys.
NOTE
The number of doors that are unlocked at
the same time can be set in the Personal
settings menu, see page 84 for additional
information.
Unlocking the vehicle
•A keyless drive remote key must be on the
same side of the vehicle as the door to be
opened, and be within 5 feet (1.5 meters)
of the lock or the liftgate opening control
(see the shaded areas in the illustration).
•Pull a door handle to unlock and open the
door or press the liftgate opening control
on the liftgate.
•See page 152 for information on starting a
vehicle equipped with keyless drive.
Locking the vehicle
G020033
Keyless drive lock button
The doors and the liftgate can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
•If one or more doors and/or the liftgate
is not fully closed when the lock button
is pressed, the door(s) or liftgate will not
be locked.
•On keyless drive vehicles with an auto-
matic transmission, the gear selector
must be in the Park (P) position and the
ignition must be switched off before the
doors/liftgate can be locked.

05 Locks and alarm
Keyless drive*
05
132* Option/accessory, for more information, see Introduction.
Locking or unlocking the vehicle with the
key blade
G020225
Keyless drive keyhole cover
The driver's door on vehicles equipped with
keyless drive can be locked or unlocked with
the remote key's detachable key blade if nec-
essary, see page 128 for information on remov-
ing the key blade from the remote key. To
access the keyhole in the driver's door:
•Pry off the keyhole cover by inserting the
key blade or a small screwdriver in the hole
on the underside of the cover (indicated by
the arrow in the inset illustration).
•Insert the key blade as far as possible in the
driver's door lock. Turn the key blade
clockwise approximately one-quarter turnto unlock the driver's door only. This will
trigger the alarm.
•To disable the alarm: Press the Unlock
button on the keyless drive remote key. If
the batteries in the remote are weak,
remove the keyless drive start control from
the ignition switch by pressing the catch
(see the illustration on page 152) and pull-
ing the control out of the ignition switch.
Insert the ignition key section of a keyless
drive remote key in the ignition switch.
Keyless drive remote key and driver's
seat memory
This function is only available on vehicles
equipped with the optional power driver's seat.
•When you leave the car with a keyless drive
remote key in your possession and lock
any door, the position of the driver's seat
will be stored in the seat's memory.
•The next time a door is opened by a person
with the same remote key in his/her pos-
session, the driver's seat will automatically
move to the position that it was in when the
door was most recently locked.
NOTE
If several people carrying keyless drive
remote keys approach the vehicle at the
same time, the driver's seat will assume the
position it was in for the person who opens
a door first.
Keyless drive information messagesIf anyone leaves the vehicle with the only key-
less drive remote key in his or her possession
while the ignition is switched on, a message will
be shown in the information display and an
audible signal will sound.
NOTE
This message will only be displayed if the
start control is in position I or II.
The message will be erased from the display
and the audible signal will stop when the
remote key has been returned to the vehicle
and one of the following has occurred:
•A door has been opened and closed
•The start control has been turned to posi-
tion 0
•The READ button (see page 61 for the
location of this button) has been pressed.

05 Locks and alarm
Keyless drive*
05
* Option/accessory, for more information, see Introduction.133
CAUTION
•Keyless drive remote keys should never
be left in the vehicle. In the event of a
break-in, a remote found in the vehicle
could make it possible to start the
engine.
•Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. The remote key
should never be placed closer than
approximately 4-6 in. (10-15 cm) to cell
phones, metallic objects or e.g., stored
in a metal briefcase.
Canada – IC:267T- 5WK48952,
267T- 5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
USA – FCC ID:KR55WK48952,KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC Standards
For Automobile Use
Location of the keyless drive antennas
The keyless drive system has a number of
antennas located at various points in the vehi-
cle.
G020075
On the inside center of the rear bumper
Under the floor of the cargo area, near the
rear seat
Left door handle
Under the rear section of the center con-
sole
Right door handle
Under the front section of the center con-
sole

05 Locks and alarm
Keyless drive*
05
134* Option/accessory, for more information, see Introduction.

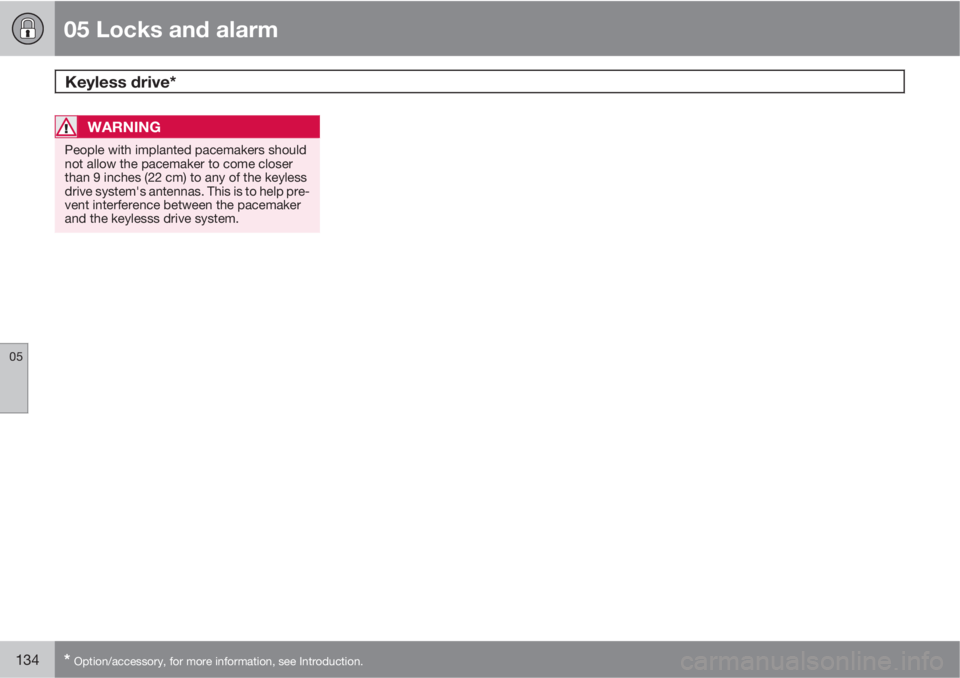

WARNING
People with implanted pacemakers should
not allow the pacemaker to come closer
than 9 inches (22 cm) to any of the keyless
drive system's antennas. This is to help pre-
vent interference between the pacemaker
and the keylesss drive system.

05 Locks and alarm
Locking and unlocking
05

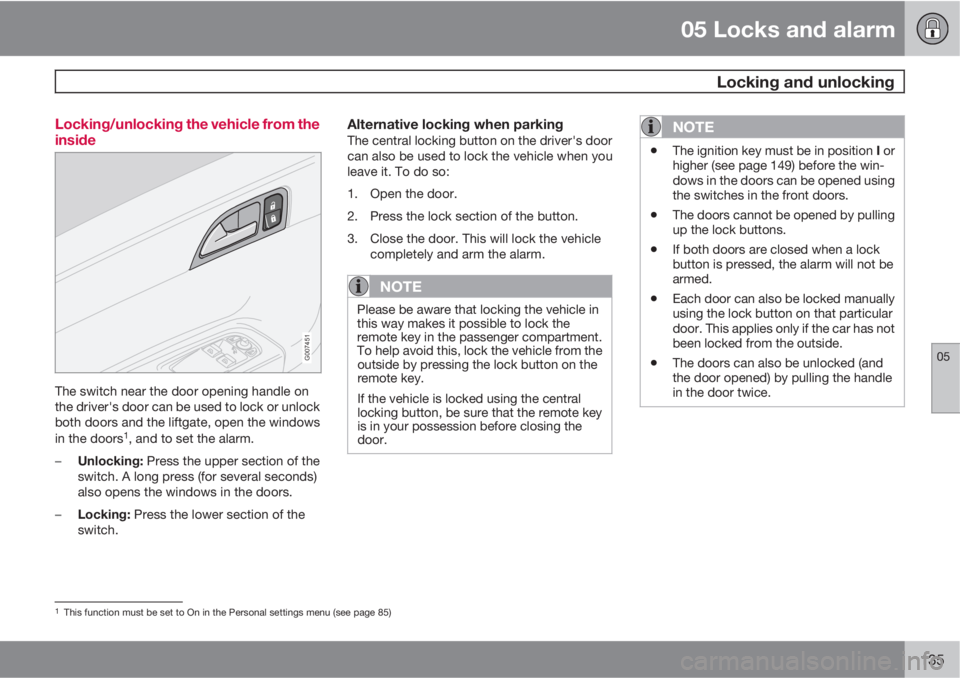

135 Locking/unlocking the vehicle from the
inside
G007451
The switch near the door opening handle on
the driver's door can be used to lock or unlock
both doors and the liftgate, open the windows
in the doors
1, and to set the alarm.
–
Unlocking: Press the upper section of the
switch. A long press (for several seconds)
also opens the windows in the doors.
–
Locking: Press the lower section of the
switch.
Alternative locking when parkingThe central locking button on the driver's door
can also be used to lock the vehicle when you
leave it. To do so:
1. Open the door.
2. Press the lock section of the button.
3. Close the door. This will lock the vehicle
completely and arm the alarm.
NOTE
Please be aware that locking the vehicle in
this way makes it possible to lock the
remote key in the passenger compartment.
To help avoid this, lock the vehicle from the
outside by pressing the lock button on the
remote key.
If the vehicle is locked using the central
locking button, be sure that the remote key
is in your possession before closing the
door.
NOTE
•The ignition key must be in position I or
higher (see page 149) before the win-
dows in the doors can be opened using
the switches in the front doors.
•The doors cannot be opened by pulling
up the lock buttons.
•If both doors are closed when a lock
button is pressed, the alarm will not be
armed.
•Each door can also be locked manually
using the lock button on that particular
door. This applies only if the car has not
been locked from the outside.
•The doors can also be unlocked (and
the door opened) by pulling the handle
in the door twice.
1This function must be set to On in the Personal settings menu (see page 85)

05 Locks and alarm
Locking and unlocking
05
136

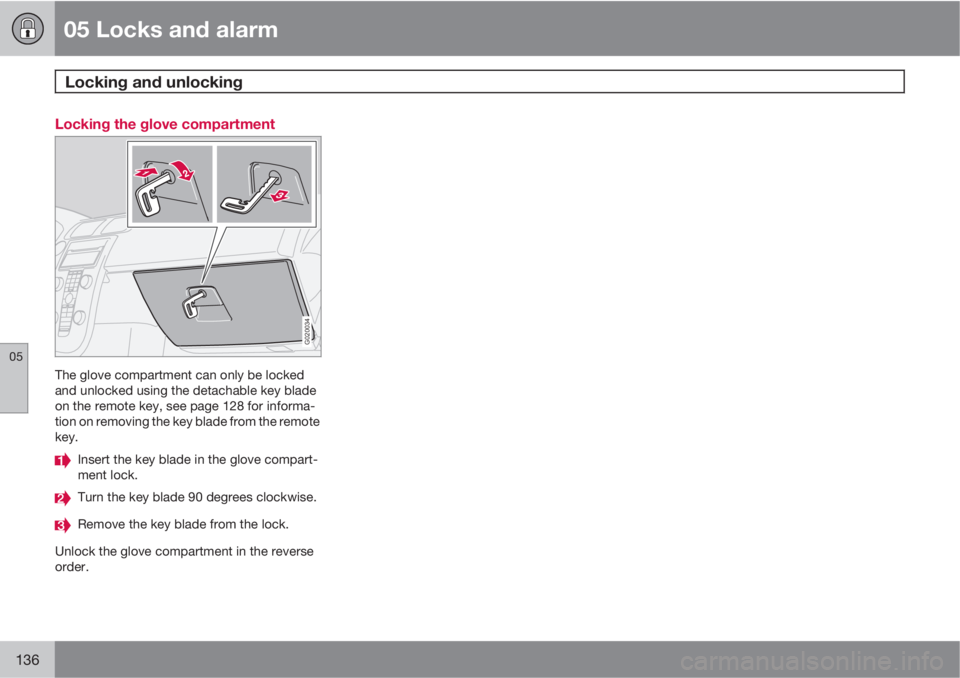

Locking the glove compartment
G020034
The glove compartment can only be locked
and unlocked using the detachable key blade
on the remote key, see page 128 for informa-
tion on removing the key blade from the remote
key.
Insert the key blade in the glove compart-
ment lock.
Turn the key blade 90 degrees clockwise.
Remove the key blade from the lock.
Unlock the glove compartment in the reverse
order.

05 Locks and alarm
Alarm
05

137 The alarm system
The alarm is automatically armed whenever the
car is locked with the remote key, or if a front
lock button is depressed.
When armed, the alarm continuously monitors
a number of points on the car. The following
conditions will trigger the alarm:
•The hood is forced open.
•The liftgate is forced open.
•A door is forced open.
•The ignition switch is tampered with.
•An attempt is made to start the car with a
non-approved key (a key not coded to the
car's ignition).
•If there is movement in the passenger com-
partment (if the car is equipped with the
optional movement sensor).
•The car is lifted or towed (if the car is equip-
ped with the optional inclination sensor).
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
•The liftgate window is broken.
The alarm indicator light
G020227
Alarm indicator light
The status of the alarm system is indicated by
the indicator light on the top of the dashboard
(see the illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes every two sec-
onds – the alarm is armed
•The indicator light flashes rapidly before
the ignition is switched on – the alarm has
been triggered. The message
ALARM
TRIGGERED CHECK CAR will also be
displayed.
•Fault in the alarm system: If a fault has
been detected in the alarm system, a mes-
sage will be shown in the information dis-
play. Contact your Volvo retailer to have
the alarm system inspected and repaired if
necessary.
Arming the alarm
–
Press the LOCK button on the remote key,
or press the central lock button on one of
the front doors with the door open. One
long flash of the turn signals will confirm
that the alarm is armed.
Disarming the alarm
–
Press the UNLOCK button on the remote
key or insert the key in the ignition1 to dis-
arm the alarm. Two short flashes from the
car's direction indicators confirm that the
alarm has been deactivated and that all
doors are unlocked.
1On vehicles with the optional keyless drive, press in the start control in the ignition switch.

05 Locks and alarm
Alarm
05
138
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the UNLOCK button on the remote
key or by inserting the key in the ignition switch.
The driver's door must first be unlocked with
the key blade.
NOTE
On vehicles equipped with the optional key-
less drive, the start control must be
removed from the ignition switch before the
key can be inserted, see page 152 for
instructions.
Audible/visual alarm signal
An audible alarm signal is given by a battery
powered siren. The alarm cycle lasts for
30 seconds.
NOTE
The visual alarm signal is given by flashing
all turn signals and turning on the interior
lighting for approximately 5 minutes.
Temporarily turning off the accessory
alarm sensor(s)
G026313
Display
MENU
EXIT
ENTER
Menu navigation controlsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
To do so:
1.
Press MENU to enter the menu system and
scroll to
Car settings… (for a more
detailed description of the menus, see
page 84.
2.
Select
Reduced guard….
3.
Select
Activate once and the messageREDUCED GUARD SEE MANUAL will
appear in the information display. The
alarm sensors will be turned off when the
vehicle is locked.
or
Select
Ask on exit. Each time the ignition
key is turned to position 0, the message
Reduced guard ask on exit Press
ENTER to reduce guard until engine
has started. Press EXIT to cancel.
will
be displayed. Select one of the alterna-
tives:
•If the alarm sensors are to be deactivated,
press ENTER and then lock the vehicle.
