VOLVO C30 2013 Owner´s Manual

06 Starting and driving
Ignition switch
06
149 Ignition switch positions
0 – Locked positionRemove the key to lock the
steering wheel1. Never turn
the key to position 0 while
driving or when the vehicle is
being towed.
NOTE
A ticking sound may be audible if the key is
turned to a position between 0 and I. To
stop this sound, turn the key to position II
and back to position 0.
I – Intermediate position2
Certain accessories, radio,
etc. on, daytime running lights
off.
II – Drive positionThe key's position when driv-
ing. The vehicle's entire elec-
trical system is activated.
III – Start positionTurn the key to this position
and release it immediately.
The key returns automatically
to the Drive position.
A chime will sound if the key
is left in the ignition and the
driver's door is opened (does not apply to vehi-
cles with the optional keyless drive).
1Automatic transmission: the gear selector must be in the Park position. The optional keyless drive start control does not need to be removed.2Please be aware that leaving the key in positions I or II will increase battery drain.

06 Starting and driving
Starting the vehicle
06
150
To start the engine
WARNING
Before starting, check that the seat, steering
wheel and mirrors are adjusted properly.
Make sure the brake pedal can be
depressed completely. Adjust the seat if
necessary.
1. Fasten the seat belt.
2. Apply the parking brake if not already set.
The gear selector should be locked in the
Park (P) position (Shiftlock). See also page
158.
Manual transmission: The clutch must be
fully depressed.
NOTE
After a cold start, idle speed may be notice-
ably higher than normal for a short period.
This is done to help bring components in the
emission control system to their normal
operating temperature as quickly as possi-
ble, which enables them to control emis-
sions and help reduce the vehicle's impact
on the environment.
3. The vehicle is equipped with an autostart
feature. Without touching the throttle
pedal, turn the key to position III and
release it. The starter motor will then oper-
ate automatically (for up to ten seconds)
until the engine starts. If the engine fails to
start, repeat this step.
CAUTION
If the engine does not start after the third try,
wait for approximately 3 minutes before try-
ing to start it again to give the battery time
to recover its starting capacity.
4. To release the gear selector from the Park
(P) position, the engine must be running (or
the ignition key must be in position II) and
the brake pedal must be depressed.
5. Select the desired gear. On models with an
automatic transmission, the gear engages
after a very slight delay, which is especially
noticeable when selecting R.
WARNING
•Never use more than one floor mat at a
time on the driver's floor. An extra mat
on the driver's floor can cause the
accelerator and/or brake pedal to
catch. Check that the movement of
these pedals is not impeded.
•Volvo's floor mats are specially manu-
factured for your car. They must be
firmly secured in the clips on the floor so
that they cannot slide and become trap-
ped under the pedals on the driver's
side.

06 Starting and driving
Starting the vehicle
06
151

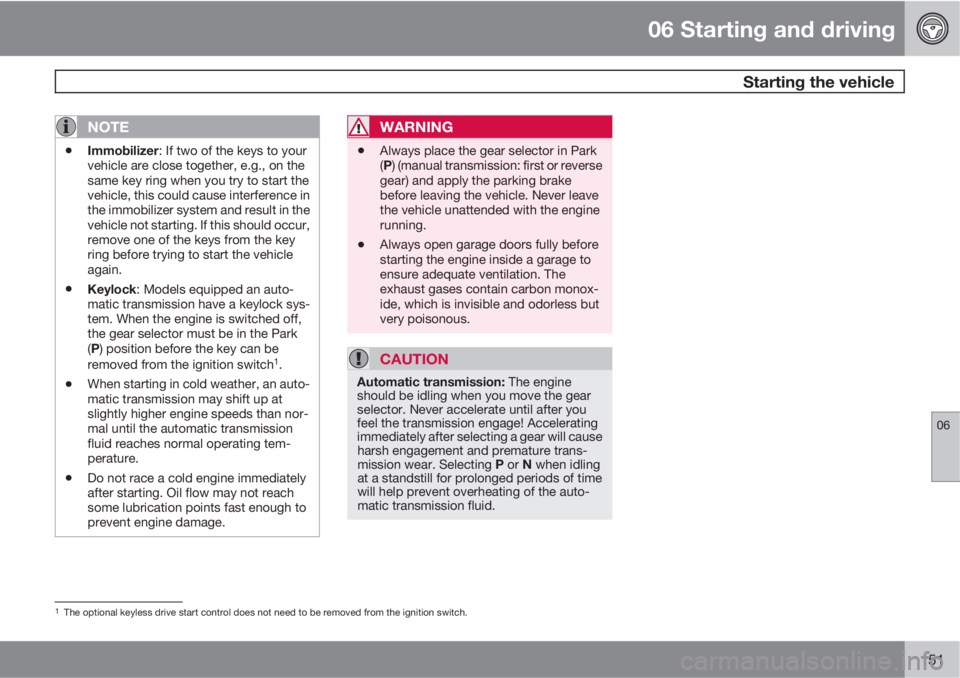

NOTE
•Immobilizer: If two of the keys to your
vehicle are close together, e.g., on the
same key ring when you try to start the
vehicle, this could cause interference in
the immobilizer system and result in the
vehicle not starting. If this should occur,
remove one of the keys from the key
ring before trying to start the vehicle
again.
•Keylock: Models equipped an auto-
matic transmission have a keylock sys-
tem. When the engine is switched off,
the gear selector must be in the Park
(P) position before the key can be
removed from the ignition switch
1.
•When starting in cold weather, an auto-
matic transmission may shift up at
slightly higher engine speeds than nor-
mal until the automatic transmission
fluid reaches normal operating tem-
perature.
•Do not race a cold engine immediately
after starting. Oil flow may not reach
some lubrication points fast enough to
prevent engine damage.
WARNING
•Always place the gear selector in Park
(P) (manual transmission: first or reverse
gear) and apply the parking brake
before leaving the vehicle. Never leave
the vehicle unattended with the engine
running.
•Always open garage doors fully before
starting the engine inside a garage to
ensure adequate ventilation. The
exhaust gases contain carbon monox-
ide, which is invisible and odorless but
very poisonous.
CAUTION
Automatic transmission: The engine
should be idling when you move the gear
selector. Never accelerate until after you
feel the transmission engage! Accelerating
immediately after selecting a gear will cause
harsh engagement and premature trans-
mission wear. Selecting P or N when idling
at a standstill for prolonged periods of time
will help prevent overheating of the auto-
matic transmission fluid.
1The optional keyless drive start control does not need to be removed from the ignition switch.

06 Starting and driving
Starting the vehicle with keyless drive*
06
152* Option/accessory, for more information, see Introduction.
Starting a vehicle with keyless drive
G019410
Keyless drive makes it possible to unlock, start
and lock the vehicle without using a remote
key.
A start control is fitted in the ignition switch on
vehicles equipped with the optional keyless
drive. This control is used in the same way as
the ignition key to start the engine. See also
page 150 for general information on starting
the engine.
WARNING
•Never use more than one floor mat at a
time on the driver's floor. An extra mat
on the driver's floor can cause the
accelerator and/or brake pedal to
catch. Check that the movement of
these pedals is not impeded.
•Volvo's floor mats are specially manu-
factured for your car. They must be
firmly secured in the clips on the floor so
that they cannot slide and become trap-
ped under the pedals on the driver's
side.
NOTE
A keyless drive remote key must be inside
the vehicle in order to start the engine.
1. Press the brake pedal (the clutch pedal
must also be fully depressed on models
with a manual transmission).
2. Press in the keyless drive start control and
turn it to position III.
NOTE
The vehicle is equipped with an autostart
function that makes it possible to start the
engine without holding the start control in
position III. Turn the start control to posi-
tion III and release it. The starter motor will
then operate automatically (for up to ten
seconds) until the engine starts.
CAUTION
If the engine does not start after the third try,
wait for approximately 3 minutes before try-
ing to start it again to give the battery time
to recover its starting capacity.
Starting the vehicle with the ignition key
(remote key)
A vehicle with keyless drive can also be started
with the ignition key (if, for example, the battery
in the keyless drive remote key is weak). To do
so:

06 Starting and driving
Starting the vehicle with keyless drive*
06
* Option/accessory, for more information, see Introduction.153
G019420
Removing the keyless drive start control
Press the catch on the side of the start con-
trol (see the illustration).
Pull the keyless drive start control out of the
ignition switch.
Insert the remote key into the ignition switch
and turn it to position III to start the engine,
page 150 for complete starting information.

06 Starting and driving
Manual transmission, 6-speed*
06
154* Option/accessory, for more information, see Introduction.
6-speed manual transmission
G018258
•Depress the clutch pedal completely when
changing gears1
•Remove your foot from the clutch pedal
while driving. The shift pattern should be
followed.
•Overdrive (5th and 6th gears) should be
used as often as possible to help improve
fuel economy.
CAUTION
The transmission’s temperature is moni-
tored to help prevent damage to the trans-
mission or other drivetrain components. If
there is a risk of overheating, the warning
symbol on the instrument panel will illumi-
nate and a text message will be displayed.
Follow the instructions provided there.
Engaging reverse gear, 6-speed
transmission
G018259
Reverse gear should only be engaged from a
complete stop.
NOTE
Reverse gear is electronically blocked to
help prevent it from being selected while the
vehicle is moving forward.
CAUTION
Never shift into reverse while moving for-
ward.
WARNING
An extra mat on the driver's floor can cause
the accelerator, brake, and/or clutch pedal
to catch. Check that the movement of these
pedals is not impeded. Not more than one
protective floor covering may be used at
one time.
1Clutch interlock: The clutch must be fully depressed before the engine can be started. If the clutch is not depressed, it will not be possible to start the engine.

06 Starting and driving
Automatic transmission
06

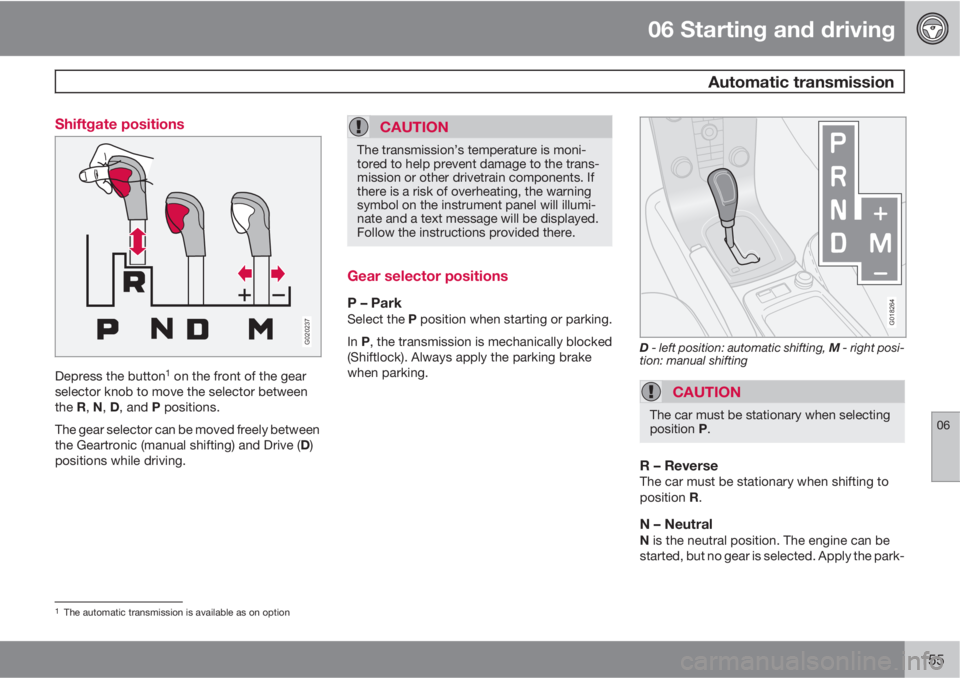

155 Shiftgate positions
G020237
Depress the button1 on the front of the gear
selector knob to move the selector between
the R, N, D, and P positions.
The gear selector can be moved freely between
the Geartronic (manual shifting) and Drive (D)
positions while driving.
CAUTION
The transmission’s temperature is moni-
tored to help prevent damage to the trans-
mission or other drivetrain components. If
there is a risk of overheating, the warning
symbol on the instrument panel will illumi-
nate and a text message will be displayed.
Follow the instructions provided there.
Gear selector positions
P – ParkSelect the P position when starting or parking.
In P, the transmission is mechanically blocked
(Shiftlock). Always apply the parking brake
when parking.G018264
D - left position: automatic shifting, M - right posi-
tion: manual shifting
CAUTION
The car must be stationary when selecting
position P.
R – ReverseThe car must be stationary when shifting to
position R.
N – NeutralN is the neutral position. The engine can be
started, but no gear is selected. Apply the park-
1The automatic transmission is available as on option

06 Starting and driving
Automatic transmission
06
156

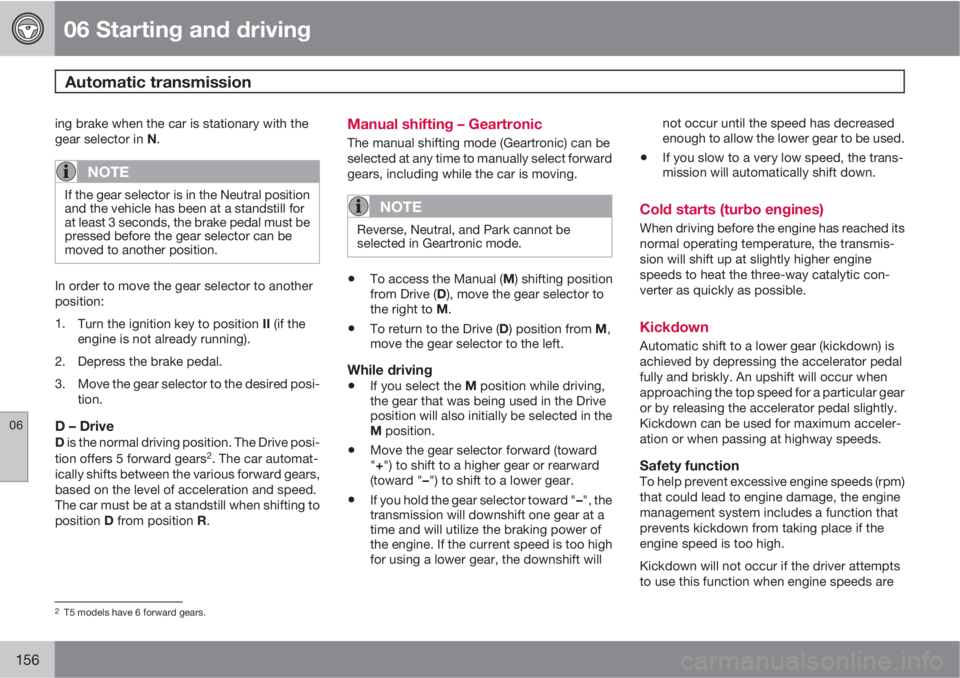

ing brake when the car is stationary with the
gear selector in N.
NOTE
If the gear selector is in the Neutral position
and the vehicle has been at a standstill for
at least 3 seconds, the brake pedal must be
pressed before the gear selector can be
moved to another position.
In order to move the gear selector to another
position:
1.
Turn the ignition key to position II (if the
engine is not already running).
2. Depress the brake pedal.
3. Move the gear selector to the desired posi-
tion.
D – DriveD is the normal driving position. The Drive posi-
tion offers 5 forward gears2. The car automat-
ically shifts between the various forward gears,
based on the level of acceleration and speed.
The car must be at a standstill when shifting to
position D from position R.
Manual shifting – Geartronic
The manual shifting mode (Geartronic) can be
selected at any time to manually select forward
gears, including while the car is moving.
NOTE
Reverse, Neutral, and Park cannot be
selected in Geartronic mode.
•To access the Manual (M) shifting position
from Drive (D), move the gear selector to
the right to M.
•To return to the Drive (D) position from M,
move the gear selector to the left.
While driving
•If you select the M position while driving,
the gear that was being used in the Drive
position will also initially be selected in the
M position.
•Move the gear selector forward (toward
"+") to shift to a higher gear or rearward
(toward "–") to shift to a lower gear.
•If you hold the gear selector toward "–", the
transmission will downshift one gear at a
time and will utilize the braking power of
the engine. If the current speed is too high
for using a lower gear, the downshift willnot occur until the speed has decreased
enough to allow the lower gear to be used.
•If you slow to a very low speed, the trans-
mission will automatically shift down.
Cold starts (turbo engines)
When driving before the engine has reached its
normal operating temperature, the transmis-
sion will shift up at slightly higher engine
speeds to heat the three-way catalytic con-
verter as quickly as possible.
Kickdown
Automatic shift to a lower gear (kickdown) is
achieved by depressing the accelerator pedal
fully and briskly. An upshift will occur when
approaching the top speed for a particular gear
or by releasing the accelerator pedal slightly.
Kickdown can be used for maximum acceler-
ation or when passing at highway speeds.
Safety functionTo help prevent excessive engine speeds (rpm)
that could lead to engine damage, the engine
management system includes a function that
prevents kickdown from taking place if the
engine speed is too high.
Kickdown will not occur if the driver attempts
to use this function when engine speeds are
2T5 models have 6 forward gears.

06 Starting and driving
Automatic transmission
06
157
too high. The transmission will remain in the
currently selected gear.

06 Starting and driving

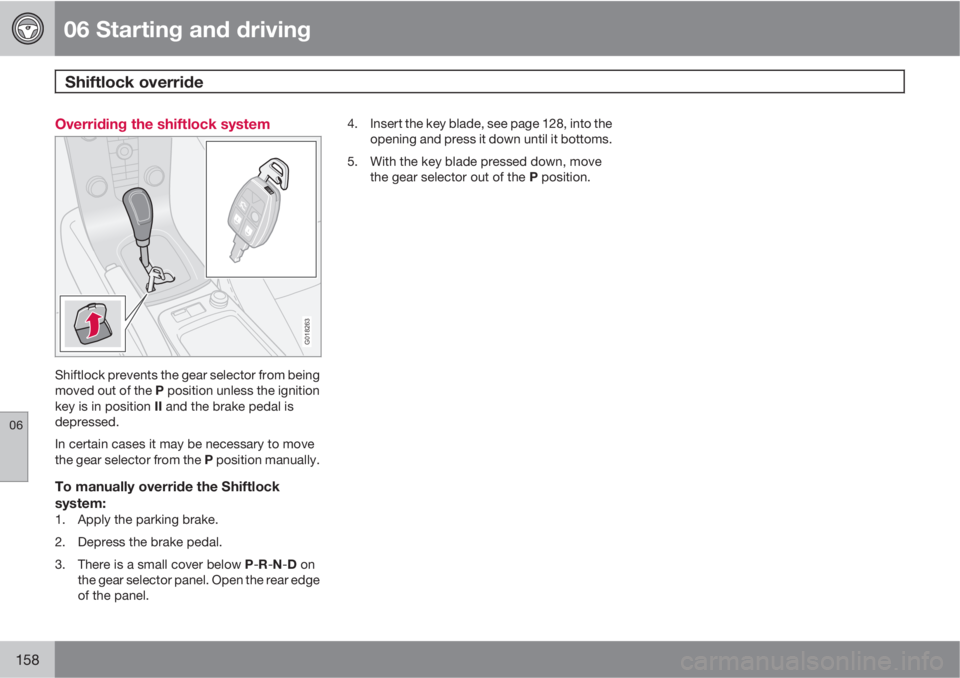

Shiftlock override
06
158
Overriding the shiftlock system
G018263
Shiftlock prevents the gear selector from being
moved out of the P position unless the ignition
key is in position II and the brake pedal is
depressed.
In certain cases it may be necessary to move
the gear selector from the P position manually.
To manually override the Shiftlock
system:
1. Apply the parking brake.
2. Depress the brake pedal.
3.
There is a small cover below P-R-N-D on
the gear selector panel. Open the rear edge
of the panel.4. Insert the key blade, see page 128, into the
opening and press it down until it bottoms.
5. With the key blade pressed down, move
the gear selector out of the P position.
