VOLVO C30 2013 Owner´s Manual

02 Instruments and controls
Left-side steering wheel lever
02
* Option/accessory, for more information, see Introduction.69
Home safe lightingWhen you leave your car at night, you can
make use of the home safe lighting function to
illuminate the area in front of the car.
1. Remove the key from the ignition switch (or
turn the start control on models with key-
less drive* to position 0).
2. Pull the direction indicator lever to position
3 and release it.
3. Exit the car and lock the doors.
The headlights and parking lights will illuminate
and remain on for 30
1, 60 or 90 seconds. The
time interval can be changed according to your
preferences by using the Personal Settings
function, see page 84 for more information.
1Factory setting.

02 Instruments and controls
Trip computer
02
70
G029052
READ (press to acknowledge/confirm/
erase a message)
Thumb wheel (used to scroll among the trip
computer menus)
RESET
The trip computer stores information gathered
from several systems in your car and has four
menus (five on Canadian models) that can be
shown in the information display.
•--- MILES TO EMPTY TANK
•--.- MPG AVERAGE (average fuel con-
sumption)
•--.- MPG INSTANTANEOUS (current fuel
consumption)
•--- MPH AVERAGE SPEED
•--- MPH ACTUAL SPEED (current speed
in mph, Canadian models only)
•DSTC-related information, see page 163
NOTE
Warning messages from the car's monitor-
ing systems will override the trip computer
function.
If a warning message is shown in the informa-
tion display while you are using the trip com-
puter:
1. Acknowledge the message by pressing the
READ (button 1).
2.
Press READ again to return to the trip
computer function.
Controls
The trip computer functions can be accessed
by twisting the thumb wheel (2) one step at a
time in either direction. Twisting a final time
returns you to the original function.
Resetting
--.- MPG AVERAGE (average fuel consump-
tion) and --- MPH AVERAGE SPEED can be
reset.
1. Select one of these functions.2.
Press RESET (3).
--- MILES TO EMPTY TANKThis function shows the approximate distance
that can be driven on the fuel remaining in the
tank. The calculation is based on average fuel
consumption during the last 20 miles (30 km)
of driving and the amount of fuel remaining in
the tank when the reading was taken.
When the message
--- MILES TO EMPTY
TANK appears in the display, refuel as soon
as possible.
MPG AVERAGEThis value indicates fuel consumption since the
last time the trip computer was reset, by press-
ing RESET (button 3). When the engine is
switched off, information on fuel consumption
is stored and remains in system memory until
RESET (button 3) is pressed again.
MPG INSTANTANEOUSThis value indicates the current fuel consump-
tion, based on readings taken once per sec-
ond. When the car is not moving, "
----" will be
displayed.
MPH AVERAGE SPEEDThis value indicates average speed since the
last time the trip computer was reset, by press-
ing RESET (button 3). When the engine is
switched off, information on average speed is

02 Instruments and controls
Trip computer
02
71
stored and remains in system memory until the
RESET (button 3) is pressed again.
MPH ACTUAL SPEED (Canadian models
only)
This function provides the driver with an instan-
taneous conversion of the car's current speed
from km/h to mph.
NOTE
Trip computer readings may vary slightly
depending on the circumference of the tires
on the car, tire inflation, or driving style.

02 Instruments and controls
Cruise control*
02
72* Option/accessory, for more information, see Introduction.
Engaging the cruise control function
G020141
The cruise control buttons are located on the
left side of the steering wheel hub.
NOTE
This does not set the vehicle's speed.
1.
Press the CRUISE button. CRUISE will
appear in the function display in the center
of the instrument panel.
2.
Press + or – to set the current speed.
CRUISE-ONwill be displayed.
Increasing or decreasing speed
G031667
Use + or – in the following ways to increase or
decrease the vehicle's speed:
1.
Press and hold down + or – until the vehicle
reaches the desired speed. This will
become the set speed when the button is
released.
2.
Press + or – for approximately a half sec-
ond and release the button to increase or
decrease vehicle speed by approximately
1 mph (1.6 km/h).
NOTE
•Cruise control will not function at
speeds below 20 mph (30 km/h).
•Momentary acceleration, for less than
1 minute (e.g. when passing another
car), does not affect cruise control oper-
ation. The car will automatically return
to the previously set speed when the
accelerator pedal is released.
Temporarily disengaging the cruise
control
•Press 0 to temporarily disengage cruise
control.
CRUISEwill appear in the function display. The
currently set speed is stored in the system's
memory.
Cruise control is also automatically
disengaged:
•If the speed drops below approximately
20 mph (30 km/h) when driving uphill.
•When the brake or clutch pedal is
depressed.
•If the gear selector is moved to position N.

02 Instruments and controls
Cruise control*
02
* Option/accessory, for more information, see Introduction.73
•During wheel spin or wheel lock-up.
•If the vehicle's speed is increased by using
the accelerator pedal for more than
1 minute.
Returning to the set speed
Press the button to resume the
previously set speed. CRUISE-
ON will be displayed.
Disengaging cruise control
Cruise control can also be disengaged by:
•Pressing the CRUISE button (CRUISE-
ON will no longer be shown in the function
display).
•Putting the gear selector in Neutral (N).
WARNING
Cruise control should not be used in heavy
traffic or when driving on wet or slippery
roads. Cruise control may not maintain the
set speed on steep downgrades.

02 Instruments and controls
Right-side steering wheel lever
02
74
Windshield wipers
Windshield/headlight washers
Rain sensor – on/off, see page 74
Thumb wheel
Liftgate wiper/washer
Windshield wipers offThe windshield wipers are off when
the lever is in position 0.
Manual wiper functionFrom position 0, move the lever
upward. The windshield wipers will
sweep one stroke at a time for as
long as the lever is held up.
Intermittent wiper functionWith the lever in this position, you
can set the wiper interval by mov-
ing the thumb wheel (C) upward to
increase wiper speed or down-
ward to decrease the speed.
Continuous wiper functionThe wipers operate at "normal"
speed.
High speed wiper function.
– Windshield washers
Pull the lever toward the steering wheel and
release it. The wipers will make 2–3 sweeps
across the windshield after the lever has been
released.
CAUTION
•Use ample washer fluid when washing
the windshield. The windshield should
be thoroughly wet when the wipers are
in operation.
•Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.
Headlight washers (certain models)
When the lever has been pulled, high pressure
jets mounted in the bumper will spray the head-
lights.
The following applies to conserve washer fluid,
see page 64 for information on the light switch
positions:
Low/high beam headlights onThe headlights will be washed the first time the
windshield is washed. Thereafter, the head-
lights will only be washed once for every five
times the windshield is washed within a
10 minute period.
Parking lights onThe optional Active Bending Lights will be
washed once for every five times the wind-
shield is washed.

02 Instruments and controls
Right-side steering wheel lever
02
* Option/accessory, for more information, see Introduction.75
Normal halogen headlights will not be washed.
When approx. 1 US quart (1 liter) of washer fluid
remains in the reservoir, the headlights will no
longer be washed. A text message will also be
displayed to remind the driver to fill the washer
fluid reservoir.
– Rain sensor*
G031469
The rain sensor regulates windshield wiper
speed according to the amount of water on the
windshield. The sensitivity of the rain sensor is
adjusted by moving the thumb wheel (C in the
illustration on the previous page) up (the wipers
will sweep the windshield more frequently) ordown (the wipers will sweep the windshield
less frequently).
On/Off
Activating the rain sensor
1. Switch on the ignition.
2. Put the windshield wiper lever in posi-
tion 0.
3. Press button B (see page 74). The rain sen-
sor symbol will appear in the lower display.
Manual deactivationThe rain sensor can be deactivated by:
Pressing button (B).
or
Moving the windshield wiper lever down.
NOTE
The rain sensor function will remain acti-
vated if the lever is briefly moved up to acti-
vate the "manual sweep" function.
CAUTION
The rain sensor should be deactivated when
washing the car in an automatic car wash,
etc. If the rain sensor function is left on, the
wipers will start inadvertently in the car
wash and could be damaged.
Automatic deactivationThe rain sensor is deactivated automatically in
the following situations:
•When the key is removed from the ignition.
•Five minutes after the ignition is switched
off if the key is left in the ignition.
– Thumb wheel
The thumb wheel is used to set the wiper inter-
val when intermittent wiping is selected, or the
sensitivity to the amount of rain on the wind-
shield when the rain sensor is selected. Move
the wheel upward or downward to increase/
decrease wiper speed when the intermittent
function is selected, or to increase/decrease
the optional rain sensor's sensitivity when the
this function is activated.
– Liftgate wiper/washer
Press the lever forward to wipe and wash the
liftgate window. The wiper will sweep the win-
dow several times after the lever has been
released.
The button at the end of the lever has three
positions:

02 Instruments and controls
Right-side steering wheel lever
02
76
•Intermittent wiping: Press in the upper sec-
tion of the button.
•Normal wiper speed: Press in the lower
section of the button.
•Neutral position: The wiper function is
switched off.
NOTE
The rear wiper is equipped with cut-off func-
tion, which means that it will not operate if
its electric motor overheats. The wiper will
function again after a cool-down period
(30 seconds or longer, depending on the
heat of the motor and ambient temperature
conditions).
Liftgate wiper and reverse gear
•If the front wipers are on and the transmis-
sion is put into reverse gear, the liftgate
wiper will be activated.
•If the transmission is in reverse and the
manual windshield wiper function is used
(the lever is pushed upward), the liftgate
wiper will also be activated for as long the
lever is held up.
•If the liftgate wiper is already in normal wip-
ing function, the normal wiping function will
continue.

02 Instruments and controls

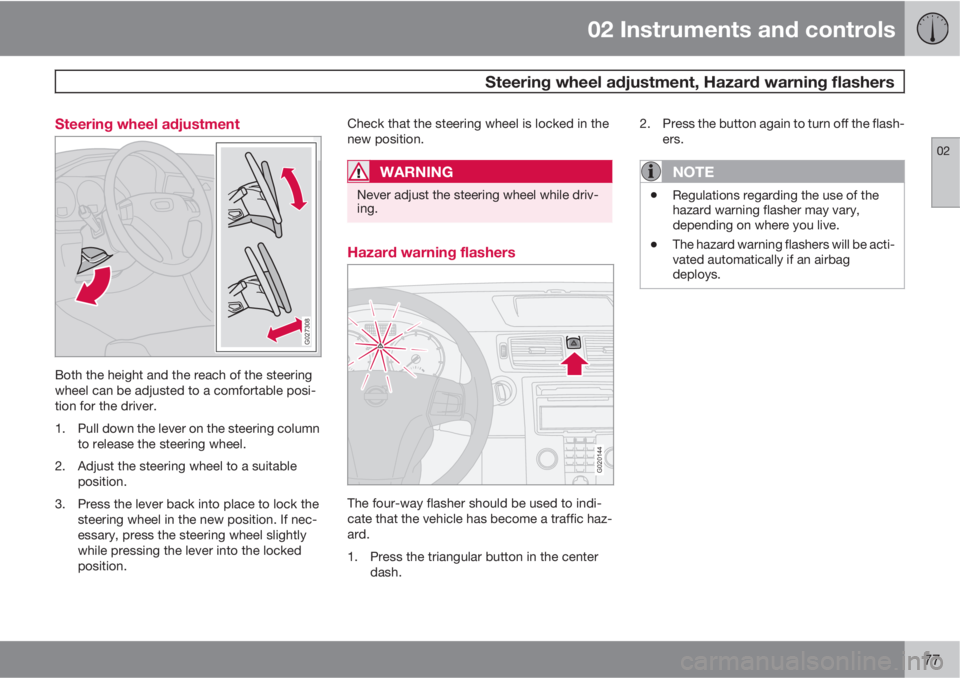

Steering wheel adjustment, Hazard warning flashers
02
77 Steering wheel adjustment
G027308
Both the height and the reach of the steering
wheel can be adjusted to a comfortable posi-
tion for the driver.
1. Pull down the lever on the steering column
to release the steering wheel.
2. Adjust the steering wheel to a suitable
position.
3. Press the lever back into place to lock the
steering wheel in the new position. If nec-
essary, press the steering wheel slightly
while pressing the lever into the locked
position.Check that the steering wheel is locked in the
new position.
WARNING
Never adjust the steering wheel while driv-
ing.
Hazard warning flashers
G020144
The four-way flasher should be used to indi-
cate that the vehicle has become a traffic haz-
ard.
1. Press the triangular button in the center
dash.2. Press the button again to turn off the flash-
ers.
NOTE
•Regulations regarding the use of the
hazard warning flasher may vary,
depending on where you live.
•The hazard warning flashers will be acti-
vated automatically if an airbag
deploys.

02 Instruments and controls

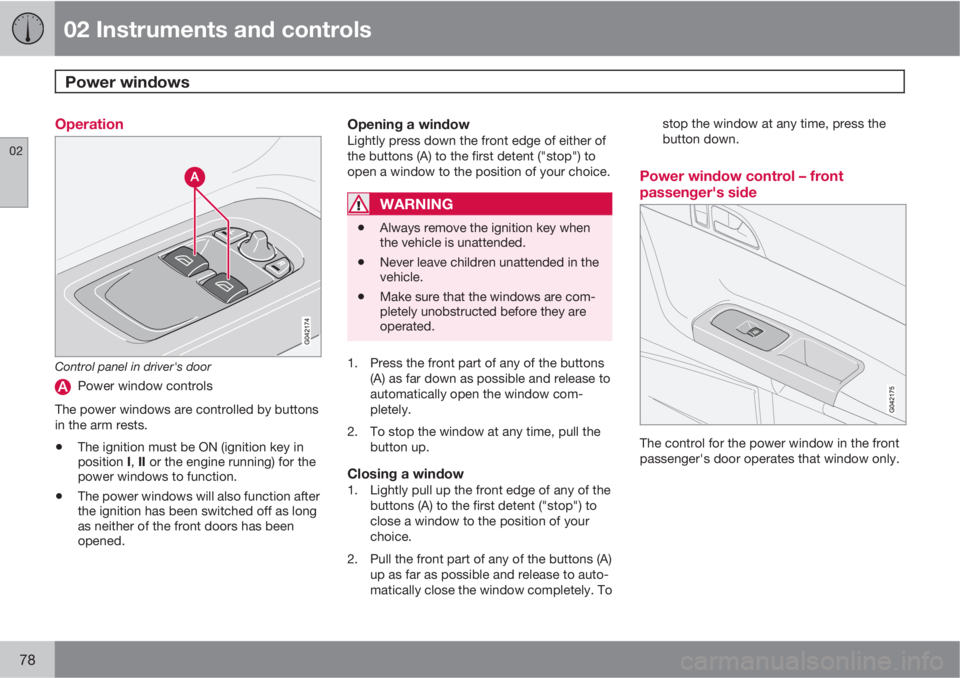

Power windows
02
78
Operation
Control panel in driver's door
Power window controls
The power windows are controlled by buttons
in the arm rests.
•The ignition must be ON (ignition key in
position I, II or the engine running) for the
power windows to function.
•The power windows will also function after
the ignition has been switched off as long
as neither of the front doors has been
opened.
Opening a windowLightly press down the front edge of either of
the buttons (A) to the first detent ("stop") to
open a window to the position of your choice.
WARNING
•Always remove the ignition key when
the vehicle is unattended.
•Never leave children unattended in the
vehicle.
•Make sure that the windows are com-
pletely unobstructed before they are
operated.
1. Press the front part of any of the buttons
(A) as far down as possible and release to
automatically open the window com-
pletely.
2. To stop the window at any time, pull the
button up.
Closing a window1. Lightly pull up the front edge of any of the
buttons (A) to the first detent ("stop") to
close a window to the position of your
choice.
2. Pull the front part of any of the buttons (A)
up as far as possible and release to auto-
matically close the window completely. Tostop the window at any time, press the
button down.
Power window control – front
passenger's side
The control for the power window in the front
passenger's door operates that window only.
