VOLVO C70 2013 Owner´s Manual

04 Interior
Front seats
04

99

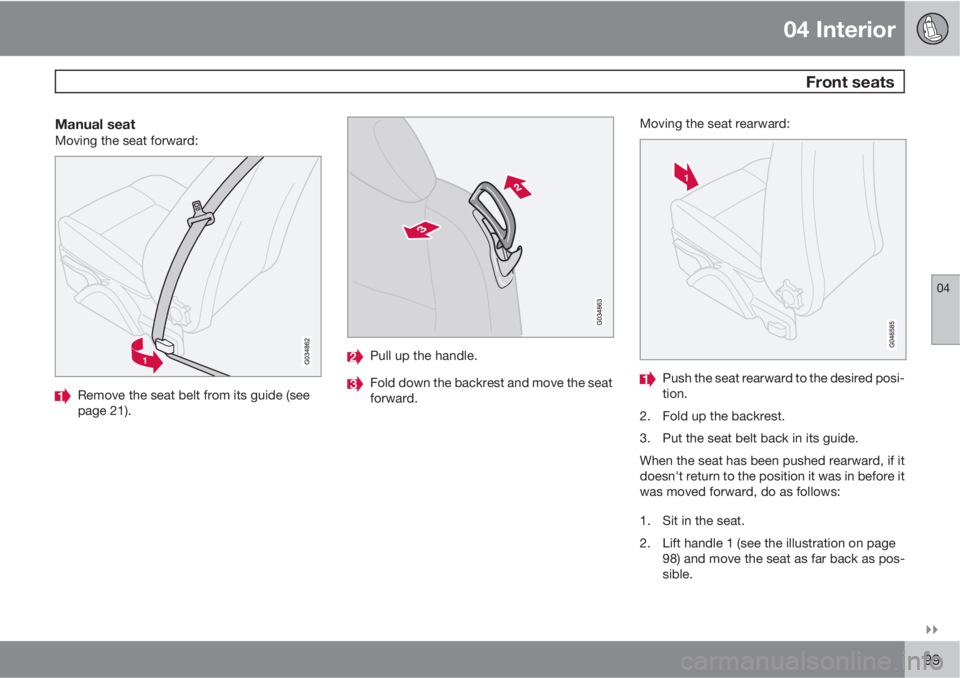

Manual seatMoving the seat forward:
Remove the seat belt from its guide (see
page 21).
Pull up the handle.
Fold down the backrest and move the seat
forward.Moving the seat rearward:Push the seat rearward to the desired posi-
tion.
2. Fold up the backrest.
3. Put the seat belt back in its guide.
When the seat has been pushed rearward, if it
doesn't return to the position it was in before it
was moved forward, do as follows:
1. Sit in the seat.
2. Lift handle 1 (see the illustration on page
98) and move the seat as far back as pos-
sible.

04 Interior
Front seats
04
100

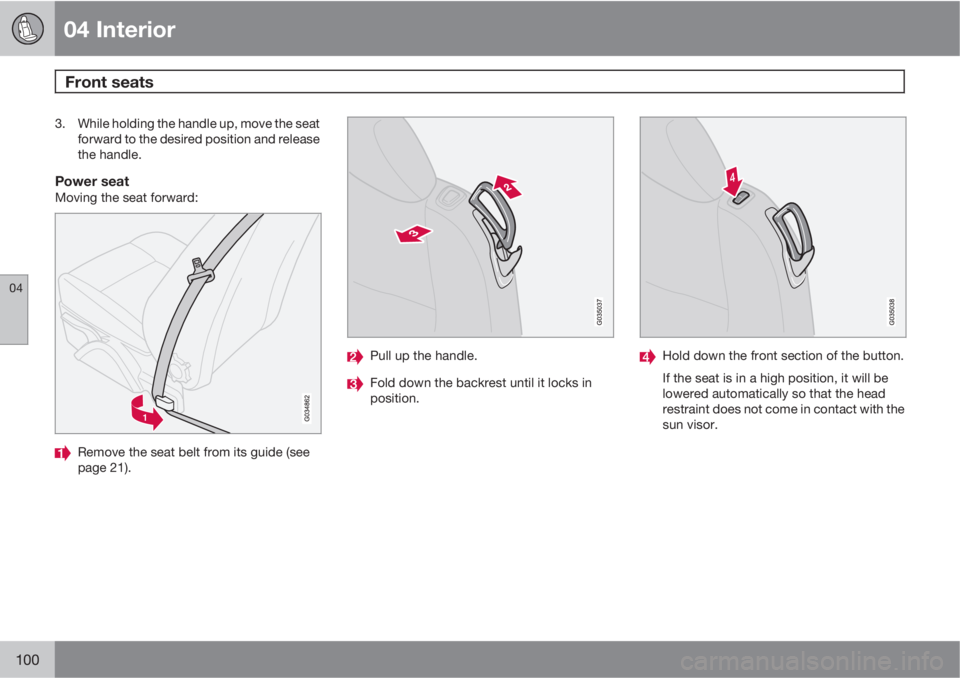

3. While holding the handle up, move the seat
forward to the desired position and release
the handle.
Power seatMoving the seat forward:
Remove the seat belt from its guide (see
page 21).
Pull up the handle.
Fold down the backrest until it locks in
position.
Hold down the front section of the button.
If the seat is in a high position, it will be
lowered automatically so that the head
restraint does not come in contact with the
sun visor.

04 Interior
Front seats
04
* Option/accessory, for more information, see Introduction.101

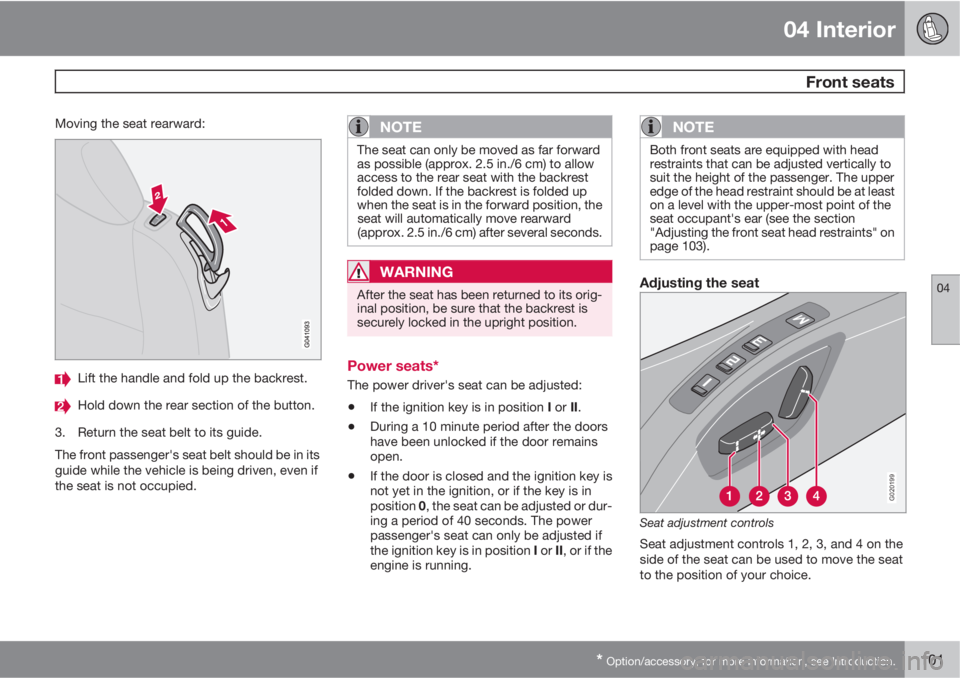

Moving the seat rearward:
Lift the handle and fold up the backrest.
Hold down the rear section of the button.
3. Return the seat belt to its guide.
The front passenger's seat belt should be in its
guide while the vehicle is being driven, even if
the seat is not occupied.
NOTE
The seat can only be moved as far forward
as possible (approx. 2.5 in./6 cm) to allow
access to the rear seat with the backrest
folded down. If the backrest is folded up
when the seat is in the forward position, the
seat will automatically move rearward
(approx. 2.5 in./6 cm) after several seconds.
WARNING
After the seat has been returned to its orig-
inal position, be sure that the backrest is
securely locked in the upright position.
Power seats*
The power driver's seat can be adjusted:
•If the ignition key is in position I or II.
•During a 10 minute period after the doors
have been unlocked if the door remains
open.
•If the door is closed and the ignition key is
not yet in the ignition, or if the key is in
position 0, the seat can be adjusted or dur-
ing a period of 40 seconds. The power
passenger's seat can only be adjusted if
the ignition key is in position I or II, or if the
engine is running.
NOTE
Both front seats are equipped with head
restraints that can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be at least
on a level with the upper-most point of the
seat occupant's ear (see the section
"Adjusting the front seat head restraints" on
page 103).
Adjusting the seat
G020199
Seat adjustment controls
Seat adjustment controls 1, 2, 3, and 4 on the
side of the seat can be used to move the seat
to the position of your choice.

04 Interior
Front seats
04
102* Option/accessory, for more information, see Introduction.
Move this section of the control up or down
to raise/lower the front section of the seat
cushion.
Move the control forward/rearward to
move the seat forward or rearward.
Move this section of the control up or down
to raise/lower the rear section of the seat
cushion.
Backrest tilt.
NOTE
Both front seats are equipped with head
restraints that can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be at least
on a level with the upper-most point of the
seat occupant's ear (see the section
"Adjusting the front seat head restraints" on
page 103).
NOTE
The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0) and wait for approxi-
mately 20 seconds before operating the
seat again.
Emergency stopIf the seat inadvertently begins to move, press
any of the buttons to stop the seat.
Programming the seat memory, driver's
seat only*
G020200
Power seat memory buttons
Three different seating positions (and the posi-
tion of the door mirrors) can be stored in the
seat's memory. The memory buttons are
located on the outboard side of the driver’s
seat (see the illustration).
To program (store) a seat/mirror position in
memory button 1:1. Adjust the seat (and door mirrors) to the
desired position.
2.
Press and hold down the "M" (Memory)
button.
3.
With the "M" button depressed, press
memory button 1 to store the seat and mir-
rors' current position.
To move the seat and mirrors to the position
that they were in when memory button 1 was
programmed, press and hold down button 1
until the seat/mirrors stop moving.
As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.
Central locking system remote key and
driver's seat memory
The remote key transmitter can also be equip-
ped with an optional function that controls the
electrically operated driver's seat in the follow-
ing way:
1. Adjust the seat/door mirrors to the desired
position.
2. When you leave the car, lock it using the
remote key.
3. The next time the driver's door is unlocked
with the same remote key and that door is
opened within 2 minutes, the driver's seat

04 Interior
Front seats
04
103
and door mirrors will automatically move to
the position that they were in when the
doors were most recently locked with the
same remote key.
NOTE
The memory function in the remote key
operates independently the memory func-
tion in the seat.
WARNING
•Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
car.
•Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.

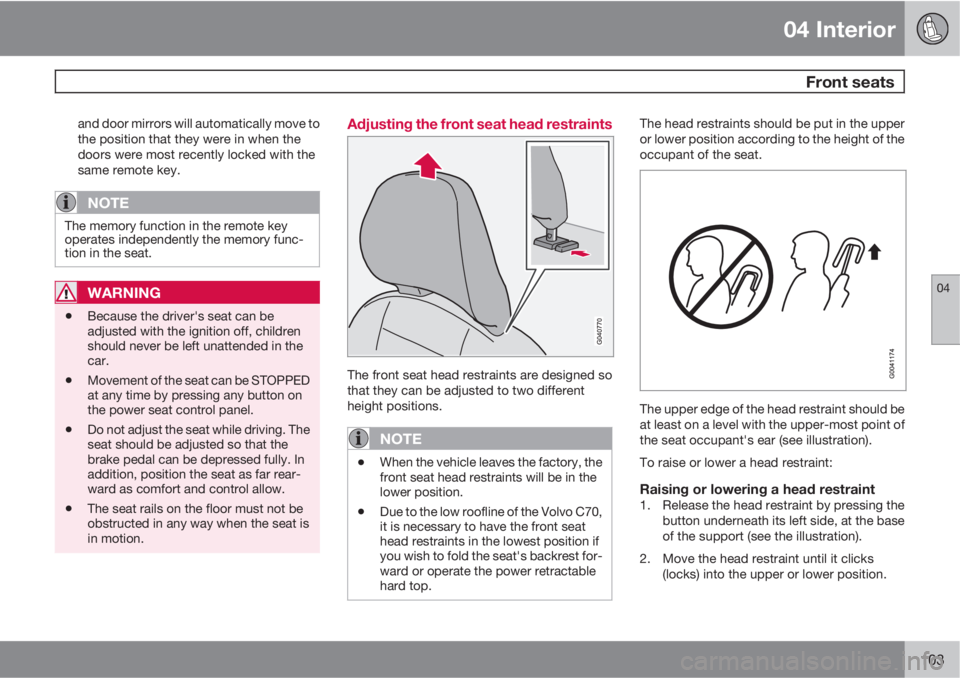

Adjusting the front seat head restraints
The front seat head restraints are designed so
that they can be adjusted to two different
height positions.
NOTE
•When the vehicle leaves the factory, the
front seat head restraints will be in the
lower position.
•Due to the low roofline of the Volvo C70,
it is necessary to have the front seat
head restraints in the lowest position if
you wish to fold the seat's backrest for-
ward or operate the power retractable
hard top.
The head restraints should be put in the upper
or lower position according to the height of the
occupant of the seat.
The upper edge of the head restraint should be
at least on a level with the upper-most point of
the seat occupant's ear (see illustration).
To raise or lower a head restraint:
Raising or lowering a head restraint1. Release the head restraint by pressing the
button underneath its left side, at the base
of the support (see the illustration).
2. Move the head restraint until it clicks
(locks) into the upper or lower position.

04 Interior
Front seats
04
104

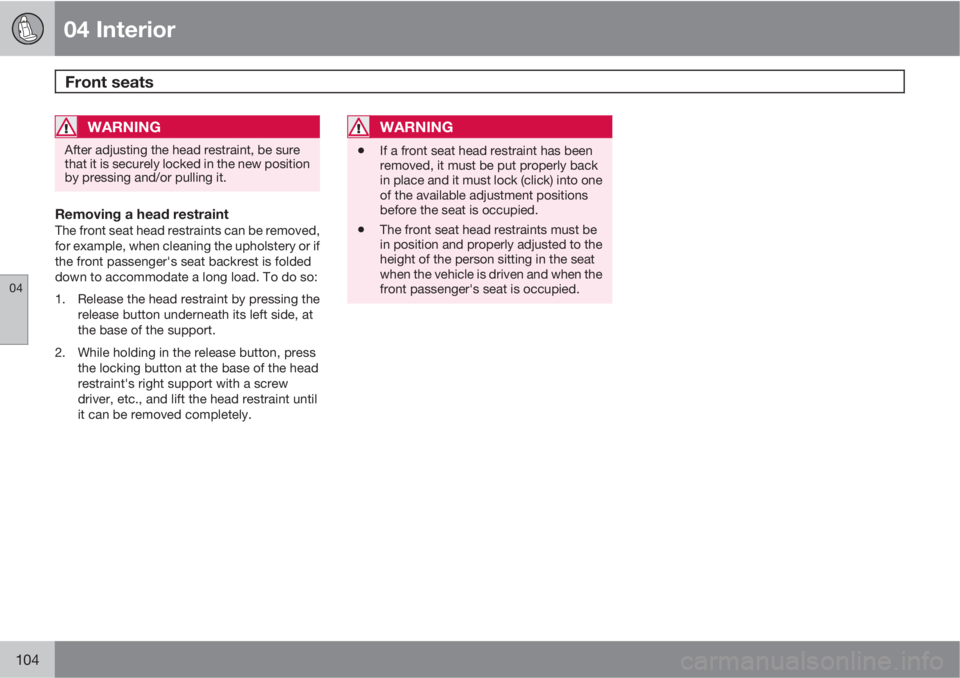

WARNING
After adjusting the head restraint, be sure
that it is securely locked in the new position
by pressing and/or pulling it.
Removing a head restraintThe front seat head restraints can be removed,
for example, when cleaning the upholstery or if
the front passenger's seat backrest is folded
down to accommodate a long load. To do so:
1. Release the head restraint by pressing the
release button underneath its left side, at
the base of the support.
2. While holding in the release button, press
the locking button at the base of the head
restraint's right support with a screw
driver, etc., and lift the head restraint until
it can be removed completely.
WARNING
•If a front seat head restraint has been
removed, it must be put properly back
in place and it must lock (click) into one
of the available adjustment positions
before the seat is occupied.
•The front seat head restraints must be
in position and properly adjusted to the
height of the person sitting in the seat
when the vehicle is driven and when the
front passenger's seat is occupied.

04 Interior
Power retractable hard top
04

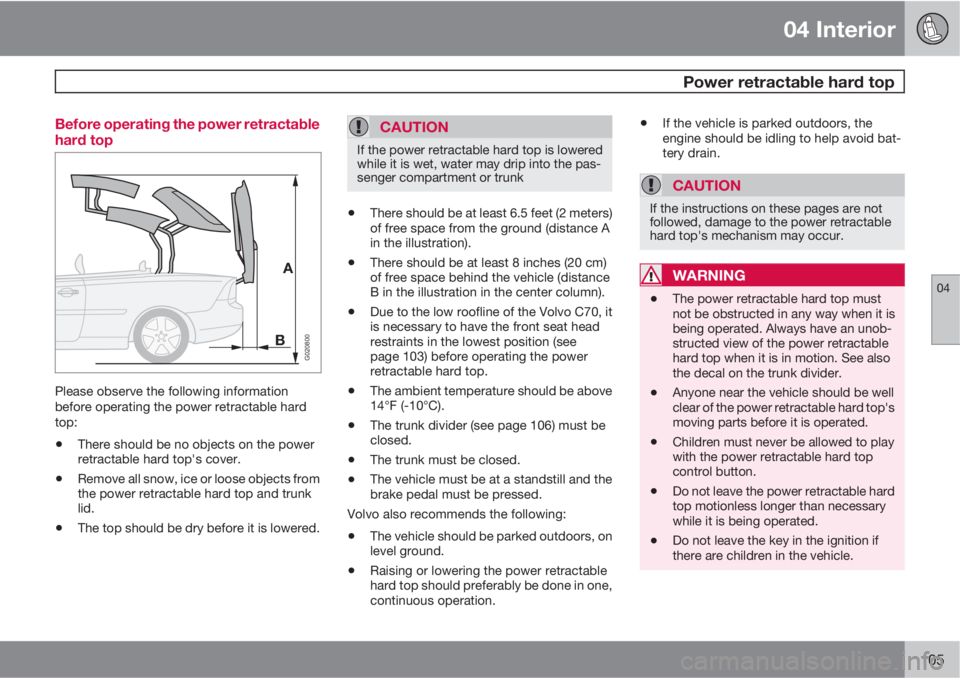

105 Before operating the power retractable
hard top
A
BG020800
Please observe the following information
before operating the power retractable hard
top:
•There should be no objects on the power
retractable hard top's cover.
•Remove all snow, ice or loose objects from
the power retractable hard top and trunk
lid.
•The top should be dry before it is lowered.
CAUTION
If the power retractable hard top is lowered
while it is wet, water may drip into the pas-
senger compartment or trunk
•There should be at least 6.5 feet (2 meters)
of free space from the ground (distance A
in the illustration).
•There should be at least 8 inches (20 cm)
of free space behind the vehicle (distance
B in the illustration in the center column).
•Due to the low roofline of the Volvo C70, it
is necessary to have the front seat head
restraints in the lowest position (see
page 103) before operating the power
retractable hard top.
•The ambient temperature should be above
14°F (-10°C).
•The trunk divider (see page 106) must be
closed.
•The trunk must be closed.
•The vehicle must be at a standstill and the
brake pedal must be pressed.
Volvo also recommends the following:
•The vehicle should be parked outdoors, on
level ground.
•Raising or lowering the power retractable
hard top should preferably be done in one,
continuous operation.
•If the vehicle is parked outdoors, the
engine should be idling to help avoid bat-
tery drain.
CAUTION
If the instructions on these pages are not
followed, damage to the power retractable
hard top's mechanism may occur.
WARNING
•The power retractable hard top must
not be obstructed in any way when it is
being operated. Always have an unob-
structed view of the power retractable
hard top when it is in motion. See also
the decal on the trunk divider.
•Anyone near the vehicle should be well
clear of the power retractable hard top's
moving parts before it is operated.
•Children must never be allowed to play
with the power retractable hard top
control button.
•Do not leave the power retractable hard
top motionless longer than necessary
while it is being operated.
•Do not leave the key in the ignition if
there are children in the vehicle.

04 Interior
Power retractable hard top
04
106

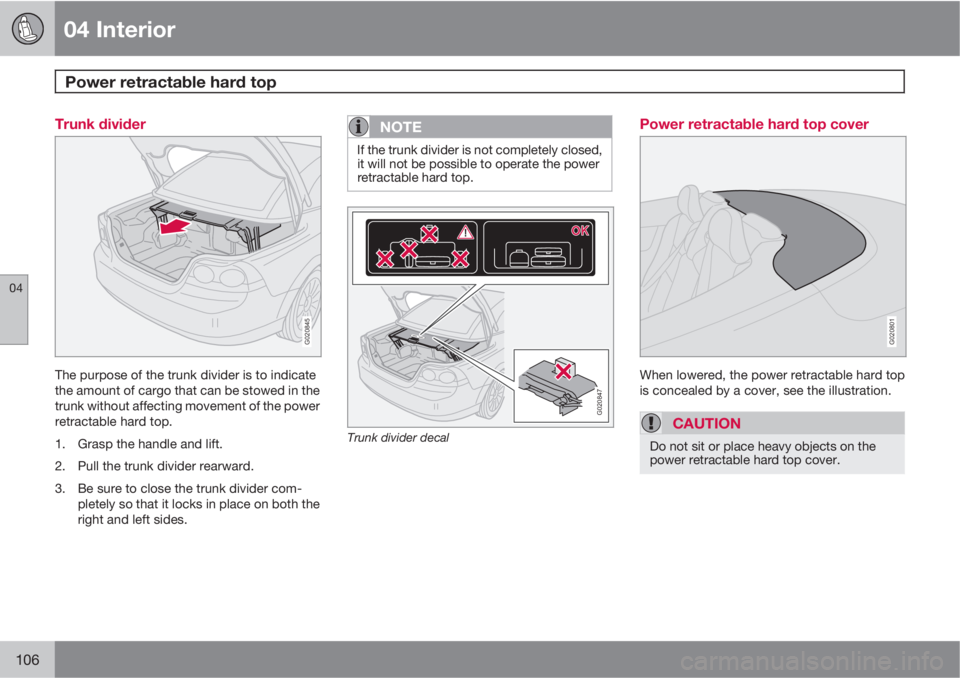

Trunk divider
G020845
The purpose of the trunk divider is to indicate
the amount of cargo that can be stowed in the
trunk without affecting movement of the power
retractable hard top.
1. Grasp the handle and lift.
2. Pull the trunk divider rearward.
3. Be sure to close the trunk divider com-
pletely so that it locks in place on both the
right and left sides.
NOTE
If the trunk divider is not completely closed,
it will not be possible to operate the power
retractable hard top.
G020847
Trunk divider decal
Power retractable hard top cover
G020801
When lowered, the power retractable hard top
is concealed by a cover, see the illustration.
CAUTION
Do not sit or place heavy objects on the
power retractable hard top cover.

04 Interior
Power retractable hard top
04

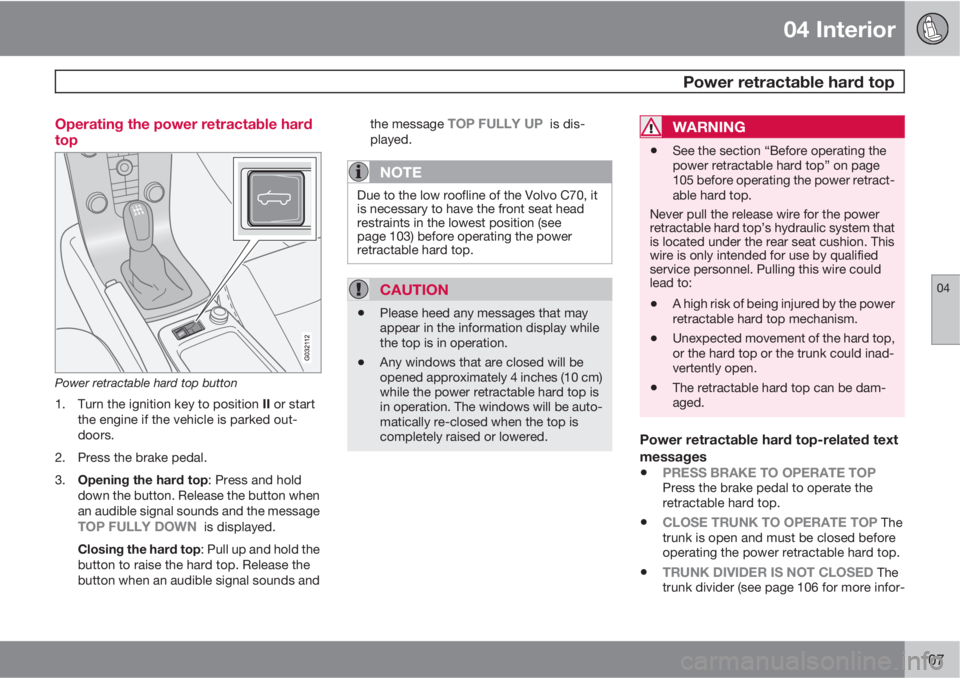

107 Operating the power retractable hard
top
Power retractable hard top button
1.
Turn the ignition key to position II or start
the engine if the vehicle is parked out-
doors.
2. Press the brake pedal.
3.
Opening the hard top: Press and hold
down the button. Release the button when
an audible signal sounds and the message
TOP FULLY DOWN is displayed.
Closing the hard top: Pull up and hold the
button to raise the hard top. Release the
button when an audible signal sounds andthe message
TOP FULLY UP is dis-
played.
NOTE
Due to the low roofline of the Volvo C70, it
is necessary to have the front seat head
restraints in the lowest position (see
page 103) before operating the power
retractable hard top.
CAUTION
•Please heed any messages that may
appear in the information display while
the top is in operation.
•Any windows that are closed will be
opened approximately 4 inches (10 cm)
while the power retractable hard top is
in operation. The windows will be auto-
matically re-closed when the top is
completely raised or lowered.
WARNING
•See the section “Before operating the
power retractable hard top” on page
105 before operating the power retract-
able hard top.
Never pull the release wire for the power
retractable hard top’s hydraulic system that
is located under the rear seat cushion. This
wire is only intended for use by qualified
service personnel. Pulling this wire could
lead to:
•A high risk of being injured by the power
retractable hard top mechanism.
•Unexpected movement of the hard top,
or the hard top or the trunk could inad-
vertently open.
•The retractable hard top can be dam-
aged.
Power retractable hard top-related text
messages
•PRESS BRAKE TO OPERATE TOPPress the brake pedal to operate the
retractable hard top.
•CLOSE TRUNK TO OPERATE TOP The
trunk is open and must be closed before
operating the power retractable hard top.
•TRUNK DIVIDER IS NOT CLOSED The
trunk divider (see page 106 for more infor-

04 Interior
Power retractable hard top
04
108
mation) must be closed before operating
the power retractable hard top.
•TOP INOPERATIVE LOW BATTERY The
battery's charge is too low to operate the
power retractable hard top. In this case,
the top can only be raised. Start the engine,
or if necessary, have the battery charged
before operating the top.
•TOP IS UNLOCKED The power retracta-
ble hard top is not fully up or down. Press/
pull and hold the button again to complete
the operation.
•TOO HOT OR COLD TO OPERATE
TOP The power retractable hard top
mechanism has overheated, or the ambi-
ent temperature is below 14° F (-10° C). If
the mechanism has overheated, wait for
approximately 5 minutes (the message in
the information display will disappear) and
try to lower or raise the top again.
If a fault in the power retractable hard top
mechanism occurs, the following messages
will be displayed:
•TOP MALFUNCTION SERVICE
REQUIRED The power retractable hard
top cannot be operated. Contact an
authorized Volvo retailer or service techni-
cian. see page 105 for more information.
•TOP MALFUNCTION SEE MANUAL The
power retractable hard top must be oper-ated according to the following instruc-
tions.
Emergency operation
If the message TOP MALFUNCTION SEE
MANUAL is displayed, the power retractable
hard top cannot be operated in the normal way.
NOTE
If a fault has occurred and the power retract-
able hard top has been raised, it cannot be
lowered again until the fault has been cor-
rected.
CAUTION
Carefully read the information under “Before
operating the power retractable hard top”
(see page 105) before operating the power
retractable hard top. Damage may be
unavoidable if the power retractable hard
top must be operated under such condi-
tions.
1. Press or pull the hard top control button
(see page 107) until TOP MALFUNCTION
SERVICE REQUIRED is displayed.
2. Release the button.
3. Pull the button again and hold it. After
approximately 5 seconds, the powerretractable hard top will begin to move.
Hold the button up until the top is fully
raised.
NOTE
Movement of the top may stop briefly. How-
ever, the button should be pulled up
throughout the entire operation. An audible
signal will sound during the entire operation.
WARNING
Never pull the release wire for the power
retractable hard top’s hydraulic system that
is located under the rear seat cushion. This
wire is only intended for use by qualified
service personnel. Pulling this wire could
lead to:
•High risk of being injured by the power
retractable hard top’s opening/closing
mechanism.
•Unexpected movement of the hard top/
the hard top or the trunk could inadver-
tently open.
•The retractable hard top can be dam-
aged.
