VOLVO C70 2013 Owner´s Manual

04 Interior

04
119

120* Option/accessory, for more information, see Introduction.
Remote key and key blade................................................................... 122
Valet locking ......................................................................................... 126
Keyless drive*........................................................................................ 128
Locking and unlocking.......................................................................... 132
Alarm..................................................................................................... 135

LOCKS AND ALARM

05 Locks and alarm
Remote key and key blade
05
122

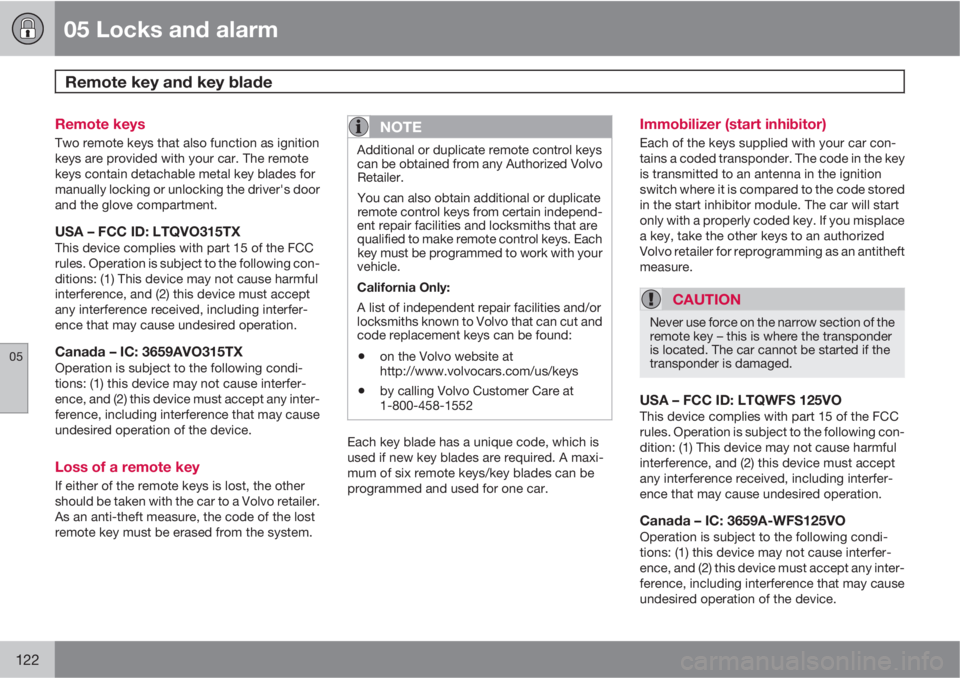

Remote keys
Two remote keys that also function as ignition
keys are provided with your car. The remote
keys contain detachable metal key blades for
manually locking or unlocking the driver's door
and the glove compartment.
USA – FCC ID: LTQVO315TXThis device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659AVO315TXOperation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
Loss of a remote key
If either of the remote keys is lost, the other
should be taken with the car to a Volvo retailer.
As an anti-theft measure, the code of the lost
remote key must be erased from the system.
NOTE
Additional or duplicate remote control keys
can be obtained from any Authorized Volvo
Retailer.
You can also obtain additional or duplicate
remote control keys from certain independ-
ent repair facilities and locksmiths that are
qualified to make remote control keys. Each
key must be programmed to work with your
vehicle.
California Only:
A list of independent repair facilities and/or
locksmiths known to Volvo that can cut and
code replacement keys can be found:
•on the Volvo website at
http://www.volvocars.com/us/keys
•by calling Volvo Customer Care at
1-800-458-1552
Each key blade has a unique code, which is
used if new key blades are required. A maxi-
mum of six remote keys/key blades can be
programmed and used for one car.
Immobilizer (start inhibitor)
Each of the keys supplied with your car con-
tains a coded transponder. The code in the key
is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key. If you misplace
a key, take the other keys to an authorized
Volvo retailer for reprogramming as an antitheft
measure.
CAUTION
Never use force on the narrow section of the
remote key – this is where the transponder
is located. The car cannot be started if the
transponder is damaged.
USA – FCC ID: LTQWFS 125VOThis device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659A-WFS125VOOperation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.

05 Locks and alarm
Remote key and key blade
05

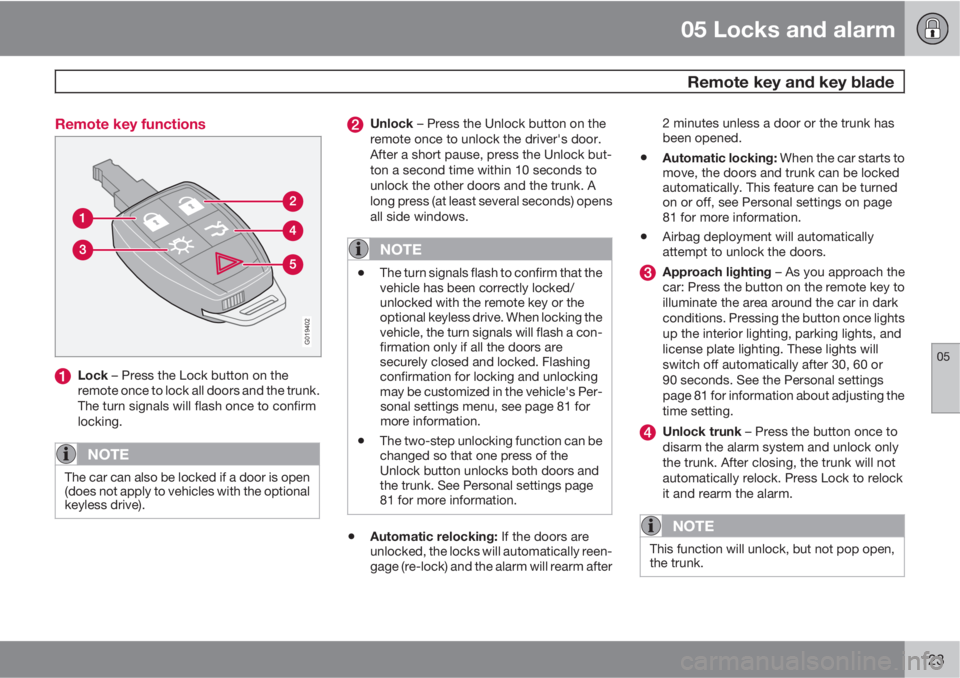

123 Remote key functions
G019402
Lock – Press the Lock button on the
remote once to lock all doors and the trunk.
The turn signals will flash once to confirm
locking.
NOTE
The car can also be locked if a door is open
(does not apply to vehicles with the optional
keyless drive).
Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock but-
ton a second time within 10 seconds to
unlock the other doors and the trunk. A
long press (at least several seconds) opens
all side windows.
NOTE
•The turn signals flash to confirm that the
vehicle has been correctly locked/
unlocked with the remote key or the
optional keyless drive. When locking the
vehicle, the turn signals will flash a con-
firmation only if all the doors are
securely closed and locked. Flashing
confirmation for locking and unlocking
may be customized in the vehicle's Per-
sonal settings menu, see page 81 for
more information.
•The two-step unlocking function can be
changed so that one press of the
Unlock button unlocks both doors and
the trunk. See Personal settings page
81 for more information.
•Automatic relocking: If the doors are
unlocked, the locks will automatically reen-
gage (re-lock) and the alarm will rearm after2 minutes unless a door or the trunk has
been opened.
•Automatic locking: When the car starts to
move, the doors and trunk can be locked
automatically. This feature can be turned
on or off, see Personal settings on page
81 for more information.
•Airbag deployment will automatically
attempt to unlock the doors.
Approach lighting – As you approach the
car: Press the button on the remote key to
illuminate the area around the car in dark
conditions. Pressing the button once lights
up the interior lighting, parking lights, and
license plate lighting. These lights will
switch off automatically after 30, 60 or
90 seconds. See the Personal settings
page 81 for information about adjusting the
time setting.
Unlock trunk – Press the button once to
disarm the alarm system and unlock only
the trunk. After closing, the trunk will not
automatically relock. Press Lock to relock
it and rearm the alarm.
NOTE
This function will unlock, but not pop open,
the trunk.

05 Locks and alarm
Remote key and key blade
05
124

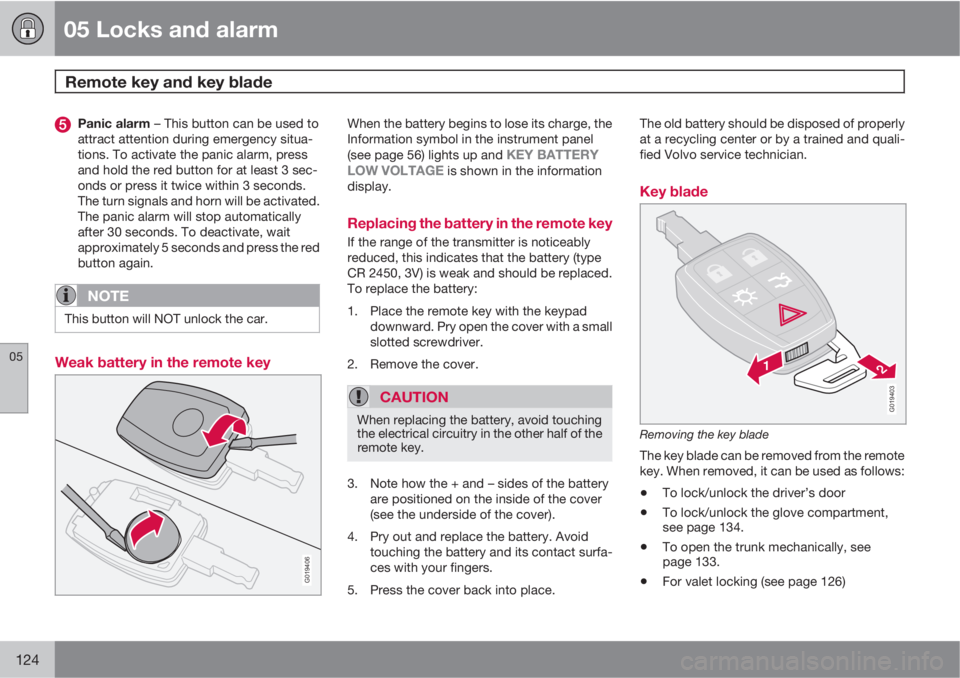

Panic alarm – This button can be used to
attract attention during emergency situa-
tions. To activate the panic alarm, press
and hold the red button for at least 3 sec-
onds or press it twice within 3 seconds.
The turn signals and horn will be activated.
The panic alarm will stop automatically
after 30 seconds. To deactivate, wait
approximately 5 seconds and press the red
button again.
NOTE
This button will NOT unlock the car.
Weak battery in the remote key
G019406
When the battery begins to lose its charge, the
Information symbol in the instrument panel
(see page 56) lights up and
KEY BATTERY
LOW VOLTAGE is shown in the information
display.
Replacing the battery in the remote key
If the range of the transmitter is noticeably
reduced, this indicates that the battery (type
CR 2450, 3V) is weak and should be replaced.
To replace the battery:
1. Place the remote key with the keypad
downward. Pry open the cover with a small
slotted screwdriver.
2. Remove the cover.
CAUTION
When replacing the battery, avoid touching
the electrical circuitry in the other half of the
remote key.
3. Note how the + and – sides of the battery
are positioned on the inside of the cover
(see the underside of the cover).
4. Pry out and replace the battery. Avoid
touching the battery and its contact surfa-
ces with your fingers.
5. Press the cover back into place.The old battery should be disposed of properly
at a recycling center or by a trained and quali-
fied Volvo service technician.
Key blade
G019403
Removing the key blade
The key blade can be removed from the remote
key. When removed, it can be used as follows:
•To lock/unlock the driver’s door
•To lock/unlock the glove compartment,
see page 134.
•To open the trunk mechanically, see
page 133.
•For valet locking (see page 126)

05 Locks and alarm
Remote key and key blade
05
125
Removing the key bladeSlide the spring loaded catch to the side.
While holding the catch, pull the key blade
out of the remote key.
Reinserting the key blade in the remote
key
1. Hold the remote key with the pointed end
down.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove
until it clicks into place.
Unlocking the doors with the detached
key blade
1. Insert the key blade as far as possible in the
driver's door lock.
2. Turn the key blade clockwise approxi-
mately one-quarter turn to unlock the driv-
er's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.
To disable the alarmPress the Unlock button on the remote key, or
insert the key in the ignition switch.
Locking the doors with the detached key
blade
1. Lock the other door(s) by pressing the lock
button on each door. Please note that this
does not arm the alarm or lock the trunk.
2. Turn the key blade one-quarter turn coun-
ter-clockwise to lock the driver's door.

05 Locks and alarm
Valet locking
05
126

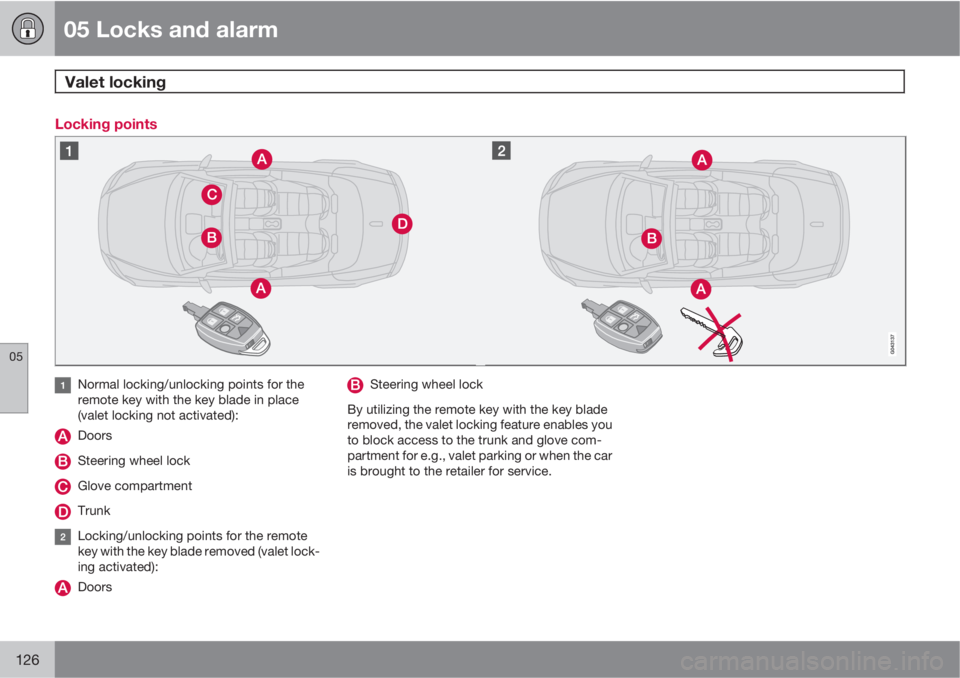

Locking points
Normal locking/unlocking points for the
remote key with the key blade in place
(valet locking not activated):
Doors
Steering wheel lock
Glove compartment
Trunk
Locking/unlocking points for the remote
key with the key blade removed (valet lock-
ing activated):
Doors
Steering wheel lock
By utilizing the remote key with the key blade
removed, the valet locking feature enables you
to block access to the trunk and glove com-
partment for e.g., valet parking or when the car
is brought to the retailer for service.

05 Locks and alarm
Valet locking
05
127
Activating the valet locking function
G020032
Begin by removing the key blade from the
remote key (see page 124).
NOTE
The first stages of opening the power
retractable hard top offer temporary access
to the contents of the trunk. Therefore,
before activating valet locking, the power
retractable hard top must be up and the
trunk divider (see page 106) must be open.
This makes it impossible to operate the
power retractable hard top.
Insert the key in the glove compartment
lock.
Turn the key blade 180° clockwise to lock
the glove compartment and to disconnect
points C and D from the central locking
system (a message appears in the infor-
mation display).
Remove the key blade from the glove com-
partment lock.
Give the parking attendant or service person-
nel only the remote key (with the key blade
removed).
Deactivating the valet locking functionTurn the key blade 180° counterclockwise in
the glove compartment lock to deactivate valet
locking (the trunk can then be unlocked using
the remote key).
For information on locking/unlocking the glove
compartment normally, see page 132

05 Locks and alarm
Keyless drive*
05
128* Option/accessory, for more information, see Introduction.

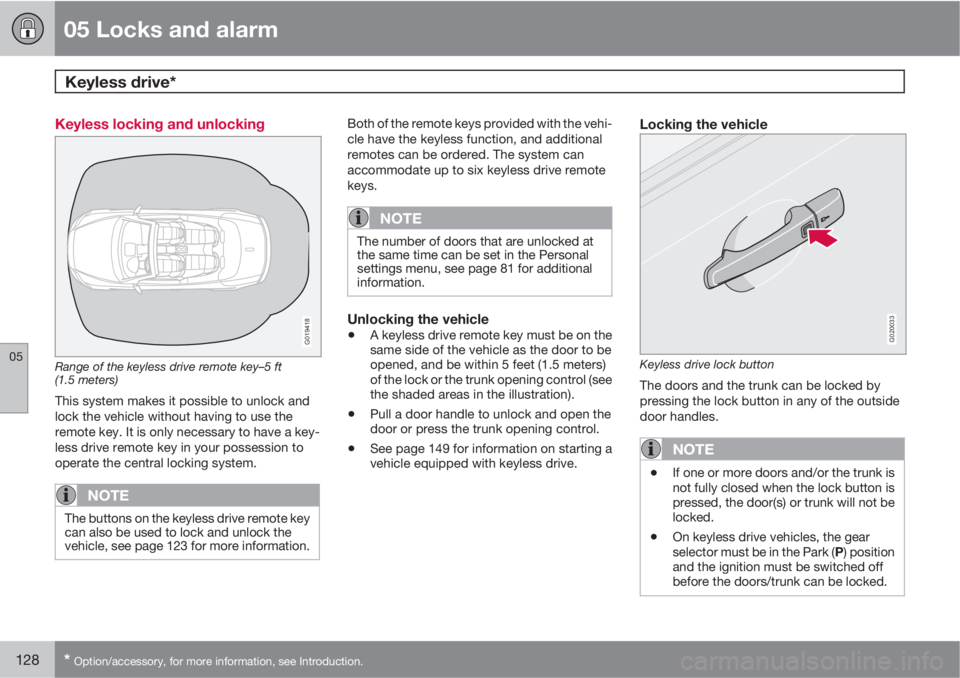

Keyless locking and unlocking
G019418
Range of the keyless drive remote key–5 ft
(1.5 meters)
This system makes it possible to unlock and
lock the vehicle without having to use the
remote key. It is only necessary to have a key-
less drive remote key in your possession to
operate the central locking system.
NOTE
The buttons on the keyless drive remote key
can also be used to lock and unlock the
vehicle, see page 123 for more information.
Both of the remote keys provided with the vehi-
cle have the keyless function, and additional
remotes can be ordered. The system can
accommodate up to six keyless drive remote
keys.
NOTE
The number of doors that are unlocked at
the same time can be set in the Personal
settings menu, see page 81 for additional
information.
Unlocking the vehicle
•A keyless drive remote key must be on the
same side of the vehicle as the door to be
opened, and be within 5 feet (1.5 meters)
of the lock or the trunk opening control (see
the shaded areas in the illustration).
•Pull a door handle to unlock and open the
door or press the trunk opening control.
•See page 149 for information on starting a
vehicle equipped with keyless drive.
Locking the vehicle
G020033
Keyless drive lock button
The doors and the trunk can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
•If one or more doors and/or the trunk is
not fully closed when the lock button is
pressed, the door(s) or trunk will not be
locked.
•On keyless drive vehicles, the gear
selector must be in the Park (P) position
and the ignition must be switched off
before the doors/trunk can be locked.
