turn signal bulb VOLVO C70 CONVERTIBLE 2007 Owner´s Manual

2007 Volvo C70
1. Turn signals, lane change position
2. Turn signals, position for normal turns
3. High beam flash
4. Toggle between high and low beams, Home Safe lighting
Turn signals
When turning
l Move the lever as far up or down as possible (to position 2) to start \
the turn signals.
The turn signals will be cancelled automatically by the movement of the \
steering wheel, or the lever can be returned
to its initial position by hand.
When changing lanes
The driver can automatically flash the turn signals 3 times by:
l Moving the turn signal lever up or down to position 1 and releasing it. \
l Moving the lever up or down to position 2 and immediately back to its or\
iginal position.
NOTE
l This automatic flashing sequence can be interrupted by immediately movin\
g the lever in the opposite
direction.
l If the turn signal indicator flashes faster than normal, check for a bur\
ned-out turn signal bulb.
High/low beam headlights
Continuous high beams
1. Turn the ignition key to position II.
2. With the light switch (1) in position
, (see page 55) pull the turn signal lever toward the steering wheel (position
file:///K|/delme/2007_C70/07c70_02.htm (18 of 43)12/22/2006 9:15:42 PM\

2007 Volvo C70
l Never touch the glass of bulbs with your fingers. Grease and oils from y\
our fingers vaporize in the
heat and will leave a deposit on the reflector, which will damage it.
l The optional Bi-Xenon headlight bulbs contain trace amounts of mercury. \
These bulbs should always
be disposed of by an authorized Volvo retailer.
l Certain bulbs not listed here should only be replaced by an authorized V\
olvo service technician.
l Certain bulbs should only be replaced by a trained and qualified Volvo s\
ervice technician:
- Courtesy (dome) lighting
- Reading lights
- Glove compartment lights
- Turn signals and courtesy lights in the side door mirrors
- High-mounted brake lights
- Bi-Xenon headlights

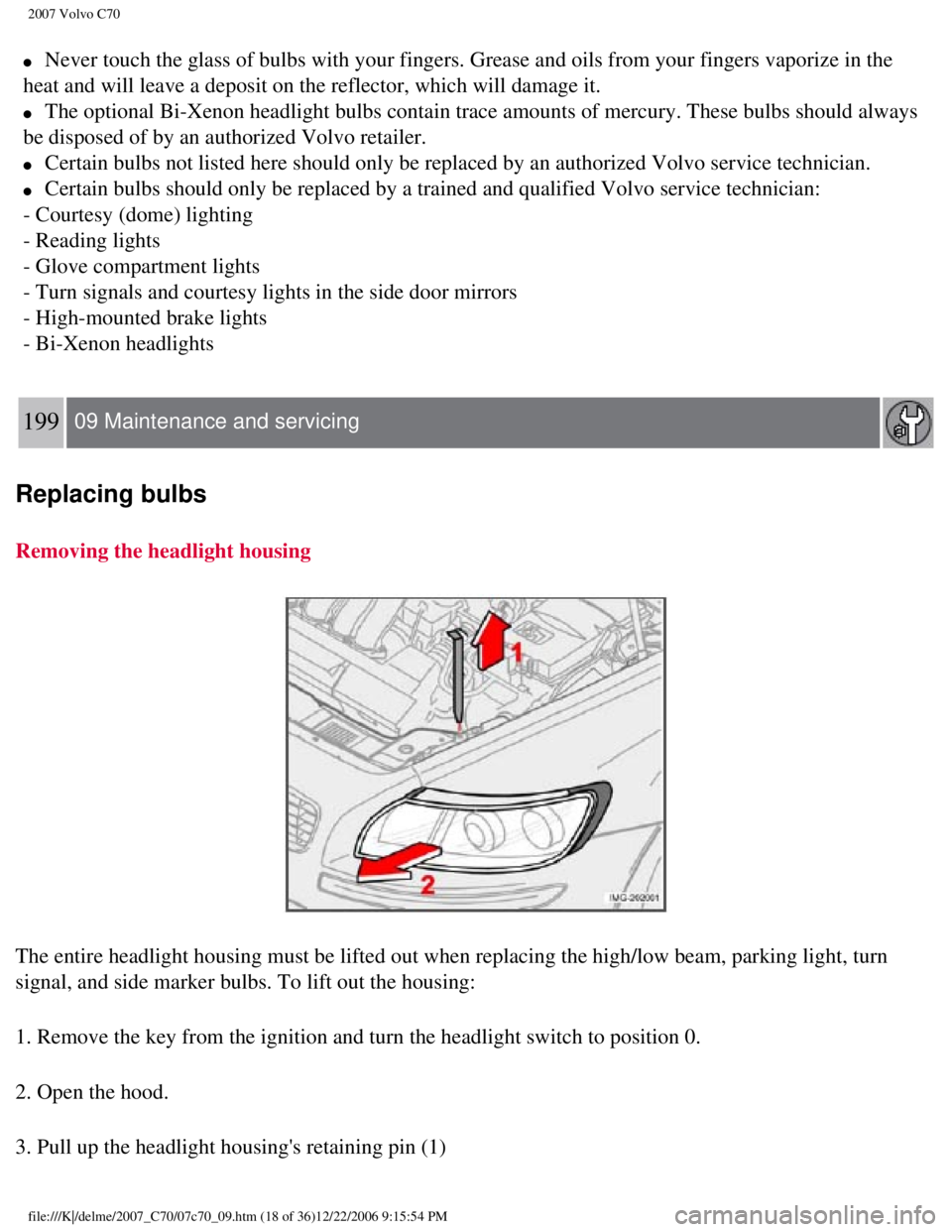

199 09 Maintenance and servicing
Replacing bulbs
Removing the headlight housing
The entire headlight housing must be lifted out when replacing the high/\
low beam, parking light, turn
signal, and side marker bulbs. To lift out the housing:
1. Remove the key from the ignition and turn the headlight switch to pos\
ition 0.
2. Open the hood.
3. Pull up the headlight housing's retaining pin (1)
file:///K|/delme/2007_C70/07c70_09.htm (18 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
3. Press the bulb holder back into place. It can only be installed in on\
e position.

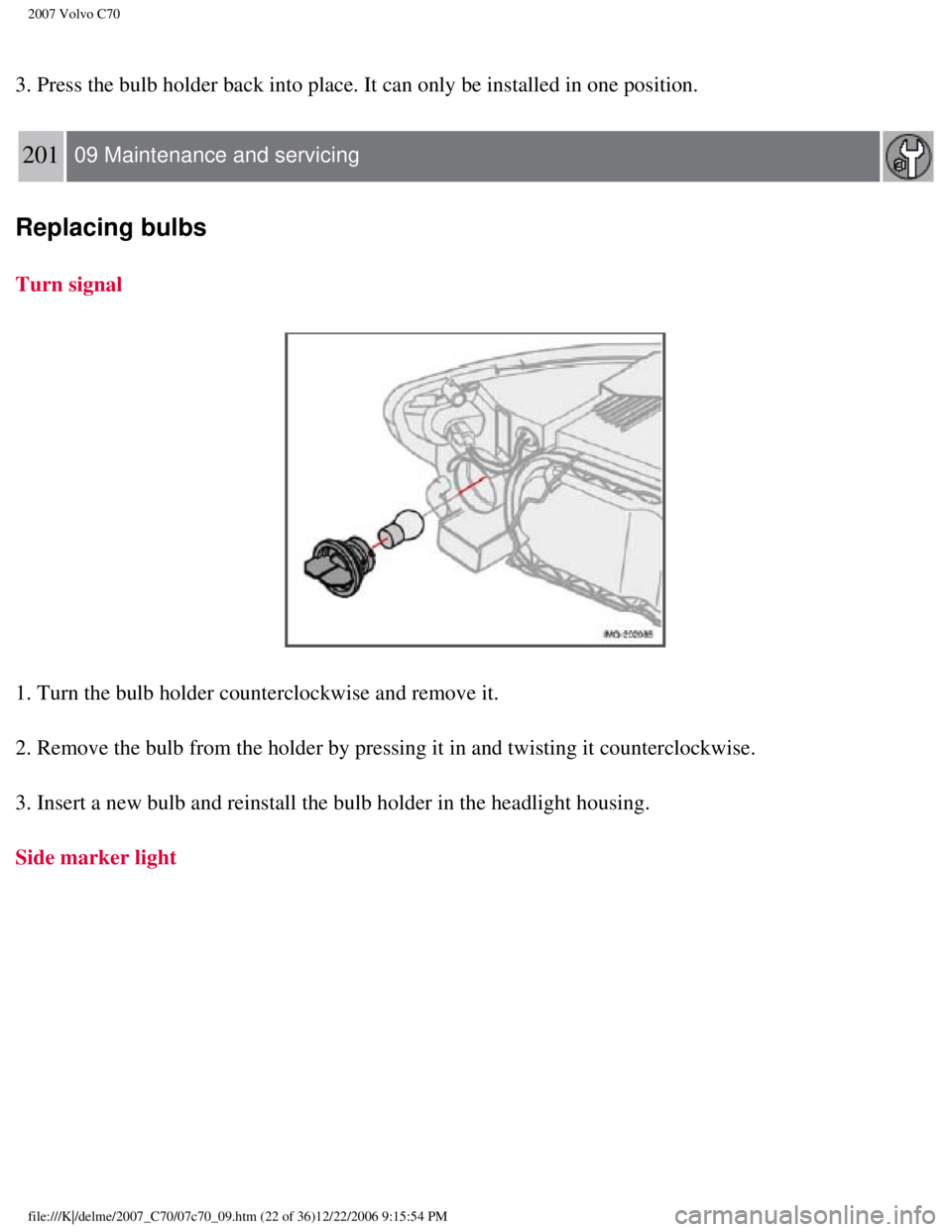

201 09 Maintenance and servicing
Replacing bulbs
Turn signal
1. Turn the bulb holder counterclockwise and remove it.
2. Remove the bulb from the holder by pressing it in and twisting it cou\
nterclockwise.
3. Insert a new bulb and reinstall the bulb holder in the headlight hous\
ing.
Side marker light
file:///K|/delme/2007_C70/07c70_09.htm (22 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
