VOLVO S40 2003 Repair Manual

Engine oilQuality:
Meeting minimum ILSAC specification GF-2, including
ACEA A1, API SJ, SJ/CF and SJ/Energy Conserving. Capacity (incl. filter)
: 5.7
US qts (5.4 liters).
Capacity (excl. filter) : 5.3
US qts (5.0 liters)
Automatic
transmission
fluid Quality:
JWS-3309 P/N 1161540 Capacity:
8 US qts. (7.6
liters)
Power steering
fluid Quality:
ATF oil Capacity:
1.05 US qts. (1
liters)
Brake fluid Quality: DOT 4+ boiling point >536°F (280°C), P/N 9437433 Capacity:
0.42 US qts.
(0.4 liters)
All specifications are subject to change without notice.
pg. 123 Engine
Engine
Liquid-cooled, gasoline, inline, 4-cylinder, turbocharged engine. Aluminum alloy cylinder block with cast-iron
cylinder liners cast directly into the block. Aluminum alloy cylinder head with double overhead camshafts and separate
intake and outlet channels.
Engine lubrication is provided by an eccentric pump driven from the crankshaft. Full-flow type oil filter. Exhaust
emission control is accomplished by multiport fuel injection, a heated oxygen sensor and a three-way catalytic
converter. Designation: Volvo B 4204 T4
Output 170 hp at 5500 rpm (127 kW at 92 rps)
Max torque 177 ft. lbs. at 1800-5000 rpm (240 Nm at 30-75 rps)
Number of cylinders 4
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 1.95 liters (118.9 cu. in.)
Compression ratio 9.0:1
Number of valves 16
Valve clearance mechanical
All specifications are subject to change without notice.
pg. 124 Specifications
Cooling system
Type: Positive pressure, closed system
Thermostat begins to open at 186° F (90° C)
Coolant: Volvo original coolant/antifreeze (50/50 water-antifreeze mix).
Capacity: 6 US qts. (5.7 liters)
ProCarManuals.com

Fuel system
The engine is equipped with a multipoint fuel injection system.
Distributor ignition system
Firing order: 1-3-4-2
Distributor ignition setting: Not adjustable
Spark plugs: Champion RC8PYP or equivalent
Spark plug gap: 0.0315" (0.80 mm)
Tightening torque: 18.4 ft. lbs. (25 Nm)
WARNING!
The distributor ignition system operates at very high voltages. Special safety precautions must be followed to
prevent injury. Always turn the ignition off when:
Replacing distributor ignition components e.g. plugs, coil, etc.
Do not touch any part of the distributor ignition system while the engine is running. This may result in unintended
movements and body injury.
All specifications are subject to change without notice.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Power assisted
rack and pinion steering. Safety type steering column.
The alignment specifications apply to a car at curb weight (without passengers or cargo).
Toe-in measured on the wheel rims: 1.4 mm +/- 0.2 mm
Toe-in measured on tire sides: 2.0 mm +/- 0.4 mm
Rear suspension
Multilink individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
Toe-in measured on the tire sides: 2.6 mm +/- 0.8 mm
pg. 125 Specifications
Power transmission
Automatic transmission: AW 55-50
5-speed automatic electronically controlled gearbox comprising a hydraulic torque converter with a lockup function;
planetary gear, integrated final drive. Operation via a floor mounted gear selector lever. Drive shafts with symmetrical
joint location. Overdrive.
Final drive ratio 2.44:1
Reduction ratios
1st gear 4.77:1
2nd gear 3.00:1
3rd gear 1.96:1
4th gear 1.32:1
5th gear 1.02:1
Reverse 3.23:1
Capacities
ProCarManuals.com

Fuel tank : 16 US gal. (60 liters)
Cooling system : 6 US qts. (5.7 liters)
Engine oil (incl. filter) : 5.7 US qts. (5.4 liters)
Engine oil (excl. filter) : 5.3 US qts. (5.0 liters)
Automatic transmission : 8 US qts (7.6 liters)
Power steering fluid : 1.05 US qts (1 liters)
Washer fluid reservoir : 3.9 US qts. (3.75 liters)
Brake system : 0.42 US qts (0.4 liters)
Vehicle loading
The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire
information label. The label is located on the inside of the fuel filler door. The label also lists vehicle load limits. Do
not load your car beyond the indicated limits.
WARNING!
Improperly inflated tires will reduce tire life, adversely affect vehicle handling and can possibly lead to failure
resulting in loss of vehicle control without prior warning.
All specifications are subject to change without notice.
pg. 126 Specifications
Electrical system
12 Volt, negative ground.
Voltage-controlled generator. Single-wire system with chassis and engine used as conductors.
Battery
Voltage: 12 Volt, capacity: 600 A/100 min
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.
Generator
Rated output: 120 A
Bulbs
Bulb US no.Power Socket No/bulbs
Headlights
High beam H755W - 2
Low beam H755W - 2
Parking lights and Turn signals, front 3457NA26/7W/30/2.2cp W2.5 16q 2
Turn signals, rear 115621W/32cp BA 15 s 2
Side direction indicators -5W W 2.1x9.5 d 2
Tail lights 675W/4cp BA 15 s 4
Brake lights 115621W/32cp BA 15 s 2
Backup lights 115621W/32cp BA 15 s 2
Rear fog light 115621W/32cp BA 15 s 1
Front fog lights H355 W PK22.5 2
ProCarManuals.com

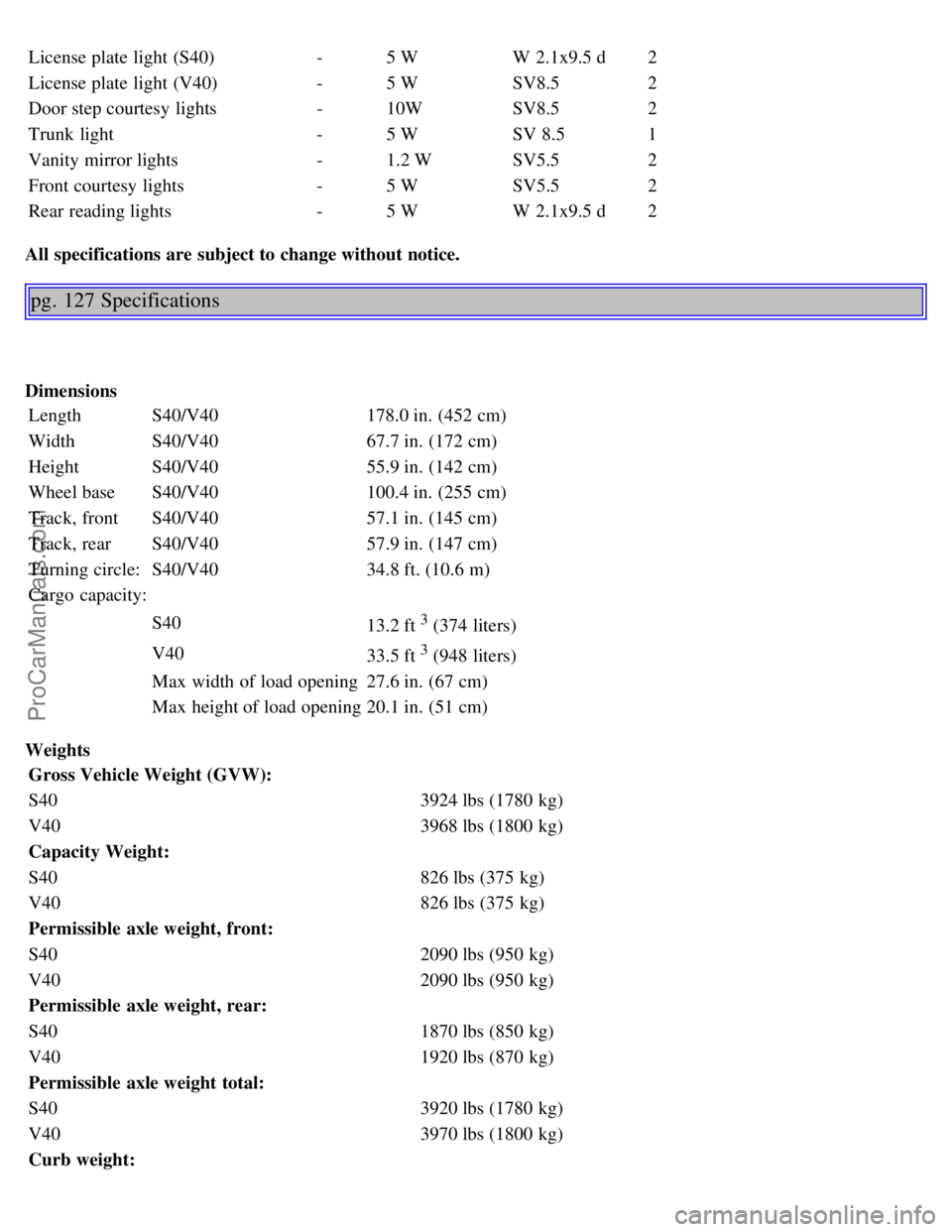

License plate light (S40)-5 W W 2.1x9.5 d 2
License plate light (V40) -5 W SV8.5 2
Door step courtesy lights -10W SV8.5 2
Trunk light -5 W SV 8.5 1
Vanity mirror lights -1.2 W SV5.5 2
Front courtesy lights -5 W SV5.5 2
Rear reading lights -5 W W 2.1x9.5 d 2
All specifications are subject to change without notice.
pg. 127 Specifications
Dimensions Length S40/V40 178.0 in. (452 cm)
Width S40/V40 67.7 in. (172 cm)
Height S40/V40 55.9 in. (142 cm)
Wheel base S40/V40 100.4 in. (255 cm)
Track, front S40/V40 57.1 in. (145 cm)
Track, rear S40/V40 57.9 in. (147 cm)
Turning circle: S40/V40 34.8 ft. (10.6 m)
Cargo capacity:
S40 13.2 ft
3 (374 liters)
V40 33.5 ft
3 (948 liters)
Max width of load opening 27.6 in. (67 cm)
Max height of load opening 20.1 in. (51 cm)
Weights Gross Vehicle Weight (GVW):
S40 3924 lbs (1780 kg)
V40 3968 lbs (1800 kg)
Capacity Weight:
S40 826 lbs (375 kg)
V40 826 lbs (375 kg)
Permissible axle weight, front:
S40 2090 lbs (950 kg)
V40 2090 lbs (950 kg)
Permissible axle weight, rear:
S40 1870 lbs (850 kg)
V40 1920 lbs (870 kg)
Permissible axle weight total:
S40 3920 lbs (1780 kg)
V40 3970 lbs (1800 kg)
Curb weight:
ProCarManuals.com

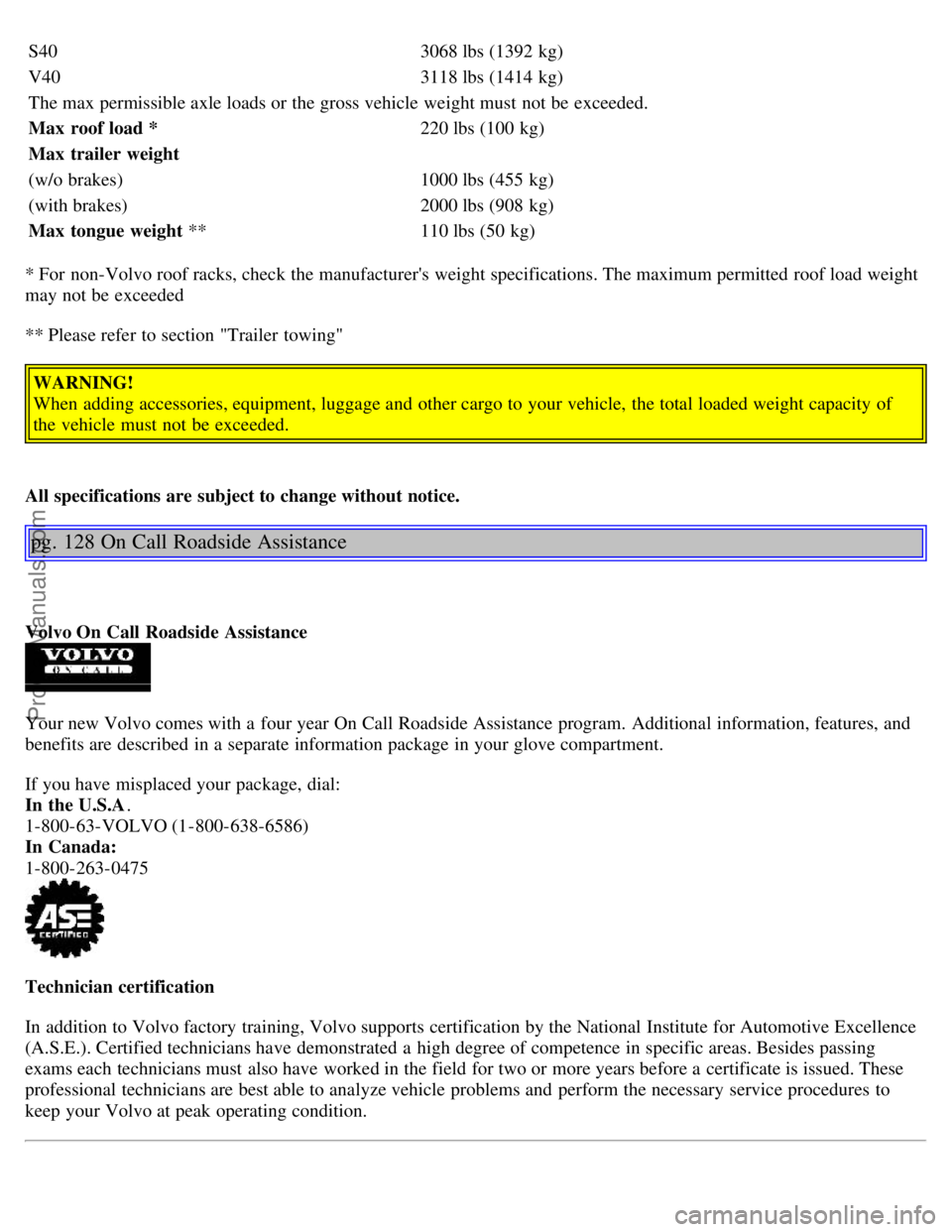

S403068 lbs (1392 kg)
V403118 lbs (1414 kg)
The max permissible axle loads or the gross vehicle weight must not be exceeded.
Max roof load * 220 lbs (100 kg)
Max trailer weight
(w/o brakes) 1000 lbs (455 kg)
(with brakes) 2000 lbs (908 kg)
Max tongue weight ** 110 lbs (50 kg)
* For non-Volvo roof racks, check the manufacturer's weight specifications. The maximum permitted roof load weight
may not be exceeded
** Please refer to section "Trailer towing"
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total loaded weight capacity of
the vehicle must not be exceeded.
All specifications are subject to change without notice.
pg. 128 On Call Roadside Assistance
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year On Call Roadside Assistance program. Additional information, features, and
benefits are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A .
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institute for Automotive Excellence
(A.S.E.). Certified technicians have demonstrated a high degree of competence in specific areas. Besides passing
exams each technicians must also have worked in the field for two or more years before a certificate is issued. These
professional technicians are best able to analyze vehicle problems and perform the necessary service procedures to
keep your Volvo at peak operating condition.
ProCarManuals.com

Contents | Top of Page
ProCarManuals.com

2 0 0 3
VOLVO
S40 & V40
Chapter 10 - Audio systems
pg. 129 Audio systems
Audio systems
This chapter describes the audio system in your car. Anti-theft
130
Audio system HU-415131
Audio system HU-615132
CD player HU-615137
Advanced user mode141
Technical data audio142
pg. 130 Anti -theft code - HU-415 and HU-615
Anti-theft code
The radio features anti-theft circuitry. If the set is removed from the vehicle or if the battery power is disconnected, a
special code must be entered to enable operation of the set.
Your Volvo retailer will supply you with this code.
NOTE: Volvo recommends that you store the radio code in a safe place.
A red LED will flash when the key had been removed from the ignition to confirm that the anti-theft circuitry has
been activated.
To enter the code
After installation or when the set has been disconnected from power, the set displays "input CODE ****" when it is
switched on.
Enter the 4-digit code using the 1-20/DISC knob. Select a number for a digit by rotating the 1-20/DISC knob. And
then push the knob to enter the number. Repeat the procedure for all 4 digits.
If the correct code is entered the set is ready to use.
If you enter an incorrect code you must enter the correct code again from the beginning.
Incorrect code
ProCarManuals.com

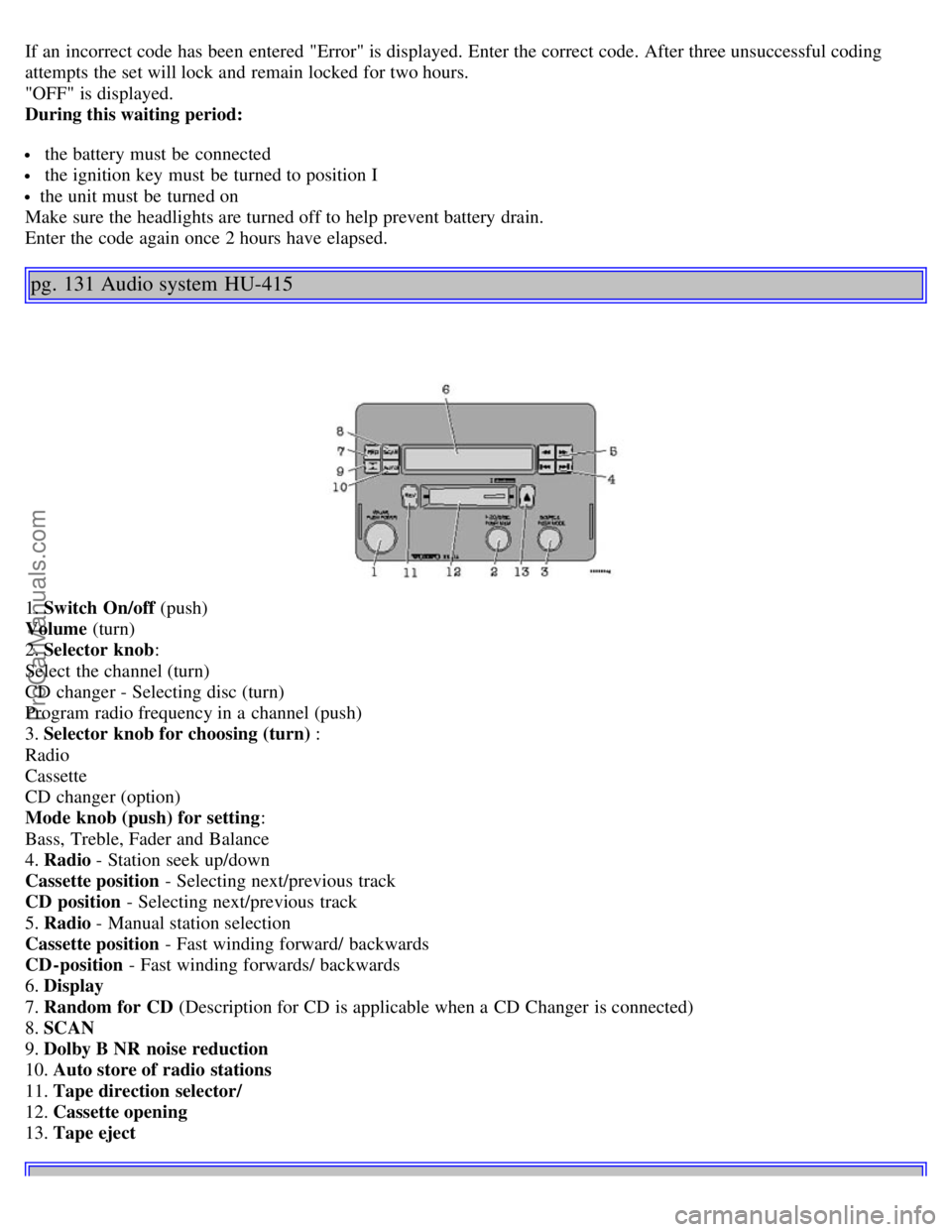

If an incorrect code has been entered "Error" is displayed. Enter the correct code. After three unsuccessful coding
attempts the set will lock and remain locked for two hours.
"OFF" is displayed.
During this waiting period:
the battery must be connected
the ignition key must be turned to position I
the unit must be turned on
Make sure the headlights are turned off to help prevent battery drain.
Enter the code again once 2 hours have elapsed.
pg. 131 Audio system HU-415
1. Switch On/off (push)
Volume (turn)
2. Selector knob :
Select the channel (turn)
CD changer - Selecting disc (turn)
Program radio frequency in a channel (push)
3. Selector knob for choosing (turn) :
Radio
Cassette
CD changer (option)
Mode knob (push) for setting :
Bass, Treble, Fader and Balance
4. Radio - Station seek up/down
Cassette position - Selecting next/previous track
CD position - Selecting next/previous track
5. Radio - Manual station selection
Cassette position - Fast winding forward/ backwards
CD -position - Fast winding forwards/ backwards
6. Display
7. Random for CD (Description for CD is applicable when a CD Changer is connected)
8. SCAN
9. Dolby B NR noise reduction
10. Auto store of radio stations
11. Tape direction selector/
12. Cassette opening
13. Tape eject
ProCarManuals.com

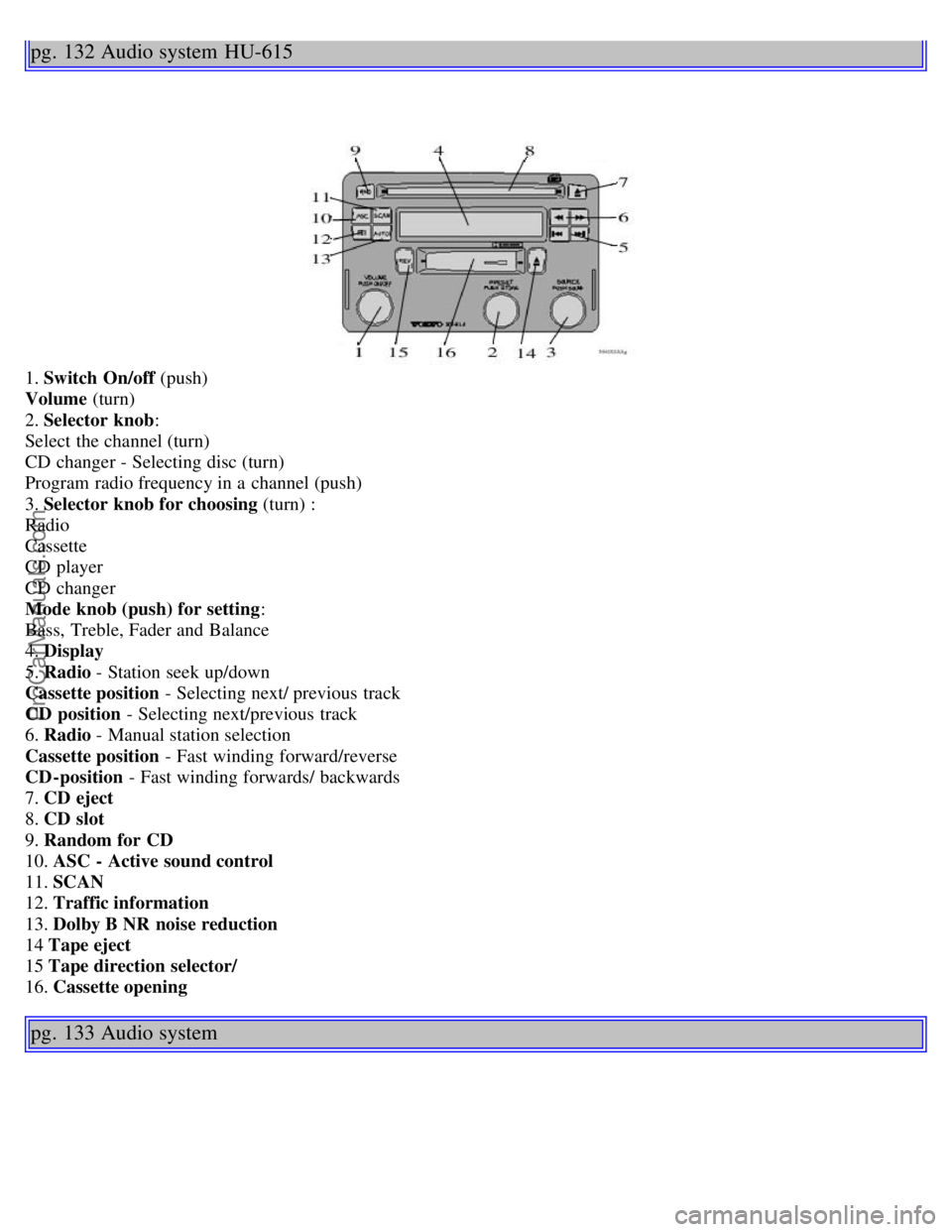

pg. 132 Audio system HU-615
1. Switch On/off (push)
Volume (turn)
2. Selector knob :
Select the channel (turn)
CD changer - Selecting disc (turn)
Program radio frequency in a channel (push)
3. Selector knob for choosing (turn) :
Radio
Cassette
CD player
CD changer
Mode knob (push) for setting :
Bass, Treble, Fader and Balance
4. Display
5. Radio - Station seek up/down
Cassette position - Selecting next/ previous track
CD position - Selecting next/previous track
6. Radio - Manual station selection
Cassette position - Fast winding forward/reverse
CD -position - Fast winding forwards/ backwards
7. CD eject
8. CD slot
9. Random for CD
10. ASC - Active sound control
11. SCAN
12. Traffic information
13. Dolby B NR noise reduction
14 Tape eject
15 Tape direction selector/
16. Cassette opening
pg. 133 Audio system
ProCarManuals.com

Switch on/off
Press button to switch on or turn off the radio.
Volume control
Turn knob clockwise to increase volume. Volume control is electronic and does not have an end stop.
Bass, Treble and Balance left-right, Fade
Press the "SOURCE" button to bring up bass, treble or balance. Adjust by turning the source knob left or right. The
selected function is shown in the display.
Radio Band selector
Turn the "SOURCE" knob to select FM or AM. The station and Band are displayed. You can also select cassette deck,
CD or CD changer, if connected, with this knob.
pg. 134 Audio system
