VOLVO S60 2002 Owners Manual

PROPOSITION 65 WARNING147
R
Radiator172
Radio67
Reading lamps107
Rear fog lights40
Rear seat113
Rear suspension201
Rear window defroster43 , 61
Rearview mirror/ door mirrors49
Recirculation58 , 62
REDUCE SPEED36
Refrigerant (A/ C system)54
Refueling128 , 130
Remote control - central locking system119
Replacing the battery179
Reporting safety defects28
Reverse gear inhibitor135
Roadholding134
Roof racks (load carriers)152
S
Safety9
Safety defects - reporting28
Seat belt10
Seat belt maintenance28
Seat belt reminder49
Seat belts (keeping child seats in place)27
Service168
Service key118
Service reminder34
SERVICE REQUIRED36
SERVICE URGENT36
Shiftlock2 , 131
Side airbags18
Side marker lamp185
SIPS airbags18
Ski hatch114
Snow chains157
Snow tires157
Spare tires158
Spare wheel115
Spark plugs202
Specifications193
Speedometer30
ProCarManuals.com

Spoiler lamps40
Sport shifter135
SRS12
Stability system143
Start inhibitor (immobilizer)118
Starter switch and steering wheel lock132
Starting the car131
STC35, 37, 143
Steering132
Steering wheel adjustment39
Steering wheel lock132
Stone chips166
STOP ENGINE36
STOP SAFELY ASAP36
Storage compartments110
Storage compartments in the passenger compartment109
Studded tires157
Sun roof (electrically operated)50
Sun visor51
Supplemental Restraint System (SRS)12
Supplemental Restraint System (SRS) - warning light33
Suspension201
Switches in the center console37
T
Tachometer30
Temperature (climate control)57
Temperature gauge30
Temporary spare tire158
Text window - messages36
TIME FOR REGULAR SERVICE
Tires156
Tires - tread wear indicators159
Tools115
Towing145
Towing - cars with All Wheel Drive146
Towing a trailer148
Trailer indicator lamp
Trailer towing148
Transmission - automatic136
Transmission - automatic138
Transmission - automatic135
Transmission - automatic135
Trip computer44
Trip odometer30
ProCarManuals.com

Trunk - opening from the inside122
Trunk - unlocking122
Turn signals - normal turns41
Turn signals - lane change position41
Type designations194
U
Uniform Tire Quality Grading162
, 162
Unlocking121
Unlocking the trunk122
Use of Additives129
V
Valet key118
Vanity mirror108
Vehicle Identification Number (VIN)194
Vehicle loading158
VIN (Vehicle Identification Number)194
Volvo and the environment3
Volvo On Call205
W
W - Winter137
, 139
Warning symbol in center of dashboard31
Warranties168
Washer fluid reservoir172 , 175
Washing the car164
Waxing165
Weight distribution133
Weights195
Wheels156
WHIPS22
Windshield washer42
Windshield washer fluid reservoir175
Windshield wipers42
Winter tires156
Winter/ Wet driving mode153
Wiper blades177
Contents | Top of Page
ProCarManuals.com

2 0 0 2
VOLVO S60
Back Cover
Back Cover
Accessory Installation - Important Warning
We strongly recommend that Volvo owners install only genuine, Volvo-approved accessories, and that accessory
installations be performed only by the factory-trained technicians at your authorized Volvo retailer.
Genuine Volvo accessories are tested to ensure compatibility with the performance, safety, and emission systems in
your car. Additionally, your authorized Volvo retailer knows where accessories may and may not be safely installed in
your Volvo. In all cases, please consult your authorized Volvo retailer before installing any accessory in or on your
car.
Accessories that have not been approved by Volvo may or may not be specifically tested for compatibility with your
car. Additionally, an inexperienced installer may not be familiar with some of your car's systems.
Any of your car's performance and safety systems could be adversely affected if you install accessories that Volvo
has not tested, or if you allow accessories to be installed by someone unfamiliar with your car.
Damage caused by unapproved or improperly installed accessories may not be covered by your new car warranty.
See your Warranty and Service Records Information booklet for more warranty information. Volvo assumes no
responsibility for death, injury, or expenses that may result from the installation of non-genuine accessories.
Driver Distraction
Driver distraction results from driver activities that are not directly related to controlling the car in the driving
environment. Your new Volvo is, or can be, equipped with many feature-rich entertainment and communication
systems. These include hands-free cellular telephones, navigation systems, and multipurpose audio systems. You may
also own other portable electronic devices for your own convenience. When used properly and safely, they enrich the
driving experience. Improperly used, any of these could cause a distraction.
For all of these systems, we want to provide the following warning that reflects the strong Volvo concern for your
safety:
Never use these devices or any feature of your vehicle in a way that distracts you from the task of driving safely.
Distraction can lead to a serious accident.
In addition to this general warning, we offer the following guidance regarding specific newer features that may be
found in your vehicles:
Never use a hand -held cellular telephone while driving. Some jurisdictions prohibit cellular telephone use by a
driver while the vehicle is moving.
If your car is equipped with a navigation system, set and make changes to your travel itinerary only with the vehicle
parked.
Never program your audio system while the vehicle is moving. Program radio presets with the vehicle parked, and
use your programmed presets to make radio use quicker and simpler.
Never use portable computers or personal digital assistants while the vehicle is moving.
A driver has a responsibility to do everything possible to ensure his or her own safety and the safety of passengers in
ProCarManuals.com

the vehicle and others sharing the roadway. Avoiding distractions is part of that responsibility.
The following should be checked regularly: *
1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze). See page
175.
2 Power steering- When cold, the level must not be above the COLD mark and when hot it must not be above the
HOT mark. Top up if the level drops to the ADD mark with ATF fluid. See page 176.
3 Coolant level should be between the expansion tank marks. Mixture: 50% anti-freeze and 50% water. See page 171.
4 Engine oil level should be between the dipstick marks. The distance between the marks represents approx.
1.6 US qts (1.5 liters). See page 174.
5 Brake fluid - check, without removing the cap, that the level is above the MIN mark. Use brake fluid DOT 4+. See
page 176.
Fuel octane rating, see page 128.
Tire pressure, see label located on the inside of the fuel tank cover.
* Engine oil should be check each time the car is refueled.

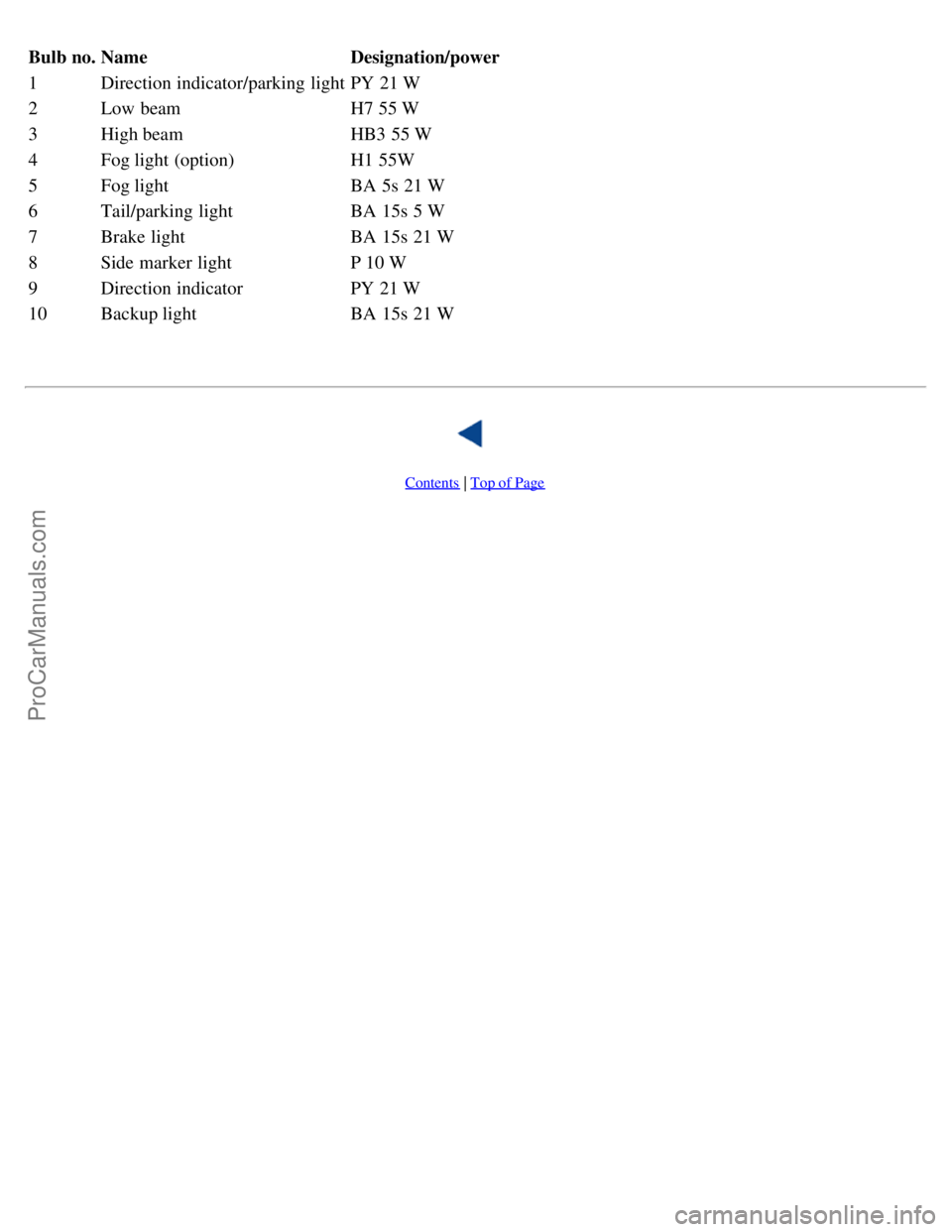

BulbsPower Socket US no.
ProCarManuals.com

Bulb no.Name Designation/power
1 Direction indicator/parking light PY 21 W
2 Low beam H7 55 W
3 High beam HB3 55 W
4 Fog light (option) H1 55W
5 Fog light BA 5s 21 W
6 Tail/parking light BA 15s 5 W
7 Brake light BA 15s 21 W
8 Side marker light P 10 W
9 Direction indicator PY 21 W
10 Backup light BA 15s 21 W
