check engine VOLVO S60 2003 Owner's Manual

During cold weather, the reservoir should be filled with windshield washer solvent containing antifreeze.
Coolant reservoir
Changing coolant
Normally, the coolant does not need to be changed. If the system must be drained, consult your Volvo retailer.
NOTE: Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has
a lower boiling point. It can also cause damage to the cooling system if it should freeze. Top off with Volvo Genuine
Coolant/Antifreeze only (a 50/50 mix of water and antifreeze).
CAUTION:
The cooling system must always be kept filled to the correct level. If it is not kept filled, there can be high local
temperatures in the engine which could result in damage. Different types of antifreeze/coolant may not be mixed.
Check coolant regularly!
WARNING!
Never remove the radiator cap while the engine is warm. Wait until the car cools.
If it is necessary to top up the coolant when the engine is warm, unscrew the expansion tank cap slowly so that the
overpressure dissipates.
pg. 126 Maintenance and service
Oils and fluids (Contd)
Clutch and brake fluid reservoir
ProCarManuals.com

B
Back up light135
Backrest63
Bass160
Battery120 , 128 , 152
Battery - replacing129
Belt check121
Blower (fan)47, 51
Booster cushion16
Brake circuit91
Brake fluid126
Brake light135
Brake system23 , 91
Bulbs131 , 150
C
Capacities147
Carbon Monoxide - Important Warning79
Cargo compartment63
Cassette player167
Catalytic converter149
CD player169 , 171
Ceiling lighting137
Center console - storage compartments61
Central locking system - remote control69
Changing121
Changing coolant121
Changing oil and oil filter123
Changing wheels110
Check Engine warning light25
Child restraint anchorages18
Child safety16
Child safety locks74
Child seat (Isofix fasteners)17
Cigarette lighter37
Climate control systems -general information44
Clock22
Coat hanger62
Coin compartment61
Cold weather precautions103
Coolant125
Coolant - changing121, 125
Coolant - checking level of121
Cooling system148
Courtesy light58
ProCarManuals.com

Cruise control36
Cup holder61
Cup holder in rear seat61
Current fuel consumption35
D
Defroster47
Dimension designation (tires)106
Direction indicator135
Direction indicators32
Dolby Surround Pro Logic172
Door mirror defroster34
Door mirrors27
Driving economically83
DSTC28
Dual - threshold airbags5
E
ECC46
Economical driving83
Electric socket28 , 37
Electrical system152
Electrically operated windows38
Engine - starting81
Engine compartment122
Engine oil123
Engine oil - checking124
Engine oil, capacity147
Engine specifications153
Environmentiii
F
Federal Clean Air Act118
FIX NEXT SERVICE26
Floor mats59
Fog lamp25 , 135
Front seat - backrest55
Front seats54
Front seats - heated34
Front seats - manual adjustment54
Front seats - power56
Front suspension151
Fuelii , 78
Fuel filler capii , 80
Fuel filler doorii , 80
Fuel filler door - unlocking30
Fuel Formulations79
ProCarManuals.com

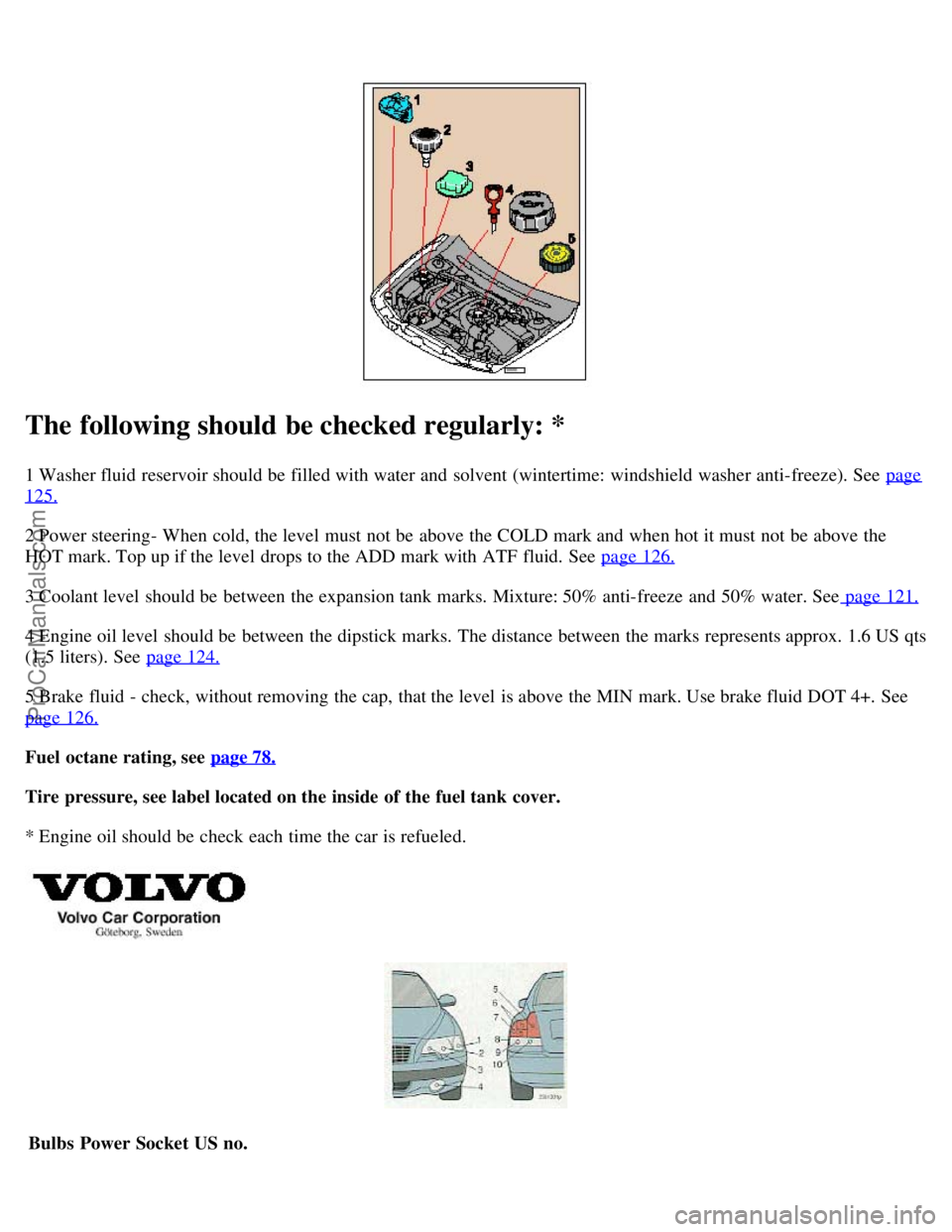

The following should be checked regularly: *
1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze). See page
125.
2 Power steering- When cold, the level must not be above the COLD mark and when hot it must not be above the
HOT mark. Top up if the level drops to the ADD mark with ATF fluid. See page 126.
3 Coolant level should be between the expansion tank marks. Mixture: 50% anti-freeze and 50% water. See page 121.
4 Engine oil level should be between the dipstick marks. The distance between the marks represents approx. 1.6 US qts
(1.5 liters). See page 124.
5 Brake fluid - check, without removing the cap, that the level is above the MIN mark. Use brake fluid DOT 4+. See
page 126.
Fuel octane rating, see page 78.
Tire pressure, see label located on the inside of the fuel tank cover.
* Engine oil should be check each time the car is refueled.
BulbsPower Socket US no.
