04 Interior
Storage compartments
04

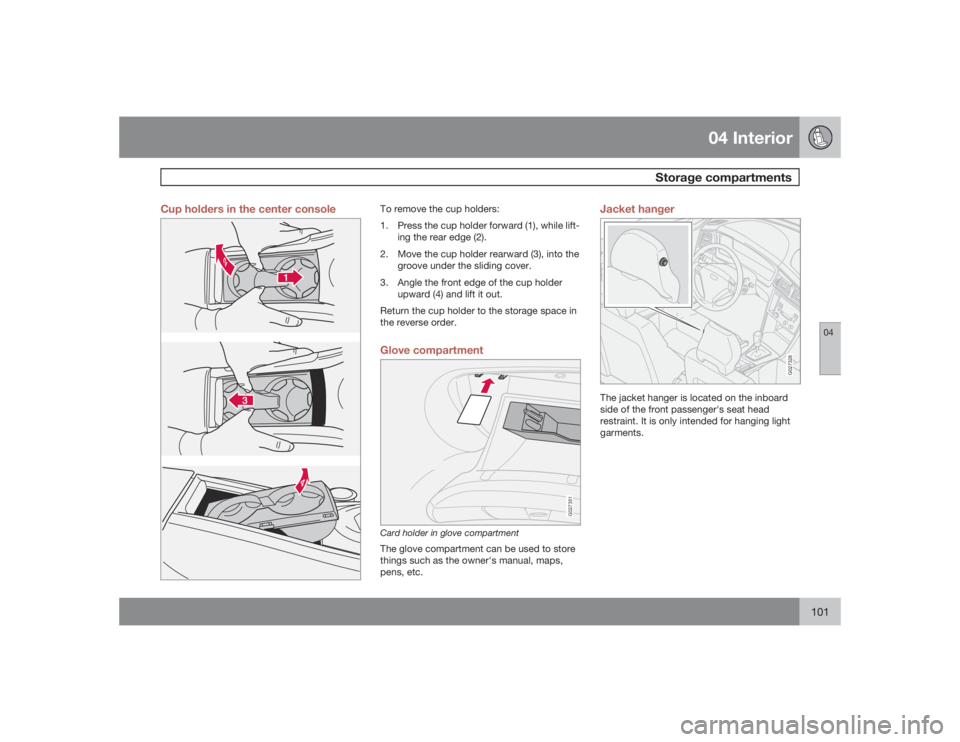

101 Cup holders in the center console
To remove the cup holders:
1. Press the cup holder forward (1), while lift-
ing the rear edge (2).
2. Move the cup holder rearward (3), into the
groove under the sliding cover.
3. Angle the front edge of the cup holder
upward (4) and lift it out.
Return the cup holder to the storage space in
the reverse order.Glove compartment
G027351
Card holder in glove compartmentThe glove compartment can be used to store
things such as the owner's manual, maps,
pens, etc.
Jacket hanger
G027328
The jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.

04 InteriorRear seat and trunk
04102
Folding the rear seat backrest
8503282m
G027327
Backrest release handles in trunkBoth rear seat backrests can be folded down,
together or individually to enable you to trans-
port long objects.
Fold the rear seat backrests as follows:
1. Check first that the head restraint is folded
down.
2. Pull the handle in the cargo compartment
as shown in the illustration.
3. Fold the backrest down.
G028003
WARNING
Keep vehicle doors and the luggage com-
partment locked and keep keys out of a
child's reach. Unsupervised children could
lock themselves in an open trunk and risk
injury. Children should be taught not to play
in vehicles.
On hot days, the temperature in the trunk or
vehicle interior can rise very quickly. Expo-
sure of people to these high temperatures
for even a short period of time can cause
heat-related injury or death. Small children
are particularly at risk.
WARNING
•
When the backrest is returned to the
upright position, check that it is properly
locked in place. Return the head
restraints to the upright position.
•
Long loads should always be securely
anchored to help avoid injury in the
event of a sudden stop.
•
Always turn the engine off and apply the
parking brake when loading/unloading
the vehicle.
•
Place the transmission in the P position
(automatic transmission) to help pre-
vent inadvertent movement of the gear
selector.
•
The vehicle features a 60/40 split fold-
down rear seat. This function is per-
formed by handles inside the trunk, and
also provides a means for children and
adults to enter the passenger compart-
ment in the event they become locked
inside the trunk.
•
Adults are advised to familiarize them-
selves with the operation and location
of the release handles.
•
To fold down the rear seats from inside
the trunk, pull the release control han-
dles located on either side of the trunk.

04 Interior
Rear seat and trunk

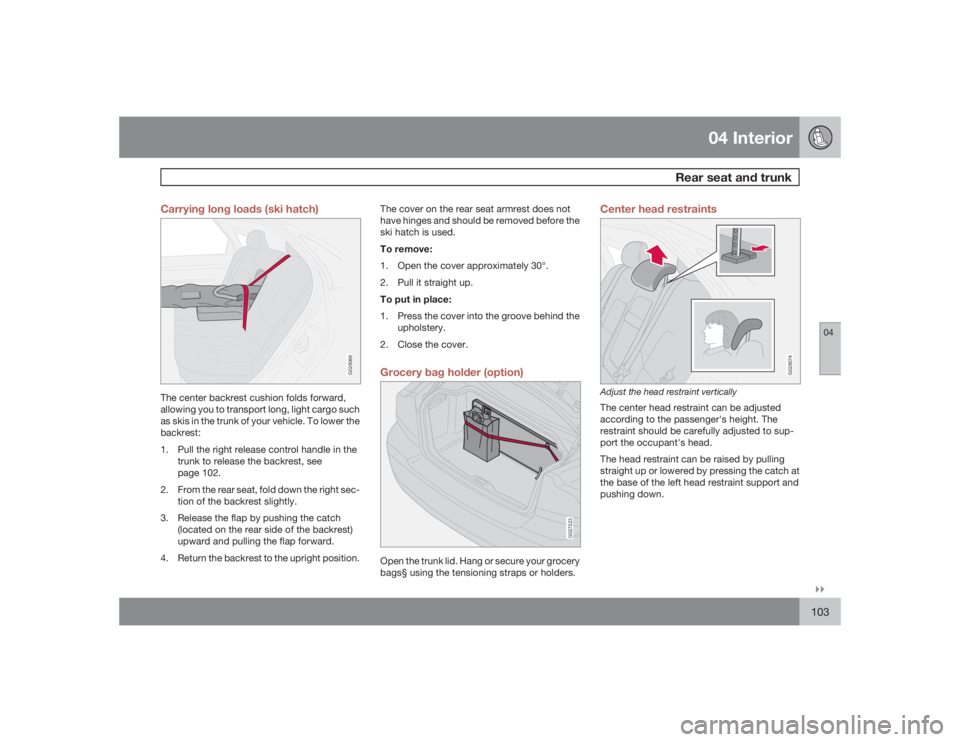

04``103 Carrying long loads (ski hatch)
G028068
The center backrest cushion folds forward,
allowing you to transport long, light cargo such
as skis in the trunk of your vehicle. To lower the
backrest:
1. Pull the right release control handle in the
trunk to release the backrest, see
page 102.
2. From the rear seat, fold down the right sec-
tion of the backrest slightly.
3. Release the flap by pushing the catch
(located on the rear side of the backrest)
upward and pulling the flap forward.
4. Return the backrest to the upright position.The cover on the rear seat armrest does not
have hinges and should be removed before the
ski hatch is used.
To remove:
1. Open the cover approximately 30°.
2. Pull it straight up.
To put in place:
1. Press the cover into the groove behind the
upholstery.
2. Close the cover.
Grocery bag holder (option)
G027223
Open the trunk lid. Hang or secure your grocery
bags§ using the tensioning straps or holders.
Center head restraints
G028074
Adjust the head restraint verticallyThe center head restraint can be adjusted
according to the passenger's height. The
restraint should be carefully adjusted to sup-
port the occupant's head.
The head restraint can be raised by pulling
straight up or lowered by pressing the catch at
the base of the left head restraint support and
pushing down.

04 InteriorRear seat and trunk
04104
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height.

04 Interior
Spare wheel, tools and jack
04
*Option/accessory, for more information, see Introduction.
105
G027201

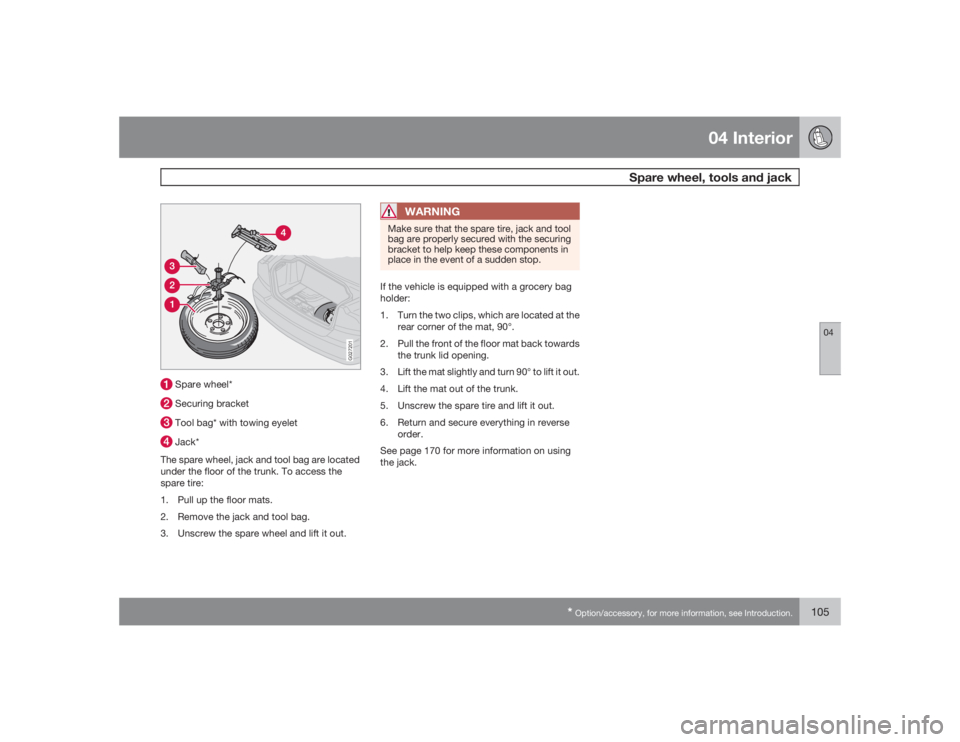

Spare wheel* Securing bracket Tool bag* with towing eyelet Jack*
The spare wheel, jack and tool bag are located
under the floor of the trunk. To access the
spare tire:
1. Pull up the floor mats.
2. Remove the jack and tool bag.
3. Unscrew the spare wheel and lift it out.
WARNING
Make sure that the spare tire, jack and tool
bag are properly secured with the securing
bracket to help keep these components in
place in the event of a sudden stop.If the vehicle is equipped with a grocery bag
holder:
1. Turn the two clips, which are located at the
rear corner of the mat, 90°.
2. Pull the front of the floor mat back towards
the trunk lid opening.
3. Lift the mat slightly and turn 90° to lift it out.
4. Lift the mat out of the trunk.
5. Unscrew the spare tire and lift it out.
6. Return and secure everything in reverse
order.
See page 170 for more information on using
the jack.

106

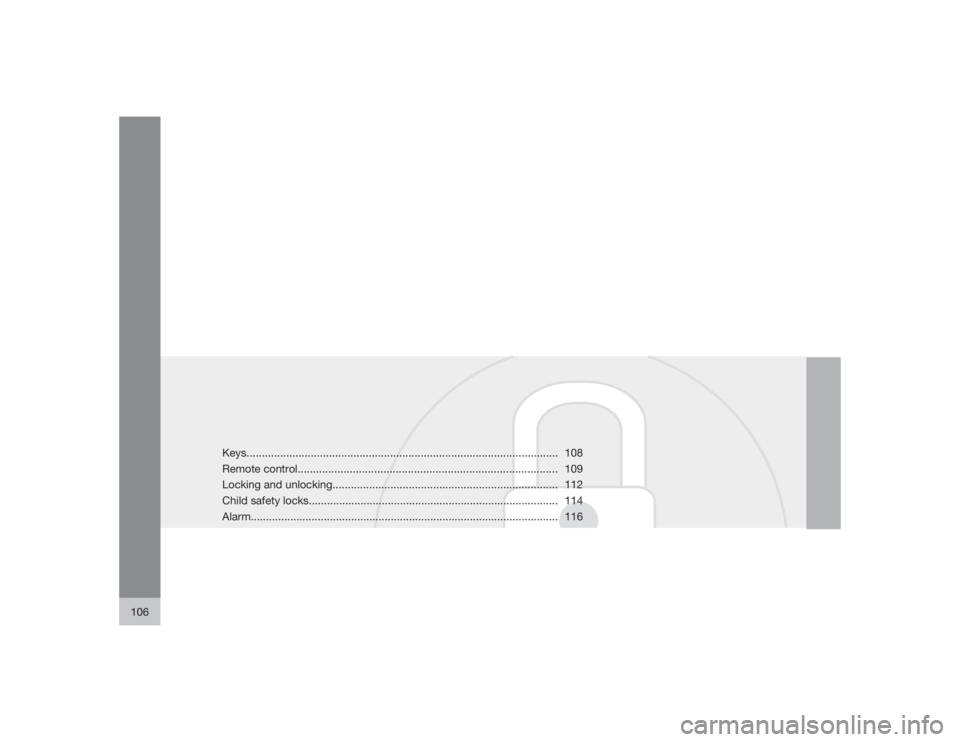

Keys...................................................................................................... 108
Remote control..................................................................................... 109
Locking and unlocking.......................................................................... 112
Child safety locks.................................................................................. 114
Alarm..................................................................................................... 116

05
LOCKS AND ALARM

05 Locks and alarmKeys
05108
G030179
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition key blades called Key Integrated
Remote (KIR)
1.
To unlock/lock the vehicle using the key blade:
•
Insert the key blade in the driver's door lock
and turn it once to unlock the driver's door
only.
•
Turn the key blade again (within 10 sec-
onds) to unlock all doors and the trunk.
•
Turn the key blade once in the opposite
direction to lock all doors and the trunk.
WARNING
If the doors are locked while driving, this
may hinder rapid access to the occupants
of the vehicle in the event of an accident.
(Also see the information about "Child
safety locks" on page 114.
NOTE
To help prevent accidentally locking the
keys in the vehicle, the central locking sys-
tem is designed to unlock the doors imme-
diately if the key is left in the ignition switch,
the vehicle is locked using the lock button
on the door and the door is then closed. A
sound from the lock will be audible at this
time.
Please note that this function will not unlock
the doors if the engine is running.Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The vehicle will
start only with a properly coded key.
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A maxi-mum of six remote controls/keys can be pro-
grammed and used for one vehicle.
If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
NOTE
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
1A service key (without a remote control) may be provided with certain models. This key can be used to unlock the driver’s door and start the engine. It will not lock or unlock the glove compartment.

05 Locks and alarm
Remote control
05``109
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition keys called Key Integrated Remote
(KIR).
The remote control transmitters will also acti-
vate or allow "keyless" entry into the passenger
compartment or the trunk. These transmitters
use a radio frequency that will enable you to
lock/unlock all doors and the trunk from a dis-
tance of 10 – 15 feet (3 – 5 meters). They will
also activate or deactivate your vehicle's alarm
system(s). The vehicle can also be locked/
unlocked with the key.
If one of the transmitters is misplaced, a
replacement can be purchased from your near-
est authorized Volvo retailer.
Using the remote control
G027013
UnlockOpen trunk"Panic" functionApproach lightingLockFold key blade in/out Unlock
Press this button once to unlock the driver's
door only. Wait for at least 1 second and press
the button again (within 10 seconds) to unlock
all doors, and the trunk.
Open trunk
Press this button twice within 3 seconds to pop
open the trunk (without unlocking the other
doors)
This function is not intended to open the trunk
completely. Panic function
For more information on this function, see
page 116. Approach lighting
Press this button when approaching the vehi-
cle at night to light up the interior courtesy light,
parking lights, and license plate lights. Lock
Press once to lock all doors, and the trunk. Fold key blade in/out
Press to extend the key blade. This button
must also be pressed when the key blade is
folded back into the slot in the side of the
remote control unit.

05 Locks and alarmRemote control
05110
•
FCC ID:LQNP2T-APU This device
complies with part 15 of the FCC rules.
Operation is subject to the following
conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that
may cause undesired operation.
•
Canadian 2306104388 Model 504 2927
by Donnelly Operation is subject to the
following conditions: (1) this device may
not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
•
Canadian 2306104388A Model 509
977 by Connaught Electronics Opera-
tion is subject to the following condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including inter-
ference that may cause undesired oper-
ation of the device.
NOTE
•
If an airbag deploys, your vehicle's SRS
control module will attempt to automat-
ically unlock all doors.
•
The keys may also be used to lock and
unlock the doors, and to activate and
deactivate the alarm system.
•
To avoid leaving your keys in the vehi-
cle, make a habit of always locking the
vehicle with the remote control.
•
If the key blade section of the remote is
not fully folded out when starting the
vehicle, the immobilizer function may
make it impossible to start the engine.
•
The vehicle can be locked even if a door
is open. When the door(s) are closed,
they will be locked. Please be aware
that the keys could be locked in the car
when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the trunk
has been opened. This helps prevent the car
from inadvertently being left unlocked.
WARNING
Never use the transmitter to lock the doors
from inside the vehicle.
Doing so would ACTIVATE:•
the break-in alarm, which would sound
if one of the doors were opened
•
the optional interior motion and inclina-
tion alarm sensors.
Doing so would DEACTIVATE:
•
the moonroof and interior courtesy light
controls.
•
the central locking buttons on the front
door armrests, although the interior
door handles would still function to
allow occupants to leave the vehicle.
Disabled features would remain disabled
until the remote is used again to unlock the
vehicle.
In addition, locking an occupied vehicle
would hinder rapid access to the occupants
in an accident or emergency.
