03 Climate
Electronic climate control, ECC
0391
•
Timer mode activation: (vehicles with the
Interior Air Quality system have no timer
mode) Press and hold the recirculation but-
ton for at least 3 seconds to activate a
recirculation timer mode. The amber LED
in the recirculation button will flash 5 times
to show that the timer mode is being acti-
vated. In timer mode, each time the recir-
culation button is pressed, the climate
control system will recirculate the air in the
passenger compartment for 5-12 minutes,
depending on the outside air temperature,
and then revert back to fresh air.
•
Timer mode deactivation: Press and hold
the recirculation button for 3 seconds. The
amber LED in the recirculation button will
illuminate steadily for 5 seconds to show a
return to "normal" mode.
•
In normal mode, when the recirculation
button is pressed, the climate control sys-
tem will recirculate the air in the passenger
compartment until the recirculation button
is pressed again.
•
Timer mode memory: If the vehicle is
turned off while timer mode is active, timer
mode will still be active when the vehicle is
restarted.
Interior air quality sensor (option)
Some vehicles are equipped
with a multifilter and air quality
sensor. The filter separates
gases and particles, thereby
reducing the amounts of odors
and contaminants entering the
vehicle. The air quality sensor detects
increased levels of contaminants in the outside
air. When the air quality sensor detects conta-
minated outside air, the air intake closes and
the air inside the passenger compartment is
recirculated, i.e. no outside air enters the vehi-
cle. The filter also cleans recirculated passen-
ger compartment air.
MANAUTWhen the ECC system is in the AUTO mode,
the green LED in the button will be on.Operation±
PressAUTO to operate the air quality sen-
sor (normal setting).
or
±
Select one of the following three functions
by pressing the recirculation button 1, 2 or
3 times.
1.
The AUT LED lights. The air quality sensor
is now activated.2. No LED lights. Recirculation is not acti-
vated unless needed to cool the passenger
compartment in a warm climate.
3.
TheMAN LED lights. Recirculation is now
activated.
Keep in mind the following•
Make it a rule to have the air quality sensor
activated at all times.
•
Recirculation is limited in cold climates to
avoid fogging.
•
If window fogging occurs, you should
deactivate the air quality sensor.
•
If fogging occurs, use the defroster func-
tions for the windshield, side windows and
rear window, see page 66.
The filter should be changed at the intervals
recommended in the service schedule. How-
ever, if the vehicle is used in a severely conta-
minated environment, it may be necessary to
change the filter more frequently.

G020908
92

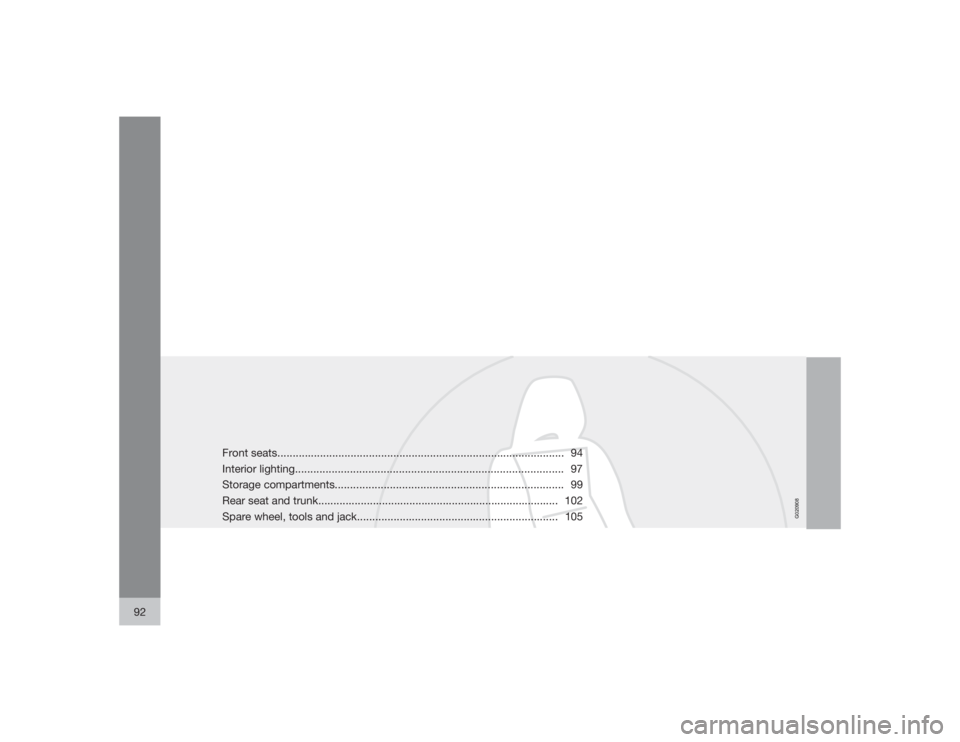

Front seats.............................................................................................. 94
Interior lighting........................................................................................ 97
Storage compartments........................................................................... 99
Rear seat and trunk............................................................................... 102
Spare wheel, tools and jack.................................................................. 105

04
INTERIOR

04 InteriorFront seats
0494
Manually adjusted front seats
G027214
1. Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.
2. Raise/lower the front edge of the seat
cushion (option): use the control to pump
the front edge of the cushion up or down.
3. Raise/lower seat height: pump the seat up
or down.
4. Lumbar support: turn the control for firmer
or softer lumbar support.
5. Backrest tilt: turn the control to adjust the
angle of the backrest.6. Control panel for optional power seat (see
page 94 for more information).
WARNING
Do not adjust the seat while driving. The
seat should be adjusted so that the brake
pedal can be depressed fully. In addition,
position the seat as far rearward as comfort
and control allow.
Check that the seat is securely locked into
position after adjusting.Folding the backrests in the front seat
G014805
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:•
Move the seat as far back as possible.
•
Adjust the backrest to the upright position.
•
Lift the catches on the rear of the backrest.
•
Without releasing the catches, push the
backrest forward.
•
Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.WARNING
Cover sharp edges on the load to help pre-
vent injury to occupants. Secure the load to
help prevent shifting during sudden stops.Power seat - (option on certain models)OperationDriver's seat: The seat can be adjusted if the
ignition key is in position I, II or if the engine is
running. It can also be adjusted as follows with
the ignition off:

04 Interior
Front seats
04``95
•
Within several minutes after the driver's
door has been unlocked from the outside,
has been opened, and remains open.
•
Within a short period if the driver's door has
just been closed.
•
Within a short period if the driver's door has
not been opened after the ignition has
been switched off.
Passenger seat: The seat can only be
adjusted if the ignition key is in position I, II or
if the engine is running.
G027036
Power seat control panel
Front edge of seat (raise/lower)Front - rear
Rear edge of seat (raise/lower)Backrest tilt
Seat adjustmentIf your Volvo is equipped with power seats, the
following may be adjusted with the two
switches at the side of the seat:
NOTE
The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0) and wait for a short period
before operating the seat again.Emergency stopIf the seat accidentally begins to move, press
any of the buttons to stop the seat.
Remote keyless entry system and the driv-
er's seat
The remote control transmitter also controls
the position of the electrically operated driver's
seat in the following way:
1. Adjust the seat to your preferences.
2. When you leave your vehicle, lock it using
the remote control.
The position of the seat is now stored in the
remote control.
Automatic seat adjustmentTo move the seat to the position in which you
left it:
1. Unlock the driver's door with the same
remote control (the one used to lock the
doors)
2. Open the driver's door within 2 minutes.
The driver's seat will automatically move to the
position in which you left it.
NOTE
•
The seat will move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote control.
•
This feature will work in the same way
with all of the remote control transmit-
ters (up to 3) that you use with your
vehicle.
•
This feature will not function if you lock
your vehicle with the key.

04 InteriorFront seats
0496
WARNING
•
Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.
•
Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•
Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•
The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
Programming the memory (option)
G027037
Three different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button 1
can be programmed. Buttons 2 and 3 can be
programmed in the same way.
To program (store) a seat position in button 1:
1. Move the seat to the desired position using
the seat adjustment controls (see
page 95).
2.
Press and hold down the MEM (memory)
button.3.
With the MEM button depressed, press
button 1 briefly to store the seat's current
position.
To move the seat to the position that it was in
when button 1 was programmed:
Press and hold down button 1 until the seat
stops moving.
As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.

04 InteriorInterior lighting
04``97 Reading lights and courtesy lights
G026960
Driver's side front reading lightCourtesy lightsFront passenger's side reading light
The reading lights can be switched on or off by
pressing buttons (1) or (3).
The courtesy lighting (including footwell light-
ing) can be turned on or off by pressing button
(2). This also activates the automatic function.
Rear seat reading lights
G027153
Rear reading lights
Left rear reading lightRight rear reading light
The rear reading lights can be switched on and
off by pressing buttons (4) or (5).
Automatic functionThe reading lights and courtesy lights will
switch off automatically approximately
10 minutes after the engine has been turned
off. The lights can be turned off sooner by
pressing the respective buttons.The courtesy lights come on automatically
1
and remain on for approximately 30 seconds
when:•
The vehicle has been unlocked from the
outside with the remote control or key
•
If the engine has been switched off and the
ignition key has been turned to position 0
The courtesy lights will come on and remain on
for approximately 10 minutes when:
•
One of the doors is opened (assuming the
courtesy lighting has not previously been
switched off)
The courtesy lighting will go off when:
•
The engine is started
•
The vehicle is locked from the outside with
the remote control or key
The automatic function can be disconnected
by pressing button 2 for more than 3 seconds.
Briefly pressing the button again automatically
reconnects the function.
The courtesy light timer periods can be
changed. Contact a trained and qualified Volvo
service technician.
1This function is light dependent and is only activated in dark conditions.

04 InteriorInterior lighting
0498
Vanity mirror
G020210
The light comes on when you open the cover.Glove compartment lightingThe lighting in the glove compartment switches
on or off when its door is opened or closed.

04 Interior
Storage compartments
04``99
G027362

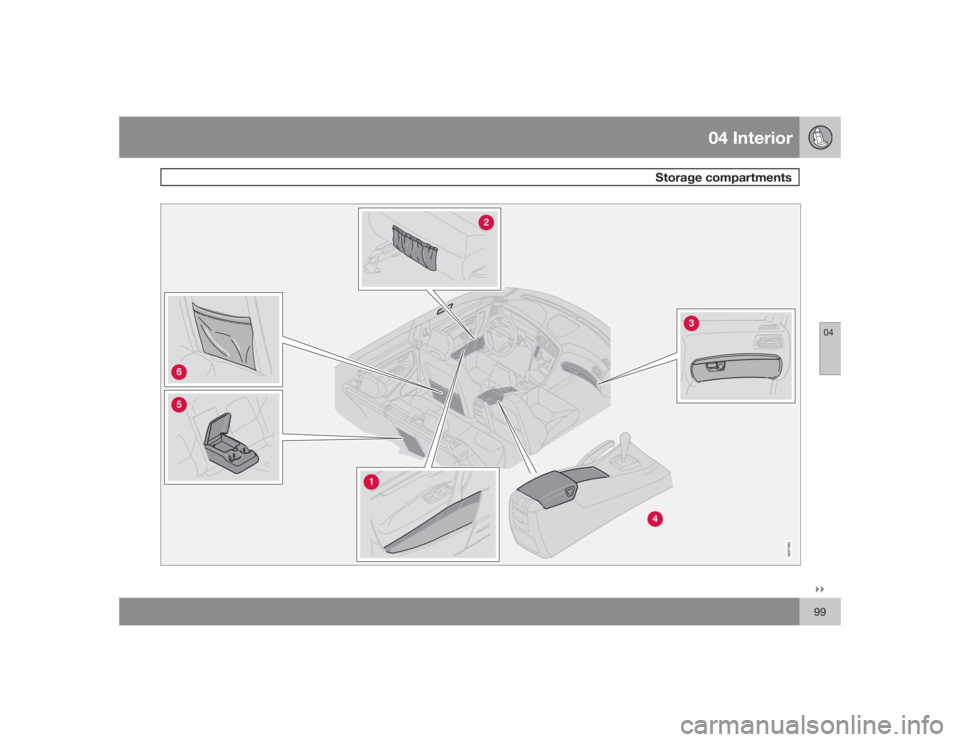

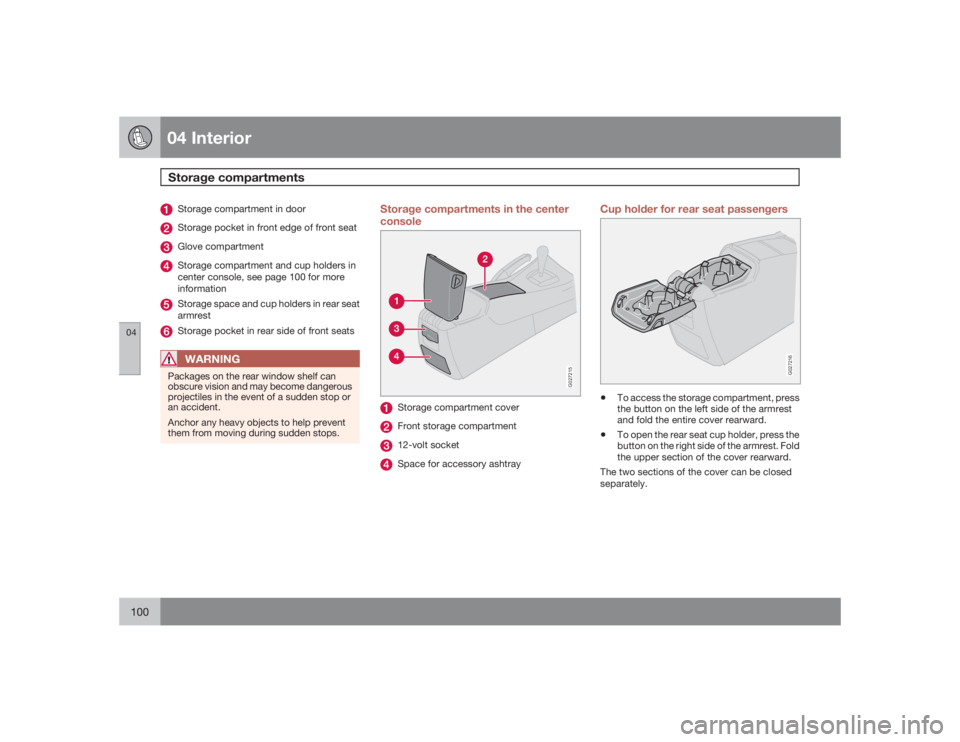

04 InteriorStorage compartments
04100
Storage compartment in doorStorage pocket in front edge of front seatGlove compartmentStorage compartment and cup holders in
center console, see page 100 for more
informationStorage space and cup holders in rear seat
armrestStorage pocket in rear side of front seatsWARNING
Packages on the rear window shelf can
obscure vision and may become dangerous
projectiles in the event of a sudden stop or
an accident.
Anchor any heavy objects to help prevent
them from moving during sudden stops.
Storage compartments in the center
console
G027215
Storage compartment coverFront storage compartment12-volt socketSpace for accessory ashtray
Cup holder for rear seat passengers
G027216
•
To access the storage compartment, press
the button on the left side of the armrest
and fold the entire cover rearward.
•
To open the rear seat cup holder, press the
button on the right side of the armrest. Fold
the upper section of the cover rearward.
The two sections of the cover can be closed
separately.
