VOLVO S60 2009 Owner´s Manual

09 Maintenance and servicing
Replacing bulbs

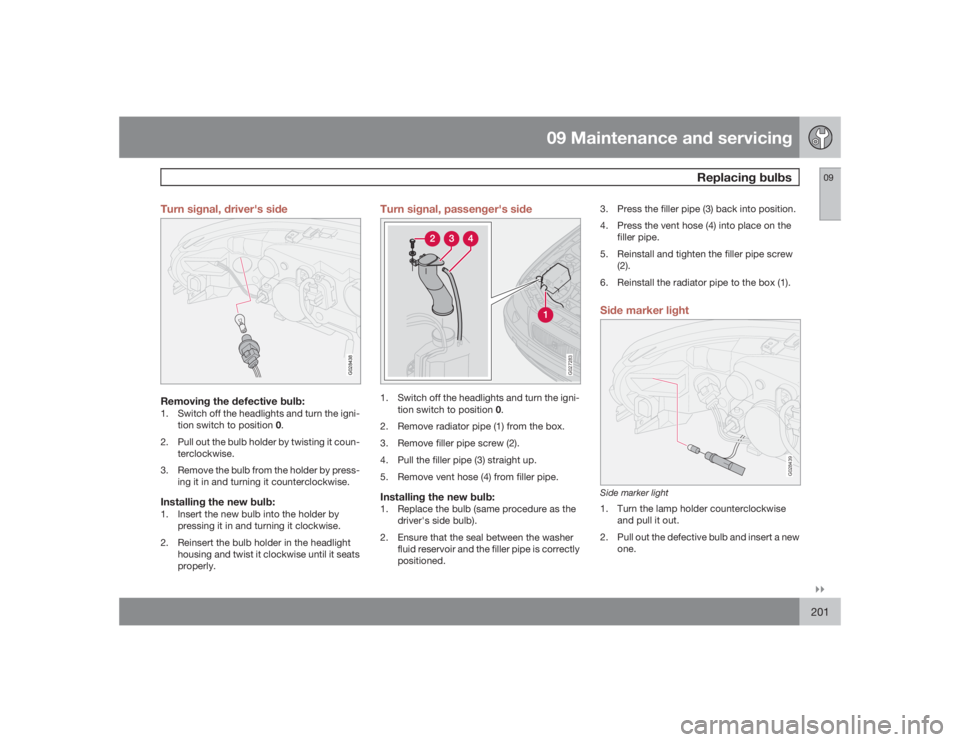

09``201 Turn signal, driver's side
G028438
Removing the defective bulb:1. Switch off the headlights and turn the igni-
tion switch to position 0.
2. Pull out the bulb holder by twisting it coun-
terclockwise.
3. Remove the bulb from the holder by press-
ing it in and turning it counterclockwise.Installing the new bulb:1. Insert the new bulb into the holder by
pressing it in and turning it clockwise.
2. Reinsert the bulb holder in the headlight
housing and twist it clockwise until it seats
properly.
Turn signal, passenger's side
G027283
1. Switch off the headlights and turn the igni-
tion switch to position 0.
2. Remove radiator pipe (1) from the box.
3. Remove filler pipe screw (2).
4. Pull the filler pipe (3) straight up.
5. Remove vent hose (4) from filler pipe.Installing the new bulb:1. Replace the bulb (same procedure as the
driver's side bulb).
2. Ensure that the seal between the washer
fluid reservoir and the filler pipe is correctly
positioned.3. Press the filler pipe (3) back into position.
4. Press the vent hose (4) into place on the
filler pipe.
5. Reinstall and tighten the filler pipe screw
(2).
6. Reinstall the radiator pipe to the box (1).
Side marker light
G028439
Side marker light1. Turn the lamp holder counterclockwise
and pull it out.
2. Pull out the defective bulb and insert a new
one.

09 Maintenance and servicingReplacing bulbs
09202
3. Reinsert the lamp holder and turn it clock-

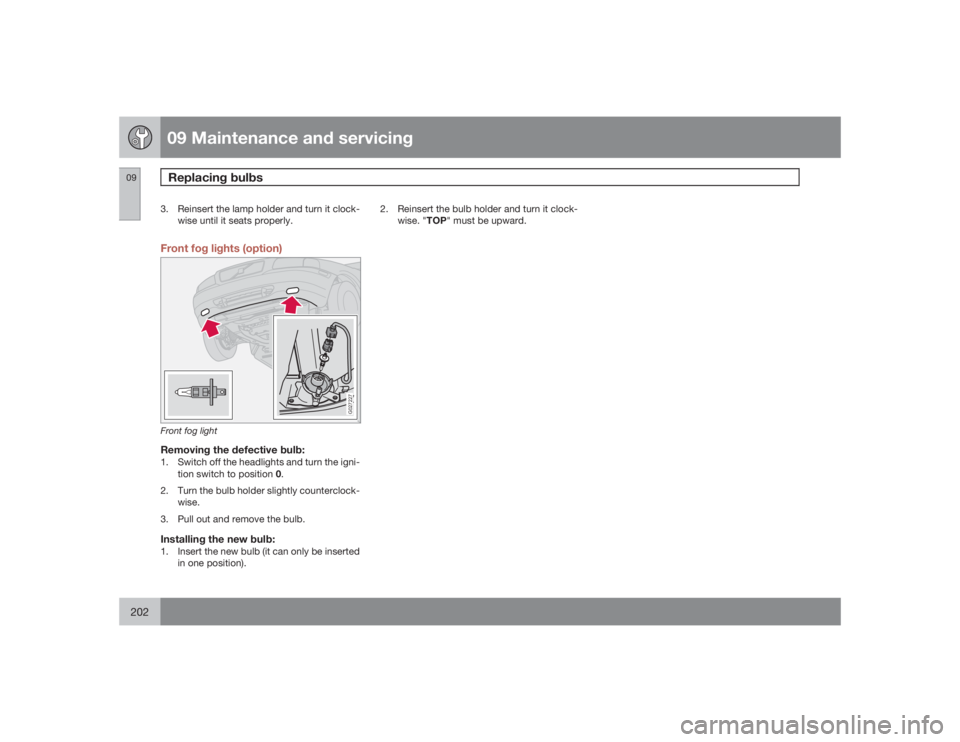

wise until it seats properly.Front fog lights (option)
G027227
Front fog lightRemoving the defective bulb:1. Switch off the headlights and turn the igni-
tion switch to position 0.
2. Turn the bulb holder slightly counterclock-
wise.
3. Pull out and remove the bulb.Installing the new bulb:1. Insert the new bulb (it can only be inserted
in one position).2. Reinsert the bulb holder and turn it clock-
wise. "TOP" must be upward.

09 Maintenance and servicing
Replacing bulbs

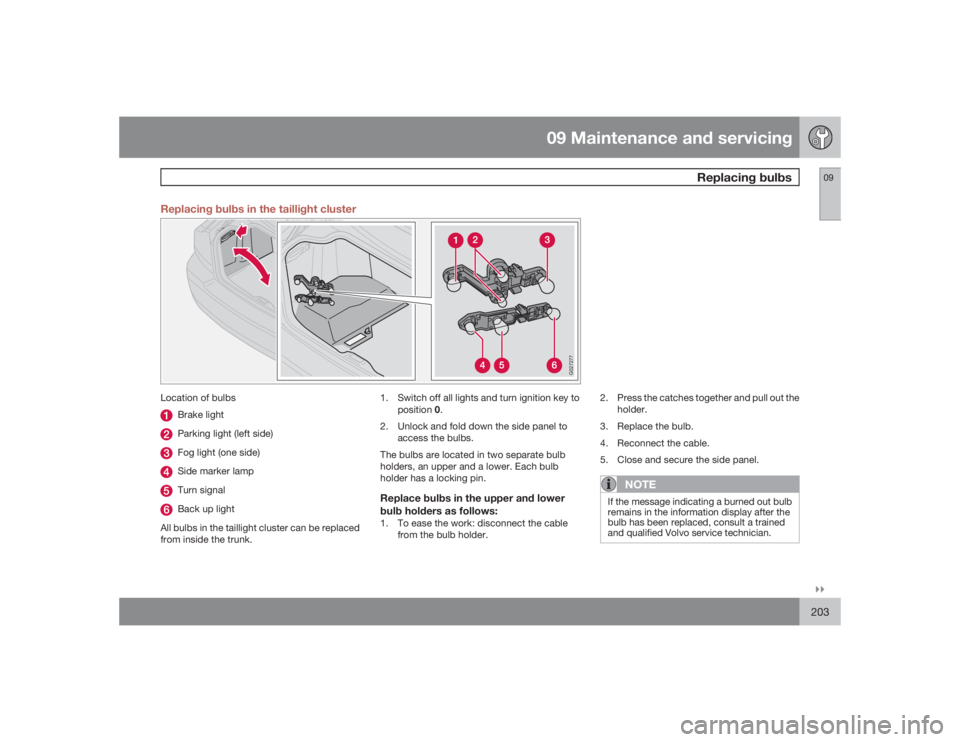

09``203 Replacing bulbs in the taillight cluster
3501204m
G027277
Location of bulbs
Brake lightParking light (left side)Fog light (one side)Side marker lampTurn signalBack up light
All bulbs in the taillight cluster can be replaced
from inside the trunk.1. Switch off all lights and turn ignition key to
position0.
2. Unlock and fold down the side panel to
access the bulbs.
The bulbs are located in two separate bulb
holders, an upper and a lower. Each bulb
holder has a locking pin.
Replace bulbs in the upper and lower
bulb holders as follows:1. To ease the work: disconnect the cable
from the bulb holder.2. Press the catches together and pull out the
holder.
3. Replace the bulb.
4. Reconnect the cable.
5. Close and secure the side panel.
NOTE
If the message indicating a burned out bulb
remains in the information display after the
bulb has been replaced, consult a trained
and qualified Volvo service technician.

09 Maintenance and servicingReplacing bulbs
09204
High level brake lightThese bulbs are of a special type. We recom-
mend that you ask a trained and qualified Volvo
service technician to replace this bulb.License plate lights
G028442
1. Switch off the ignition.
2. Loosen the screws with a torx screwdriver.
3. Carefully pull out the lamp housing.
4. Turn the bulb holder counterclockwise and
pull it out.
5. Pull out the defective bulb and insert a new
one.6. Reinsert the bulb holder into the housing
and turn it clockwise.
7. Reinstall the housing and screw it in place.
Footwell lighting
G027287
The door step courtesy lights are located under
the dash on the driver's and passenger's sides.
To replace a bulb:
1. Carefully insert a screwdriver and pry out
the lens.
2. Replace the defective bulb.
3. Reinstall the lens.
Trunk lights
G028441
1. Carefully insert a screwdriver and pry out
the lens.
2. Pry out the bulb and replace it.
3. Press the lens back into place.

09 Maintenance and servicing
Replacing bulbs
09
205 Vanity mirror
G028443
1. Carefully insert a screwdriver and pry out
the lens.
2. Pry out the defective bulb and replace it.
3. Carefully press the lower edge of the lens
onto the four tabs and press the upper
edge of the lens into place.
NOTE
Other bulbs may be difficult for you to
replace yourself. Let a trained and qualified
Volvo service technician replace these
bulbs if necessary.

09 Maintenance and servicingFuses
09206
Replacing fuses
G027179
If an electrical component fails to function, it is
possible that a fuse has blown.
Fuses are located in four different places:
Relays/fuse box in the engine compart-
ment.Fuse box in the passenger compartment,
behind plastic cover.Fuse box in the passenger compartment,
on the edge of the dashboard.Fuse box in the cargo area.
A label on the inside of each cover indicates the
amperage and the electrical components that
are connected to each fuse.The easiest way to see if a fuse is blown is to
remove it. Pull the fuse straight out. If a fuse is
difficult to remove, you will find a special fuse
removal tool (and several extra fuses) in the
passenger compartment fuse box on the driv-
er's end of dashboard. From the side, examine
the curved metal wire (see the illustration
above) to see if it is broken. If so, put in a new
fuse of the same color and amperage (written
on the fuse). Spare fuses are stored in the fuse
box in the passenger compartment. If fuses
burn out repeatedly, have the electrical system
inspected by a trained and qualified Volvo
service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses
09``207 Relay/Fuse box in the engine compartment
G026972
When replacing fuses, be sure to replace a
blown fuse with a new one of the same color
and amperage (written on the fuse).Fuses in the engine compartmentNo.
A
1
ABS
30
2
ABS
30
3
Headlight washers (certain
models)
35
4
–
No.
A
5
Auxiliary lights (option)
20
6
Starter motor relay
35
7
Windshield wipers
25
8
Fuel pump
15
9
–
10
Ignition coils, engine control
module
20
11
Throttle pedal sensor, A/C
compressor, e-box fan
10
No.
A
12
Engine control module, fuel
injectors, mass airflow sensor
15
13
Throttle housing control mod-
ule
10
14
Heated oxygen sensor
20
15
Crankcase ventilation heater,
solenoid valves
10
16
Driver's side low beam head-
light
20

09 Maintenance and servicingFuses
09208
No.
A
17
Passenger's side low beam
headlight
20
18
–
19
Engine control module feed,
engine relay
5
20
Parking lights
15
21
Vacuum pump
20

09 Maintenance and servicing
Fuses
09``209 Fuse box in the passenger compartment, behind the plastic cover
G028412
This fuse box is located behind the plastic
cover below the steering wheel. When replac-
ing a blown fuse, be sure to replace it with a
new one of the same color and amperage (writ-
ten on the fuse).No.
A
1
Heated passenger's seat
(option)
15
2
Heated driver's seat (option)
15
3
Horn
15
4
–
–
No.
A
5
–
–
6
–
–
7
–
–
8
Alarm siren (option)
5
9
Break light switch feed
5
10
Instrument panel, climate sys-
tem, power driver's seat
(option)
10
No.
A
11
12-volt sockets - front and rear
seats
15
12
–
–
13
–
14
–
15
ABS, DSTC
5
16
Power steering, Active Bi-
Xenon headlights (option)
10

09 Maintenance and servicingFuses
09210
No.
A
17
Driver's side front foglight
(option)
7.5
18
Passenger's side front foglight
(option)
7.5
19
–
–
20
–
–
21
Transmission control module,
reverse gear block (M66)
10
22
Driver's side high beam
10
23
Passenger's side high beam
10
24
–
–
25
–
–
26
–
–
27
–
–
28
Power passenger's seat
(option), audio system
5
29
Fuel pump
7.5
30
-
-
31
–
–
No.
A
32
–
–
33
Vacuum pump
20
34
Windshield washer pump
15
35
–
–
36
–
–
