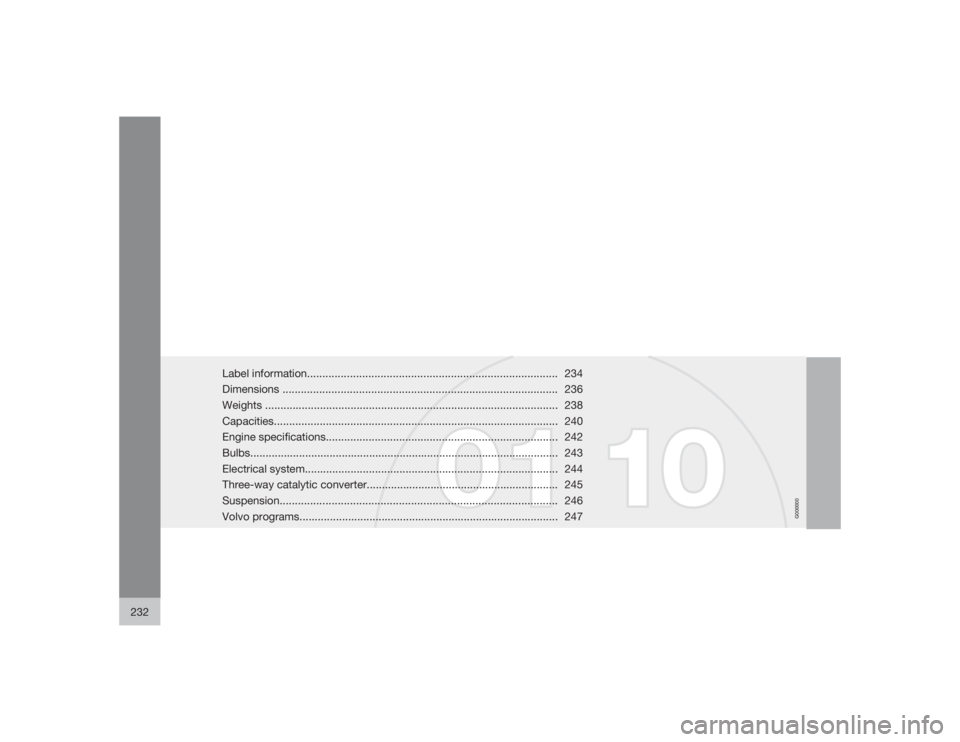

Label information.................................................................................. 234
Dimensions.......................................................................................... 236
Weights ................................................................................................ 238
Capacities............................................................................................. 240
Engine specifications............................................................................ 242
Bulbs..................................................................................................... 243
Electrical system................................................................................... 244
Three-way catalytic converter............................................................... 245
Suspension........................................................................................... 246
Volvo programs..................................................................................... 247

11
SPECIFICATIONS

11 SpecificationsLabel information
11234
REGULATIONS APPLICABLE TO 2007 MODEL YEAR NEW LEVII ULEV PASSENGER CARS. THIS VEHICLE CONFORMS TO USE EPA TIER 2 BIN 5 REGULATIONS AND CALIFORNI A
IT ALSO CONFORMS TO APPLICABLE CANADIAN EMISSION ArialS . EVAPORATIVE/REFUELING FAMILY:7VVXR0130EVX
TUNE-UP SPECIFICATIONS: NO ADJUSTMENTS NEEDED ENGINE DISPLACEMENT:3.2 LITERSENGINE: B6324S
EXHAUST EMISSION CONTROL SYSTEM :
SFI, 2HO2S, SHA/FS, 2TWC(2)TEST GROUP: 7VVXB03.2U2N MANUFACTURER: VOLVO CAR CORP. SWEDEN
VA LV E PURGE
30760010
CANISTER
OIL PUMPFILTER FROM FUEL TANK
DATE: 0303
GVWR (PNBV ):2220 KG
GAWR FRONT (PBBE AVANT ): 1130 KG
VIN: YV1CZ91451192792 TYPE: PC/VT GAWR REAR (PNBE ARRIERE): 1190 KG
30760250
COMPLIES: ICES- 2
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MO TOR
VEHICLE SAFTY, BUMPER AND THEFT PREVENTION ArialA
VIN:_YV1TS90D3Y1144849_______________________________________ ______________TYPE:PASS CAR IN EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.GAWR FRONT: 2491 LB DATE: 04/00
30760248 GAWR REAR: 2293 LBGAWR:4630 LB GAWG
HOUSE VACUM
ROUTING
CCTSPROTNARMVSSDAASNVACNA98 4
G032547

11 Specifications
Label information
11
235
1. Model plateVehicle Identification Number (VIN). Codes for
color and upholstery, etc.2. Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the facing side of the driver's
door. For further information regarding these
regulations, please consult your Volvo retailer.3. Loads and Tire PressuresThe appearance of the decal will vary, depend-
ing on the market for which the vehicle is
intended.4. Vehicle Identification Number (VIN)The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
The Vehicle Identification Number (VIN) should
always be quoted in all correspondence con-
cerning your vehicle with the retailer and when
ordering parts.5. Vehicle Emission Control Information/
Vacuum hose routingYour Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.

11 SpecificationsDimensions
11236
G020131Position
Dimension
in. (mm)
A
Wheelbase
107 in. (272 cm)
B
Length
181 in. (460 cm)
C
Load length, floor, seatback down
65.4 in. (166 cm)
D
Load length, trunk
32.2 in. (82 cm)
E
Height
56.2 in. (143 cm)
F
Track, front
61.5 in. (156 cm)
G
Track, rear
60.6 in. (154 cm)

11 Specifications
Dimensions
11
237
Position
Dimension
in. (mm)
H
Width
71 in. (180 cm)
I
Width incl. door mirrors
81.5 in. (207 cm)

11 SpecificationsWeights
11238

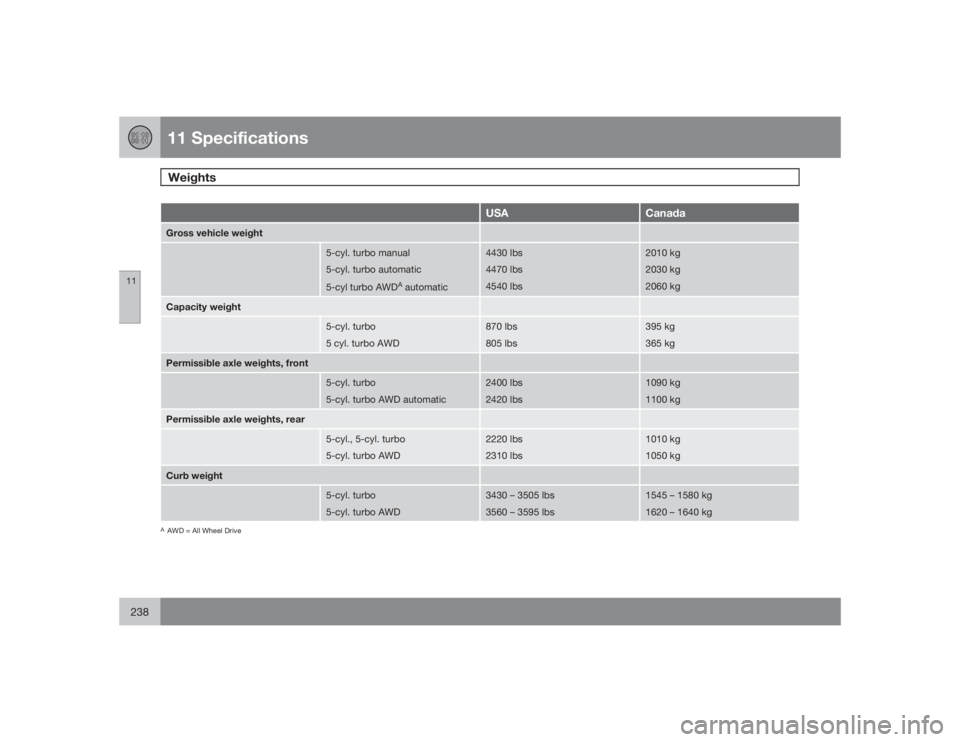

USA
Canada
Gross vehicle weight
5-cyl. turbo manual
5-cyl. turbo automatic
5-cyl turbo AWD
A automatic
4430 lbs
4470 lbs
4540 lbs
2010 kg
2030 kg
2060 kg
Capacity weight
5-cyl. turbo
5 cyl. turbo AWD
870 lbs
805 lbs
395 kg
365 kg
Permissible axle weights, front
5-cyl. turbo
5-cyl. turbo AWD automatic
2400 lbs
2420 lbs
1090 kg
1100 kg
Permissible axle weights, rear
5-cyl., 5-cyl. turbo
5-cyl. turbo AWD
2220 lbs
2310 lbs
1010 kg
1050 kg
Curb weight
5-cyl. turbo
5-cyl. turbo AWD
3430 – 3505 lbs
3560 – 3595 lbs
1545 – 1580 kg
1620 – 1640 kg
AAWD = All Wheel Drive

11 Specifications
Weights
11
239

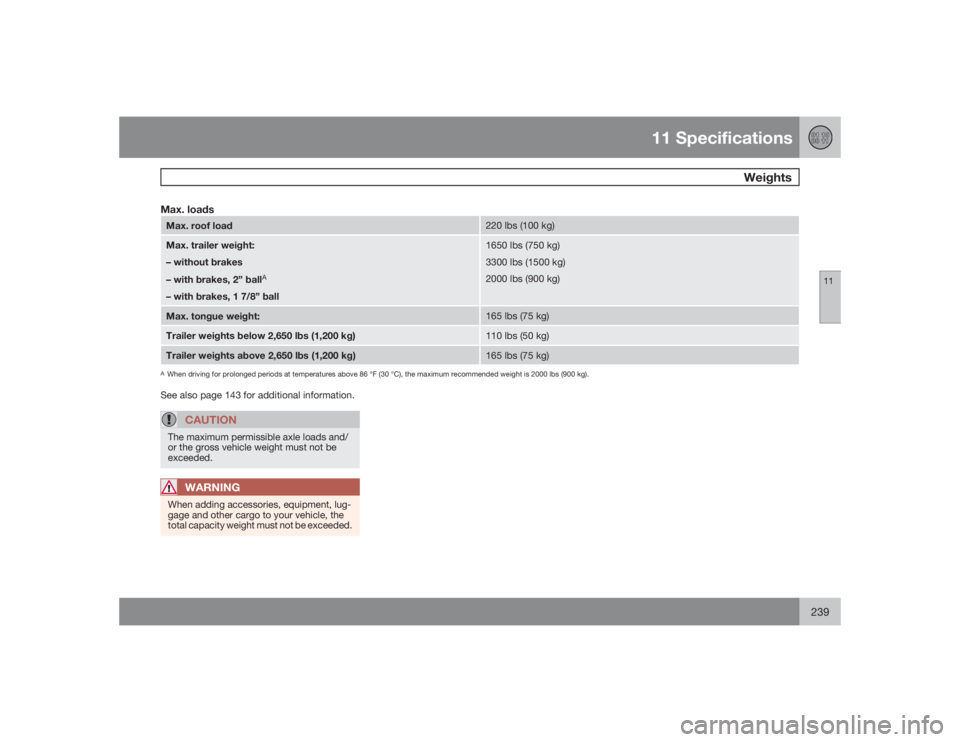

Max. loadsMax. roof load
220 lbs (100 kg)
Max. trailer weight:
– without brakes
– with brakes, 2” ball
A
– with brakes, 1 7/8” ball
1650 lbs (750 kg)
3300 lbs (1500 kg)
2000 lbs (900 kg)
Max. tongue weight:
165 lbs (75 kg)
Trailer weights below 2,650 lbs (1,200 kg)
110 lbs (50 kg)
Trailer weights above 2,650 lbs (1,200 kg)
165 lbs (75 kg)
AWhen driving for prolonged periods at temperatures above 86 °F (30 °C), the maximum recommended weight is 2000 lbs (900 kg).See also page 143 for additional information.
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 SpecificationsCapacities
11240
Specifications and capacitiesCategory
Specification
Capacity
Fuel tank
Volvo engines are designed to achieve rated horsepower,
torque, and fuel economy performance using premium 91
octane fuel.
Volvo recommends premium for best performance, but
using 87 octane or above will not affect engine reliability
18 US gal. (68 liters).
Engine oil (with filter
replacement)
B5254T2
Engine oil must meet the minimum ILSAC specification
GF-4, API SL, or ACEA A1/B1. Lower quality oils may not
offer the same fuel economy, engine performance, or
engine protection.
Volvo recommends Castrol.
5.8 US qts. (5.5 liters).
1.3 US qts (1.2 liters) between MIN and MAX
on dipstick
B5244T5
Automatic transmission oil
AW5
JWS 3309
Different types of oil should never be mixed.
7.6 US qts. (7.2 liters)
Manual transmission oil
M66
MTF 97309
2.1 US qts. (2.0 liters)
Coolant
Volvo original coolant/antifreeze
9.3 US qts (8.8 liters).
The thermostat begins to open at 194 °F
(90 °C).
Brake fluid
DOT 4+ boiling point >536 °F (280 °C).
0.69 US qts. (0.65 liters)
