09 Maintenance and servicing
Hood and engine compartment
09
189
G027253

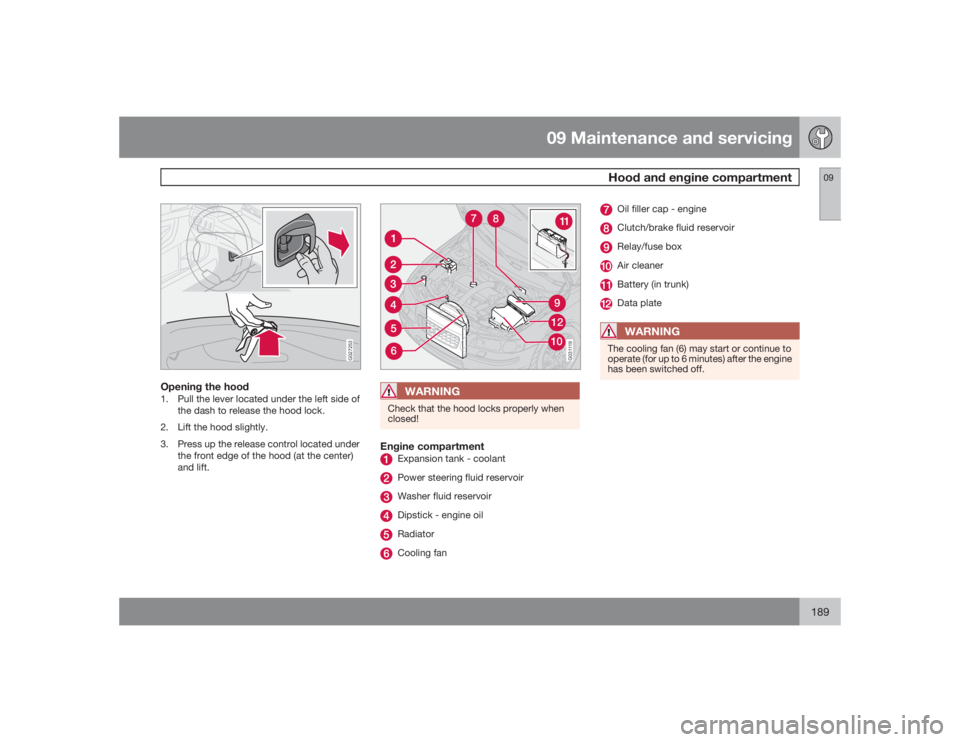

Opening the hood1. Pull the lever located under the left side of
the dash to release the hood lock.
2. Lift the hood slightly.
3. Press up the release control located under
the front edge of the hood (at the center)
and lift.
7
8
9
10
612
G031119
WARNING
Check that the hood locks properly when
closed!Engine compartment
Expansion tank - coolantPower steering fluid reservoirWasher fluid reservoirDipstick - engine oilRadiatorCooling fan
Oil filler cap - engineClutch/brake fluid reservoirRelay/fuse boxAir cleanerBattery (in trunk)Data plateWARNING
The cooling fan (6) may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.

09 Maintenance and servicing
Engine oil
09
191
NOTE
Volvo uses different systems to indicate a
low oil level or pressure. Some models have
an oil pressure sensor, in which case a
warning symbol (see page 52) is used to
indicate low oil pressure. Other models have
an oil level sensor, in which case the driver
is alerted by the warning symbol in the cen-
ter of the instrument panel and a text in the
information display. Some models use both
systems. Contact a trained and qualified
Volvo service technician for more informa-
tion.Changing engine oil and oil filterSee the information on oil specifications above
and page 240 for oil volumes. Refer to the
Warranty and Service Records Information
booklet for information on the oil change inter-
vals.
NOTE
•
Volvo does not recommend the use of
oil additives.
•
Synthetic oil is not used when the oil is
changed at the normal maintenance
intervals except at owner request and at
additional charge. Please consult a
trained and qualified Volvo service tech-
nician.
Checking and adding oilThe oil level should be checked every time the
vehicle is refueled. This is especially important
during the period up to the first scheduled
maintenance service.•
The vehicle should be parked on a level
surface when the oil is checked.
•
If the engine is warm, wait for at least
10-15 minutes after the engine has been
switched off before checking the oil.
Checking the oil
G020336
1. Pull out the dipstick and wipe it with a lint-
free rag.2. Reinsert the dipstick, pull it out, and check
the oil level.
3. Add oil if necessary. If the level is close to
theMINmark, add approximately
1 US quart (1 liter) of oil.
4. Run the engine until it reaches normal
operating temperature.
5. Switch off the engine and wait for at least
10-15 minutes and recheck the oil level. If
necessary, add oil until the level is near the
MAX mark.
CAUTION
•
Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.
•
Never fill oil above the MAX mark. This
could cause an increase in oil consump-
tion.
•
Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.
•
Always add oil of the same type and
viscosity as already used.WARNING
Do not allow oil to spill onto or come into
contact with hot exhaust pipe surfaces.

11 SpecificationsCapacities
11240
Specifications and capacitiesCategory
Specification
Capacity
Fuel tank
Volvo engines are designed to achieve rated horsepower,
torque, and fuel economy performance using premium 91
octane fuel.
Volvo recommends premium for best performance, but
using 87 octane or above will not affect engine reliability
18 US gal. (68 liters).
Engine oil (with filter
replacement)
B5254T2
Engine oil must meet the minimum ILSAC specification
GF-4, API SL, or ACEA A1/B1. Lower quality oils may not
offer the same fuel economy, engine performance, or
engine protection.
Volvo recommends Castrol.
5.8 US qts. (5.5 liters).
1.3 US qts (1.2 liters) between MIN and MAX
on dipstick
B5244T5
Automatic transmission oil
AW5
JWS 3309
Different types of oil should never be mixed.
7.6 US qts. (7.2 liters)
Manual transmission oil
M66
MTF 97309
2.1 US qts. (2.0 liters)
Coolant
Volvo original coolant/antifreeze
9.3 US qts (8.8 liters).
The thermostat begins to open at 194 °F
(90 °C).
Brake fluid
DOT 4+ boiling point >536 °F (280 °C).
0.69 US qts. (0.65 liters)
