VOLVO S60 2012 Owner´s Manual

VOLVO S60
Owner's manualWeb Edition

Welcome to the world-wide family of Volvo owners. We trust that you
will enjoy many years of safe driving in your Volvo, an automobile
designed with your safety and comfort in mind. We encourage you
to familiarize yourself with the equipment descriptions and operating
instructions in this manual.
We also urge you and your passengers to wear seat belts at all times
in this (or any other) vehicle. And, of course, please do not operate avehicle if you may be affected by alcohol, medication or any impair-
ment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable federal safety and
emission standards. If you have any questions regarding your vehicle,
please contact your Volvo retailer or see the section "Contacting
Volvo" in this manual's "Introduction" chapter for information on get-
ting in touch with Volvo in the United States and Canada.

Contents
4
00
00 Introduction
Important information................................. 8
Environment.............................................. 13
Important warnings................................... 14
01
01 Safety
Occupant safety........................................ 18
Reporting safety defects........................... 19
Seat belts ................................................. 20
Supplemental Restraint System (SRS) .... 24
Occupant Weight Sensor ......................... 29
Side impact protection (SIPS) airbags ..... 33
Inflatable Curtain (IC) ............................... 35
Whiplash Protection System – WHIPS..... 36
Crash mode.............................................. 38
Child safety............................................... 39
Child restraint systems............................. 42
Infant seats............................................... 44
Convertible seats...................................... 46
Booster cushions...................................... 48
ISOFIX/LATCH lower anchors.................. 49
Top tether anchors.................................... 50
Child safety locks...................................... 51
02
02 Locks and alarm
Remote key and key blade....................... 54
Valet locking ............................................. 62
Keyless drive............................................. 63
Locks........................................................ 67
Alarm......................................................... 72

Contents
* Option/accessory, for more information, see Introduction.5
03
03 Your driving environment
Instruments and controls.......................... 78
Ignition modes.......................................... 86
Seats......................................................... 88
Steering wheel.......................................... 94
Lighting..................................................... 96
Wipers and washers...............................102
Power windows....................................... 104
Mirrors..................................................... 106
Compass*............................................... 108
Power moonroof*.................................... 109
HomeLink
® Wireless Control System*.... 111
Starting the engine.................................. 114
Transmission...........................................118
Brakes..................................................... 121
Parking brake.......................................... 124
04
04 Comfort and driving pleasure
Volvo Sensus.......................................... 130
Menus and messages............................. 131
The MY CAR menus...............................133
Climate system....................................... 139
Trip computer......................................... 147
Stability system....................................... 149
Active chassis system–Four C*............... 152
Cruise control.......................................... 153
Adaptive Cruise Control (ACC)*.............. 155
Distance Alert* ....................................... 165
City Safety™ .......................................... 168
Collision warning with Full Auto-brake and
Pedestrian Detection*............................. 173
Driver Alert System* ............................... 181
Park assist*............................................. 187
Rear Park Assist Camera (PAC)* ............ 191
Blind Spot Information System*.............. 195
Passenger compartment convenience. . . 199
05
05 Infotainment
Introduction............................................. 204
Getting started ....................................... 206
General infotainment functions .............. 210
Radio....................................................... 213
Media player........................................... 222
AUX/USB sockets................................... 226
Bluetooth
Ÿ media ................................... 229
Bluetooth® hands-free connection ........ 232
Cell phone voice control......................... 240
Infotainment system menus ................... 244

Contents
6
06
06 During your trip
Driving recommendations....................... 250
Refueling................................................. 254
Loading................................................... 259
Towing a trailer....................................... 262
Emergency towing.................................. 265
07
07 Wheels and tires
General information ...............................270
Tire inflation............................................. 273
Inflation pressure ...................................275
Tire designations .................................... 276
Glossary of tire terminology ................... 278
Vehicle loading ....................................... 279
Uniform Tire Quality Grading ................. 281
Snow chains, snow tires, studded tires . 282
Temporary Spare ................................... 283
Tire Sealing System................................ 284
Changing a wheel ..................................290
Tire Pressure Monitoring System (TPMS) 293
08
08 Maintenance and
specifications
Volvo maintenance.................................. 298
Maintaining your car............................... 299
Hood and engine compartment.............. 301
Engine oil................................................ 302
Fluids...................................................... 304
Replacing bulbs...................................... 306
Wiper blades and washer fluid................ 313
Battery..................................................... 315
Fuses...................................................... 319
Vehicle care............................................. 327

Contents
7

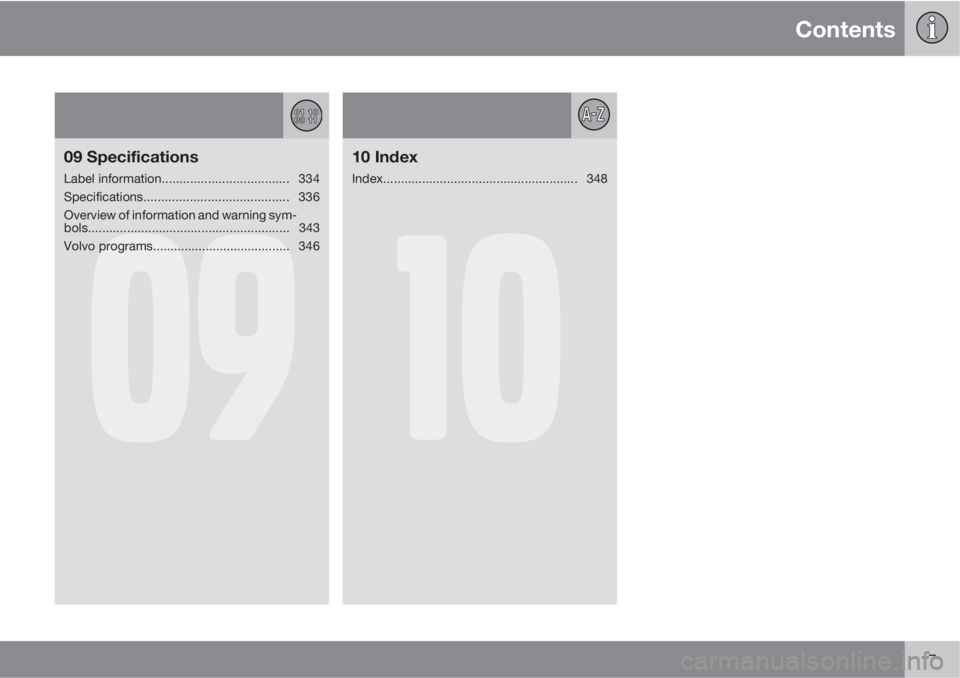

09
09 Specifications
Label information.................................... 334
Specifications......................................... 336
Overview of information and warning sym-
bols.........................................................343
Volvo programs....................................... 346
10
10 Index
Index.......................................................348

Introduction
Important information
8
Contacting Volvo
In the USA:
Volvo Cars of North America, LLC
Customer Care Center
1 Volvo Drive,
P.O. Box 914
Rockleigh, New Jersey 07647
1-800-458-1552
www.volvocars.us
In Canada:
Volvo Cars of Canada Corp
National Customer Service
175 Gordon Baker Road
North York, Ontario M2H 2N7
1-800-663-8255
www.volvocars.ca
About this manual
•Before you operate your vehicle for the first
time, please familiarize yourself with the
information found in the chapters "Your
Driving Environment" and "During Your
Trip."
•Information contained in the balance of the
manual is extremely useful and should be
read after operating the vehicle for the first
time.
•The manual is structured so that it can be
used for reference. For this reason, it
should be kept in the vehicle for ready
access.
FootnotesCertain pages of this manual contain informa-
tion in the form of footnotes at the bottom of
the page. This information supplements the
text that the footnote number refers to (a letter
is used if the footnote refers to text in a table).
Display textsThere are several displays in the driver’s field
of vision that show messages generated by
various systems and functions in the vehicle.
These texts are indicated in the Owner’s Man-
ual by being in slightly larger type than the sur-
rounding text and are printed in gray, (for
example:
Change doors unlock setting).
DecalsThere are various types of decals in the vehicle
whose purpose is to provide important infor-
mation in a clear and concise way. The impor-
tance of these decals is explained as follows,
in descending order of importance.
Risk of injury
G031590
Black ISO symbols on a yellow warning back-
ground, white text/image on a black back-
ground. Decals of this type are used to indicate
potential danger. Ignoring a warning of this
type could result in serious injury or death.

Introduction
Important information
9
Risk of damage to the vehicle
G031592
White ISO symbols and white text/image on a
black or blue warning background and space
for a message. If the information on decals of
this type is ignored, damage to the vehicle
could result.
Information
G031593
White ISO symbols and white text/image on a
black background. These decals provide gen-
eral information.
NOTE
The decals shown in the Owner’s Manual
are examples only and are not intended to
be reproductions of the decals actually used
in the vehicle. The purpose is to give an indi-
cation of how they look and their approxi-
mate location in the vehicle. The applicable
information for your particular vehicle can
be found on the respective decals in the
vehicle.
Types of lists used in the manual
Procedures
Procedures (step-by-step instructions), or
actions that must be carried out in a certain
order, are arranged in numbered lists in this
manual.
If there is a series of illustrations associated
with step-by-step instructions, each step
in the procedure is numbered in the same
way as the corresponding illustration.
Lists in which letters are used can be found
with series of illustrations in cases where
the order in which the instructions are car-
ried out is not important.
Arrows with or without numbers are used
to indicate the direction of a movement.
If there are no illustrations associated with a
step-by-step list, the steps in the procedure
are indicated by ordinary numbers.
Position listsRed circles containing a number are used
in general overview illustrations in which
certain components are pointed out. The
corresponding number is also used in the
position list's description of the various
components.

Introduction
Important information
10
Bullet listsBullets are used to differentiate a number of
components/functions/points of information
that can be listed in random order.
For example:
•Coolant
•Engine oil
Continued
 This symbol can be found at the lower right
corner of an odd-numbered (right-hand) page
to indicate that the current topic is continued
on the following page.
Options and accessoriesOptional or accessory equipment described in
this manual is indicated by an asterisk.
Optional or accessory equipment may not be
available in all countries or markets. Please
note that some vehicles may be equipped dif-
ferently, depending on special legal require-
ments.
Contact your Volvo retailer for additional infor-
mation.
NOTE
•All information, illustrations and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication.
•Volvo reserves the right to make model
changes at any time, or to change spec-
ifications or design without notice and
without incurring obligation.
•Do not export your Volvo to another
country before investigating that coun-
try's applicable safety and emission
control requirements. In some cases it
may be difficult or impossible to comply
with these requirements. Modifications
to the emission control system(s) may
render your Volvo not certifiable for
legal operation in the U.S., Canada and
other countries.
WARNING
If your vehicle is involved in an accident,
unseen damage may affect its drivability
and safety.
WARNING
CALIFORNIA proposition 65
Engine exhaust, some of its constituents,
and certain vehicle components contain or
emit chemicals known to the state of Cali-
fornia to cause cancer, and birth defects or
other reproductive harm. In addition, certain
fluids contained in vehicles and certain
products of component wear contain or
emit chemicals known to the State of Cali-
fornia to cause cancer, and birth defects or
other reproductive harm.
WARNING
Certain components of this vehicle such as
air bag modules, seat belt pretensioners,
adaptive steering columns, and button cell
batteries may contain Perchlorate material.
Special handling may apply for service or
vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
